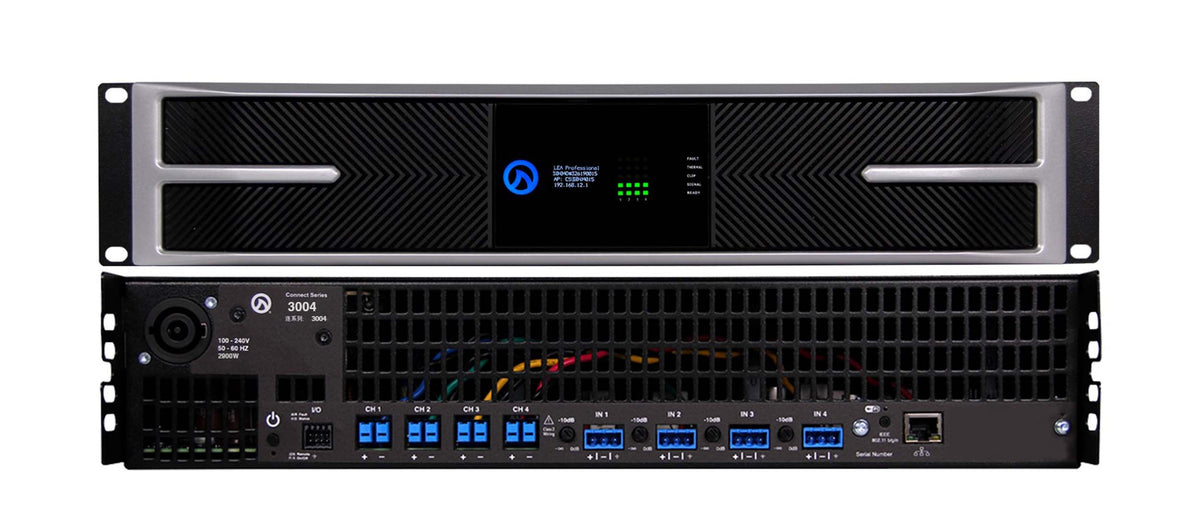

The LEA Professional CONNECT 3004 is a high-power, four-channel professional smart amplifier designed for large-scale audio installations. Delivering 3,000 watts per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V, it supports both low-impedance loudspeakers and high-impedance distributed audio systems. Each channel can be configured independently for low-impedance or 70V/100V operation, providing flexibility for demanding commercial sound reinforcement and multi-zone installations.

The CONNECT 3004 combines a highly efficient Class-D output stage with proprietary Smart Power Bridge technology and a 96kHz Analog Devices SHARC DSP processor featuring a 32-bit core and sample rate converters. Its advanced processing includes linear-phase FIR crossovers, IIR filters up to 48dB per octave, eight-band parametric EQ per channel, up to four seconds of output delay, adjustable speaker limiting, and real-time load monitoring. Built-in protection functions help safeguard the amplifier and connected loudspeakers during operation.

Designed for networked audio environments, the CONNECT 3004 offers three connection methods: its built-in Wi-Fi access point, an existing venue Wi-Fi network, or wired Ethernet through Cat5 or Cat6 cable. Browser-based WebUI allows configuration from compatible devices without additional software downloads, while LEA Cloud enables remote control, monitoring, and notifications without requiring a VPN. The amplifier also features four balanced analog inputs, external I/O for remote on/off and fault monitoring, and support for third-party API control. The CONNECT 3004 Network Connect model is distinct from the CONNECT 3004D Dante Connect version, which adds Dante connectivity.

Key Feature

• Four-channel professional network smart amplifier rated at 3,000W per channel.
• 3,000W per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V.
• Independent Lo-Z and 70V/100V output selection per channel.
• Class-D amplification with proprietary Smart Power Bridge technology.
• 96kHz Analog Devices SHARC DSP with a 32-bit core.
• Linear-phase FIR crossovers and IIR filters up to 48dB per octave.
• Eight-band parametric EQ and up to four seconds of output delay per channel.
• Built-in Wi-Fi, venue Wi-Fi, and wired Ethernet connectivity.
• Browser-based WebUI, LEA Cloud, and third-party API control.
• External I/O for remote on/off control and amplifier health monitoring.

Ideal For

• Large-scale commercial audio installations.
• Professional sound reinforcement systems.
• Corporate offices and conference facilities.
• Educational institutions and public venues.
• Houses of worship.
• Hospitality and entertainment venues.
• Multi-zone 70V/100V distributed audio systems.
• High-power networked audio installations.

What's in the Box

• LEA Professional CONNECT 3004, 4-Channel Network Smart Amplifier.

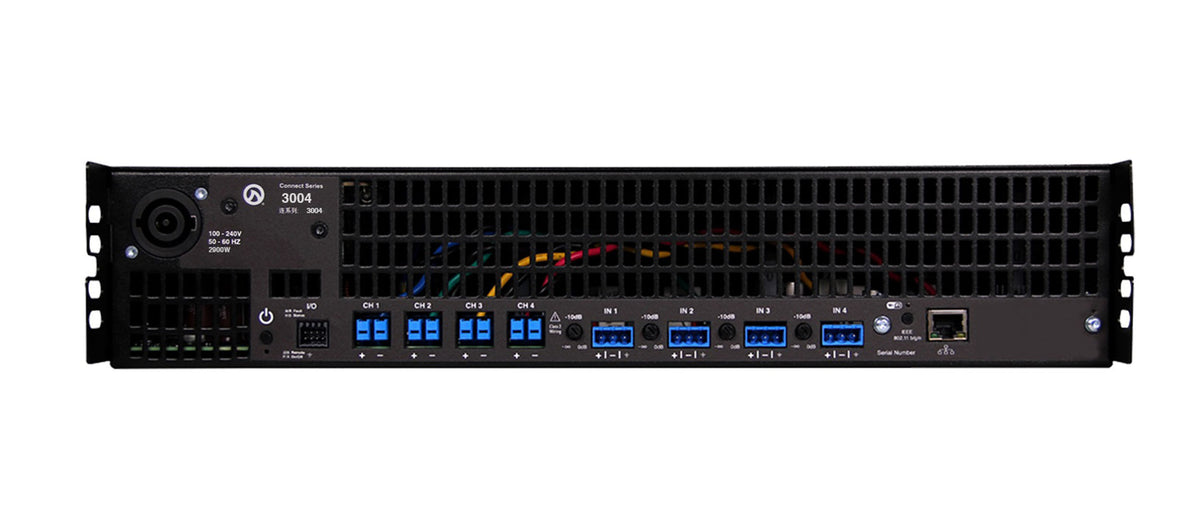

Inputs & Outputs

• Four balanced analog audio inputs with selectable 26dB or 34dB input sensitivity.
• Four amplifier output channels supporting Lo-Z and Hi-Z operation.
• Network connectivity through built-in Wi-Fi access point, existing Wi-Fi, or wired Ethernet.
• External I/O input for remote on/off control.
• External I/O output for amplifier health indication.
• Third-party API and LEA Cloud control support.

Frequently Asked Questions

How many channels does the CONNECT 3004 have?

The CONNECT 3004 is a four-channel professional smart amplifier.

What is the output power per channel?

The supplied power table lists 3,000W per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V.

Does the CONNECT 3004 support 70V and 100V loudspeaker systems?

Yes. Each channel can be configured for 70V or 100V high-impedance operation, or low-impedance operation.

What is the difference between the CONNECT 3004 and CONNECT 3004D?

The CONNECT 3004 is the Network Connect version. The CONNECT 3004D is the Dante Connect version, which adds Dante connectivity alongside its supported network audio features.

Can the amplifier be controlled remotely?

Yes. It supports browser-based WebUI, LEA Cloud, and third-party API control. LEA Cloud provides remote monitoring and control without requiring a VPN.

What DSP processing is included?

The amplifier includes input routing with primary and secondary input priority, linear-phase FIR crossovers, IIR filters up to 48dB per octave, eight-band parametric EQ per channel, up to four seconds of output delay per channel, adjustable peak and RMS voltage limiting, and real-time load monitoring.

Full Technical Specifications

Amplifier and Audio Specifications

Model	CONNECT 3004
Product Series	CONNECTSERIES Network Connect
Amplifier Channels	4
Power per Channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V	3000 Watts
Amplifier Class	Class D
Output Technology	Proprietary Smart Power Bridge
Output Modes	Lo-Z, 70V, or 100V, selectable per channel
THD+N	0.1% (20Hz–20kHz)
Frequency Response	20Hz–20kHz, ±0.5dB at 4Ω, 8Ω, 70V, and 100V; -2.5dB at 20kHz at 2Ω
Signal-to-Noise Ratio	105dB (20Hz–20kHz, referenced to 8Ω)
Crosstalk	70dB (20Hz–20kHz)
Analog Inputs	4 balanced inputs
Analog Input Sensitivity	Selectable 26dB or 34dB
Amplifier Class	Class D
Output Technology	Proprietary Smart Power Bridge
Output Modes	Lo-Z, 70V, or 100V, selectable per channel

DSP & Signal Processing

DSP Architecture	Analog Devices SHARC DSP
DSP Sample Rate	96kHz
DSP Core	32-bit with sample rate converters
Input Matrix	Routable matrix; any input to any output
Input Priority	Primary and secondary input priority
FIR Crossovers	Linear-phase brickwall FIR filters
IIR Crossovers	Up to 48dB per octave
Crossover Types	Linkwitz-Riley and Butterworth
Parametric EQ	8 bands per channel
Output Delay	Up to 4 seconds per channel
User-Adjustable Limiting	Peak voltage and RMS voltage

Network & Control

User Interface	Browser-based WebUI
Control Options	WebUI, LEA Cloud, and third-party API
Network Connectivity	Built-in Wi-Fi access point, existing Wi-Fi network, or wired LAN
Wired Network Connection	Cat5 or Cat6 Ethernet
Cloud Control	Remote control, monitoring, and notifications without requiring a VPN
Software Downloads	Not required for browser-based WebUI access
External I/O Input	Remote on/off control
External I/O Output	Amplifier health indication

Power & Electrical Requirements

AC Mains	100–240VAC ±15%
Mains Frequency	50Hz or 60Hz
Power Supply	Universal switch-mode power supply
Power Factor Correction	Yes
Output Stage	High-efficiency Class D

Connectivity & Protection Features

Output Protection	DC, VHF, and AC mains protection
Thermal Protection	Overtemperature protection
Current Protection	Current limiter
Fan Monitoring	Fan fault detection
Speaker Limiting	User-adjustable peak and RMS voltage limits
Load Monitoring	Real-time load monitoring and pilot tone detection
Cooling	Front-to-rear airflow with variable-speed fan
Fan Noise at Idle	50dB at 1m
Fan Noise at 50% Speed	57dB at 1m
Fan Noise at Full Speed	63dB at 1m

Physical Specifications

Rack Format	2U
Product Dimensions (L × W × H)	17.88 × 19 × 3.5 inches
Product Weight	26 lbs
Shipping Dimensions (L × W × H)	22 × 22.75 × 8 inches
Shipping Weight	30 lbs
