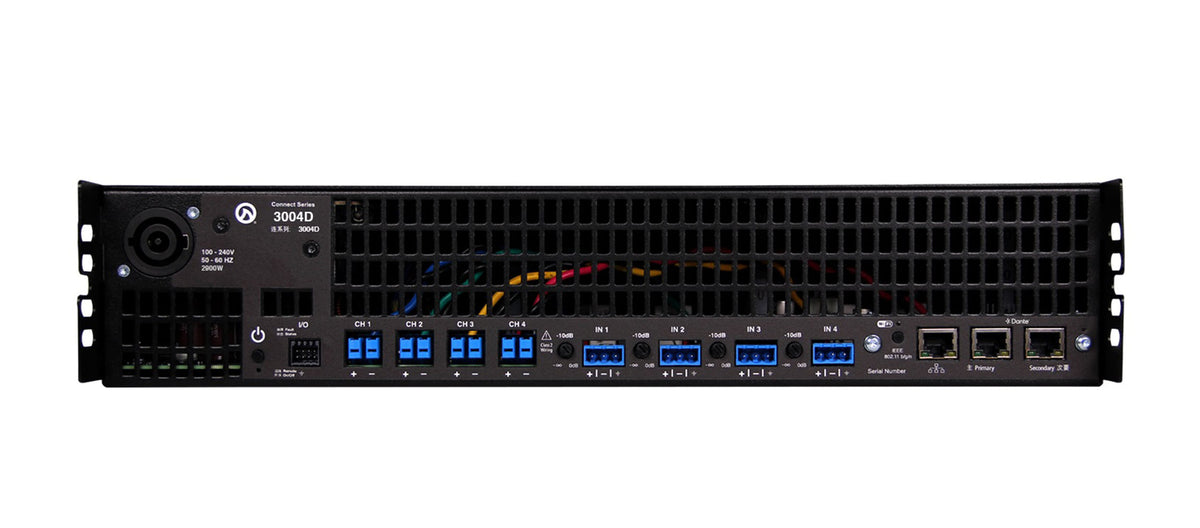

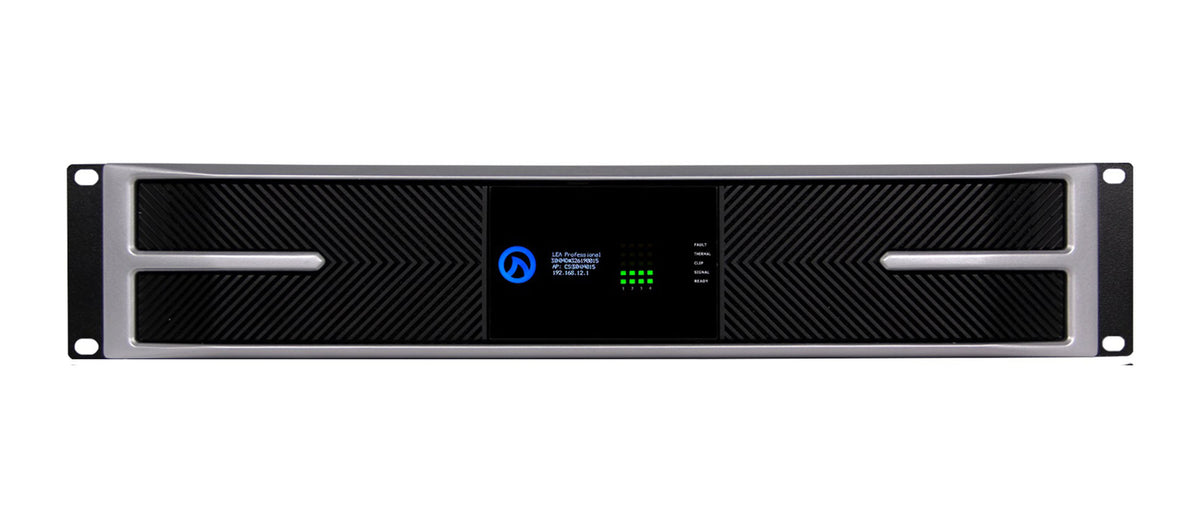

The LEA Professional CS3004D Connect Series Dante Smart Amplifier is a four-channel, high-power professional amplifier designed for large-scale commercial audio installations. Delivering up to 3,000 watts per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V, it supports low-impedance loudspeakers and high-impedance distributed audio systems. Its selectable channel configuration provides flexibility for installations requiring multiple independent audio zones, high output power, and networked audio distribution.

Built around a highly efficient Class-D output stage and Analog Devices SHARC 96kHz DSP, the CS3004D provides advanced audio processing and system protection. Features include flexible input routing, linear-phase brickwall FIR crossovers, IIR crossover filters up to 48dB per octave, eight-band parametric EQ per channel, adjustable speaker limiting, and real-time load monitoring. Output delay of up to four seconds per channel supports precise audio alignment, while proprietary Smart Power Bridge technology enables bridged output functionality on two channels without sacrificing another amplifier channel.

The CS3004D offers browser-based WebUI access, third-party API control, and LEA Cloud connectivity for remote configuration, monitoring, and notifications. Its four balanced analog inputs support flexible routing through the input matrix, while Dante and AES67 connectivity support networked digital audio distribution. Network connection options include a built-in Wi-Fi access point, an existing venue Wi-Fi network, or wired Ethernet via Cat5 or Cat6 cable. External I/O supports remote on/off control and amplifier health monitoring.

Key Features

• Four-channel high-power Class-D smart amplifier.
• 3,000W per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V.
• Selectable low-impedance and 70V/100V operation per channel.
• Analog Devices SHARC 96kHz DSP with a 32-bit core.
• Linear-phase brickwall FIR crossovers and IIR filters up to 48dB per octave.
• Eight-band parametric EQ per channel.
• Up to four seconds of output delay per channel.
• Smart Power Bridge technology for bridged output functionality.
• Dante and AES67 network audio connectivity.
• Browser-based WebUI, third-party API, and LEA Cloud control.
• Built-in Wi-Fi access point, venue Wi-Fi, and wired Ethernet connectivity.
• External I/O for remote control and amplifier fault monitoring.

Ideal For

• Large commercial sound installations.
• Corporate offices and conference facilities.
• Educational institutions and auditoriums.
• Hospitality and retail environments.
• Houses of worship.
• Stadiums and large performance venues.
• Dante-enabled audio installations.
• Multi-zone 70V/100V and low-impedance audio systems.

What's in the Box

• LEA Professional CS3004D 4-Channel Dante Smart Amplifier.

Inputs & Outputs

• Four balanced analog audio inputs with selectable 26dB or 34dB input sensitivity.
• Dante digital audio networking.
• AES67 compatibility for supported network audio configurations.
• Amplifier outputs supporting 2Ω, 4Ω, 8Ω, 25V, and 70V/100V operation according to the published power ratings.
• Built-in Wi-Fi access point for network connectivity.
• Wireless connection to an existing venue Wi-Fi network.
• Wired Ethernet connection via Cat5 or Cat6 cable.
• External I/O input for remote on/off control.
• External I/O output for amplifier health indication.

Frequently Asked Questions

How many channels does the CS3004D provide?

The CS3004D is a four-channel professional amplifier, with power ratings specified per channel.

What is the output power per channel?

The published specifications list 3,000W per channel at 2Ω, 4Ω, 8Ω, 25V, and 70V/100V.

Does the CS3004D support Dante and AES67?

Yes. The CS3004D is the Dante version of the Connect Series amplifier, with Dante and AES67 network audio connectivity options.

Does this amplifier support Wi-Fi?

Yes. The Connect Series 3004 platform supports a built-in Wi-Fi access point, connection to an existing venue Wi-Fi network, and wired Ethernet connectivity. The available connection options depend on the specific model and configuration.

Can the amplifier be controlled remotely?

Yes. It supports browser-based WebUI control, third-party API integration, and LEA Cloud remote control and monitoring without requiring a VPN for Cloud access.

What DSP features does the CS3004D offer?

It includes a 96kHz Analog Devices SHARC DSP processor with a 32-bit core, linear-phase brickwall FIR crossovers, IIR crossover filters up to 48dB per octave, eight-band parametric EQ per channel, and up to four seconds of output delay per channel.

Full Technical Specifications

Amplifier and Audio Specifications

Model	CONNECT 3004D
Amplifier Channels	4 Channels
Power per Channel at 2Ω, 4Ω, 8Ω, 25, 70V/100V	3000 Watts
Amplifier Class	Class D
Smart Power Bridge	Yes
Output Modes	Lo-Z, 70V, 100V
Channel Configuration	Selectable per Channel
THD+N	0.1% (20Hz–20kHz)
Frequency Response	20Hz–20kHz, ±0.5dB at 4Ω, 8Ω, 70V, and 100V
Frequency Response at 2Ω	-2.5dB at 20kHz
Signal-to-Noise Ratio	105dB (referenced to 8Ω)
Crosstalk	70dB (20Hz–20kHz)
Analog Inputs	4 Balanced Inputs
Input Sensitivity	Selectable 26dB / 34dB
Dante Interface	Dante CONNECT version
AES67 Support	Supported network audio option
Amplifier Class	Class D
Smart Power Bridge	Yes

DSP & Signal Processing

DSP Processor	Analog Devices SHARC
DSP Sample Rate	96kHz
DSP Core	32-bit
Sample Rate Conversion	Supported
Input Matrix	Routable Input-to-Output Matrix
Input Priority	Primary and Secondary
Crossover Filters	Linear-Phase Brickwall FIR and IIR Filters up to 48dB/Octave
Crossover Types	Linkwitz-Riley and Butterworth IIR
Parametric EQ	8 Bands per Channel
Output Delay	Up to 4 Seconds per Channel
User-Adjustable Limiting	Peak Voltage and RMS Voltage
Output Protection	DC, VHF, AC Mains, Overtemperature, and Current Limiter
Load Monitoring	Real-Time Monitoring and Pilot Tone Detection

Network & Control

User Interface	Browser-Based WebUI
Cloud Connectivity	LEA Cloud
Third-Party Control	API Control
Network Connection	Built-in Wi-Fi Access Point, Existing Wi-Fi Network, or Wired LAN
Dante Networking	Supported
AES67 Networking	Supported network audio option
Remote Monitoring	Yes
Remote Control	Yes
External I/O Input	Remote On/Off
External I/O Output	Amplifier Health Status
User Interface	Browser-Based WebUI

Power & Electrical Requirements

AC Mains	100–240VAC ±15%
Operating Frequency	50Hz / 60Hz
Power Supply	Universal Switch-Mode
Power Factor Correction	Yes
Output Stage	High-Efficiency Class D
Cooling System	Variable-Speed Fan
Cooling Direction	Front to Rear

Connectivity & Protection Features

Analog Connectivity	4 Balanced Inputs
Digital Audio Connectivity	Dante
AES67 Support	Supported network audio option
External Control	Remote On/Off
Fault Monitoring	Amplifier Health Indication
Load Protection	DC and VHF Protection
AC Mains Protection	Supported
Thermal Protection	Overtemperature Protection
Current Protection	Current Limiter
Fan Monitoring	Fan Fault Detection
Load Monitoring	Internal or External Pilot Tone Detection
Network Management	WebUI, LEA Cloud, and Third-Party API
Remote Access	Cloud-Based Control and Monitoring

Physical Specifications

Product Dimensions (L × W × H)	17.88 × 19 × 3.5 inches
Product Weight	26 lbs
Shipping Dimensions (L × W × H)	22 × 22.75 × 8 inches
Shipping Weight	30 lbs
Rack Format	2U
Fan Noise at Idle	50dB at 1m
Fan Noise at 50% Speed	57dB at 1m
Fan Noise at Full Speed	63dB at 1m
