Descripción

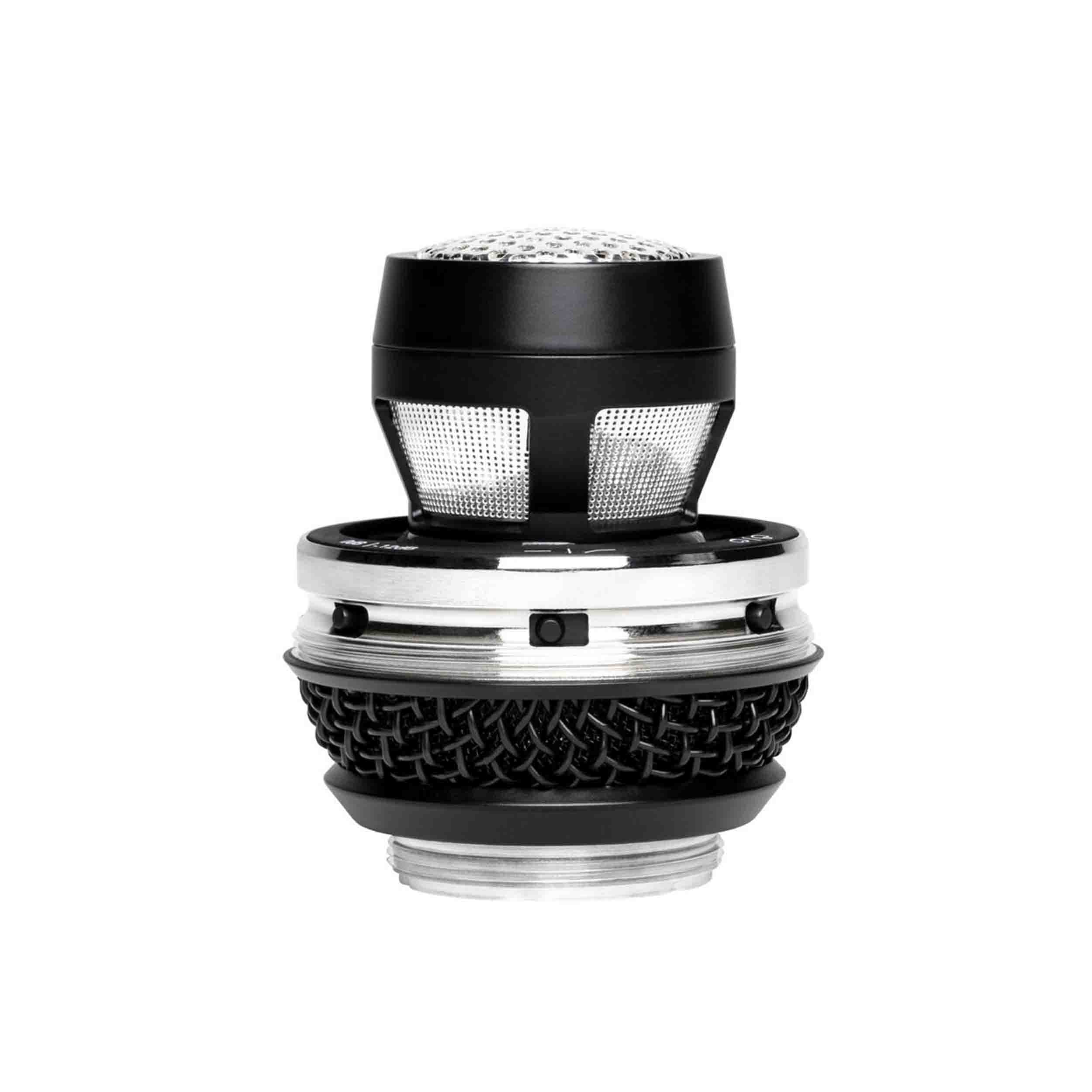

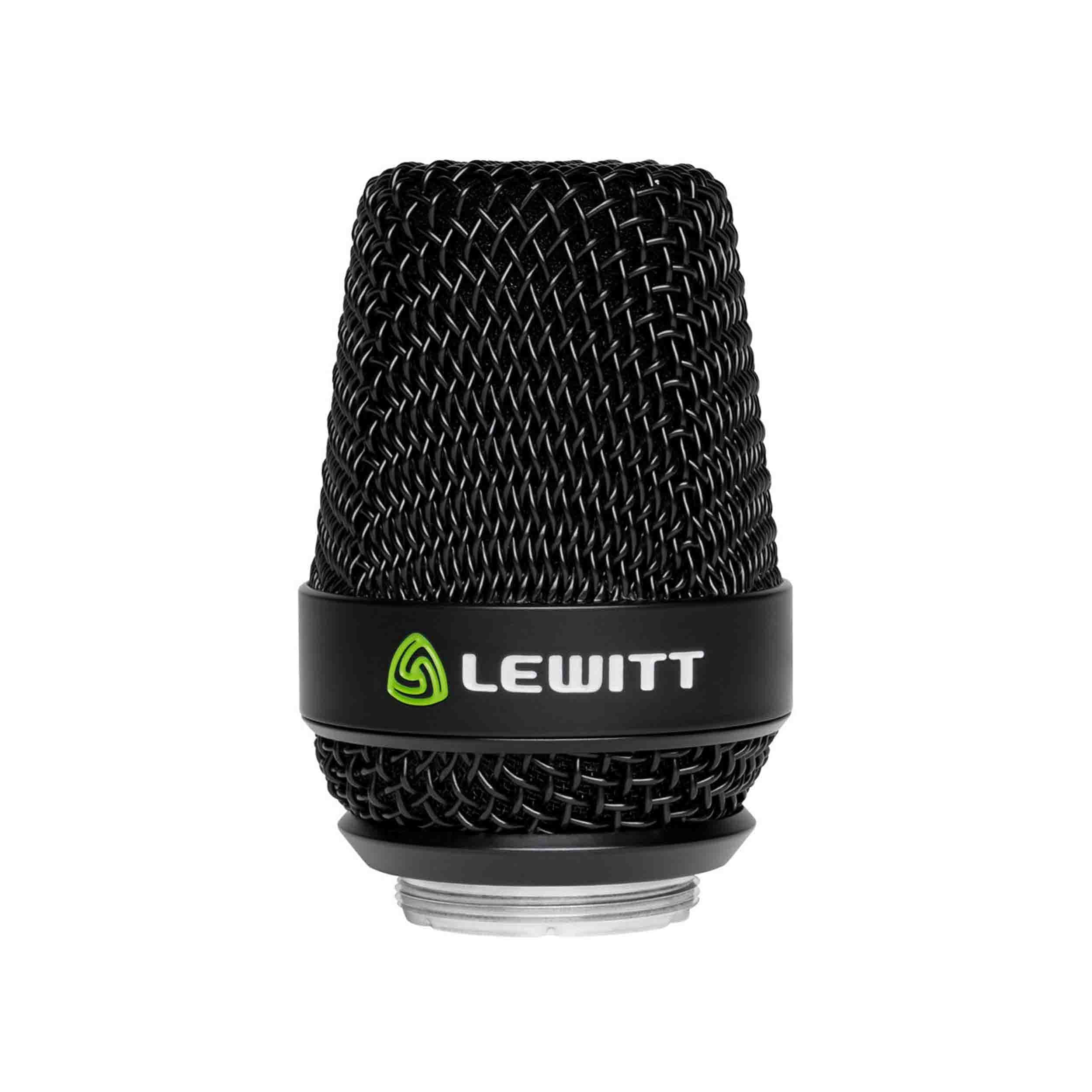

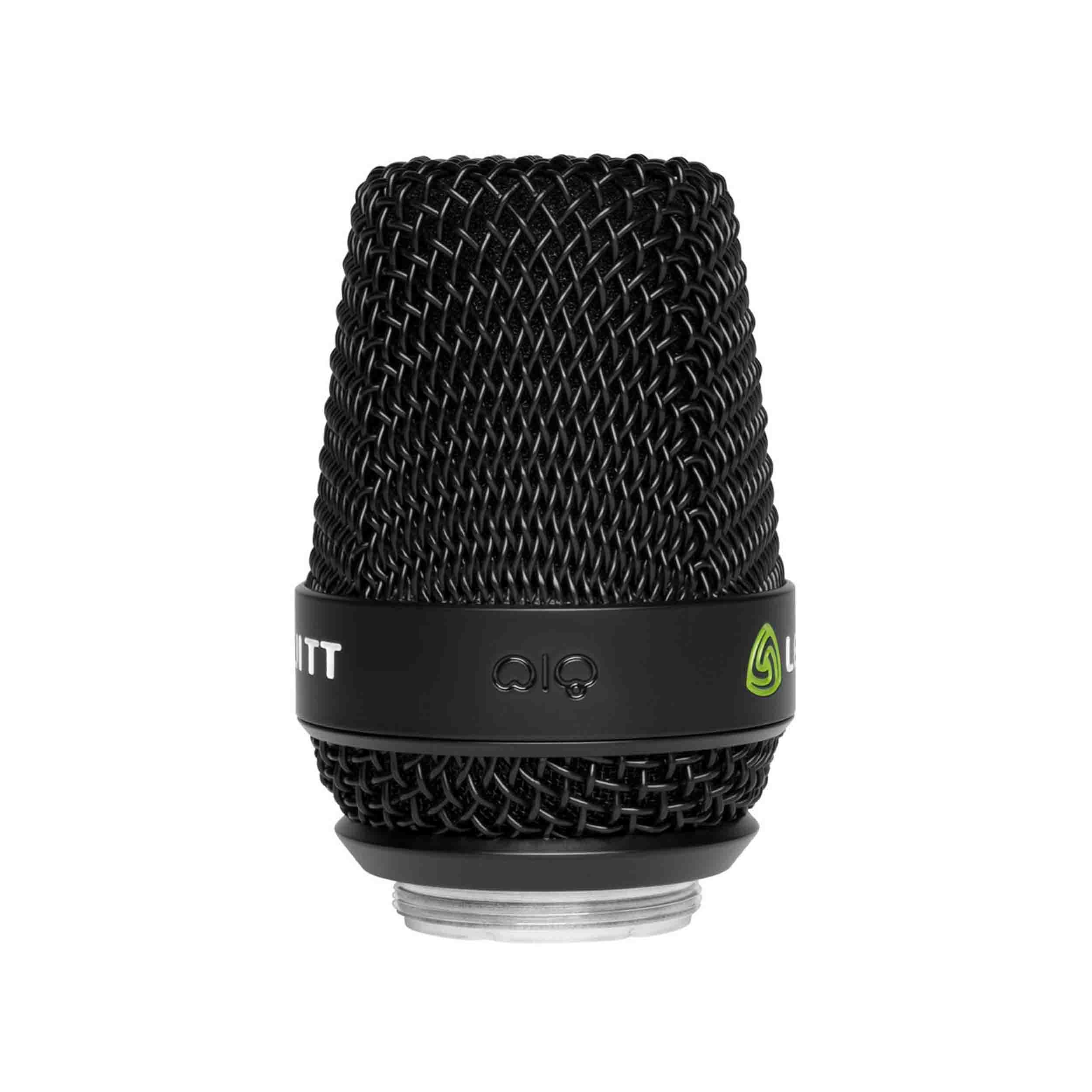

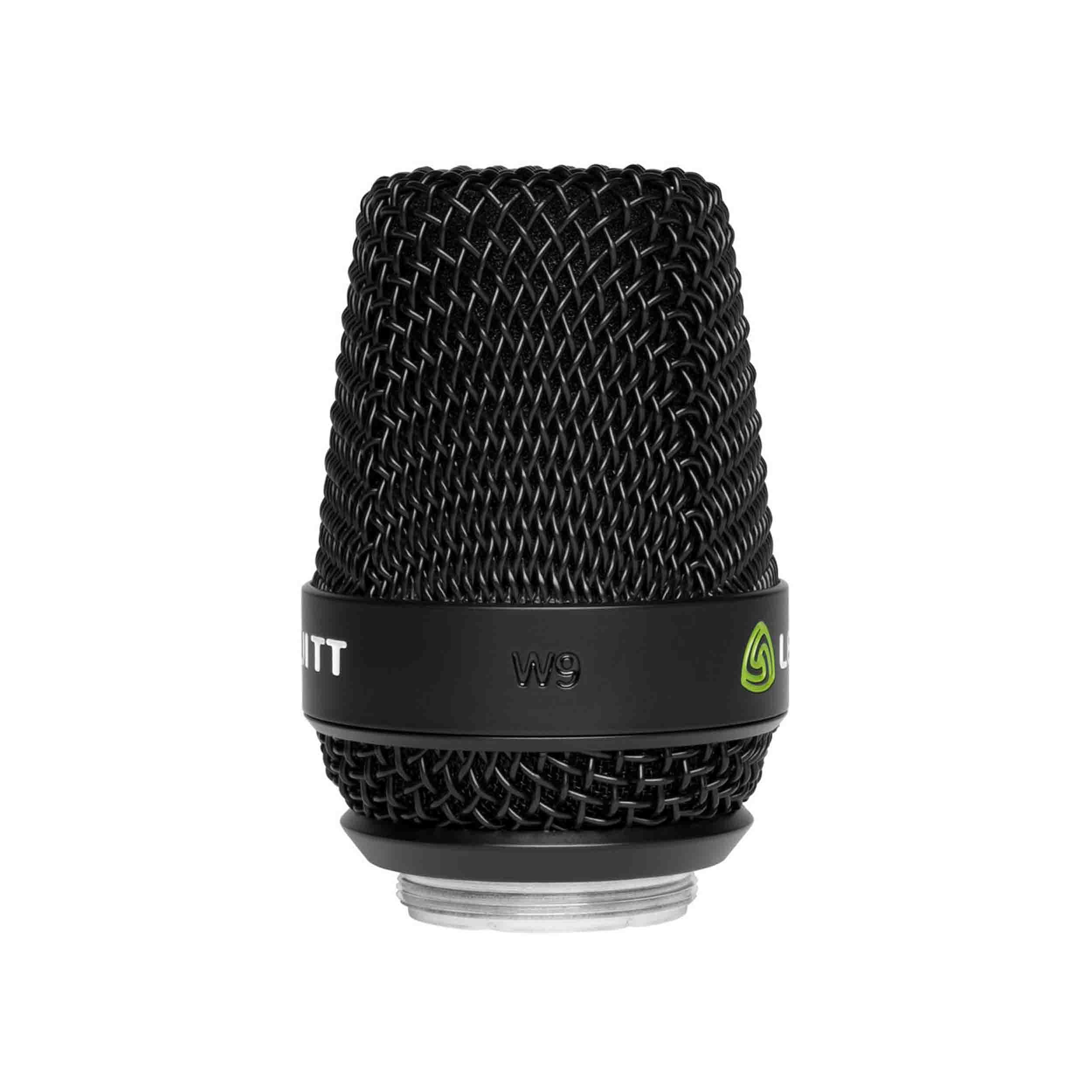

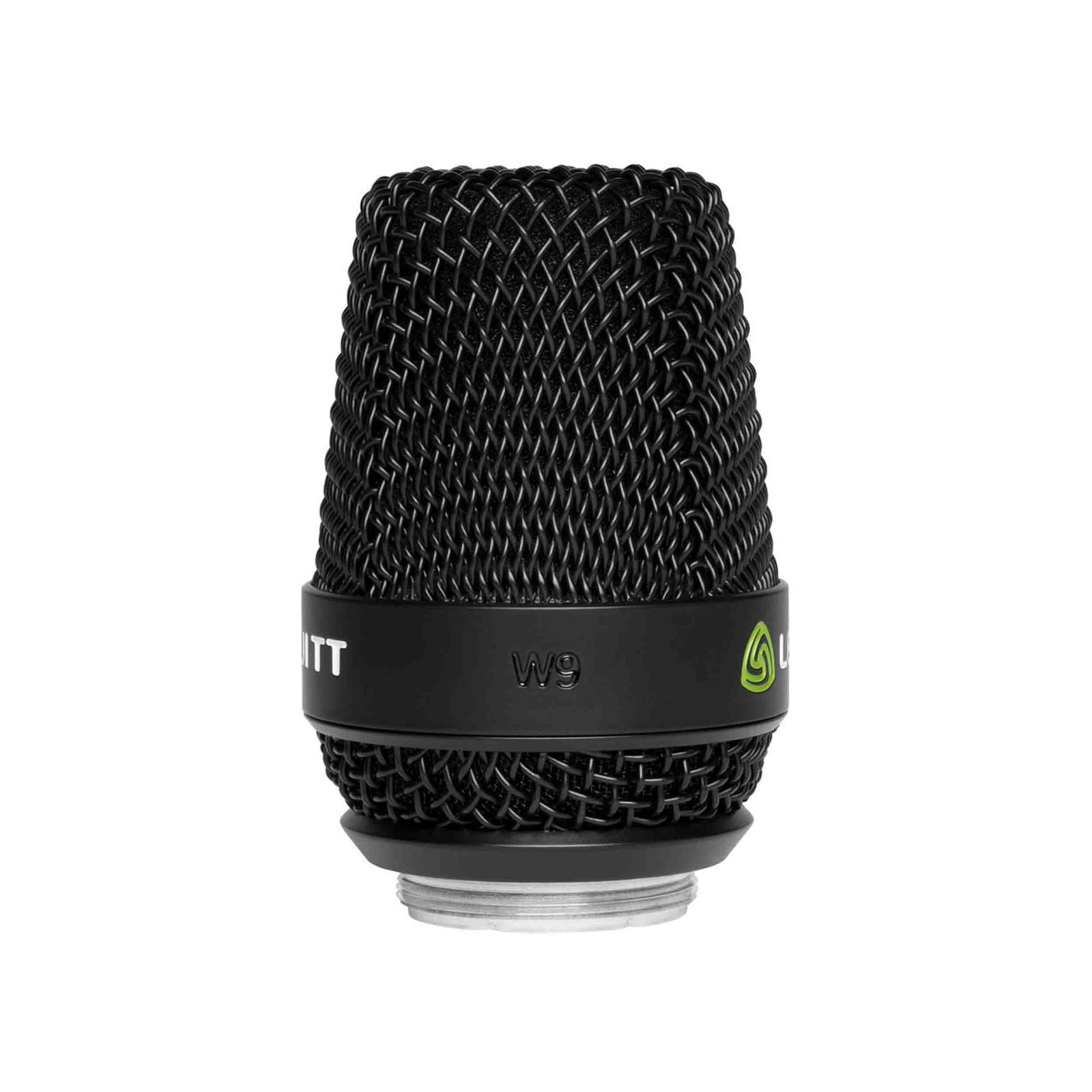

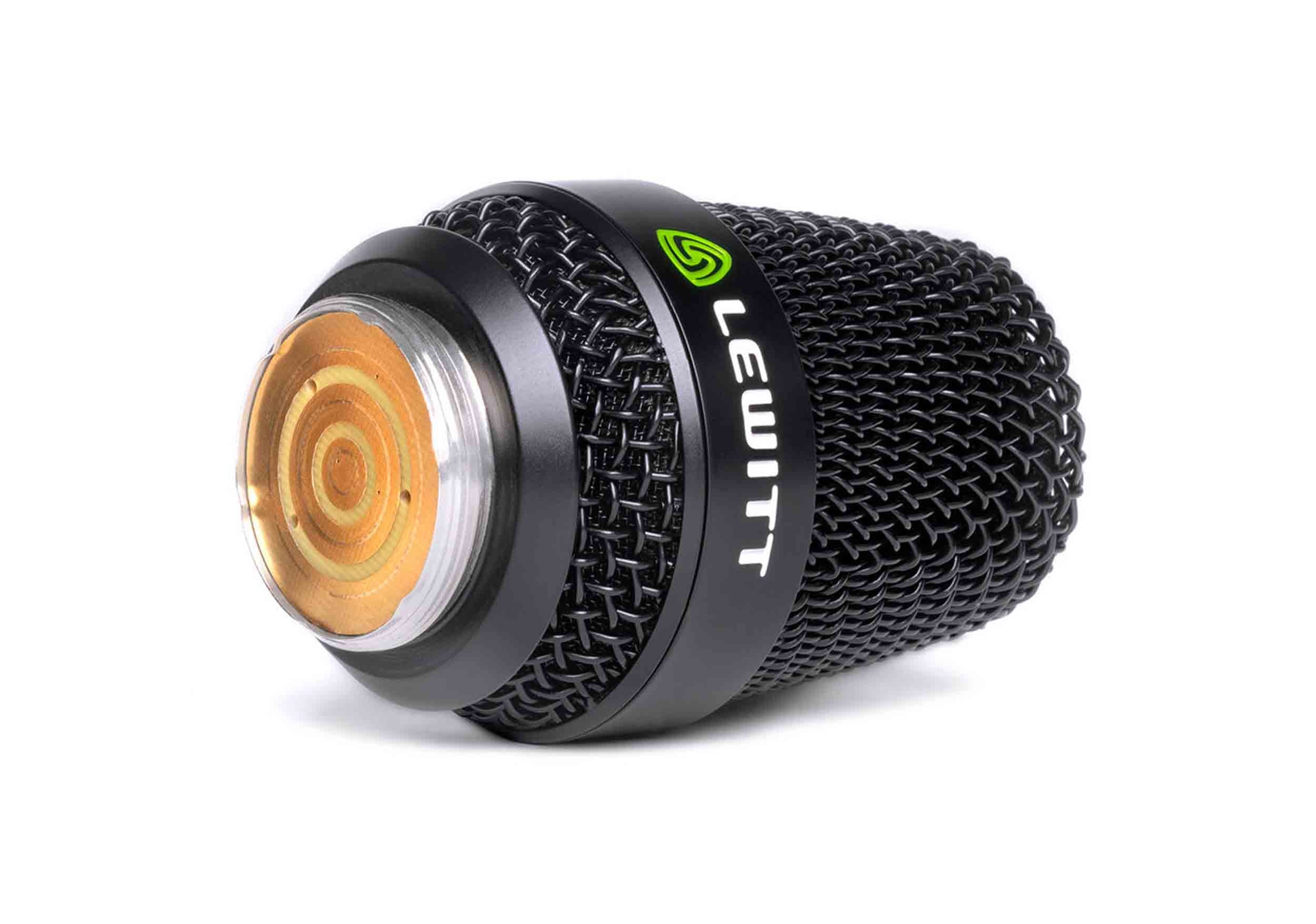

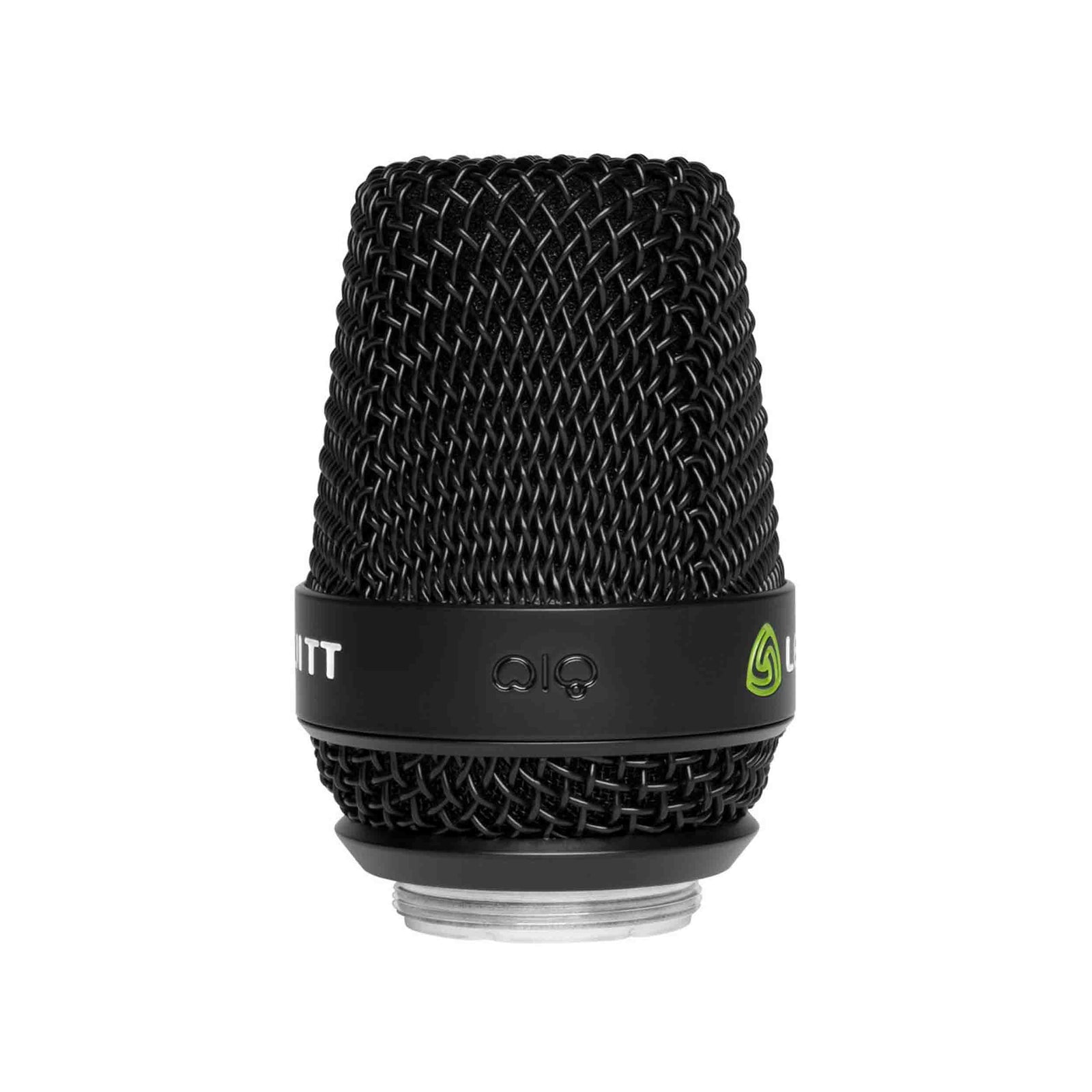

The Lewitt W9 is a premium 1-inch true condenser capsule designed to bring studio-quality sound to live performances. Its externally polarized condenser design delivers clear, detailed, and natural audio reproduction. The capsule supports both cardioid and supercardioid polar patterns for flexible sound capture. With a 140 dBSPL maximum SPL, it handles powerful vocal performances with excellent clarity. Its high sensitivity provides detailed signal capture across demanding live applications. The W9 is designed and tested for professional stage use.
The W9 capsule is directly compatible with industry-standard wireless microphone systems, making it a practical upgrade for professional wireless setups. Its cupping-safe design helps maintain consistent tone even when performers hold the microphone close to the capsule. The capsule is optimized to reduce the effects of plosives and moisture during demanding vocal performances. A selectable -12 dB attenuation setting provides additional headroom for loud sources. The integrated 120 Hz low-cut filter helps control unwanted low-frequency content. These features make the W9 highly adaptable for live vocals and professional stage environments.
Built around a 25.4 mm true condenser transducer, the W9 provides a detailed and open sound with strong vocal presence. It features a 73 dB(A) signal-to-noise ratio and 21 dB(A) self-noise for clean audio performance. The capsule uses a 1¼-28UN-2A connection thread and requires a minimum 5 V supply voltage. Its compact 51 mm diameter and 183 mm length allow it to integrate easily into compatible microphone systems. The 230 g construction balances professional durability with practical handling. The W9 is an excellent choice for performers and live sound professionals seeking studio-quality wireless microphone performance.
Product Specifications:
Type: Condenser, externally polarized.
Acoustical Operating Principle: Pressure gradient transducer.
Transducer Diameter: 25.4 mm / 1".
Polar Pattern: Cardioid, supercardioid.
Sensitivity: 8.1 mV/Pa, -41 dBV/Pa.
Self-Noise: 21 dB(A).
Maximum SPL: 140 dBSPL at 0.5% THD.
Signal-to-Noise Ratio: 73 dB(A).

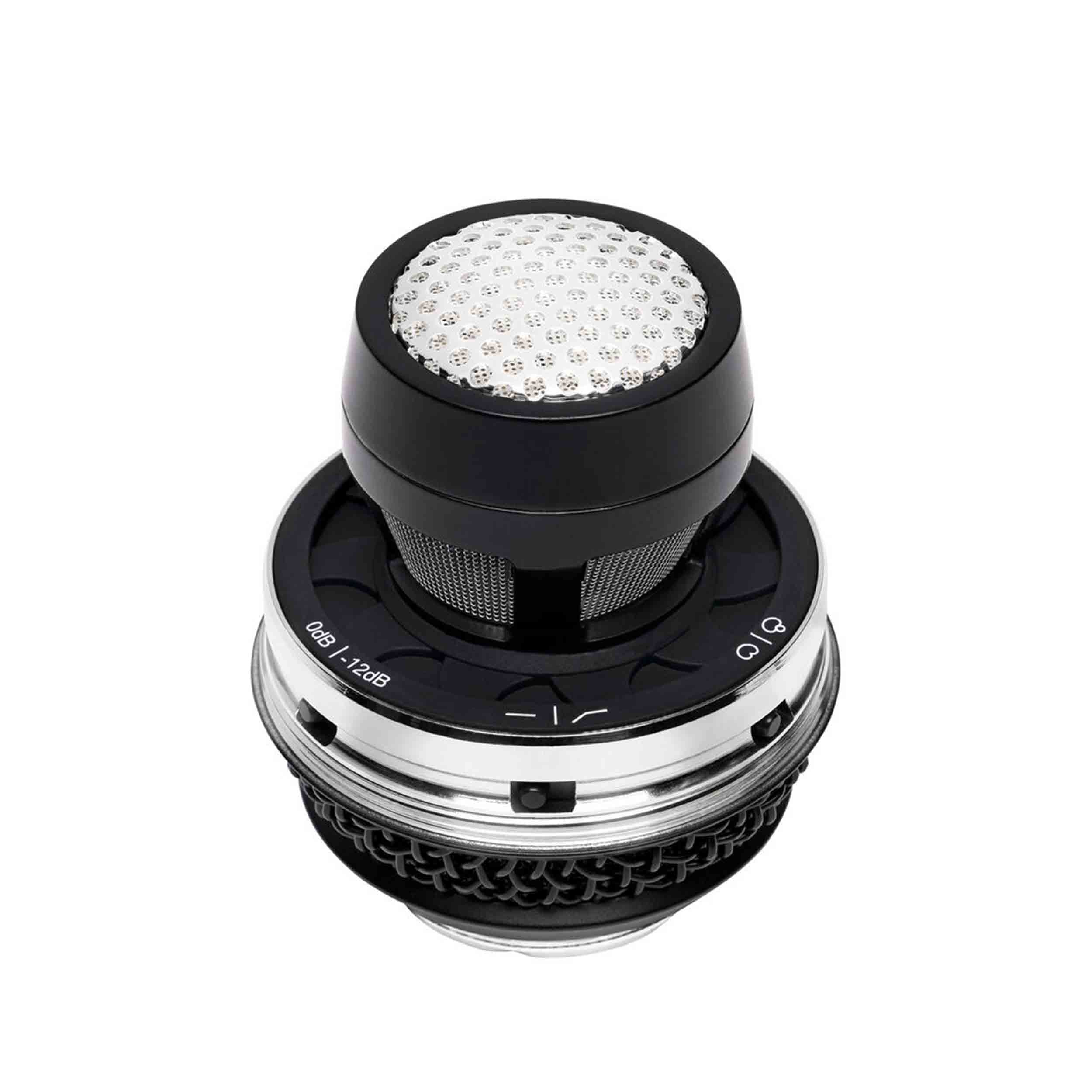

Attenuation: 0 dB, -12 dB.
Low-Cut Filter: Linear, 120 Hz.
Internal Impedance: 217 Ω.
Supply Voltage: Minimum 5 V.
Current Consumption: 7.5 mA.
Connector: Capsule thread, 1¼-28UN-2A.
Microphone Dimensions: 51 mm diameter x 183 mm L.
Microphone Weight: 230 g / 8.1 oz.
Product Dimensions (L x W x H): 7.2" x 2" x 2".
