Descripción

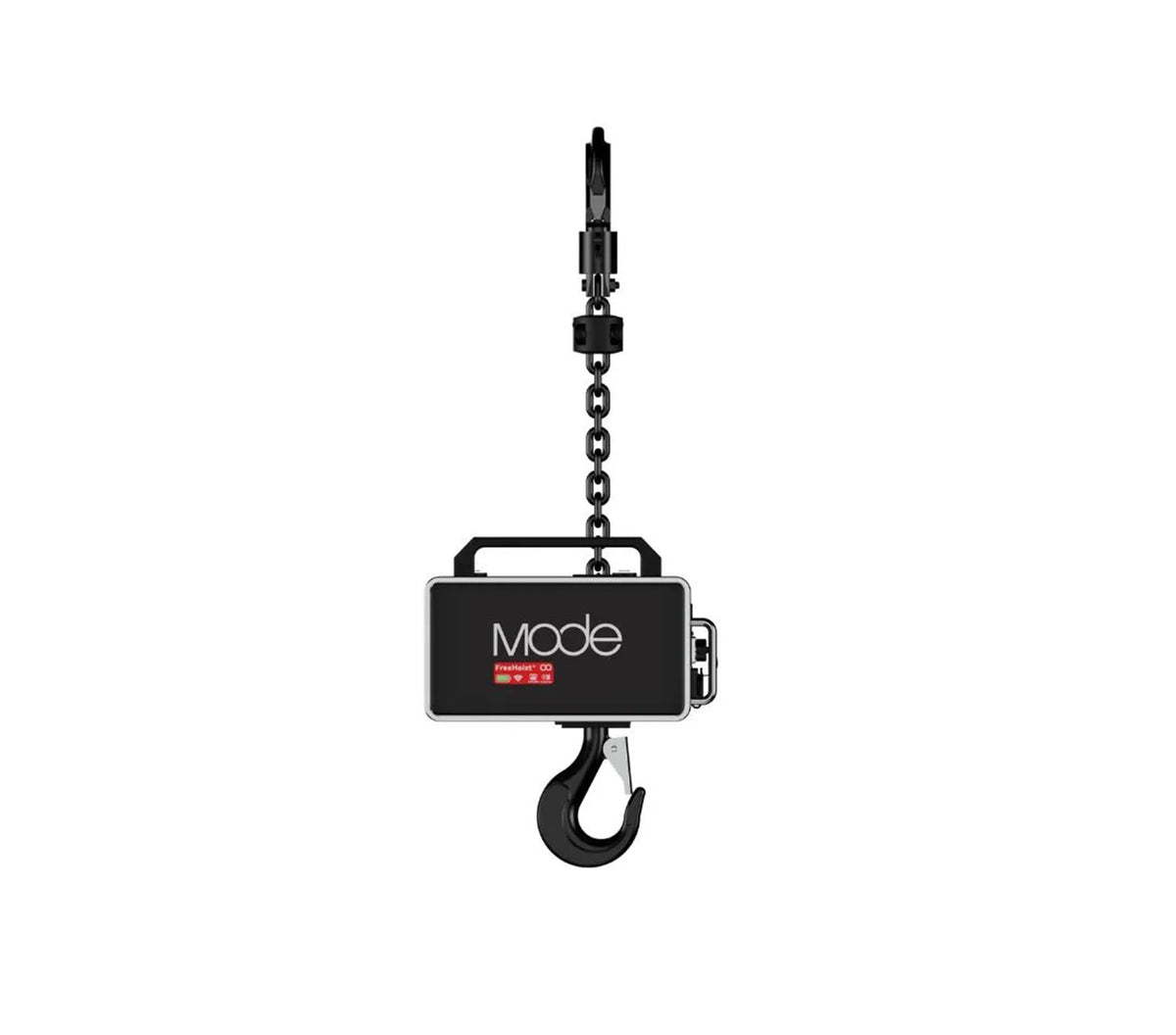

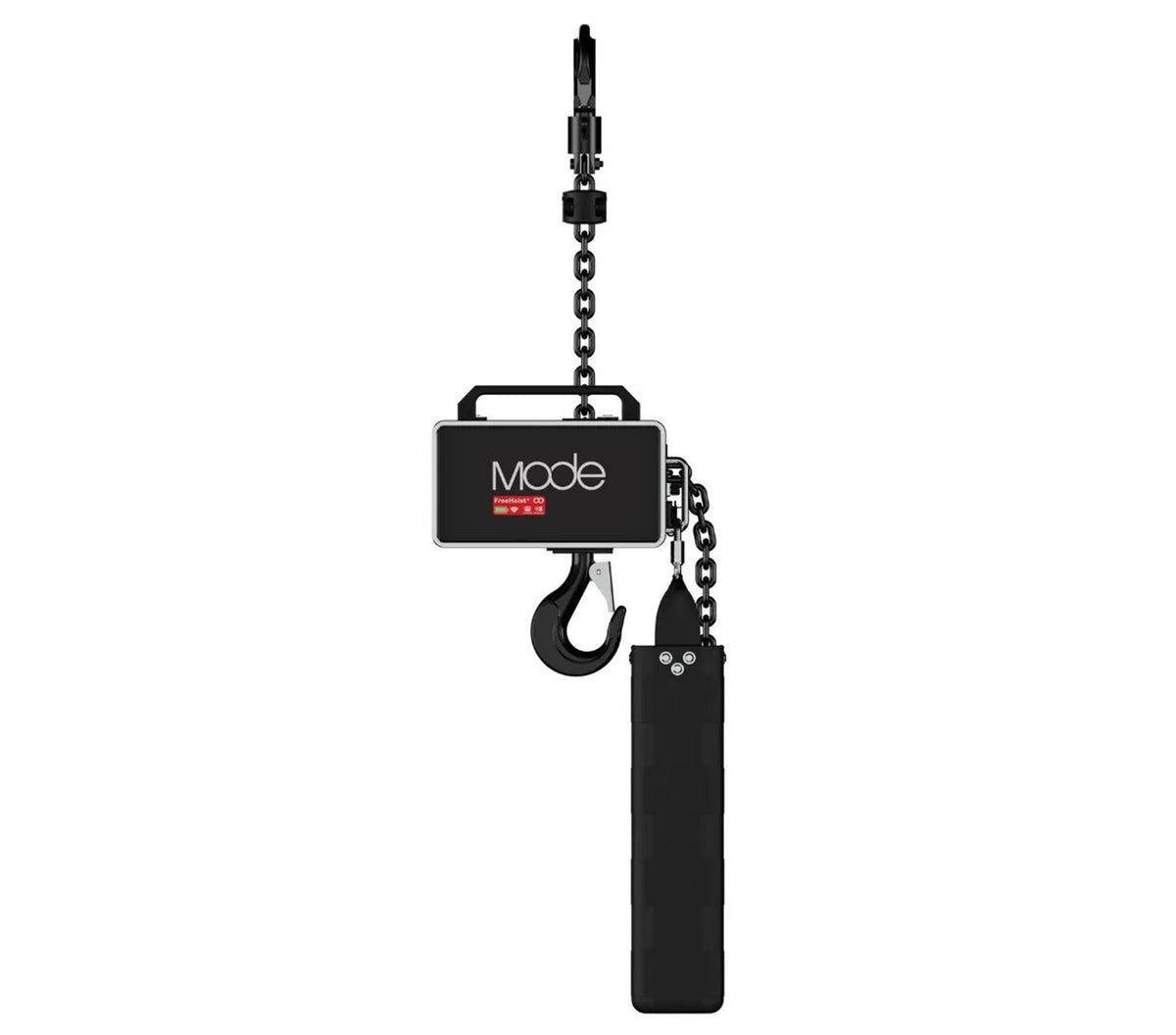

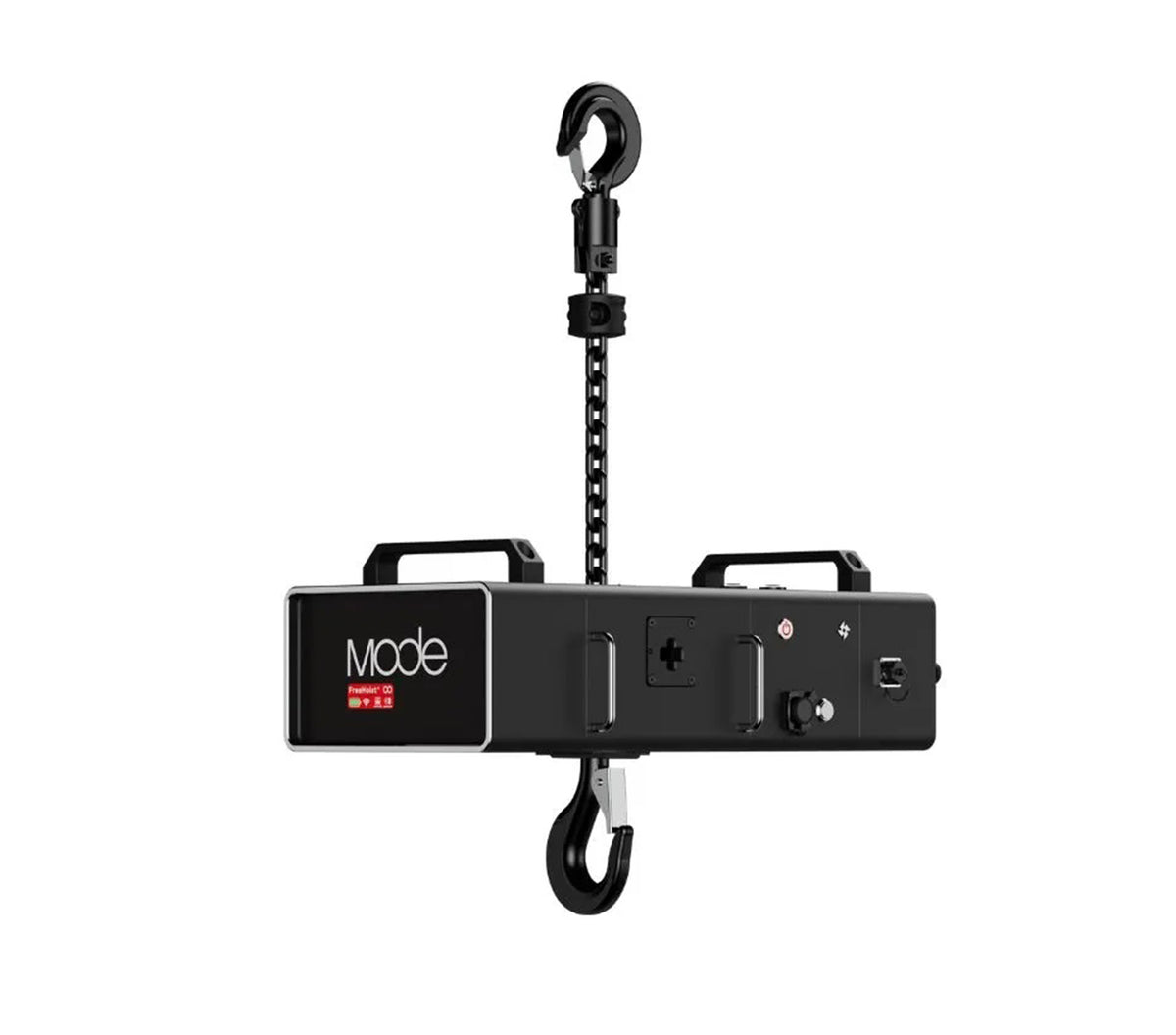

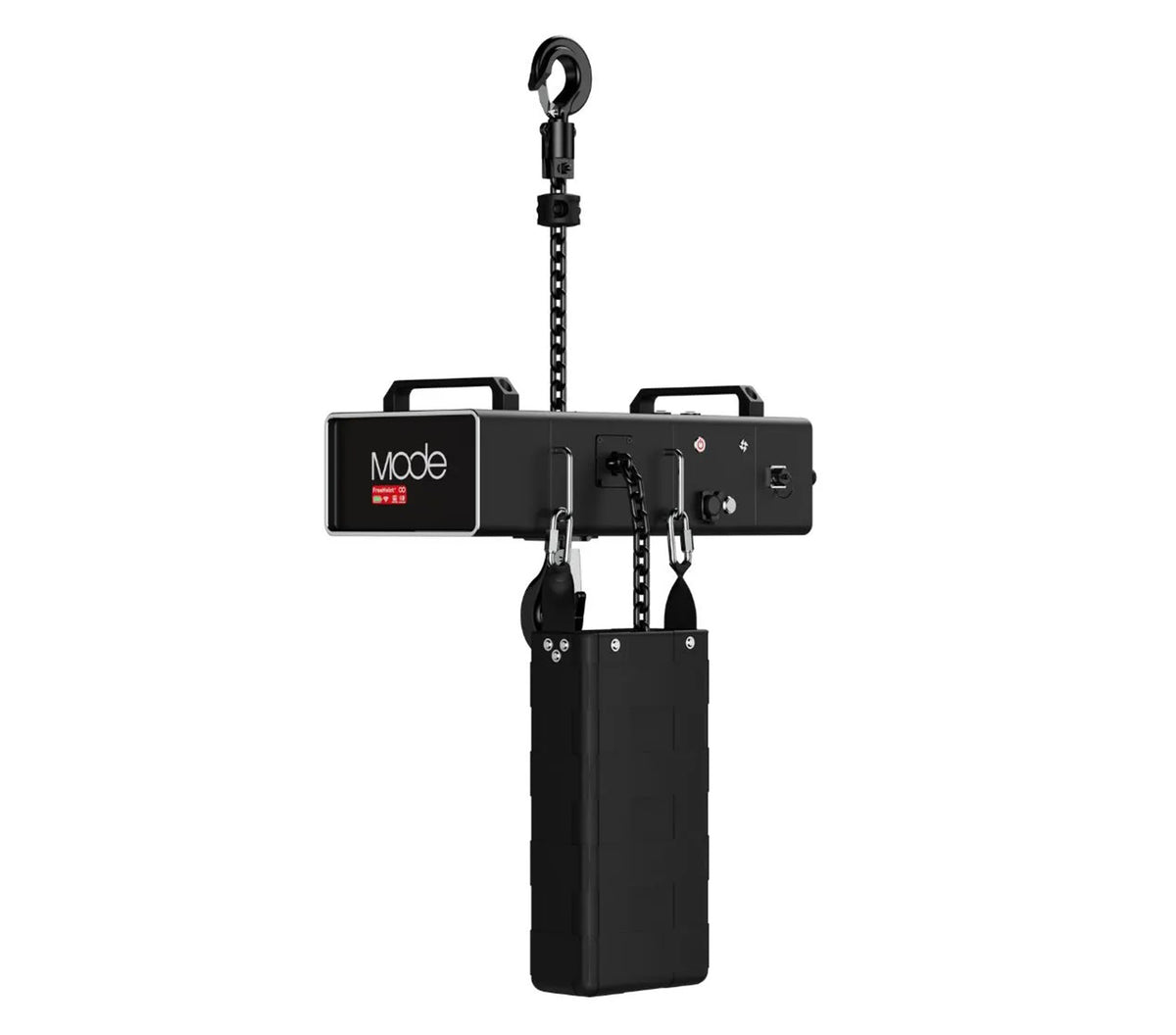

The FreeHoist+ (also written FreeHoist Plus or Free Hoist+) is a 1-ton, battery-powered wireless chain hoist that needs no power cord and no control console. The manufacturer, Mode Hoists, describes it as the world's first truly wireless chain hoist. On a full charge, it runs for up to 86 hours, and in remote-shutdown mode it can stand by for up to 27 days. That makes it a practical choice for stage rigging where running cable to every hoist is slow, costly, or just clutters the stage.
Control the hoist from a handheld pendant or from a phone, tablet, or laptop using the ModeController app (Android or iOS). One control terminal can operate up to 100 hoists at the same time with synchronized lifting, within a control range of up to 328 ft (100 m). The standard configuration includes a permanent magnet synchronous motor, dual electromagnetic brakes, and built-in load monitoring.
Key Features
- Capacity: 2,205 lb (1,000 kg) with a 65.6 ft (20 m) chain, Grade 100
- Fully wireless: 36V lithium battery, up to 86 hours of continuous power-on time, about 2 hours to charge
- Control by handheld pendant, phone, tablet, or laptop; switch modes with a button on the hoist
- Synchronized lifting of multiple hoists with less than 0.4" (1 cm) deviation
- Dual 2.4GHz and 5.8GHz wireless link; all hoists stop within 1.5 seconds if one hoist stops
- Built-in real-time load display with a preset overload limit (lifting stops at the limit, lowering stays available)
- Dual brakes, adjustable upper and lower limit switches, and a patented 45° chain guide
- Anti-chain-jam, over-travel, overspeed, stall, and signal-interruption protection
- Aerospace-grade aluminum housing, IP65 dust and water protection
- Remote power switch to avoid standby drain
Who Is the FreeHoist+ Ideal For?
- Stage and truss rigging crews who want to skip cabling and cut setup time
- Touring productions, concerts, and live events
- Theaters, exhibitions, and venues that need a cleaner, safer stage floor
- Rental houses running multiple hoists in synchronized groups
What's in the Box
- FreeHoist+ 1-ton wireless chain hoist with 65.6 ft (20 m) chain
- 36V lithium-ion battery
- Charger (100-240V), with connectors for charging the battery inside the hoist or directly
- Fabric chain bag
- Road case, fully assembled on 4 casters
- Pendant plug (the pendant itself is listed as optional by the manufacturer)
FreeHoist+ vs Manual Chain Hoists
We also carry manual 1-ton chain hoists. Here is how the FreeHoist+ compares if you are deciding between wireless and manual. In short: choose the FreeHoist+ for remote or synchronized lifting without cables, and a manual hoist if you want the lowest cost and hand-chain operation.
| Model | Operation | Capacity | Chain Length | Price | Best For |
|---|---|---|---|---|---|
| FreeHoist+ (this item) | Battery-powered wireless, app or pendant | 2,205 lb (1,000 kg) | 65.6 ft (20 m) | $2,737.00 | Cable-free, synchronized stage rigging |
| ProX XT-MCH1TX2-30FT (pair) | Manual | 1 ton each | 30 ft each | $899.99 per pair | Budget truss lifting, sold as a set of 2 |
| ThunderZ TZ1022 | Manual | 1 ton | 20 ft | $379.95 | Single manual hoist |
| Galaxy Stage GS-CH1TON | Manual | 1 ton | 32 ft | $459.99 | Single manual hoist, longer chain |
Frequently Asked Questions
Does the FreeHoist+ need a power cord?
No. It runs on a 36V lithium battery, which can stay in the hoist or be removed and charged separately.
How long does the battery last?
Up to 86 hours of continuous power-on time. With the remote power switch off, standby time is up to 648 hours (27 days). Charging takes about 2 hours.
How do I control it?
Use a handheld pendant or the ModeController app on a phone, tablet, or laptop. A button on the hoist switches between app control and pendant mode.
Can I run several hoists together?
Yes. One control terminal can operate up to 100 hoists at once, with synchronized lifting and less than 0.4" (1 cm) deviation. The control range is up to 328 ft (100 m).
How much can it lift, and how fast?
2,205 lb (1,000 kg). Lifting speed is 11.5 ft/min (3.5 m/min) up and 6.6 ft/min (2 m/min) down. With the 65.6 ft (20 m) chain, the rated-load operating range per charge is 262 ft (80 m) cumulative.
Does it show the load?
Yes. It has built-in real-time load monitoring. You can set a weight limit: when the load exceeds it, lifting stops, but lowering remains available.
Is it weatherproof?
It is rated IP65 for dust and water.
What safety standards does it meet?
The manufacturer lists UL 1340, CAN/CSA C22.2 No. 33, and EN 14492-2, with a TUV D8+ rating. The battery is listed to UL 2595 and CSA C22.2 #0.23. See the manufacturer's documentation for full details.
Full Technical Specifications
Lifting Performance
| Model | FreeHoist+ (1000KG+) |
|---|---|
| Rated Load | 2,205 lb (1,000 kg) |
| Lifting Speed | Up 11.5 ft/min (3.5 m/min) / Down 6.6 ft/min (2 m/min) |
| Lift (chain length) | 65.6 ft (20 m) |
| Operating Range at rated load | 262 ft (80 m) cumulative |
| Chain Size and Grade | 0.28 × 0.83 in (about 7 × 21 mm), G100 |
| Duty Classification | M4 |
| Suspension | Hook, swivel latch type (upper and lower) |
Power & Battery
| Battery | 36V lithium-ion, 1 included |
|---|---|
| Rated Operating Voltage | 36V |
| Operating Current | 30A |
| Continuous Power-on time | 86 hours |
| Standby time after remote shutdown | 648 hours (27 days) |
| Charging Time | 2 hours |
| Charger | 100-240V, charges battery in the hoist or directly |
Control & Safety
| Control Method | Phone/tablet (ModeController app, Android or iOS) or pendant; switchable by button on the hoist |
|---|---|
| Wireless Control Range | 328 ft (100 m); up to 100 hoists per terminal |
| Brakes | Dual electromagnetic brakes |
| Limit Switches | Adjustable upper and lower limit switches (mechanical) |
| Load Monitoring | Built-in real-time load cell, electronic overload limiting |
| Other Protections | Stall, overspeed, over-travel, signal interruption, chain jam (outlet and inlet) |
| Safety Factor | 8:1 |
| Compliance | TUV D8+, EN 14492-2, IGVW-SQP2, CE, UL and CSA |
Dimensions & Weight
| Hoist Dimensions | 22.44 × 10.12 × 5.51 in (570 × 257 × 140 mm) |
|---|---|
| Weight | 70.5 lb (32 kg), excluding chain |
| Housing Color | Black |
| Protection Rating | IP65 |
| Road Case | Fully assembled on 4 casters |
| Chain Bag | Fabric |
