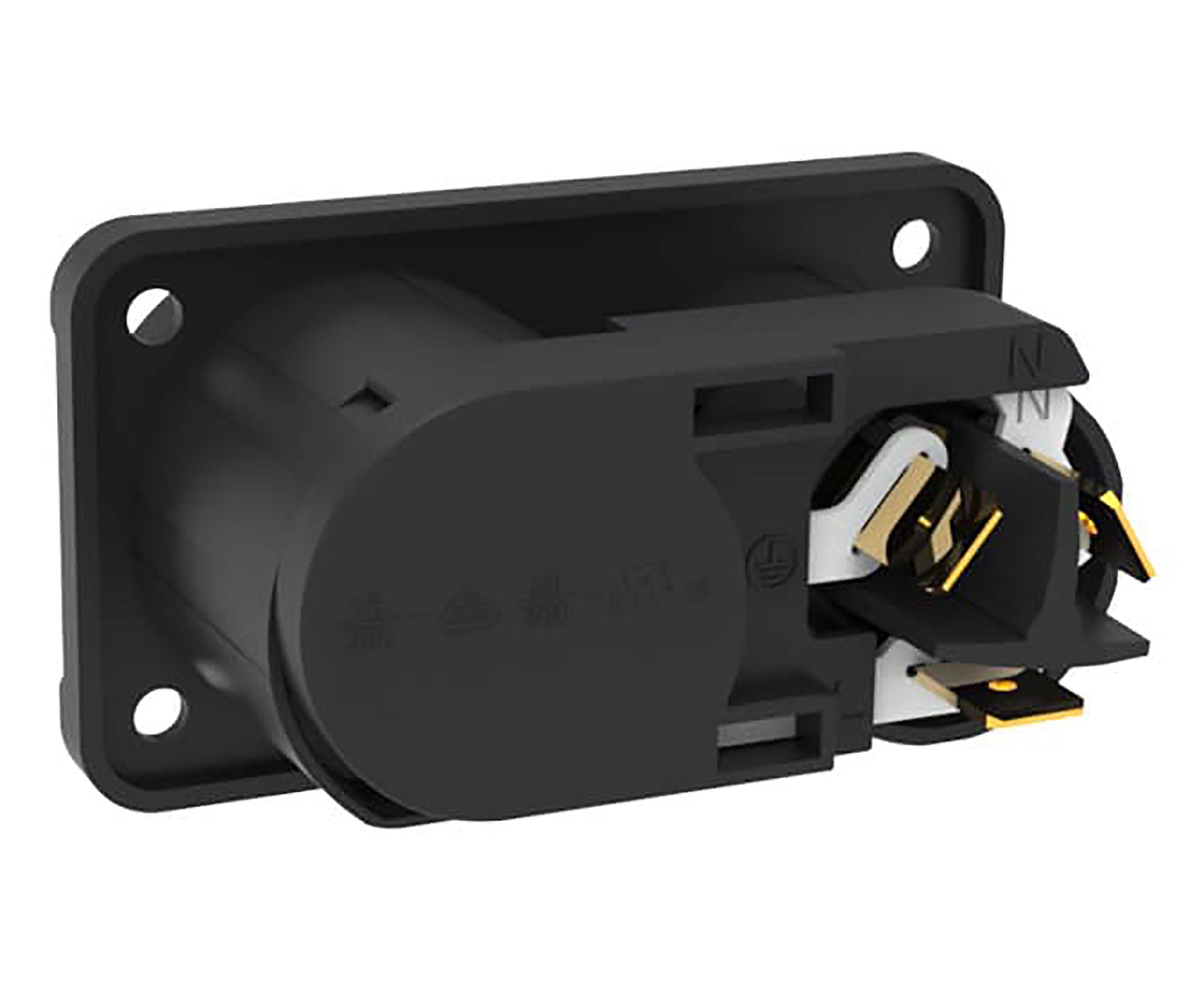

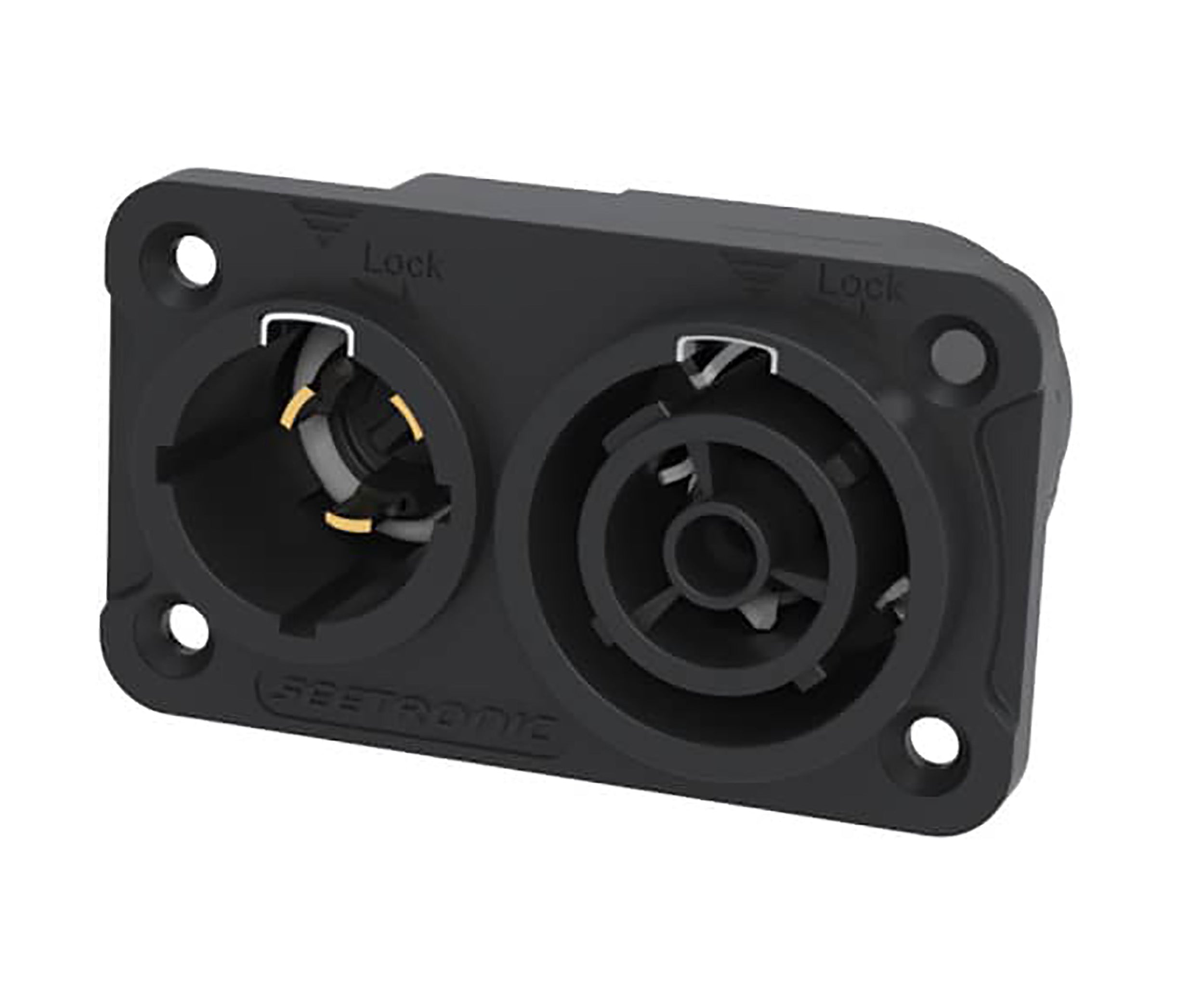

The ProX SAC3PX Seetronic Lockable 3-Core Power Connector is a high-quality combined power-in and power-out socket designed for secure, efficient, and space-saving installations. It combines the SAC3MPX and SAC3FPX connectors into one compact unit, making it ideal for chain connections while maintaining a clean and professional equipment appearance. The connector features contacts for line, neutral, and safety grounding connections.
Designed for reliable performance in demanding environments, the SAC3PX offers IP65 waterproof protection and IP67 protection for terminal equipment. It is certified to UL, TUV RH, and CQC standards and supports cables up to 2.5 mm² (12 AWG). Its durable PA housing and gold-plated Cu alloy contacts provide dependable performance, while the connector is rated for more than 1,000 mating cycles.
The SAC3PX is built for long-term durability and safe operation across a wide range of conditions. Its UL 94-V0 flame-retardant construction provides enhanced protection, while the operating temperature range of -30°C to +80°C allows use in various environments. A CNAC-PX protective rubber cover is included, providing additional protection when the connector is not in use.
Product Specification:
Connector Type: 3-Core Power Connector
Connector Design: Combined Power-In & Power-Out
Connection Type: Chain Connection
Locking: Lockable
Number of Cores: 3
Contacts: Line, Neutral & Safety Ground
Waterproof Rating: IP65
Terminal Protection: IP67
Cable Compatibility: Up to 2.5 mm² (12 AWG)
Housing Material: PA
Contact Material: Cu Alloy
Contact Plating: Gold
Flame Retardant Grade: UL 94-V0
Mating Cycles: 1,000+
Operating Temperature: -30°C to +80°C
Certifications: UL, TUV RH & CQC
Protective Cover: CNAC-PX
Protective Cover Included: Yes
Design: Compact & Space-Saving
Application: Power Distribution & Chain Connections
Safety Grounding: Supported
Construction: Durable
Shipping Weight: Approx. 0.10 kg
Shipping Dimensions (L × W × H): Approx. 10 × 8 × 6 cm
