Descripción

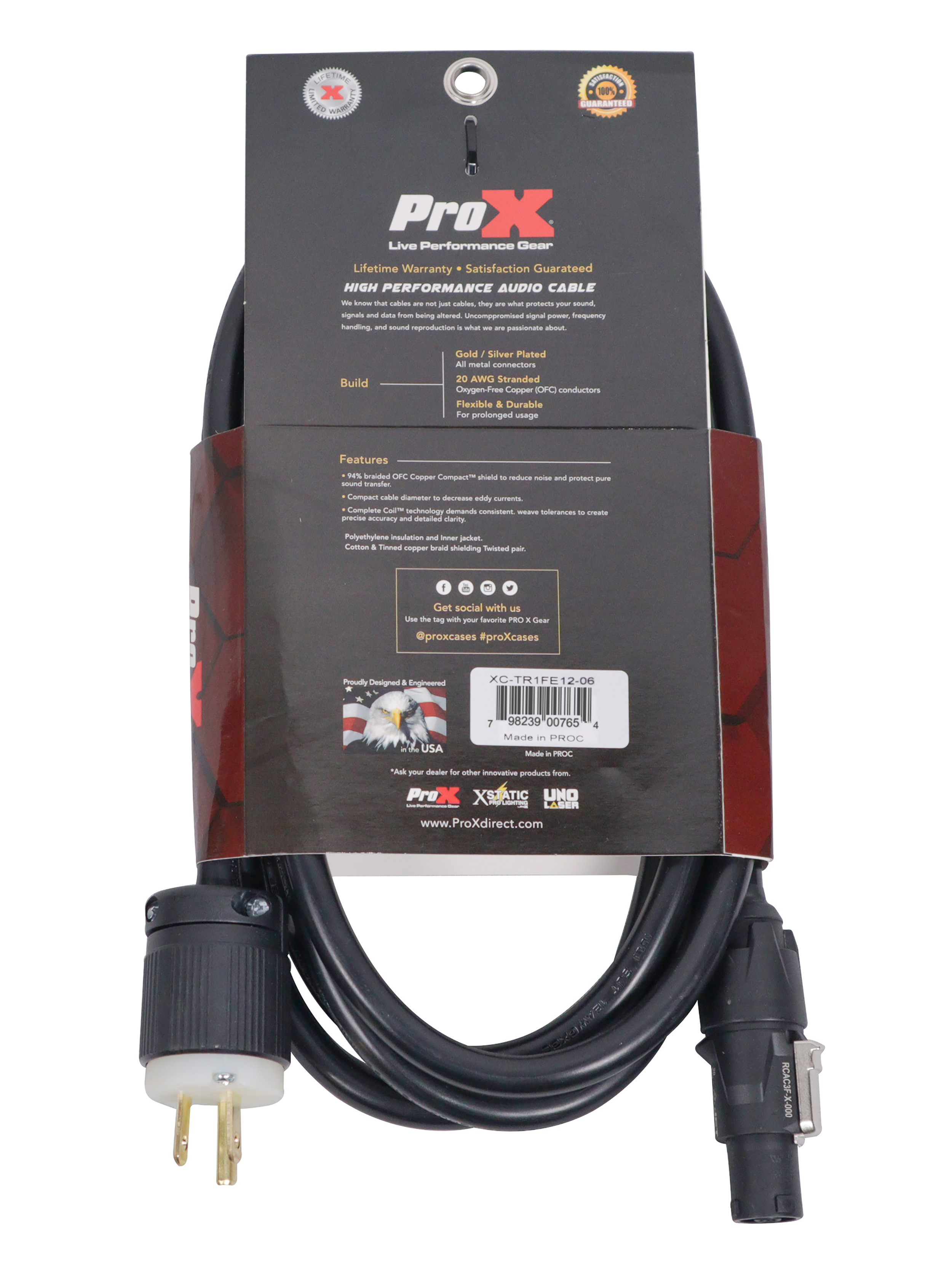

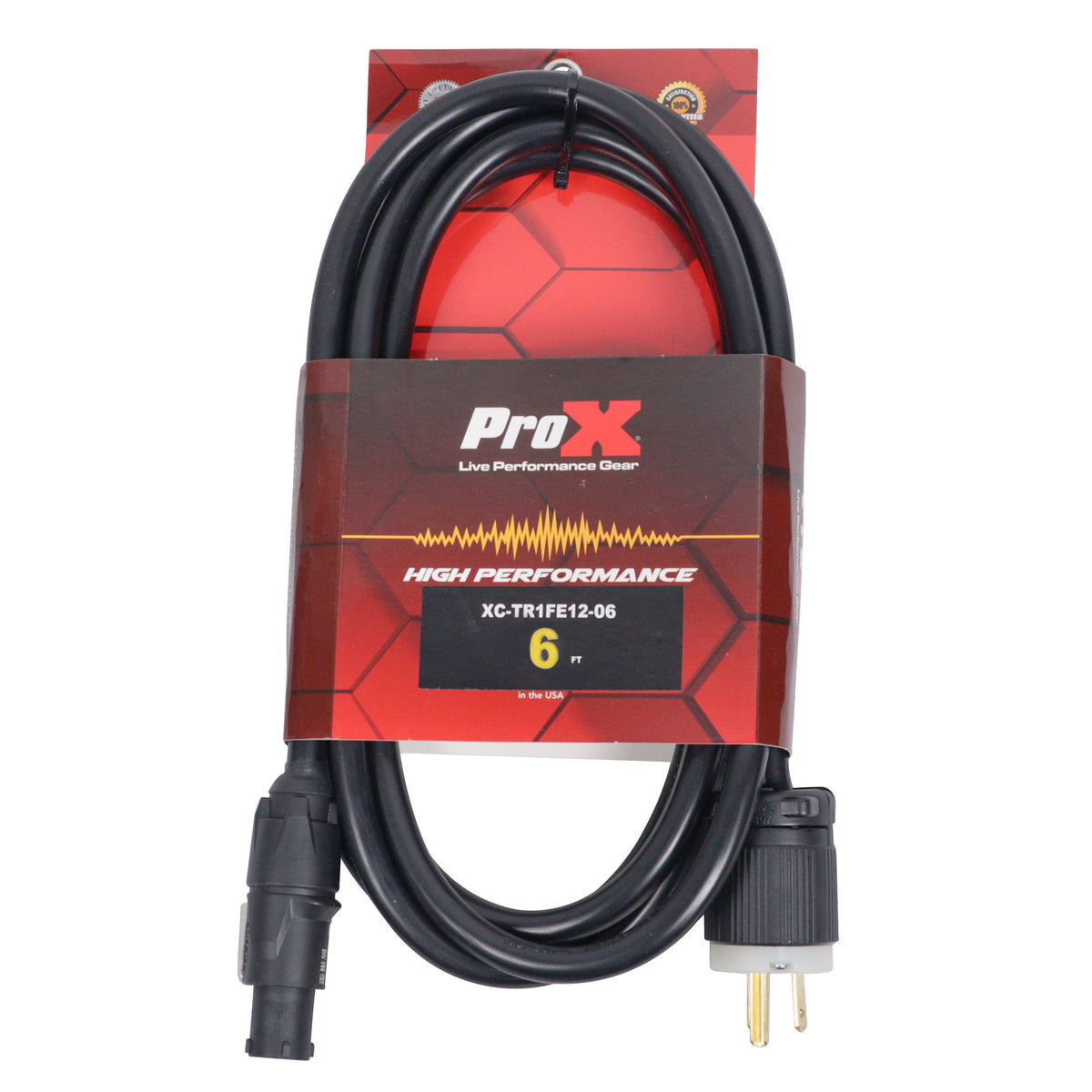

The ProX XC-TR1FE12-06 is a 6 ft 12 AWG locking power cable designed for professional stage, touring, and AV applications. It features a standard NEMA 5-15P Edison male plug on one end and a REAN by NEUTRIK powerCON TRUE1 X-Series female connector on the other, providing a secure power connection for moving lights, LED fixtures, powered speakers, and other equipment.
The powerCON TRUE1 connector features a twist-lock system that helps prevent accidental disconnection during operation and is rated for connection and disconnection under load. When mated, the connection provides IP65 protection against dust and water, while the ground-first contact design adds an extra level of electrical safety. The 12 AWG pure copper conductors provide reliable power delivery with reduced voltage drop.
With its 6 ft working length and durable construction, the XC-TR1FE12-06 is well suited for touring rigs, concert stages, DJ setups, theaters, houses of worship, power distribution systems, and AV installations. UL and cUL certified components provide recognized safety compliance, while ProX's professional-grade design and limited warranty offer dependable performance for demanding applications.
Product Specification:
Cable Length: 6 ft
Cable Type: Locking Power Cable
Cable Gauge: 12 AWG
Conductor Material: Pure Copper
Voltage: 120 VAC
Current Rating: 20A
Input Connector: NEMA 5-15P Edison Male
Output Connector: powerCON TRUE1 Female
Connector Brand: REAN by NEUTRIK
Connector Series: X-Series
Connector Model: RCAC3F-X-000-1
Connector Type: Female
Locking System: Twist-Lock
Breaking Capacity: Yes
IP Rating: IP65 When Mated
Contact Design: Ground-First
Certifications: UL / cUL
Construction: Heavy-Duty
Application: Stage and AV Equipment
Use: Indoor / Outdoor
Warranty: ProX Limited Lifetime Warranty
Dimension: 12 x 8 x 3 in
Shipping Weight: 1.5 lbs
