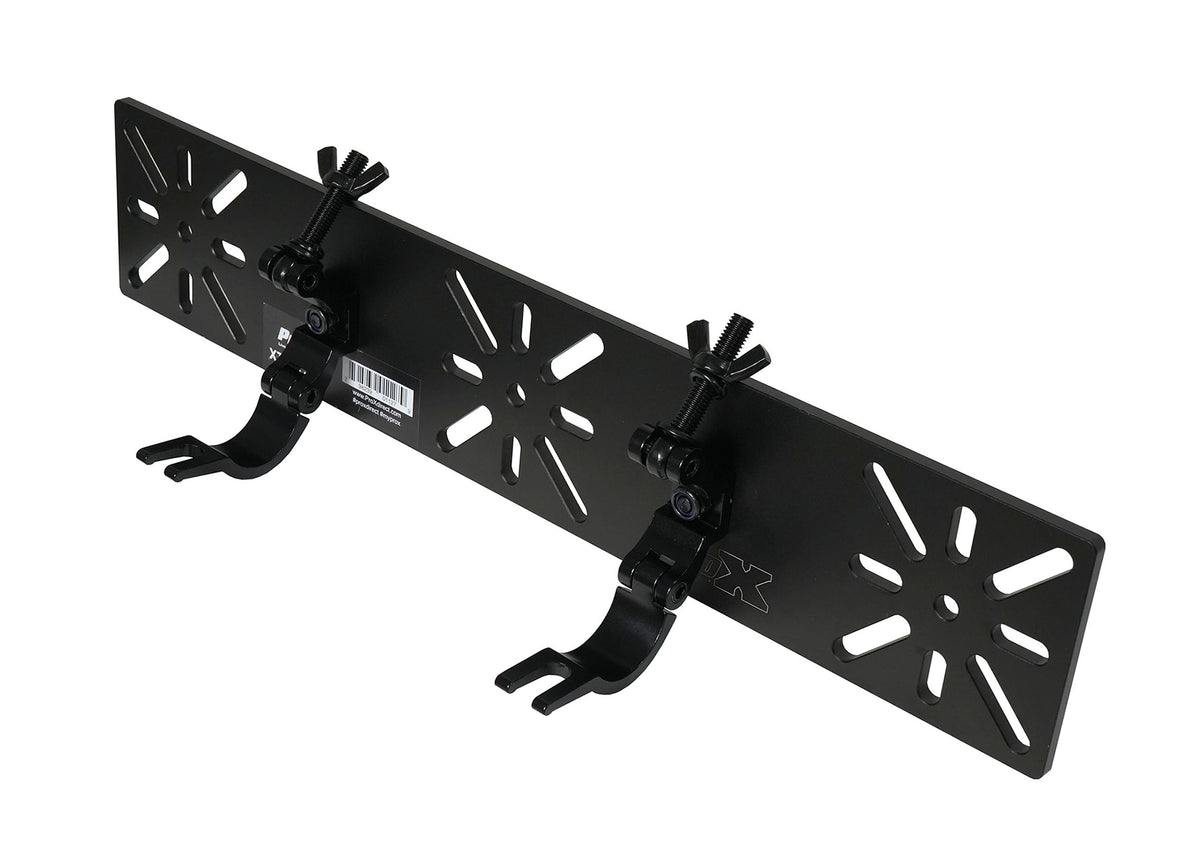

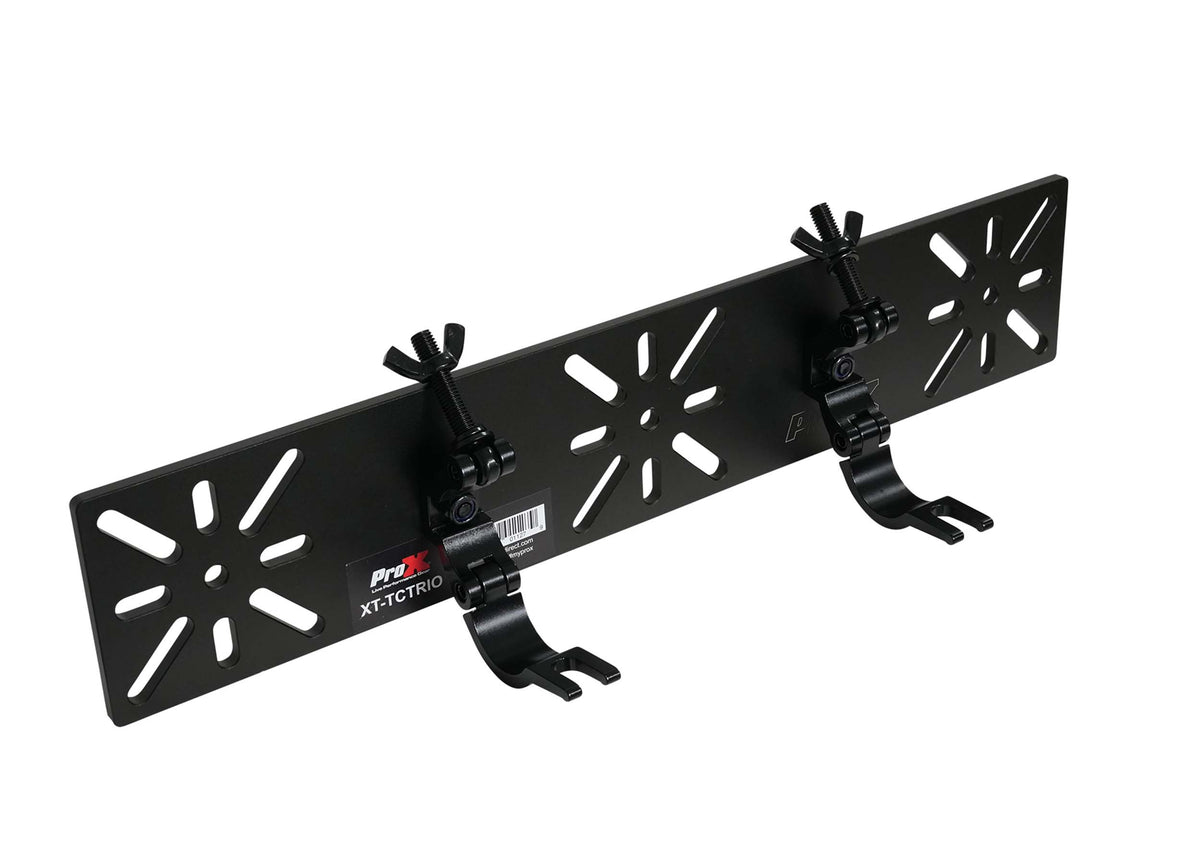

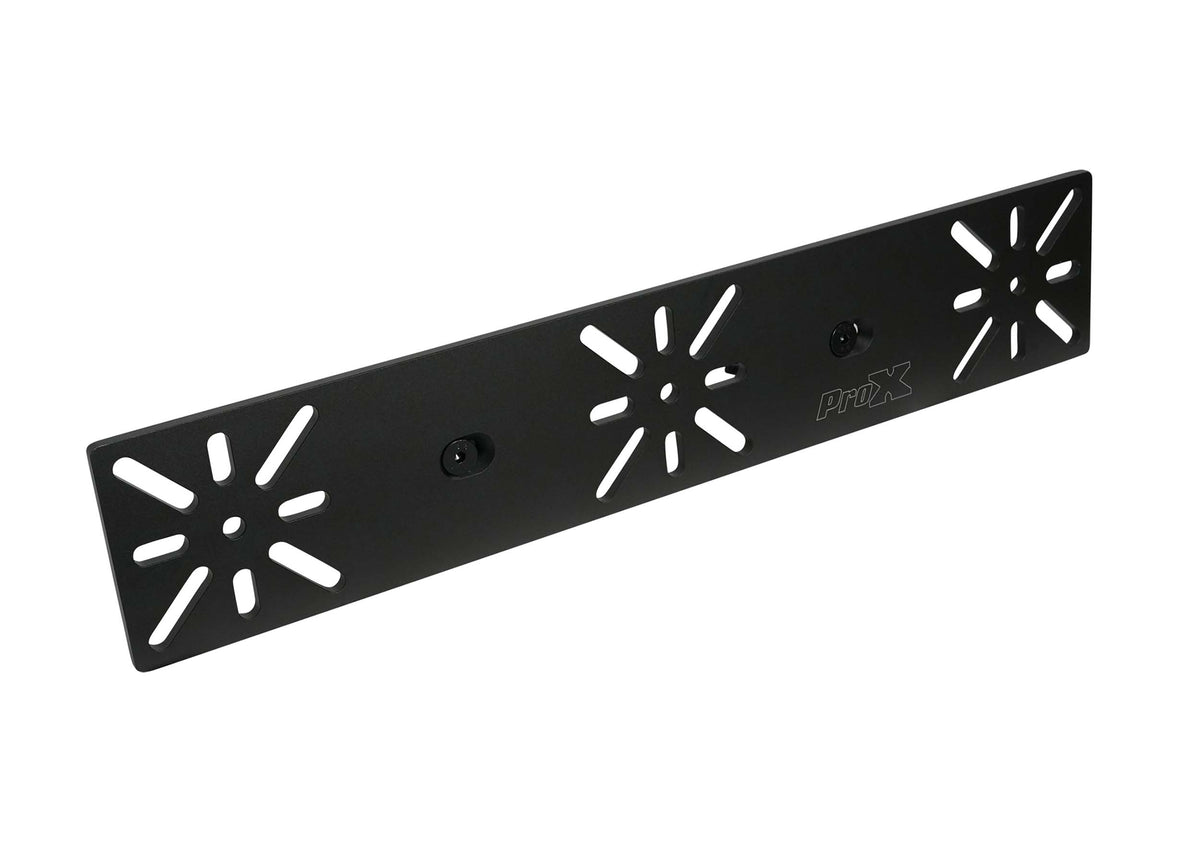

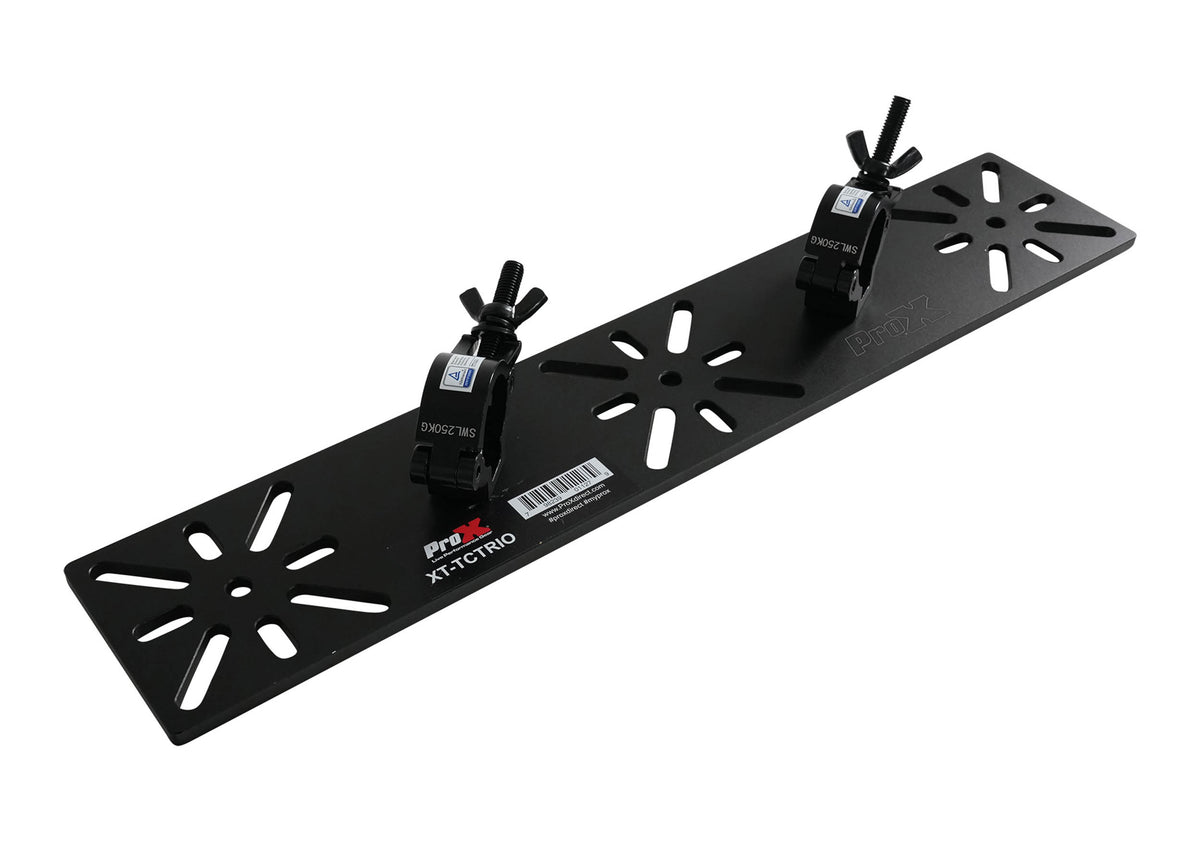

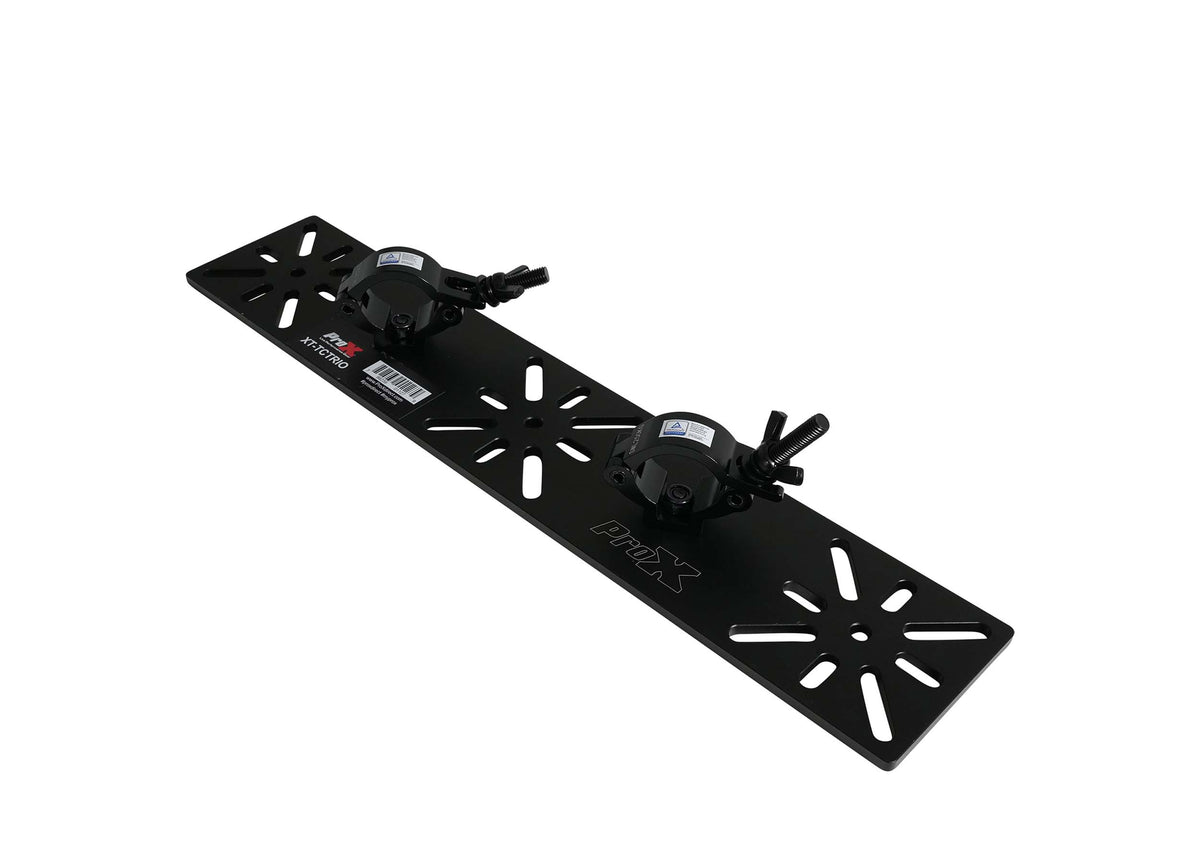

The ProX XT-TCTRIO LED Panel Mounting Plate is designed to provide a secure and adjustable mounting solution for three LED panels in professional video wall and event production environments. Its wide-format design offers a dependable connection point for multi-panel setups, helping crews achieve organized installations with reliable truss integration.

Measuring 24.5 inches long, 4.75 inches wide, and 4 inches high, the XT-TCTRIO provides an extended mounting footprint for multi-panel configurations. Its adjustable sliding clamps allow technicians to fine-tune attachment positions along the plate, making panel alignment easier during installation and accommodating minor spacing variations.

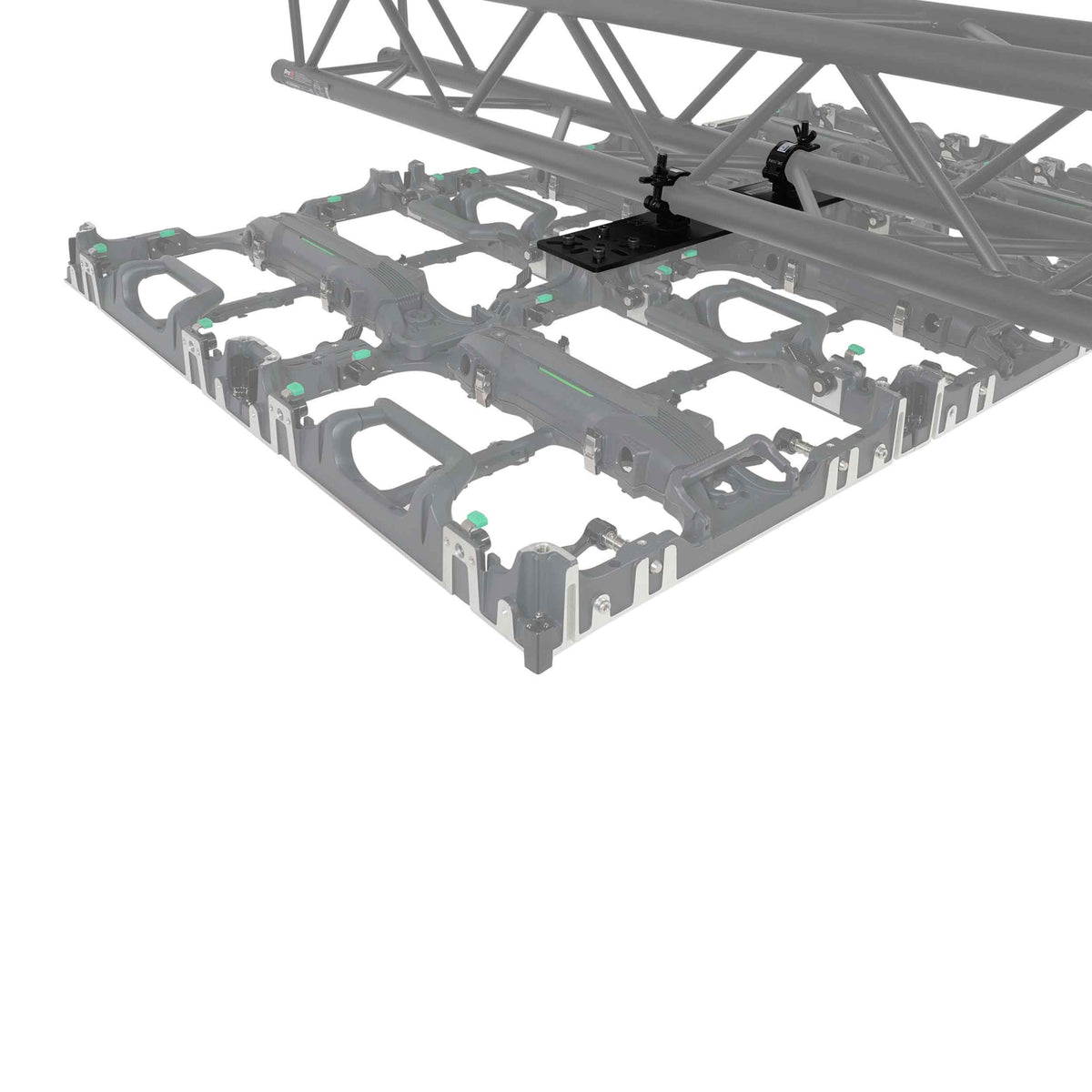

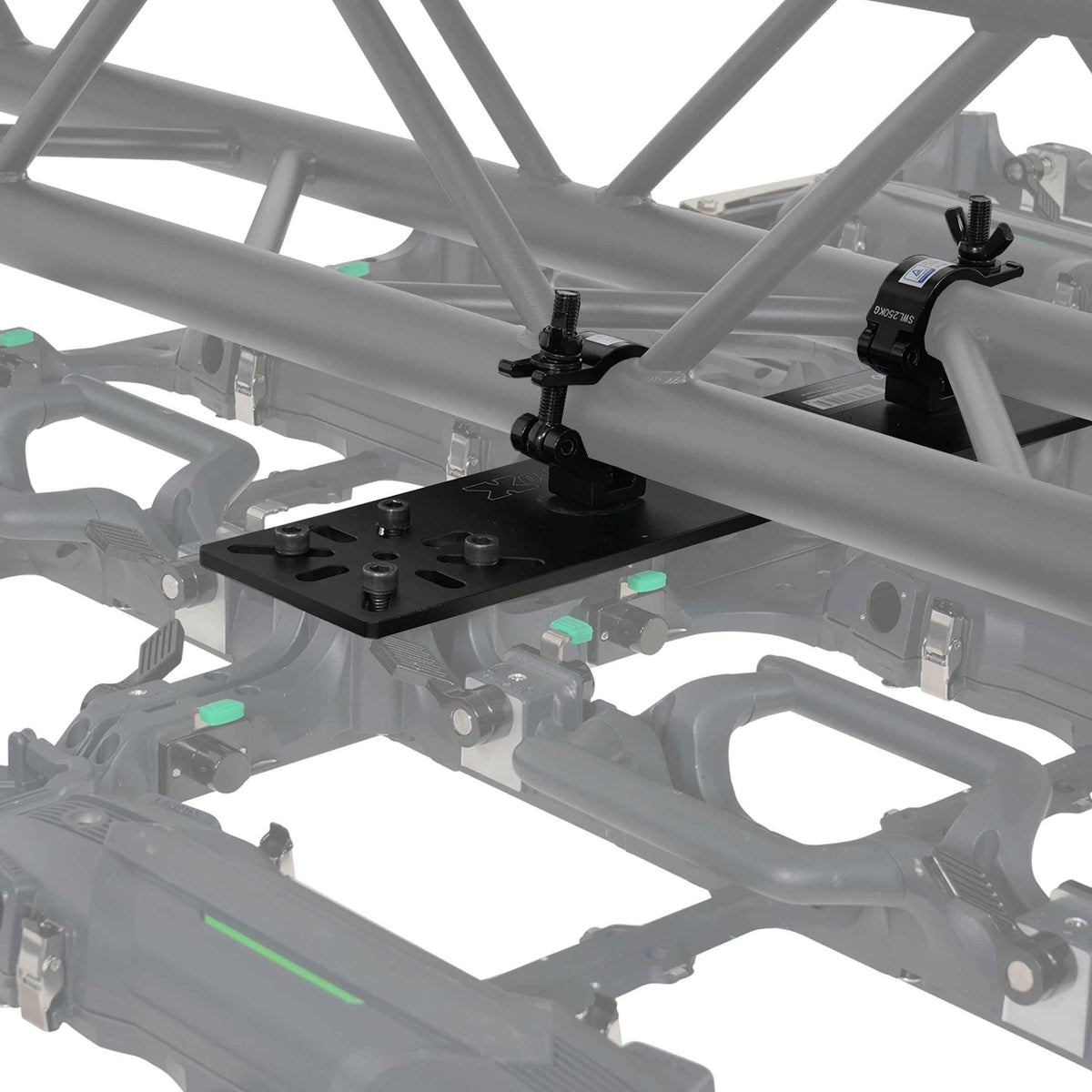

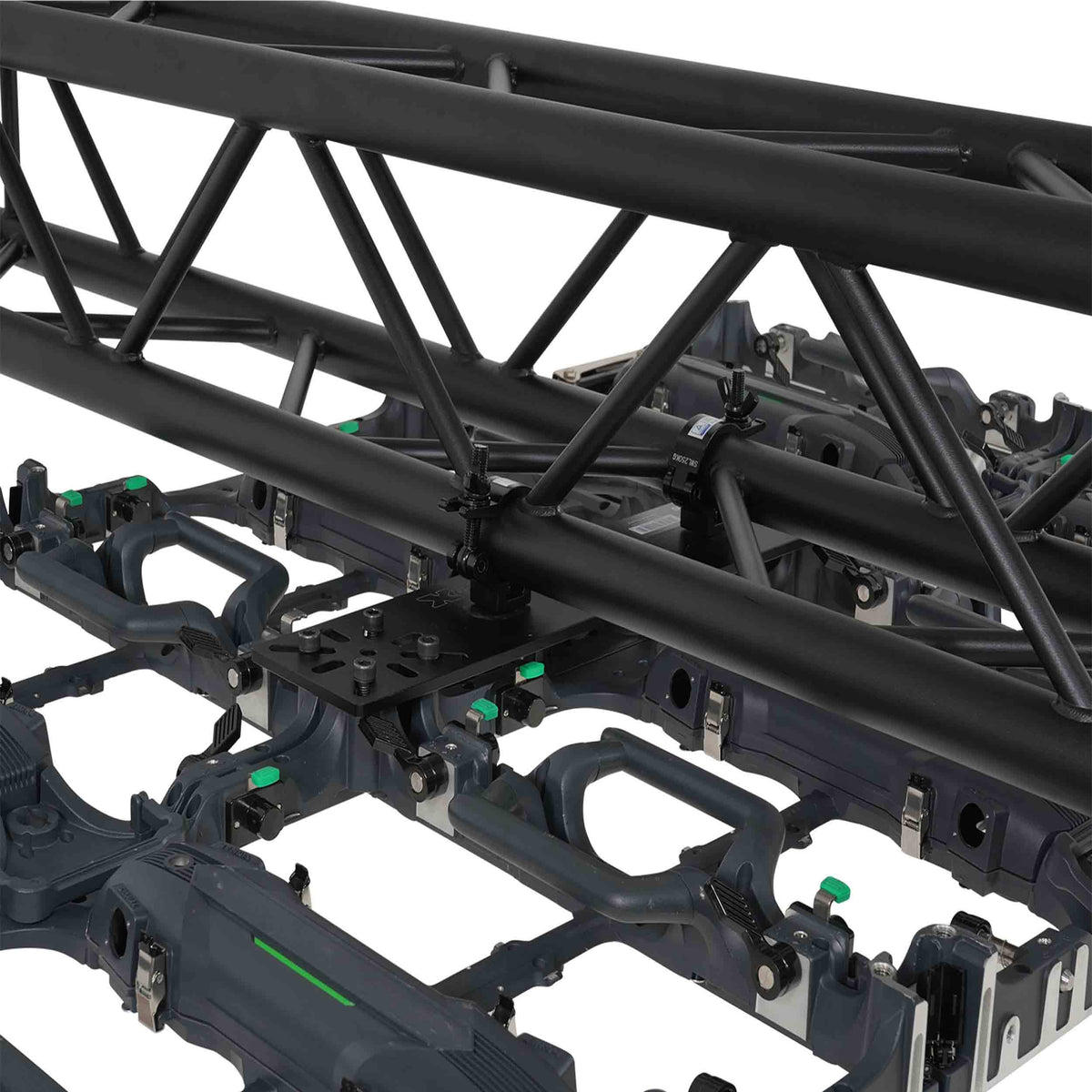

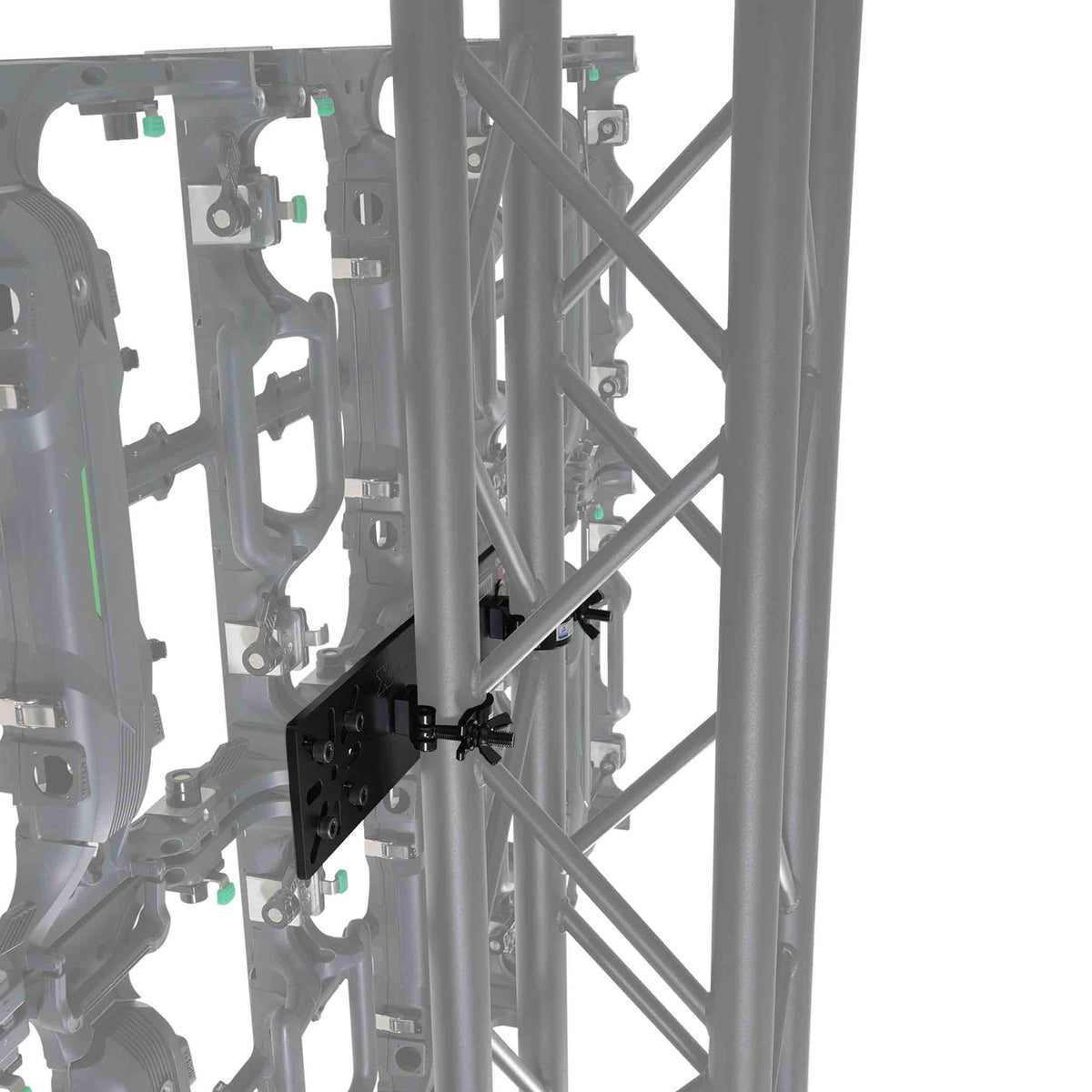

Compatible with ProX BoltX 12-inch truss and F34, F33, F32, and F31 truss systems, this mounting plate supports versatile production configurations. It is suitable for video wall installations, ground support structures, and professional event setups where a wider mounting connection is required. Always verify system compatibility and applicable load limits before installation.

Key Features

• Wide-format mounting plate for three LED panels.
• Compatible with BoltX 12-inch and F34, F33, F32, and F31 truss systems.
• Adjustable sliding clamps for flexible panel positioning.
• Helps achieve accurate LED panel alignment.
• Designed for video wall runs and ground support setups.
• Professional mounting solution for event production.

Ideal For

• Multi-panel LED video wall installations.
• Live concerts and stage productions.
• Professional event and rental companies.
• Ground-supported LED display structures.
• Trade shows and exhibition displays.
• Compatible ProX BoltX and F-series truss assemblies.

What’s in the Box

• ProX XT-TCTRIO LED Panel Mounting Plate with Adjustable Sliding Clamps.

Inputs & Outputs

• Mounting Type: LED panel mounting plate with adjustable sliding clamps.
• Panel Capacity: 3 LED panels.
• Truss Compatibility: ProX BoltX 12-inch, F34, F33, F32, and F31.
• Adjustment Method: Sliding clamp positioning.
• Installation Application: Video wall mounting and ground support configurations.

Frequently Asked Questions

What is the ProX XT-TCTRIO used for?

The XT-TCTRIO is designed to mount three LED panels on compatible truss systems for professional video walls and event production.

How many LED panels can it accommodate?

It is designed for mounting three LED panels. Confirm panel and mounting hardware compatibility before installation.

Which truss systems are compatible with this mounting plate?

It is designed for ProX BoltX 12-inch truss and F34, F33, F32, and F31 truss systems.

Does the XT-TCTRIO feature adjustable mounting points?

Yes, its sliding clamps allow technicians to adjust attachment positions for flexible panel placement and alignment.

What are the product dimensions?

The mounting plate measures 24.5 × 4.75 × 4 inches (L × W × H).

What are the shipping dimensions and weight?

The shipping box measures 25 × 6 × 4 inches (L × W × H) and weighs 5 lbs.

Full Technical Specifications

General Specifications & Construction

Brand	ProX
Model	XT-TCTRIO
Product Type	LED Panel Mounting Plate
Panel Capacity	3 LED Panels
Clamp Type	Adjustable Sliding Clamps
Product Type	LED Panel Mounting Plate
ProX Truss Compatibility	BoltX 12-inch
F-Series Compatibility	F34, F33, F32, F31

Mounting & Applications

Mounting Style	Multi-Panel Mounting Plate
Clamp Mechanism	Sliding Clamp
Primary Application	LED Video Wall Mounting
Additional Application	Ground Support Builds
Suitable Environments	Concerts, Stages, Trade Shows, and Event Productions

Physical Specifications

Product Dimensions (L × W × H)	24.5 × 4.75 × 4 inches
Shipping Dimensions (L × W × H)	25 × 6 × 4 inches
Shipping Weight	5 lbs
