ProX XTH-MLT3KIT8FTFD, HOF MLT THREE 8-Foot Pre-Rig Truss and Folding Dolly Kit

The ProX XTH-MLT3KIT8FTFD combines an HOF MLT THREE 8-foot pre-rig truss with a purpose-built folding dolly into a complete transport and deployment solution. The matched components are designed to work together for faster load-in, transportation, and setup. The system is particularly suited to professional rental companies, touring productions, event contractors, and LED video wall applications. The truss can be prepared and loaded before arriving at the venue, reducing setup time on site. The included dolly provides a dedicated platform for moving and positioning the pre-rig assembly.

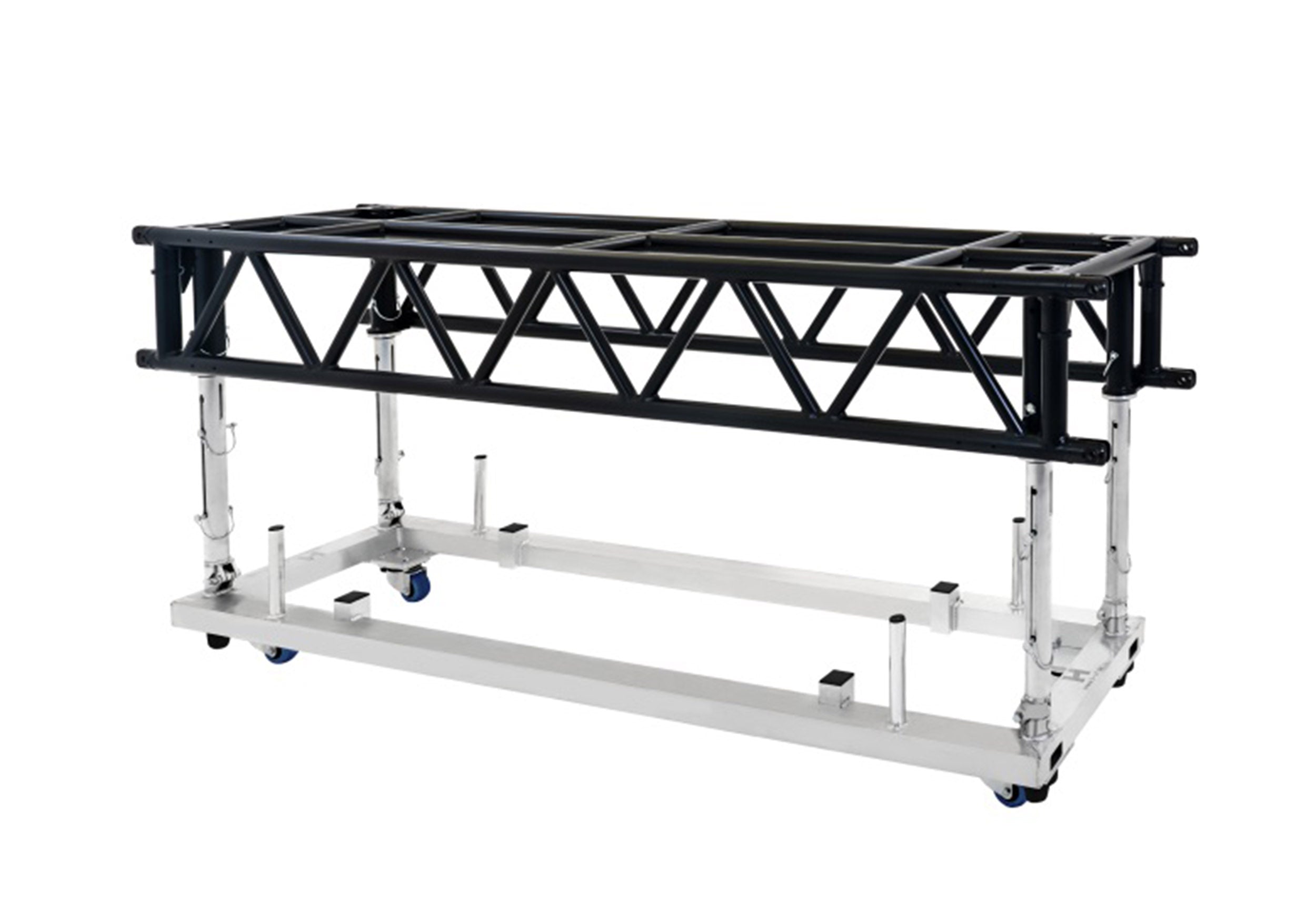

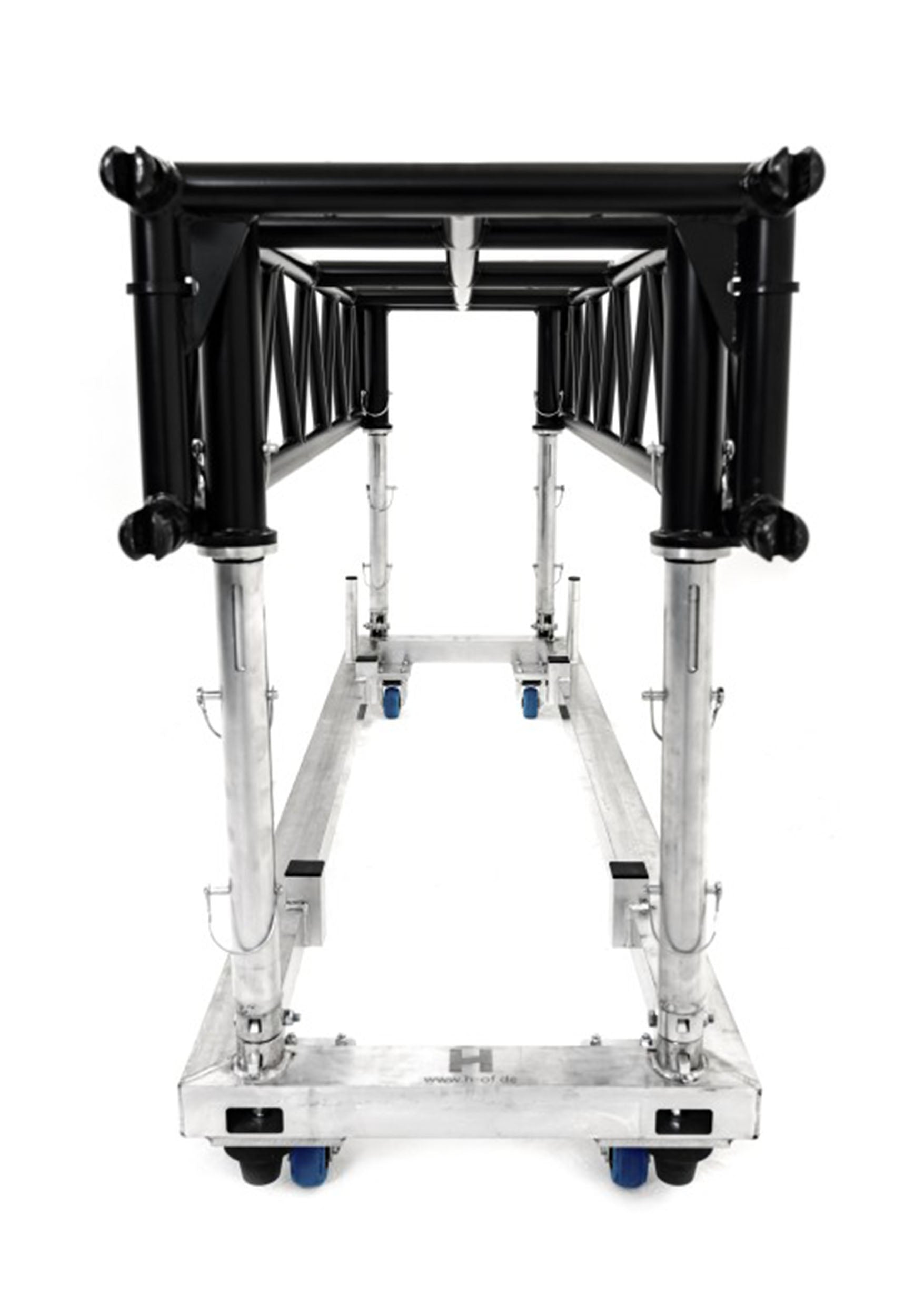

HOF MLT THREE Pre-Rig Truss

The HOF MLT THREE 8-foot pre-rig truss is constructed from aerospace-grade Aluminium EN AW 6082 T6 for a combination of strength and manageable weight. It features 48.3 x 4.5 mm main tubes and 30 x 3 mm bracing for professional structural applications. The truss is finished in RAL 9005 gloss black using HOF's Heavy Duty powder coating for improved resistance to chipping, scratching, and abrasion. Its open-bottom construction provides unobstructed access for installing moving lights, LED fixtures, and video modules. The 8-foot section provides a practical building block for larger truss structures. The system is designed for demanding touring, rental, and event production environments.

Unique Fork-Locking System

The Unique Fork-Locking System uses rotatable hardened steel fork connectors to provide flexible truss configuration options. The connectors can be positioned for straight runs as well as horizontal and vertical curved configurations. The fork connectors extend up to 60 mm and can be locked into the required position before transportation. This allows crews to establish angles and pre-tension settings in the warehouse rather than during venue setup. The locking system helps maintain the selected configuration during transportation and installation. The fork connectors are also individually replaceable, helping reduce repair costs when components become damaged.

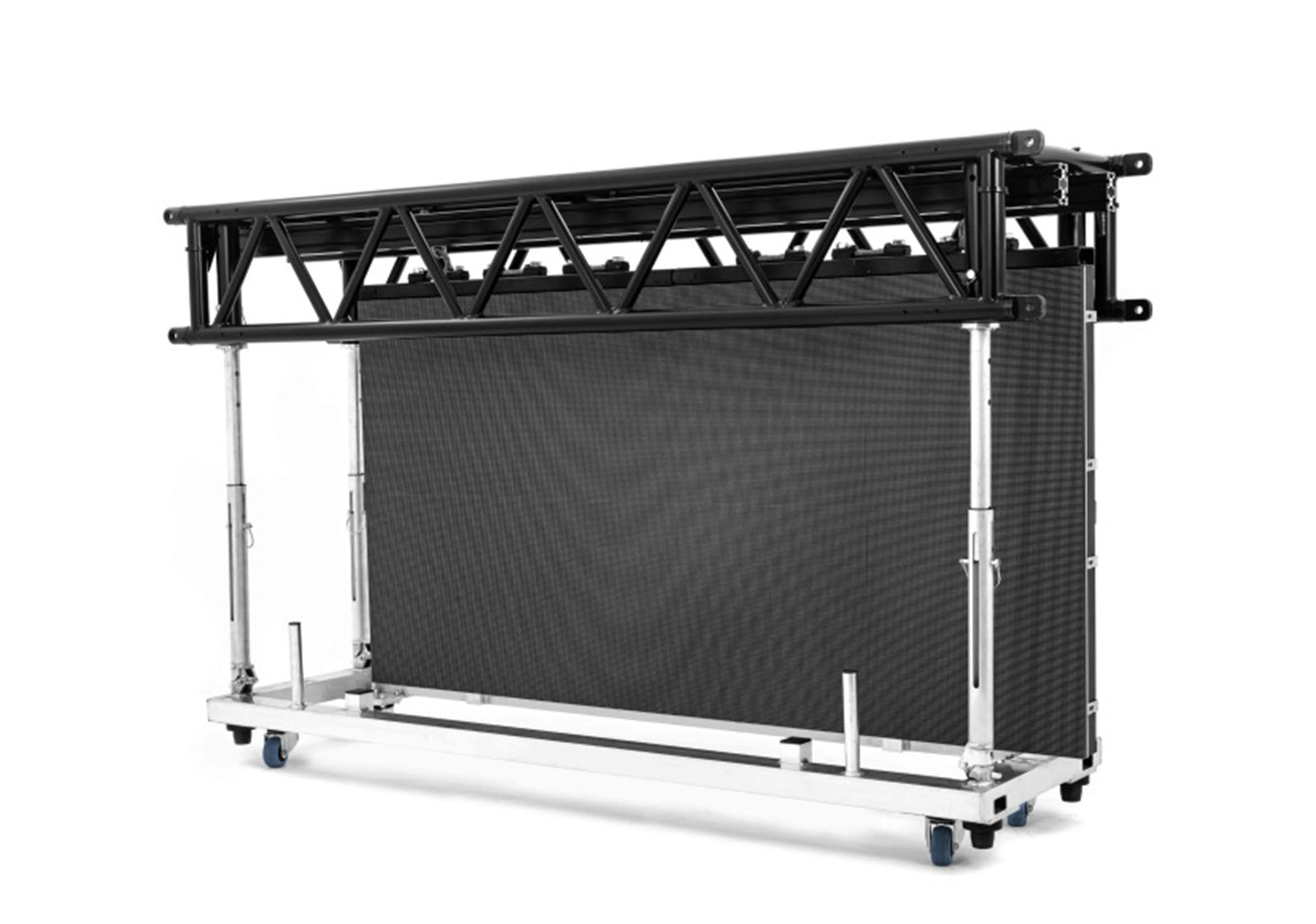

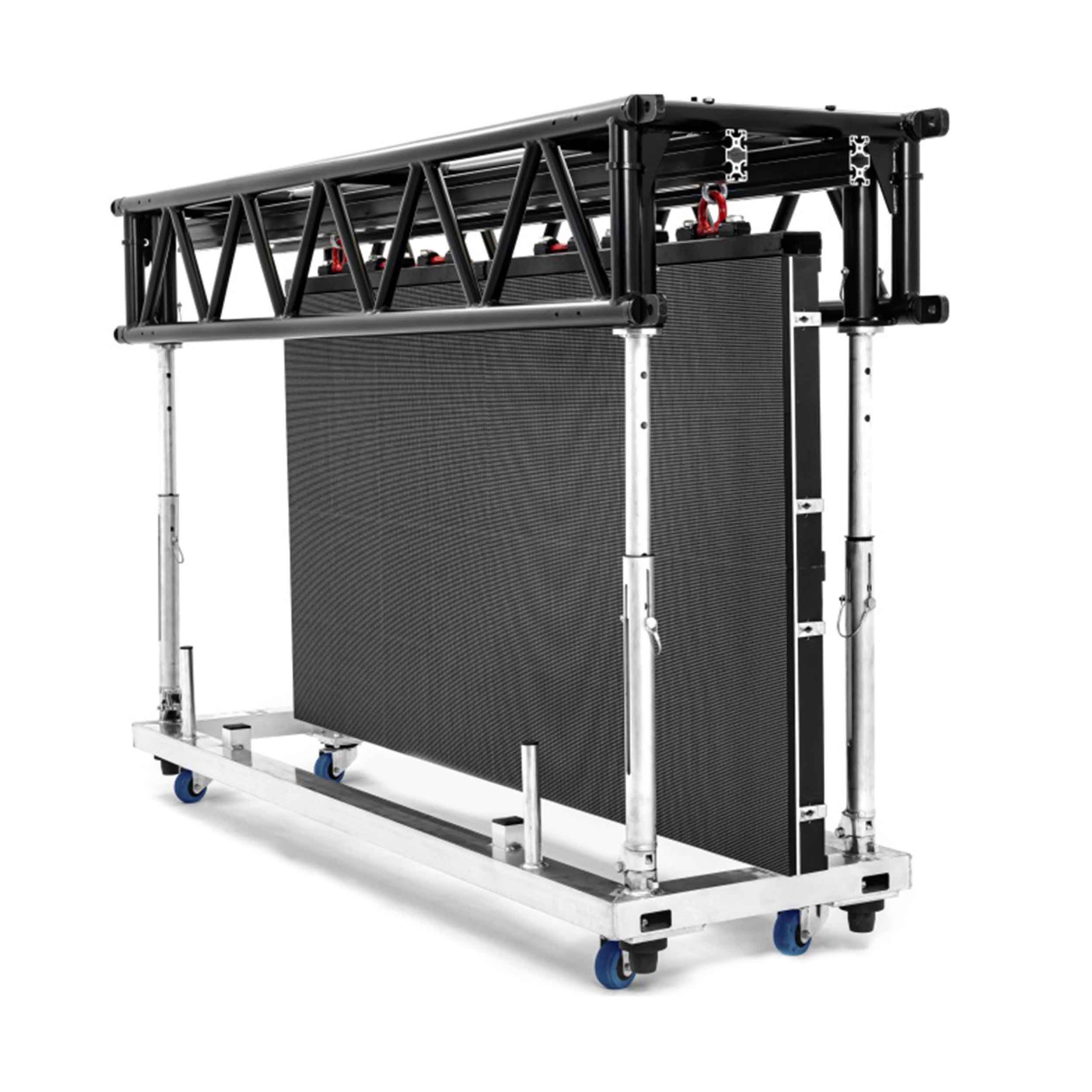

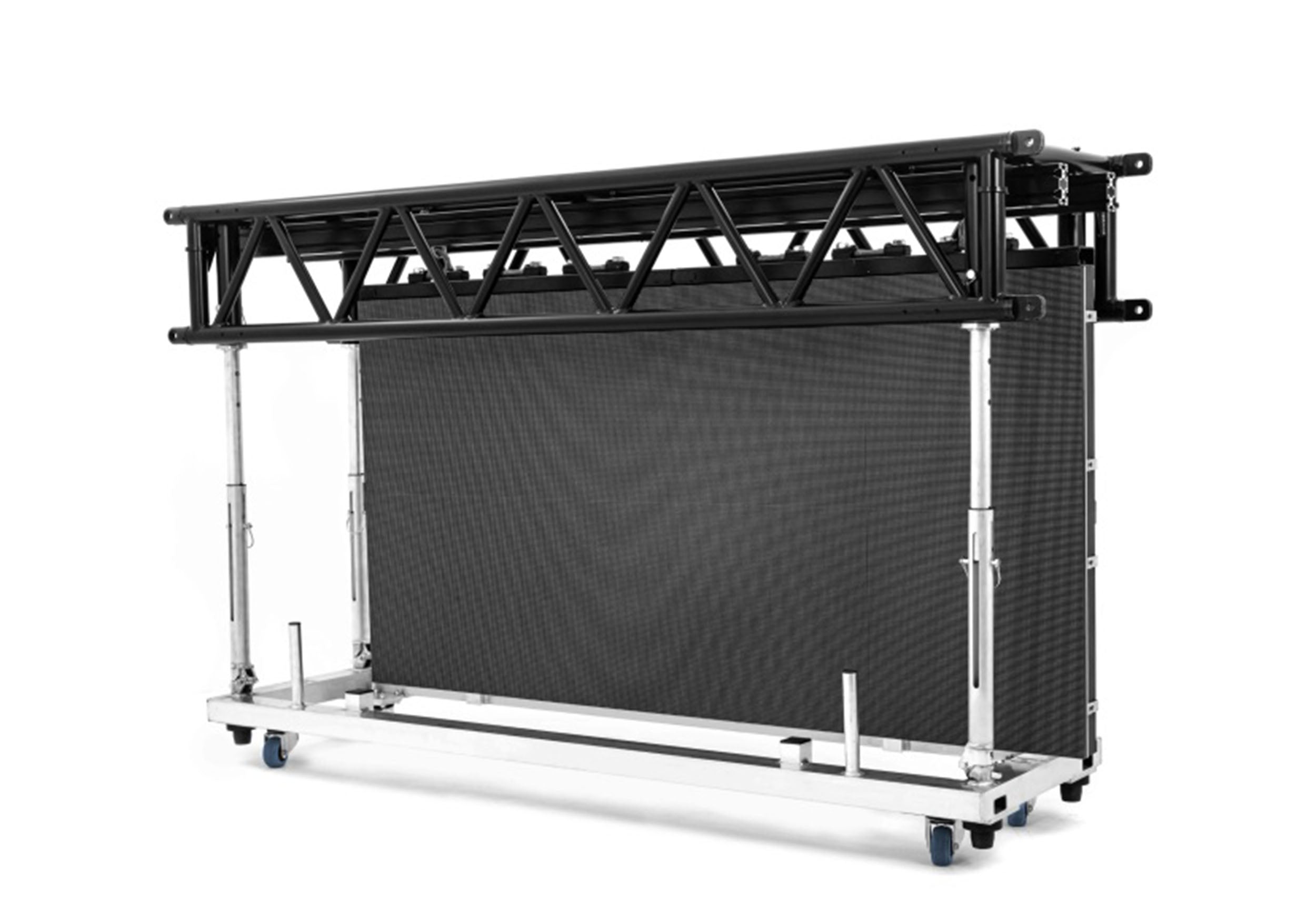

Pre-Tension and LED Video Wall Applications

The MLT THREE design allows pre-tension, or camber, to be established in the truss before transportation. This can help compensate for the weight of the truss and suspended LED video panels when properly configured according to the applicable structural documentation. The open-bottom design provides clearance for complete LED video modules and hanging frames. A fully prepared assembly can be transported on the included dolly and positioned at the venue without requiring complete disassembly. This workflow can reduce labor and handling during repeated rental deployments. The system is therefore particularly useful for professional LED video wall and large-format event applications.

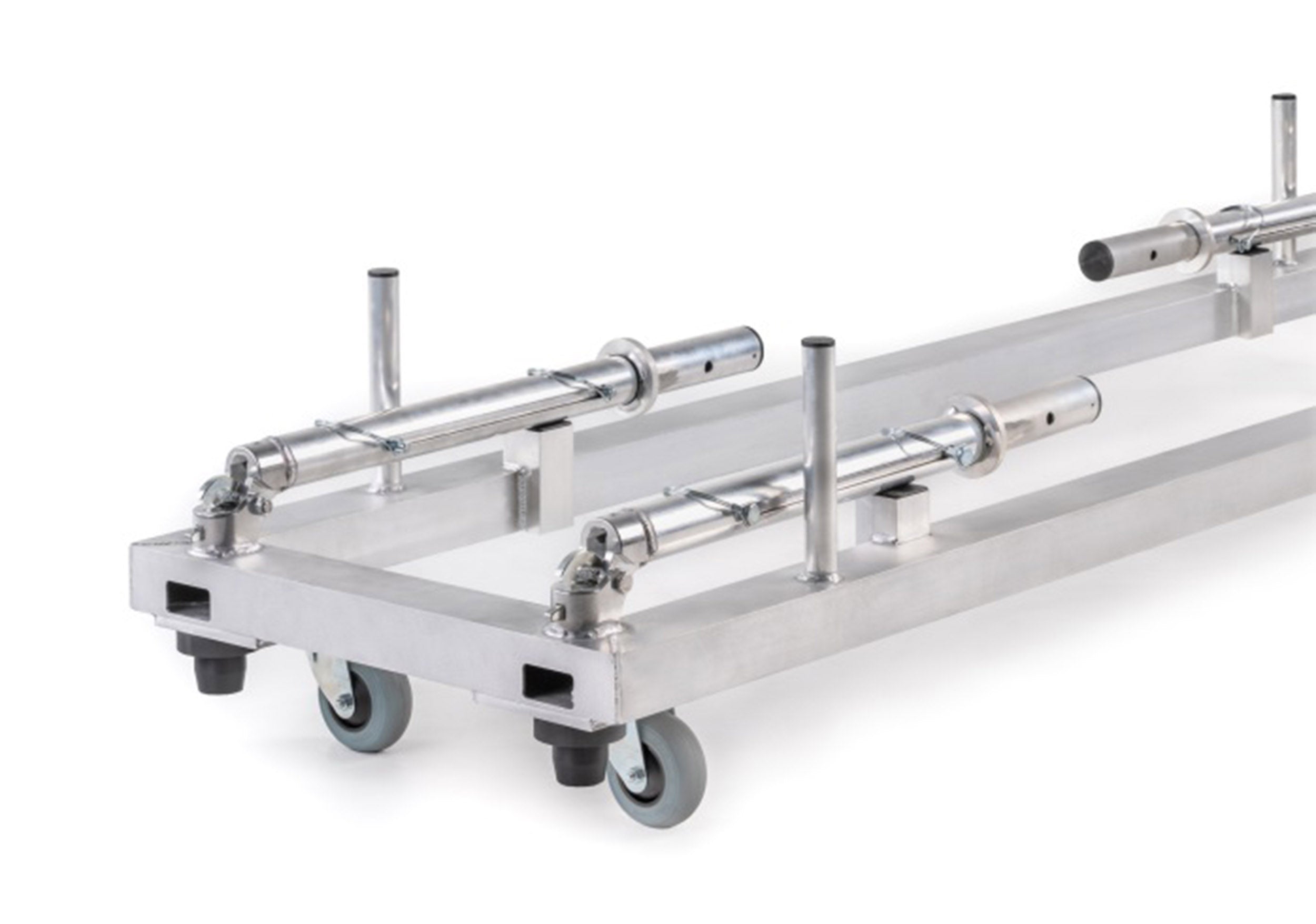

Folding Dolly and Transport System

The included HOF MLT THREE folding dolly is specifically designed for the 8-foot pre-rig truss rather than being a generic transport cart. It is constructed from Aluminium EN AW 6082 T6 and incorporates telescopic adjustable legs for accommodating loaded video modules and hanging frames. Heavy-duty casters allow the assembly to be moved across venue floors, loading areas, and backstage surfaces. The open-bottom design provides access to the underside of the truss while it remains on the dolly. The dolly folds flat for compact storage and can be stacked with up to 10 units when not carrying truss. This provides efficient transportation and warehouse storage for production companies.

Flexible Configuration and Compatibility

The truss includes male and female rotatable fork connectors that can be used to create straight, curved, and custom truss configurations. The 48.3 mm main tube diameter provides compatibility with suitable 48.3 mm professional truss systems from other manufacturers. The dolly also incorporates replaceable steel rotatable fork connectors that extend up to 70 mm for various configurations. Both truss and dolly components can be combined across the MLT THREE series for additional system flexibility. The single-person connection design helps simplify setup and teardown. Structural documentation covering line loads, vertical configurations, curved builds, upside-down configurations, and cantilever applications is available for professional planning and permitting.

What’s in the Box:

• XTH-MLT3US8FT (1) MLT THREE 8 Foot Pre-Rig Truss by HOF Germany
• XTH-MLTPFDUS8FT (1) Folding Dolly for HOF MLT THREE Pre-Rig Truss 8 Feet

Product Specifications:

Product Type: Pre-Rig Truss and Folding Dolly Kit

Truss Series: HOF MLT THREE

Truss Length: 8 ft. / 2438 mm

Truss Material: Aluminium EN AW 6082 T6

Main Tube: 48.3 x 4.5 mm

Bracing: 30 x 3 mm

Finish: RAL 9005 Gloss Black Heavy Duty Powder Coating

Truss Design: Open-Bottom Pre-Rig

Truss Connectors: Rotatable Hardened Steel Fork Connectors

Truss Fork Extension: Up to 60 mm

Dolly Material: Aluminium EN AW 6082 T6

Dolly Design: Folding / Open-Bottom

Dolly Legs: Telescopic Adjustable

Dolly Fork Extension: Up to 70 mm

Dolly Casters: Heavy-Duty

Dolly Storage: Folds Flat / Stackable Up to 10 Units Without Truss

Operating Configuration: Straight, Horizontal Curve, Vertical Curve and Circular Configurations

Pre-Tension / Camber: Supported

Cross-Brand Compatibility: Suitable for Compatible 48.3 mm Truss Systems

Structural Documentation: Line Load, Vertical, Upside-Down, Curved and Cantilever Configurations

Primary Applications: LED Video Walls, Touring, Live Events, Production, Rental and Stage Rigging

Total Kit Weight: 167.8 lbs

Main Tube: 48.3 x 4.5 mm

Truss Length: 8 ft. / 2438 mm

Truss Weight: 107.8 lbs.

Dolly Weight: 60 lbs.

Primary Applications: LED Video Walls, Touring, Live Events, Production, Rental and Stage Rigging
