The RCF DMA-82 is a compact two-channel Class-D matrix amplifier delivering 2 × 80W at 4 or 8 ohms, with bridge operation up to 160W. Designed for professional installed sound and business music applications, it combines amplification, flexible signal routing, and comprehensive DSP processing in a space-efficient chassis.

Advanced DSP & RCF Speaker Optimization

A powerful onboard DSP platform provides routing and equalization with PEQ, FIR filters, bass enhancement, compressors, limiters, tone controls, and environmental equalization. Dedicated RCF speaker presets and the proprietary bass enhancer algorithm help optimize system performance, while FiRPHASE processing provides accurate linear-phase filtering.

Flexible Multi-Room System Integration

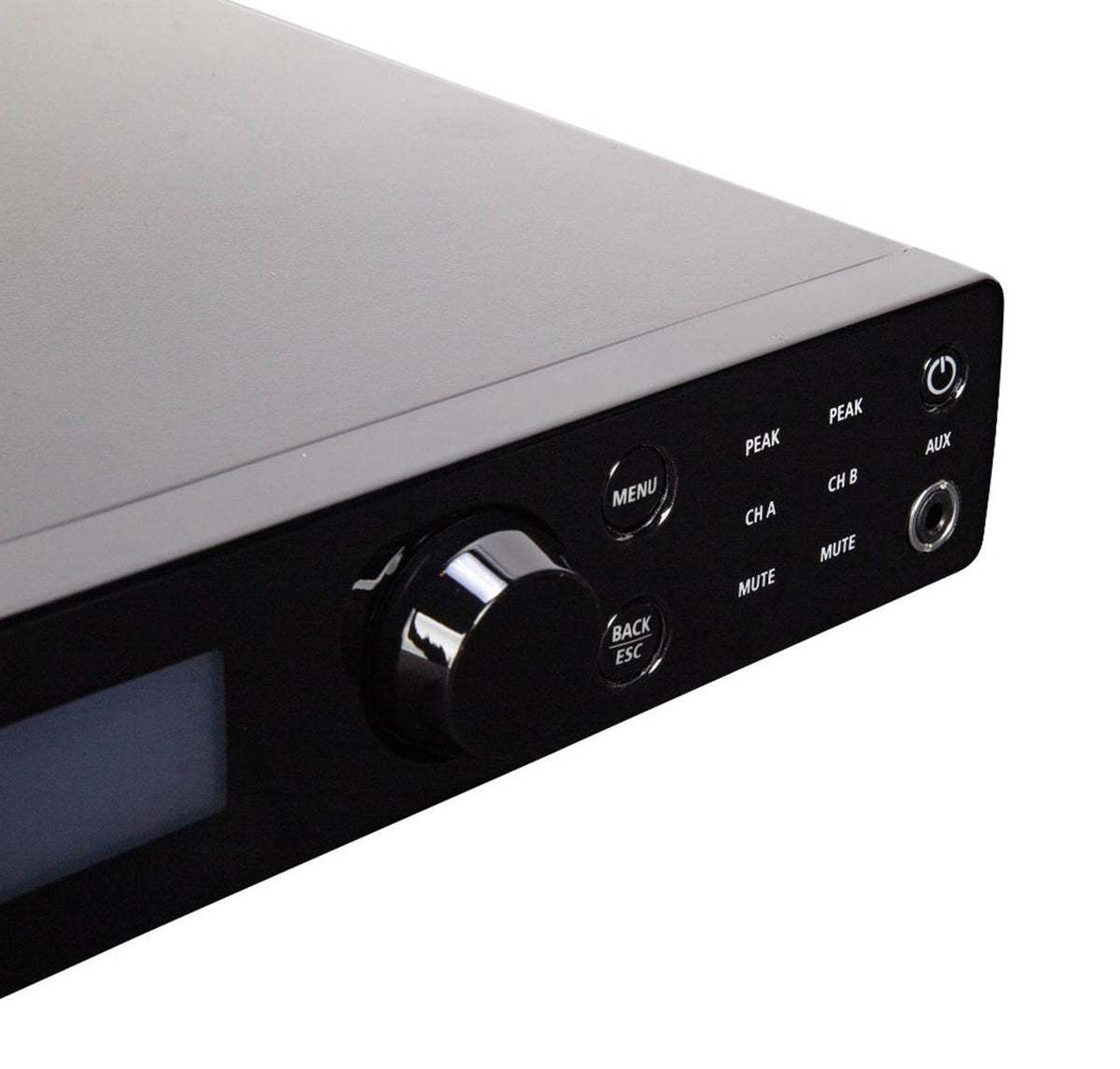

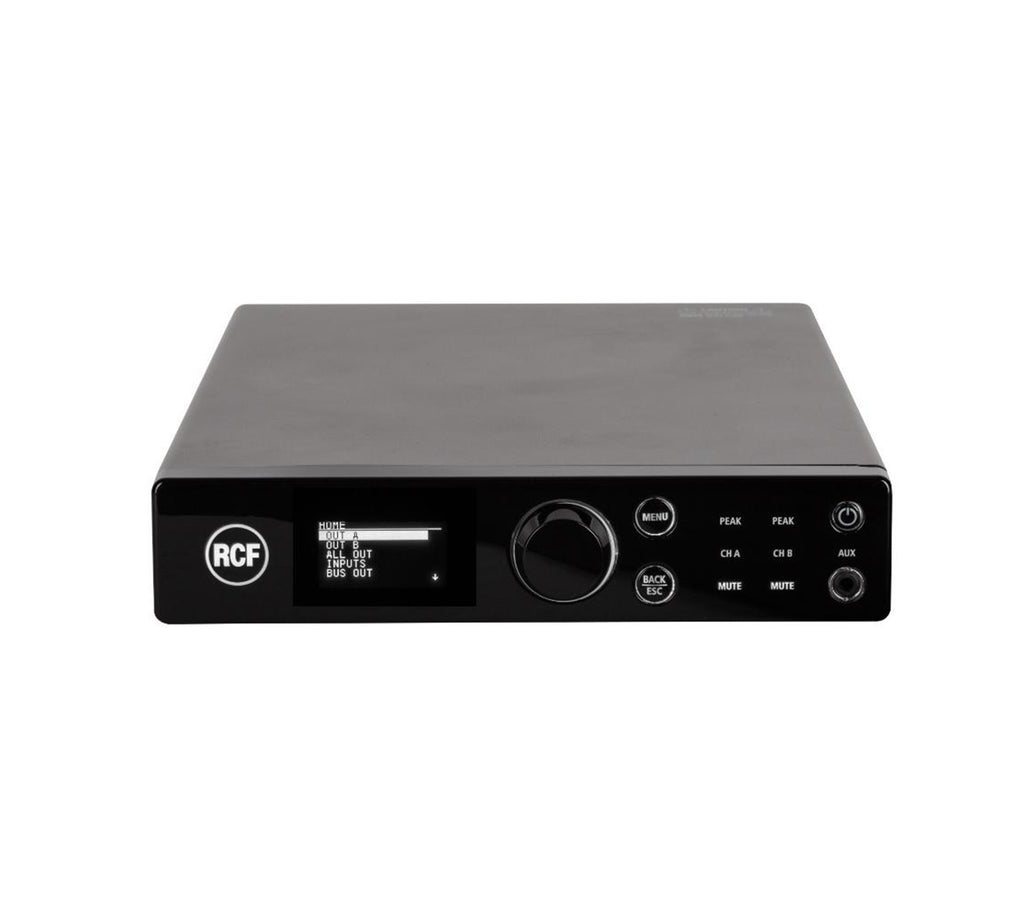

The DMA-82 can distribute four audio channels to DMA 162P units through an analog audio BUS, enabling scalable multi-room system configurations. Front-panel controls with an OLED display and RDNet connectivity simplify configuration and networked management, while its compact design supports desktop use or optional rack installation.

Product Specifications:

Amplifier Class: Class D

Output Power: 2 × 80W @ 4 Ohms

Output Power: 2 × 80W @ 8 Ohms

Bridge Output Power: 1 × 160W @ 4 Ohms / 8 Ohms

70V Output: 1 × 160W

Frequency Response: 20 Hz–20,000 Hz

THD+N: <0.01% @ 1 kHz Nominal Power

Total Inputs: 5

Balanced Inputs: 2

Unbalanced Inputs: 3

Mono Inputs: 2

Stereo Inputs: 3

Line Inputs: 3

Mic + Line Input: 1

Paging Input: 1

VOX: Yes

Line Connectors: JACK, Picoflex, RCA

Mic + Line Connector: Euroblock

Paging Connector: RJ45

Paging Command: Contact

GPI: 1

Signal Output: 1

Signal Output Connector: RCA

Power Output Connector: Euroblock

DSP: Yes

EQ Filters: Yes

FIR Filters: Yes

Compressors: Yes

Tone Controls: Yes

High-Pass Filter: 80–200 Hz

RCF Speaker Presets: Yes

System Integration Protocol: Proprietary

RDNet: Onboard

Configuration: Front Panel, PC Software

Cooling: Forced

Protections: Short Circuit, Thermal, DC, Fuses, VHF

Operating Voltage: AC 90–240V, 50/60Hz

Maximum Power Consumption: 200W

Cabinet Material: Metal

Rack Mounting: 1/2 19-inch, 1U

Rack Installation: Optional Rack Mounting Accessory Required

Safety Compliance: CE, UL 62368-1

Product Weight: 3.75 lbs

Product Dimensions: 1.73 H × 8.39 W × 12.36 L

Shipping Weight: 5.95 lbs

Shipping Dimensions: 4.17 H × 14.17 W × 15.00 L
