Descripción

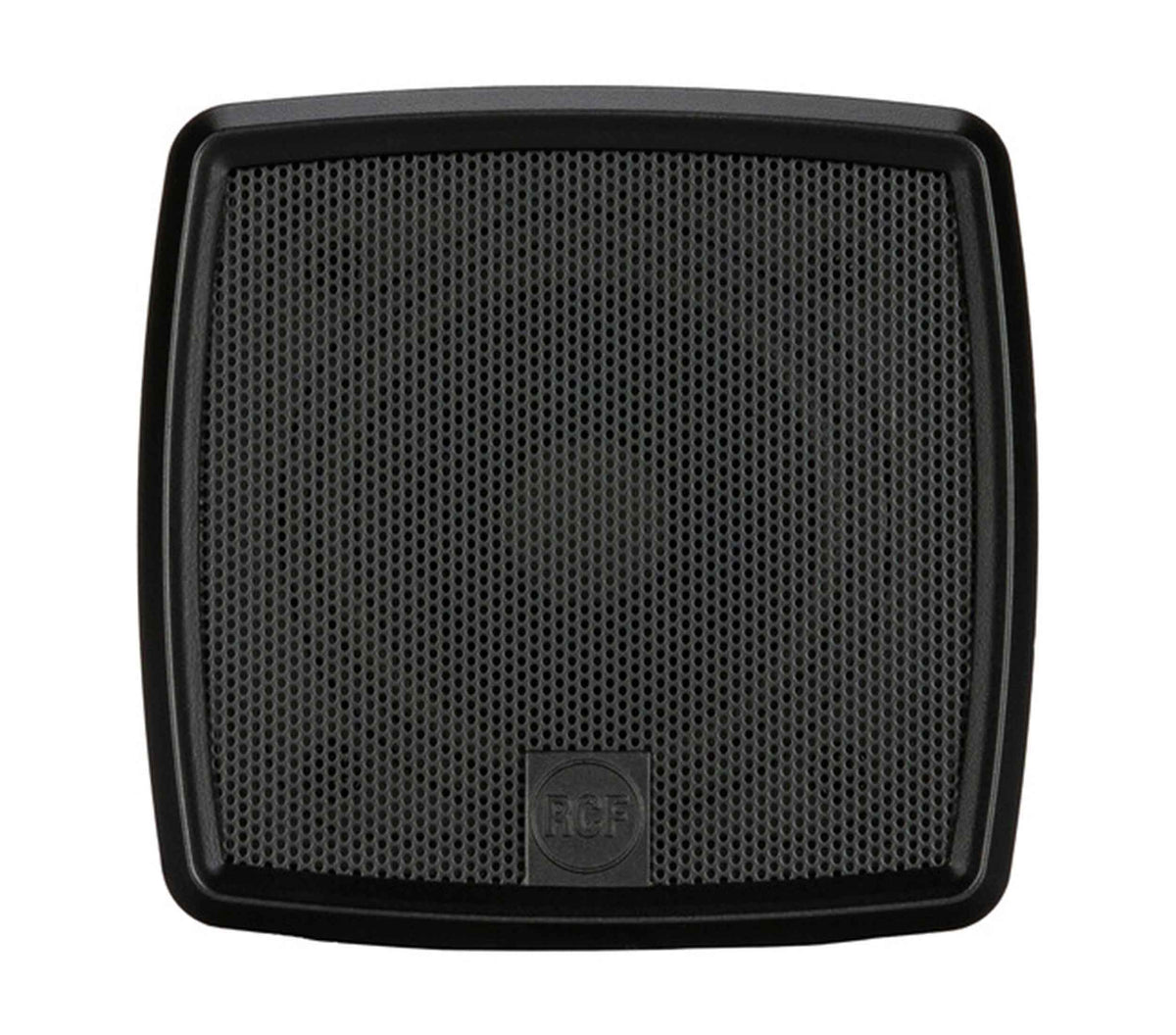

The RCF MMR-30T-B is a pair of compact full-range micro monitor speakers designed for clear background music and speech reproduction in a wide range of indoor and outdoor applications. Each speaker features a 3-inch full-range transducer with 10W RMS power handling and can produce up to 101 dB maximum SPL for its compact size.
Flexible 70V/100V Installation
Each MMR-30T-B speaker incorporates a constant-voltage transformer for connection to distributed 70V/100V audio systems. Four selectable 100V power settings 10W, 5W, 2.5W, and 1.25W provide flexibility for different system requirements. Removable two-pole Euroblock connectors provide straightforward and secure installation wiring.
Durable Architectural Installation

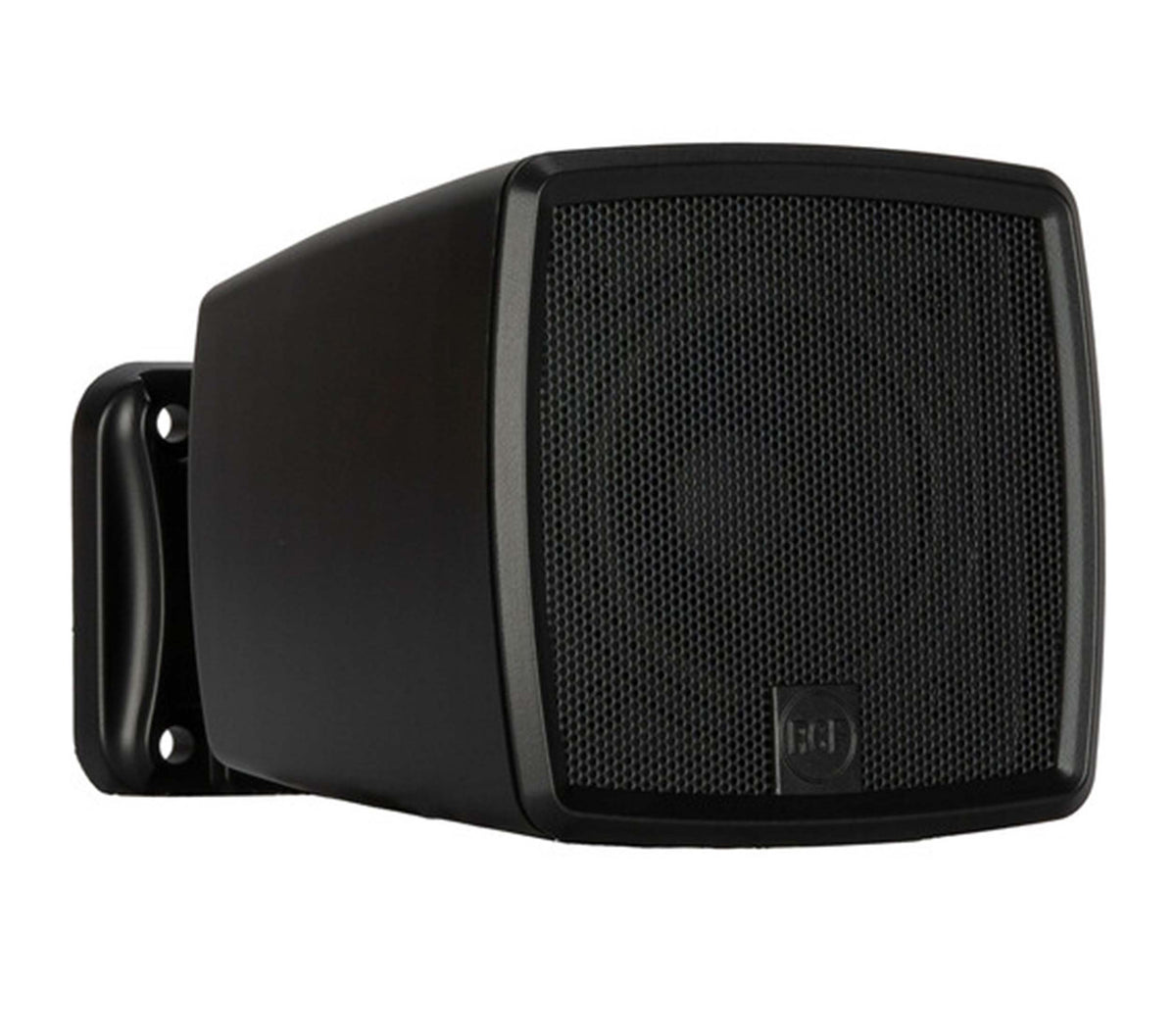

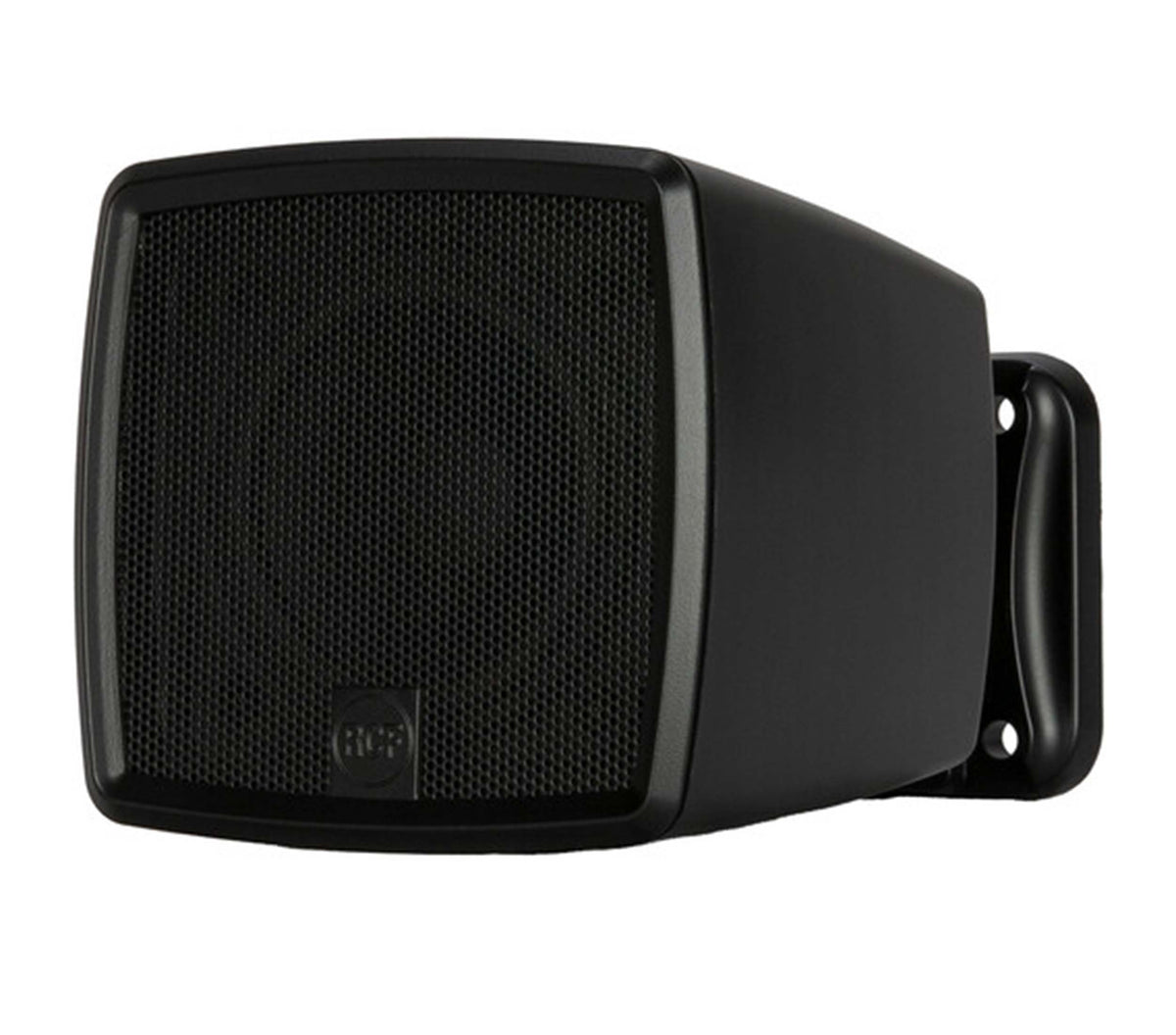

The speakers feature robust ABS enclosures with aluminum grilles and included wall-mount brackets offering swivel and tilt adjustment for precise positioning. With an IP55 protection rating, the MMR-30T-B is suitable for appropriate indoor and outdoor installations, while the discreet design and available black RAL 9005 or white RAL 9003 finishes allow easy integration into different architectural environments.
Product Specifications:
Package Quantity: 2 Speakers
Speaker Configuration: Full-Range
Active/Passive: Passive
Transducer: 1 × 3" Full-Range Each
Driver Size: 3"
Frequency Response: 200 Hz – 20 kHz (-10 dB)
Maximum SPL @ 1m: 101 dB
Coverage Angle: 130° Conical
System Sensitivity: 84 dB
Nominal Impedance: 16Ω
Power Handling: 10W RMS Each
Peak Power Handling: 40W Peak Each
Constant Voltage: 100V
Transformer Power Taps: 10W, 5W, 2.5W, 1.25W
Transformer Impedance: 1000Ω, 2000Ω, 4000Ω, 8000Ω
Power Selection 1: 10W / 1000Ω
Power Selection 2: 5W / 2000Ω
Power Selection 3: 2.5W / 4000Ω
Power Selection 4: 1.25W / 8000Ω
Amplification Type: Full-Range
Recommended Amplifiers: KPS Series
Input/Output Connectors: Euroblock
Connector Type: Removable 2-Pole Euroblock
Enclosure Material: ABS
Grille Material: Aluminum
Mounting Bracket: Included

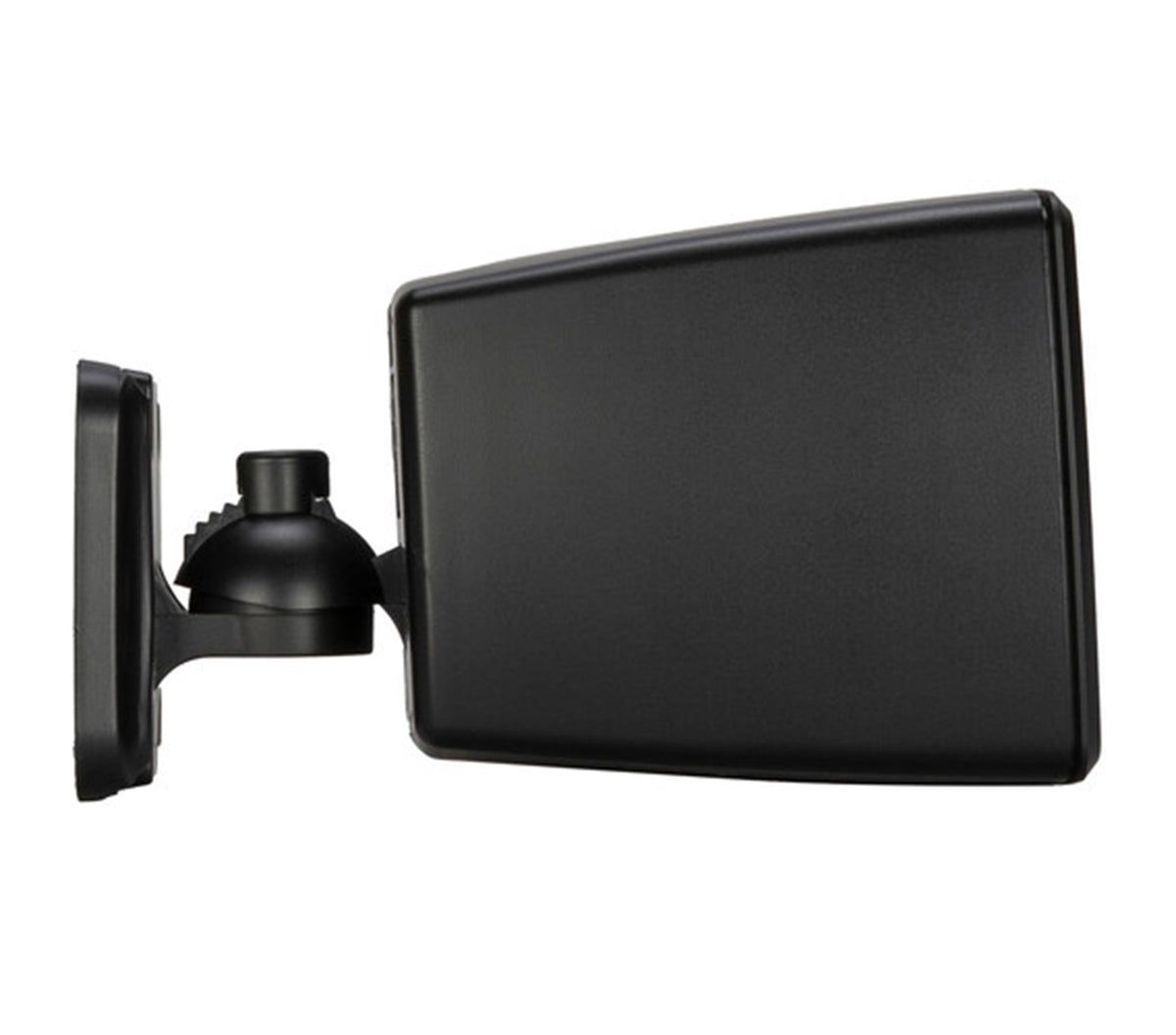

Bracket Adjustment: Swivel and Tilt
Mounting Type: Wall Mount
Environmental Protection: IP55
Safety Certification: CE Compliant
Installation: Indoor & Outdoor
Application: Background Music, Speech, Commercial, Architectural & Outdoor Audio
Design: Compact Micro Monitor
Product Weight: 1.46 lbs
Product Dimensions: 3.79" H × 3.95" W × 6.2" L
Shipping Weight: 4.63 lbs
Shipping Dimensions: 4.96" H × 12.05" W × 6.14" L
