Descripción

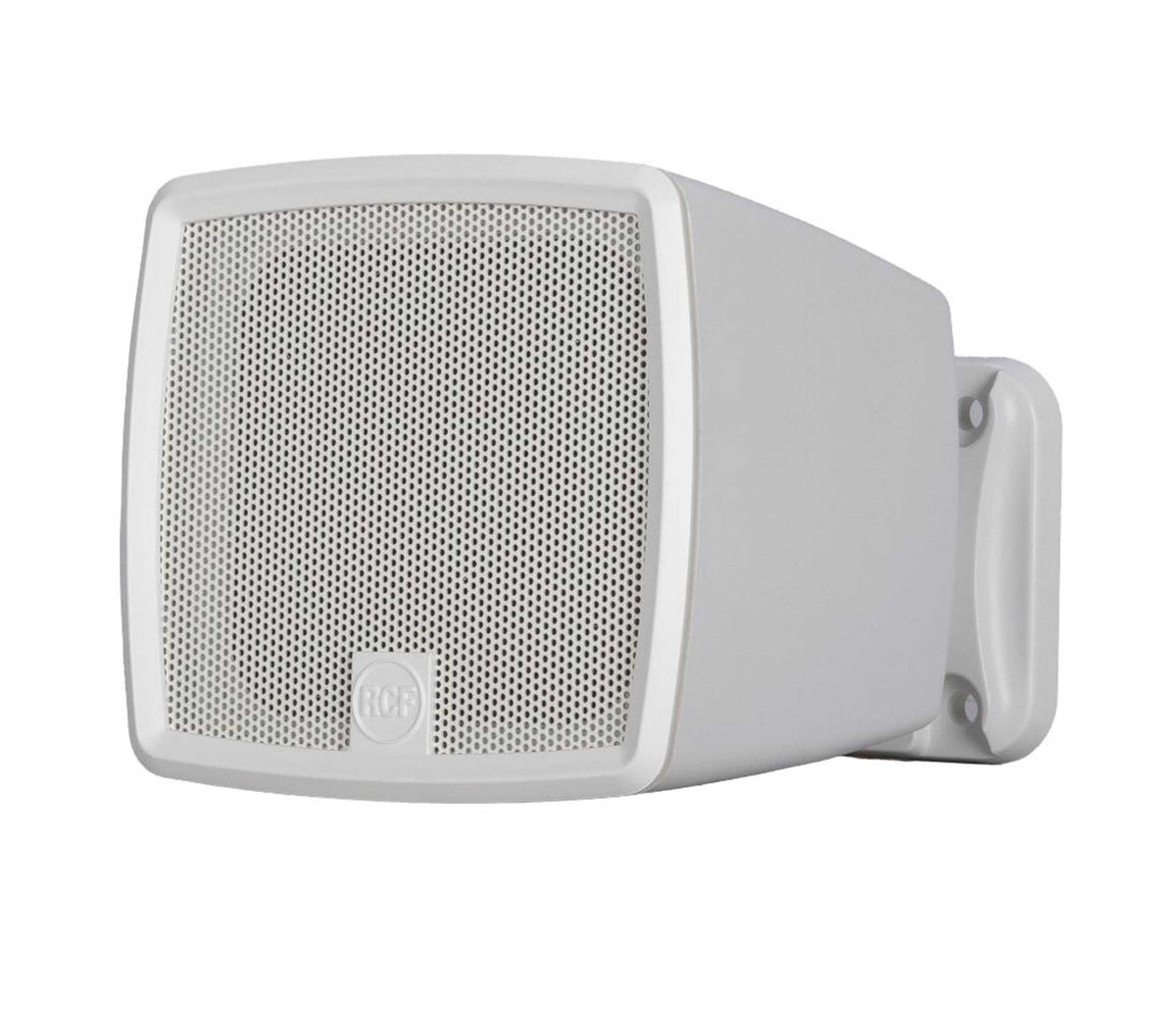

The RCF MMR-30T-W is a pair of compact full-range wall-mount speakers designed for clear background music and speech reproduction across a wide range of indoor and outdoor applications. Each speaker features a 3-inch full-range transducer with 10W RMS power handling and delivers up to 101 dB maximum SPL from its compact enclosure.
Flexible 70V/100V Installation
An integrated transformer allows the MMR-30T-W to operate on constant-voltage distributed audio systems, with selectable 100V power taps of 10W, 5W, 2.5W, and 1.25W. Removable two-pole Euroblock connectors provide simple and secure wiring, while the 16Ω nominal impedance supports flexible system configurations when used with compatible equipment.
Durable Architectural Mounting
The speakers feature robust ABS enclosures with aluminum grilles and an IP55 protection rating for suitable indoor and outdoor installations. The included wall-mount brackets provide swivel and tilt adjustment for precise orientation, while the discreet black RAL 9005 finish allows the speakers to integrate naturally into commercial, architectural, hospitality, and other professional environments.
Product Specifications:
Package Quantity: 2 Speakers
Speaker Configuration: Full-Range
Active/Passive: Passive
Transducer: 1 × 3" Full-Range Each
Driver Size: 3"
Frequency Response: 200 Hz – 20 kHz (-10 dB)
Maximum SPL @ 1m: 101 dB
Coverage Angle: 130° Conical
System Sensitivity: 84 dB
Nominal Impedance: 16Ω
Power Handling: 10W RMS Each
Peak Power Handling: 40W Peak Each
Amplification Type: Full-Range
Constant Voltage: 70V / 100V
Transformer Power Selection: 10W, 5W, 2.5W, 1.25W
Transformer Impedance: 1000Ω, 2000Ω, 4000Ω, 8000Ω
Power Selection 1: 10W / 1000Ω
Power Selection 2: 5W / 2000Ω
Power Selection 3: 2.5W / 4000Ω
Power Selection 4: 1.25W / 8000Ω
Input/Output Connectors: Euroblock
Connector Type: 2-Pole Removable Screw Terminal
Safety Compliance: CE Compliant
Cabinet Material: ABS
Grille Material: Aluminum
Mounting Type: Wall Mount
Mounting Bracket: Included
Bracket Adjustment: Swivel & Tilt
Installation: Indoor & Outdoor
Application: Background Music, Speech, Commercial, Architectural & Outdoor Audio
System Compatibility: RCF Amplifiers with Onboard Presets, KPS Series
Design: Compact Architectural Micro Monitor
Product Weight: 1.46 lbs
Product Dimensions: 3.79" H × 3.95" W × 6.2" L
Shipping Weight: 4.63 lbs
Shipping Dimensions: 4.96" H × 12.05" W × 6.14" L
