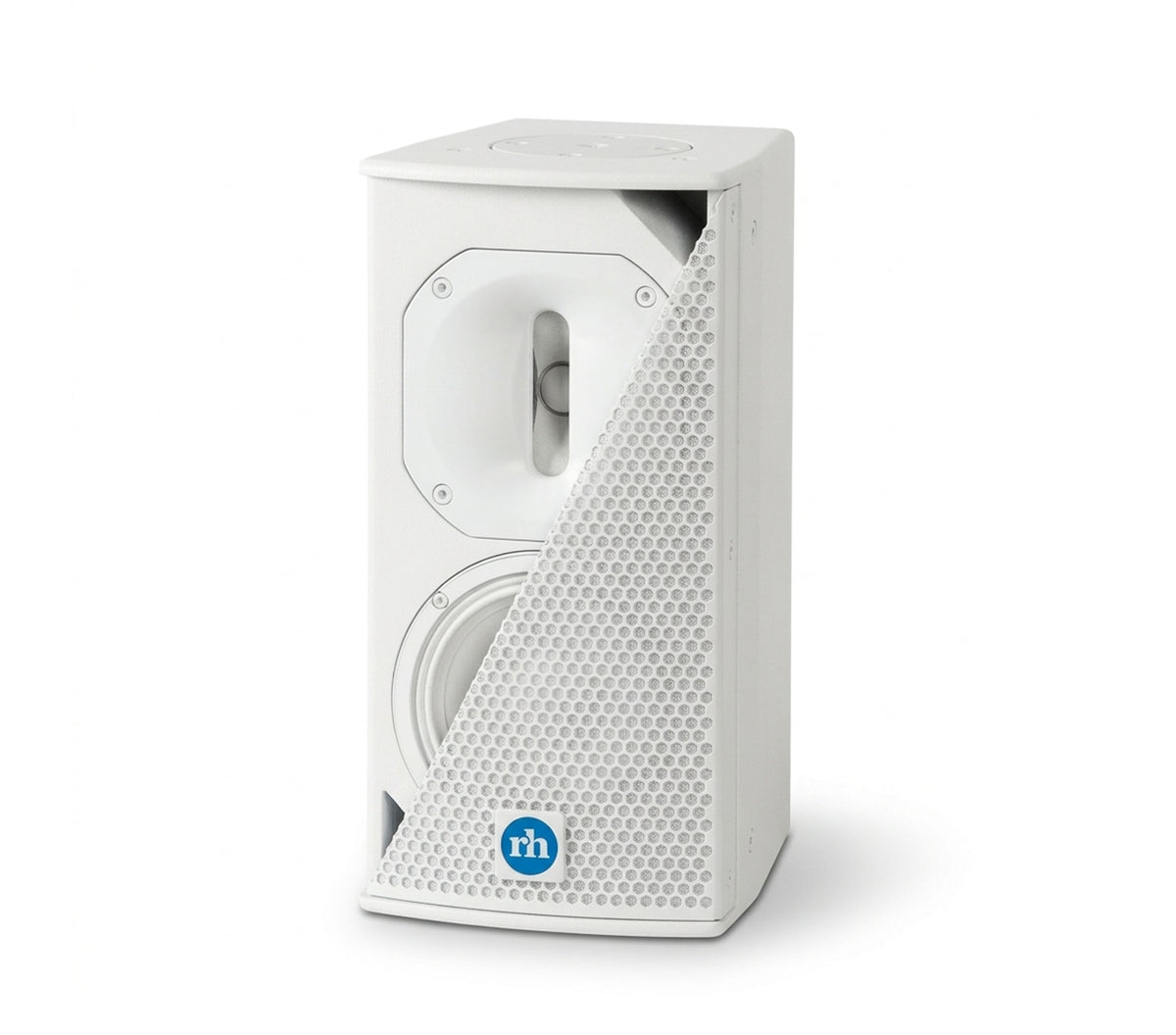

The Renkus-Heinz CX61W is a compact two-way loudspeaker system designed to deliver high-volume output from an exceptionally space-efficient enclosure. Built around a 6.5-inch heavy-duty woofer and a 1-inch Extended Range Titanium HF driver, the CX61W provides full-range performance for professional sound reinforcement applications where installation space is limited.
Its exclusive Complex Conic horn provides controlled 120° horizontal by 60° vertical dispersion while maintaining consistent beamwidth. The 6.5-inch woofer handles 100 watts AES at 16 ohms, while the titanium high-frequency driver delivers smooth, low-distortion high-frequency reproduction extending to 20 kHz. The enclosure is constructed from poplar plywood and protected by a perforated metal grille for durability in professional installations and portable applications.
The CX61W is suitable for fills, delays, distributed systems, playback systems, and compact full-range sound reinforcement. Its universal M6 mounting hardware and M10 U-bracket attachment points provide flexible installation options for churches, schools, sports venues, boardrooms, retail environments, transportation facilities, performing artists, rental A/V applications, and other professional audio installations.
Product Specifications:
Product Type: Compact Two-Way Loudspeaker System
Loudspeaker Type: Non-Powered / Passive
System Configuration: Two-Way
Woofer Size: 6.5 Inches
Woofer Model: SSL6.5-18
Woofer Voice Coil: 1 Inch
Woofer Power Rating: 100W AES @ 16 Ohms
Woofer Program Power: 120W Program
HF Driver Type: Extended Range Titanium Compression Driver
HF Driver Model: SSD1445-16
HF Voice Coil: 1.4 Inches
HF Exit: 1 Inch
HF Driver Power Rating: 20W AES
Power Rating: 100W AES @ 16 Ohms
Program Power: 200W @ 16 Ohms
Impedance: 16 Ohms
Sensitivity: 94 dB (1W/1m)
Maximum SPL: 120 dB Peak
Frequency Response: 100 Hz–20 kHz ±3 dB
Nominal Dispersion: 120° H × 60° V
Horn Type: Complex Conic Horn
Horn Design: Rotatable Complex Conic
Enclosure Material: Poplar Plywood
Grille Material: Perforated Metal
Mounting Hardware: 12-Point Universal Mounting Hardware
Mounting Threads: Metric M6
U-Bracket Attachment Points: M10
Connectors: Screw Terminals and Looping 4-Pin Neutrik SpeakON-Style Connectors
Application: Fills, Delays, Distributed Systems & Playback Systems
Permanent Installation Applications: Churches, Schools, Sports Venues, Boardrooms, Malls, Transportation Venues & Retail Environments
Portable Applications: Performing Artists, Rental A/V, Schools & Churches
Recommended Use: Professional Sound Reinforcement
Operating Environment: Indoor & Portable Professional Applications
Product Weight: 20 lbs
Product Dimensions: 16" H × 7.875" W × 9.375" L
