Descripción

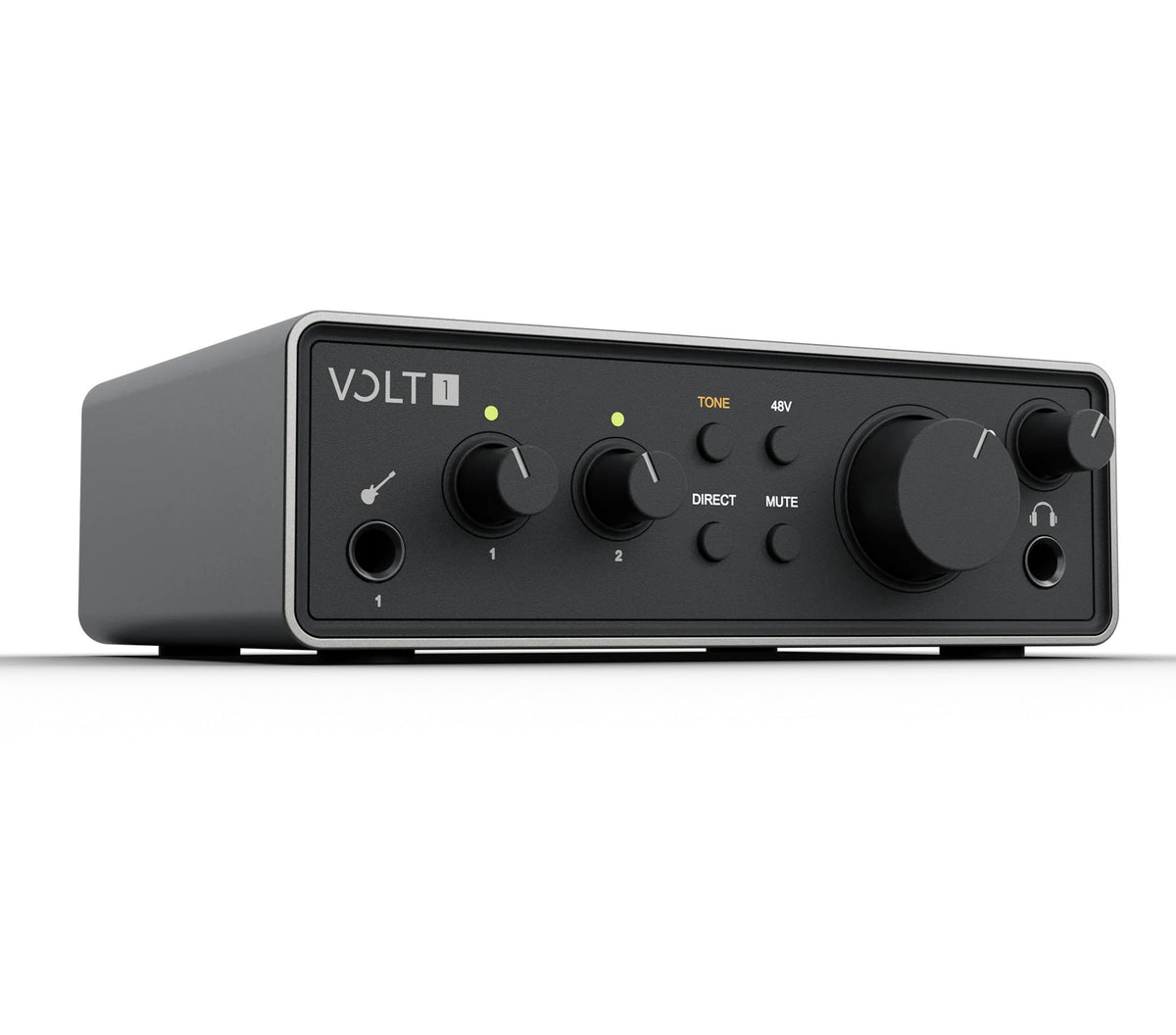

The Universal Audio UA-VOLT-1-G2-U Volt 1 Gen 2 USB Audio Interface combines high-resolution 32-bit audio conversion with a tone-shaping microphone preamp designed to give vocals and other sources a richer, more polished character. With up to 60 dB of available gain, the interface provides a flexible front end for microphones and instruments while maintaining detailed, low-noise audio performance.
Compact I/O for Recording & Production

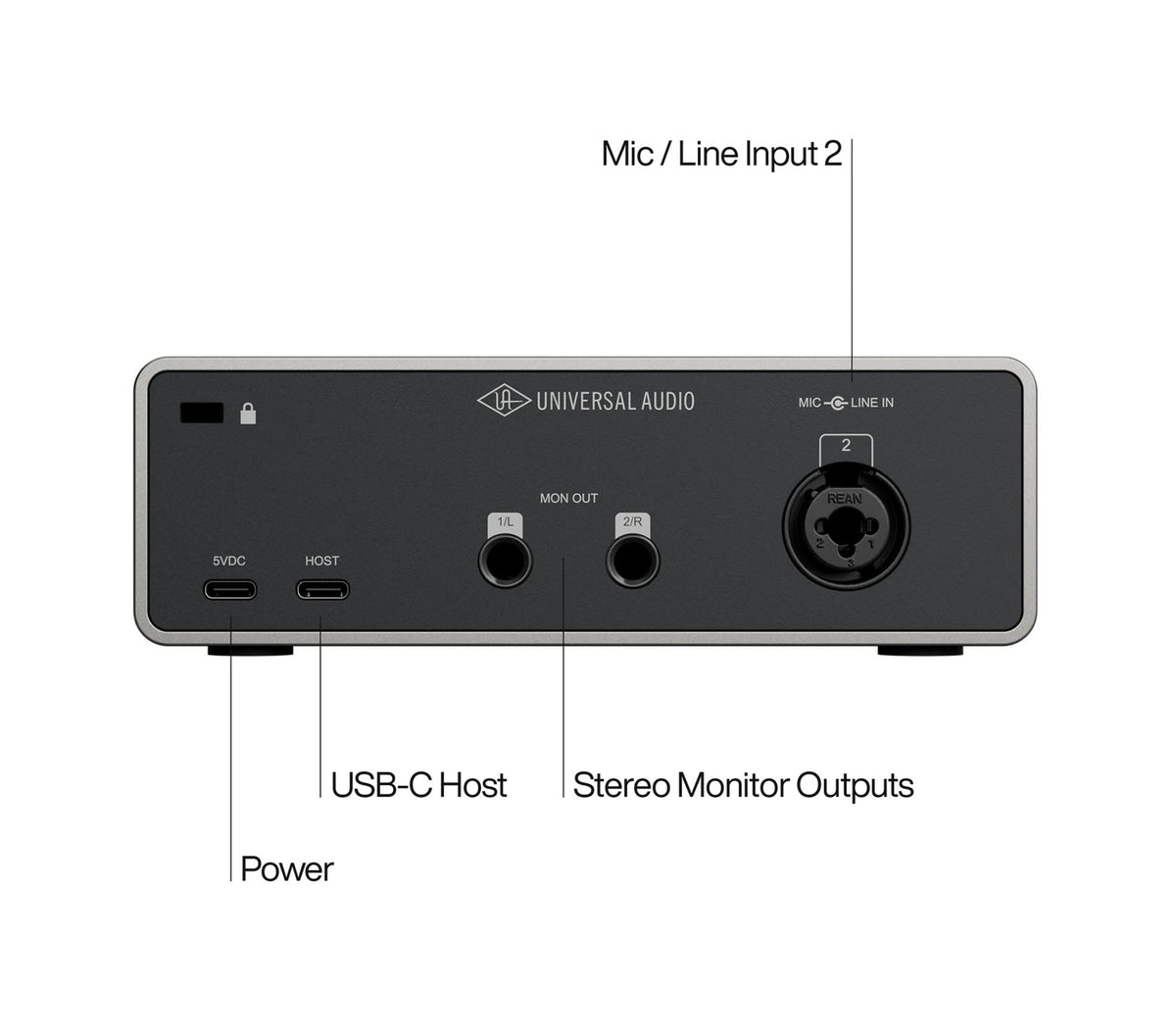

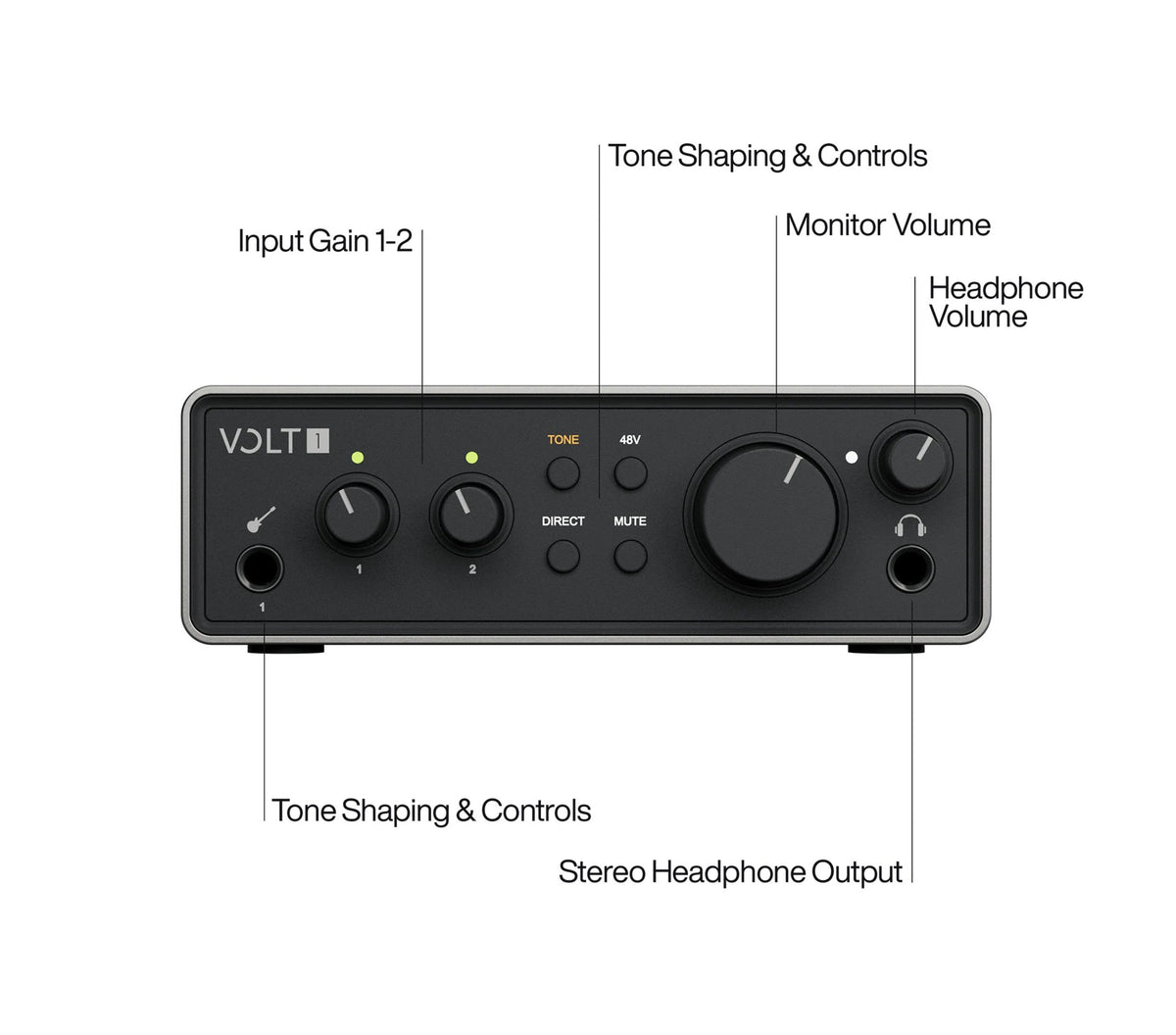

Volt 1 Gen 2 provides 2-in/2-out operation with a microphone input, instrument input, line connectivity, stereo monitor outputs, and a dedicated stereo headphone output. USB bus power allows the interface to operate without an external power supply, making it practical for mobile recording, home studios, content creation, and portable production setups.
UAD Software & Loopback for Content Creation

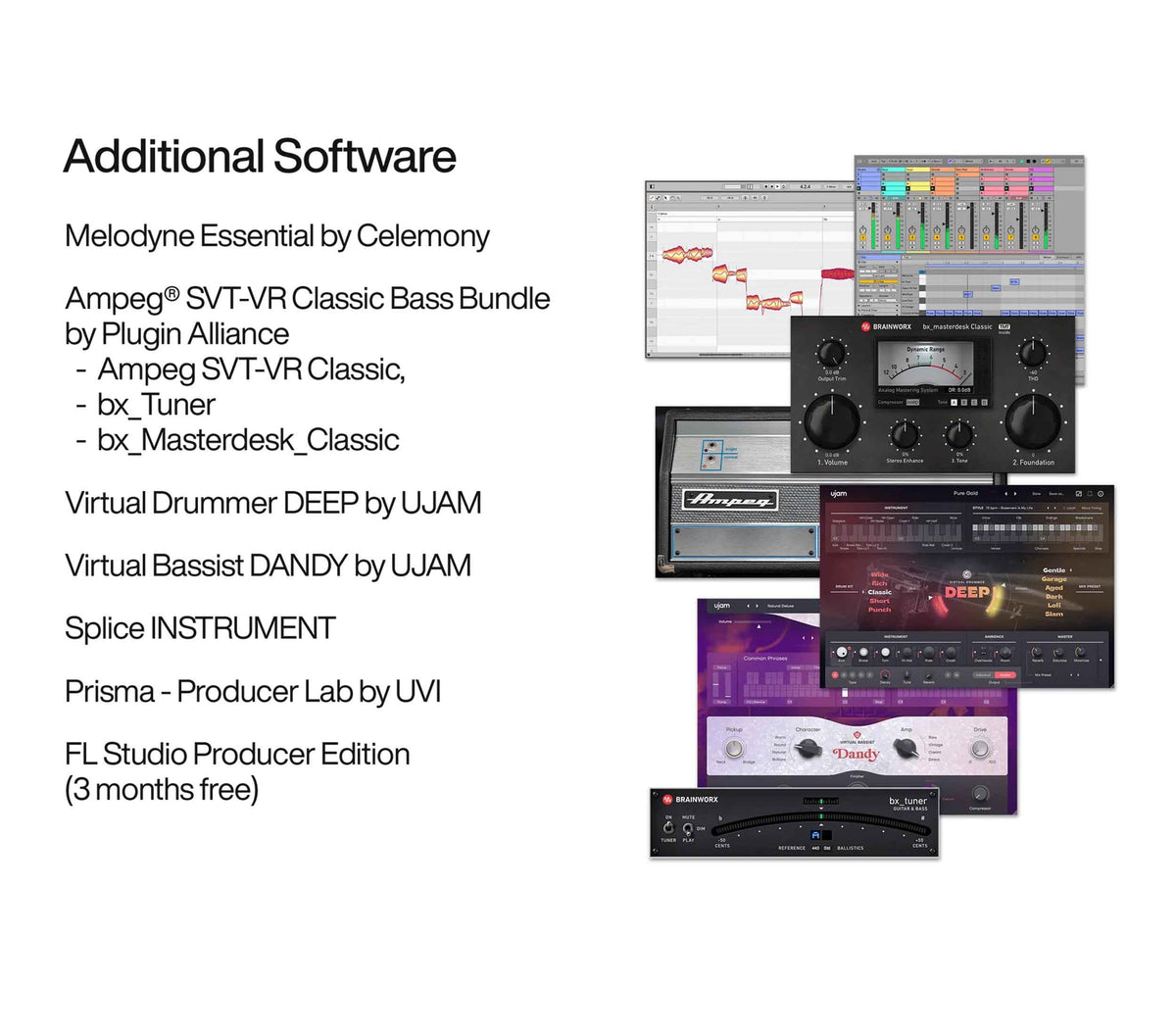

Every Volt includes more than 15 UAD plug-ins and instruments along with the LUNA DAW, providing access to recording, mixing, guitar, synthesis, EQ, and compression tools. Loopback functionality also allows computer audio to be combined with live sources in real time, making Volt 1 Gen 2 well suited for podcasts, livestreams, video calls, and other broadcast-style applications.
Product Specifications:
Product Type: USB Audio Interface
Generation: Gen 2
Audio I/O: 2-In / 2-Out
Microphone Preamplifier: 1
Preamp Gain: 60 dB Available
Preamp Feature: Tone Shaping
Monitor Outputs: 1 Stereo Output
Headphone Output: 1 Stereo Output
Headphone Monitoring: Shared Monitor Mix
USB Host Port: 1 USB 2.0
External Power Input: 1 USB External Power Input
USB Connector Type: USB Type-C
External Power Requirement: 5VDC @ 1A Minimum
Digital/Optical I/O: None
MIDI I/O: None
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Bit Depth: 32-Bit
Bus Power: USB Bus-Powered
Power Consumption: 2.4W Typical / 3.6W Maximum @ 5VDC
Power Switch: None
Instrument Input: 1
Instrument Input Connector: 1/4" TS Unbalanced
Instrument Input Frequency Response: 20 Hz–20 kHz ±0.03 dB
Instrument Input Dynamic Range: 116 dB A-Weighted
Instrument Input THD + Noise: -101 dB (0.0009%)
Instrument Input Maximum Level: 12.5 dBu
Instrument Input Impedance: 1 Megohm
Instrument Input Gain: 60 dB
Microphone Input: 1
Microphone Input Connector: XLR Combo Jack, Pin 2 Positive
Microphone Input Frequency Response: 20 Hz–20 kHz ±0.1 dB
Microphone Input Dynamic Range: 119 dB A-Weighted
Microphone Input THD + Noise: -108 dB (0.0004%)
Microphone Input Maximum Level: 14.5 dBu
Microphone Input Impedance: 2 Kilohms
Microphone Input Gain: 60 dB
Phantom Power: +48V Switchable
Line Input Connector: 1/4" Combo Jack, TRS Balanced or TS Unbalanced
Line Input Frequency Response: 20 Hz–20 kHz ±0.05 dB
Line Input Dynamic Range: 119 dB A-Weighted
Line Input THD + Noise: -108 dB (0.0004%)
Line Input Maximum Level: 22 dBu
Line Input Impedance: 10 Kilohms
Line Input Gain: 60 dB
Monitor Output Frequency Response: 20 Hz–20 kHz ±0.04 dB
Monitor Output Dynamic Range: 122 dB A-Weighted
Monitor Output THD + Noise: -111 dB (0.0003%)
Monitor Output Maximum Level: 20.2 dBu
Monitor Output Impedance: 100 Ohms
Monitor Output Connector: 1/4" TRS Balanced, DC Coupled
Headphone Output Frequency Response: 20 Hz–20 kHz ±0.1 dB
Headphone Output Dynamic Range: 121 dB A-Weighted
Headphone Output THD + Noise: -108 dB (0.0004%) @ 300Ω
Headphone Output Power: 52 mW @ 32Ω / 27 mW @ 300Ω
Headphone Output Connector: 1/4" TRS Stereo Unbalanced, DC Coupled
Loopback Application: Podcasts, Livestreams, Video Calls & Broadcast Audio

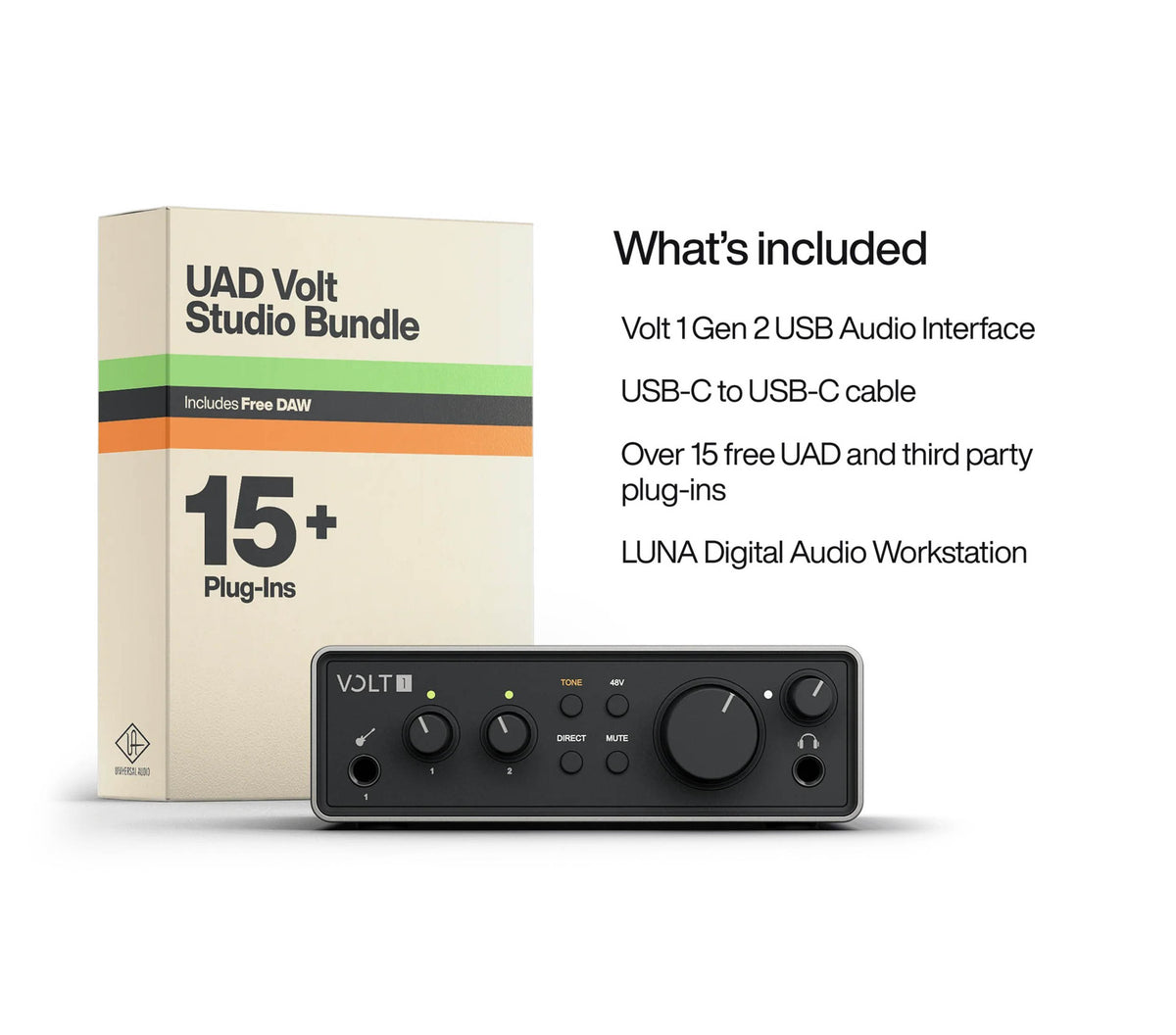

Included Software: LUNA DAW

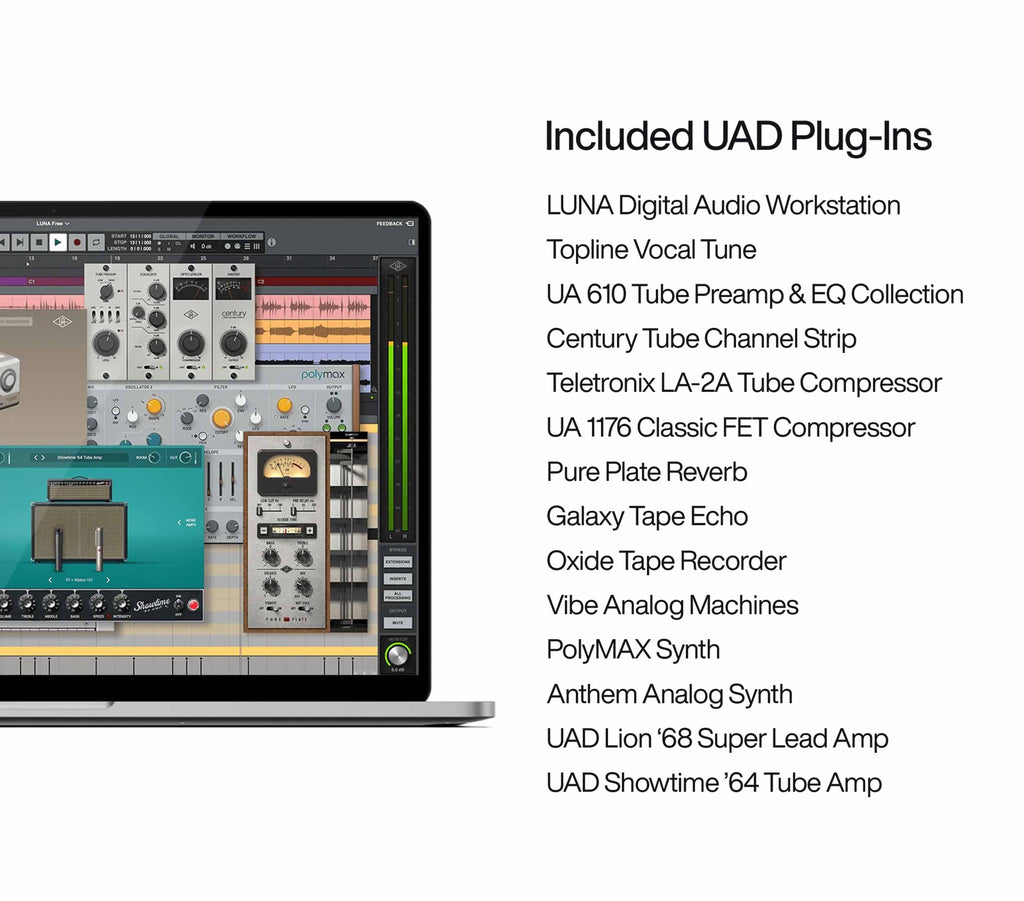

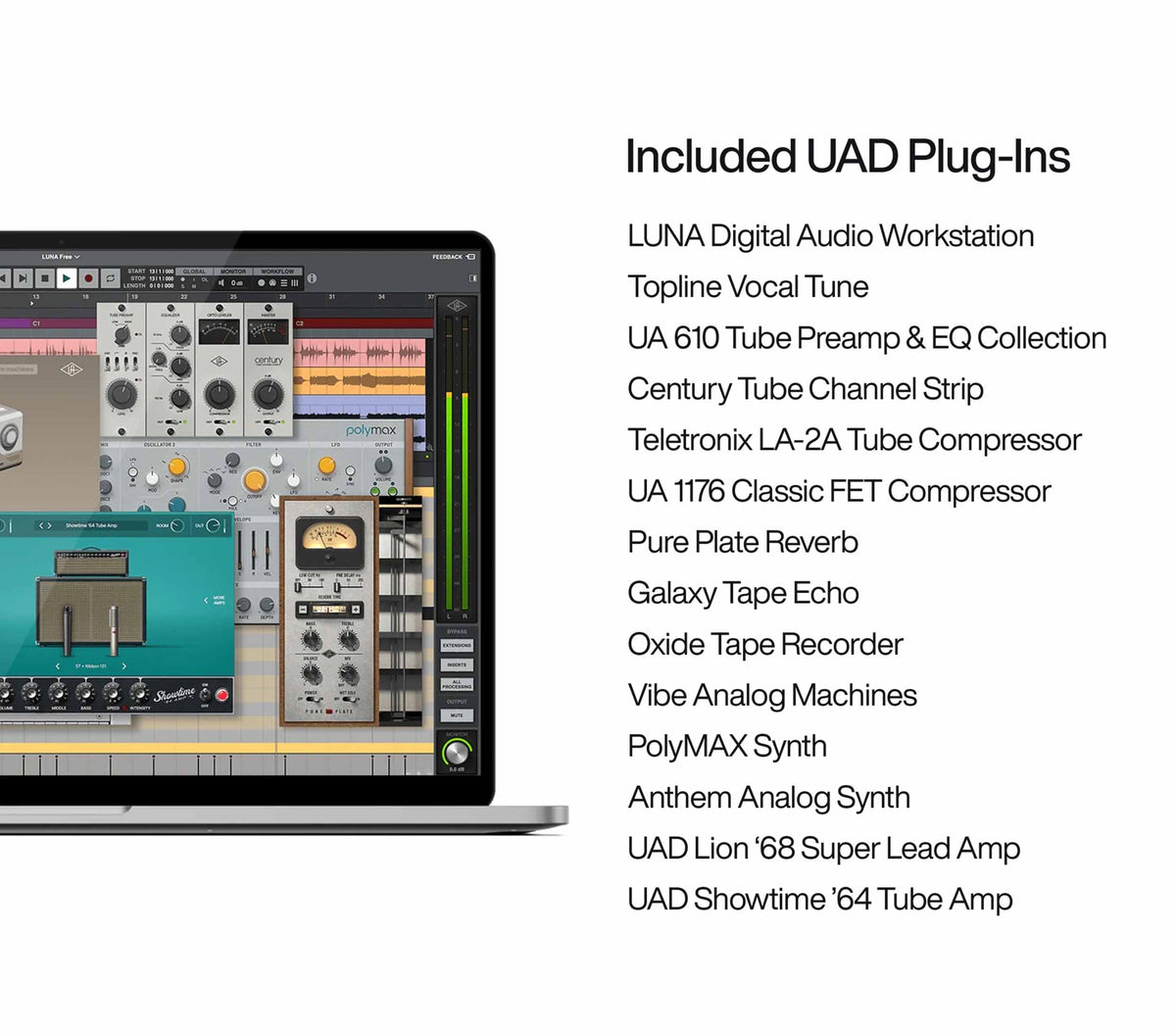

Included UAD Software: 15+ UAD Plug-Ins and Instruments
Mobile Recording: USB Bus-Powered
Recording Applications: Music Production, Podcasts, Livestreams, Content Creation & Home Recording
Shipping Weight: 1.8 lbs
Shipping Dimensions: 3.1" H × 7.3" W × 7.9" L
