Descripción

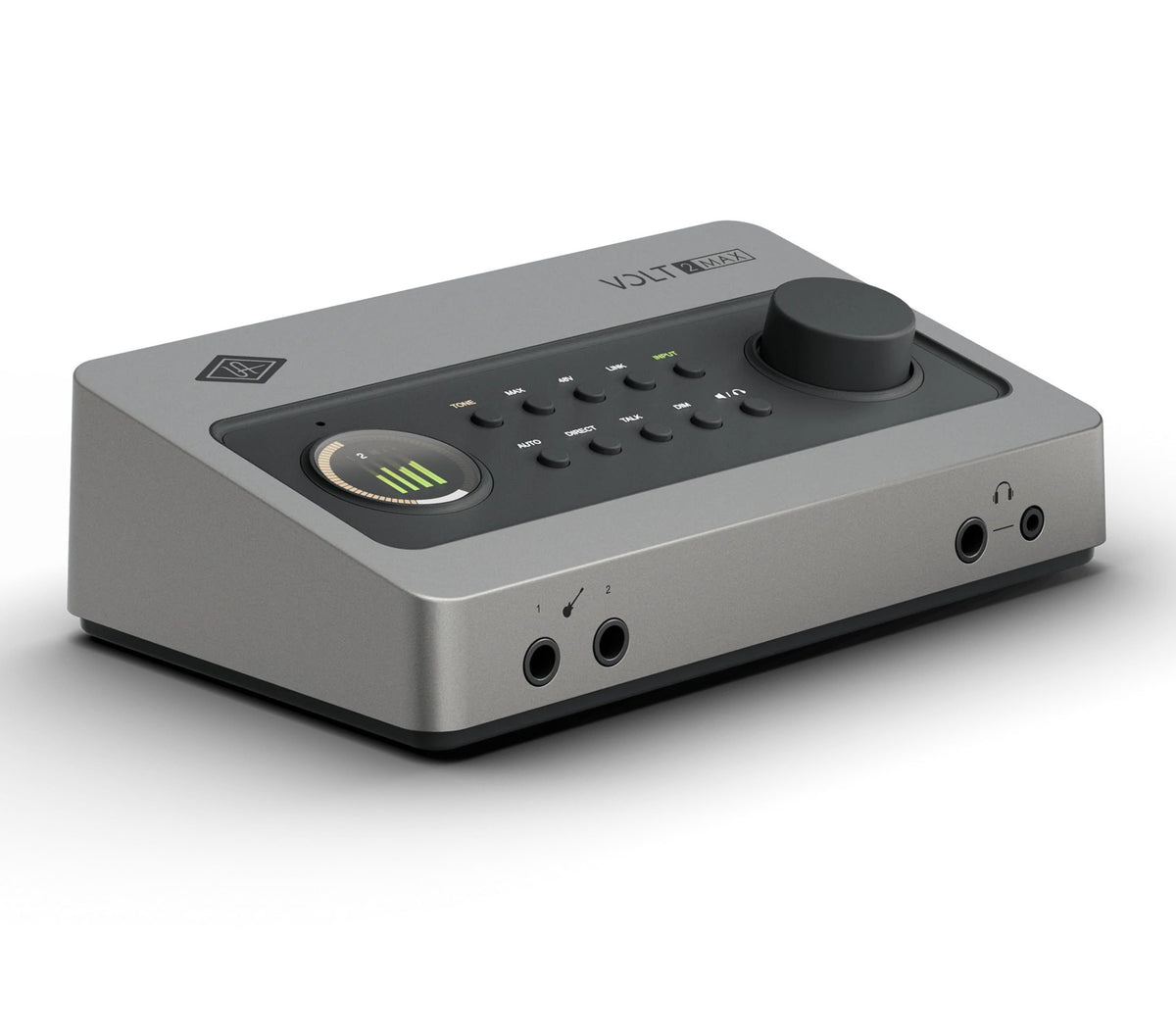

The Universal Audio UA-VOLT-2-MAX-U Volt 2 Max is a versatile 10-in/4-out USB audio interface designed to deliver professional recording performance with the character and processing associated with Universal Audio. Its two microphone preamps provide up to 60 dB of digitally controlled gain with Tone Shaping, Harmonic Saturation, and Max Compression. Classic compressor presets are tuned for vocals, guitar, and bass, providing convenient processing options while recording.
Flexible I/O & Digital Expansion

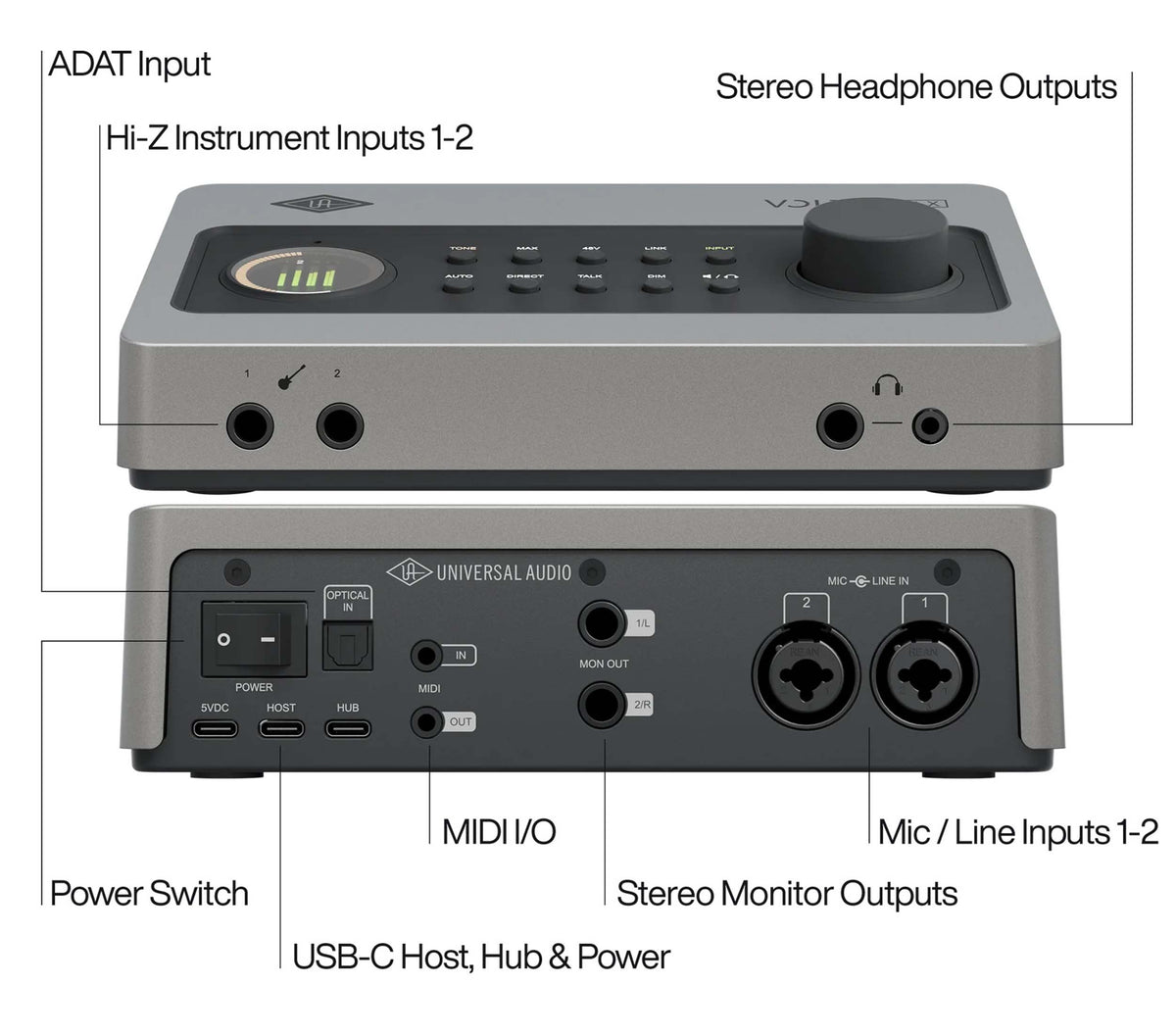

The Volt 2 Max provides two microphone inputs, two instrument inputs, two line inputs, stereo monitor outputs, and two stereo headphone outputs with one shared cue mix. ADAT or S/PDIF optical input adds digital expansion, with ADAT supporting up to eight channels at 44.1/48 kHz and S/MUX configurations at higher sample rates. MIDI In/Out connectivity supports compatible keyboards, controllers, and other MIDI equipment, while the USB hub provides an additional connection for peripherals.
Smart Recording & Mobile-Ready Workflow

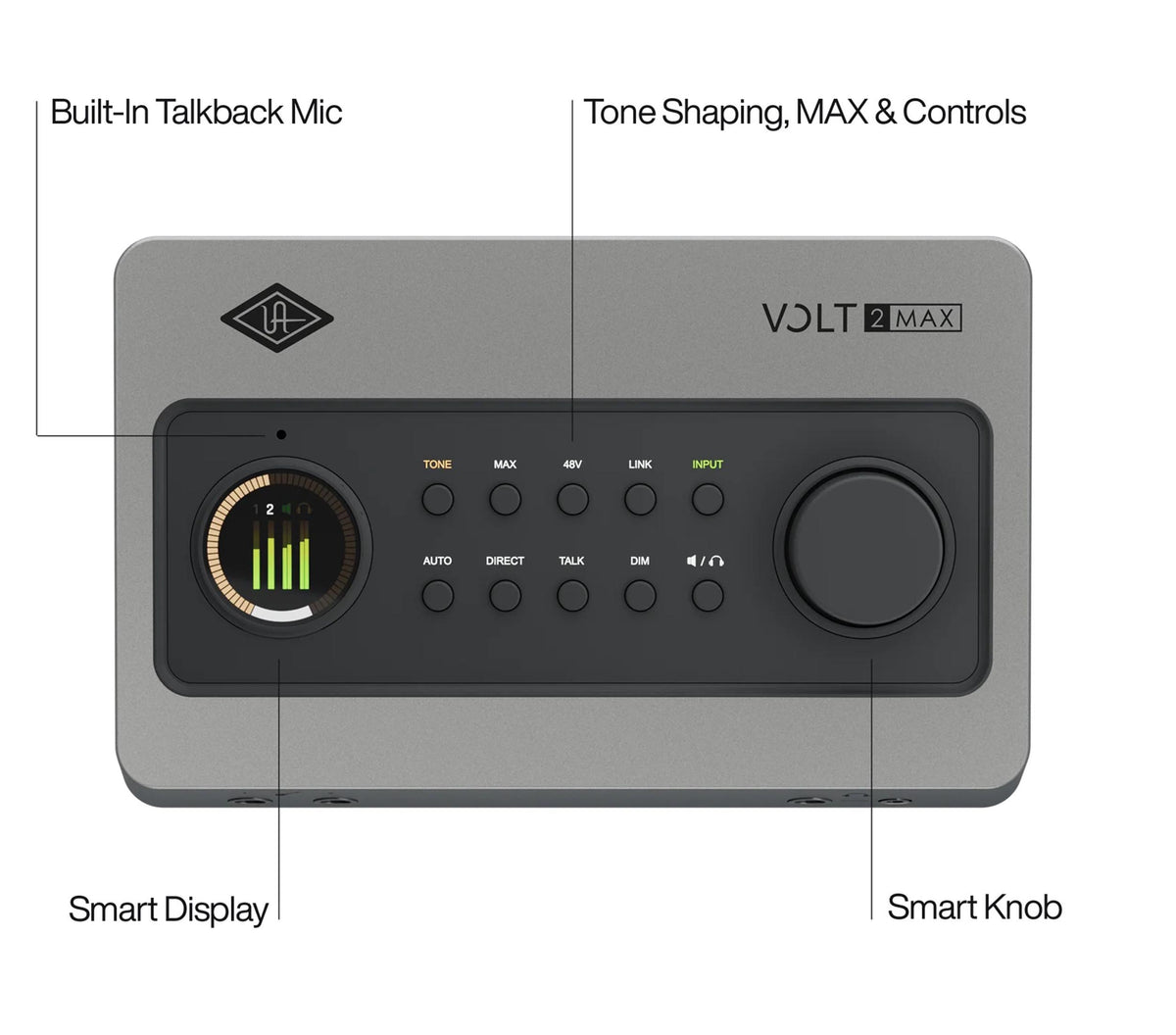

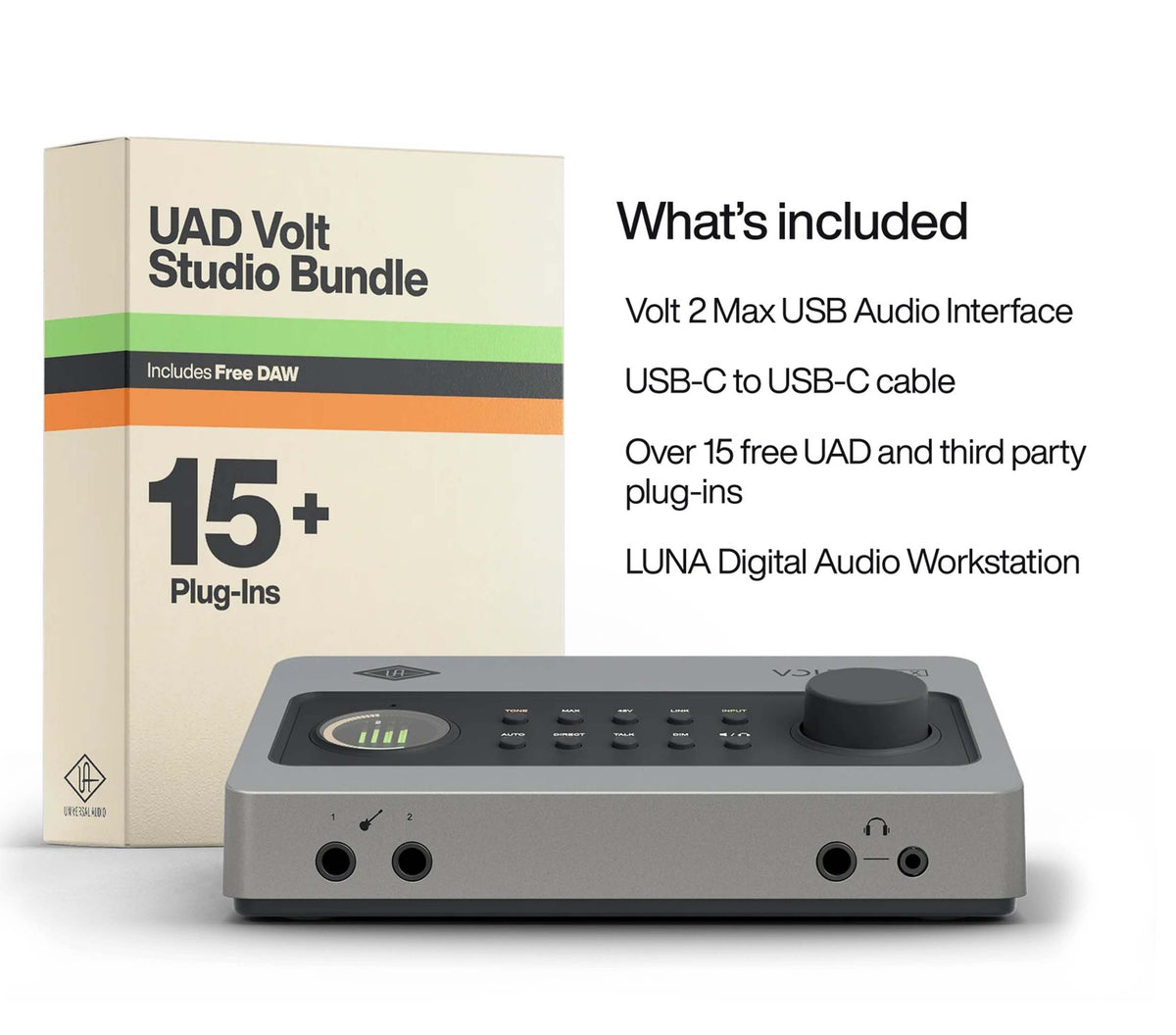

Full 32-bit audio conversion with sample rates up to 192 kHz provides detailed capture for music production, podcasting, streaming, and content creation. The Smart Display provides bright visual feedback for quick channel and level adjustments, while Auto-Gain and Clip Protection help simplify recording and protect against unexpected signal peaks. A built-in talkback microphone supports communication during recording sessions, and USB bus-powered operation makes the interface suitable for mobile setups without requiring an external power supply in supported configurations. Premium UAD software and the LUNA DAW are included for a complete recording and production workflow.
Product Specifications:
Product Type: USB Audio Interface
Interface Type: USB 2.0 Audio Interface
Form Factor: Desktop
Simultaneous I/O: 10-In / 4-Out
A/D Conversion: 32-Bit
D/A Conversion: 32-Bit
Bit Depth: 32-Bit
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Microphone Preamps: 2
Microphone Preamp Gain: 60 dB
Preamp Features: Tone Shaping, Harmonic Saturation & Max Compression
Compressor Presets: Vocal, Guitar & Bass
Instrument Inputs: 2
Line Inputs: 2
Monitor Outputs: 1 Stereo
Headphone Outputs: 2 Stereo
Cue Mix: 1 Shared Cue Mix
Talkback: Built-In Microphone
USB Host Port: 1 USB 2.0
USB Hub Port: 1
USB Hub Power: 5VDC @ 0.5A Maximum
USB External Power Input: 5VDC @ 1A Minimum
USB Connector Type: USB Type-C
Digital/Optical Input: ADAT or S/PDIF Optical
ADAT Input: 8 Channels at 44.1/48 kHz
ADAT Input at 96 kHz: 4 Channels via S/MUX
ADAT Input at 192 kHz: 2 Channels via S/MUX
S/PDIF Input: 2 Channels at All Supported Sample Rates
MIDI Connectivity: MIDI In/Out
MIDI Connector: 1/8" TRS Mini-Jack
MIDI Type: Type A
USB Bus-Powered: Yes
Power Consumption: 4.1W Typical / 5.7W Maximum
On/Off Switch: Yes
On/Off Switch Location: Rear Panel
Phantom Power: +48V Switchable per Channel
Instrument Input Connector: 1/4" TS Unbalanced
Instrument Input Frequency Response: 20 Hz–20 kHz ±0.02 dB
Instrument Input Dynamic Range: 116 dB A-Weighted
Instrument Input THD + Noise: -108 dB (0.0004%)
Instrument Maximum Input Level: 13 dBu
Instrument Input Impedance: 1 MΩ
Instrument Available Gain: 60 dB
Microphone Input Connector: XLR Combo Jack, Pin 2 Positive
Microphone Input Frequency Response: 20 Hz–20 kHz ±0.08 dB
Microphone Input Dynamic Range: 119 dB A-Weighted
Microphone Input THD + Noise: -110 dB (0.0003%)
Microphone Maximum Input Level: 14 dBu
Microphone Input Impedance: 2 kΩ
Microphone Available Gain: 60 dB
Line Input Connector: 1/4" Combo Jack, TRS Balanced / TS Unbalanced
Line Input Frequency Response: 20 Hz–20 kHz ±0.05 dB
Line Input Dynamic Range: 119 dB A-Weighted
Line Input THD + Noise: -108 dB (0.0004%)
Line Maximum Input Level: 22 dBu
Line Input Impedance: 10 kΩ
Line Input Available Gain: 60 dB
Monitor Output Connector: 1/4" TRS Balanced, DC Coupled
Monitor Output Frequency Response: 20 Hz–20 kHz ±0.05 dB
Monitor Output Dynamic Range: 126 dB A-Weighted
Monitor Output THD + Noise: -112 dB (0.0003%)
Monitor Maximum Output Level: 20.2 dBu
Monitor Output Impedance: 200 Ω
Headphone Output Connectors: 1/4" and 1/8" TRS Stereo Unbalanced, DC Coupled
Headphone Frequency Response: 20 Hz–20 kHz ±0.08 dB
Headphone Dynamic Range: 116 dB A-Weighted
Headphone THD + Noise: -103 dB (0.0007%)
Headphone Maximum Output Power at 32 Ω: 45 mW
Headphone Maximum Output Power at 300 Ω: 24 mW
Smart Display: Yes
Auto-Gain: Yes
Clip Protection: Yes
Tone Shaping: Yes
Harmonic Saturation: Yes
Max Compression: Yes
Loopback: Supported for Content Creation and Streaming

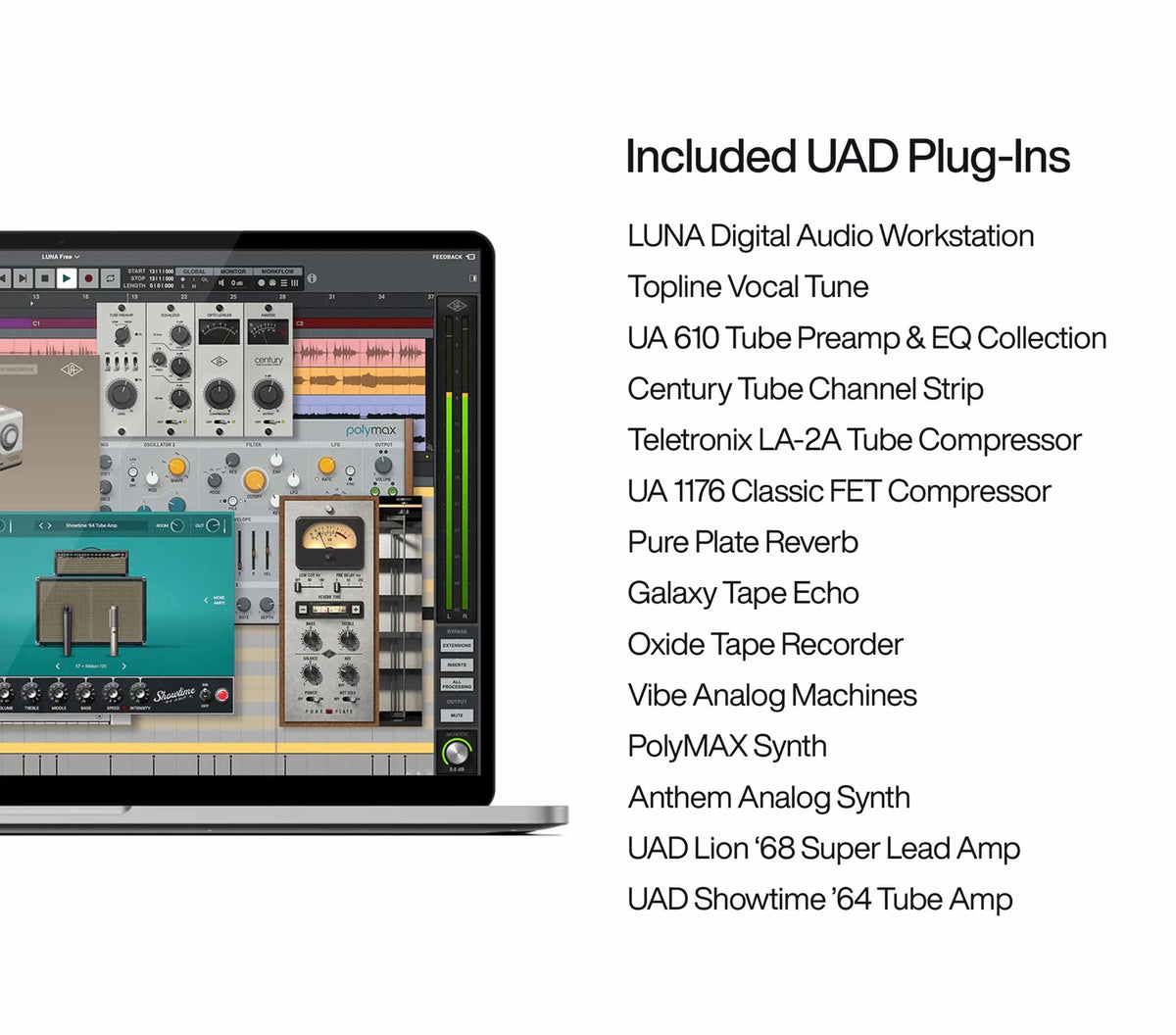

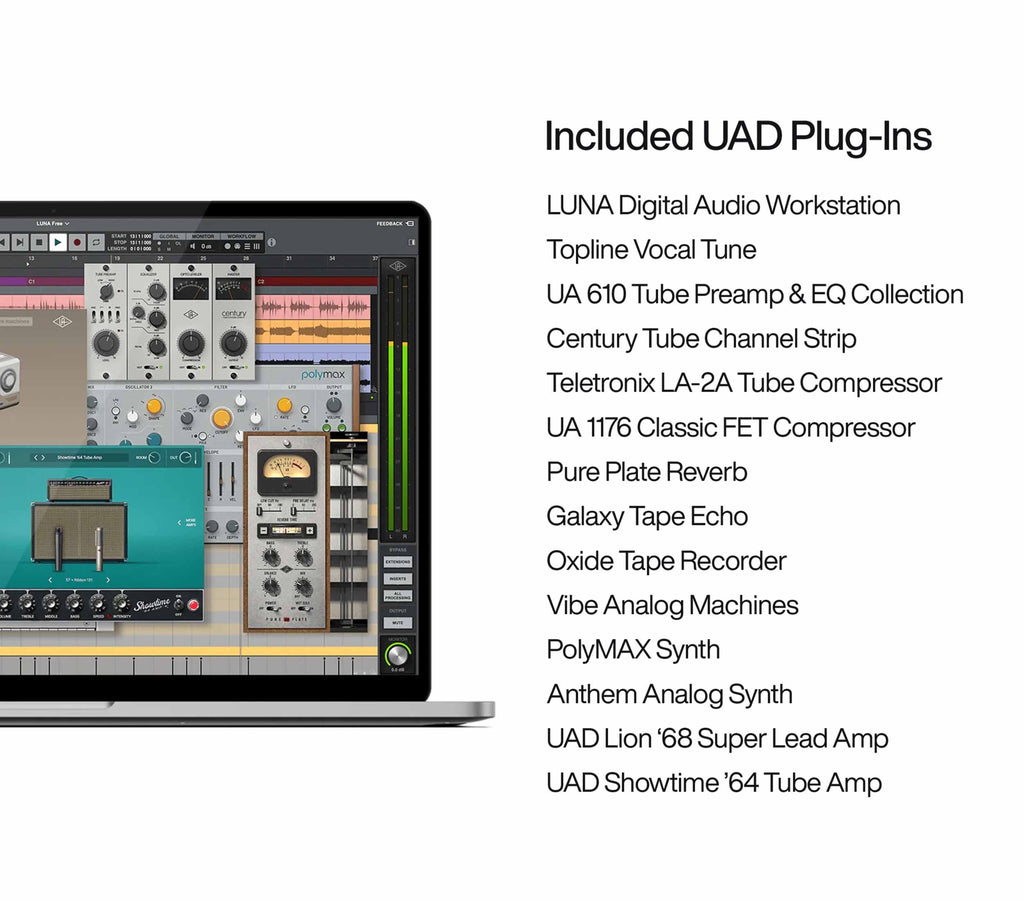

UAD Software: Included
LUNA DAW: Included
Application: Music Recording, Music Production, Podcasting, Streaming & Content Creation
Mobile Recording: Supported
Shipping Weight: 2.8 lbs
Shipping Dimensions: 4.7" H × 5.7" W × 9.3" L
