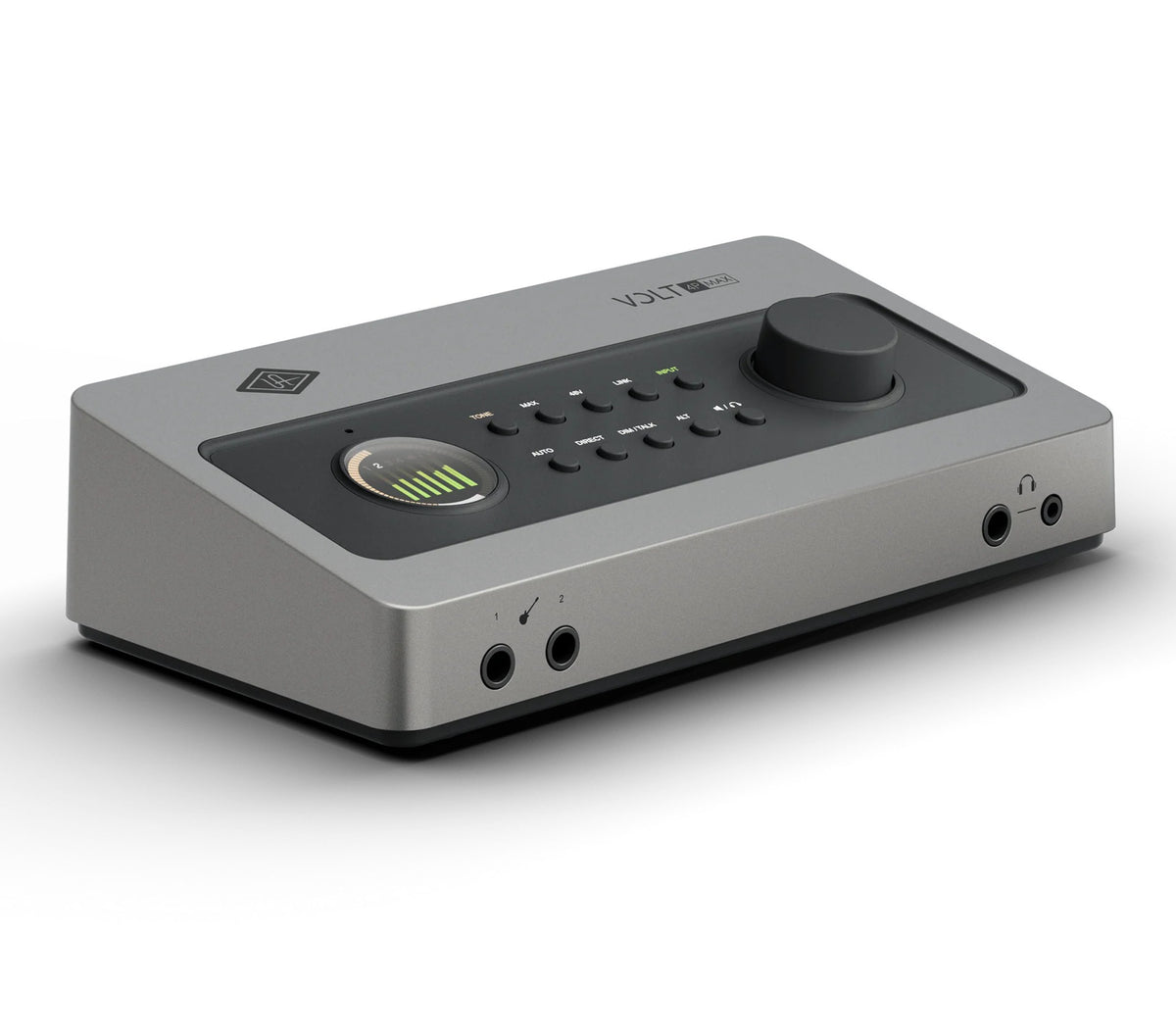

The Universal Audio UA-VOLT-4P-MAX-UVolt 4P Max is a professional 12-in/6-out USB audio interface built for recording complete band setups with vocals, instruments, and drums. Four microphone preamps provide up to 60 dB of digitally controlled gain and feature Tone Shaping, Harmonic Saturation, and Max Compression for adding character and controlled dynamics during recording. Classic compressor presets tuned for vocals, guitar, and bass provide convenient processing options for a variety of sources.
Expanded I/O for Full-Band Recording

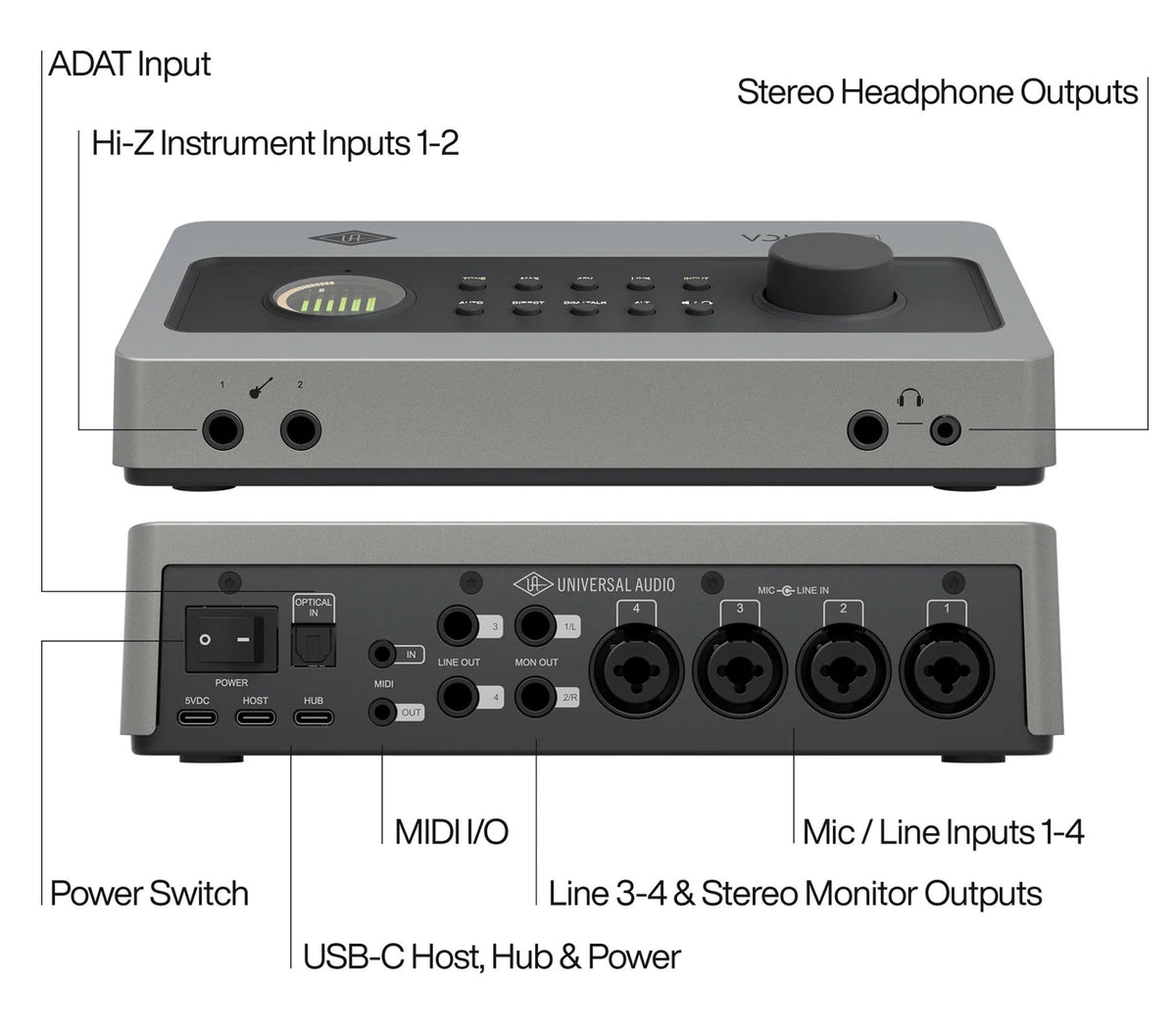

With four microphone inputs, two instrument inputs, four line inputs, two stereo monitor outputs, and two stereo headphone outputs, the Volt 4P Max provides flexible connectivity for multi-source recording. ADAT or S/PDIF optical input enables additional digital expansion, with ADAT supporting up to eight channels at 44.1/48 kHz and S/MUX configurations at higher sample rates. MIDI In/Out allows connection of external keyboards and hardware, while the USB hub provides an additional connection for compatible peripherals.
Smart Workflow & Professional Recording Features

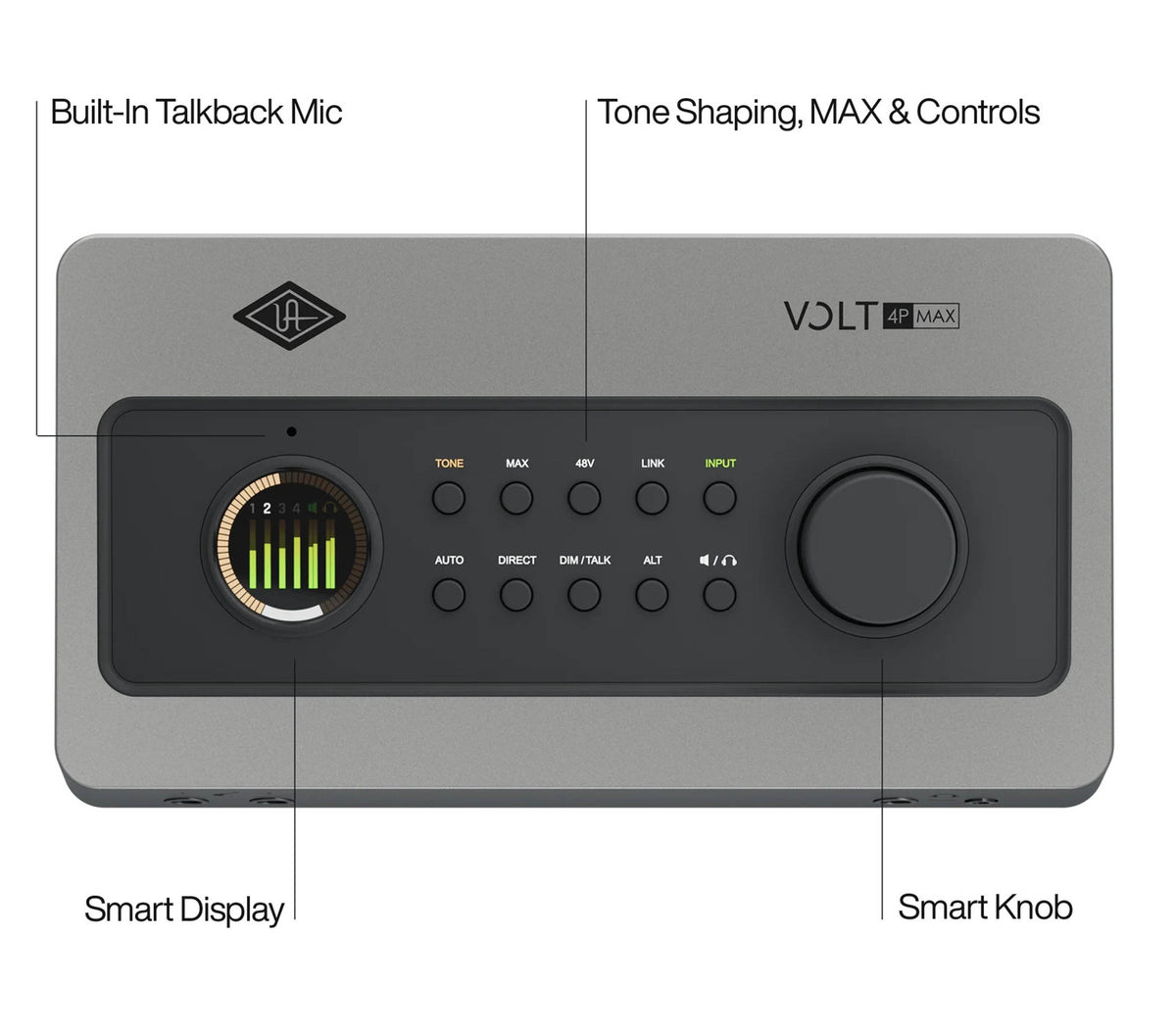

Full 32-bit audio conversion with support for sample rates up to 192 kHz provides detailed and high-resolution recording. The Smart Display offers bright visual feedback for quick channel selection and level adjustment, while Auto-Gain and Clip Protection help simplify recording and prevent unwanted signal peaks. Two stereo monitor outputs support main and alternate speaker switching, while the built-in talkback microphone and dual headphone outputs support practical studio communication and monitoring. USB connectivity and premium UAD software with the LUNA DAW provide a complete workflow for music production, recording, mixing, podcasting, streaming, and content creation.
Product Specifications:
Product Type: USB Audio Interface
Interface Type: USB 2.0 Audio Interface
Form Factor: Desktop
Simultaneous I/O: 12-In / 6-Out
A/D Conversion: 32-Bit
D/A Conversion: 32-Bit
Bit Depth: 32-Bit
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Microphone Preamps: 4
Microphone Preamp Gain: 60 dB
Preamp Features: Tone Shaping, Harmonic Saturation & Max Compression
Compressor Presets: Vocal, Guitar & Bass
Instrument Inputs: 2
Line Inputs: 4
Monitor Outputs: 2 Stereo
Monitor Configuration: Main and Alt Speaker Switching
Headphone Outputs: 2 Stereo
Cue Mix: 1 Shared Cue Mix
Talkback: Built-In Microphone
USB Host Port: 1 USB 2.0
USB Hub Port: 1
USB Hub Power: 5VDC @ 0.5A Maximum
USB External Power Input: 5VDC @ 2A Minimum
Included External Power Supply: 3A
USB Connector Type: USB Type-C
Digital/Optical Input: ADAT or S/PDIF Optical
ADAT Input: 8 Channels at 44.1/48 kHz
ADAT Input at 96 kHz: 4 Channels via S/MUX
ADAT Input at 192 kHz: 2 Channels via S/MUX
S/PDIF Input: 2 Channels at All Supported Sample Rates
MIDI Connectivity: MIDI In/Out
MIDI Connector: 1/8" TRS Mini-Jack
MIDI Type: Type A
USB Bus-Powered: Yes
Power Consumption: 6.0W Typical / 9.1W Maximum
On/Off Switch: Yes
On/Off Switch Location: Rear Panel
Phantom Power: +48V Switchable per Channel
Instrument Input Connector: 1/4" TS Unbalanced
Instrument Input Frequency Response: 20 Hz–20 kHz ±0.02 dB
Instrument Input Dynamic Range: 116 dB A-Weighted
Instrument Input THD + Noise: -108 dB (0.0004%)
Instrument Maximum Input Level: 13 dBu
Instrument Input Impedance: 1 MΩ
Instrument Available Gain: 60 dB
Microphone Input Connector: XLR Combo Jack, Pin 2 Positive
Microphone Input Frequency Response: 20 Hz–20 kHz ±0.08 dB
Microphone Input Dynamic Range: 119 dB A-Weighted
Microphone Input THD + Noise: -108 dB (0.0004%)
Microphone Maximum Input Level: 14 dBu
Microphone Input Impedance: 2 kΩ
Microphone Available Gain: 60 dB
Line Input Connector: 1/4" Combo Jack, TRS Balanced / TS Unbalanced
Line Input Frequency Response: 20 Hz–20 kHz ±0.05 dB
Line Input Dynamic Range: 119 dB A-Weighted
Line Input THD + Noise: -108 dB (0.0004%)
Line Maximum Input Level: 22 dBu
Line Input Impedance: 10 kΩ
Line Input Available Gain: 60 dB
Monitor & Line 3-4 Output Connector: 1/4" TRS Balanced / TS Unbalanced, DC Coupled
Monitor & Line 3-4 Output Frequency Response: 20 Hz–20 kHz ±0.05 dB
Monitor & Line 3-4 Output Dynamic Range: 126 dB A-Weighted
Monitor & Line 3-4 Output THD + Noise: -112 dB (0.0003%)
Monitor & Line 3-4 Maximum Output Level: 20.2 dBu
Monitor & Line 3-4 Output Impedance: 200 Ω
Headphone Output Connectors: 1/4" and 1/8" TRS Stereo Unbalanced, DC Coupled
Headphone Frequency Response: 20 Hz–20 kHz ±0.08 dB
Headphone Dynamic Range: 116 dB A-Weighted
Headphone THD + Noise: -103 dB (0.0007%)
Headphone Maximum Output Power at 32 Ω: 45 mW
Headphone Maximum Output Power at 300 Ω: 24 mW
Shipping Weight: 3.3 lbs
Shipping Dimensions: 4.7" H × 5.7" W × 10" L
