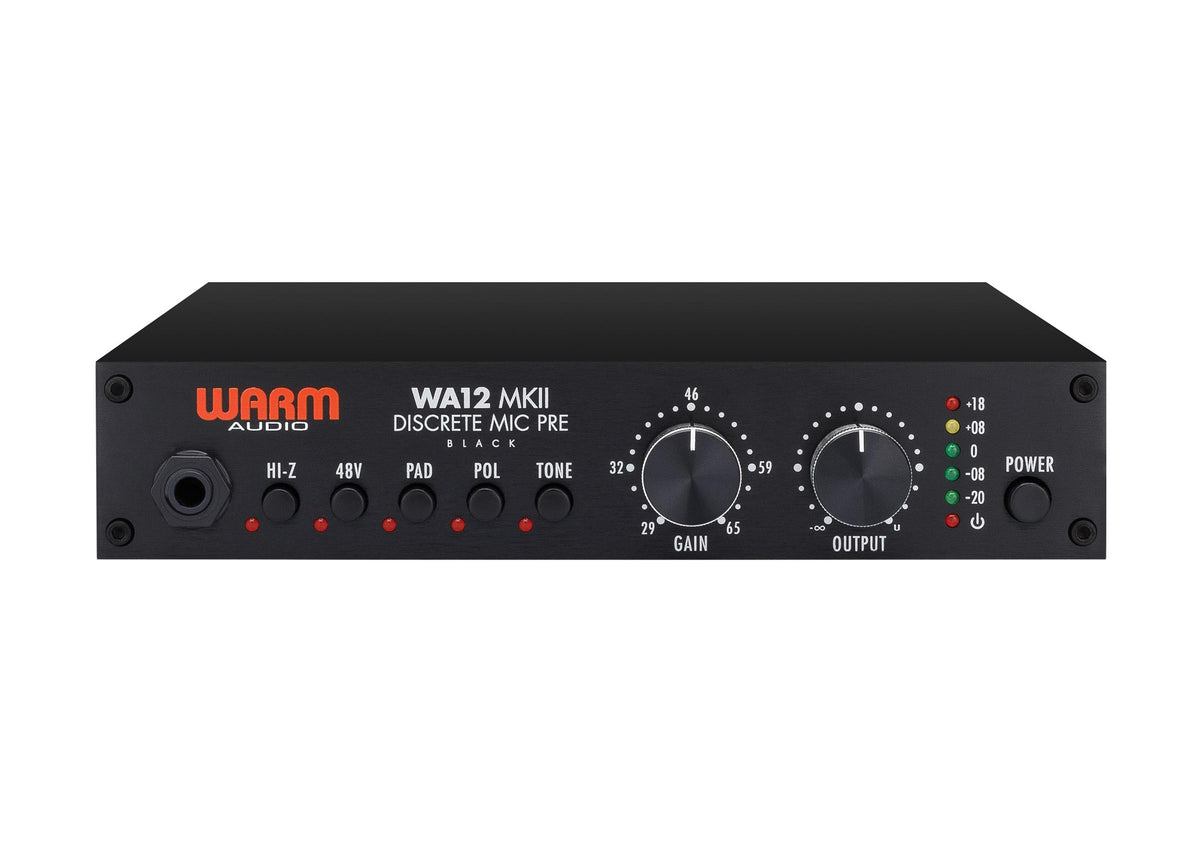

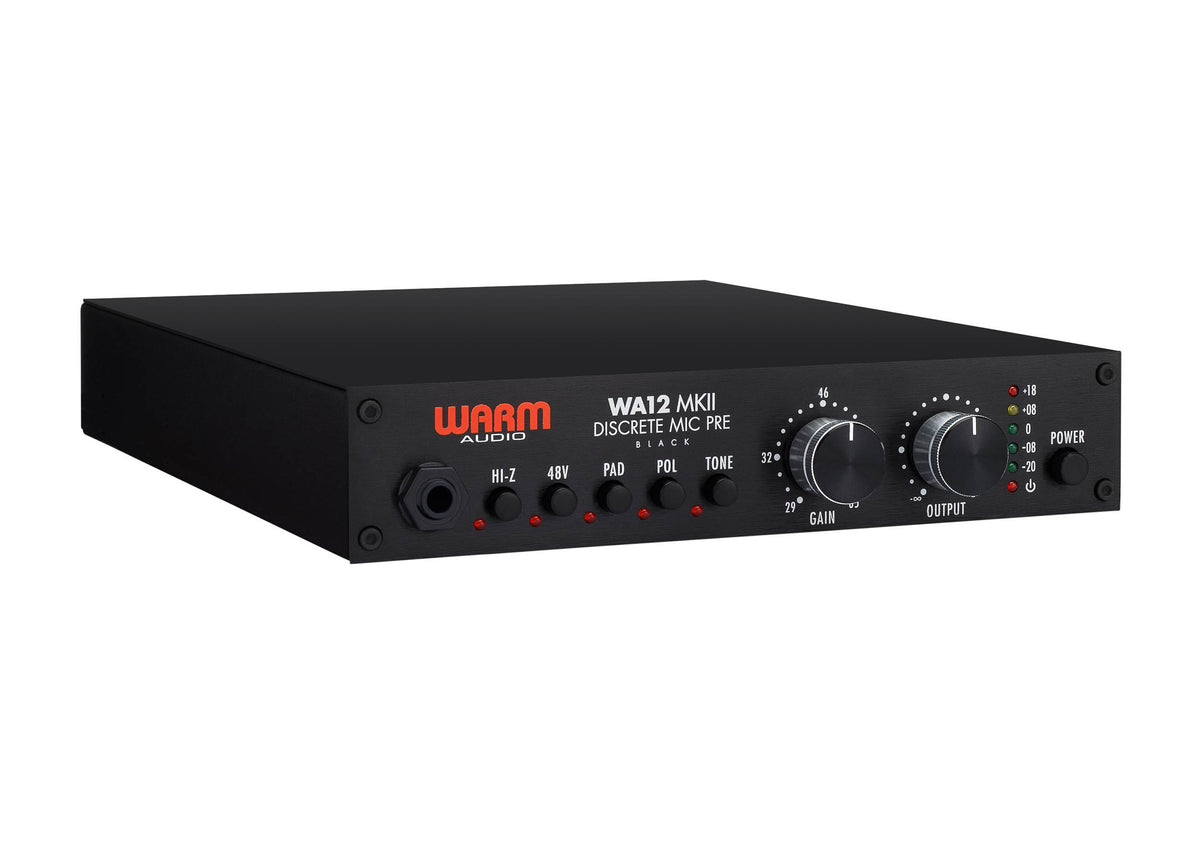

Warm Audio WA12 MKII Black Single-Channel Mic Preamp with 71 dB Gain and CineMag Transformers

The Warm Audio WA12 MKII Black is a fully discrete analog microphone preamp designed to deliver the clear, punchy character of classic American console preamps. With up to 71 dB of warm analog gain and a fully discrete, CineMag USA transformer-balanced signal path, it adds defined harmonics, depth, and character to a wide range of sources. Its powerful analog design provides an effective front-end upgrade for recording vocals, instruments, and other audio sources.

Flexible Gain & Tone Shaping

The WA12 MKII provides an output attenuation control positioned after the CineMag output transformer, allowing you to drive the preamp and transformers into saturation while controlling the final output level. High gain with lower output produces a more overdriven, harmonically rich character, while lower gain with higher output delivers a more open, dynamic, and articulate response. The classic Warm Audio Tone control alters the input transformer impedance from 600Ω to 150Ω, adding extra air and sheen that can be especially useful with darker microphones and ribbon mics.

Professional Recording Features

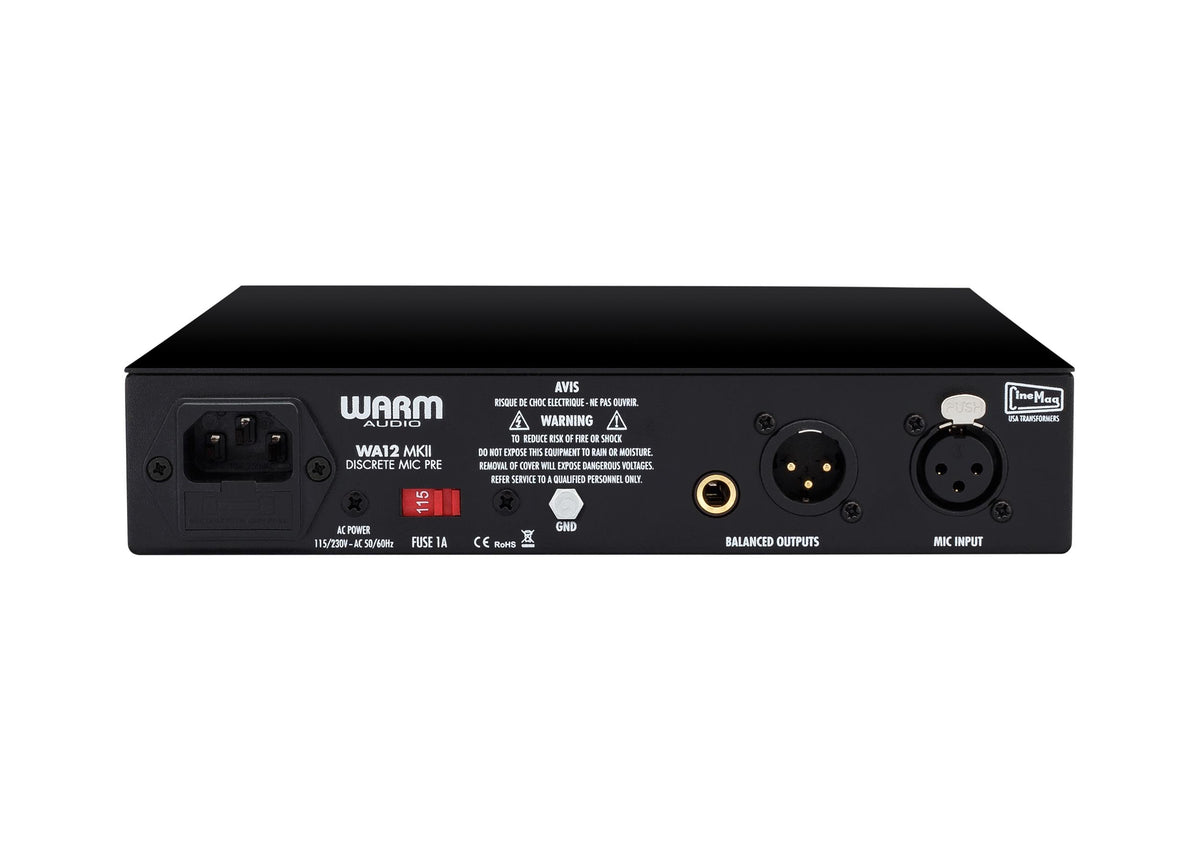

Designed to handle a variety of recording situations, the WA12 MKII includes selectable 48V phantom power, a -20 dB pad for managing loud sources, polarity inversion for addressing phase issues, and LED metering for monitoring signal levels and identifying potential clipping. Rear XLR inputs and outputs provide standard studio connectivity, while the front-panel Hi-Z input features a dedicated switch and JFET circuitry optimized for direct bass and guitar recording.

CineMag Transformers & Vintage-Style Components

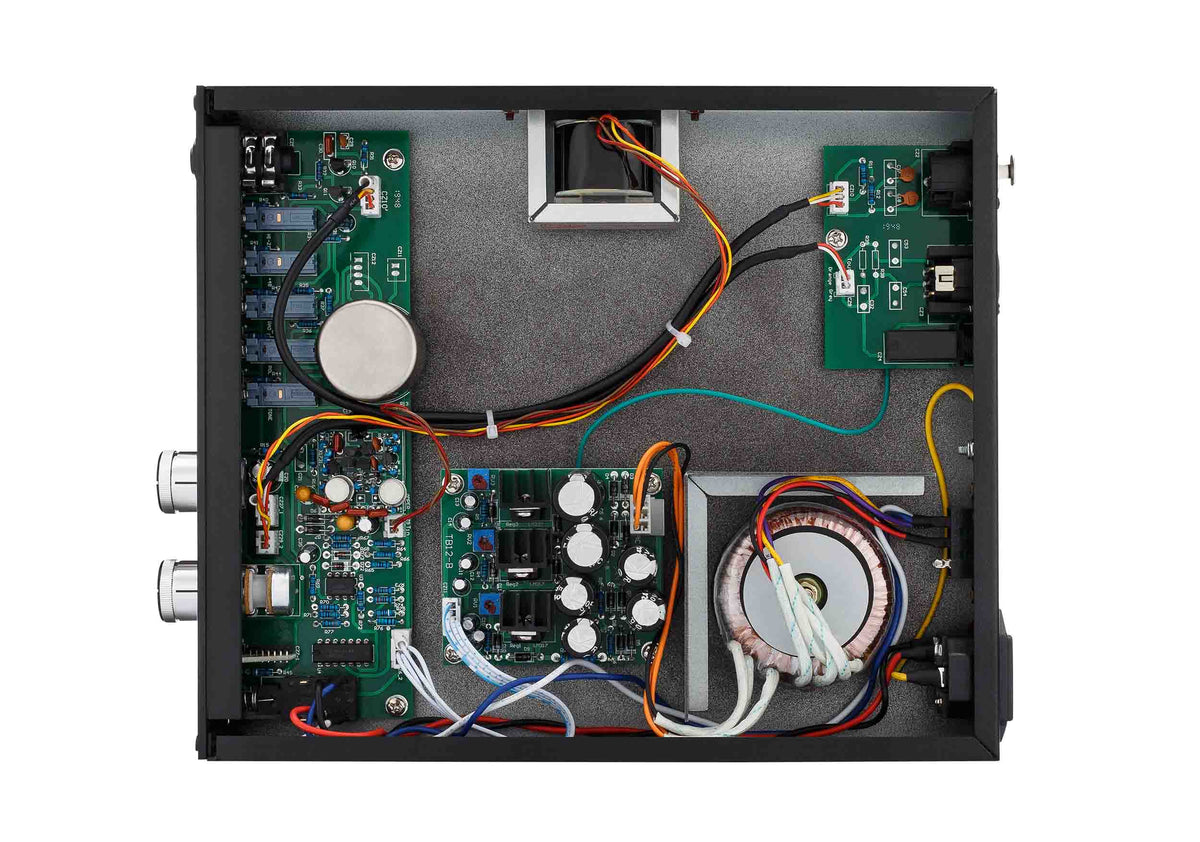

The WA12 MKII uses custom USA-made CineMag input and output transformers along with discrete 1731-style op-amps. The socketed op-amps can be user-replaced with compatible 6-pin 2520-footprint op-amps, providing opportunities for tonal experimentation and customization. Each unit is hand-tested and inspected at Warm Audio's headquarters in Austin, Texas, ensuring the preamp meets the company's standards for professional performance and build quality.

Product Specifications:

Type: Single-Channel Microphone Preamp and Instrument DI

Inputs: Microphone XLR, Active Instrument Hi-Z

Hi-Z Input Impedance: 2 MΩ

Outputs: Transformer-Balanced XLR and TRS

Maximum Gain: 71 dB

Circuit Type: Fully Discrete Analog

Signal Path: Transformer-Coupled

Input Transformer: CineMag USA

Output Transformer: CineMag USA

Op-Amp: 1731-Style Discrete

Op-Amp Socket: 6-Pin 2520 Footprint

Tone Control: 600 Ω / 150 Ω

Pad: -20 dB

Phantom Power: +48V

Polarity Switch: 180° Inversion

Metering: LED

Output Attenuation: Transformer Saturation Control

Power Supply: Internal

Power Connection: Grounded 3-Pin Cable

Chassis Depth: 10 in (25 cm)

Weight: 6.8 lbs.

Dimensions (L × W × H): 14.5 x 13 x 4 inch
