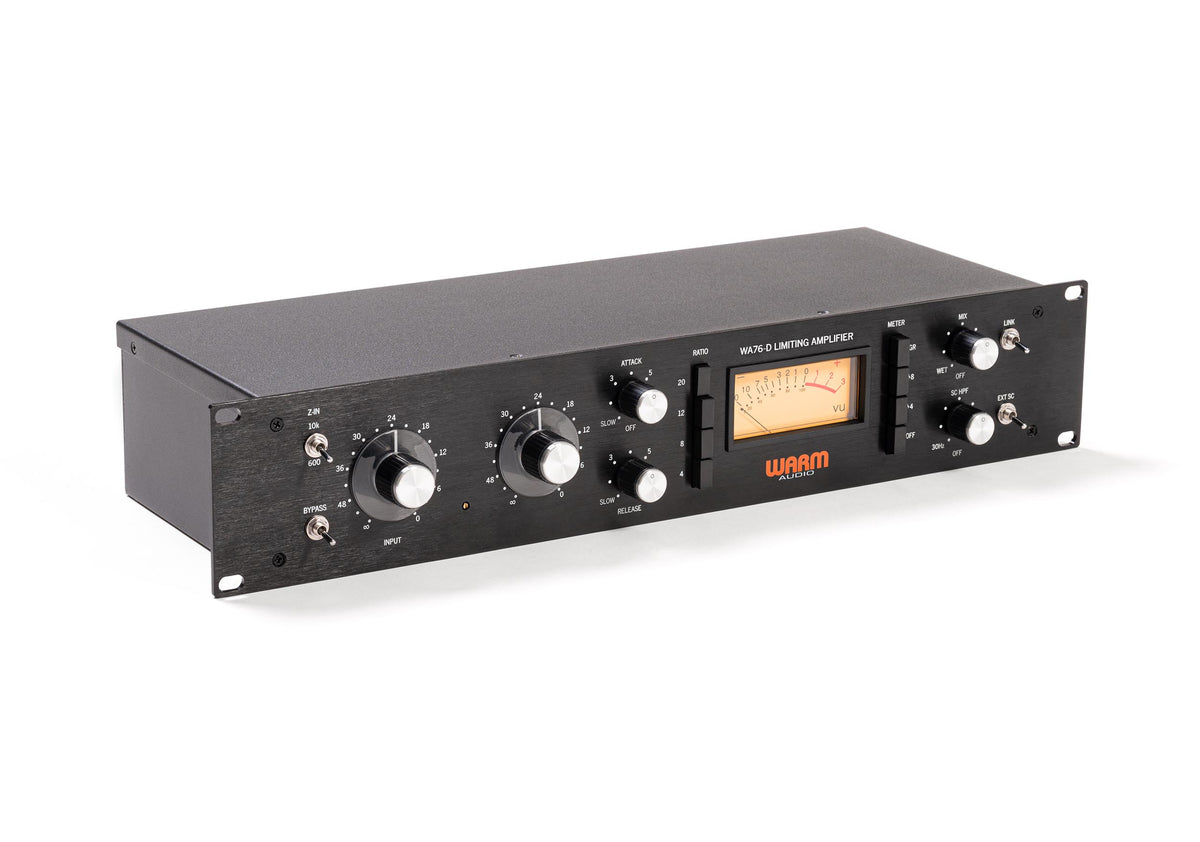

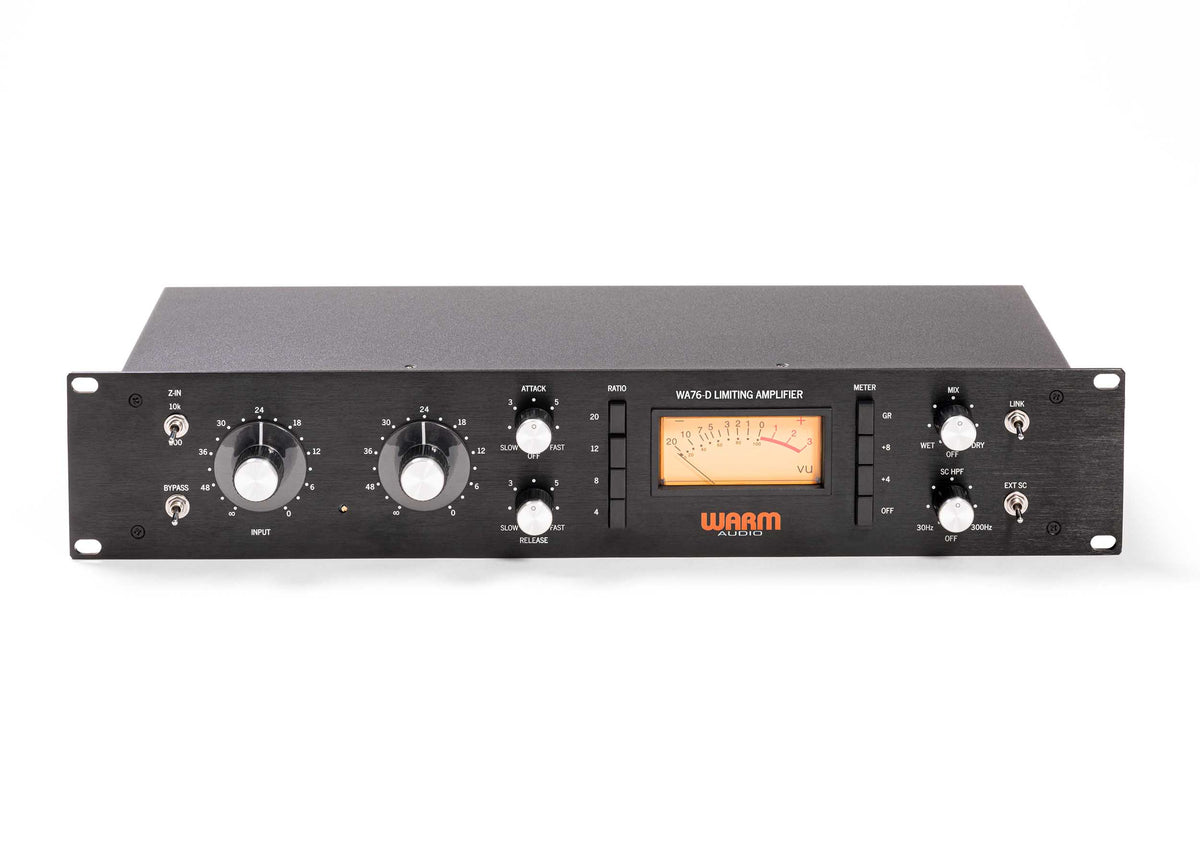

Warm Audio WA76-D Single Channel Clean Gain Discrete FET Compressor

The Warm Audio WA76-D is a faithful recreation of the legendary vintage 76 “Revision-D-Style” FET studio compressor, delivering fast dynamic control, generous headroom, lower noise, and rich analog character. Its 100% analog discrete FET design captures the distinctive compression response of the classic Rev D circuit while adding modern features for today’s recording and mixing workflows.

Classic Controls with Modern Flexibility

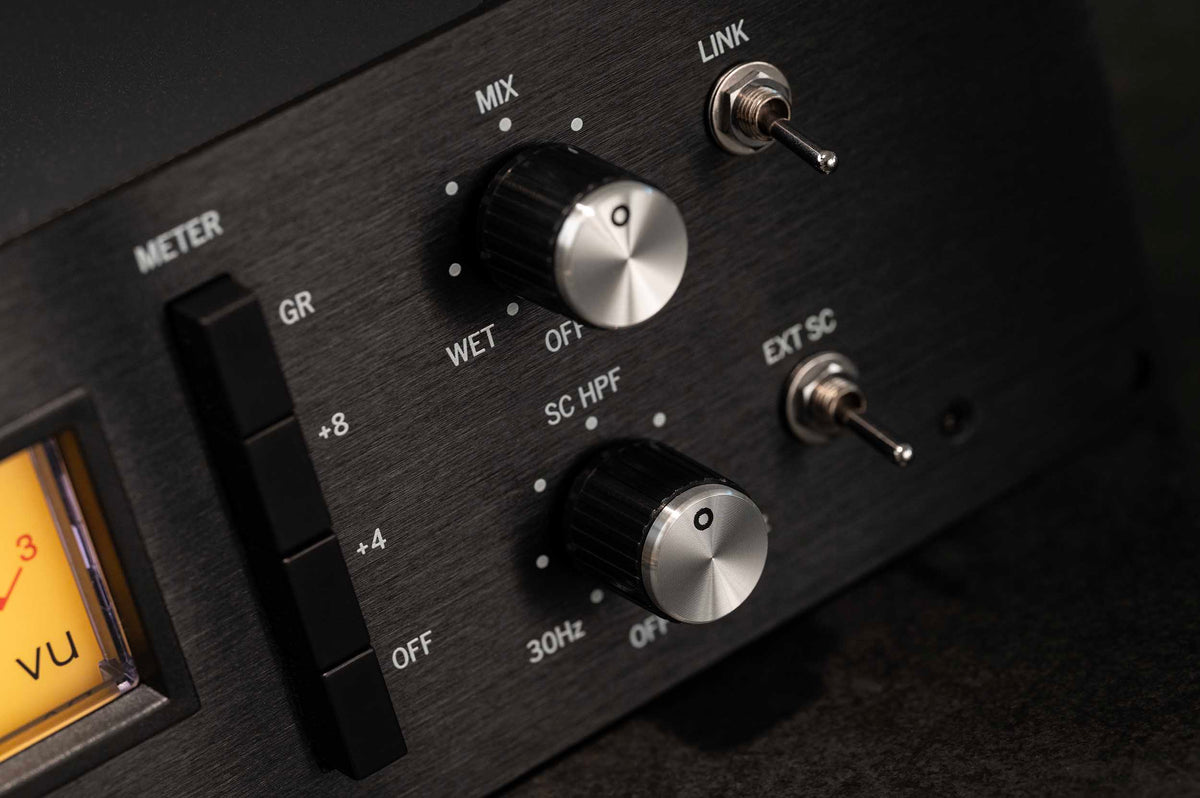

The WA76-D includes traditional 76-style controls for attack, release, ratio, input, output, and metering, while expanding its capabilities with stereo linking, a dry/wet mix for parallel compression, external sidechain connectivity, selectable input impedance, and active and true-bypass operation. A variable sidechain high-pass filter helps prevent excessive low-frequency energy from dominating the compressor’s response, providing greater control over challenging sources.

Custom CineMag Transformers & Premium Components

The WA76-D features custom large-core CineMag input and output transformers based on the specifications and materials associated with the original vintage designs. Premium ceramic and electrolytic capacitors, metal film resistors, and a revised preamp stage further contribute to its accurate Rev D-style response, helping deliver a cleaner, low-noise compression experience while preserving unmistakable analog tone.

Professional Studio Performance

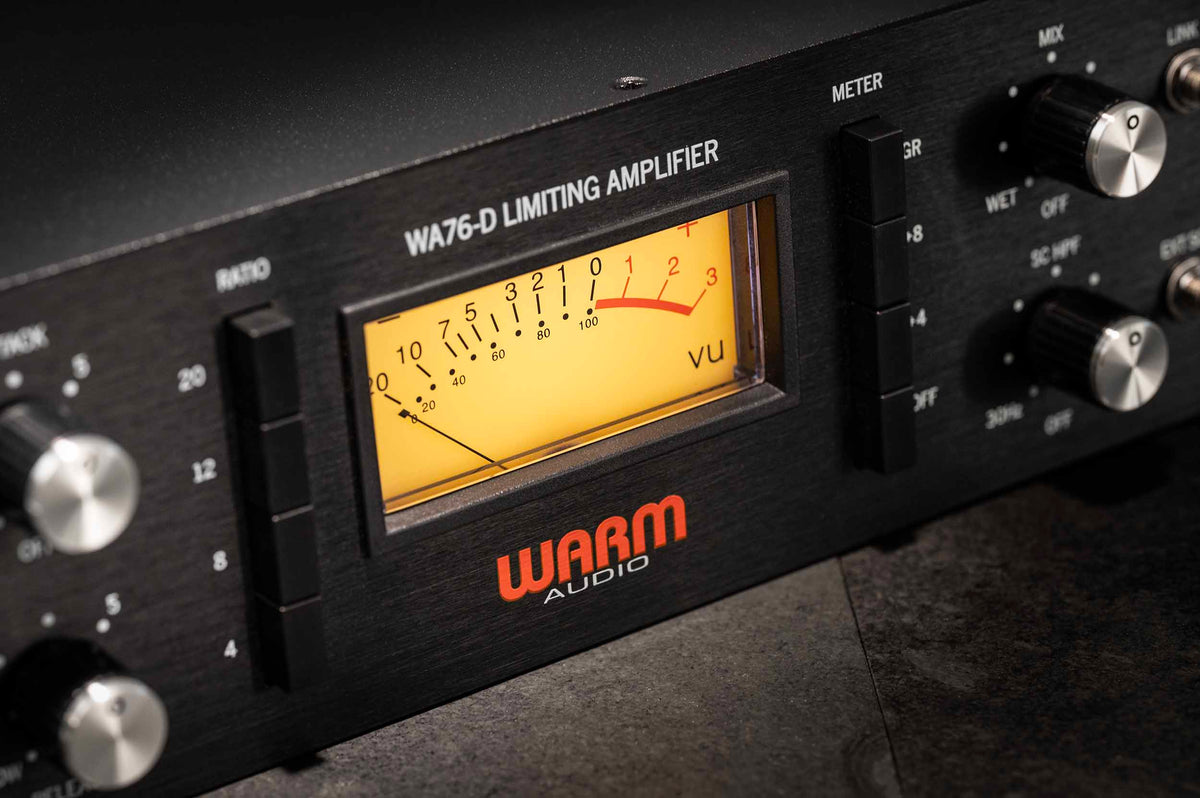

With its combination of vintage-inspired circuitry, modern routing options, and precise dynamic control, the WA76-D is well suited for vocals, instruments, buses, and other studio sources that benefit from fast, powerful compression. Its VU meter can display gain reduction, +8dB output, or +4dB output, with an offset that powers down the unit. Like all Warm Audio gear, the WA76-D is meticulously hand-tested and inspected by trained technicians in Austin, Texas, USA.

Product Specifications:

Circuit: 100% Analog Discrete

Compressor Style: Vintage Rev D FET

Signal Path: 100% Discrete

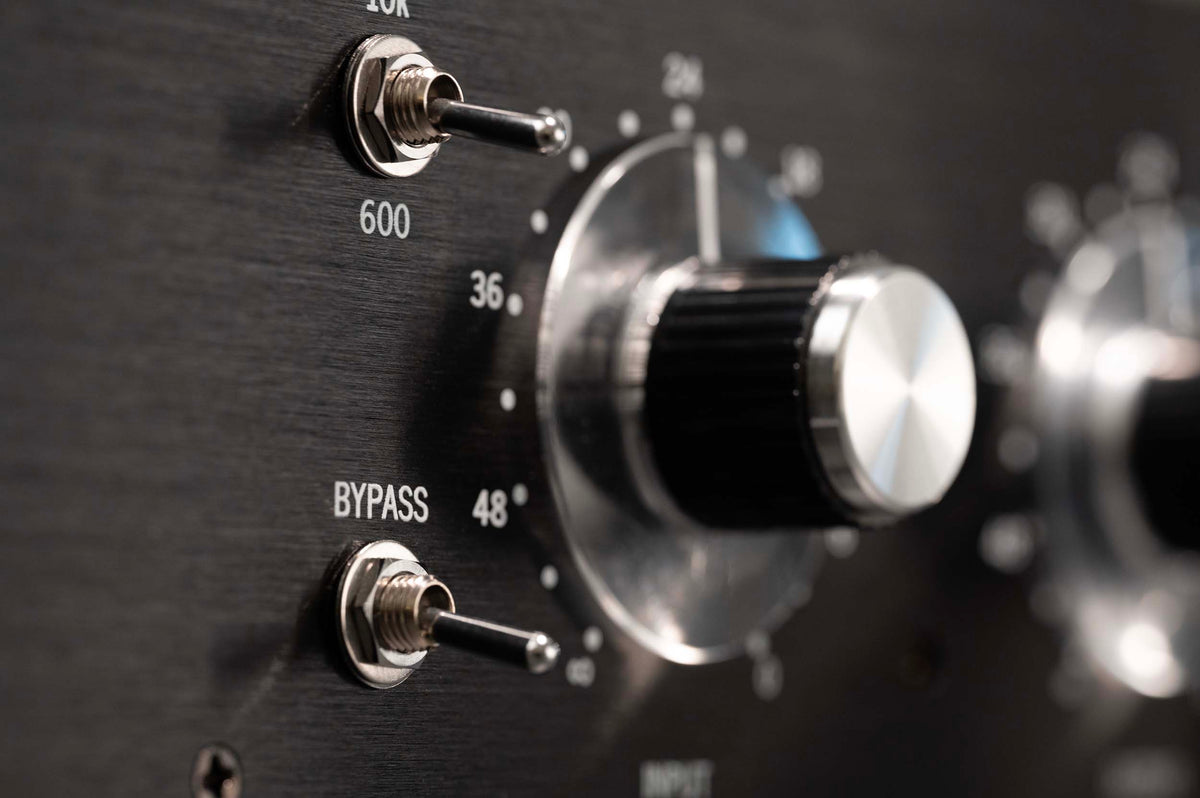

Input Impedance: 600 Ω

Selectable Input Impedance: 10 kΩ

Input Transformer: CineMag USA O-12

Output Transformer: CineMag USA 5002

Output Amplifier: Class-A

Total Amplifier Gain: 53 dB

Attack Time: 20 µs–800 µs

Release Time: 50 ms–1.1 s

Sidechain High Pass Filter: 30–300 Hz

Sidechain Filter Slope: 12 dB/Octave

Dry-Wet Mix: 100% Variable

VU Meter Modes: Gain Reduction, +8 dB Output, +4 dB Output, Off

Bypass Modes: Active Bypass, True Bypass

All-Buttons-In Mode: Included

Stereo Link: 1/4" Stereo Link

External Sidechain: 1/4"

Frequency Response: ±1 dB, 20 Hz–20 kHz

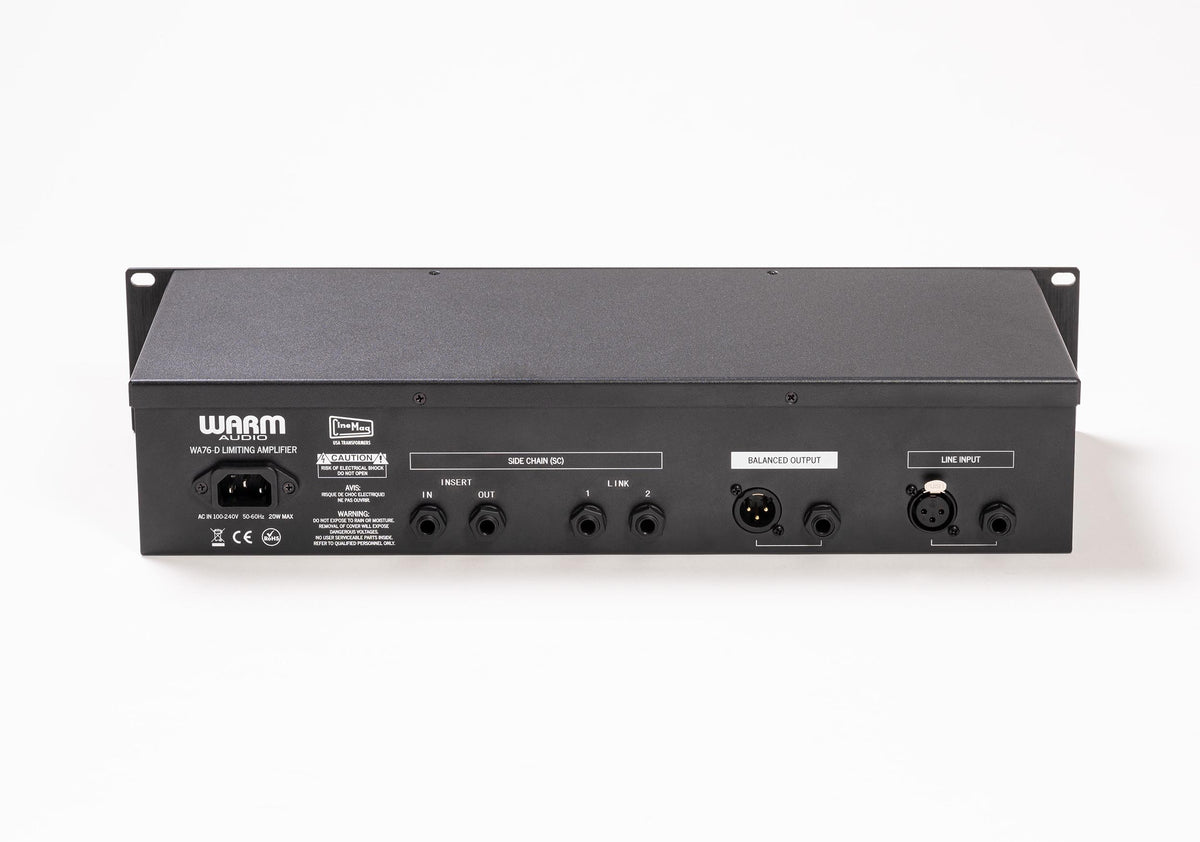

Inputs: Balanced XLR and TRS

Outputs: Balanced XLR and TRS

Signal-To-Noise Ratio: 92 dB (A-Weighted)

THD+N: -67 dB @ -6 dBu

Power Supply: 100–230V IEC

Rackmount Size: 2U 19"

Weight: 8.05 lbs. / 3.65 kg

Dimensions: 19 x 3.5 x 6.25 in / 483 x 90 x 159 mm

Shipping Weight: 10 lb. / 4.5 kg

Shipping Dimensions (L x W x H): 24.5 x 11 x 5.5 in / 622 x 280 x 140 mm
