Description

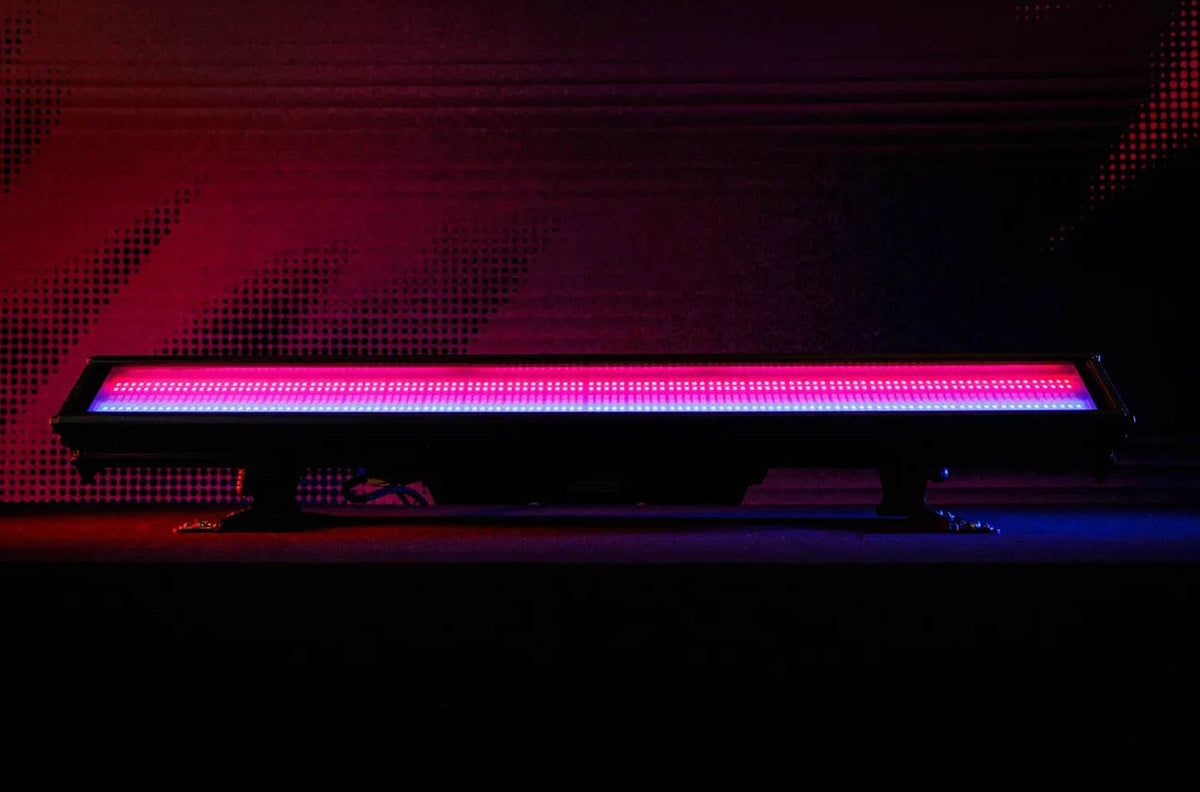

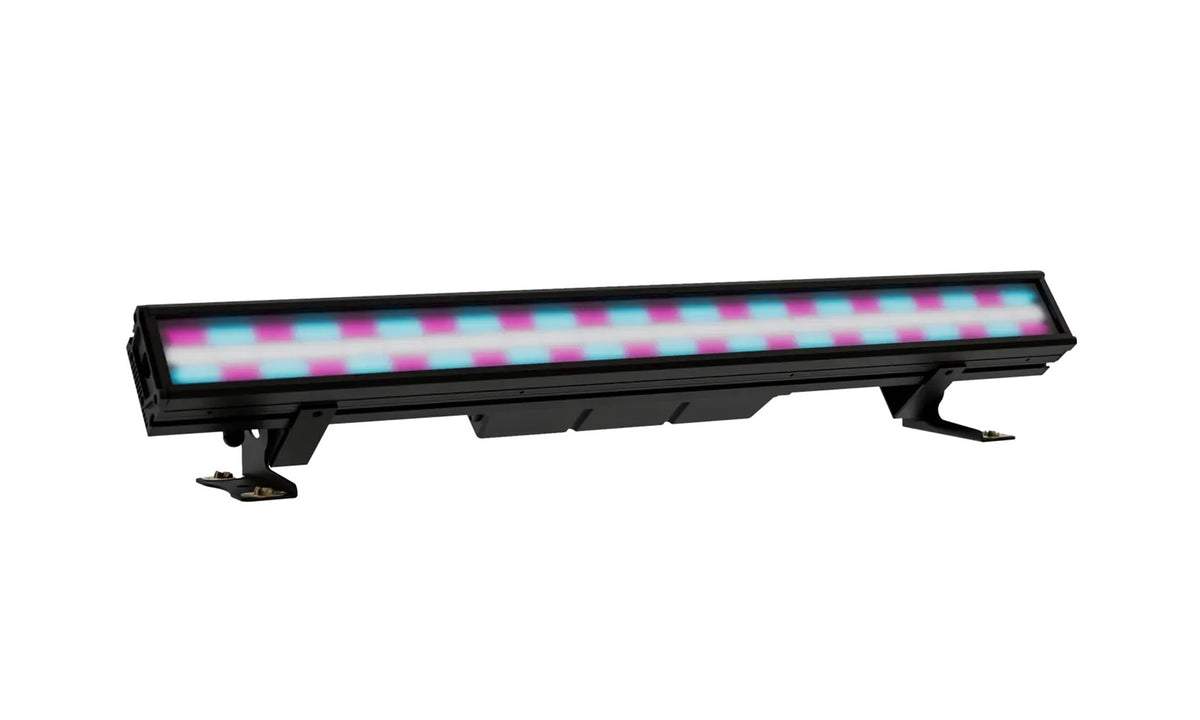

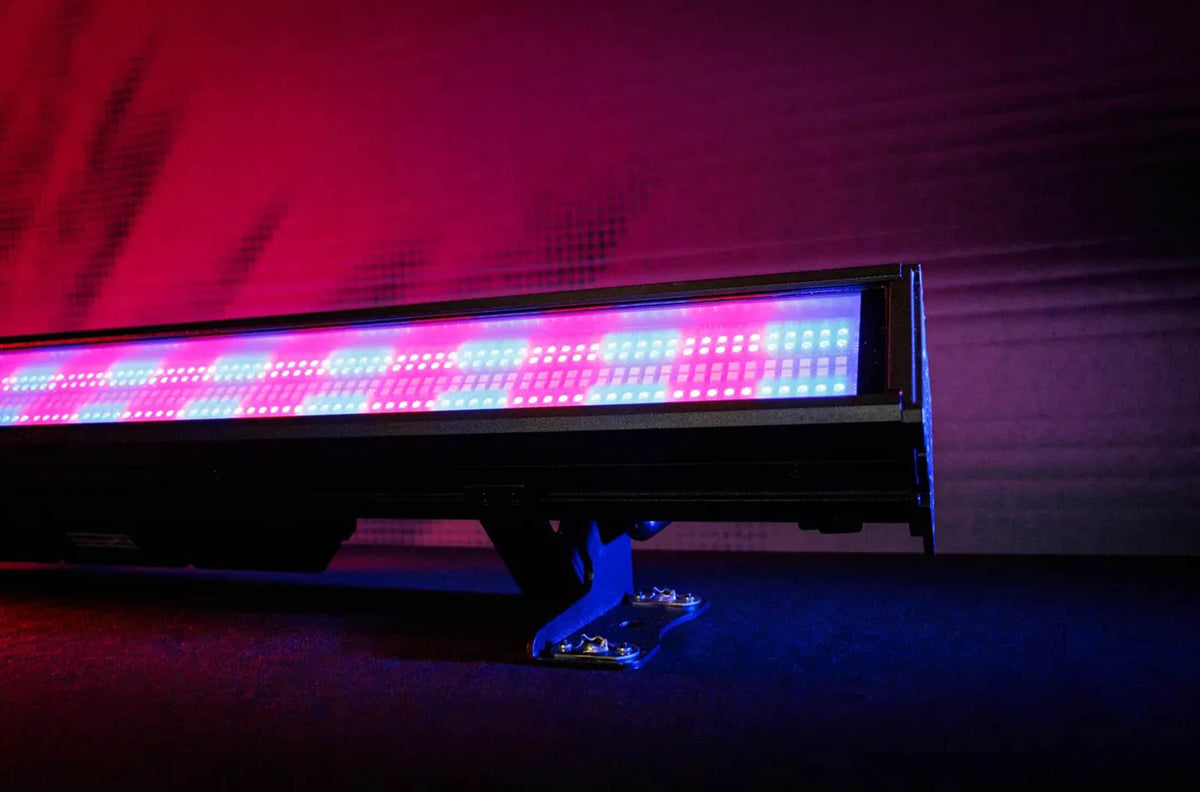

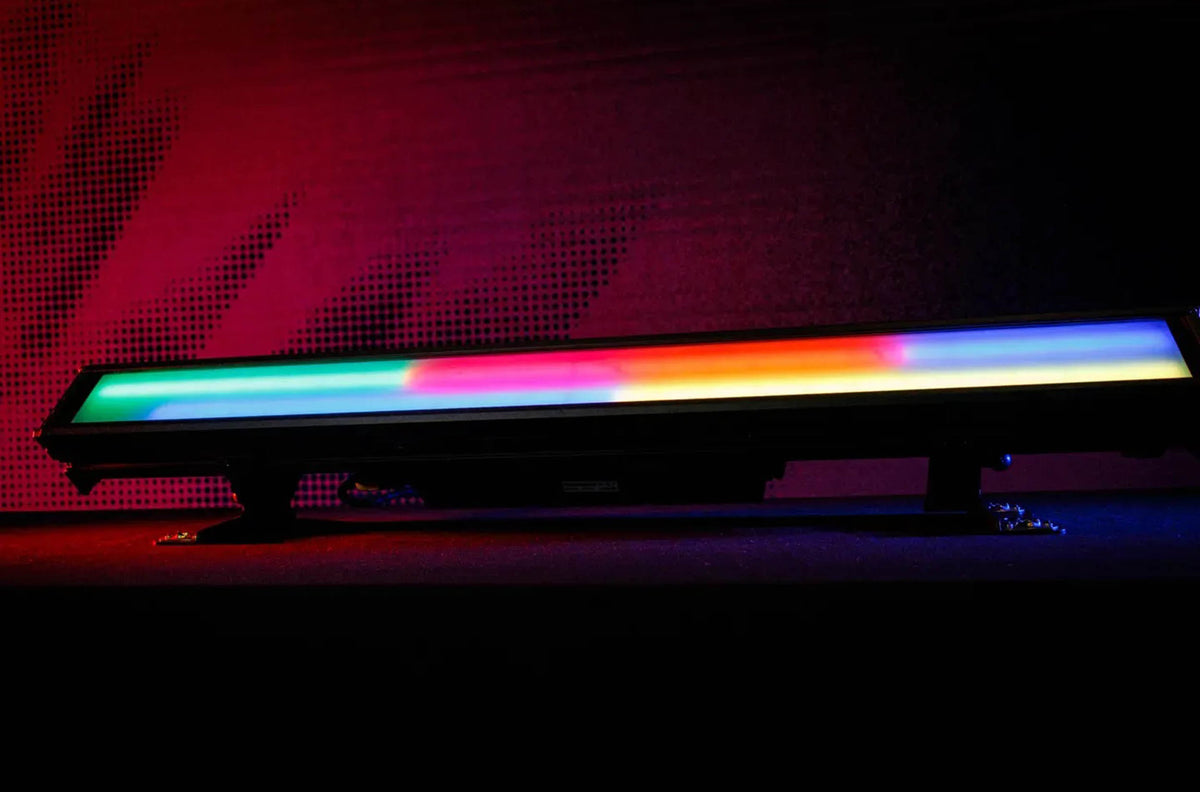

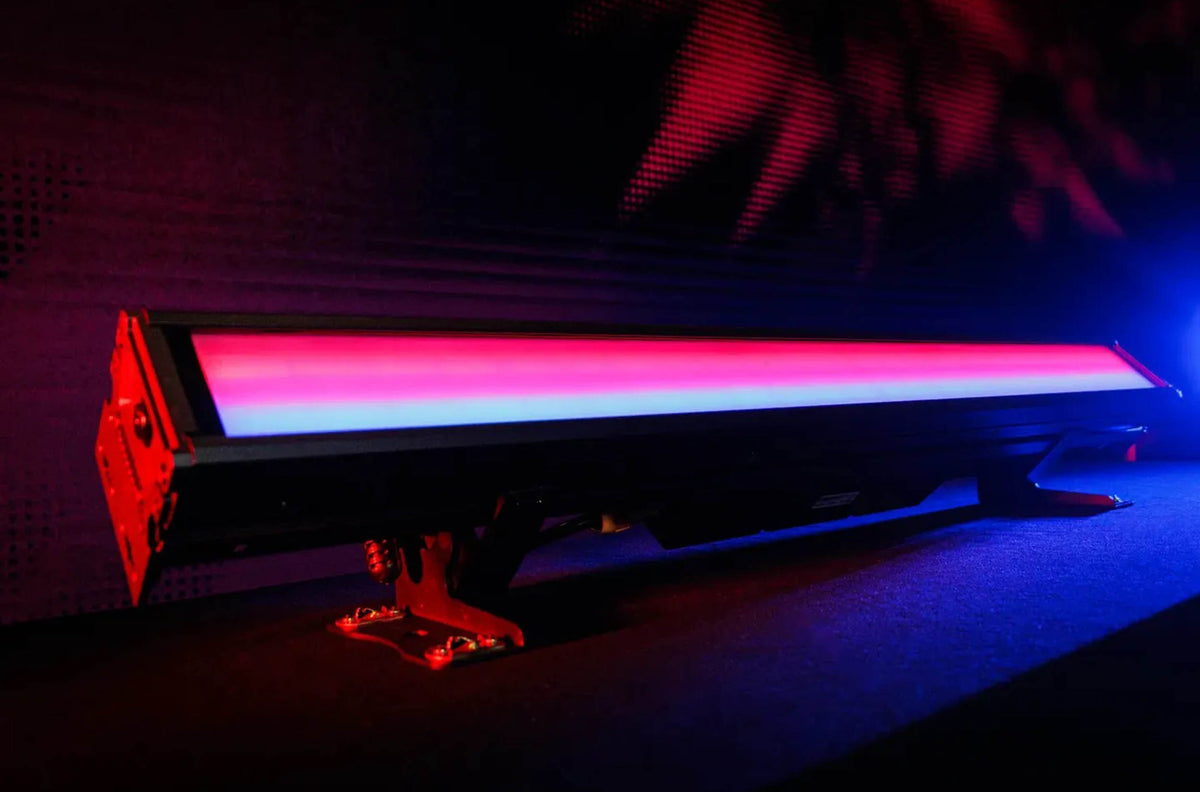

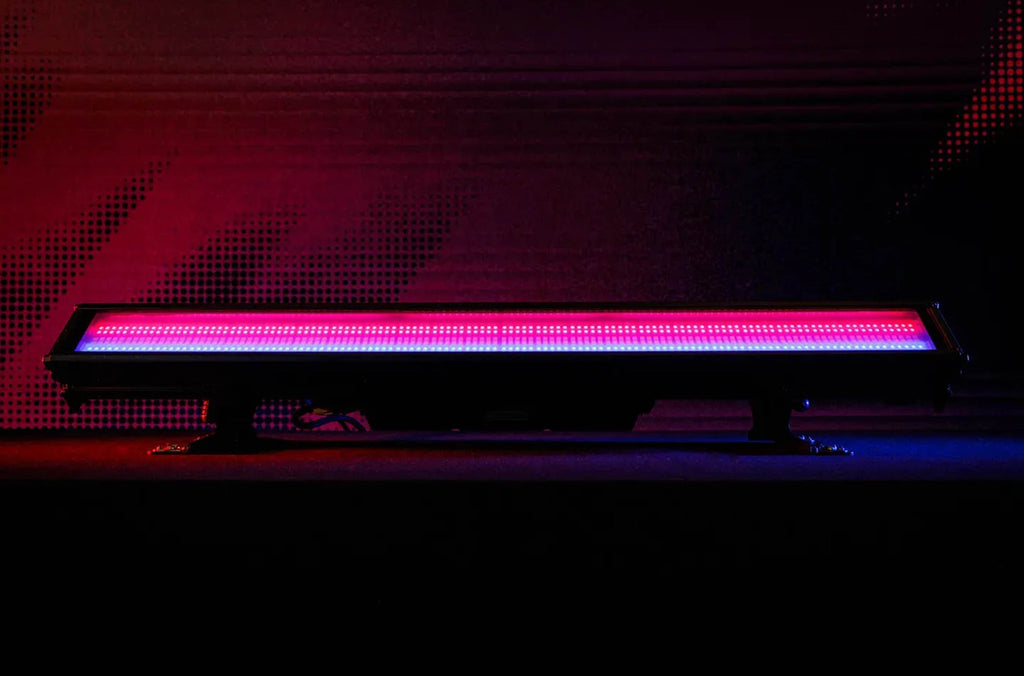

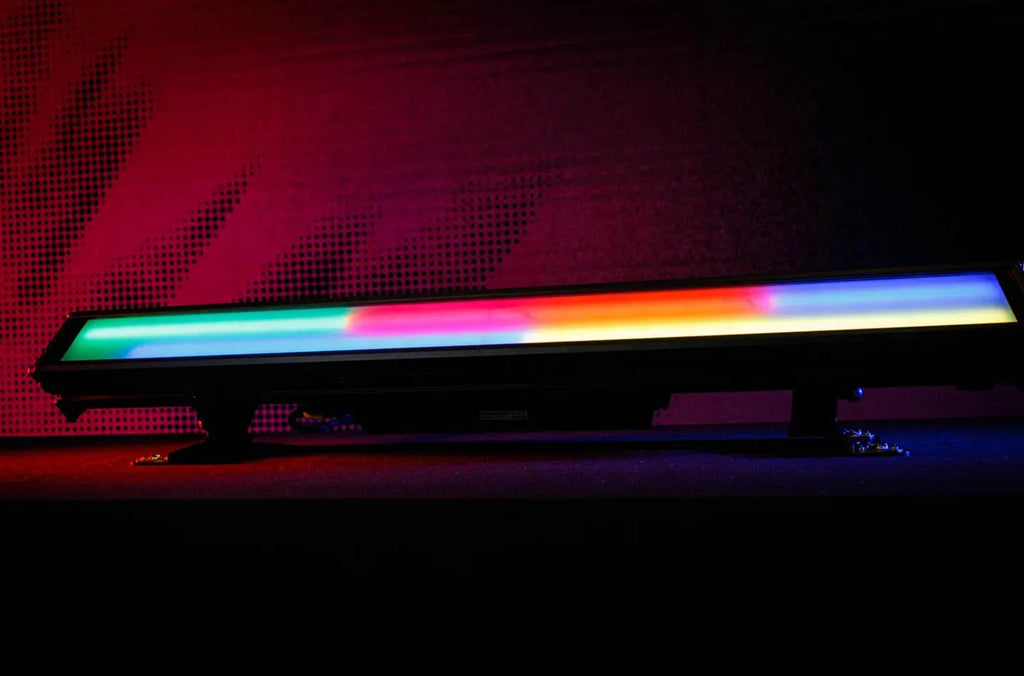

The Blizzard Lighting Sticknado Great White is an IP65-rated outdoor LED lighting fixture designed to deliver dynamic RGB pixel effects, powerful white strobe effects, and blinder-style output for stage productions, concerts, live events, and outdoor installations. It features 480 × 0.5W RGB SMD 5050 LEDs across the top and bottom rows, along with 240 × 1W white SMD LEDs in the center row for versatile color and white-light effects.
Equipped with an electronically controlled smart lens, the Sticknado™ Great White offers clear and frosted operation with DMX-controllable diffusion from 0–100%. Its viewing angle is 104° in clear mode and 110° with frost applied, allowing lighting designers to transition between defined pixel effects and softer, diffused washes.
With multiple DMX channel modes, pixel mapping, 33 built-in macros, and three customizable programs, this fixture supports both full-fixture effects and individual control of grouped LED pixels, with up to 24 pixels per row. Its interlocking housing allows multiple units to connect end-to-end, while convection cooling, dual mounting brackets, and PowerCON TRUE1-compatible power connections make it suitable for demanding stage and outdoor applications.
Key Features
- IP65-rated construction for outdoor lighting applications.
- 480 × 0.5W RGB SMD 5050 LEDs.
- 240 × 1W white SMD LEDs.
- Electronically controlled clear and frosted smart lens.
- DMX-controllable 0–100% electronic diffusion.
- 104° viewing angle in clear mode and 110° with frost.
- Multiple DMX channel modes and pixel mapping.
- Individual grouped-pixel control with up to 24 pixels per row.
- 33 built-in macros and three customizable programs.
- Built-in color and pixel-chase effects via DMX.
- Virtual color wheel effects.
- DMX512, master/slave, and automatic operating modes.
- Efficient convection cooling.
- 5-pin DMX input and output connections.
- PowerCON TRUE1-compatible AC input and output connections.
Ideal For
- Concerts and live music performances.
- Theaters and stage productions.
- Touring and rental lighting systems.
- Outdoor festivals and events.
- Architectural and event lighting installations.
- Pixel-mapped lighting displays.
- Strobe, blinder, and wide-area wash effects.
Inputs & Outputs
- DMX Input 5-pin DMX.
- DMX Output 5-pin DMX.
- Power Input PowerCON TRUE1-compatible AC input.
- Power Output PowerCON TRUE1-compatible AC output.
What's in the Box
- Blizzard Lighting Sticknado Great White LED fixture.
- Interconnection hardware for linking compatible fixtures.
Frequently Asked Questions
Is the Sticknado Great White suitable for outdoor use?
Yes. Its IP65 rating makes it suitable for outdoor lighting applications when installed and operated according to the manufacturer's guidelines.
What types of LEDs does this fixture use?
It uses 480 × 0.5W RGB SMD 5050 LEDs and 240 × 1W white SMD LEDs.
Does the fixture support electronic frost?
Yes. The electronically controlled smart lens provides DMX-controllable diffusion from 0–100%.
What is the viewing angle?
The viewing angle is 104° in clear mode and 110° with frost applied.
Can individual LED pixels be controlled?
Yes. Multiple DMX channel modes support pixel mapping and grouped-pixel control, with up to 24 pixels per row.
Does the fixture include built-in effects?
Yes. It features 33 built-in macros, three customizable programs, color and pixel-chase effects, and virtual color wheel effects.
Can multiple Sticknado fixtures be connected together?
Yes. Its interlocking housing design allows compatible Sticknado™ Hammerhead and Sticknado™ Great White fixtures to be connected end-to-end using the appropriate hardware.
What cooling system does it use?
The fixture uses efficient convection cooling.
Full Technical Specifications
General Specifications
|
Brand |
Blizzard Lighting |
|
Product Name |
Sticknado™ Great White |
|
Product Type |
IP65-Rated RGB Pixel and White LED Fixture |
|
Outdoor Rating |
IP65 |
|
Cooling |
Convection cooling |
LED & Optical Specifications
|
RGB LEDs |
480 × 0.5W RGB SMD 5050 |
|
White LEDs |
240 × 1W white SMD |
|
LED Arrangement |
Top and bottom RGB rows with center white row |
|
Viewing Angle (Clear) |
104° |
|
Viewing Angle (Frost) |
110° |
|
Electronic Frost |
Yes |
|
Diffusion Control |
DMX-controllable, 0–100% |
|
Luminous Intensity at 2.5 m (Clear) |
1,406 |
|
Luminous Intensity at 2.5 m (With Frost) |
1,209 |
|
Luminous Intensity at 5 m (Clear) |
347 |
|
Luminous Intensity at 5 m (With Frost) |
327 |
Control & Programming
|
Control Protocol |
USITT DMX-512 |
|
RDM Support |
Yes |
|
DMX Modes |
Multiple channel modes |
|
Pixel Mapping |
Supported |
|
Built-in Macros |
33 |
|
Customizable Programs |
3 |
|
Operating Modes |
DMX512, Master/Slave, Auto |
|
Display |
OLED display |
|
Menu Controls |
4-button menu |
|
Effects |
Color macros, pixel chases, virtual color wheel effects |
Power Specifications
|
Input Voltage |
100–240V AC |
|
Frequency |
50–60 Hz |
|
Power Consumption |
358W |
|
Current Draw |
3.15A |
|
Power Factor |
0.99 |
|
AC Input/Output |
PowerCON® TRUE1-compatible |
Physical Specifications
|
Dimensions (L × W × H) |
39.4 × 5.9 × 6.6 in |
|
Weight |
19 lbs |
|
Mounting |
Dual mounting brackets with locking knobs |
|
Housing Design |
Interlocking |
