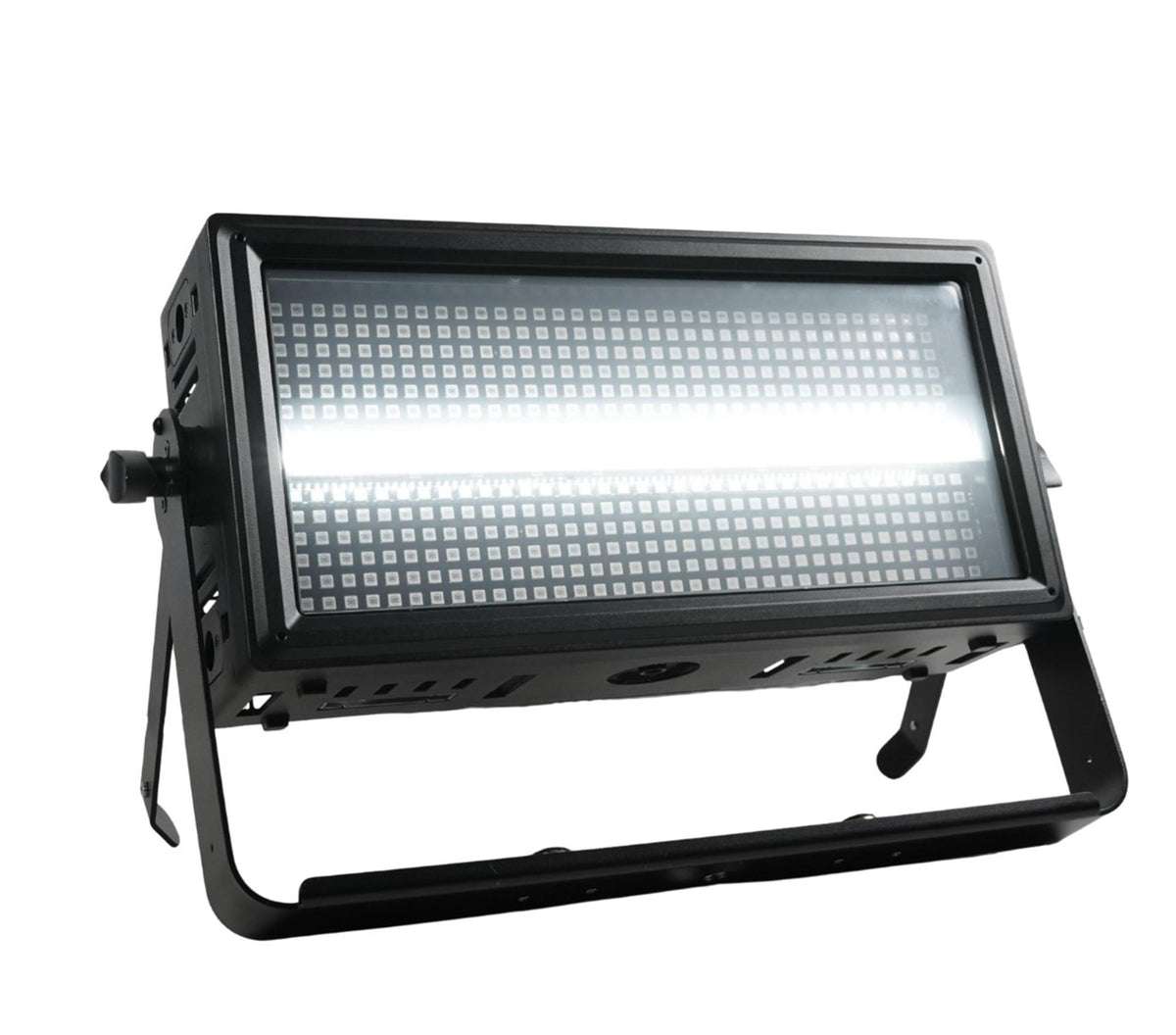

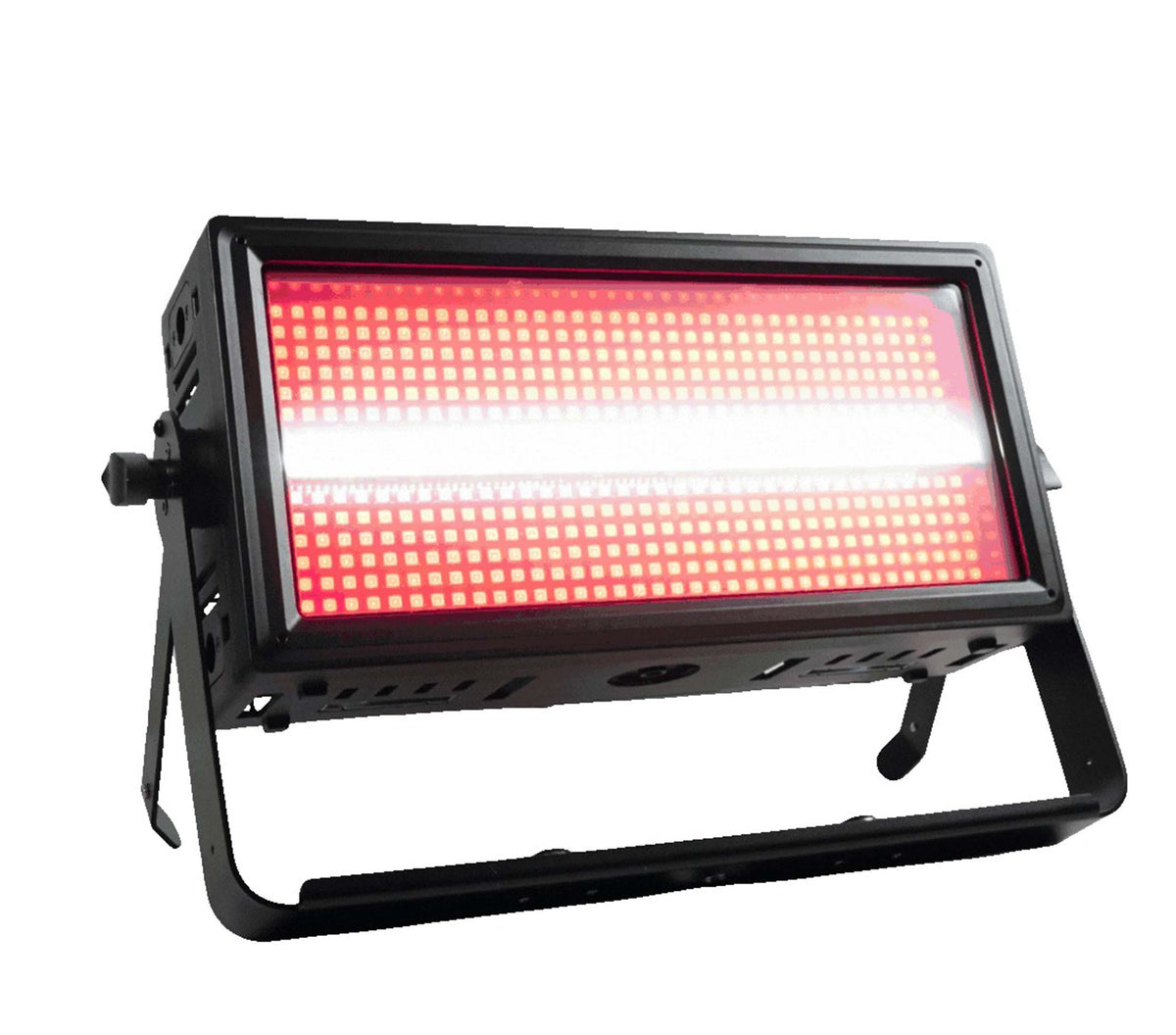

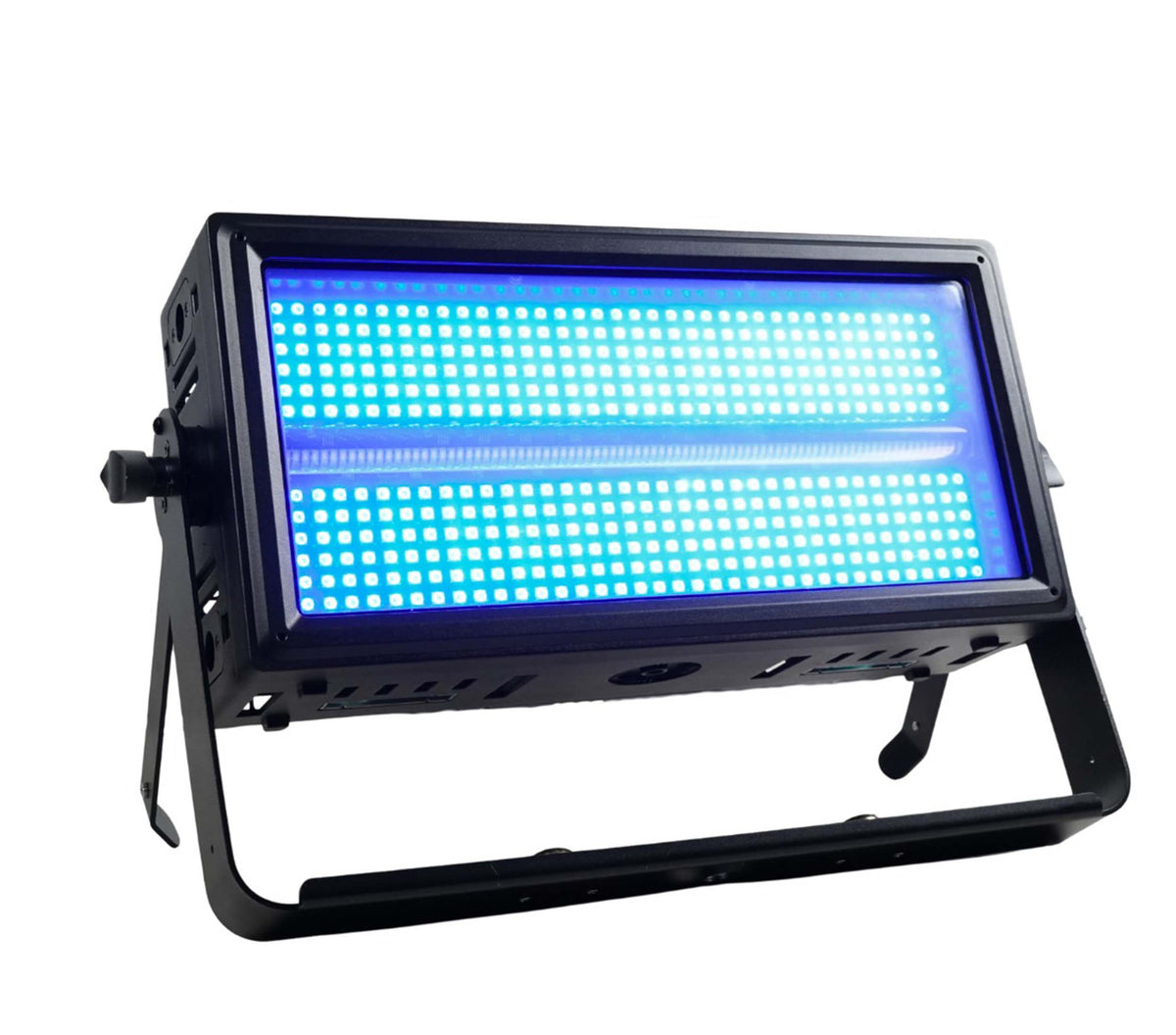

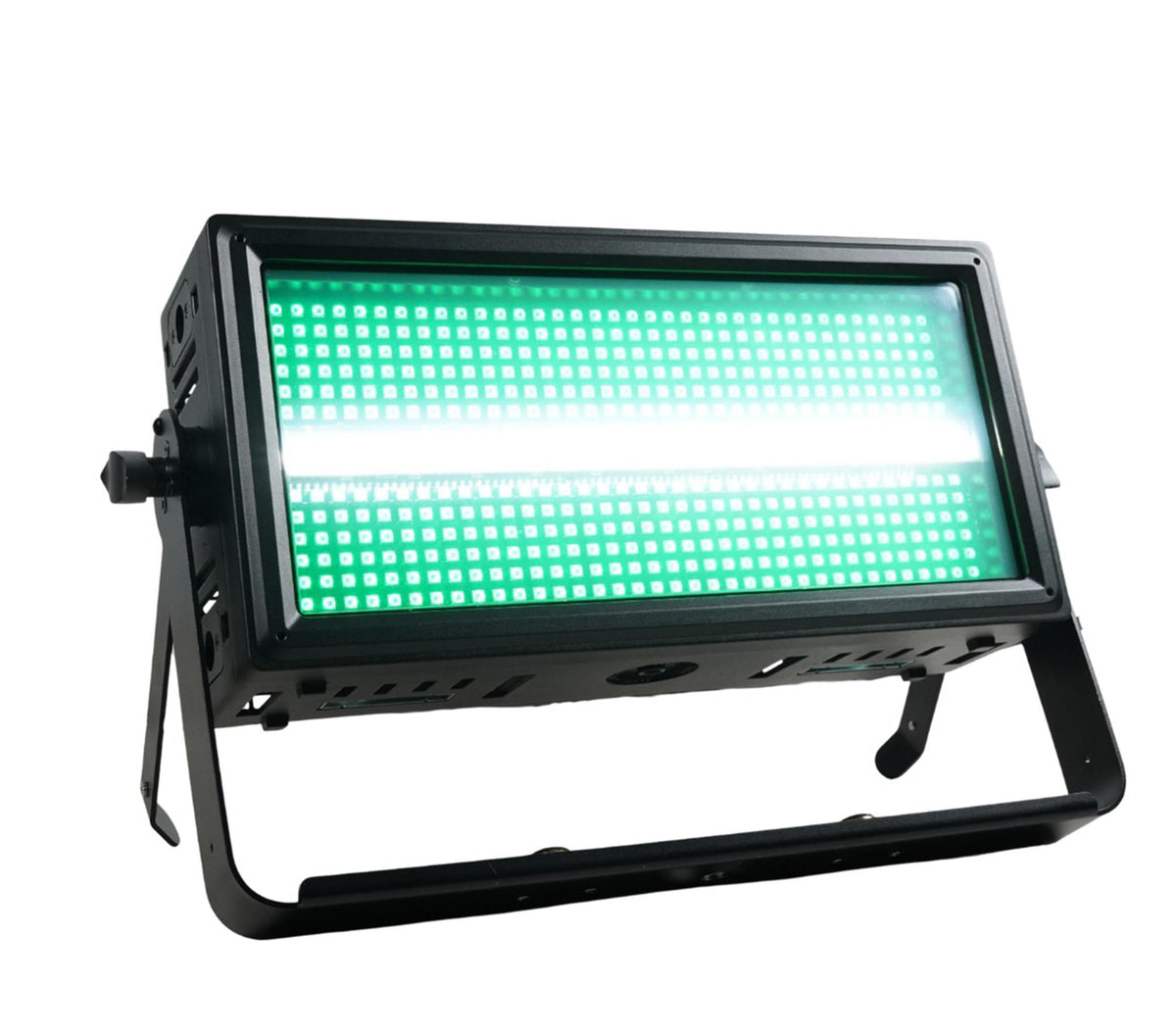

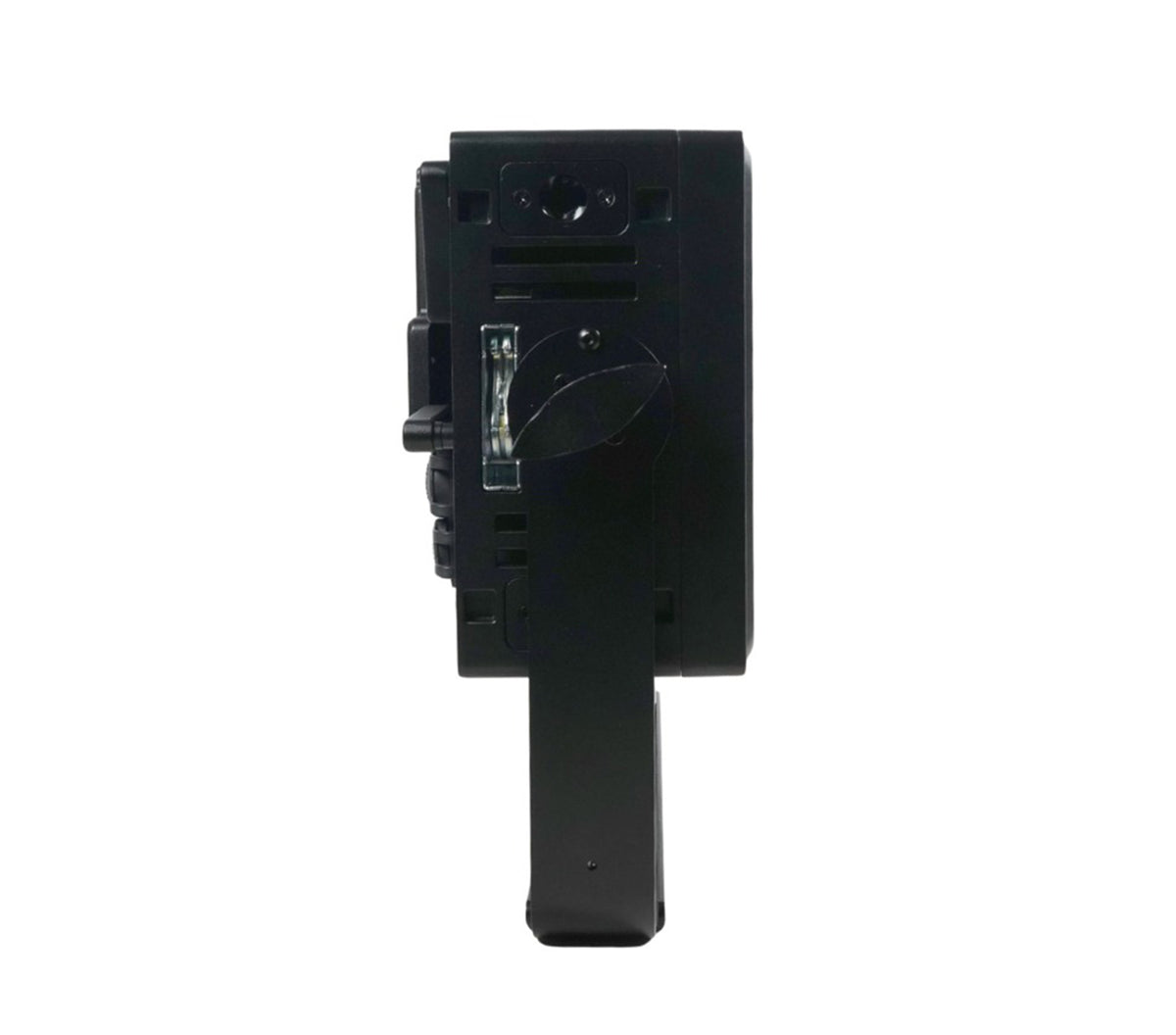

The Event Lighting HYBRICK-FX is an IP65-rated LED effect light designed for professional stage productions, touring, festivals, and event installations. It combines 432 RGB LEDs with 84 warm white LEDs to produce dynamic color effects and focused white beams. The warm white LEDs feature a 3250K color temperature, while the RGB LEDs provide broad color coverage for creative lighting designs.

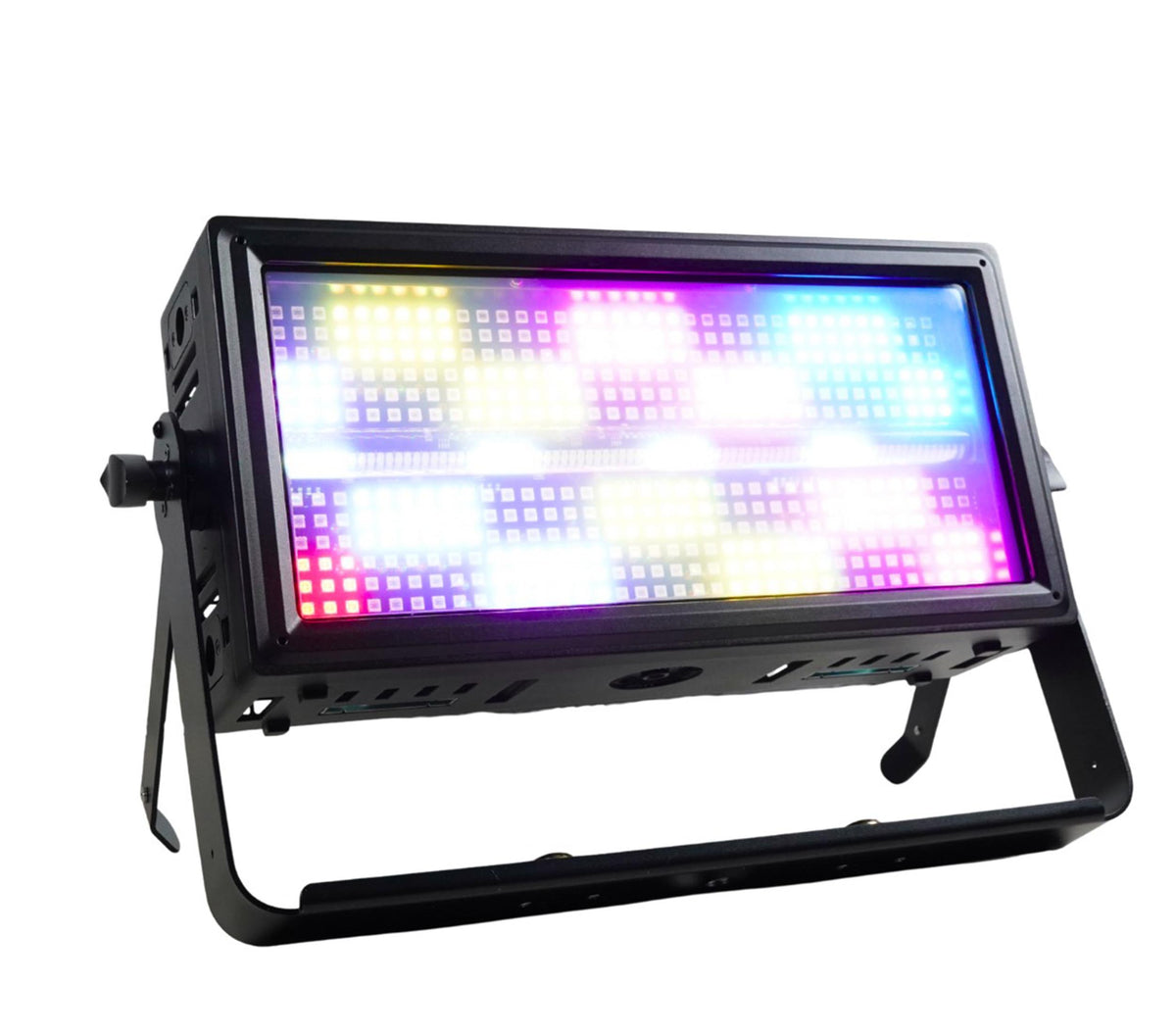

With segmented pixel control, the HYBRICK-FX offers 48 RGB cells and 12 white beam cells for detailed effects and individually programmed lighting patterns. Its electronic frost system features adjustable transparency from 0% to 100%, allowing users to modify the appearance of the output.

Built for demanding environments, the HYBRICK-FX features an aluminium housing with a matte black finish, two cooling fans, and an IP65 rating for suitable indoor and outdoor use. DMX512, RDM, and WDMX support provide versatile control options.

Key Features

• Combines RGB color effects and warm white beams in one fixture.
• Provides 48 RGB pixel cells and 12 white beam cells for segmented control.

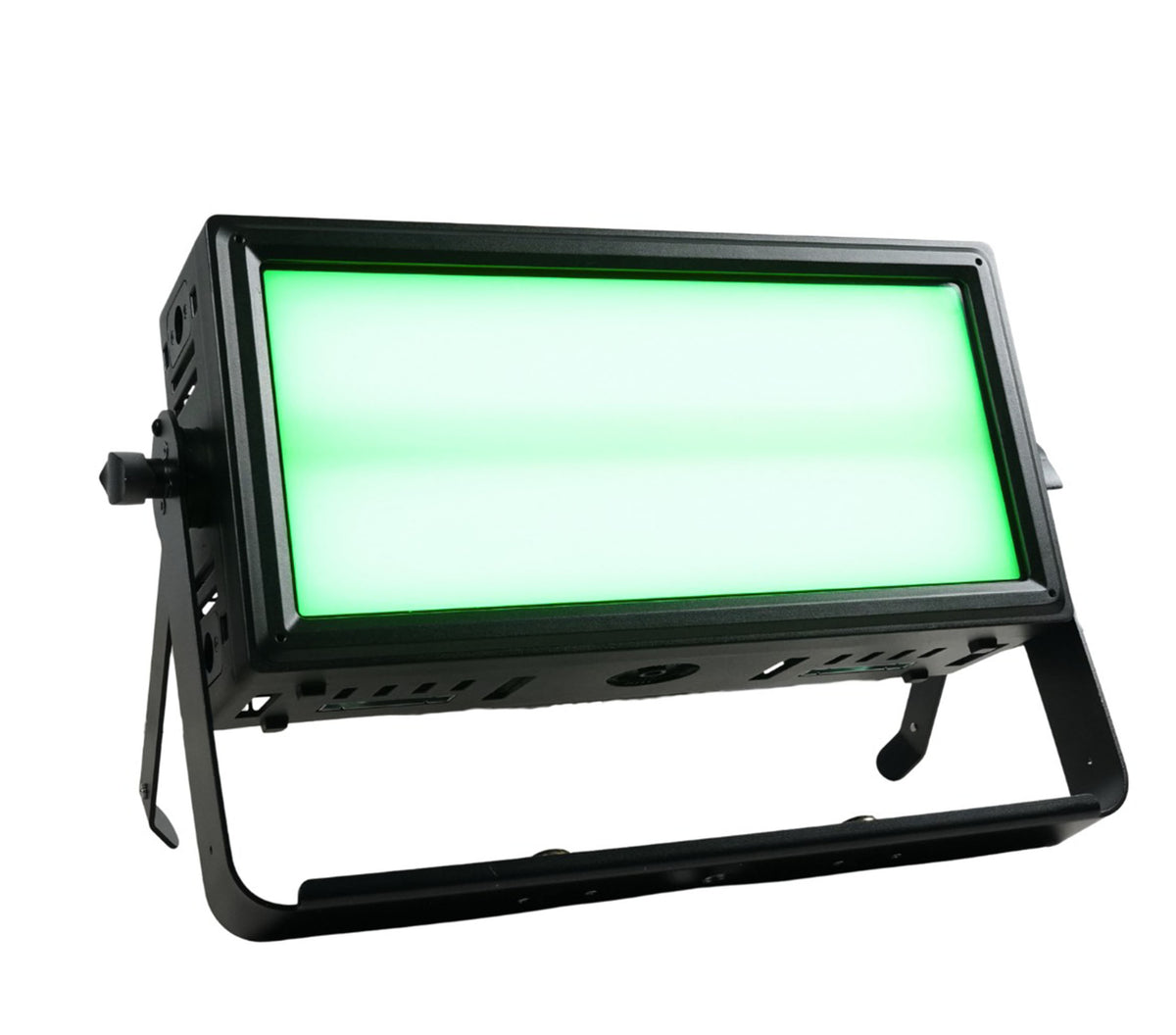

• Adjusts electronic frost transparency from 0% to 100%.
• Offers five 16-bit dimming curves and strobe effects from 1 to 25 Hz.
• Uses 4000 Hz PWM for smooth lighting performance.
• Supports DMX512, RDM, and WDMX control protocols.
• Provides multiple DMX channel modes for different programming requirements.
• Features an IP65-rated housing for suitable outdoor and indoor applications.
• Supports floor standing, horizontal hanging, and vertical suspension.
• Allows multiple fixtures to be linked horizontally or vertically.
• Includes an Omega bracket for compatible mounting arrangements.

Ideal For

• Concerts and touring productions
• Theatres and live performance venues
• Festivals and outdoor events
• Stage lighting and pixel-mapped effects
• Professional event production and installation rigs

What’s in the Box

• Event Lighting HYBRICK-FX Effect Light.
• 1 × Omega Bracket.

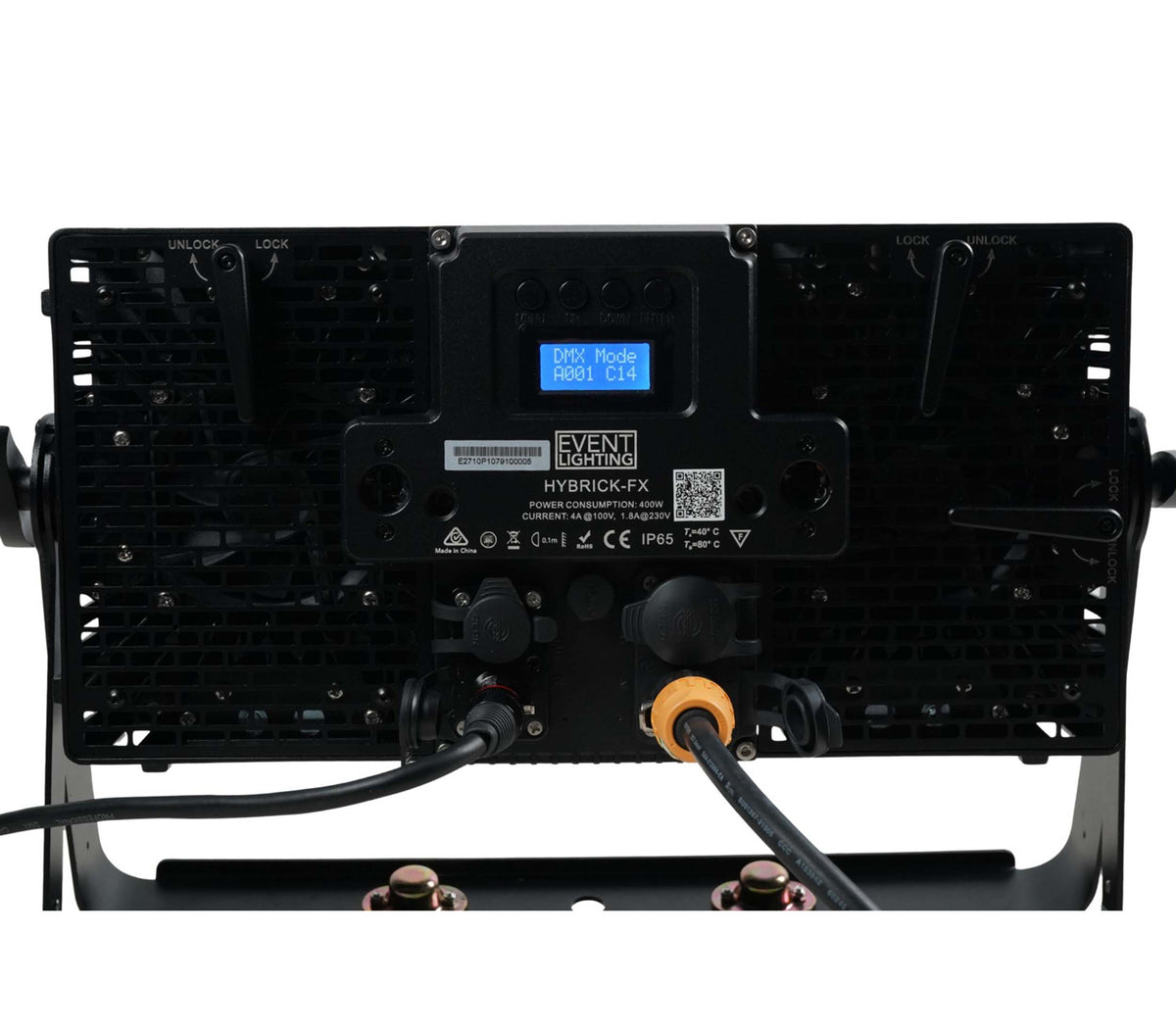

Inputs & Outputs

• DMX Connection: 5-pin XLR
• Power Connection: True1 power input and output
• Control Protocols: DMX512, RDM, WDMX
• Software Upgrade: Via DMX

Frequently Asked Questions

What light sources does the HYBRICK-FX use?

It features 432 × 1.5W RGB LEDs and 84 × 5W warm white LEDs.

What is electronic frost used for?

Electronic frost adjusts the transparency of the frost effect from 0% to 100%, allowing users to modify the appearance of the light output.

Does the fixture support pixel control?

Yes. It provides segmented control with 48 RGB cells and 12 white beam cells.

Can multiple fixtures be connected together?

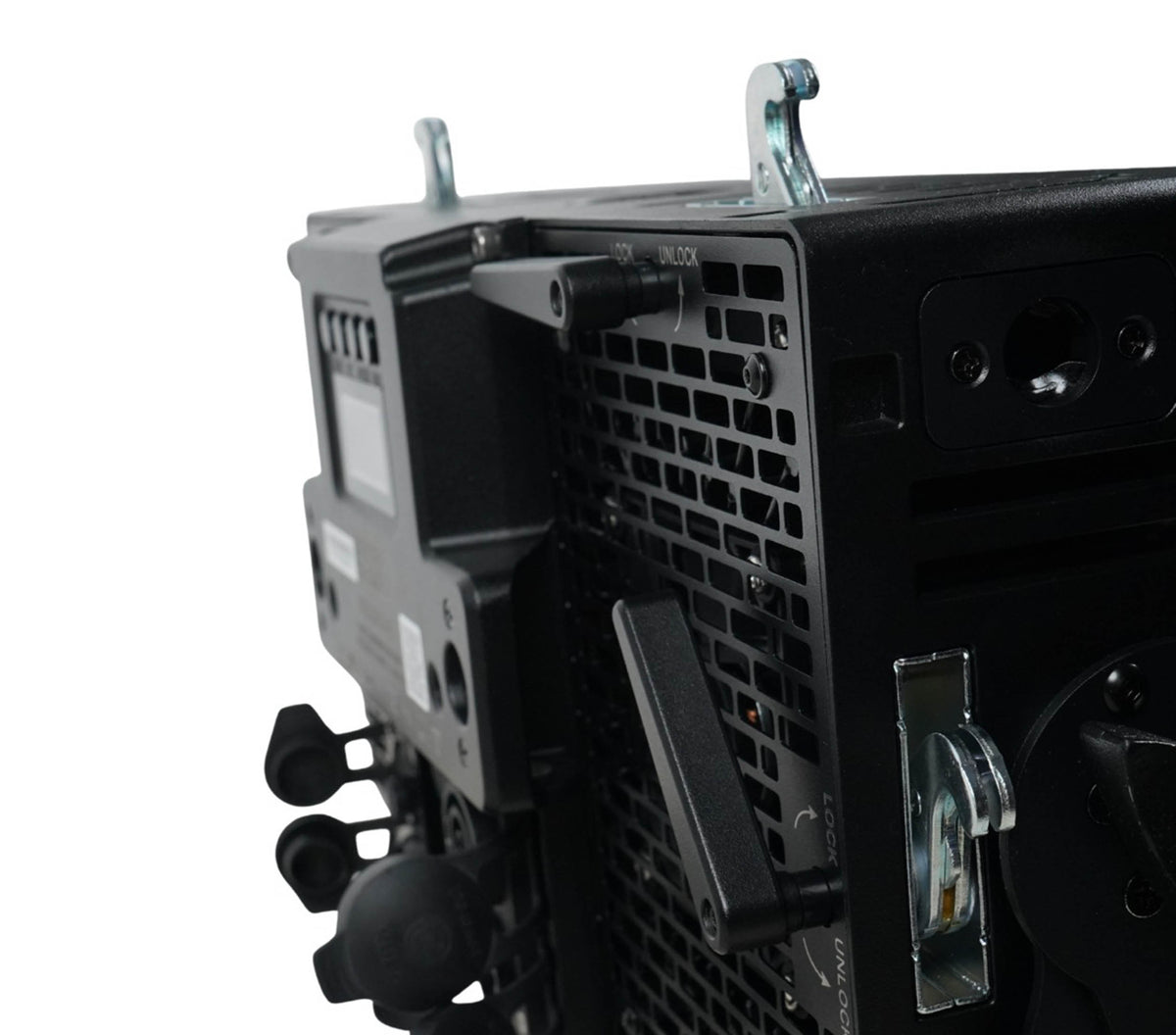

Yes. Six coffin locks and three tool-free locking handles support multi-fixture linking and horizontal or vertical hanging configurations.

Full Technical Specifications

General

Key Feature	Electronic Frost and Interlocking Housing
IP Rating	IP65
RGB Light Source	432 × 1.5W RGB LEDs
RGB LED Configuration	Upper zone: 9 LEDs × 24 segments; bottom zone: 9 LEDs × 24 segments
Warm White Light Source	84 × 5W LEDs
Warm White LED Configuration	7 LEDs × 12 segments
Warm White Color Temperature	3250K
Beam Angle	RGB: 120°; warm white: 60°
Light Output	8,800 lux at 1 m; 2,205 lux at 2 m
PWM Frequency	4000 Hz
LED Life	50,000 hours
Dimming	Five 16-bit digital dimming curves
Strobe	1–25 Hz
Electronic Frost	Adjustable transparency from 0% to 100%
Pixel Control	Segmented RGB plate with 48 cells and white beam with 12 cells
Operating Modes	Static, color fade, auto program, sound active, master/slave, DMX
Control Protocols	DMX512, RDM, WDMX
DMX Channel Modes	1 / 2 / 3 / 4 / 14 / 15 / 50 / 146 / 158
DMX Interface	5-pin XLR
Display	Four-button LCD control panel
Software Upgrade	Via DMX
Input Voltage	100–240V AC, 50/60Hz
Power Consumption	400W
Power Connection	True1 power input and output
Housing Material	Aluminium
Housing Finish	Matte black
Cooling	2 fans
Warranty	3 years

Physical Specifications

Mounting	Double yokes for floor standing or horizontal hanging
Vertical Rigging	Top and bottom mounting points
Omega Bracket	1 included; cam-lock mounting points on side and back
Multi-Fixture Linking	6 coffin locks and 3 tool-free locking handles
Maximum Hanging Load	Up to 8 units; approximately 143 lbs combined
Product Weight	17.9 lbs
Product Dimensions	5.8" H × 7.3" W × 14.7" L
Shipping Weight	23.15 lbs
Shipping Dimensions	12.80" H × 7.87" W × 19.69" L
