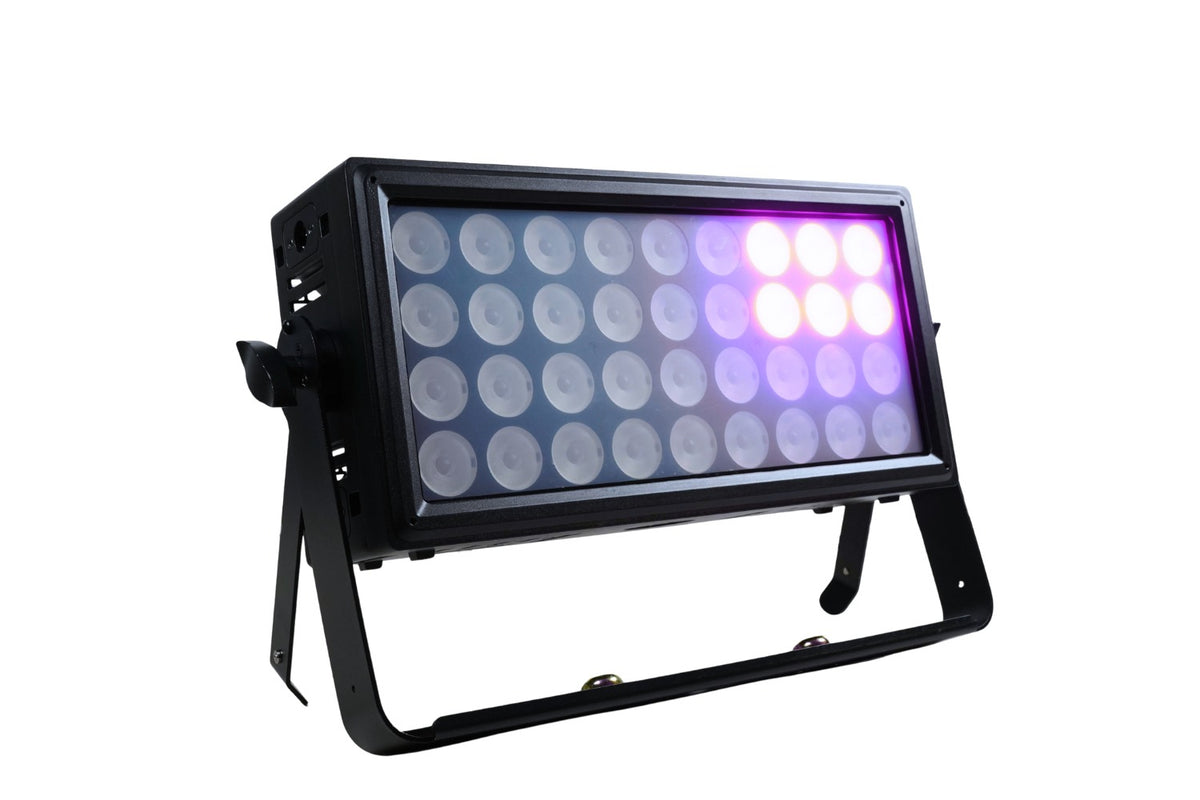

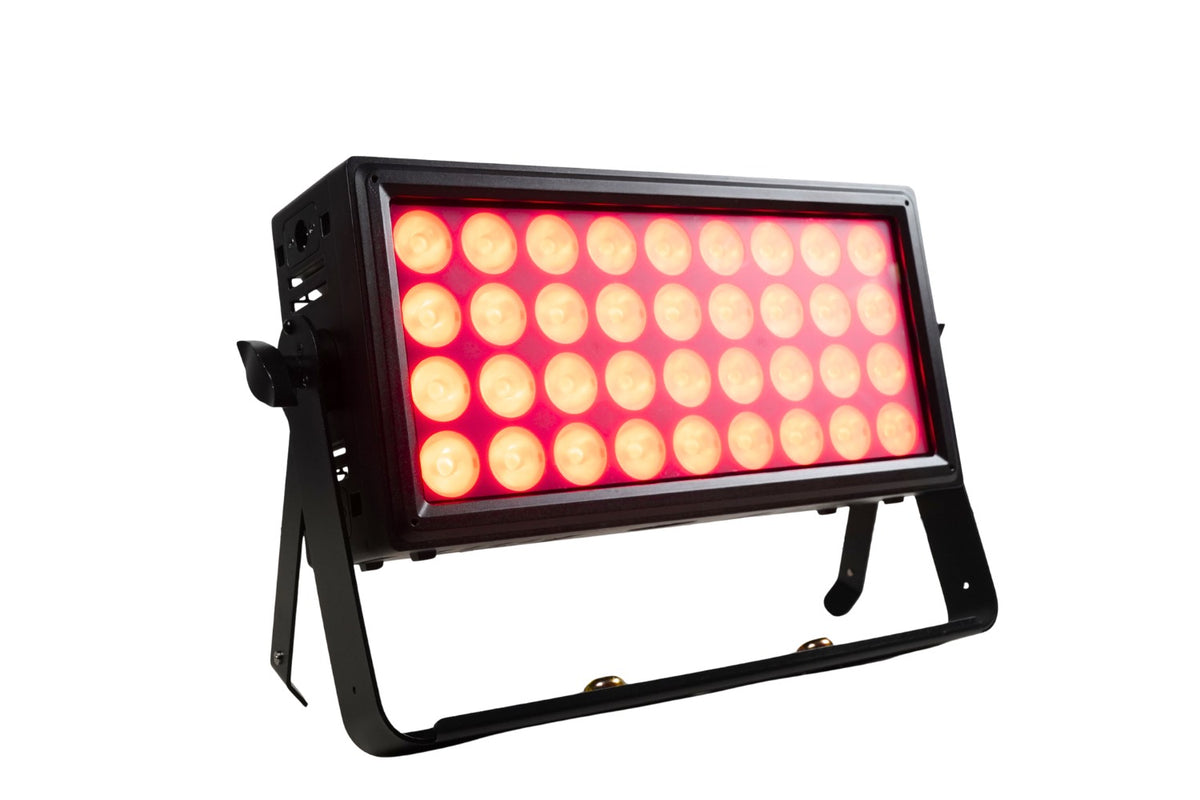

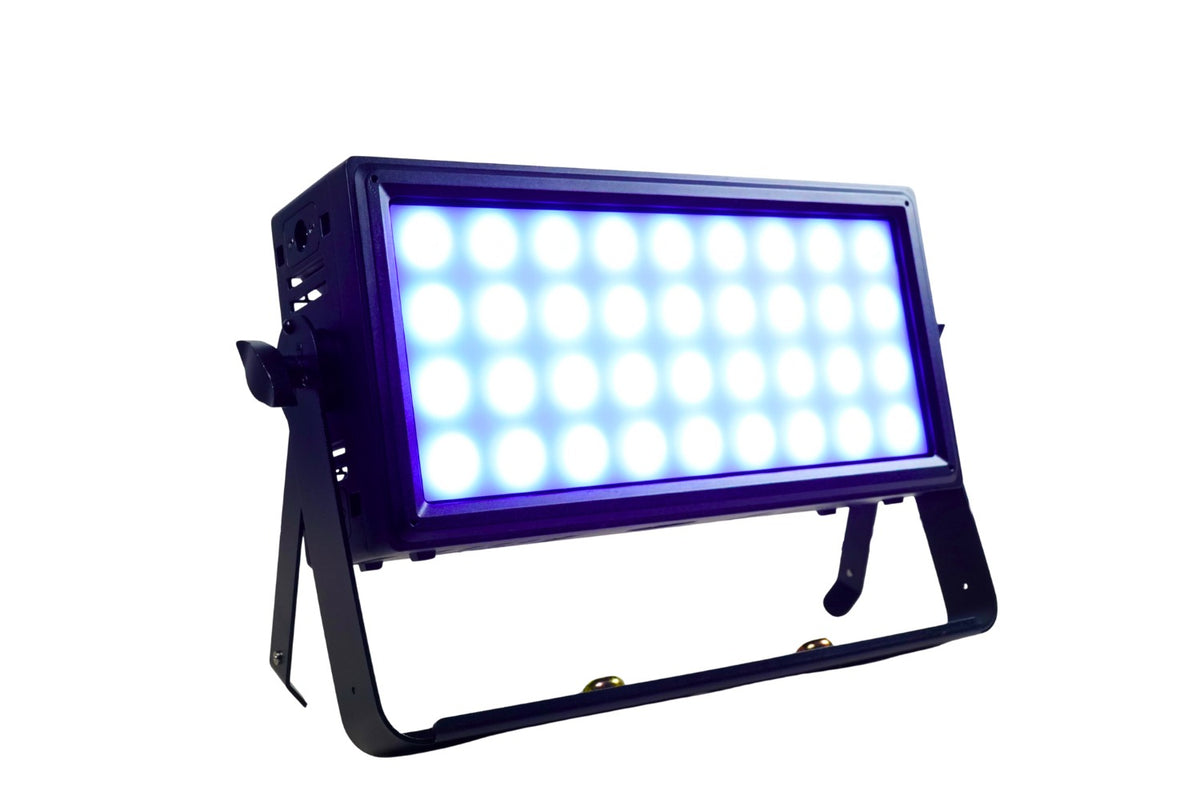

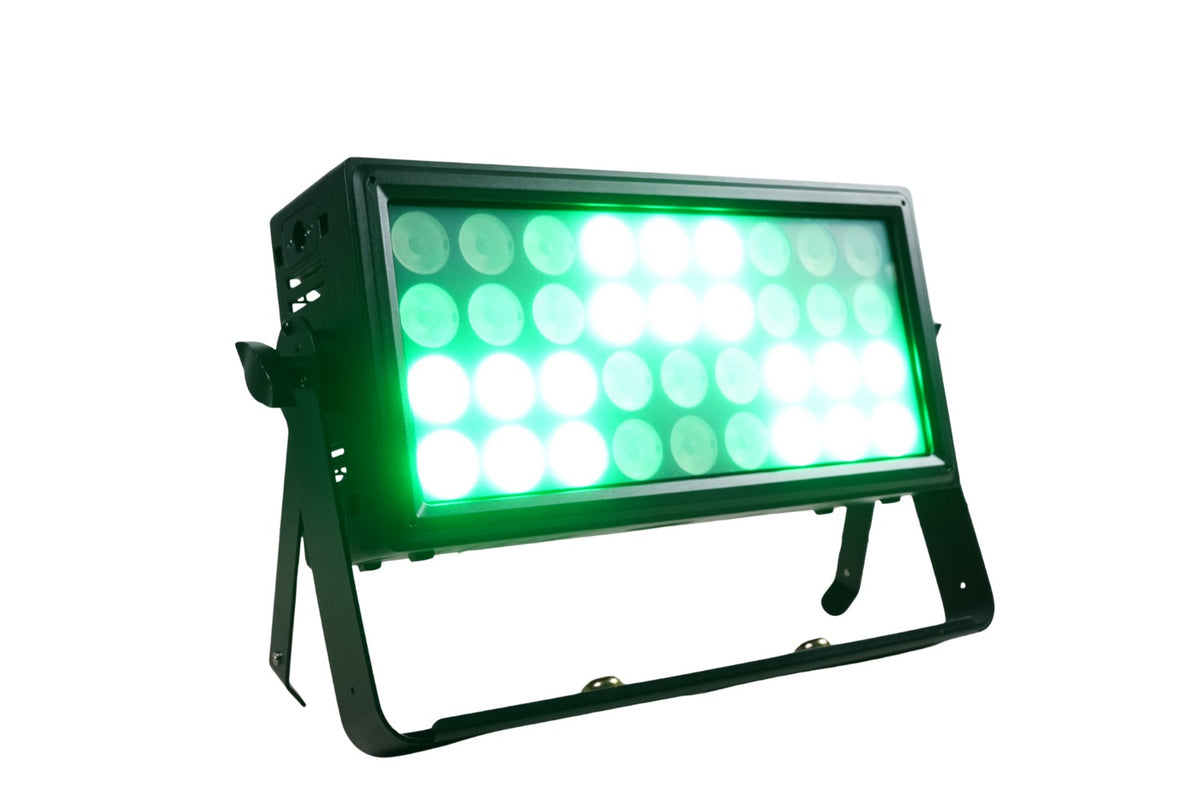

The Event Lighting HYBRICK-WASH is an IP65-rated LED wash fixture designed for professional stage lighting, touring productions, festivals, and event installations. Equipped with 36 × 10W RGBW+WW LEDs, it delivers versatile color mixing and adjustable white output for a wide range of lighting applications.

The HYBRICK-WASH features a 35mm lens with a standard 20° beam angle, with optional 12° and 40° lenses available for different beam coverage requirements. Its six-segment pixel control system, with six LEDs per segment, enables dynamic lighting effects and segmented color programming.

Designed for demanding production environments, the fixture combines an aluminium housing with a matte black finish, two cooling fans, and an IP65 rating for suitable indoor and outdoor applications. DMX512, RDM, and WDMX support provide flexible control options. Double yokes allow floor standing or horizontal hanging, while the interlocking housing.

Key Features

• Produces versatile wash lighting with 36 RGBW+WW LEDs.

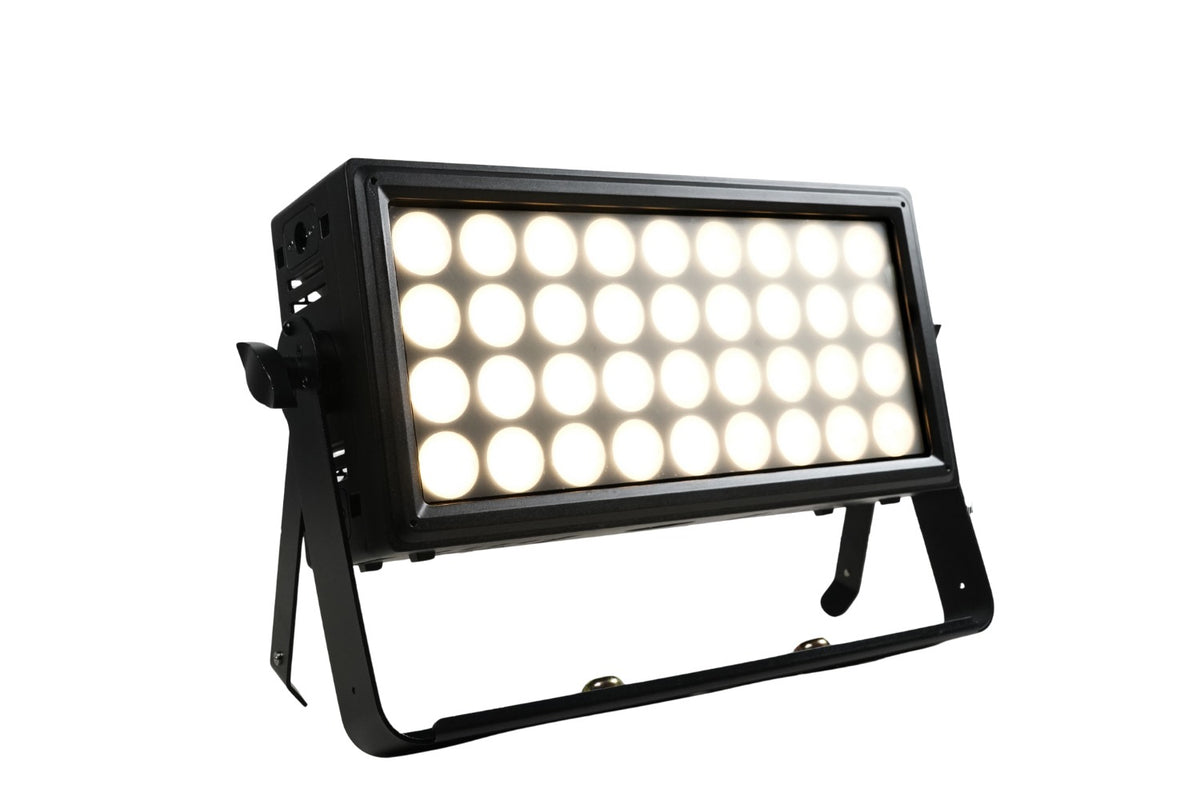

• Provides cool white output at 6000K and warm white output at 2500K.
• Supports high color fidelity with a CRI of 95+
• Uses a 35mm lens with a 20° beam angle and optional 12° or 40° lenses.

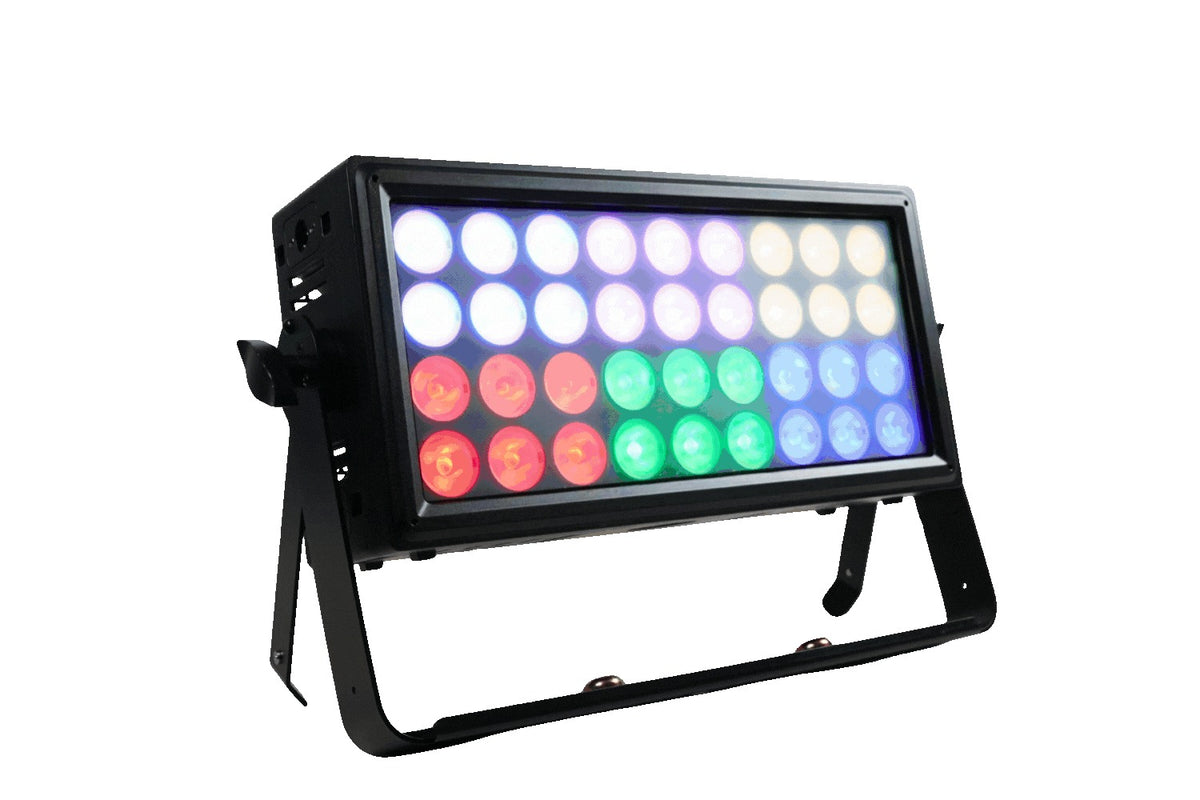

• Offers six-segment pixel control for dynamic lighting effects.
• Adjusts electronic frost transparency from 0% to 100%.
• Provides five 16-bit dimming curves and strobe effects from 1 to 25 Hz.
• Supports DMX512, RDM, and WDMX control protocols.
• Features an IP65-rated housing for suitable outdoor and indoor applications.
• Supports floor standing, horizontal hanging, and vertical suspension.
• Allows multiple fixtures to be linked horizontally or vertically.

Ideal For

• Concerts and touring productions
• Theatres and live performance venues
• Festivals and outdoor events
• Architectural and event wash lighting
• Professional stage lighting rigs and installations

What’s in the Box

• Event Lighting HYBRICK-WASH Wash Fixture.
• 1 × Omega Bracket.

Inputs & Outputs

• DMX Connection: 5-pin XLR
• Power Connection: True1 power input and output
• Control Protocols: DMX512, RDM, WDMX
• Software Upgrade: Via DMX

Frequently Asked Questions

What type of LEDs does the HYBRICK-WASH use?

It features 36 × 10W RGBW+WW LEDs for color mixing and variable white lighting effects.

What color temperatures are available?

The specified cool white output is 6000K, while the warm white output is 2500K.

What beam angles are supported?

The standard lens provides a 20° beam angle. Optional 12° and 40° lenses are also available.

Does the fixture support pixel control?

Yes. It features six segments, with six LEDs per segment, for segmented lighting effects.

Full Technical Specifications

General

Key Features	Electronic frost and interlocking housing
IP Rating	IP65
Light Source	36 × 10W RGBW+WW LEDs
Cool White Color Temperature	6000K
Warm White Color Temperature	2500K
CRI	95+
Lens Diameter	35mm
Standard Beam Angle	20°
Optional Beam Angles	12°, 40°
Light Output	82,800 lux at 1 m; 24,400 lux at 2 m
PWM Frequency	1200 Hz
LED Life	50,000 hours
Dimming	Five 16-bit digital dimming curves
Strobe	1–25 Hz
Electronic Frost	Adjustable transparency from 0% to 100%
Pixel Control	6 segments, 6 LEDs per segment
Operating Modes	Static, color fade, auto program, sound active, master/slave, DMX
Control Protocols	DMX512, RDM, WDMX
DMX Channel Modes	1 / 3 / 4 / 5W / 5S / 6 / 8 / 12 / 14 / 33
DMX Interface	5-pin XLR

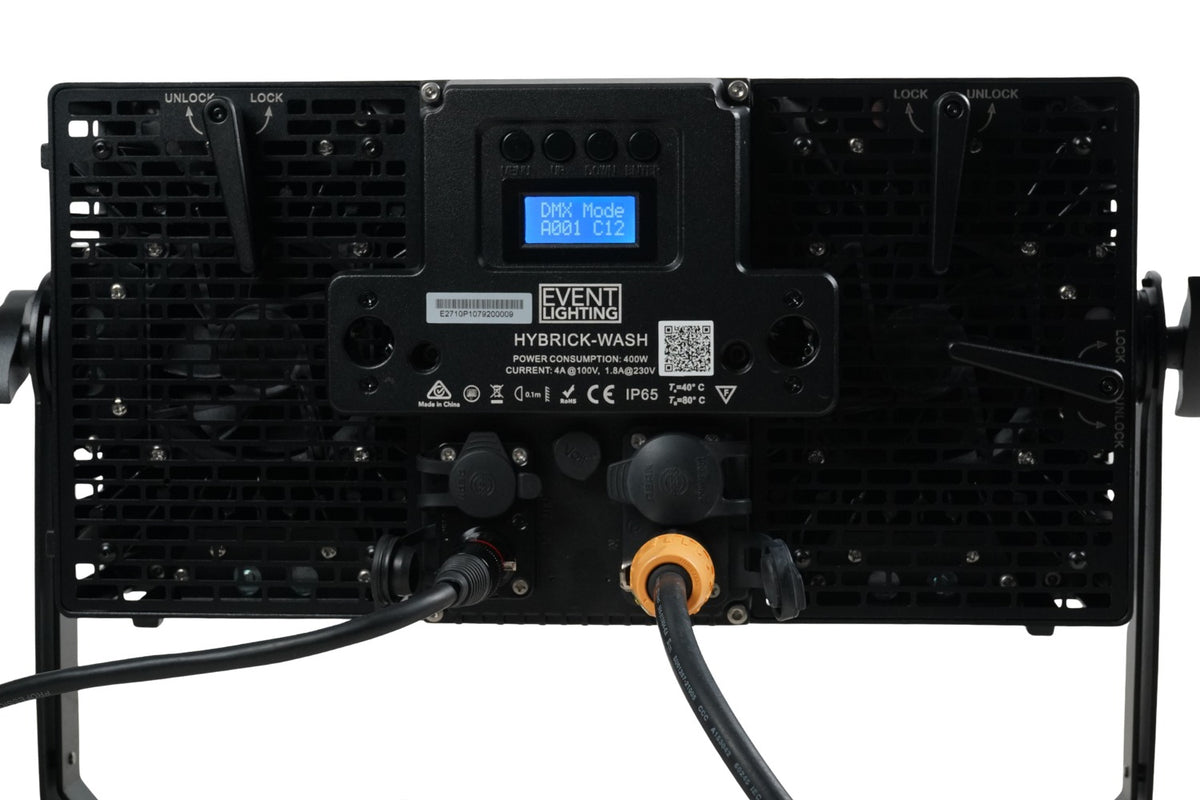

Display	Four-button LCD control panel
Software Upgrade	Via DMX
Input Voltage	100–240V AC, 50/60Hz
Power Consumption	400W
Power Connection	True1 power input and output
Housing Material	Aluminium
Housing Finish	Matte black
Cooling	2 fans
Warranty	3 years

Physical Specifications

Mounting	Double yokes for floor standing or horizontal hanging
Vertical Rigging	Top and bottom mounting points
Omega Bracket	1 included; cam-lock mounting points on side and back

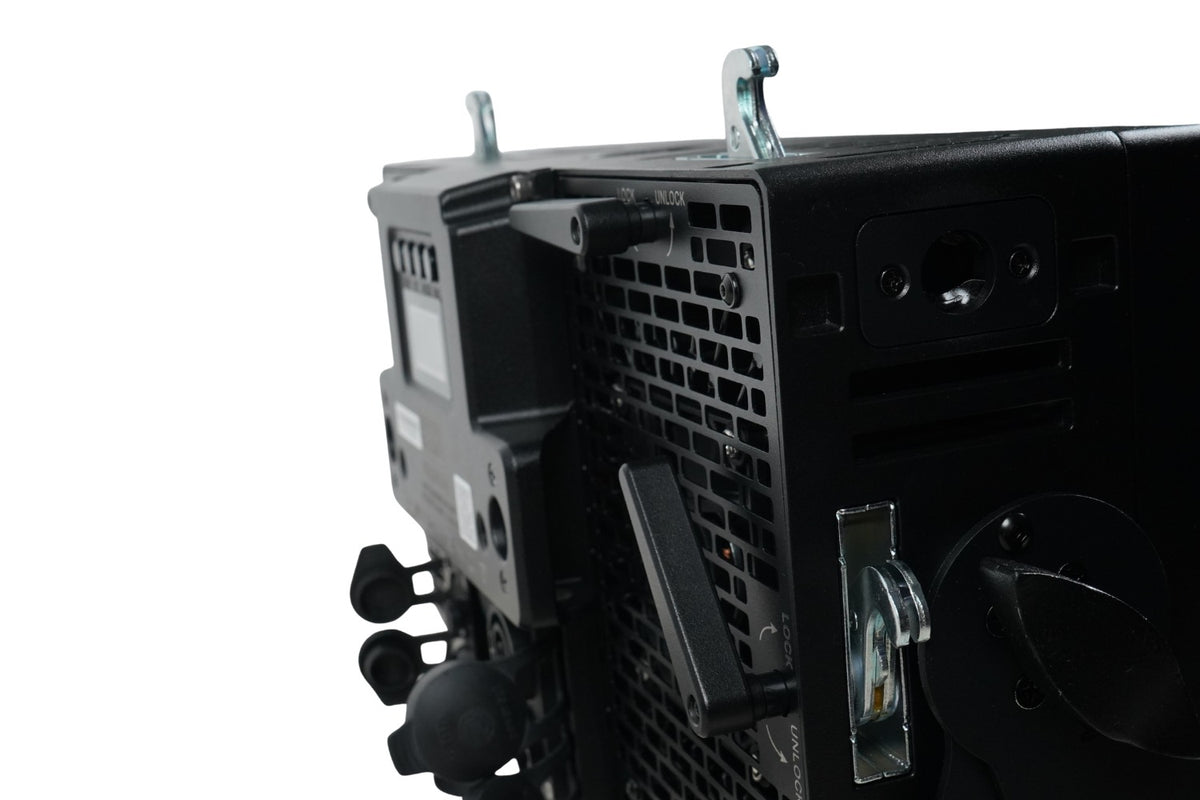

Multi-Fixture Linking	6 coffin locks and 3 tool-free locking handles
Maximum Hanging Load	Up to 8 units; approximately 143 lbs combined
Product Weight	17.9 lbs
Product Dimensions	5.8" H × 7.3" W × 14.7" L
Shipping Weight	23.15 lbs
Shipping Dimensions	12.80" H × 7.87" W × 19.69" L
