Description

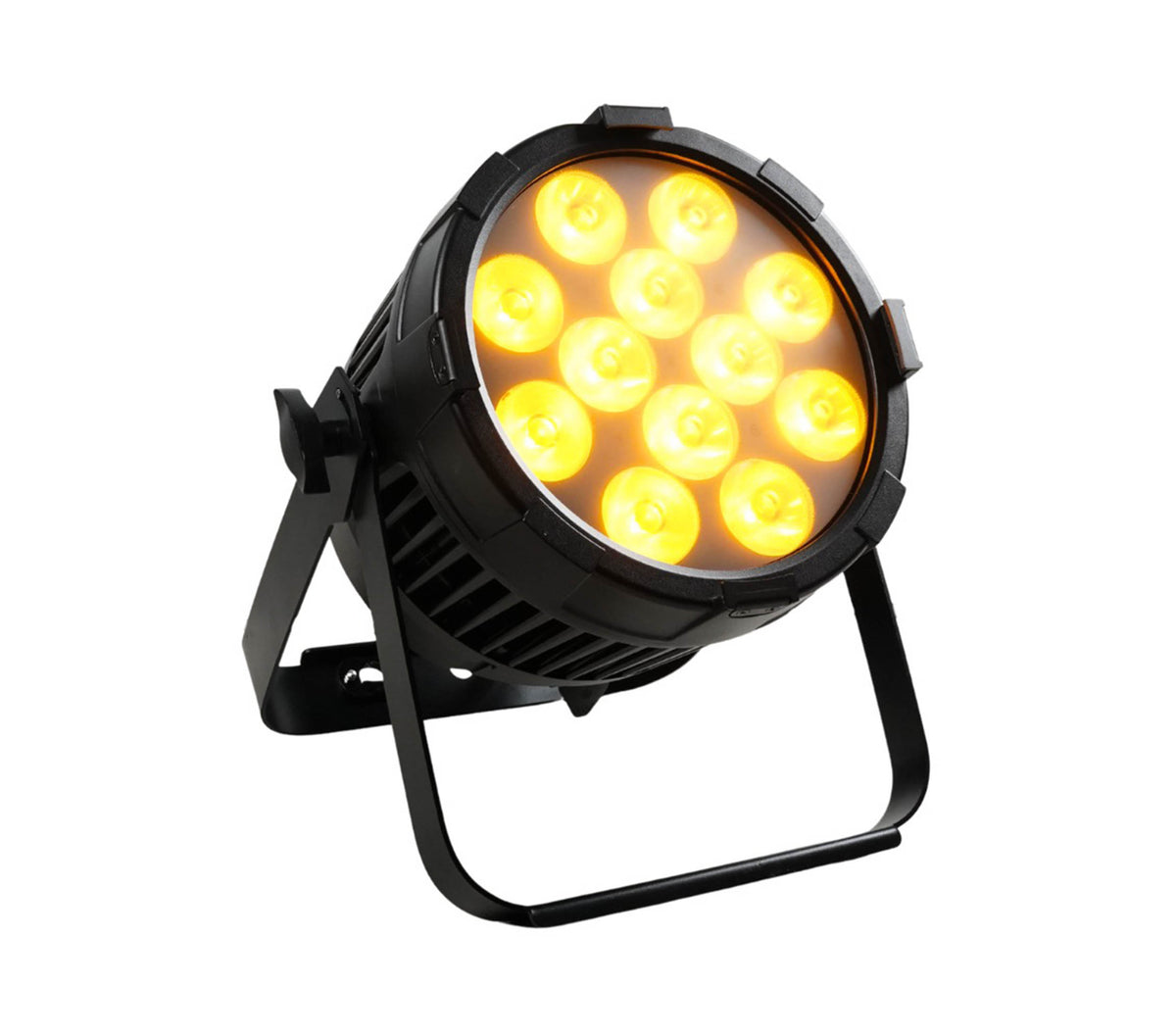

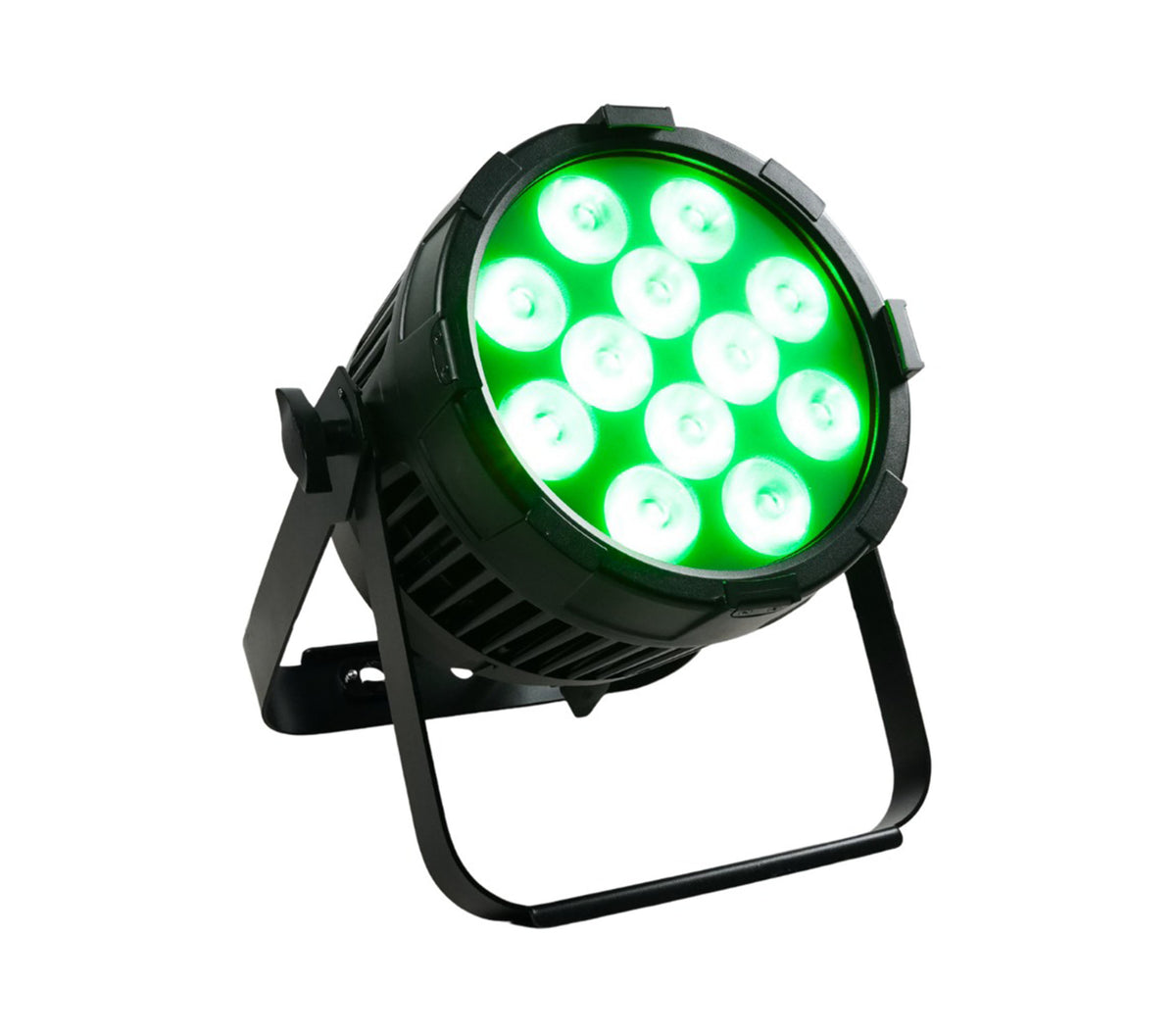

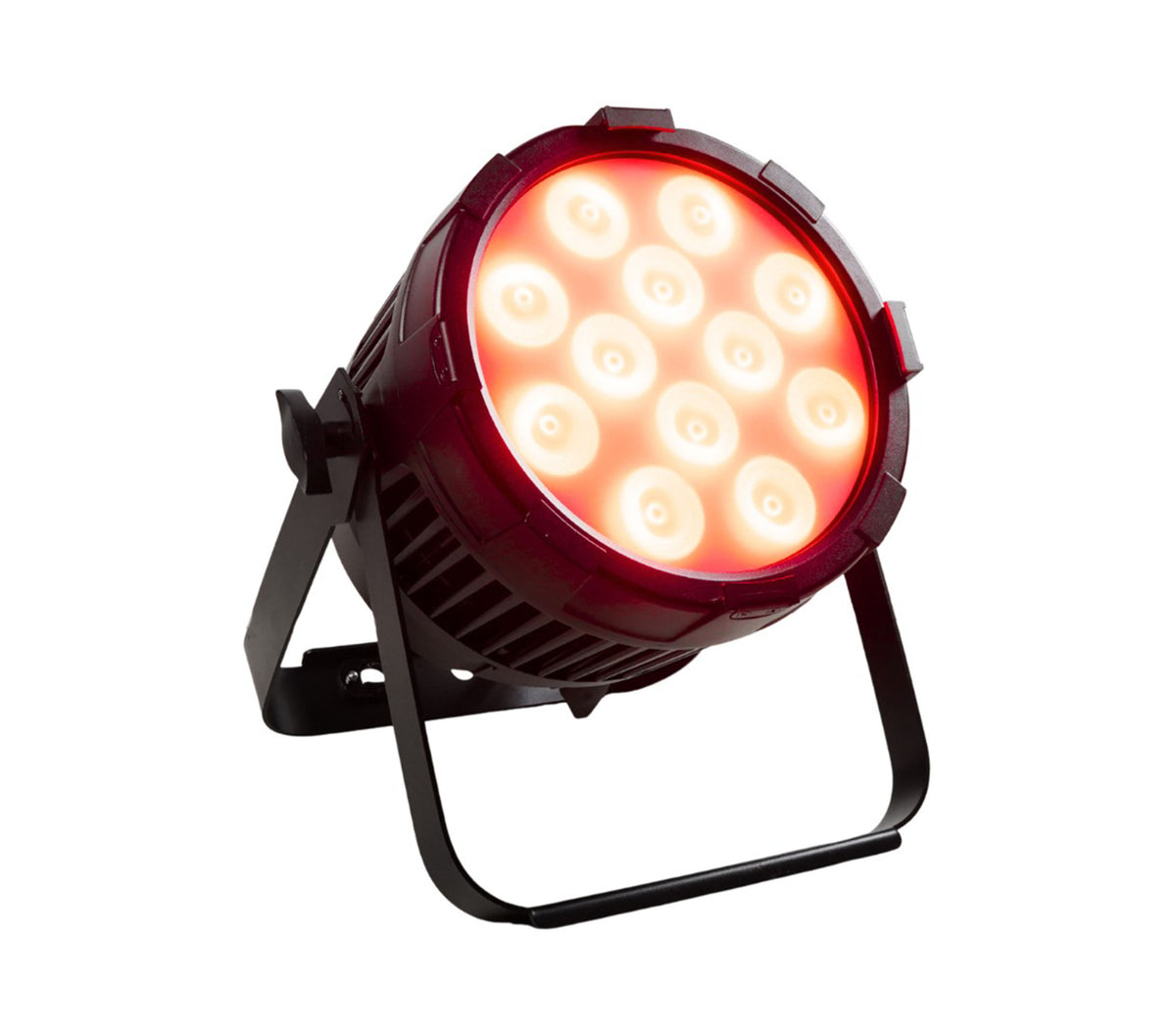

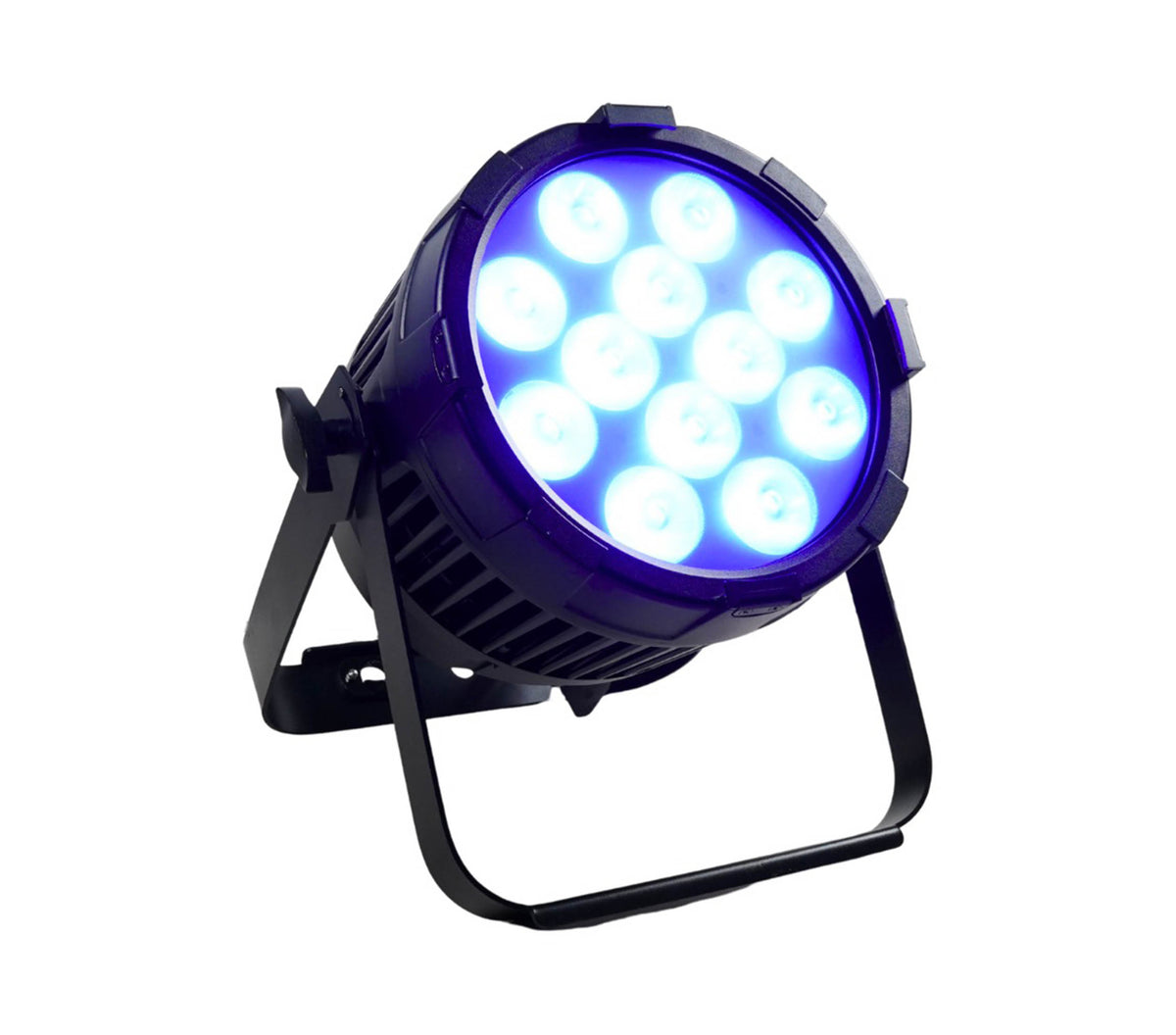

The Event Lighting PARF12X20H-IP is an IP65-rated Parcan designed for professional indoor and outdoor lighting applications. Featuring 12 × 20W RGBWAU LEDs, it delivers versatile color mixing with red, green, blue, white, amber, and ultraviolet output. Its durable construction makes it suitable for stages, live events, festivals.
The fixture features a standard 10° beam angle, with optional 8°, 15°, and 45° lens configurations available for different lighting requirements. Its integrated electronic frost system adjusts the beam angle from 12° at 0% frost to 45° at 100%.

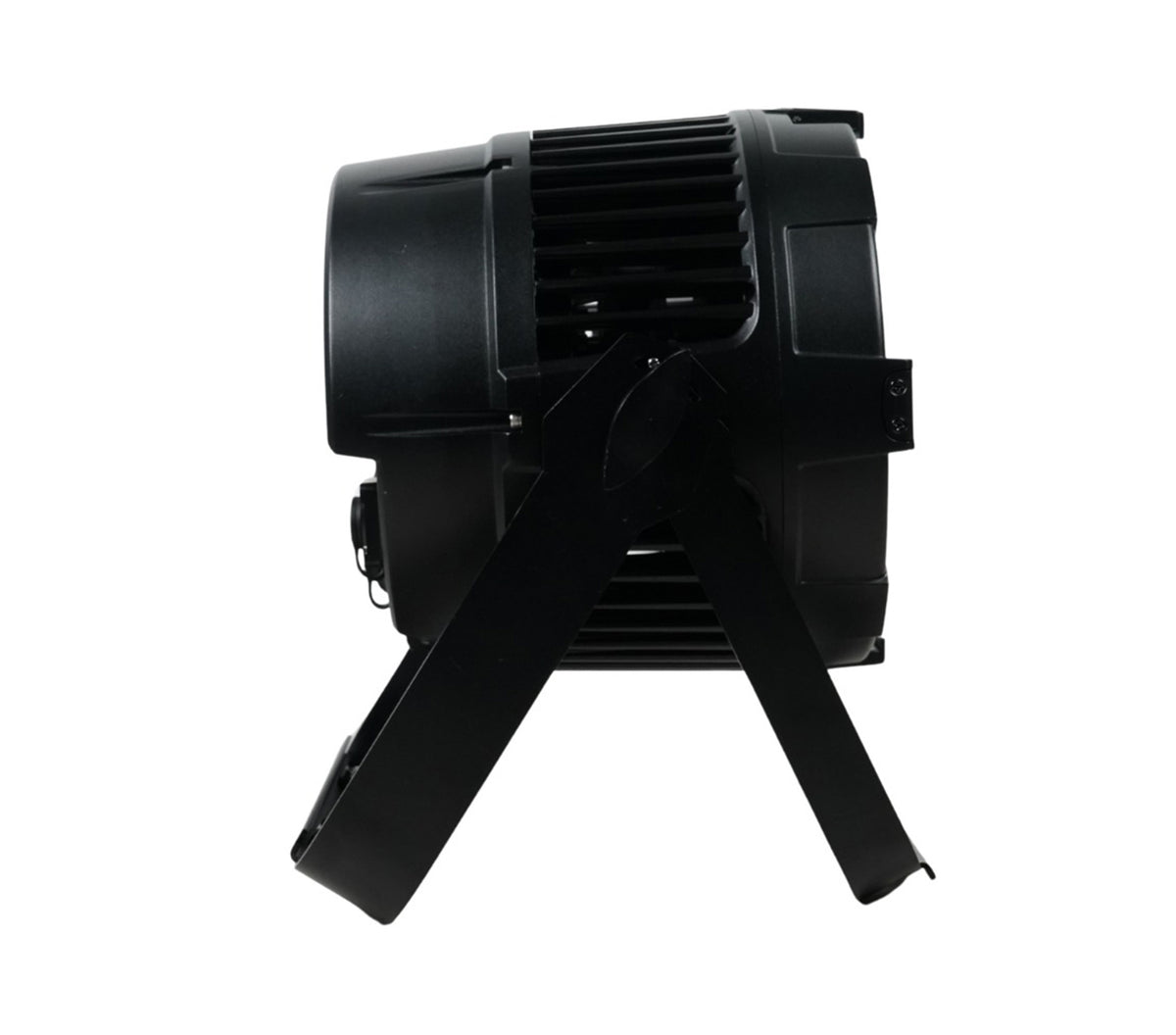

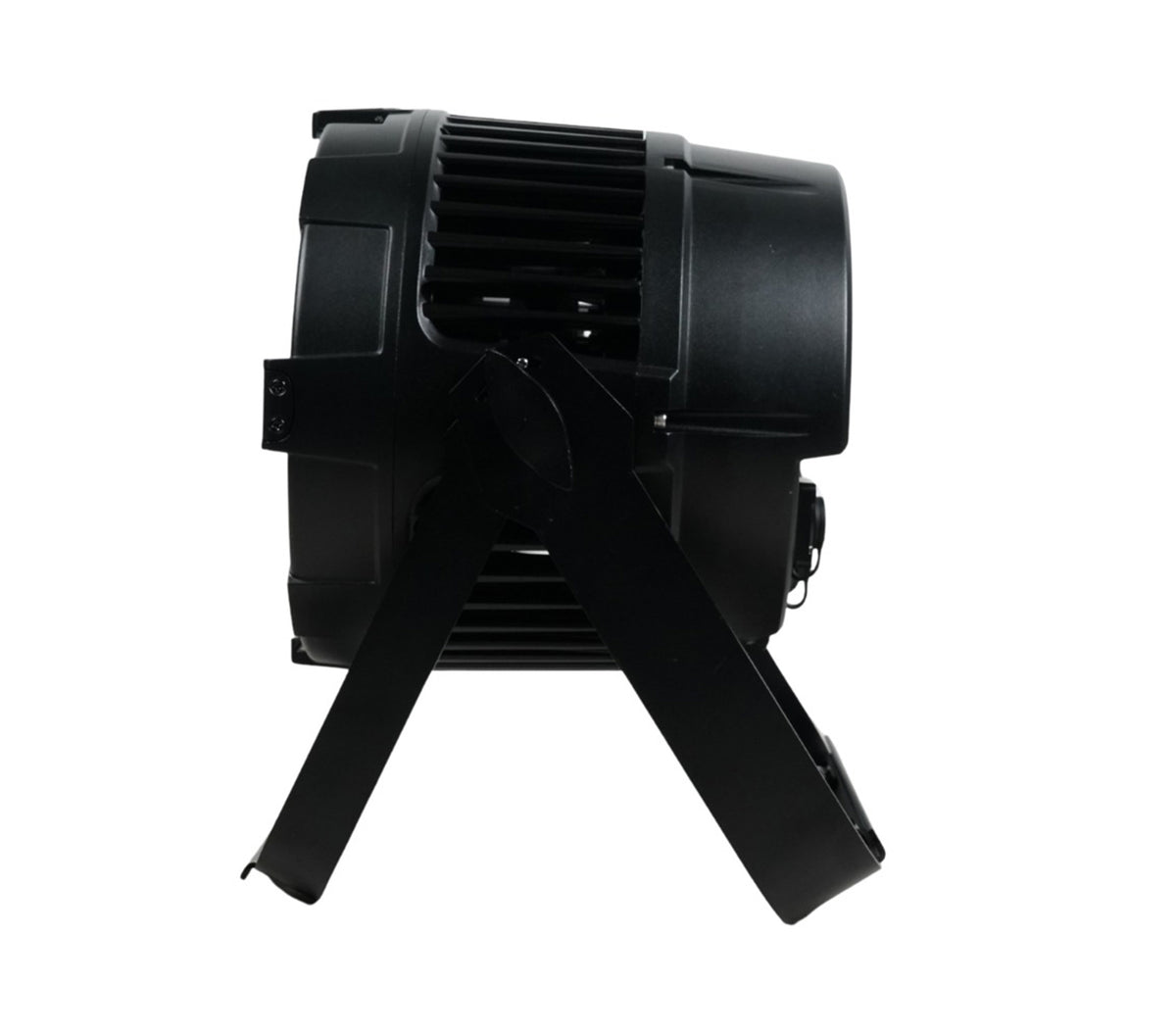

Built for demanding environments, the PARF12X20H-IP features a die-cast aluminium housing with a matte black finish and fanless cooling for quiet operation.
Key Features
- Produces versatile color output with 12 × 20W RGBWAU LEDs.
- Supports indoor and outdoor use with an IP65-rated design.
- Provides a 10° standard beam angle with optional 8°, 15°, and 45° lenses.
- Adjusts beam spread using integrated electronic frost.
- Offers five 16-bit dimming curves for smooth brightness control.
- Creates strobe effects at adjustable rates from 1 to 30 Hz.
- Supports DMX512, RDM, and WDMX control.
- Operates silently with fanless cooling.
- Uses a durable die-cast aluminium housing with a matte black finish.
- Includes an Omega bracket with ¼-turn quick locks for compatible rigging.
Ideal For
- Concerts and touring productions
- Theatres and live performance venues
- Outdoor festivals and events
- Architectural and landscape lighting
- Professional stage and event lighting installations
What’s in the Box
- Event Lighting PARF12X20H-IP Parcan.
- 1 × Omega Bracket with ¼-Turn Quick Locks.

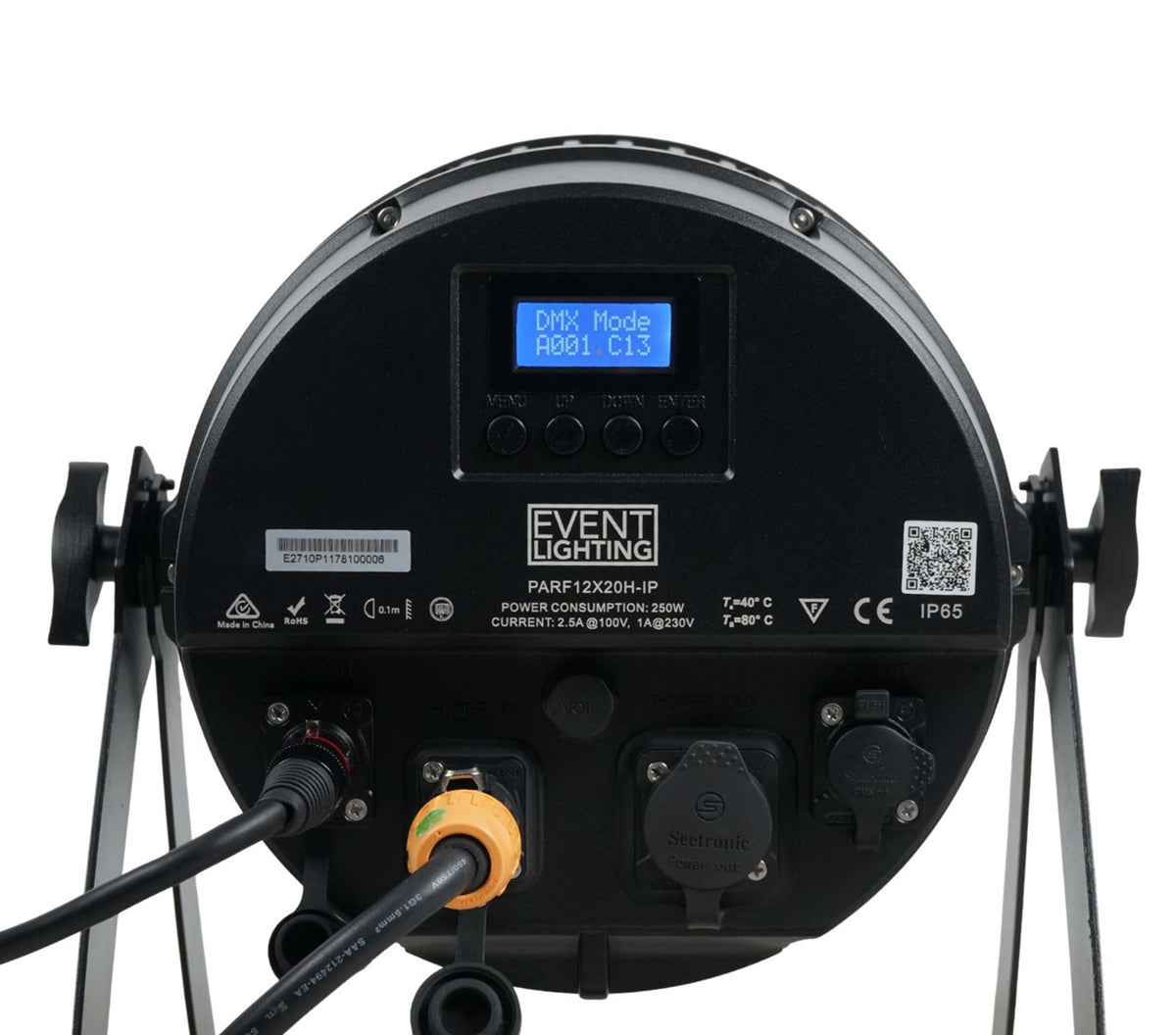

Inputs & Outputs
- DMX Connections: 5-pin XLR input and output
- Power Connections: TrueOne power input and output
- Control Protocols: DMX512, RDM, WDMX
- Operating Modes: Auto run, sound active, master/slave, manual, static, DMX
Frequently Asked Questions
What LEDs does the PARF12X20H-IP use?
It uses 12 × 20W RGBWAU LEDs for flexible color mixing.
What beam angles are available?
The standard beam angle is 10°, with optional 8°, 15°, and 45° lenses. Electronic frost adjusts the beam angle from 12° to 45°.
Can the fixture be used outdoors?
Yes. Its IP65 rating makes it suitable for appropriate outdoor applications when installed according to the manufacturer's environmental and safety guidelines.
Does it have a cooling fan?
No. The PARF12X20H-IP uses fanless cooling for quiet operation.
Full Technical Specifications
General
|
Light Source |
12 × 20W RGBWAU LEDs |
|
Standard Beam Angle |
10° |
|
Optional Beam Angles |
8°, 15°, 45° |
|
Beam Angle at 0% Frost |
12° |
|
Beam Angle at 100% Frost |
45° |
|
Light Output |
27,440 lux at 2 m with full output and 0% frost |
|
Refresh Rate |
1,200 Hz |
|
LED Lifespan |
50,000 hours |
|
Electronic Frost |
Yes |
|
Dimming |
Five 16-bit dimming curves |
|
Strobe |
1–30 Hz |
|
Input Voltage |
100–240V AC, 50/60 Hz |
|
Power Consumption |
250W |
|
Fuse |
T 2A, 250V |
|
Power Connections |
TrueOne input/output |
|
Operating Modes |
DMX, WDMX, auto run, sound active, master/slave, manual, static, RDM |
|
DMX Protocol |
DMX512 |
|
DMX Channel Modes |
1 / 3 / 4 / 5W / 5A / 7 / 9 / 13 / 15 |
|
DMX Connections |
5-pin XLR input/output |
|
Display |
Four-button LCD control panel |
|
Housing Material |
Die-cast aluminium |
|
Housing Finish |
Matte black |
|
Cooling |
Fanless |
|
Warranty |
3 years |
|
Light Source |
12 × 20W RGBWAU LEDs |
Physical Specifications
|
Mounting |
Omega bracket with ¼-turn quick locks |
|
Product Weight |
14.3 lbs |
|
Product Dimensions |
13.1" H × 8.5" W × 11.8" L |
|
Shipping Weight |
17.64 lbs |
|
Shipping Dimensions |
12.99" H × 11.42" W × 15.35" L |
