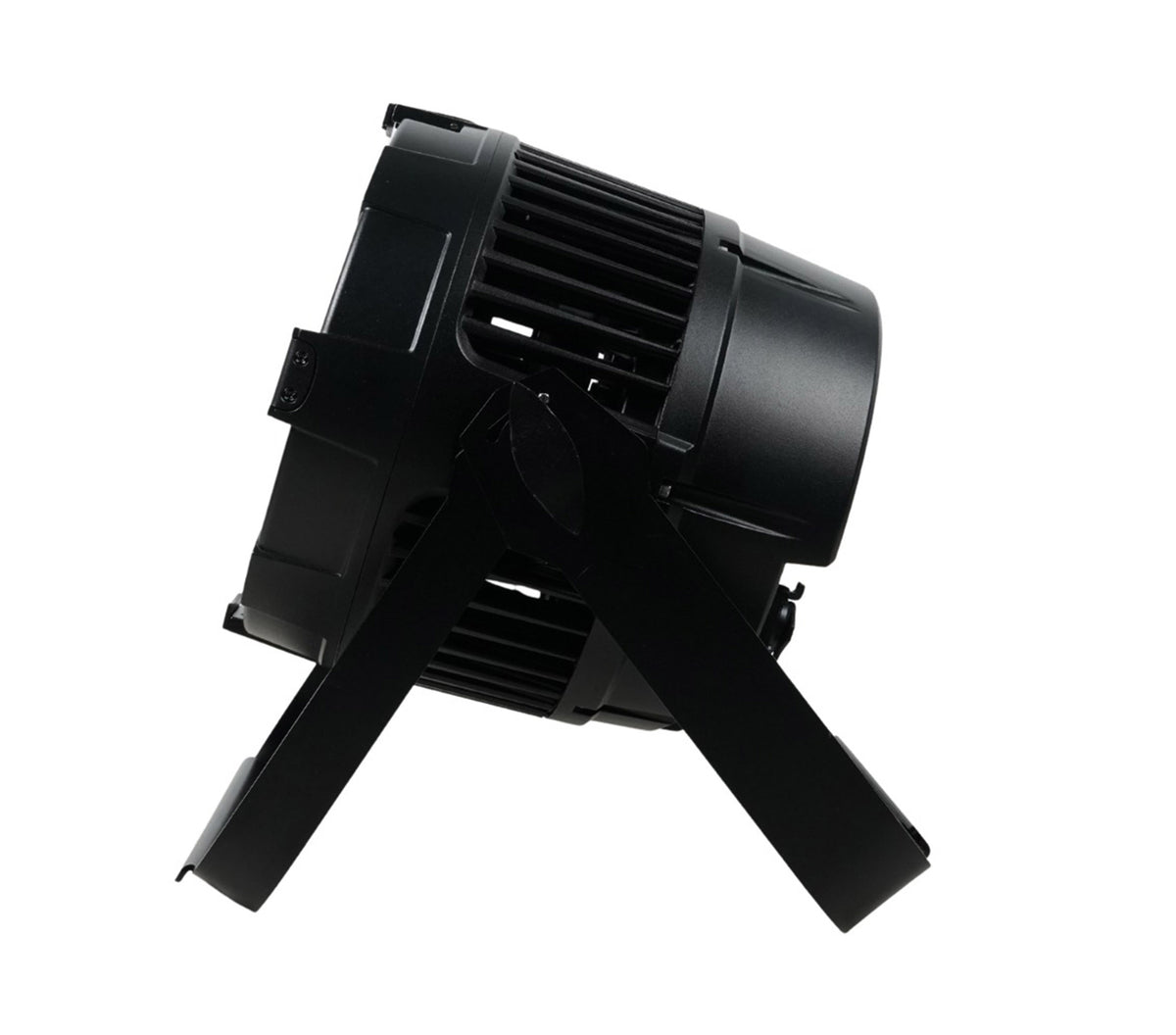

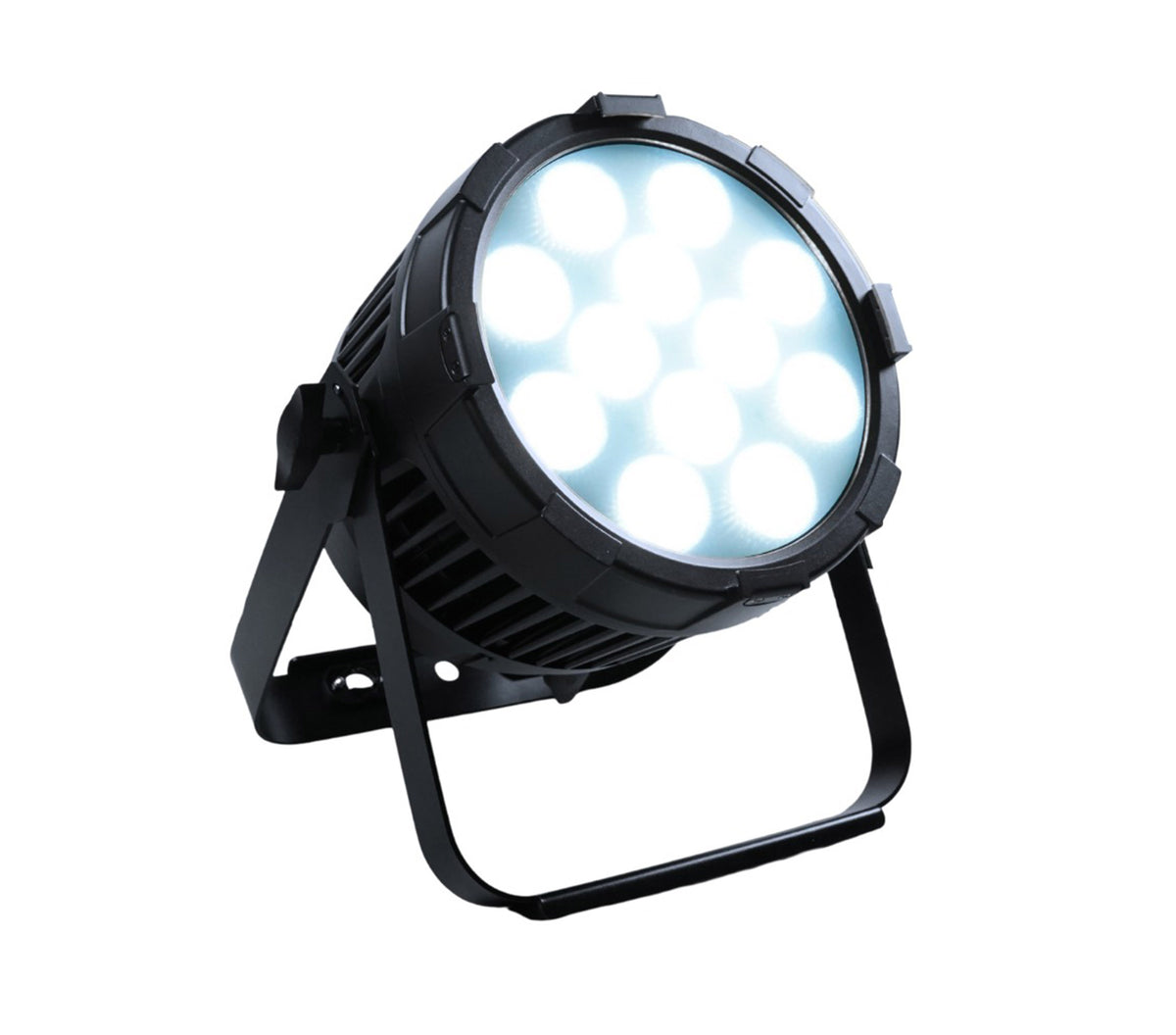

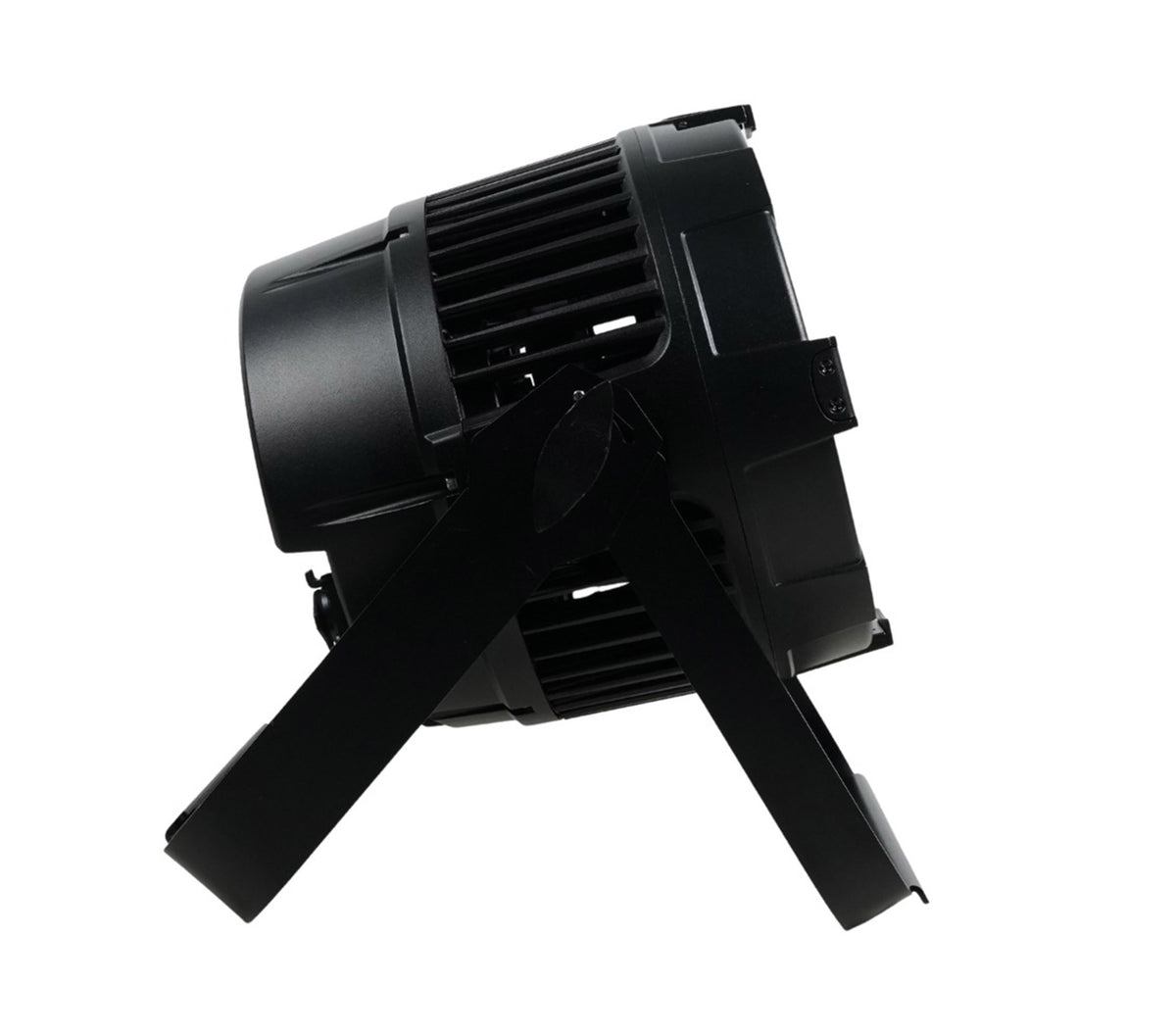

The Event Lighting PARF12X25VW-IP is an IP65-rated Parcan designed for professional stage, event, and architectural lighting applications. Featuring 12 × 25W white and warm white LEDs, it delivers variable white lighting with a high CRI of 95+ for accurate color rendering. Its weather-resistant design makes it suitable for appropriate indoor and outdoor installations.

The fixture features an 8° standard beam angle, with optional 10°, 15°, and 45° lens configurations available for different lighting requirements. Its integrated electronic frost system adjusts the beam angle from 11° at 0% frost to 44° at 100% frost, allowing users to transition between a concentrated beam and wider coverage.

Built for demanding environments, the PARF12X25VW-IP features a die-cast aluminium housing with a matte black finish and fanless cooling for quiet operation. It supports DMX512, RDM, and WDMX, alongside auto-run, sound-active, master/slave.

Key Features

• Produces variable white lighting with 12 × 25W white and warm white LEDs.
• Delivers high color fidelity with a CRI of 95+.
• Supports indoor and outdoor use with an IP65-rated design.
• Provides an 8° standard beam angle with optional 10°, 15°, and 45° lenses.
• Adjusts beam spread using integrated electronic frost.
• Offers five 16-bit dimming curves for smooth brightness control.
• Creates strobe effects at adjustable rates from 1 to 30 Hz.
• Supports DMX512, RDM, and WDMX control.
• Includes an Omega bracket with ¼-turn quick locks for compatible rigging.

Ideal For

• Concerts and touring productions
• Theatres and live performance venues
• Outdoor festivals and events
• Architectural and landscape lighting
• Professional stage and event lighting installations

What’s in the Box

• Event Lighting PARF12X25VW-IP Parcan.
• 1 × Omega Bracket with ¼-Turn Quick Locks.

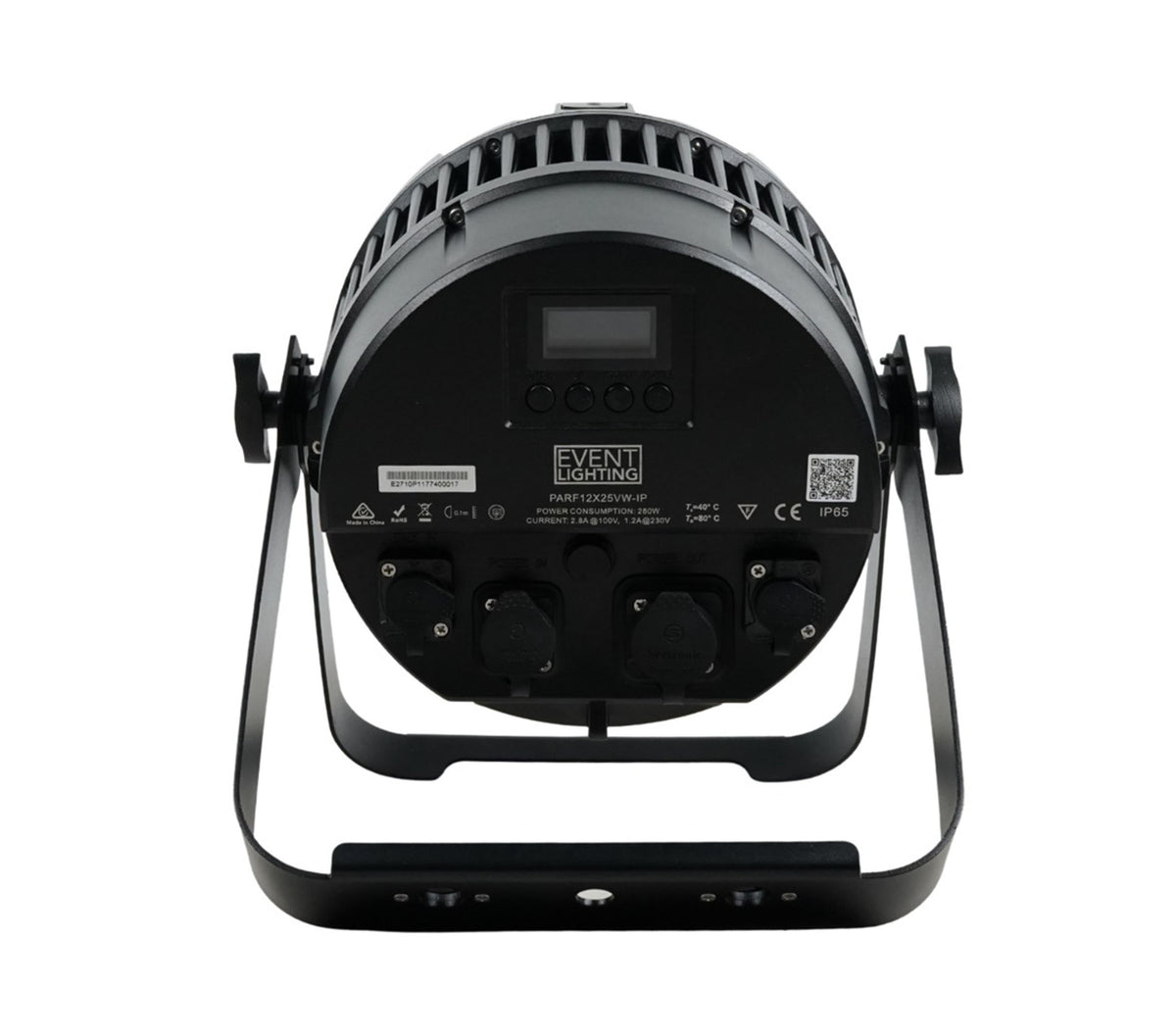

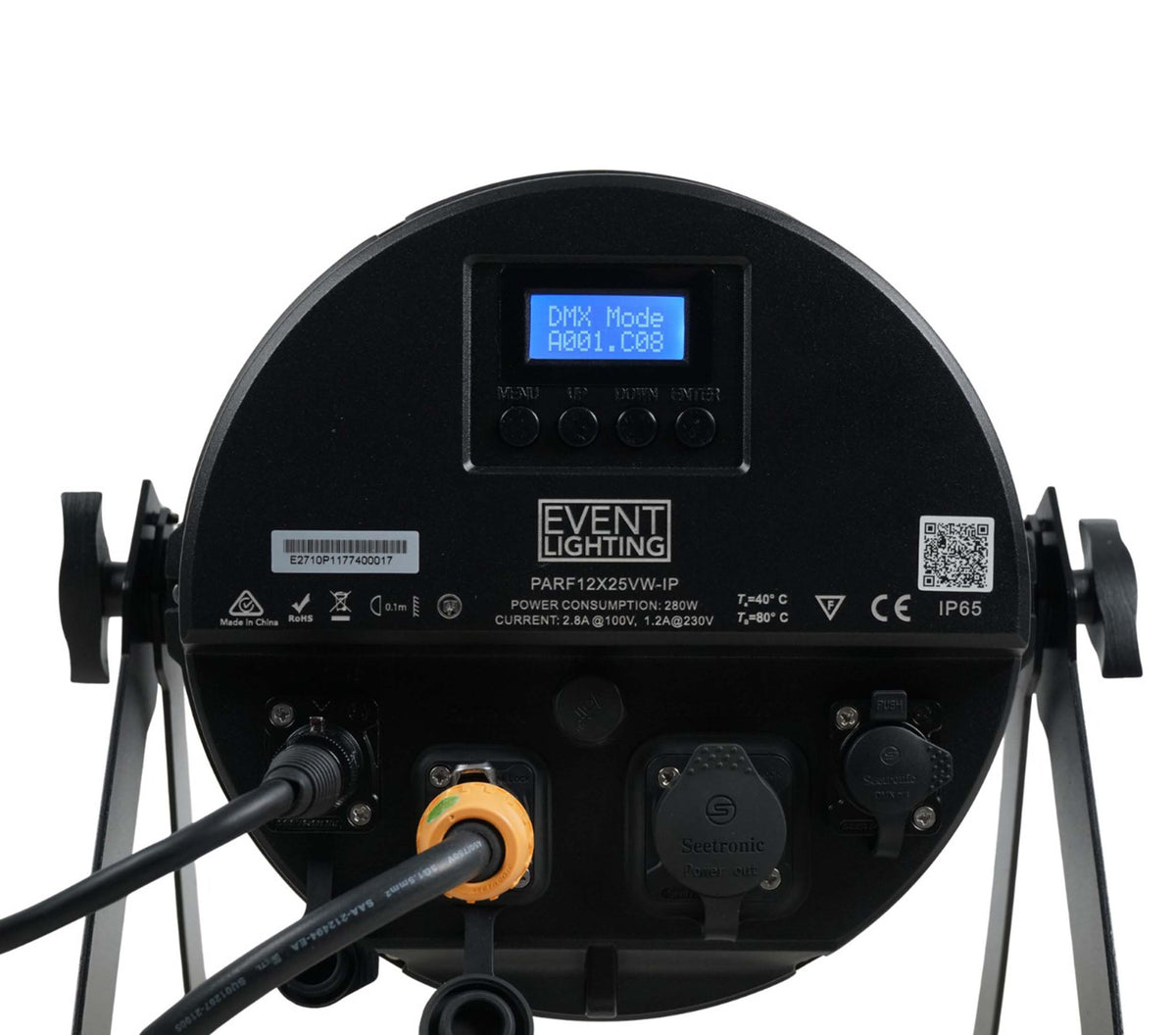

Inputs & Outputs

• DMX Connections: 5-pin XLR input and output
• Power Connections: TrueOne power input and output
• Control Protocols: DMX512, RDM, WDMX
• Operating Modes: Auto run, sound active, master/slave, manual, static, DMX

Frequently Asked Questions

What type of LEDs does the PARF12X25VW-IP use?

It uses 12 × 25W white and warm white LEDs for variable white lighting.

What is the CRI rating?

The fixture has a CRI of 95+, supporting accurate color rendering.

What beam angles are available?

The standard beam angle is 8°, with optional 10°, 15°, and 45° lenses. Electronic frost adjusts the beam angle from 11° to 44°.

Can the fixture be used outdoors?

Yes. Its IP65 rating makes it suitable for appropriate outdoor applications when installed according to the manufacturer's environmental and safety guidelines.

Full Technical Specifications

General

Light Source	12 × 25W white and warm white LEDs
CRI	95+
Standard Beam Angle	8°
Optional Beam Angles	10°, 15°, 45°
Beam Angle at 0% Frost	11°
Beam Angle at 100% Frost	44°
Light Output	52,000 lux at 2 m with full output and 0% frost
Refresh Rate	1,200 Hz
LED Lifespan	50,000 hours
Electronic Frost	Yes
Dimming	Five 16-bit dimming curves
Strobe	1–30 Hz
Input Voltage	100–240V AC, 50/60 Hz
Power Consumption	250W
Fuse	T 2A, 250V
Power Connections	TrueOne input/output
Operating Modes	DMX, WDMX, auto run, sound active, master/slave, manual, static, RDM
DMX Protocol	DMX512
DMX Channel Modes	1 / 2 / 3 / 6 / 8
DMX Connections	5-pin XLR input/output
Display	Four-button LCD control panel
Housing Material	Die-cast aluminium
Housing Finish	Matte black
Cooling	Fanless
Warranty	3 years

Physical Specifications

Mounting	Omega bracket with ¼-turn quick locks
Product Weight	14.3 lbs
Product Dimensions	13.1" H × 8.5" W × 11.8" L
Shipping Weight	17.64 lbs
Shipping Dimensions	12.99" H × 11.42" W × 15.35" L
