Description

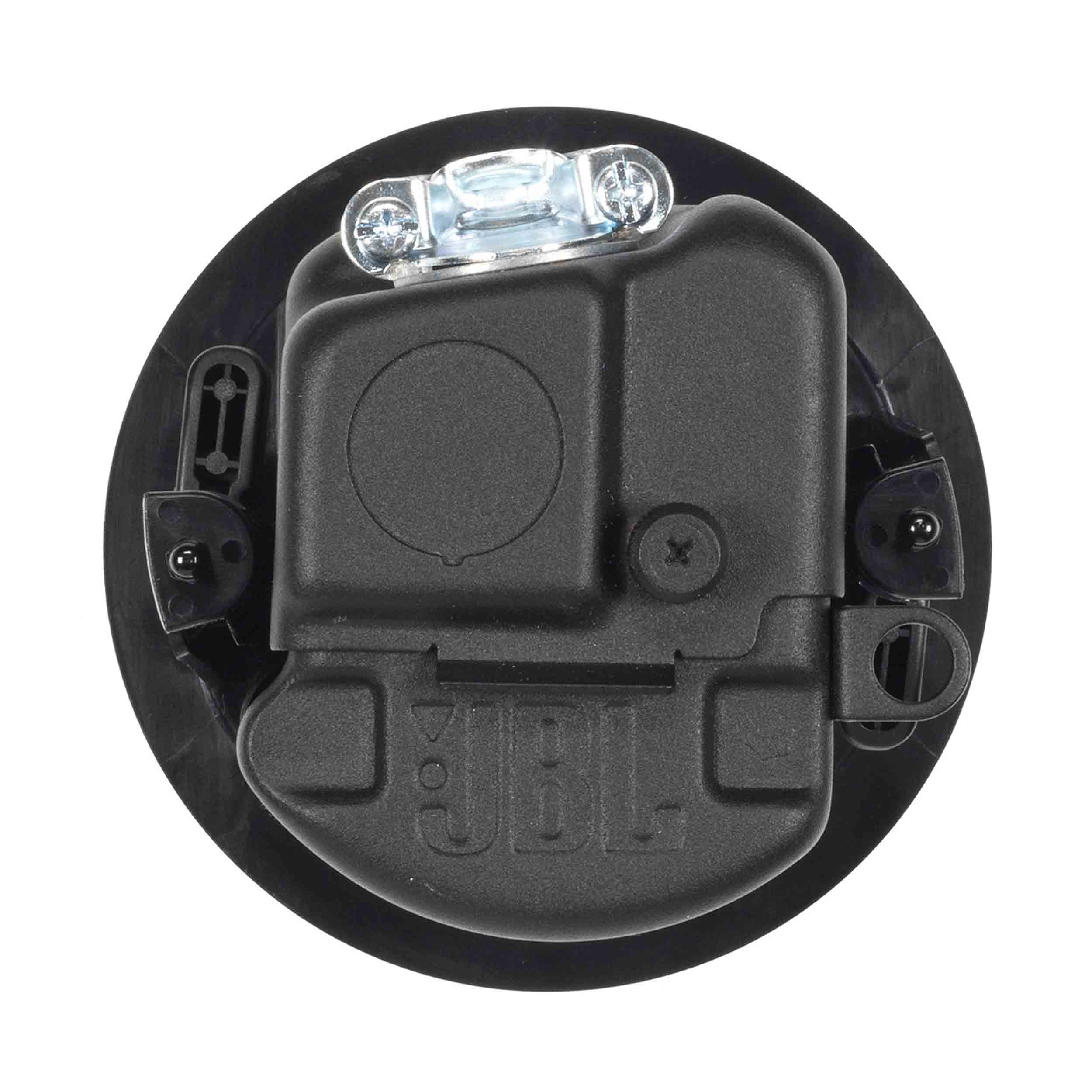

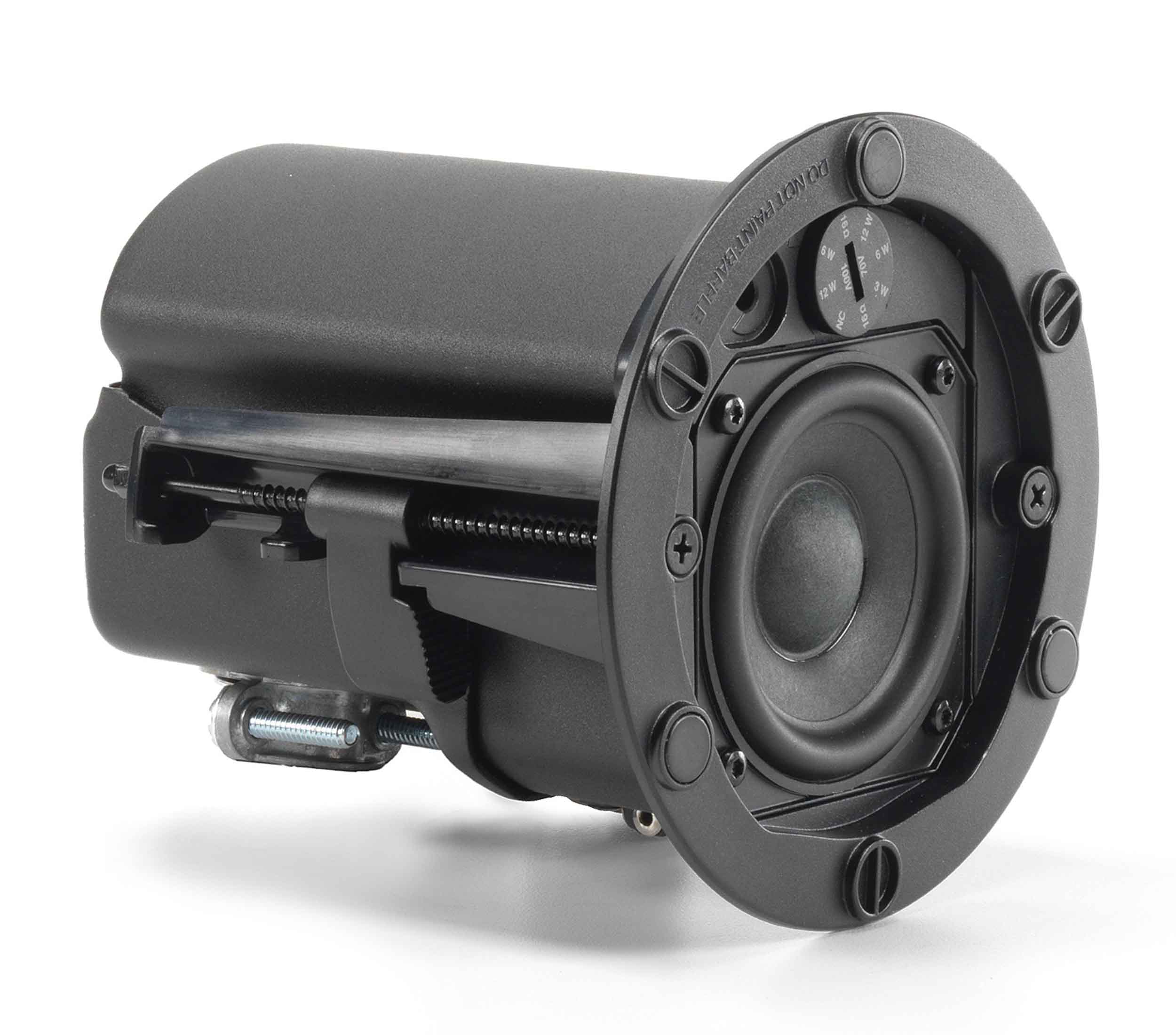

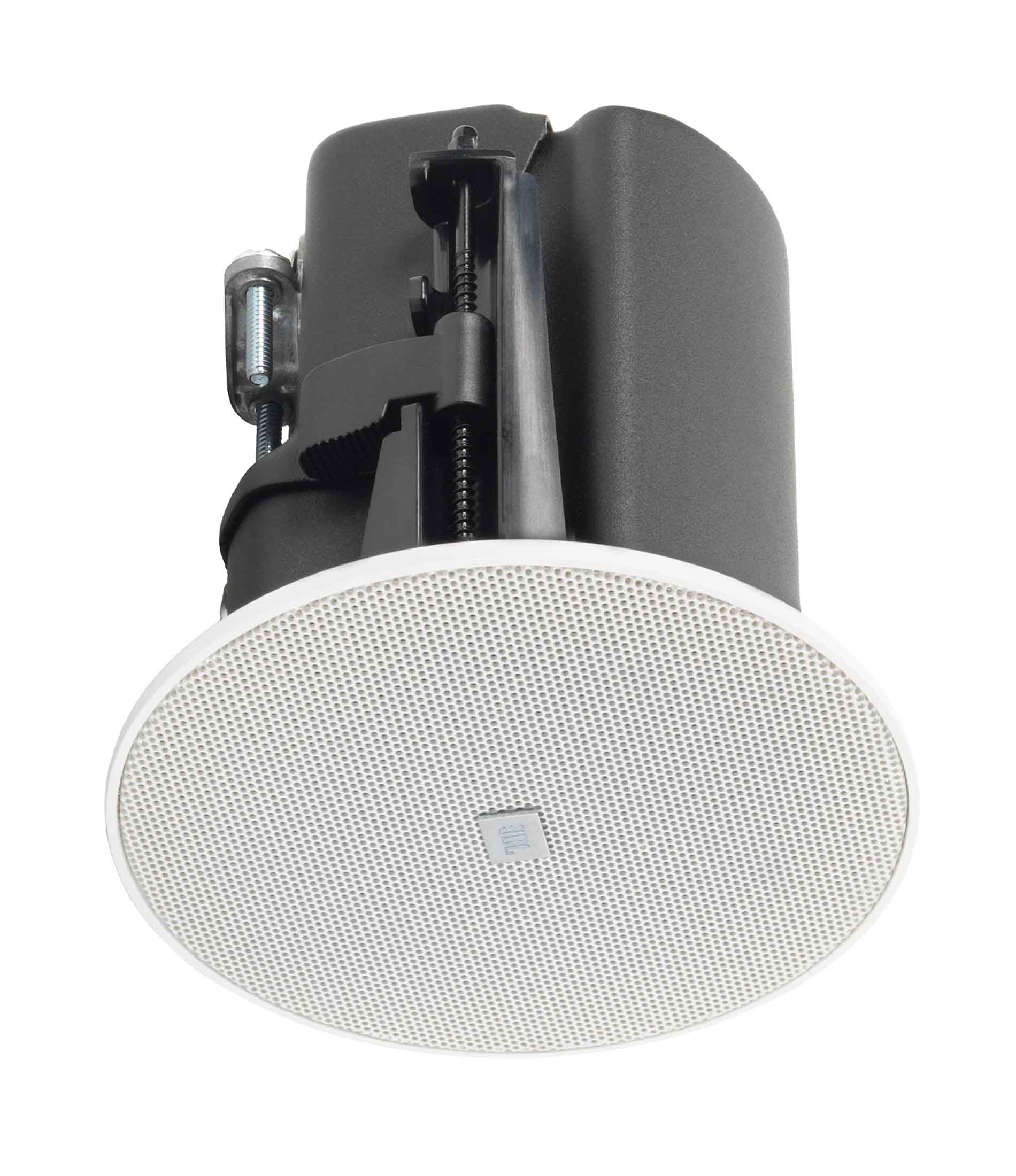

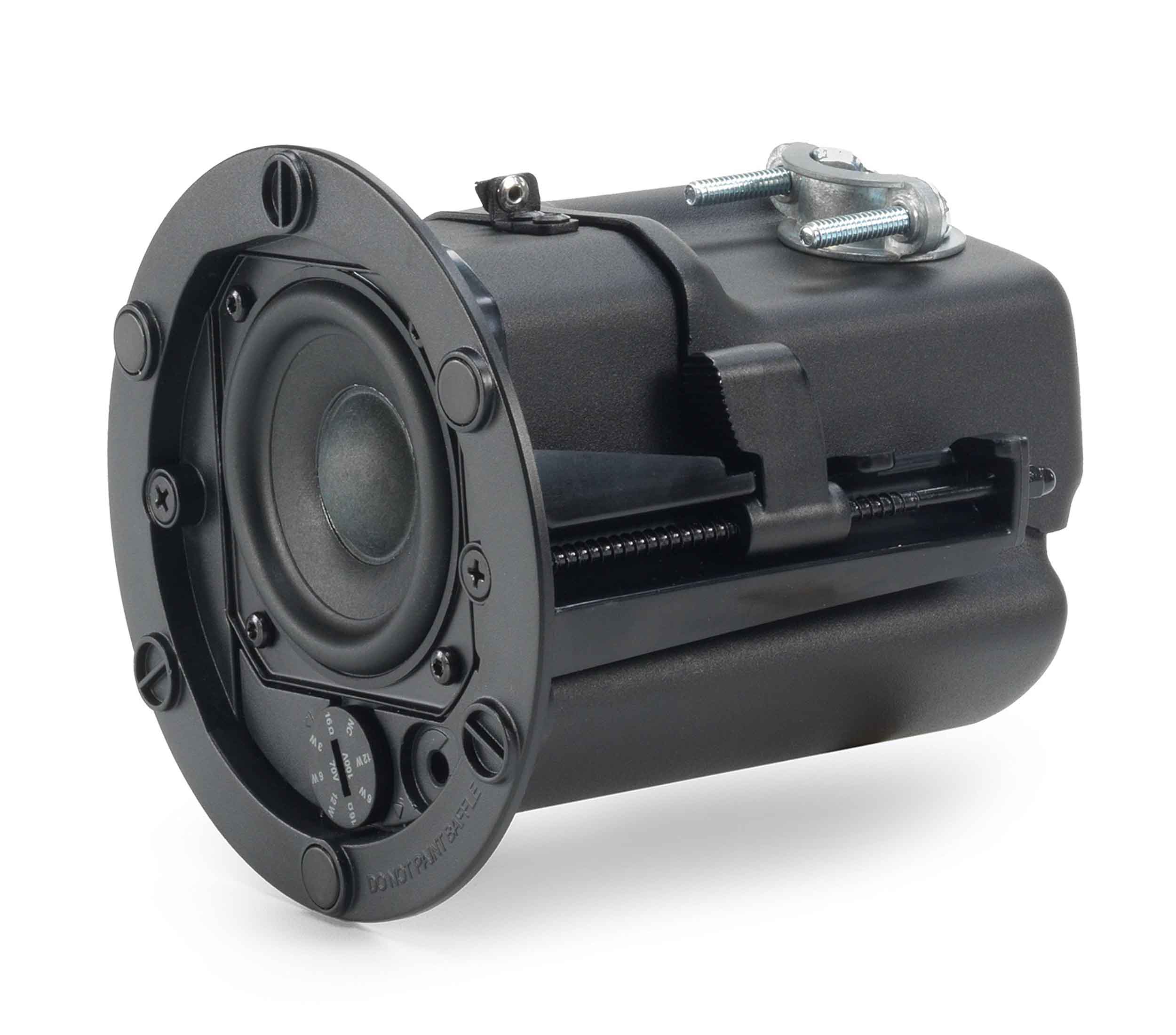

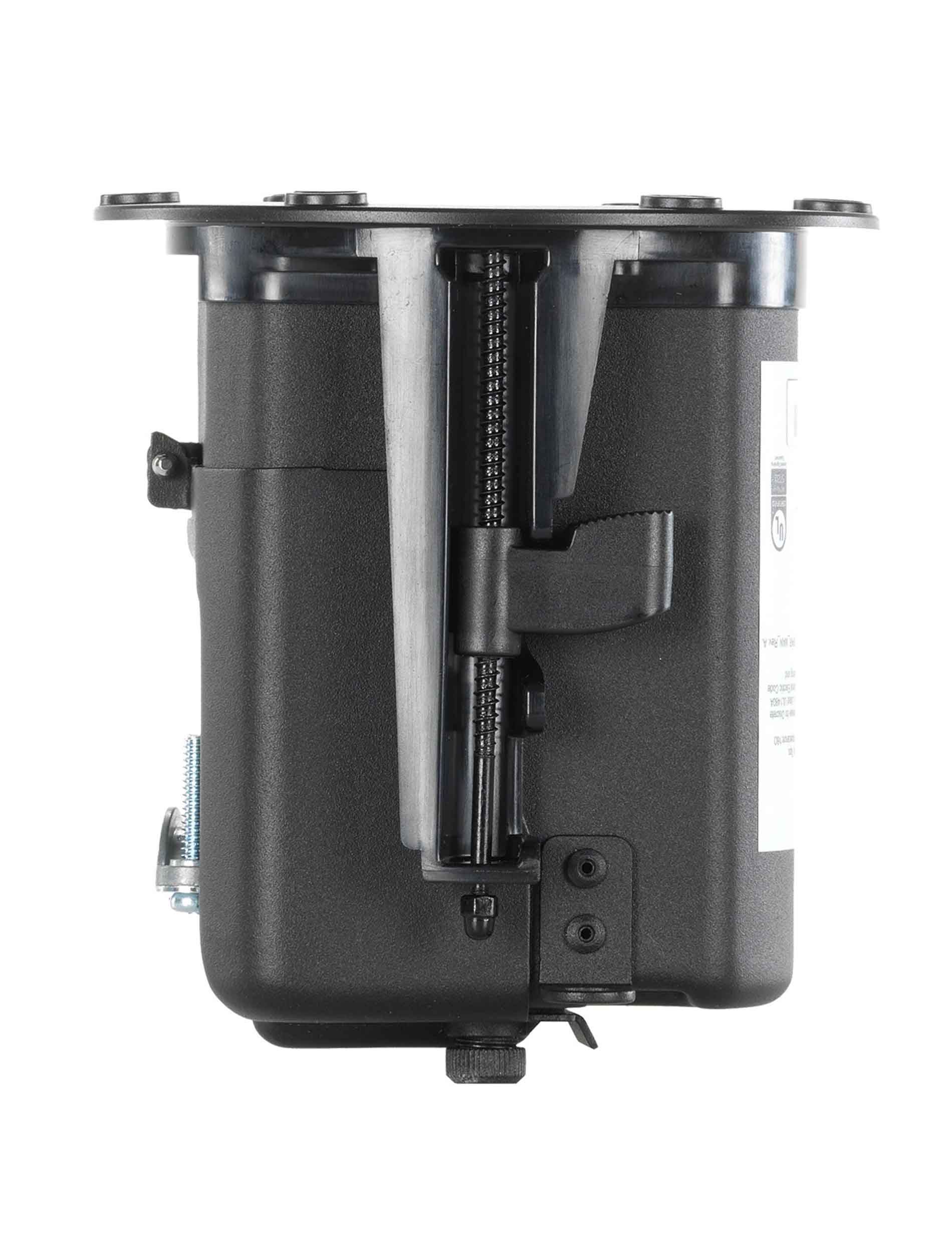

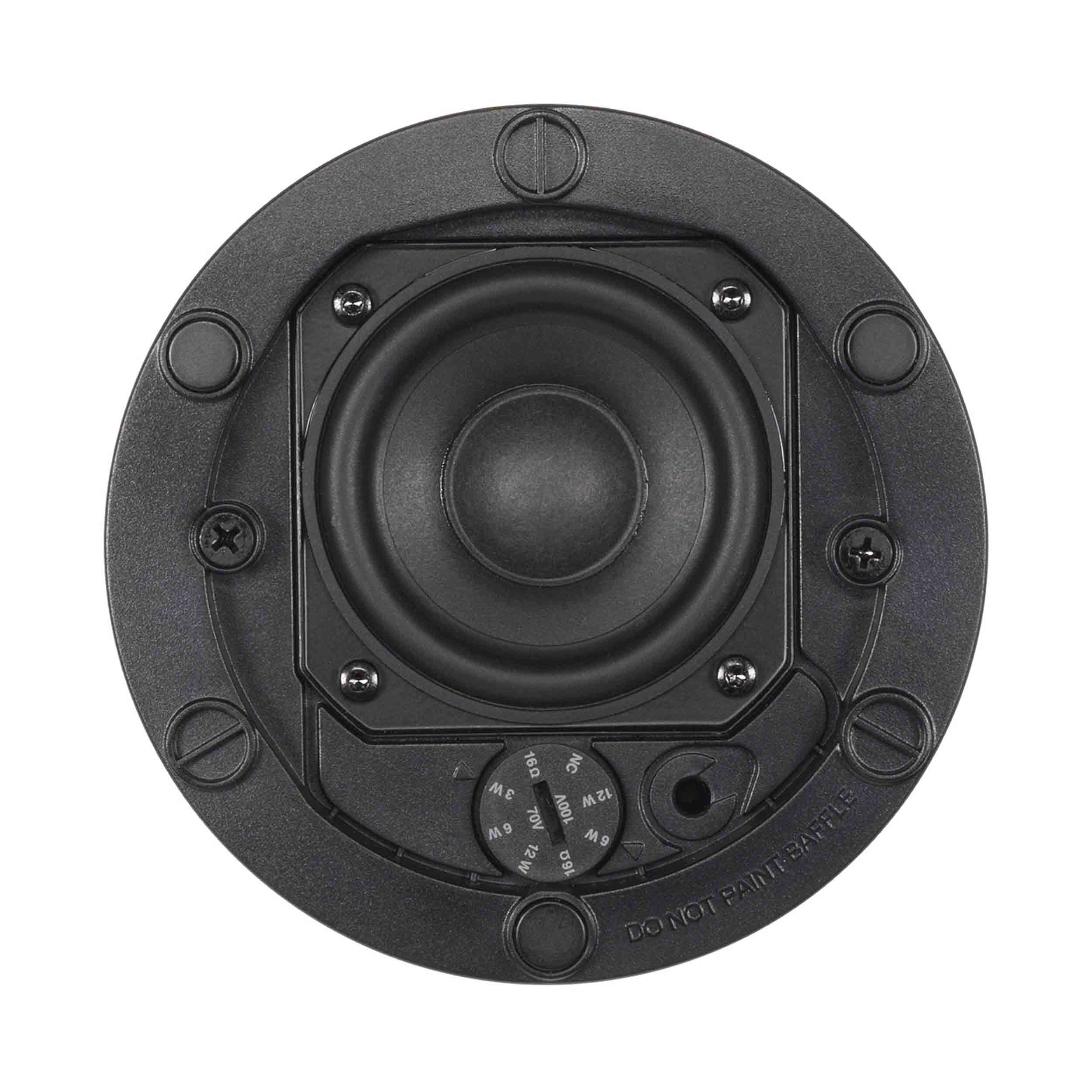

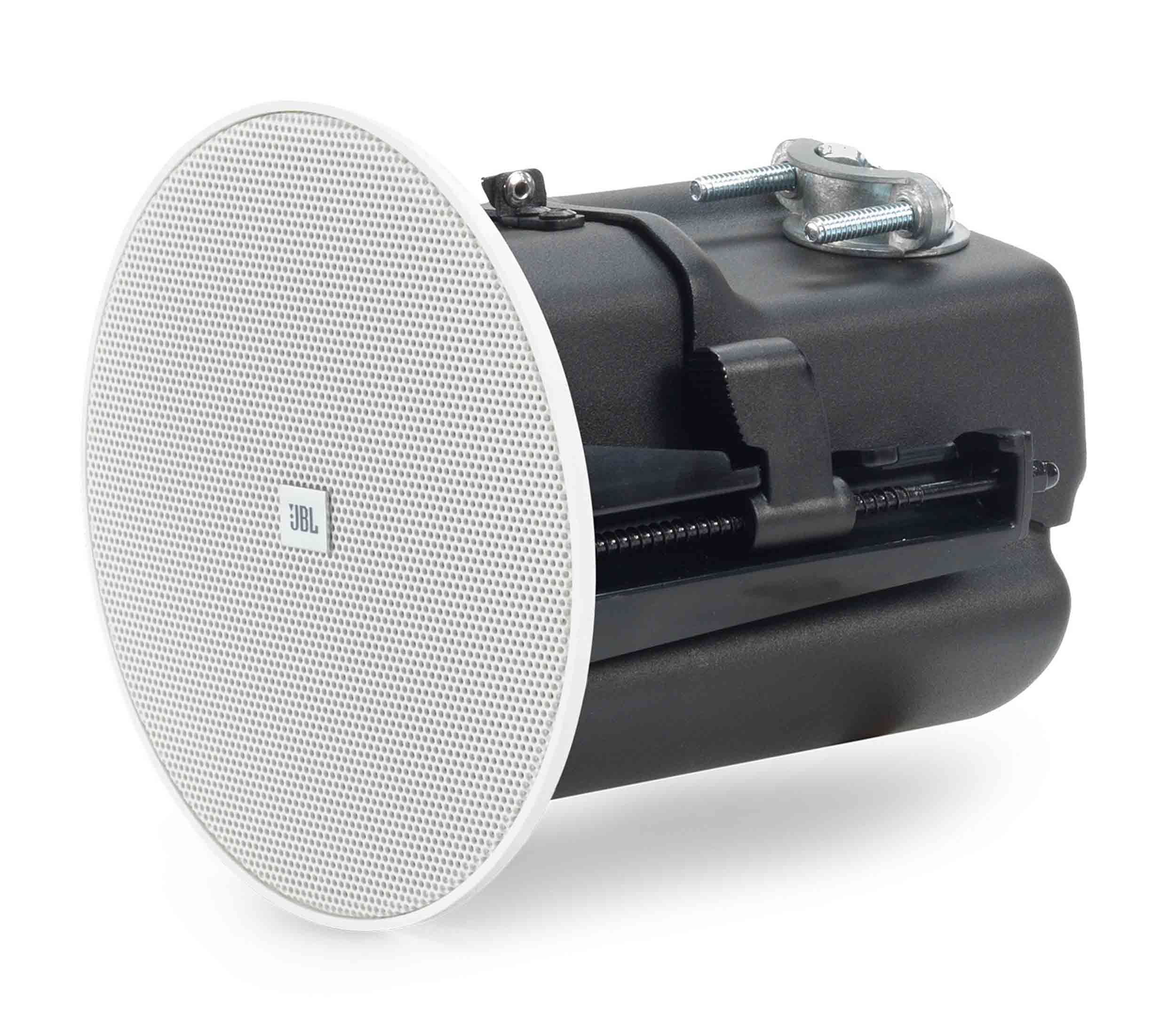

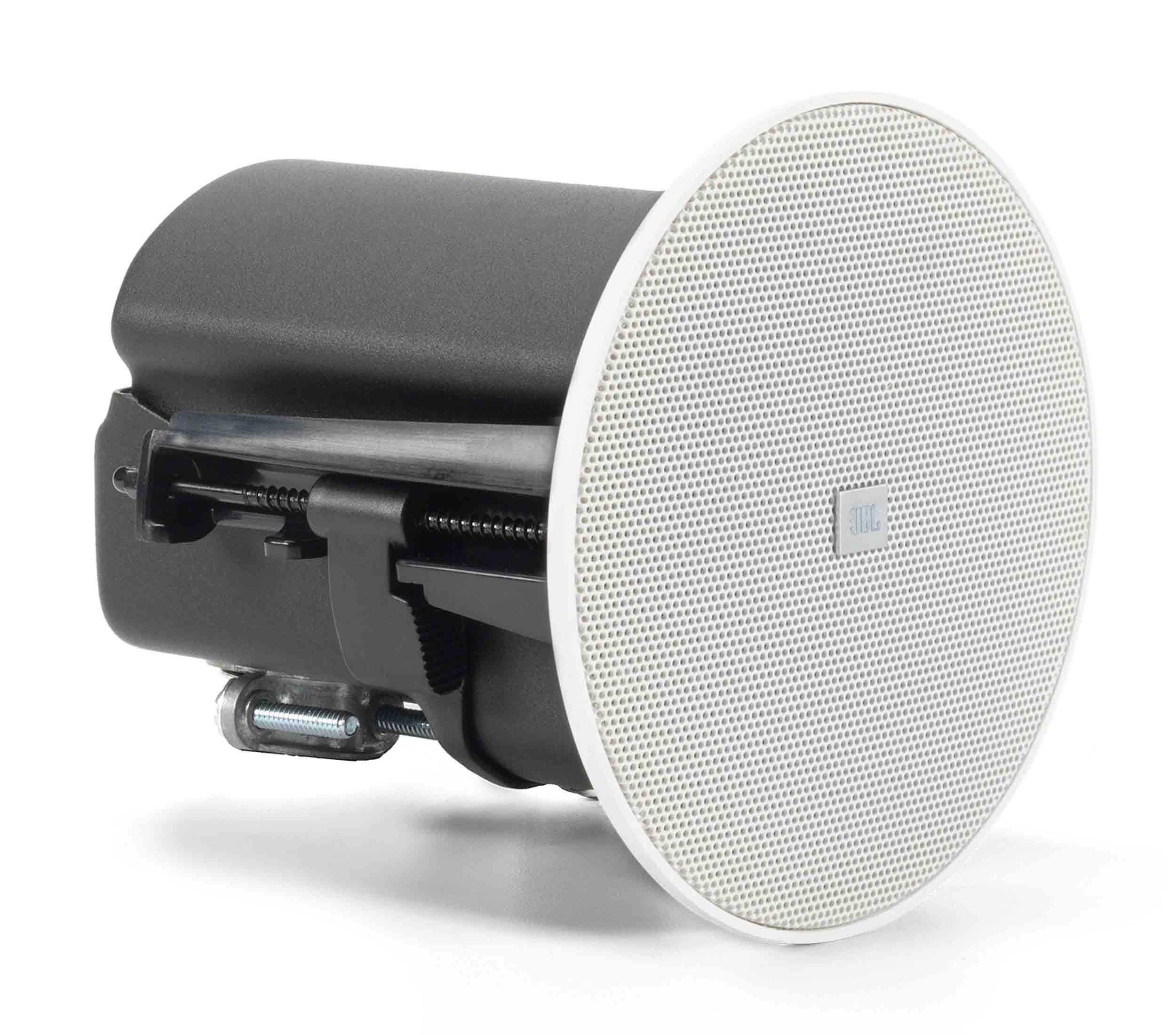

The JBL Control 442C/T is a compact full-range ceiling loudspeaker from the Control 400 Premium Coverage Series, designed for commercial audio installations requiring clear speech and background music. Featuring a 2.5-inch full-range driver housed in an integrated enclosure, it delivers balanced sound while fitting easily into most ceiling plenum spaces. Its compact size makes it ideal for installations where ceiling space is limited. The wide 160-degree conical coverage provides consistent sound throughout the listening area. The paintable magnetic grille blends seamlessly into modern interiors. It is ideal for offices, retail stores, hospitality venues, healthcare facilities, and educational environments.
The built-in 70V/100V multi-tap transformer supports distributed audio systems while the 16-ohm direct input offers additional installation flexibility. Multiple transformers tap settings allow easy integration into commercial paging and background music systems. High sensitivity and broad coverage help reduce the number of speakers required in many applications. JBL's premium driver design delivers excellent speech intelligibility and dependable long-term performance. The integrated enclosure ensures consistent acoustic results across installations. It is engineered for reliable operation in professional commercial environments.
Installation is simplified with top and side cable entry options and robust captive dogear mounting clamps that accommodate a wide range of ceiling thicknesses. The full-face magnetic grille includes a safety tether and can be painted to match surrounding décor. The IP33-rated construction provides protection against dust and dripping water in indoor applications. Optional round, square, and installation accessories offer additional design flexibility. JBL's Control 400 engineering ensures fast installation and dependable performance. The result is a versatile ceiling loudspeaker for professional installed sound systems.
Product Specifications:
Speaker Type: Full-Range Ceiling Loudspeaker
Series: JBL Control 400 Premium Coverage Series
System Type: Passive
Driver: 60 mm (2.5 in) Full-Range Driver with Paper Cone, Rubber Surround, and CCAW Voice Coil
Enclosure: Integrated Backcan
Frequency Range (-10 dB): 130 Hz – 20 kHz
Power Capacity: 22.5 W Continuous (90 W Peak, 2-Hour Pink Noise); 15 W Continuous (60 W Peak, 100-Hour Pink Noise)
Sensitivity (1W/1m): 86 dB
Coverage Angle: 160° Conical
Maximum SPL: 99.5 dB Continuous / 105.5 dB Peak
Nominal Impedance: 16 Ω
Transformer Taps (70V): 12 W, 6 W, 3 W
Transformer Taps (100V): 12 W, 6 W
Ceiling Cutout Size: 104 mm (4.1 in)
Cable Entry: Top and Side Entry
Mounting System: Captive Dogear Clamps
Grille: Full-Face Magnetic, Paintable with Safety Tether
Environmental Rating: IP33 (EN/IEC 60529)
Safety Compliance: UL 2043, NFPA 90A, NFPA 70, UL 1480A, CSA C22.2 No. 205, UL Registered Transformer
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Color: White (RAL9003), Paintable
Product Weight: 2.43 lbs (1.1 kg)
Product Dimensions (L × W × H): 5.2 × 5.2 × 5.4 in (131 × 131 × 138 mm)
