The LD Systems MAUI 44 G3 MIX is a high-performance, fully active 4-way cardioid column PA system with an integrated 8-channel digital mixer and a white finish. Designed for solo performers, duos, bands, DJs, and professional event service providers, it delivers 3,600W peak power and a maximum SPL of 133 dB. Its combination of powerful full-range sound, integrated mixing, flexible monitoring, and streamlined setup makes it a versatile solution for demanding live performances and event production and two-piece column incorporates 14 × 3.5-inch neodymium midrange drivers and four 1-inch compression drivers, providing clear vocal reproduction, balanced midrange detail, and precise high-frequency performance.

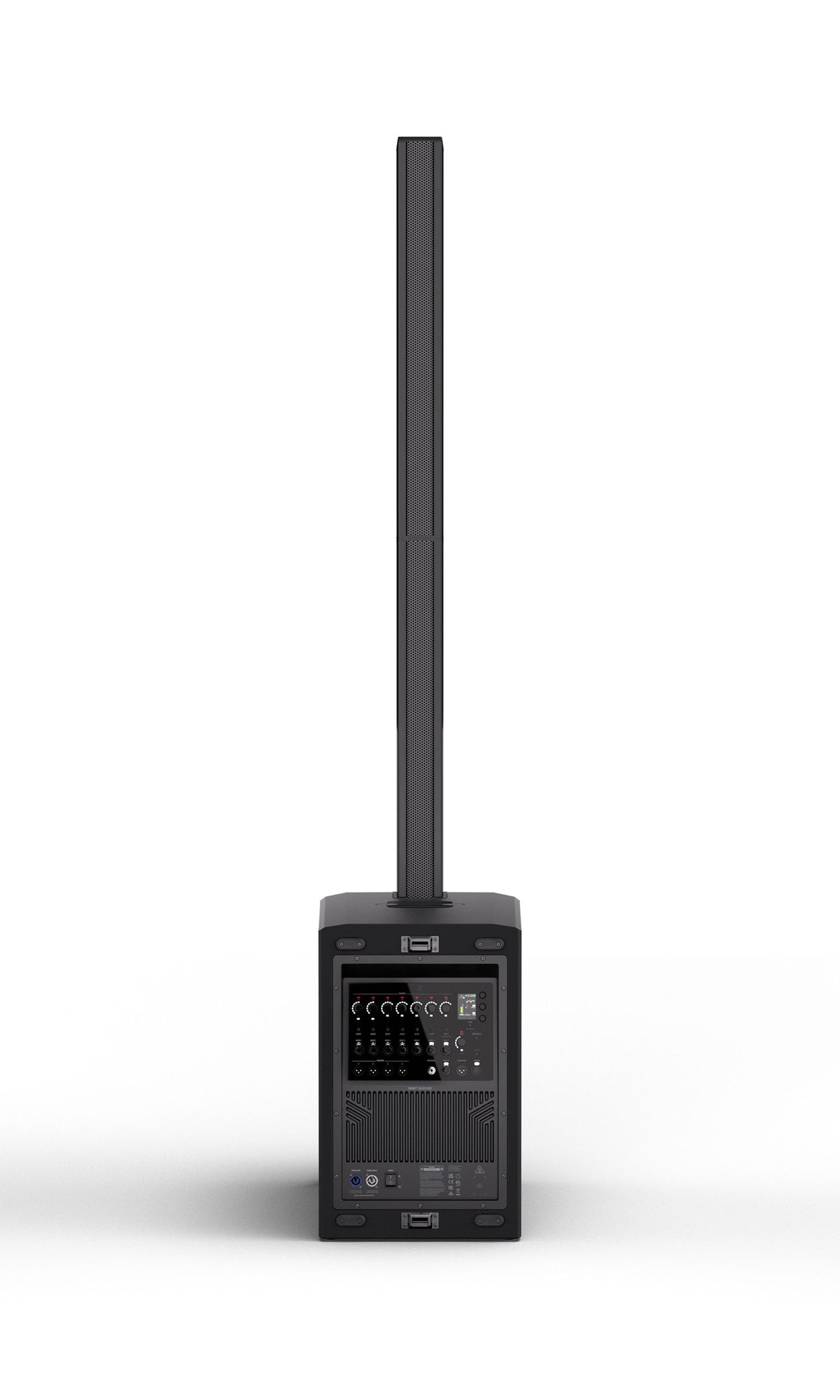

The built-in 8-channel digital mixer provides eight XLR/TRS combo inputs, six microphone preamps, onboard effects, and a footswitch connection for hands-free control. Four monitor outputs and a dedicated system output provide flexible monitoring and signal routing for performers and production setups. Users can adjust mixer and system settings through the integrated color display or wirelessly using the free MAUI MIX app for iOS and Android.

The passive cardioid column design directs sound toward the audience while attenuating rearward radiation by up to 18 dB. Its Class-D amplifier delivers 1,800W RMS and 3,600W peak power. DynX DSP Gen. 2 incorporates advanced peak, RMS, and thermal limiters to help maintain clean sound at high output levels. With crossover frequencies at 200 Hz, 700 Hz, and 1,800 Hz, the fully active 4-way architecture uses dedicated driver groups and amplifier channels for the frequency bands. The system can also be expanded with an additional MAUI 44 G3 SUB for extended low-frequency performance or a cardioid subwoofer arrangement.

Key Features

• Fully active 4-way cardioid column PA system.
• Integrated 8-channel digital mixer.
• 3,600W peak power and 1,800W RMS amplifier power.
• Maximum SPL of 133 dB.
• 15-inch high-power neodymium subwoofer.
• Low-frequency response down to 34 Hz.
• Fourteen 3.5-inch neodymium midrange drivers.
• Four 1-inch compression drivers.
• Six microphone preamps and eight XLR/TRS combo inputs.
• 120° × 25° nominal dispersion.
• DynX DSP Gen. 2 with advanced peak, RMS, and thermal limiters.
• Cable-free column connection and automatic column detection.
• Supports expansion with an additional MAUI 44 G3 SUB.

Ideal For

• Solo performers and singer-songwriters.
• Duos and small musical groups.
• Live bands and musicians.
• DJs and mobile entertainers.
• Corporate events and presentations.
• Weddings and private events.
• Event production and rental companies.
• Performers requiring integrated mixing and monitor outputs.

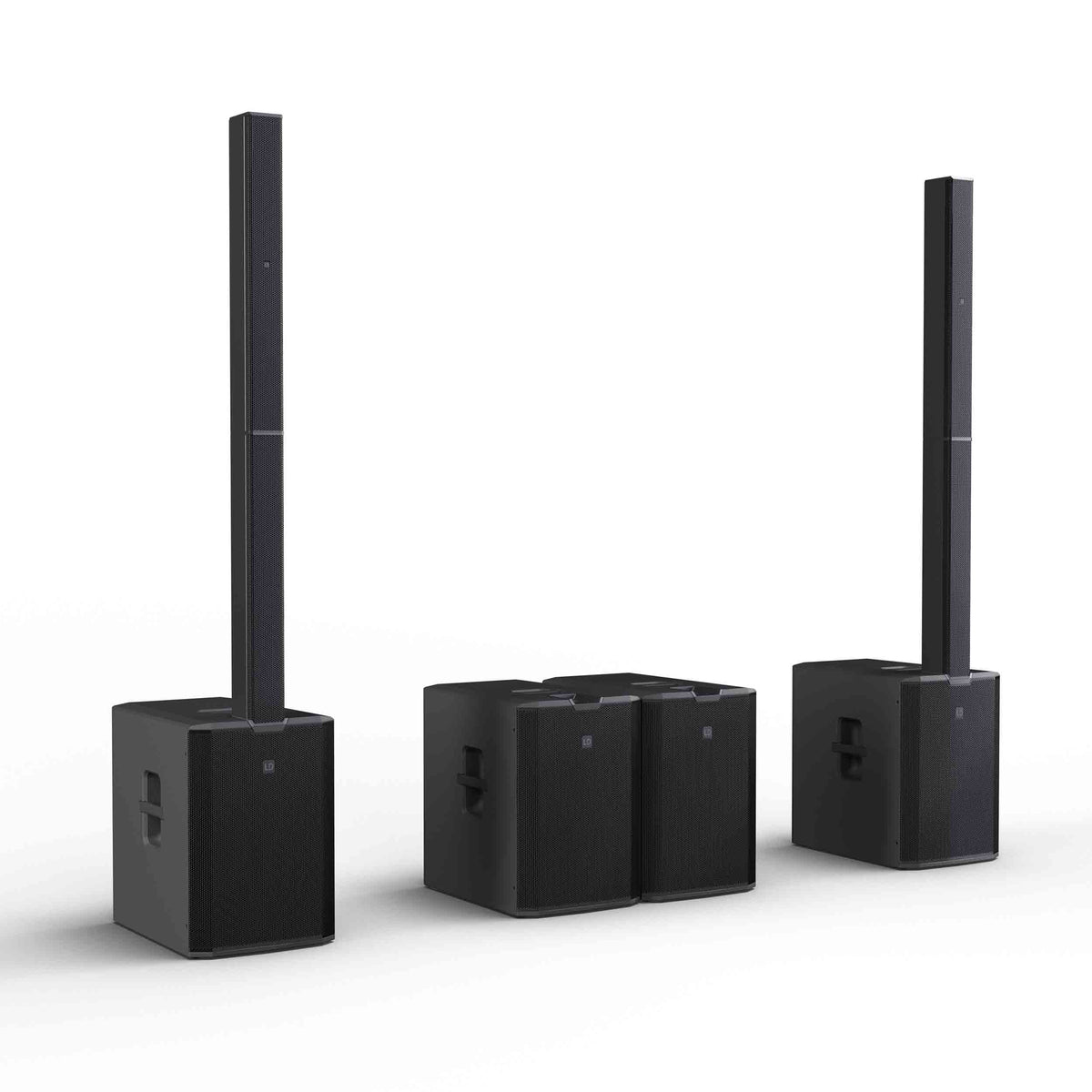

• Stereo PA configurations using two compatible MAUI 44 G3 MIX systems.

What's in the Box

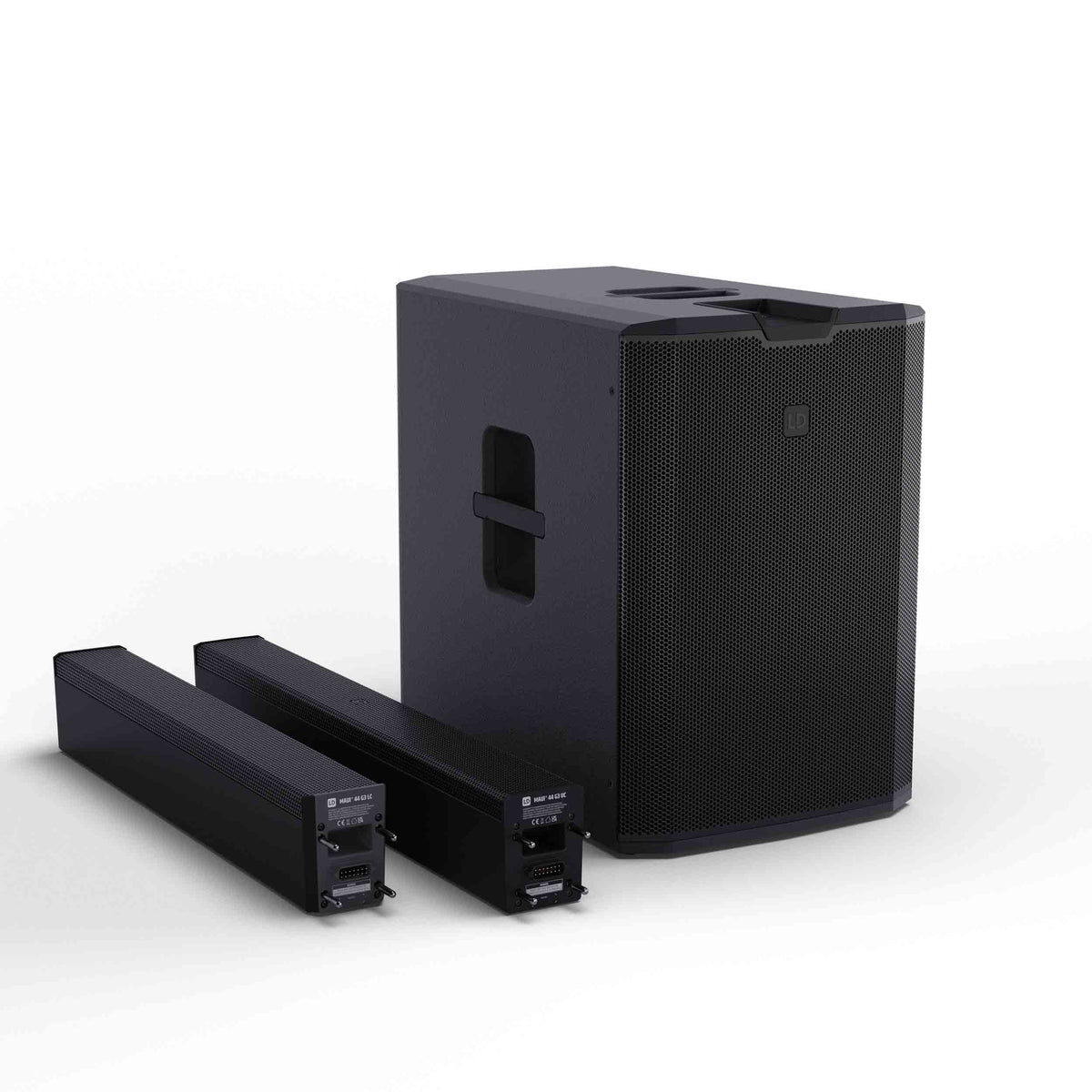

• LD Systems MAUI 44 G3 MIX  subwoofer.
• Upper column section.
• Lower column section.
• Verify the exact package contents and included accessories with the manufacturer or supplier before publishing.

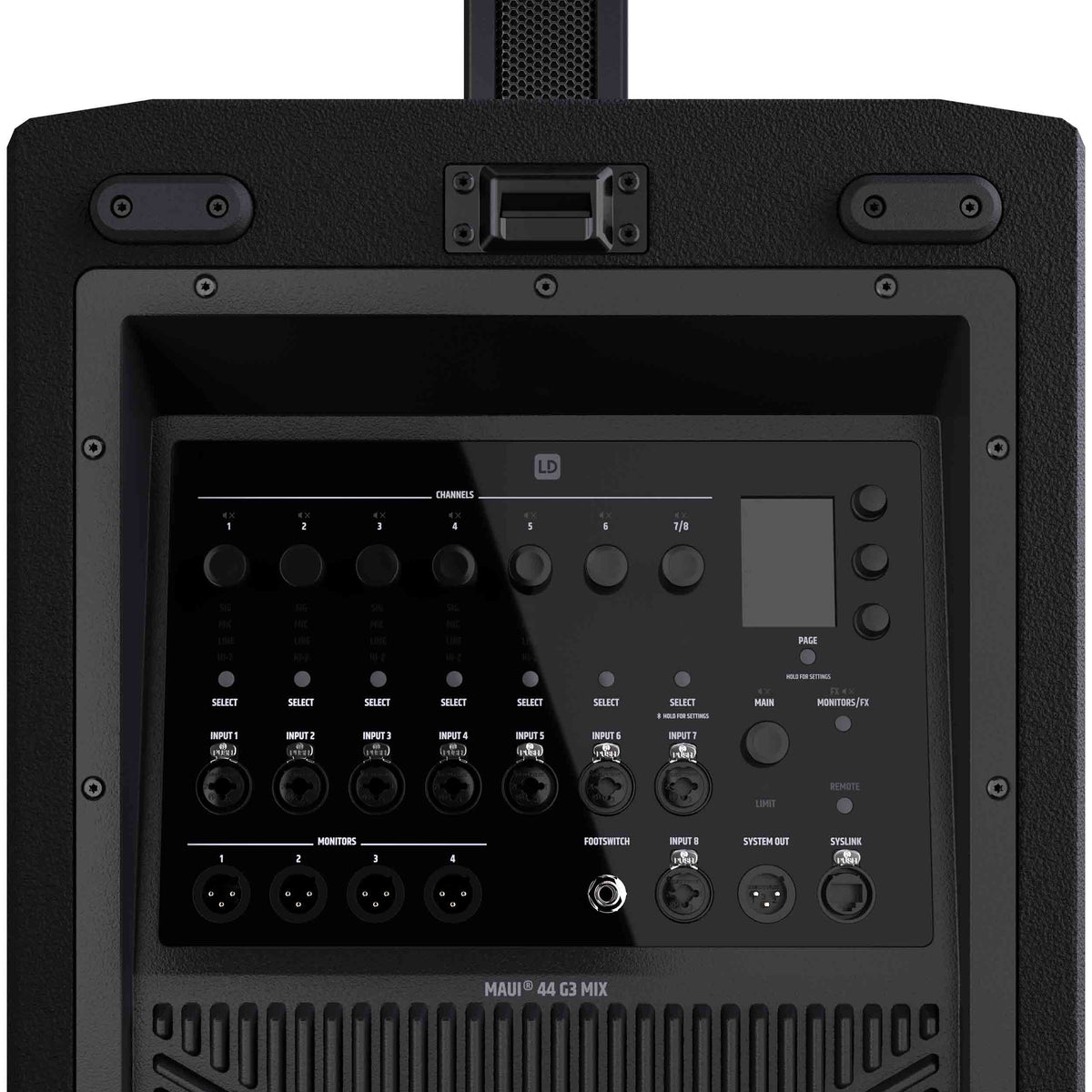

Inputs & Outputs

• Mixer Inputs Eight XLR/TRS combo inputs.
• Microphone Preamps Six inputs feature microphone preamps.
• Monitor Outputs Four monitor outputs.
• System Output One dedicated system output.
• Footswitch Connection Footswitch input for hands-free control.
• SysLink Connection Connects two compatible MAUI 44 G3 MIX systems for stereo operation and centralized 16-channel control.
• Wireless Audio Bluetooth audio streaming.
• App Control Wireless mixer and system control through the MAUI MIX app for iOS and Android.

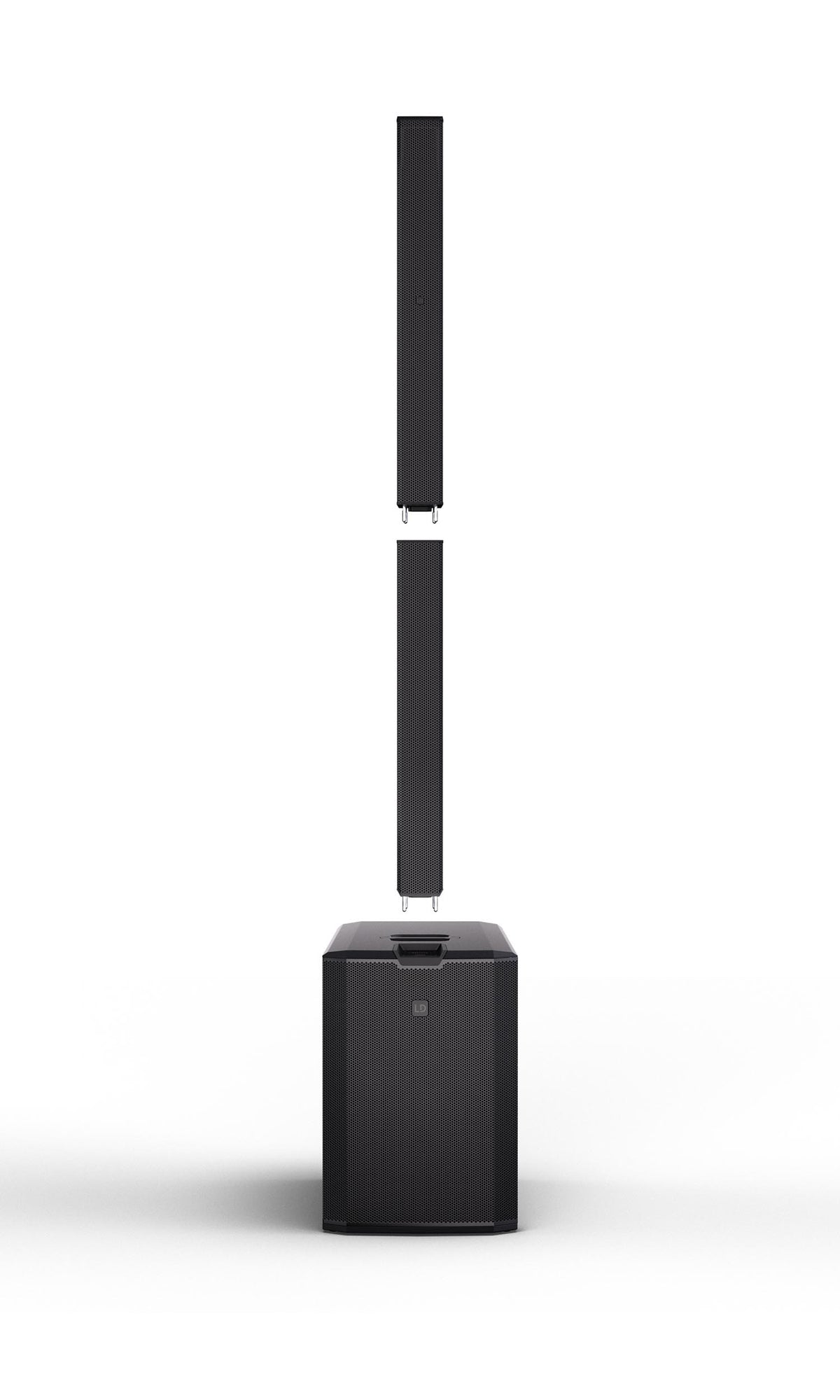

• Column Connection Cable-free connection between the column sections and subwoofer.
• Column Detection Automatic column detection.

Frequently Asked Questions

What type of sound system is the LD Systems MAUI 44 G3 MIX ?

It is a fully active 4-way cardioid column PA system with an integrated 8-channel digital mixer and a white finish.

How much power does the system deliver?

The Class-D amplifier delivers 1,800W RMS and 3,600W peak power.

What is the maximum SPL?

The system provides a maximum sound pressure level of 133 dB.

How deep can the subwoofer reproduce bass?

The 15-inch neodymium subwoofer delivers low-frequency response down to 34 Hz.

How many inputs does the integrated mixer provide?

The digital mixer has eight XLR/TRS combo inputs, six of which feature microphone preamps.

Does the system include monitor outputs?

Yes. It provides four monitor outputs and one dedicated system output.

Can the mixer be controlled remotely?

Yes. Mixer and system settings can be controlled wirelessly through the free MAUI MIX app for iOS and Android, or directly through the integrated color display.

Does it support Bluetooth?

Yes. Bluetooth audio streaming enables wireless playback.

Can two MAUI 44 G3 MIX systems be connected?

Yes. The SysLink port connects two compatible systems for stereo operation, with centralized control of all 16 channels across both systems.

Does the column reduce sound behind the system?

Yes. Its passive cardioid design reduces rearward radiation by up to 18 dB.

Can an additional subwoofer be used?

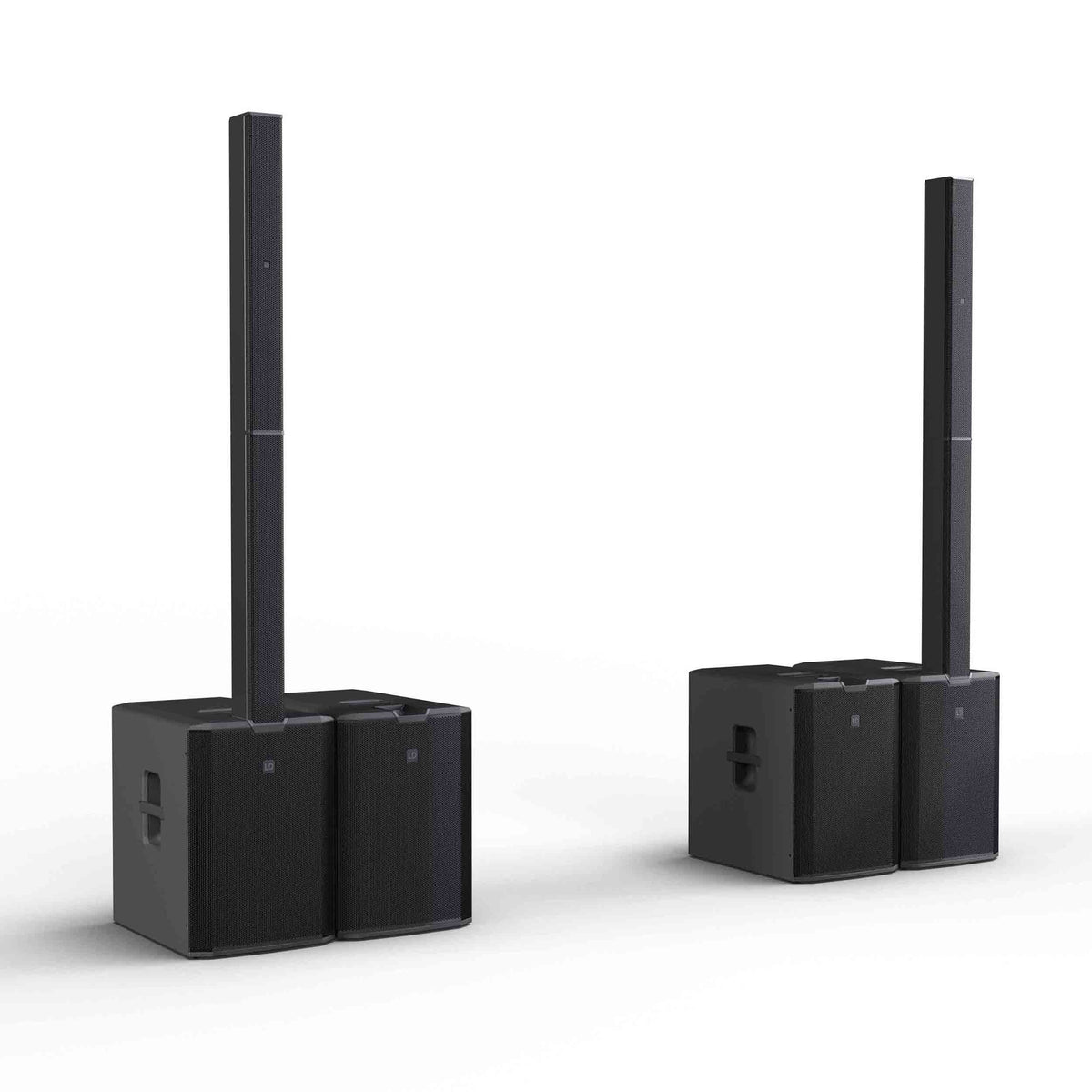

Yes. An additional MAUI 44 G3 SUB can extend low-frequency performance or support a cardioid subwoofer configuration.

What DSP technology does the system use?

It features DynX DSP Gen. 2 with advanced peak, RMS, and thermal limiters.

Full Technical Specifications

General Specifications

Brand	LD Systems
Model	MAUI 44 G3 MIX
Product Name	MAUI 44 G3 MIX All-in-One Array System + Mixer
Product Type	Active Cardioid Column PA System
Finish	Black
System Configuration	Fully active 4-way
Column Design	Passive cardioid
Peak Power	3,600W
RMS Power	1,800W
Maximum SPL	133 dB
Integrated Mixer	8-channel digital mixer

Audio & Driver Specifications

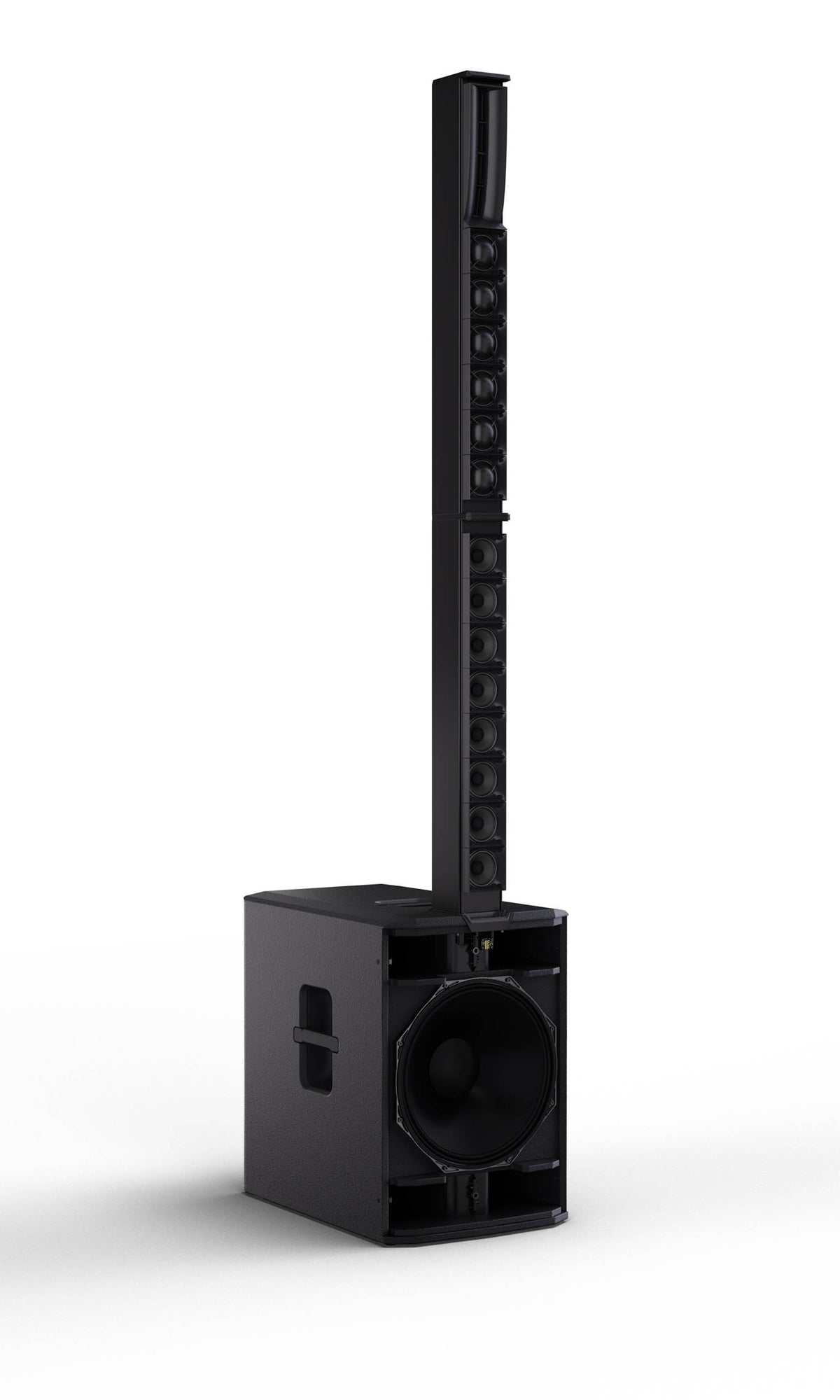

Subwoofer Driver	1 × 15-inch high-power neodymium woofer
Midrange Drivers	14 × 3.5-inch neodymium drivers
High-Frequency Drivers	4 × 1-inch compression drivers
Low-Frequency Response	Down to 34 Hz
Horizontal Dispersion	120°
Vertical Dispersion	25°
Rear Attenuation	Up to 18 dB
Bass Enclosure	Bass reflex
Bass Port Design	Airflow-optimized
Midrange Design	Horn-loaded drivers in the lower column section
Waveguides	BEM-optimized
Phase Plugs	Specially developed

Digital Mixer Specifications

Mixer Type	Integrated digital mixer
Mixer Channels	8
Combo Inputs	8 × XLR/TRS
Microphone Preamps	6
Onboard Effects	Yes
Footswitch Connection	Yes
Monitor Outputs	4
Dedicated System Output	1
Integrated Display	Color display
Remote Control	MAUI MIX app for iOS and Android
Wireless Audio	Bluetooth streaming

Amplifier & DSP Specifications

Amplifier Type	Class D
System Architecture	Fully active 4-way
DSP	DynX DSP Gen. 2
Peak Limiting	Advanced peak limiter
RMS Limiting	Advanced RMS limiter
Thermal Protection	Advanced thermal limiter
Crossover Frequency 1	200 Hz
Crossover Frequency 2	700 Hz
Crossover Frequency 3	1,800 Hz

Construction Specifications

Subwoofer Enclosure	Birch plywood
Subwoofer Coating	Polyurea
Column Material	Aluminum

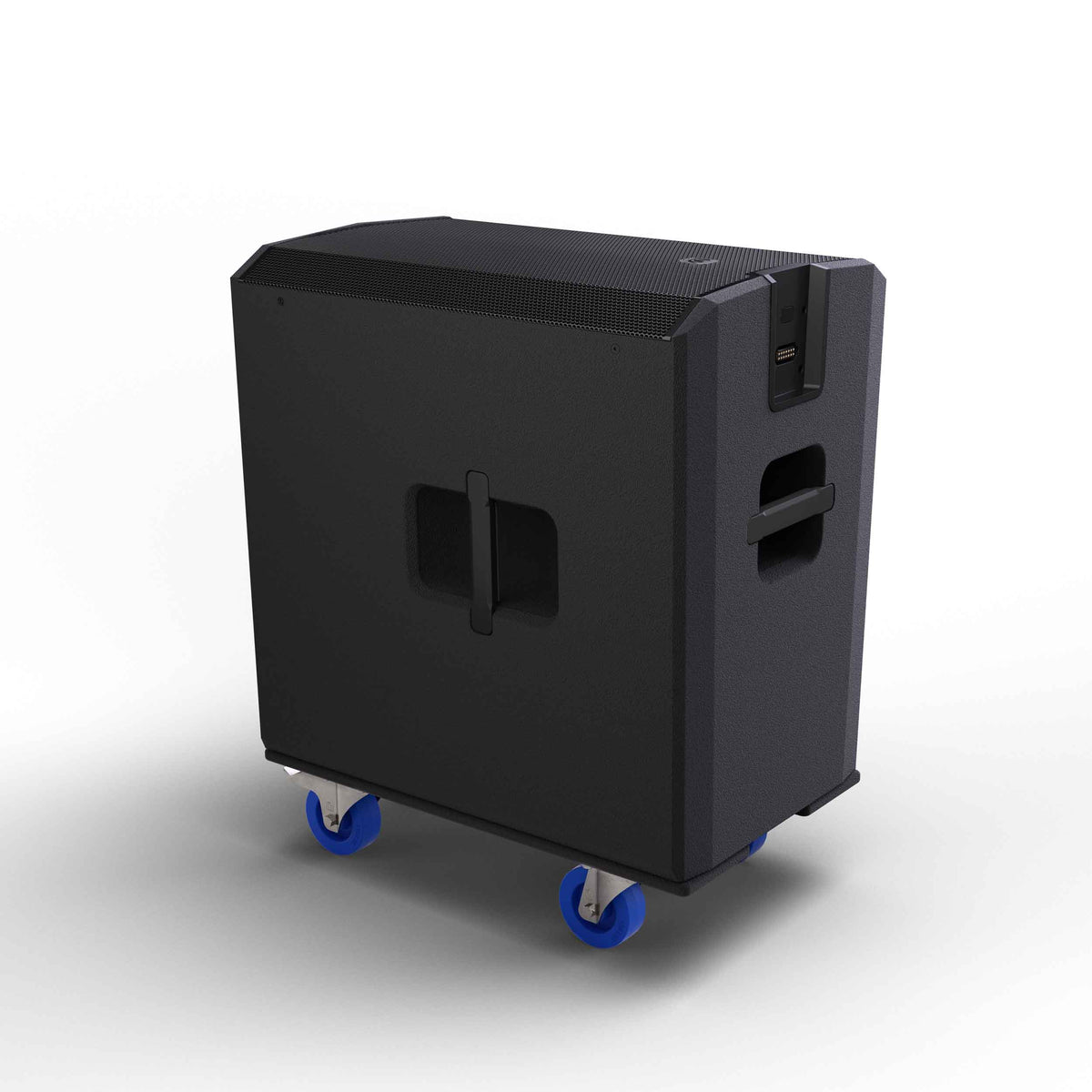

Subwoofer Handles	4 ergonomic carrying handles
Column Handles	Recessed handles
Setup Design	Cable-free column connection
Automatic Column Detection	Yes

Physical Specifications

Shipping Dimensions (L × W × D)	18 × 89 × 25 in
Shipping Weight	110 lbs
Wireless Streaming	Bluetooth 5.4
