Description

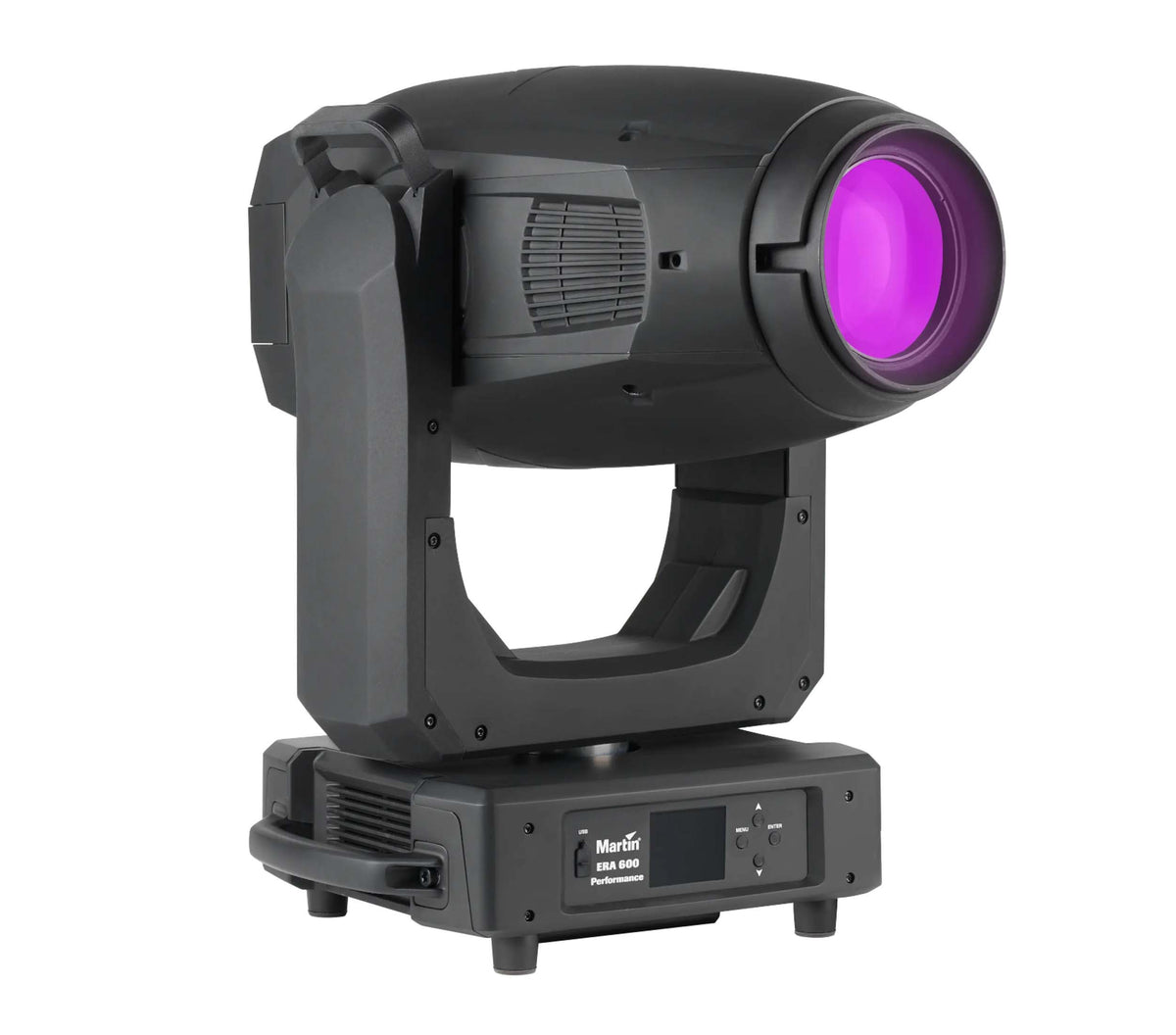

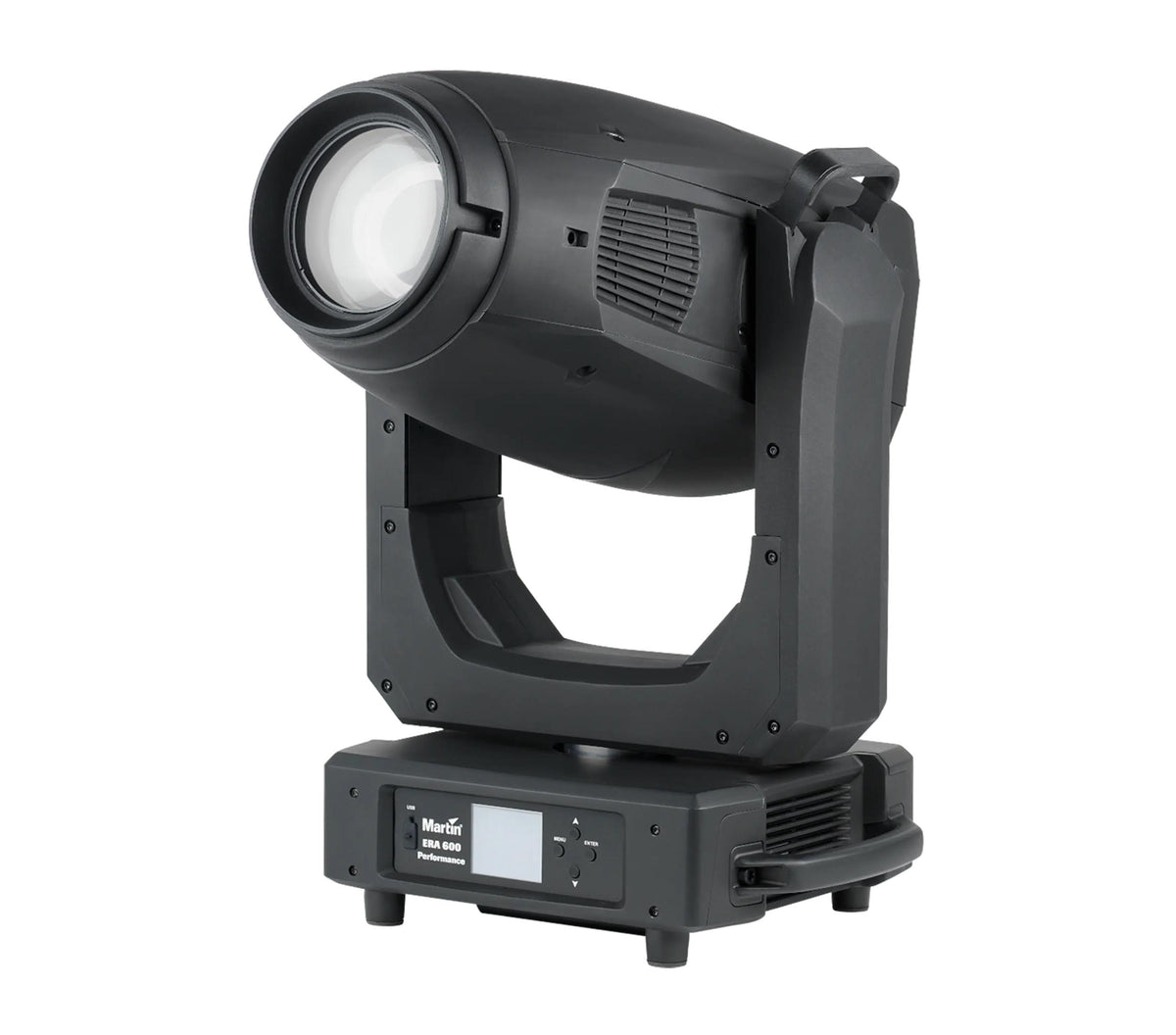

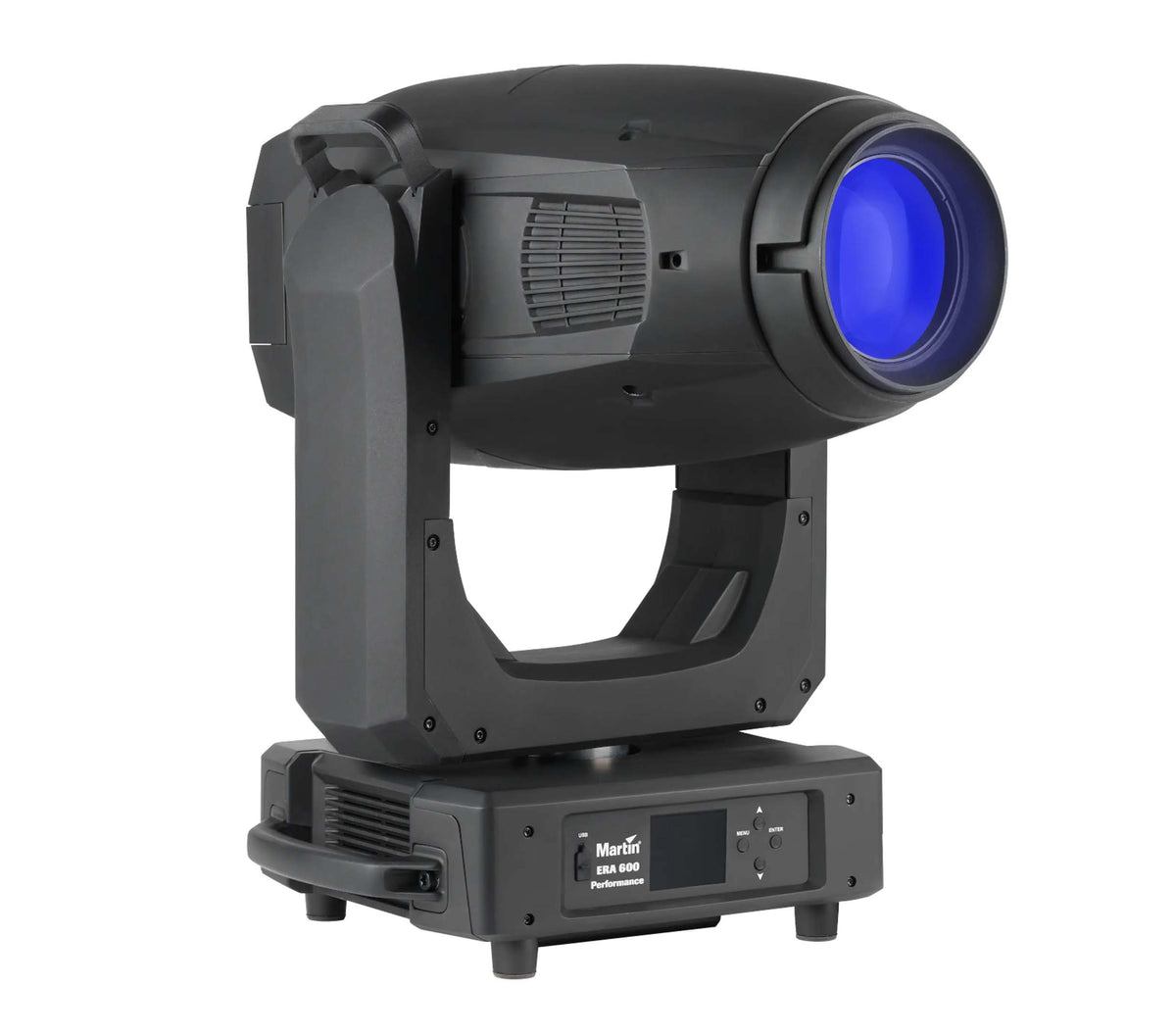

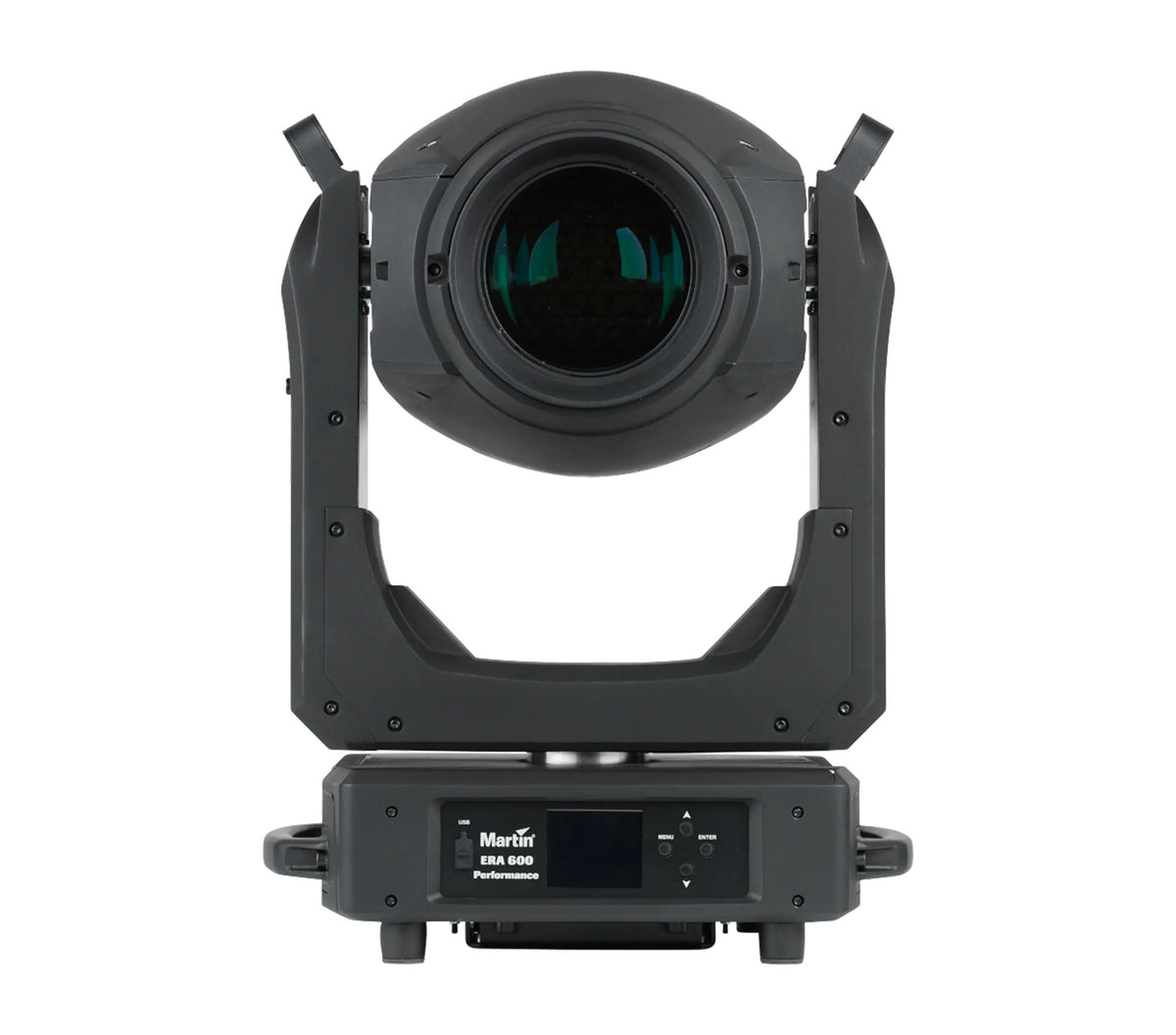

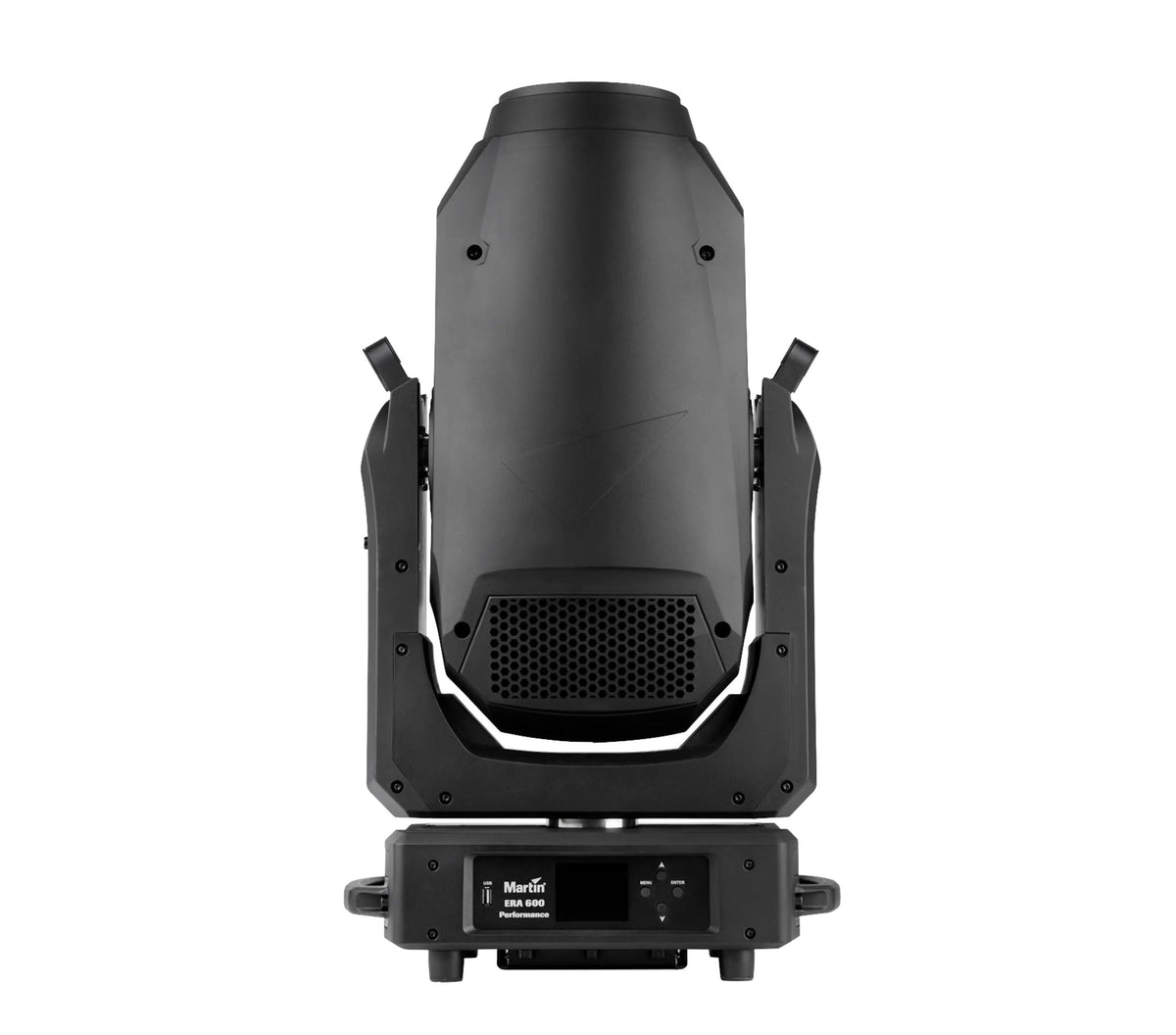

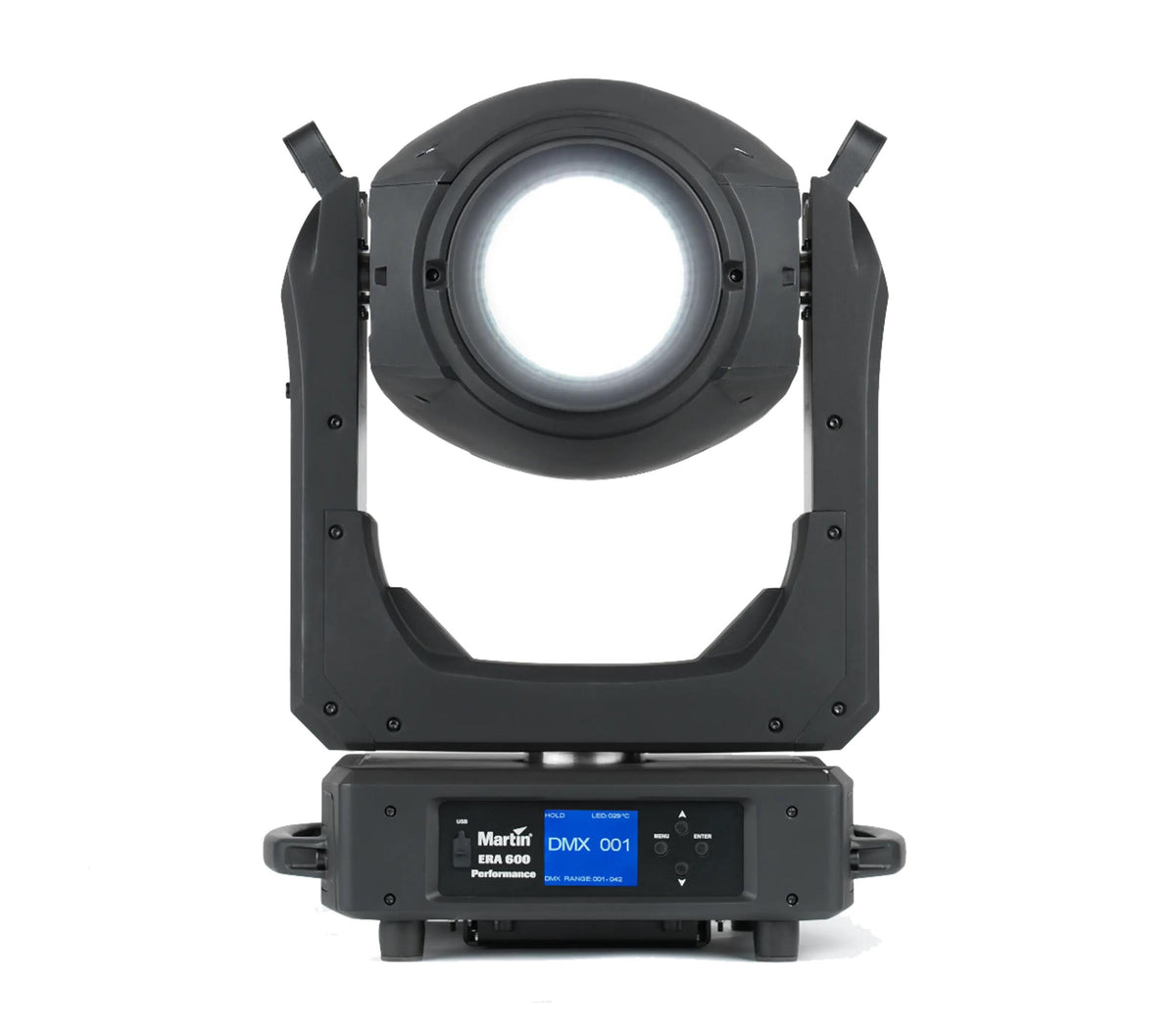

The Martin ERA 600 Performance (also written ERA600 Performance or ERA 600 Perf) is a 550W LED-based profile moving head with a full framing system and CMY color mixing, built for touring, rental, and live production use. Its white LED engine produces a bright, sharp 6,500K image with a flat field, and a 1:8 zoom (6° to 45°) keeps the output high from short throws to larger trim heights. Martin designed it as a compact, tour-worthy fixture that is easy to handle and rig for its class.
Beyond the framing blades, the fixture includes a 7-slot color wheel, variable color temperature control from 6500K to 2700K, an animation wheel, an iris, and two gobo wheels loaded with glass gobos from Martin's MAC range. Two rotating prisms and a heavy frost filter add beam effects and wash looks, and a modular design lets you swap effects modules in under a minute. Two Omega brackets for rigging clamps are included.
Key Features
- 550W white LED engine at 6,500K, with 19,000 lumens of fixture output
- Full curtain framing system: four individually controllable blades that each cross the entire beam, and the whole module rotates ±60°
- 1:8 motorized zoom (6° to 45°) with a 120 mm front lens
- CMY color mixing, with each channel variable from 0 to 100%
- Variable color temperature control from 6500K to 2700K (linear CTO)
- 7-slot color wheel plus open, for color splits and fast color bumps
- 7 rotating gobos and 8 static gobos, plus an animation wheel with continuous bi-directional rotation
- Two prisms (4-facet circular and 6-facet linear) with rotation and indexing, plus a heavy frost
- Electronic dimming and strobe, with four dimming curve options
- DMX and RDM control with 41 DMX channels and 16-bit dimming, pan and tilt
Who Is the Martin ERA 600 Performance Ideal For?
- Touring productions and rental houses that need a bright, compact profile
- Live events, concerts, and larger stages where the beam must reach long throws
- Lighting designers who want framing, gobos, prisms, and CMY color in one fixture
- Venues and theaters that need a profile fixture with precise shaping of the beam
What's in the Box
- 1 × Martin ERA 600 Performance moving head (black)
- 2 × Omega brackets for rigging clamp attachment (TÜV approved)
Not included: rigging clamps, safety cable, power cable, and DMX cable.
Martin ERA 600 Performance vs Other Moving Head Profiles in Stock
| Fixture | Type | Light source | Price |
|---|---|---|---|
| Martin ERA 600 Performance | LED profile with framing and CMY | 550W LED | $13,437.00 |
| ADJ Hydro Profile | Weatherproof IP65 LED profile | 660W LED | $5,999.99 |
| ADJ Focus Profile | LED profile moving head | 400W LED | $5,999.99 |
Choose the ERA 600 Performance when you need a touring-grade 550W profile with a full four-blade framing system, CMY color mixing, and a 1:8 zoom. Choose the ADJ Hydro Profile if the fixture must be weatherproof (IP65), or the ADJ Focus Profile if you want a lower-cost 400W profile. Competitor prices are the current regular listing prices and need refreshing before publishing.
Frequently Asked Questions
What is the Martin ERA 600 Performance?
It is a 550W LED-based profile moving head with framing blades, CMY color mixing, gobos, prisms, and a 1:8 zoom, made by Martin (HARMAN Professional).
How bright is it?
The fixture output is 19,000 lumens (the light engine alone is rated at 37,000 lumens), with a 6,500K color temperature and a CRI above 70.
Does it have framing blades?
Yes. Four individually controllable blades can each cross the whole beam for a full blackout, and the framing module rotates ±60°.
Can I change the color temperature?
Yes. Variable color temperature control runs from 6500K down to 2700K, and it also extends the CMY palette.
How many DMX channels does it use?
41 DMX channels, with 16-bit control of dimming, pan, and tilt. It also supports RDM and has 5-pin locking XLR data connections.
What power does it need?
100-240V, 50/60 Hz, with Neutrik powerCON TRUE1 power input and thru. At 120V, 60 Hz it draws a typical 6.5A (778W).
What is the zoom range?
6° to 45°, motorized, with motorized focus.
How big and heavy is it?
16.4 × 11.4 × 28.9 in (416 × 290 × 734 mm) and 71.3 lb (32.3 kg).
Can it be used outdoors?
The protection rating is IP 20, so it is intended for indoor use or a protected location. The maximum ambient temperature is 104°F (40°C).
Full Technical Specifications
Optics and Source
| Light source | 550W white LED engine |
|---|---|
| Fixture luminous output | 19,000 lumens |
| Light engine luminous output | 37,000 lumens |
| CCT | 6500K (±350K) |
| CRI | >70 |
| LED refresh rate | 3,600 Hz |
| Front lens diameter | 4.7 in (120 mm) |
| Zoom range | 6° to 45° (1:8), motorized |
| Minimum LED lifetime | 20,000 hours to >70% output (manufacturer's figure) |
Dynamic Effects
| Dimming | 0-100%, four dimming curve options |
|---|---|
| Shutter effect | Strobe, pulse effects, instant open and blackout |
| Color mixing | CMY, each 0-100% |
| Color temperature control | Variable, 6500K to 2700K |
| Color wheel | 7 color filters plus open |
| Rotating gobo wheel | 7 gobos plus open, with wheel rotation, gobo rotation, indexing, and shake |
| Static gobo wheel | 8 gobos plus open, with wheel indexing, rotation, and shake |
| Gobo animation | Animation wheel with indexing and continuous rotation, variable speed and direction |
| Iris | 0-100% |
| Framing | Rotatable module, ±60°, with 4 individually controllable full framing blades |
| Prisms | 2 rotating/indexing prisms (4-facet circular and 6-facet linear) |
| Frost | Heavy frost |
| Pan / tilt | 540° / 260°, coarse and fine control with speed |
| Focus | Motorized |
Gobos
| Gobo diameter | 0.91 in ±0.008 in (23.0 mm +0/-0.2 mm) |
|---|---|
| Maximum image diameter | 0.75 in (19.0 mm) |
| Maximum gobo thickness | 0.04 in (1.1 mm) |
Control and Connections
| Control | DMX (USITT DMX512/1990), RDM (ANSI/ESTA E1.20) |
|---|---|
| DMX channels | 41 |
| 16-bit control | Dimming, pan, and tilt |

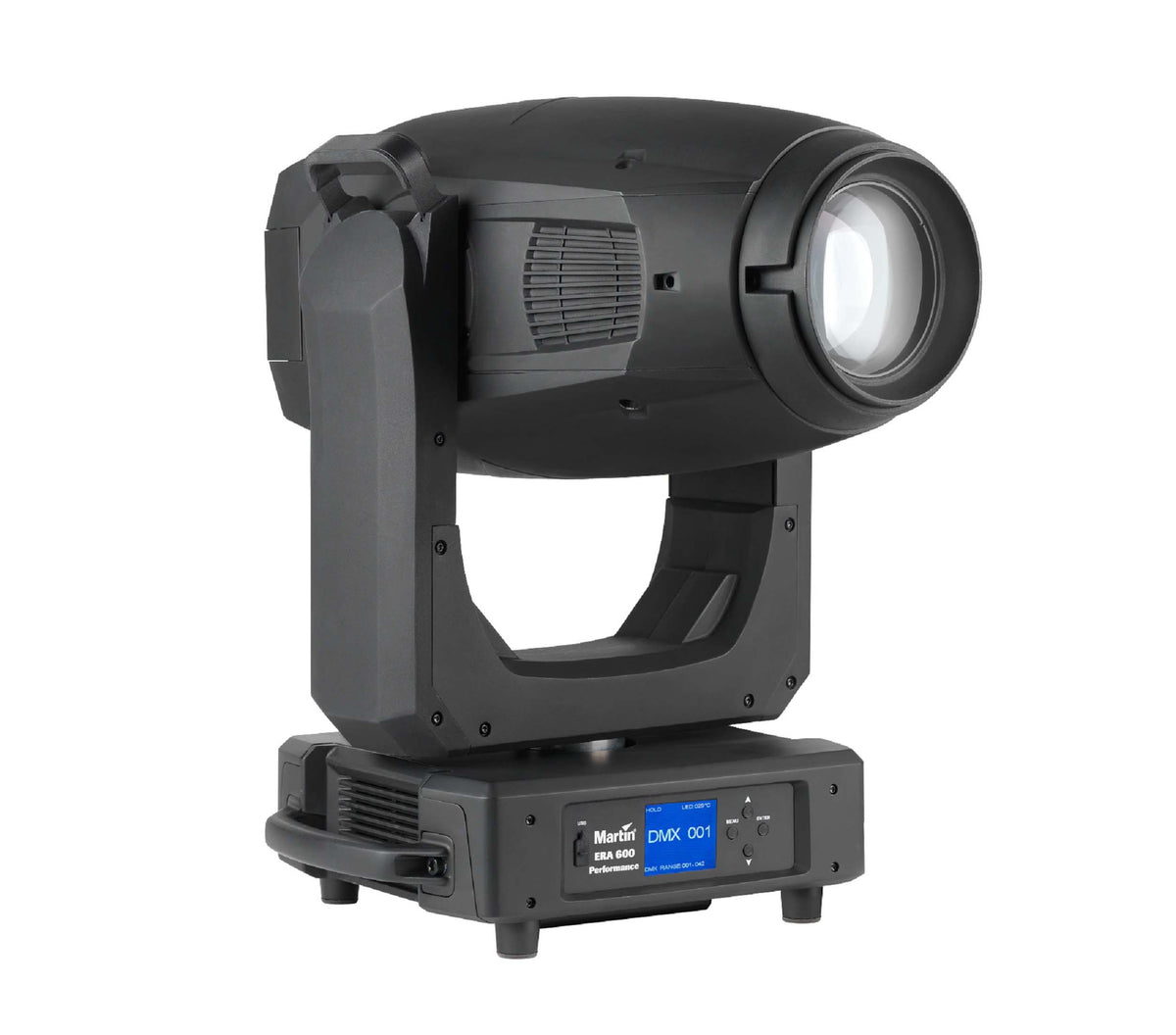

| Setup and addressing | Control panel with backlit LCD display |

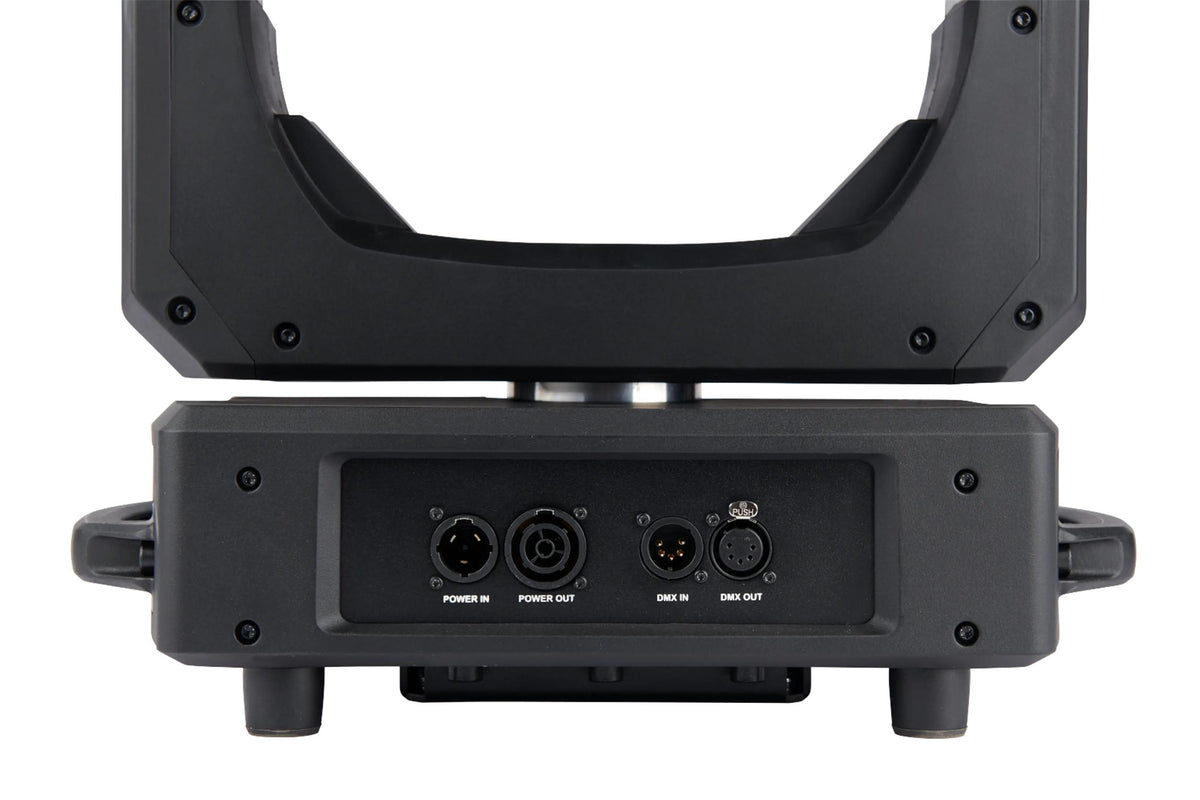

| DMX data in/out | 5-pin locking XLR |
| AC power input / thru | Neutrik powerCON TRUE1 |
Electrical and Thermal
| AC power | 100-240V nominal, 50/60 Hz, auto-ranging switch mode supply |
|---|---|
| Typical power at 120V, 60 Hz | 6.5A, 778W, PF 0.994 |
| Typical power at 230V, 50 Hz | 3.15A, 760W, PF 0.967 |
| Steady power consumption | 85W, all effects static, zero light output |
| Cooling | Forced air, temperature regulated, low noise |
| Ambient temperature | 32°F to 104°F (0°C to 40°C) |
| Maximum surface temperature | 167°F (75°C) at 104°F (40°C) ambient |
| Total heat dissipation | 2,660 BTU/hr (calculated, ±10%) |
Construction, Dimensions and Approvals
| Housing | High-impact flame-retardant thermoplastic |
|---|---|
| Color / protection rating | Black / IP 20 |
| Mounting | Two quarter-turn brackets for rigging clamps, any orientation |
| Dimensions (L × W × H) | 16.4 × 11.4 × 28.9 in (416 × 290 × 734 mm) |
| Weight | 71.3 lb (32.3 kg) |
| Approvals | UL 1573, FCC Part 15 Class B, CSA C22.2 No. 166, ICES-003 Class B, RCM, CB (IEC 60598-2-17) |
| Martin part number | P/N 9025122049 (black); P/N 9025122050 (white version) |
