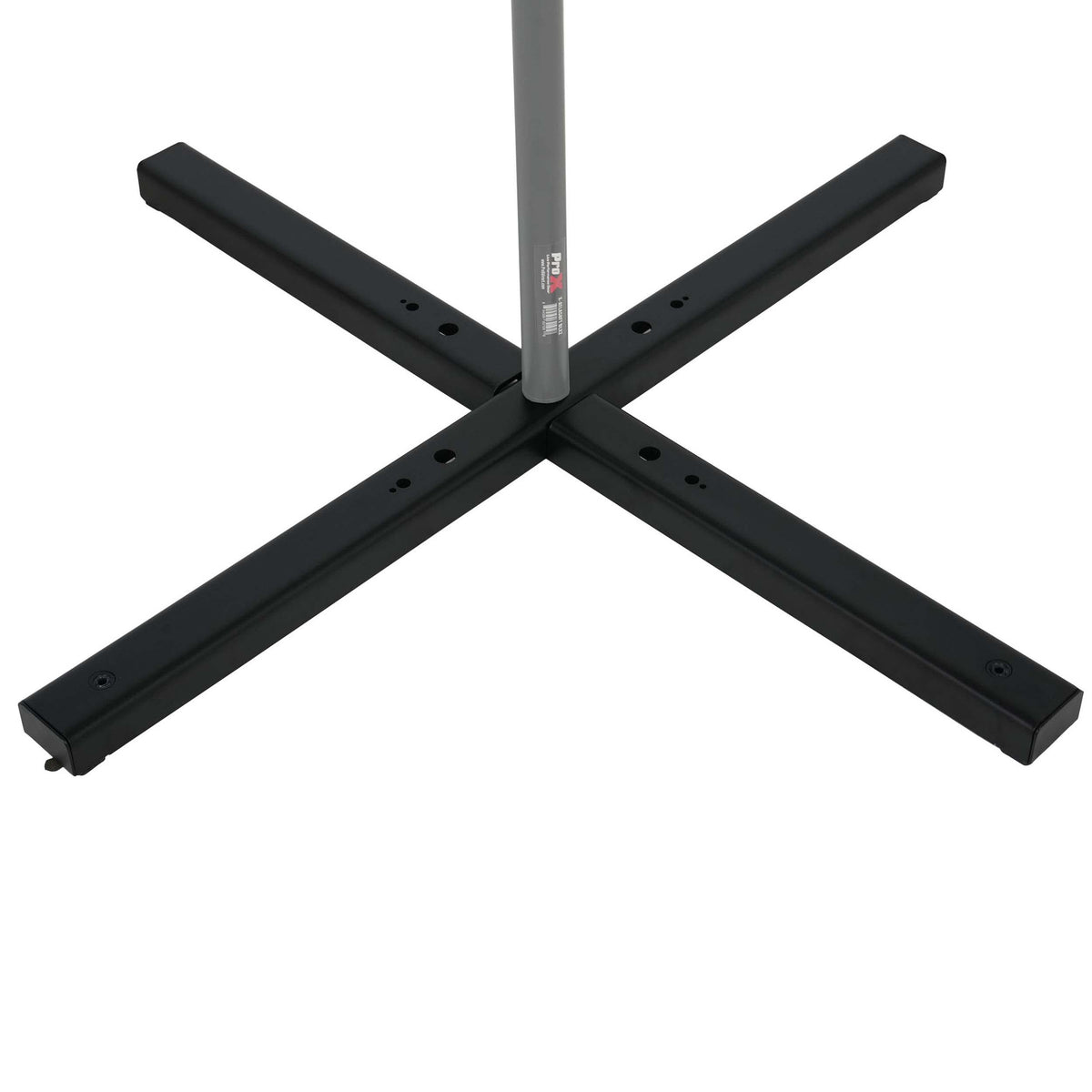

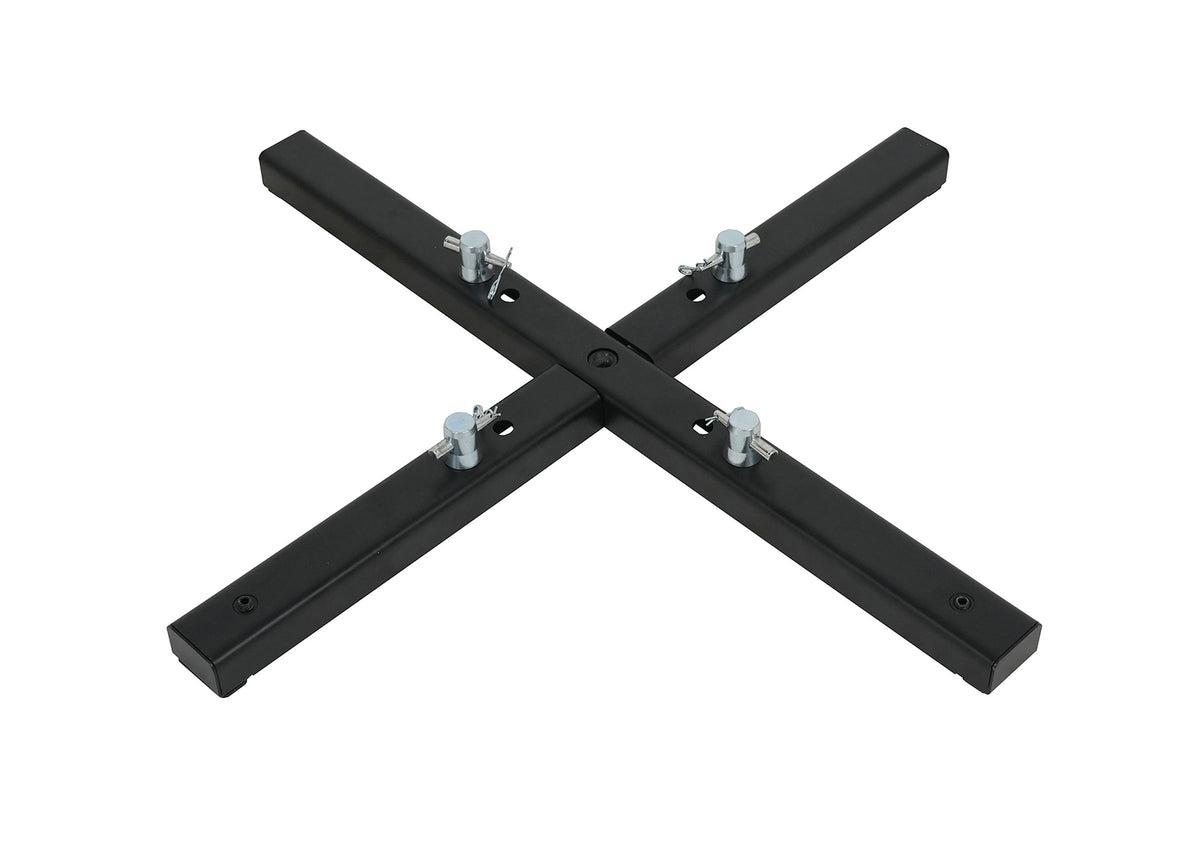

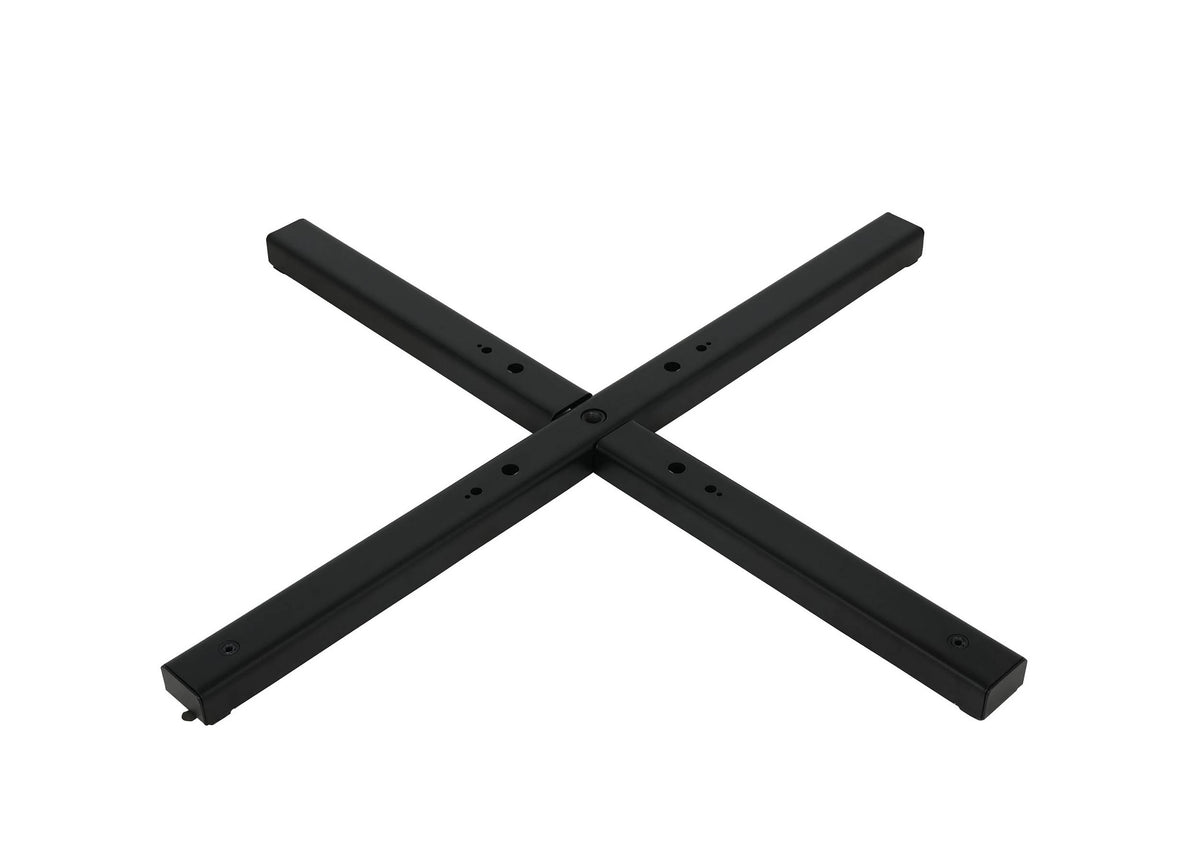

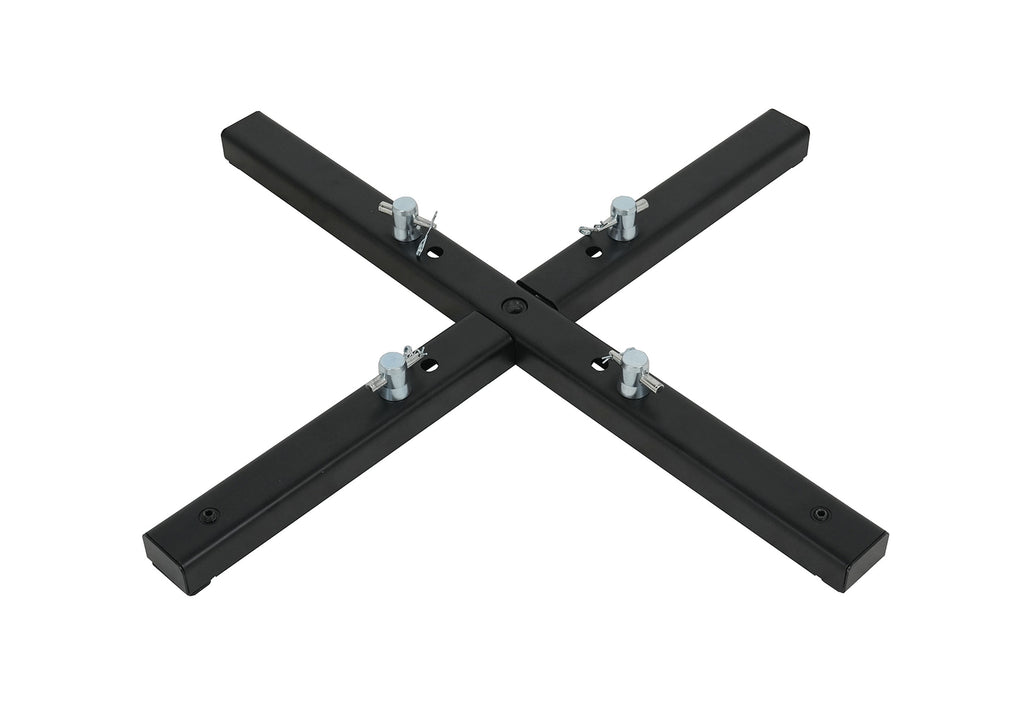

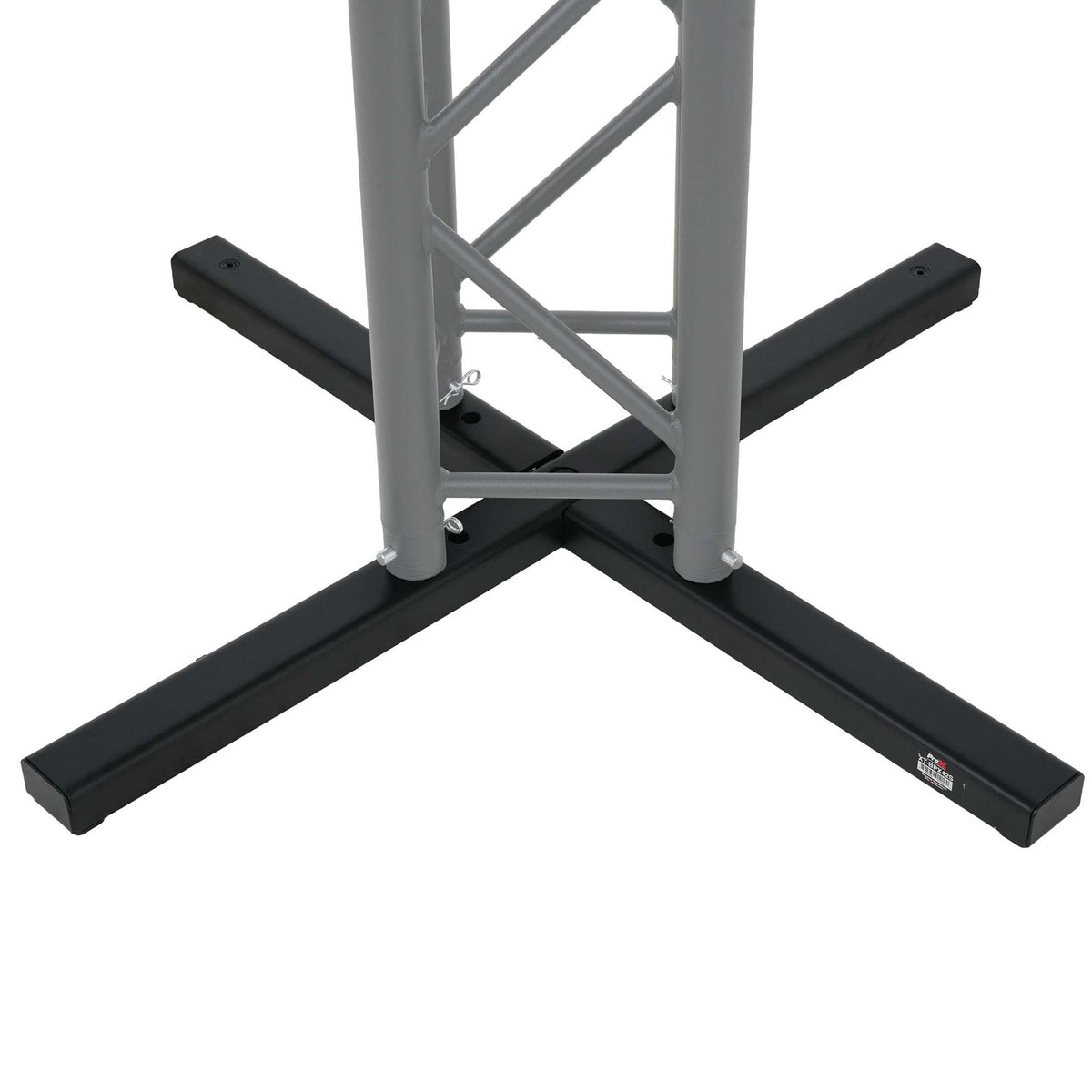

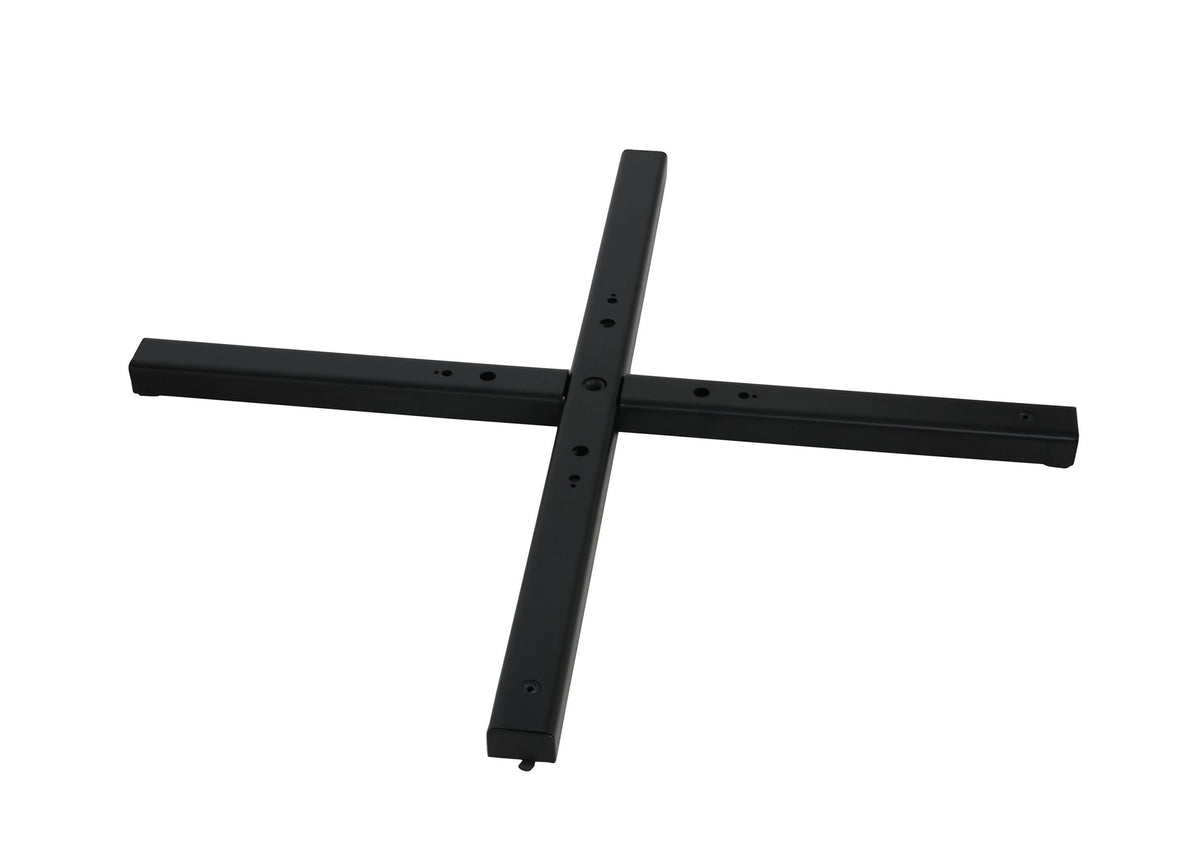

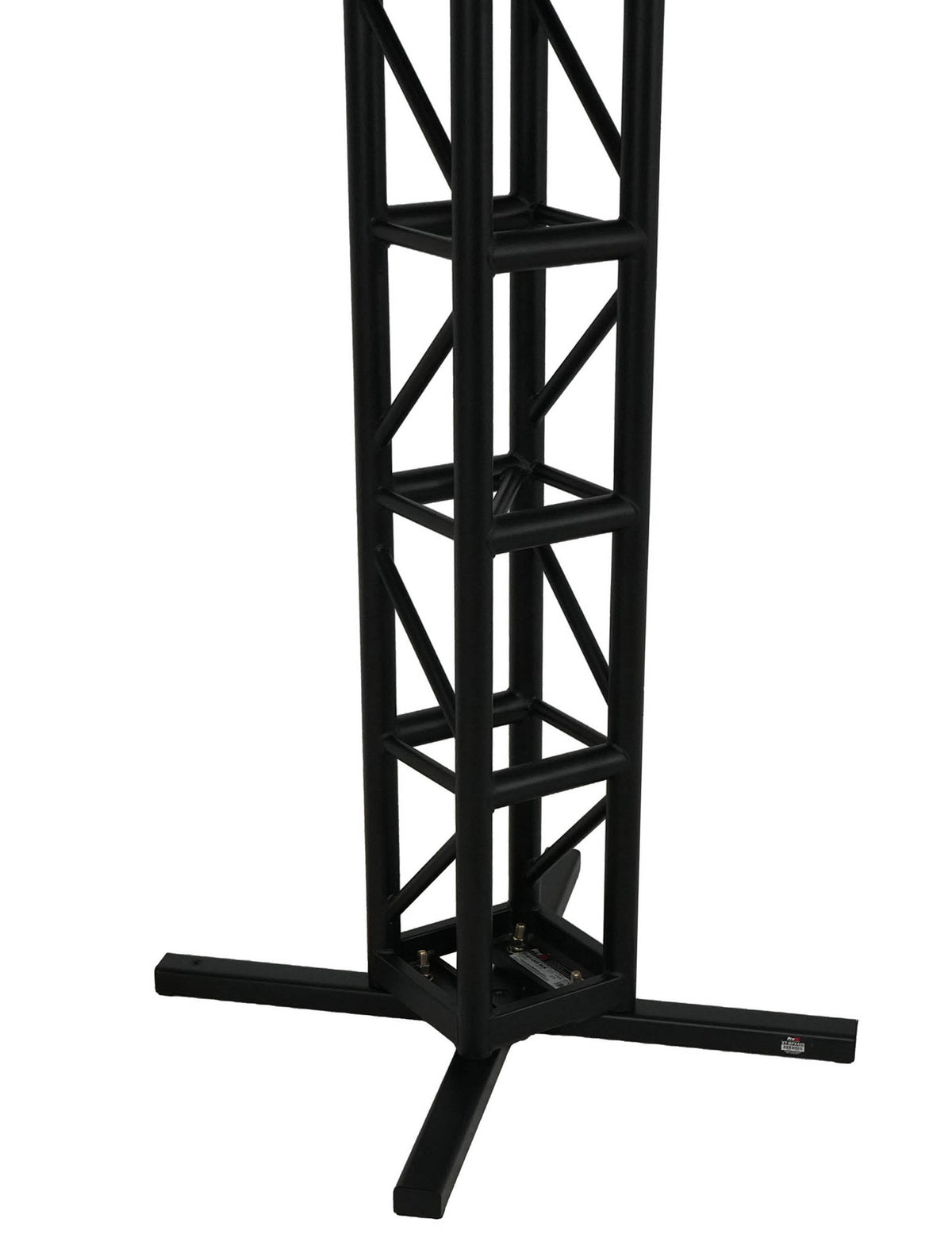

The ProX XT-BPX42S 42-Inch X-Style Base Plate is designed for professional production environments that require the largest footprint in the ProX X-Style base plate lineup. Compatible with F34 square truss, bolt truss, and M20 poles, this versatile base plate supports a range of truss and pole installations. Its 42-inch size provides a broad mounting platform for large-scale staging, lighting, and event structures.

Versatile X-Style Mounting Pattern

The X-style mounting points allow the base plate to accommodate multiple compatible truss and pole types. This layout helps position the upright centrally over the full 42-inch footprint. For production companies and rental houses with mixed equipment inventories, the multi-system design can simplify equipment selection and reduce the need for separate base plates for each compatible system.

Compatibility with F34 Truss, Bolt Truss, and M20 Poles

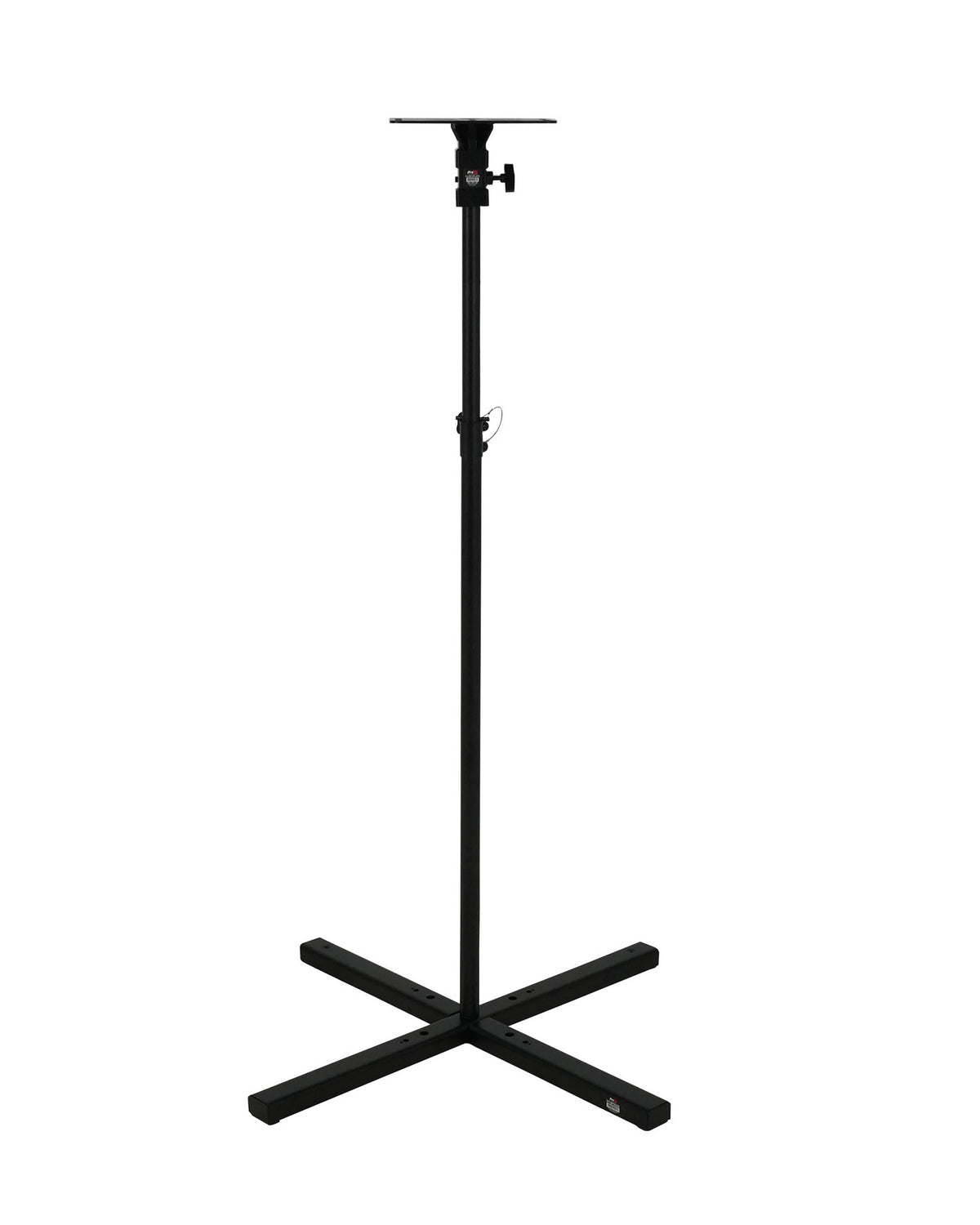

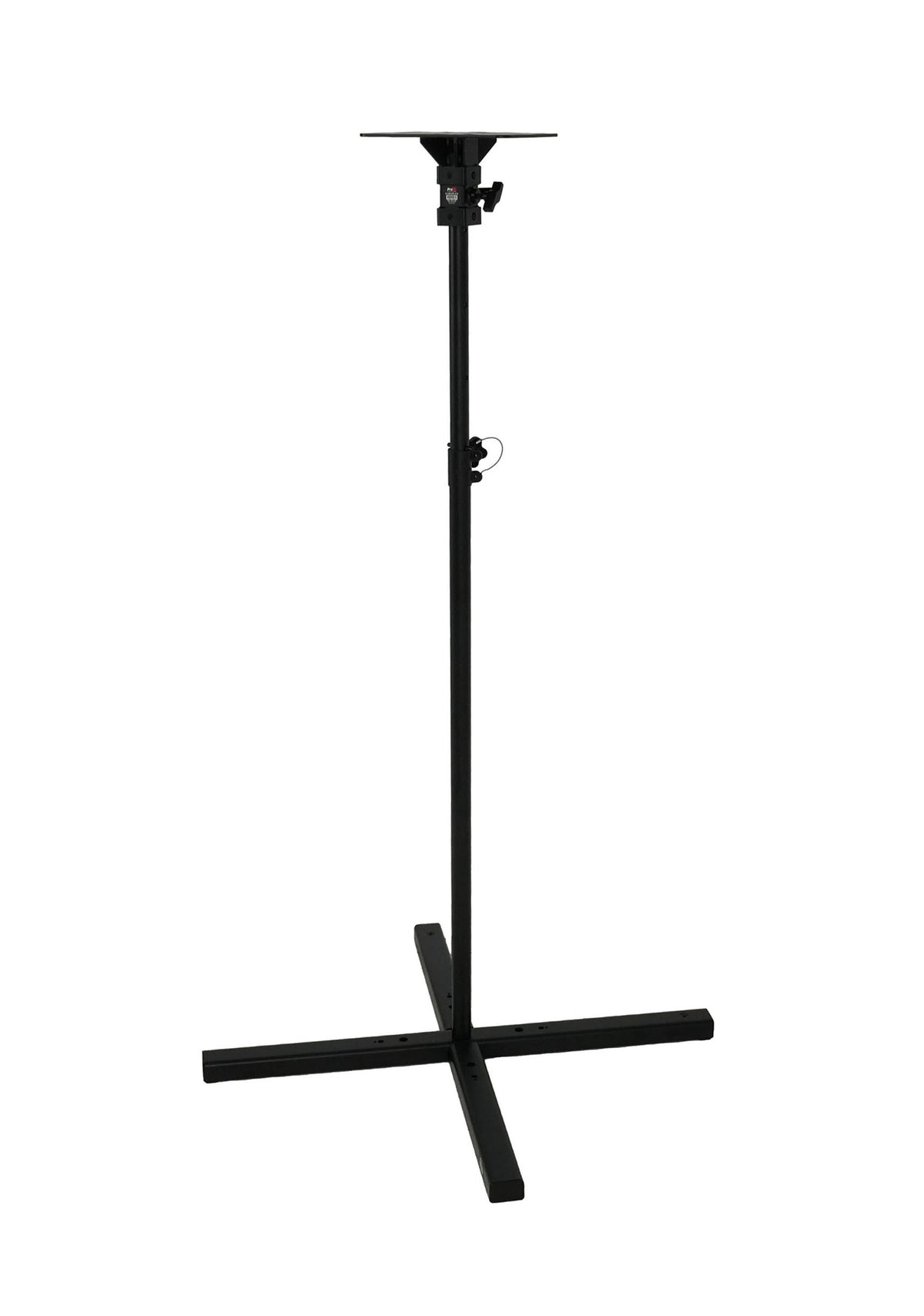

The XT-BPX42S supports compatible F34 square truss and bolt truss systems, making it suitable for a variety of stage, lighting, and display structures. It can also be paired with compatible M20 poles for single-pole lighting, speaker, or décor applications. Verify mounting hardware and system compatibility before installation.

Designed for the Biggest Shows

From festival stages and concert goalposts to outdoor events, arena floors, large ballrooms, and trade show displays, the XT-BPX42S is designed for demanding professional event applications. Its large footprint makes it an option for crews building substantial truss and pole configurations. Proper installation, stabilization, and compliance with applicable rigging requirements remain essential.

Key Features

• Largest 42-inch base plate in the ProX X-Style lineup.
• Broad mounting footprint for large installations.
• X-pattern mounting points.
• Compatible with F34 square truss.
• Compatible with bolt truss systems
• Designed for M20 pole applications.
• Centered upright positioning.
• Suitable for large truss and lighting structures.
• Multi-system compatibility helps simplify inventory.
• Intended for professional live event applications.

Ideal For

• Concert stages and festival production.
• Arena floors and large event venues.
• Tall truss towers and wide goalpost structures.
• Outdoor event installations.
• Professional lighting systems.
• Trade show displays and exhibitions.
• Large ballrooms and conference venues.
• Production companies and equipment rental houses.
• Compatible M20 pole lighting setups
• Speaker and décor pole applications where suitable.

What's in the Box

• 1 × ProX XT-BPX42S 42-inch X-style base plate.

Inputs & Outputs

• Truss Compatibility Supports compatible F34 square truss and bolt truss systems.
• Pole Compatibility Designed for compatible M20 poles.
• Mounting Pattern X-style mounting layout for supported truss and pole configurations.
• Upright Positioning Mounting layout helps center the compatible upright over the base.

Frequently Asked Questions

What is the size of the ProX XT-BPX42S?

The XT-BPX42S is a 42-inch X-style base plate and the largest size in the ProX X-Style lineup.

Which truss systems does it fit?

It is designed for compatible F34 square truss and bolt truss systems.

Can it be used with an M20 pole?

Yes. It is compatible with M20 poles for suitable lighting, speaker, and décor applications.

How does it compare with the other X-Style base plates?

The ProX X-Style lineup includes 24-inch XT-BPX24S, 30-inch XT-BPX30S, 36-inch XT-BPX36S, and 42-inch XT-BPX42S models. The 42-inch version provides the broadest footprint in the series.

What does X-Style mean?

X-Style refers to the X-pattern mounting-point layout, which accommodates compatible truss and pole mounting configurations.

Is it suitable for outdoor events?

It can be used in appropriate outdoor configurations when the complete structure is properly assembled and stabilized according to manufacturer instructions and applicable safety requirements.

Is ballast or additional stabilization required?

Requirements depend on the structure, height, loads, and environment. Follow the manufacturer's instructions and professional rigging practices.

What shipping method is suggested?

The manufacturer lists parcel shipping as the suggested method.

Full Technical Specifications

General Specifications

Product Type	X-style base plate
SKU	XT-BPX42S
Base Plate Size	42 inches
Mounting Pattern	X-style
Product Category	Truss top and base plates
Compatible Truss	F34 square truss and compatible bolt truss
Pole Compatibility	M20 pole

Mounting & Compatibility Specifications

Truss Compatibility	F34 square truss
Additional Compatibility	Compatible bolt truss systems
Pole Compatibility	M20 pole
Mounting Pattern	X-style
Stabilization	Additional ballast or stabilization as required by the installation
Truss Compatibility	F34 square truss

Physical Specifications

Color	Black

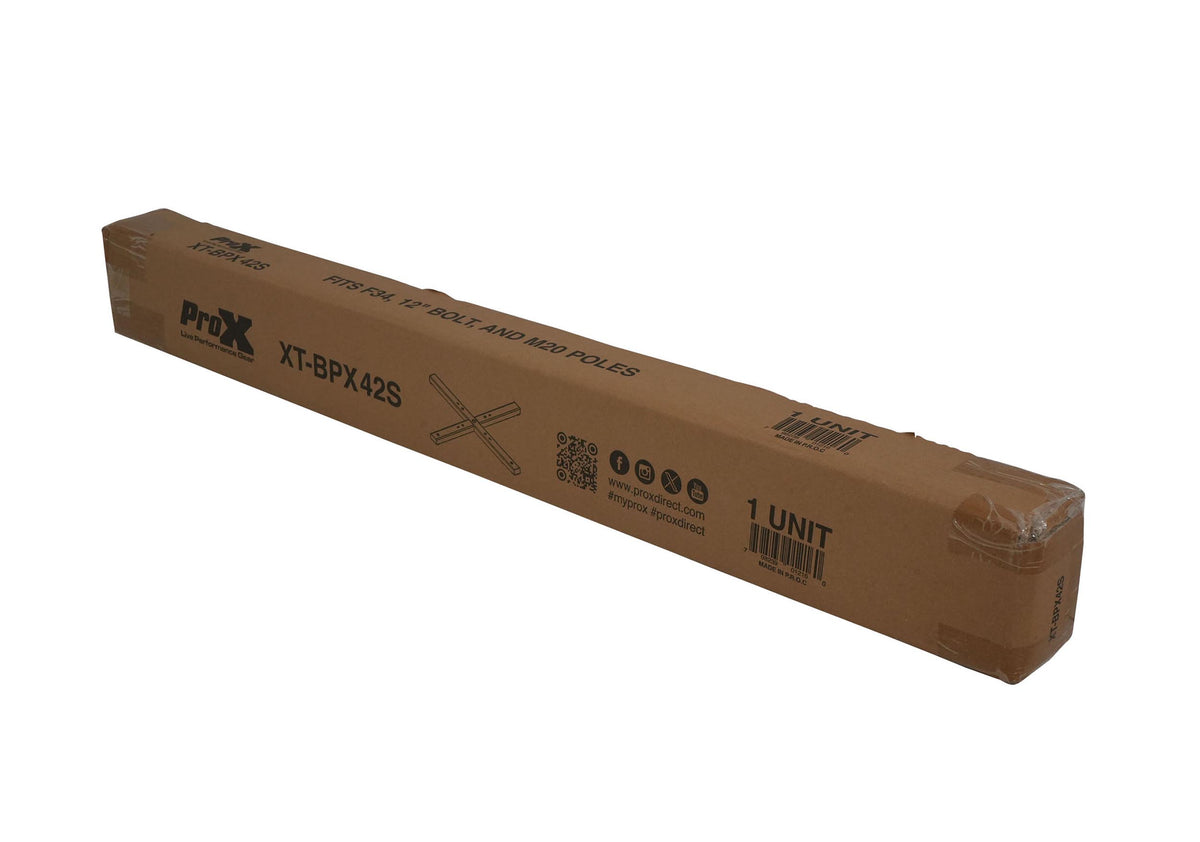

Shipping Dimensions (L × W × H)	44 × 5 × 4 inches
Shipping Weight	28 lbs
