Description

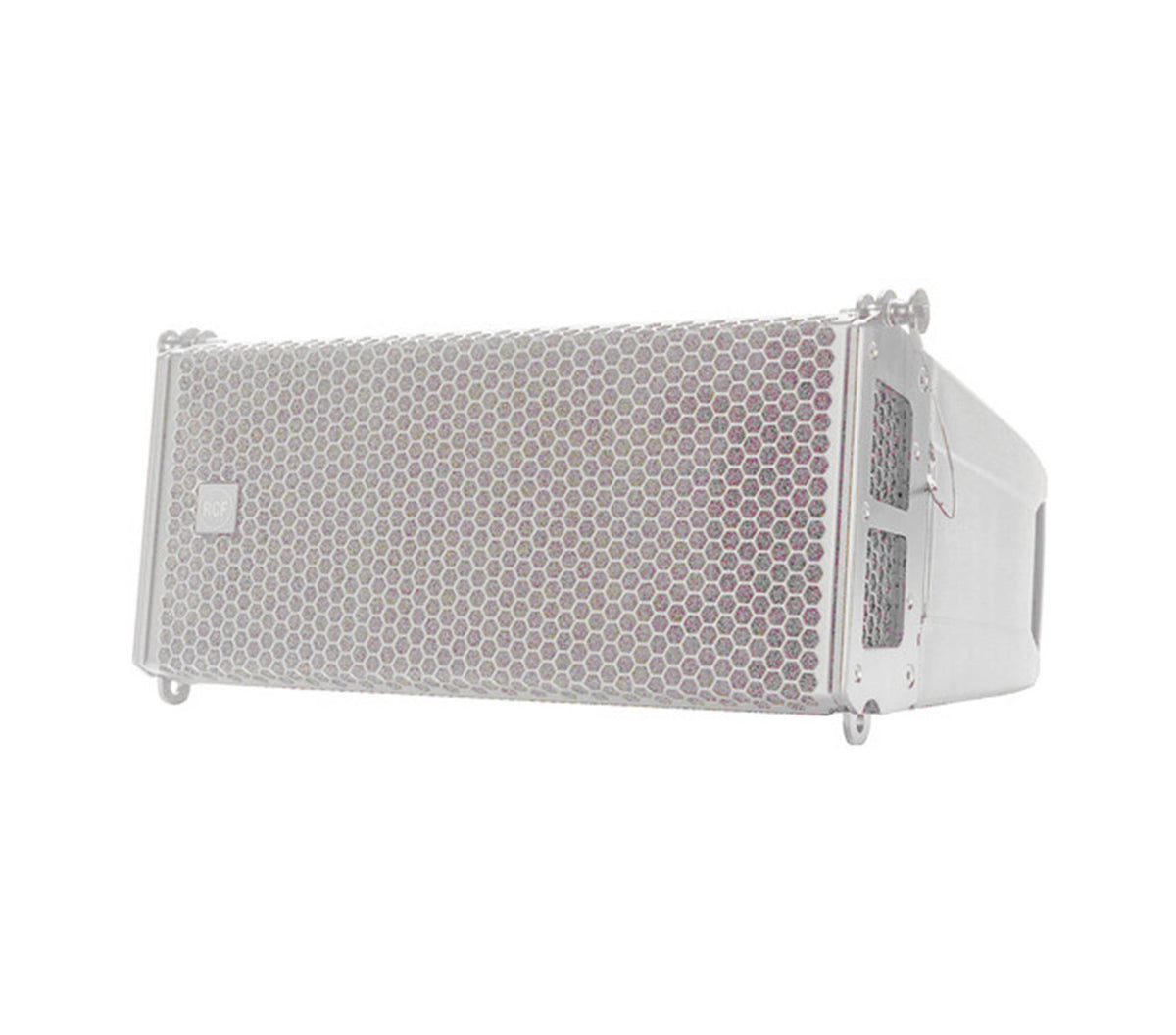

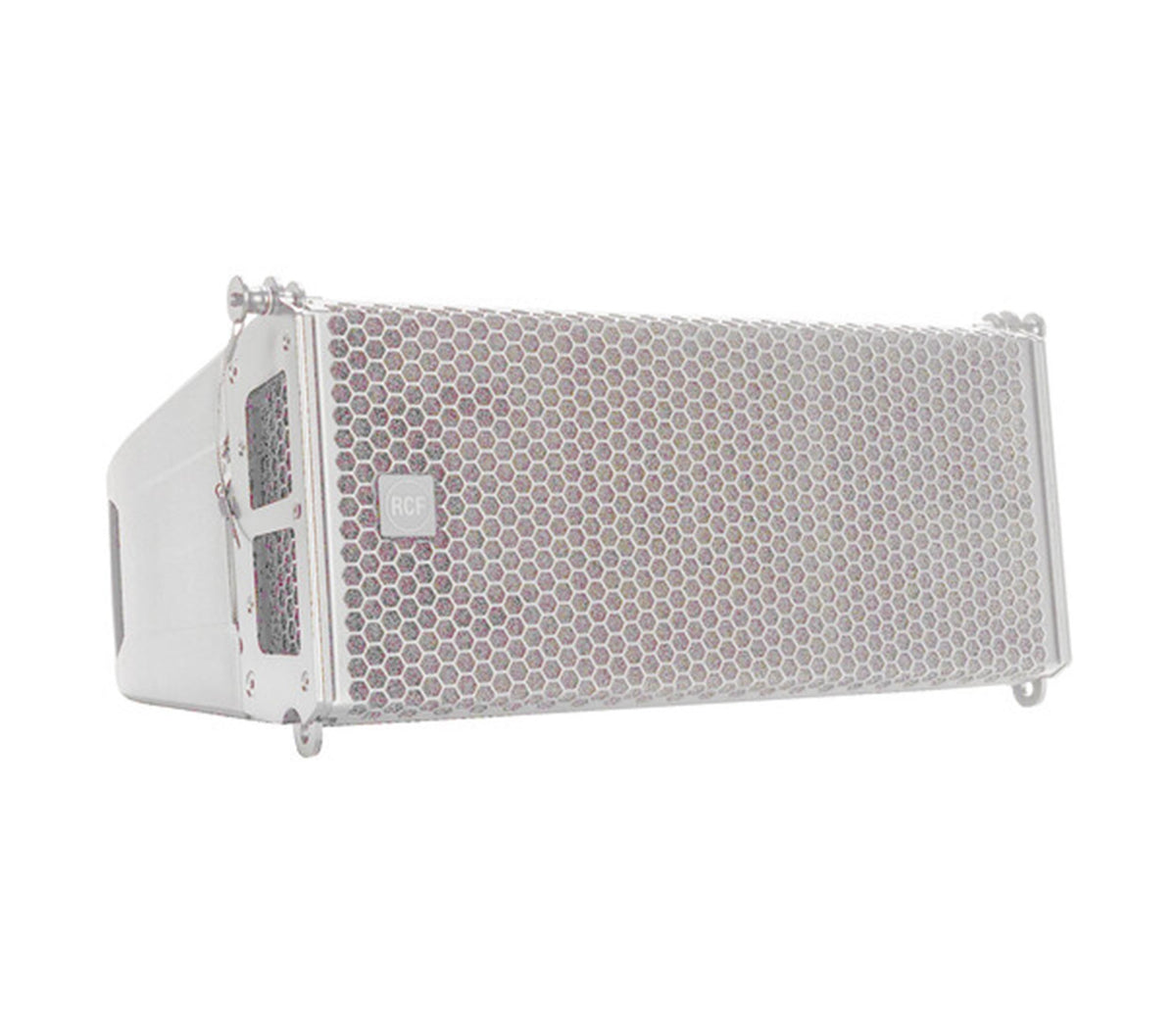

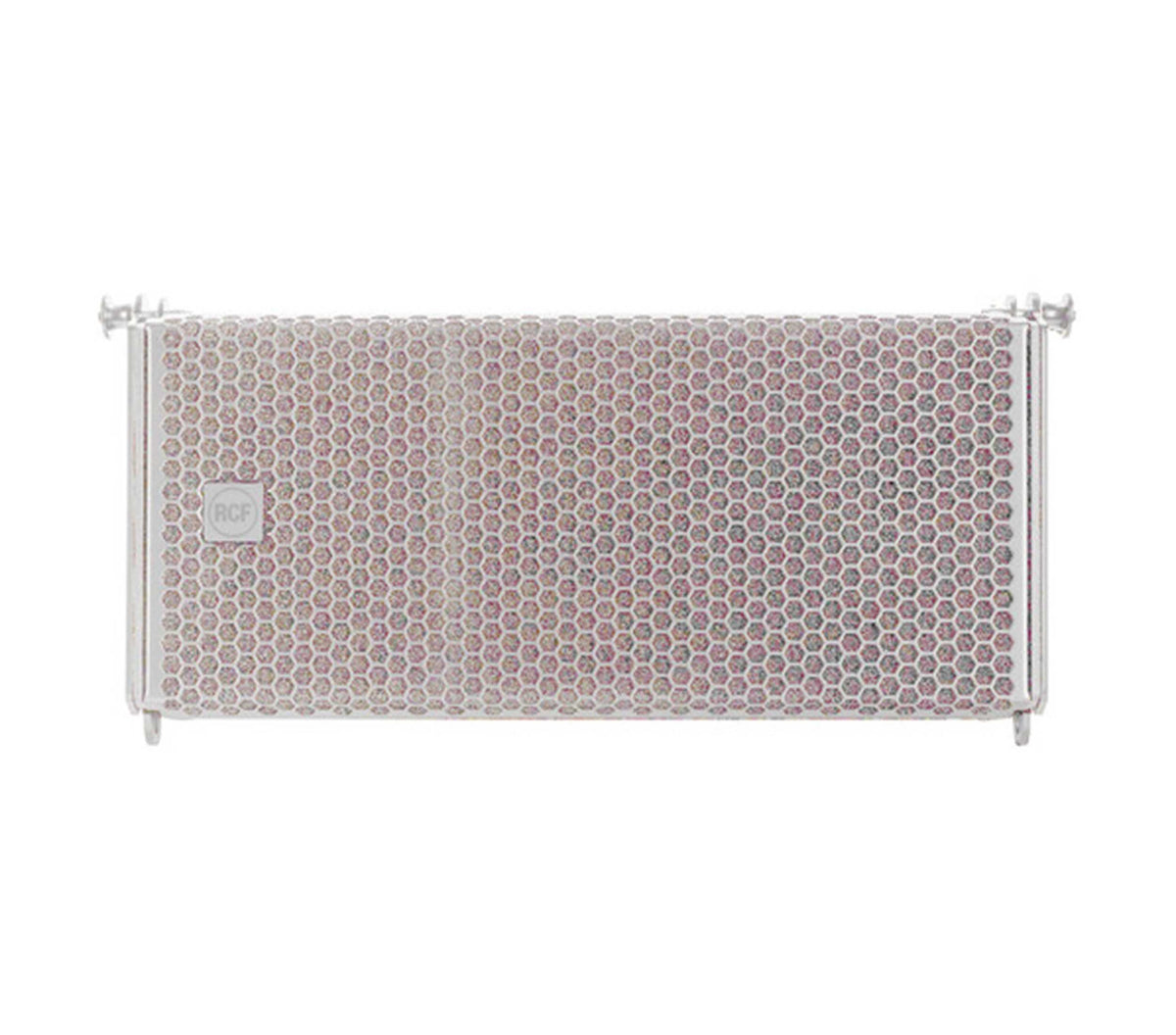

The RCF HL6-W is an ultra-compact passive two-way full-range line array module designed for small and medium-sized venues. Its combination of high output, wide horizontal coverage, and compact construction makes it suitable for a variety of professional sound reinforcement applications.
A 1.75-inch neodymium compression driver works with a constant-directivity waveguide to provide consistent 100° horizontal coverage across the vocal range. Two high-powered 6-inch neodymium woofers extend the system's low-frequency response while delivering up to 131 dB SPL.

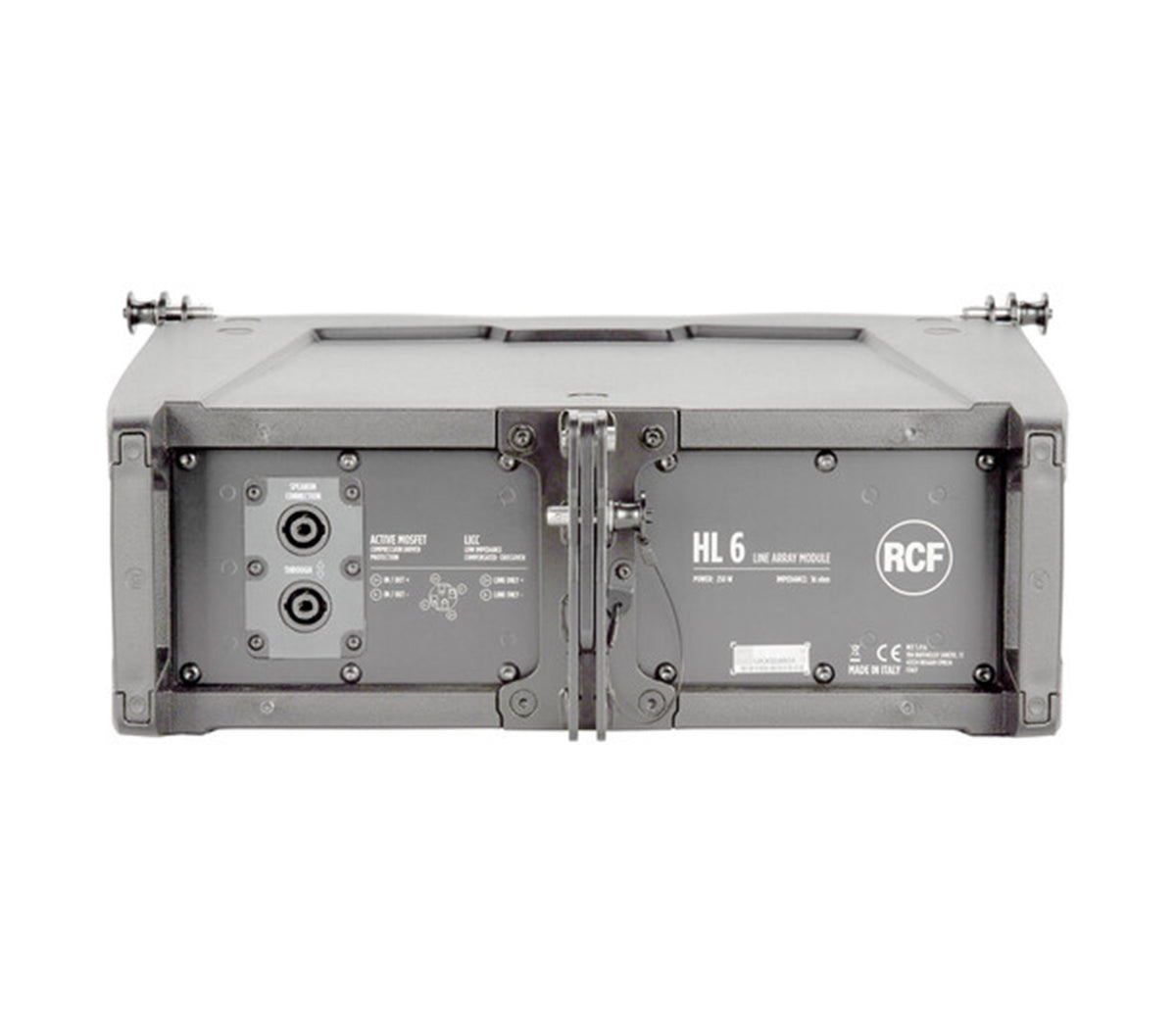

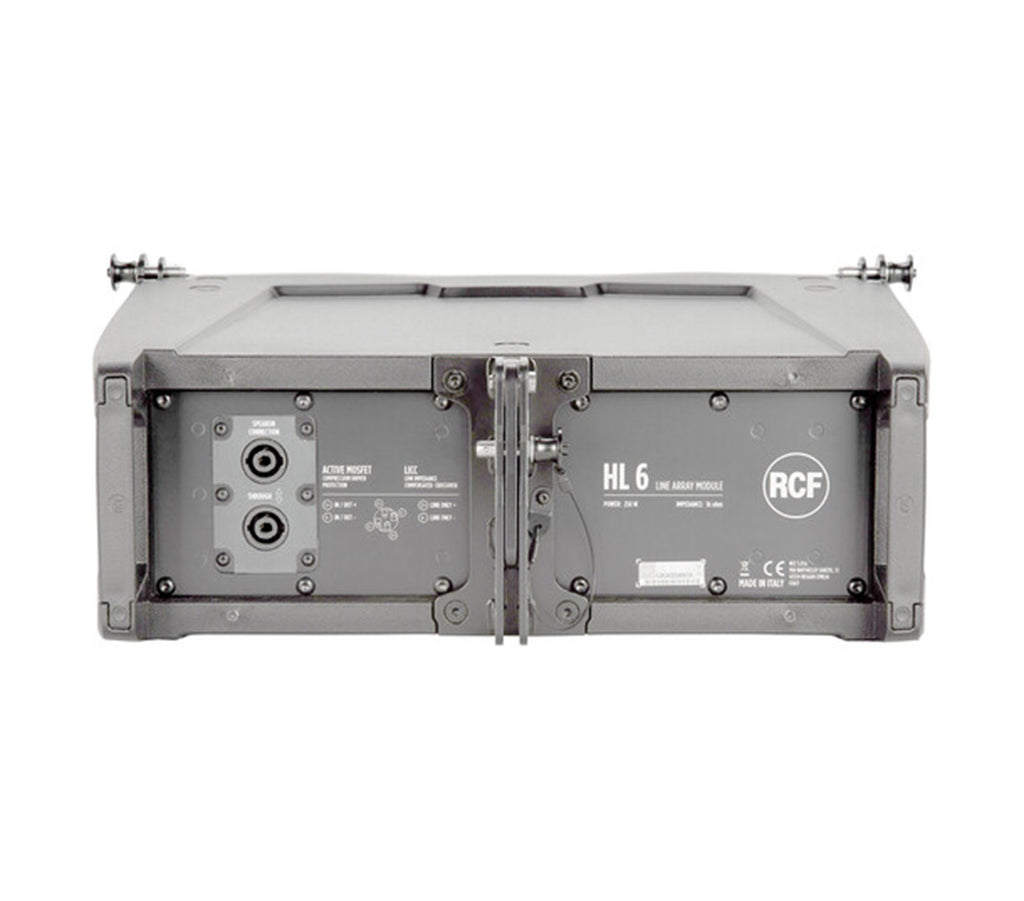

The lightweight PP composite cabinet features integrated array mechanics, two rear handles, and Speakon input and output connections. With 250W nominal and 1000W peak power handling, the HL 6 can be deployed individually or combined with additional modules in line-array configurations.
Product Specifications:
Product Type: Passive Two-Way Line Array Module
Frequency Response (-10 dB): 65 Hz–20 kHz
Maximum SPL @ 1 m: 131 dB
Horizontal Coverage: 100°
Vertical Coverage: 10°
Directivity Index Q: 16
Amplification: Full Range
Nominal Impedance: 16 ohms
Power Handling: 250 W
Peak Power Handling: 1000 W Peak
Protection: Dynamic Active MOSFET
Crossover Frequency: 900 Hz
Compression Driver: 1 × 1.0 in Neo, 1.75 in Voice Coil
Woofers: 2 × 6.0 in Neo, 2.0 in Voice Coil
Input Connectors: Speakon
Output Connectors: Speakon
Cabinet Material: PP Composite
Array Hardware: Integrated Array Mechanics
Handles: 2 Rear Handles
Grille: Steel
Safety Compliance: CE Compliant
Product Weight: 26.01 lbs
Product Dimensions: 9.33 H × 18.50 W × 14.84 L
Shipping Weight: 29.32 lbs
Shipping Dimensions: 10.24 H × 21.65 W × 16.73 L
