Description

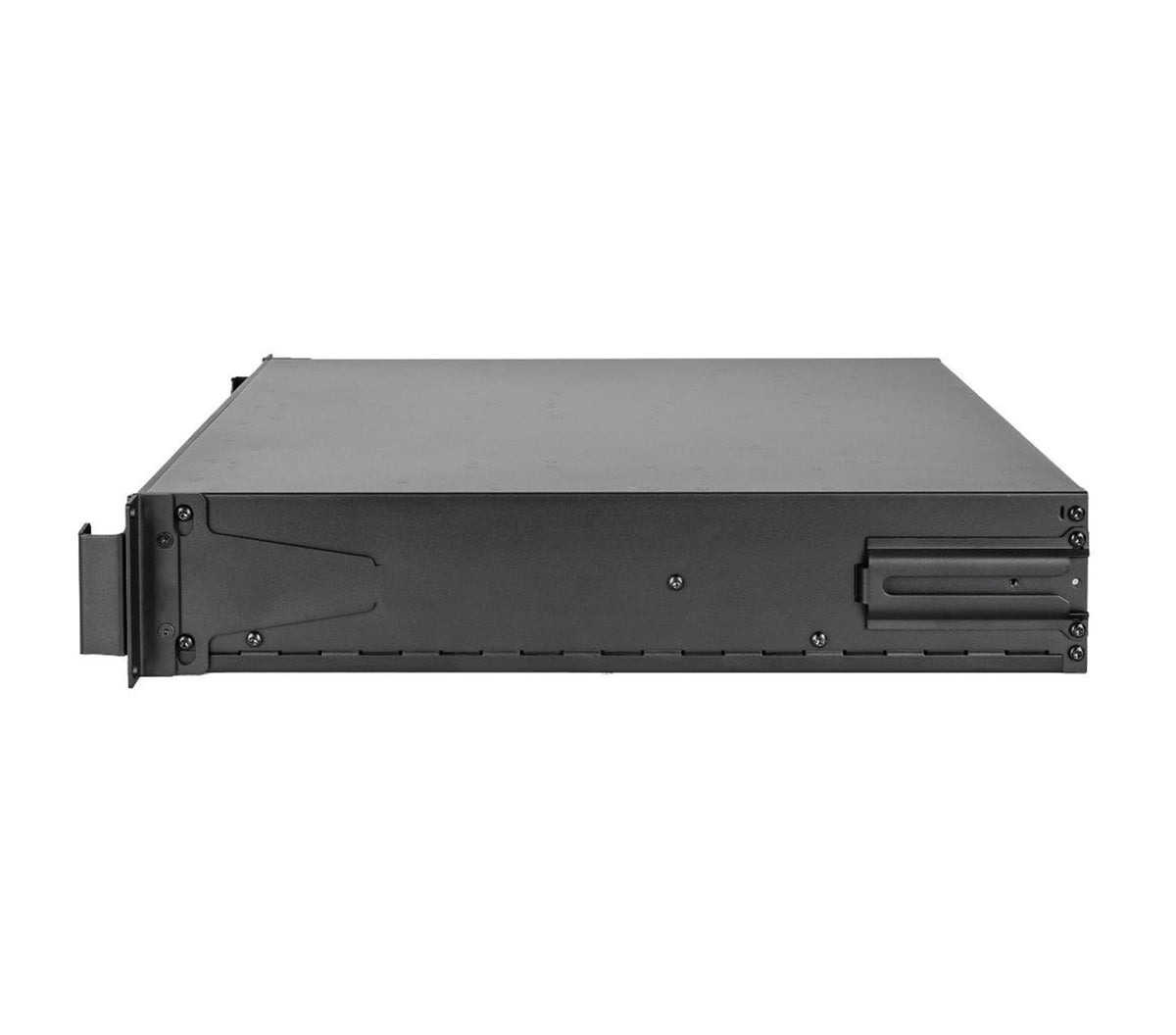

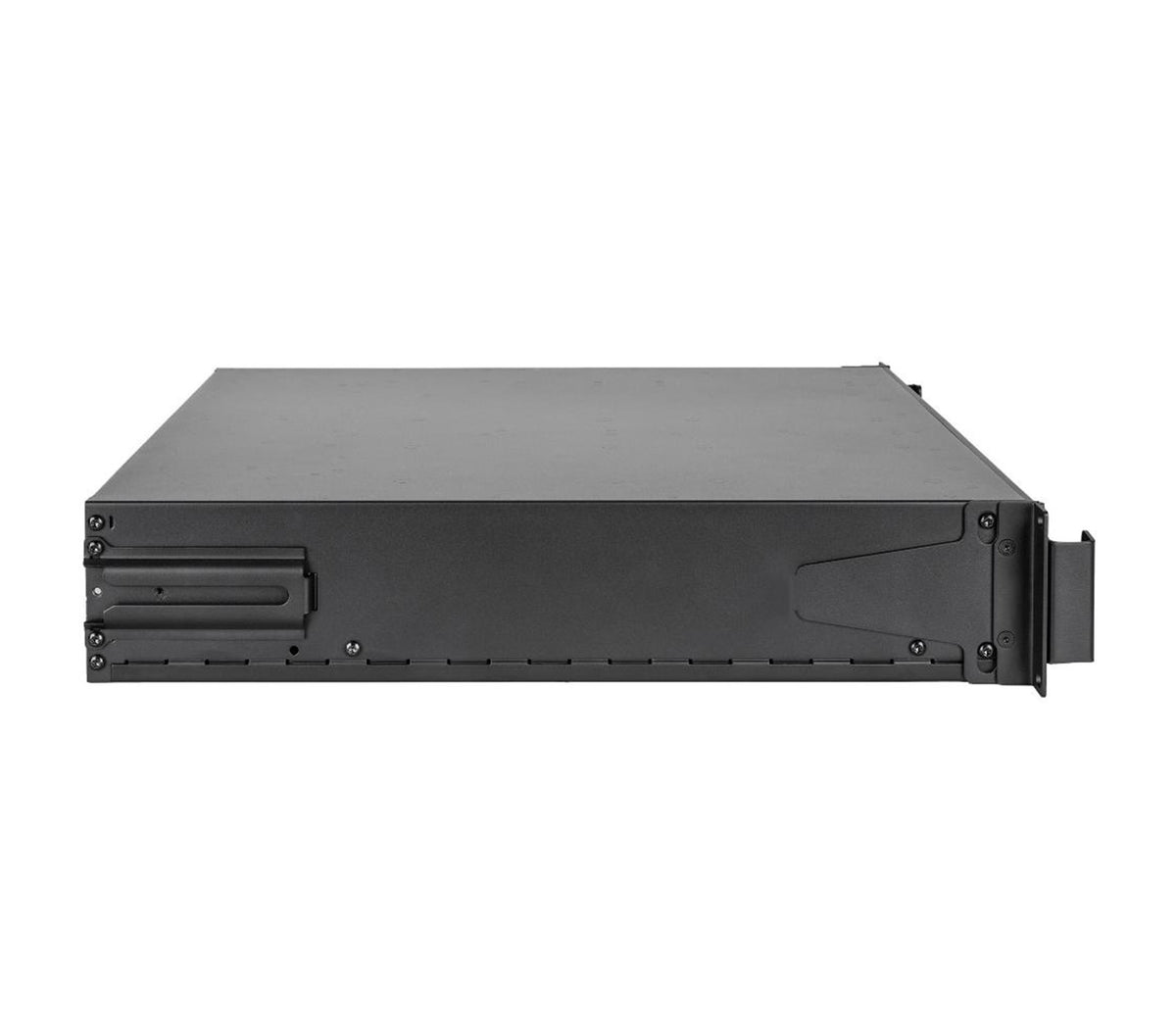

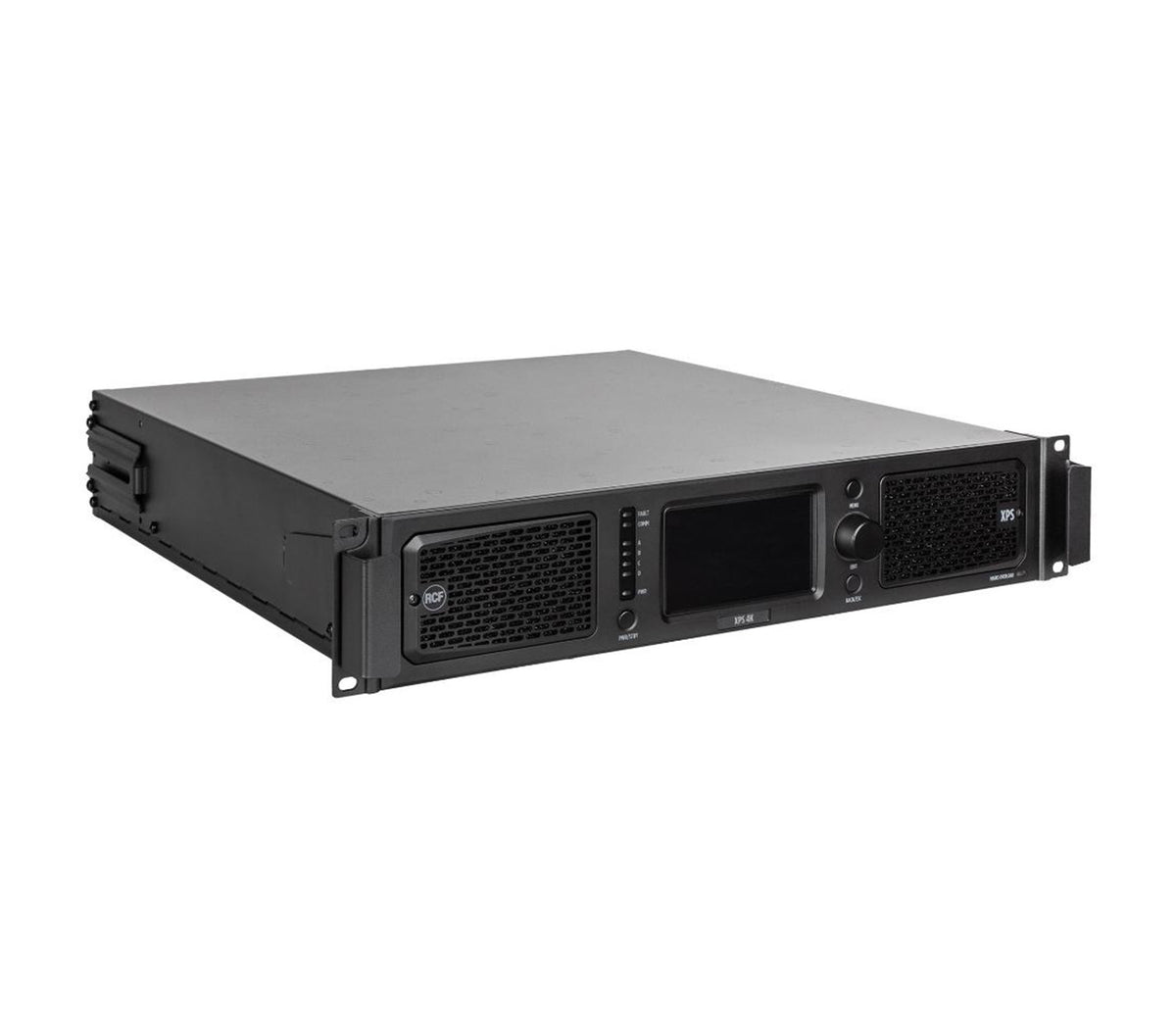

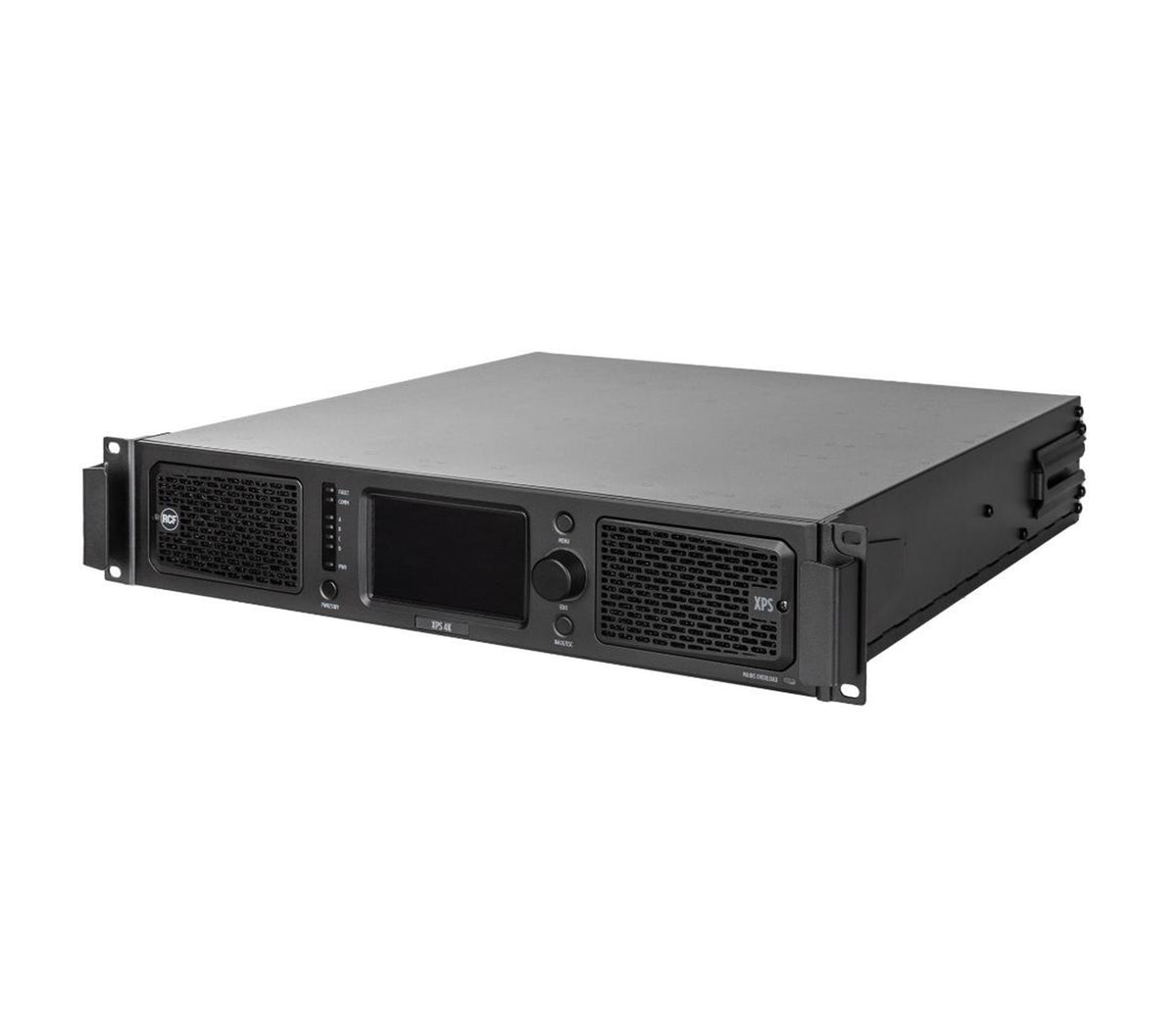

The RCF XPS 4K is a four-channel Class D DSP amplifier designed for demanding professional installed sound applications. Delivering up to 4000W of total continuous power, with 4 × 1000W at 4 ohms, it combines high power density with advanced digital processing in a compact 2U chassis.
Advanced DSP Processing & System Optimization
Each output channel includes comprehensive processing tools such as up to 4000 ms of delay, EQ filters, crossovers, FIR filters, multiband compression, RMS limiting, power limiting, and thermal protection. Advanced RCF technologies including FiRPHASE, Bass Shaper, air compensation, driver excursion control, and dynamic PEQ provide precise system optimization.
RDNet Control & Professional System Integration

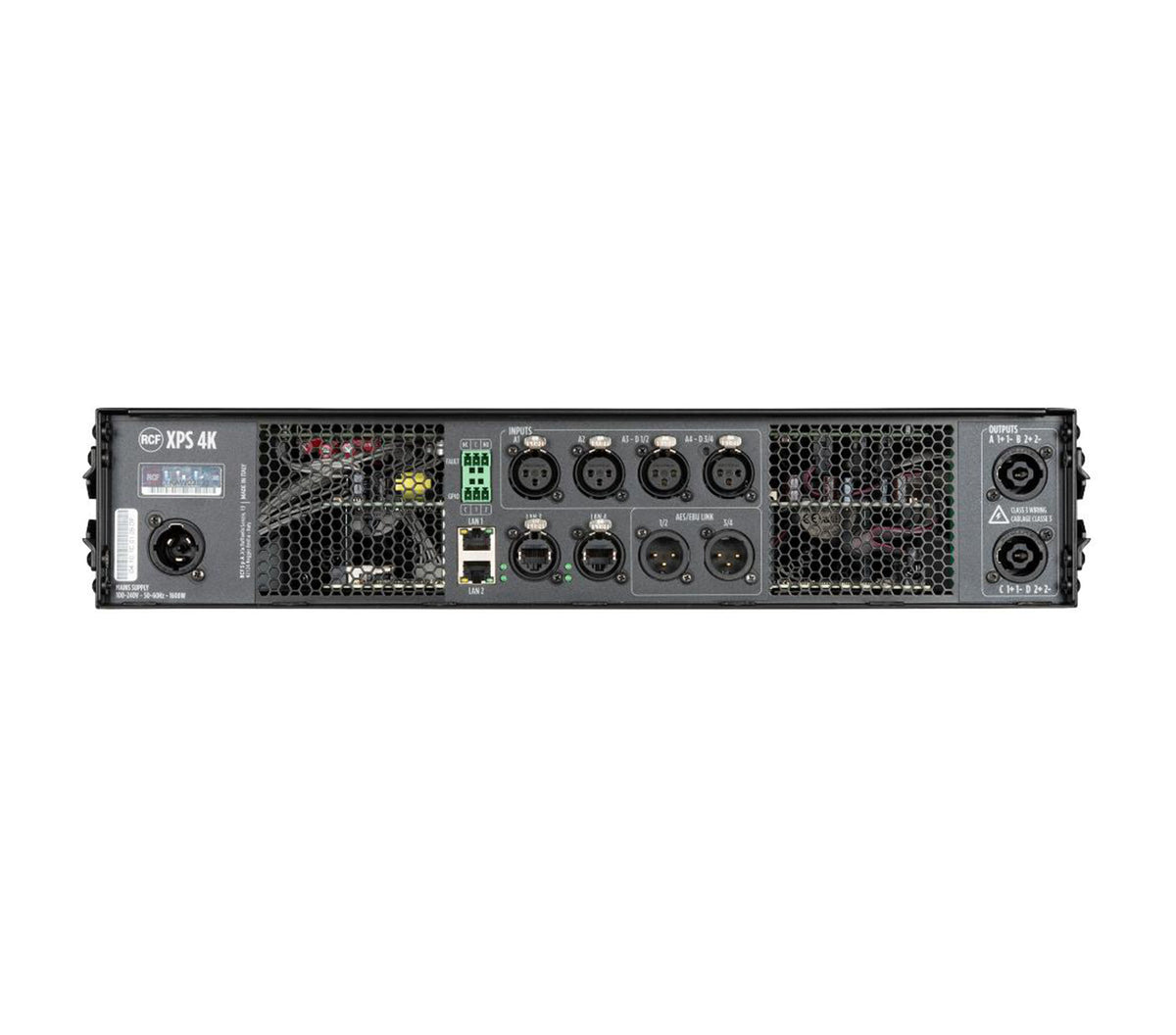

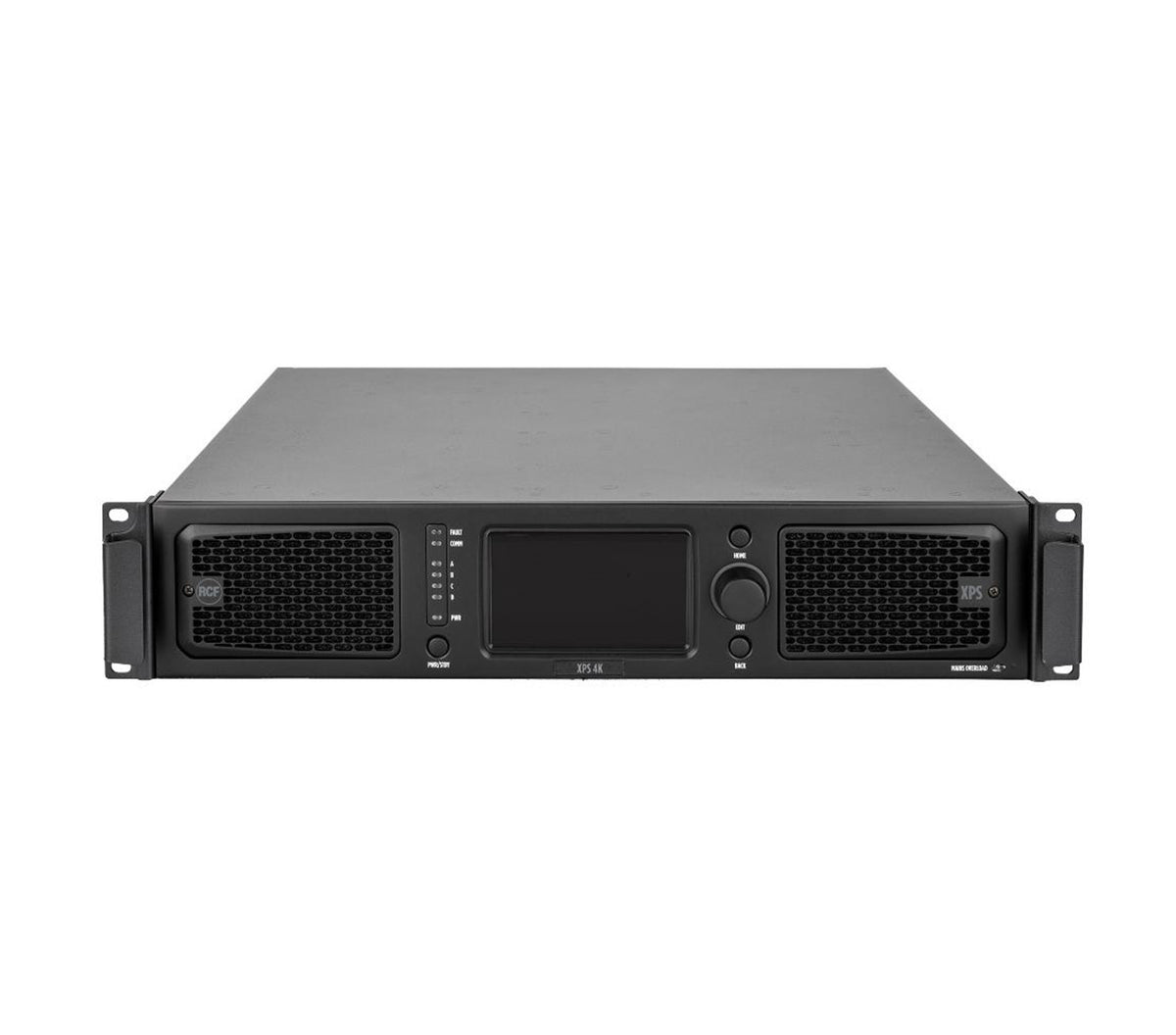

The XPS 4K also provides extensive system management through RDNet, Gigabit Ethernet, onboard RCF speaker presets, and a front-panel color touchscreen. With analog and AES/EBU digital inputs, flexible routing, comprehensive protection circuitry, and rackmount construction, it is well suited to high-performance installed sound systems.
Product Specifications:
Amplifier Class: Class D
Total Continuous Power: 4000W
Output Power: 4 × 1000W @ 4 ohm / 4 × 700W @ 8 ohm
Frequency Response (-3 dB): 20 Hz – 23,000 Hz
Analog Input SNR: >108 dB
Digital Input SNR: >112 dB
Crosstalk: <70 dB
THD+N: <0.2%
Gain: 32 dB
Damping Factor: >200 @ 4 ohm
Total Inputs: 8
Line Inputs: 4
Line Connectors: XLR
Digital Inputs: 4
Digital Connectors: XLR
Digital Format: AES/EBU
GPI Inputs: 2
Programmable GPI: Yes
Signal Outputs: 4
Signal Output Connectors: XLR
Power Output Connectors: Speakon
GPO Outputs: 3
Programmable GPO: Yes
DSP: 2 SHARC 40-bit Floating Point + 2 ADAU 32-bit Fixed Point, 96 kHz
EQ Filters: Peaking, High/Low Shelving, High/Low Pass
Advanced Processing: FiRPHASE, Bass Shaper, Air Compensation, Driver Excursion Control, Dynamic PEQ, Multiband Compressor
Limiters: RMS, Dynamic, Power, Thermal
Output Delay: 0–4000 ms per Channel
High-Pass Filter: 10–1000 Hz
Crossover Range: 2500–3500 Hz
Automatic Gain Control: Yes
Tone Controls: Yes
Network: Gigabit Ethernet
Remote Management: RDNet
Speaker Presets: RCF Presets Library
Control: Front Panel Touchscreen and PC Software
Protocols: Proprietary OSC-Based Protocol, RDNet
Cooling: Forced
Protections: Short Circuit, Thermal, DC, Fuse, VHF
Operating Temperature: -5°C to +40°C Continuous
Reduced Power Temperature: -5°C to +50°C
Fan Noise Idle: <28 dBA
Fan Noise Maximum: <48 dBA
Operating Voltage: 100–240V, 50/60Hz
Nominal Current @ 100–120V: 14A
Nominal Current @ 220–240V: 8A
Standby Power Consumption: 30W
Idle Power Consumption: 100W
Maximum Power Consumption: 2600W
Cabinet Material: Metal
Rack Mounting: 19", 2U
Handles: 2 Metal Rack-Mount Handles
Safety Agency: CE Compliant
Product Weight: 24.25 lbs
Product Dimensions: 3.49 H × 18.98 W × 18.99 L
Shipping Weight: 30.86 lbs
Shipping Dimensions: 5.91 H × 22.83 W × 23.62 L
