Description

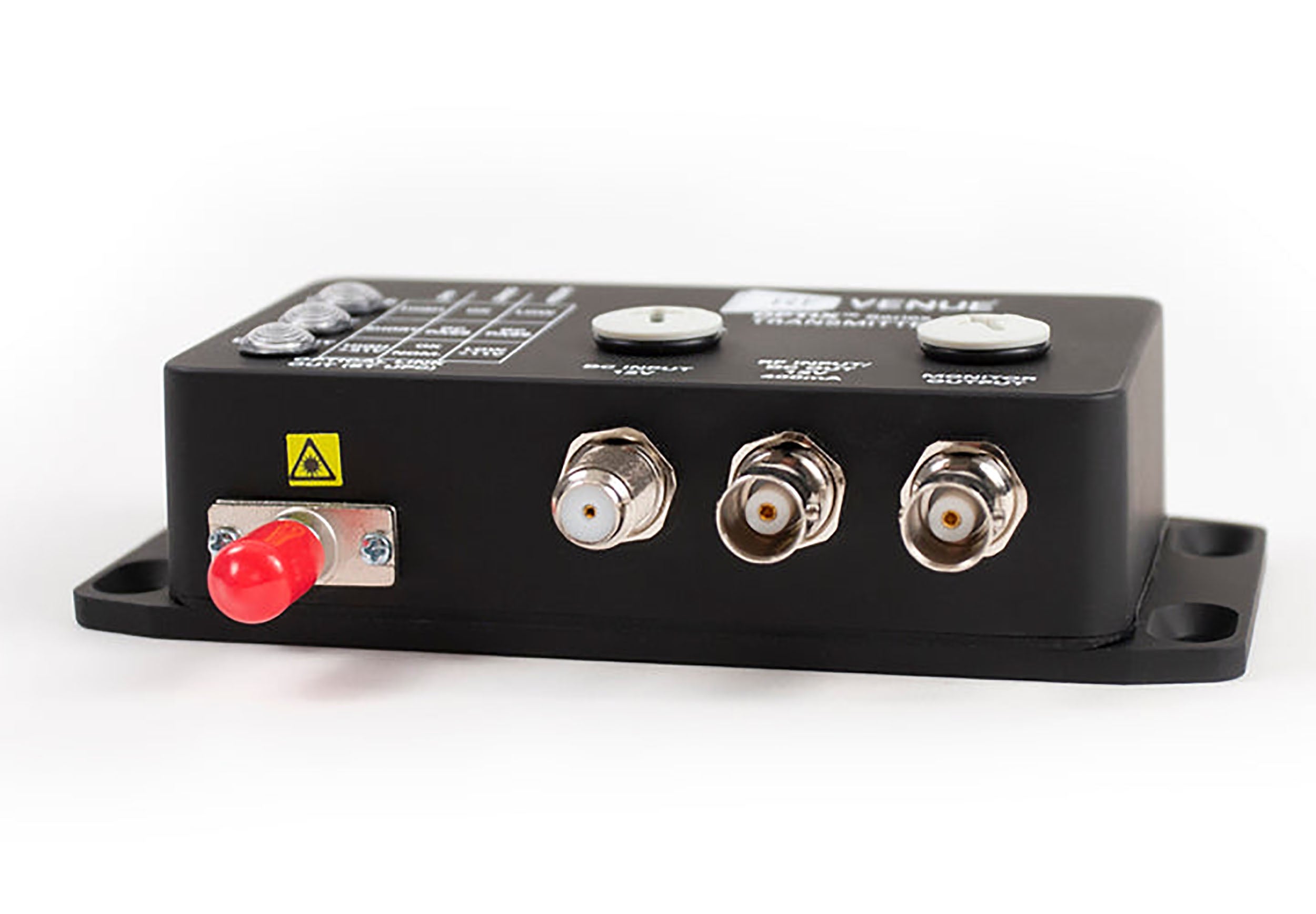

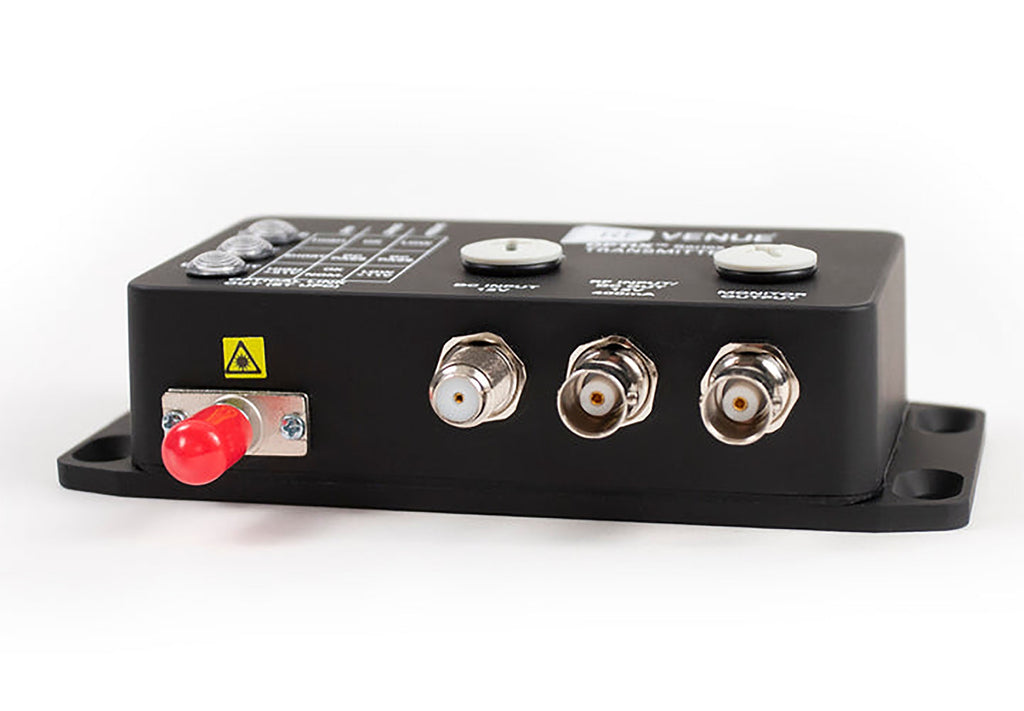

The RF Venue OPTIX Series 3 Two-Channel RF-over-Fiber Antenna Distribution System Kit is designed to transport RF signals over long distances without signal degradation, making it ideal for professional wireless audio installations. This two-channel kit includes two transmitter modules and two receiver modules, allowing you to extend multiple antenna paths using single-mode fiber-optic cable (sold separately). Each transmitter converts incoming RF signals into optical signals, while the corresponding receiver converts them back to RF with exceptional signal integrity.
Supporting a wide 175–960 MHz frequency range, the system is compatible with VHF, UHF, and 900 MHz wireless equipment. With a 60 dB usable dynamic range and 50-ohm impedance, the OPTIX Series 3 delivers reliable performance for wireless microphones, in-ear monitoring systems, broadcast applications, and permanent AV installations where long cable runs are required.

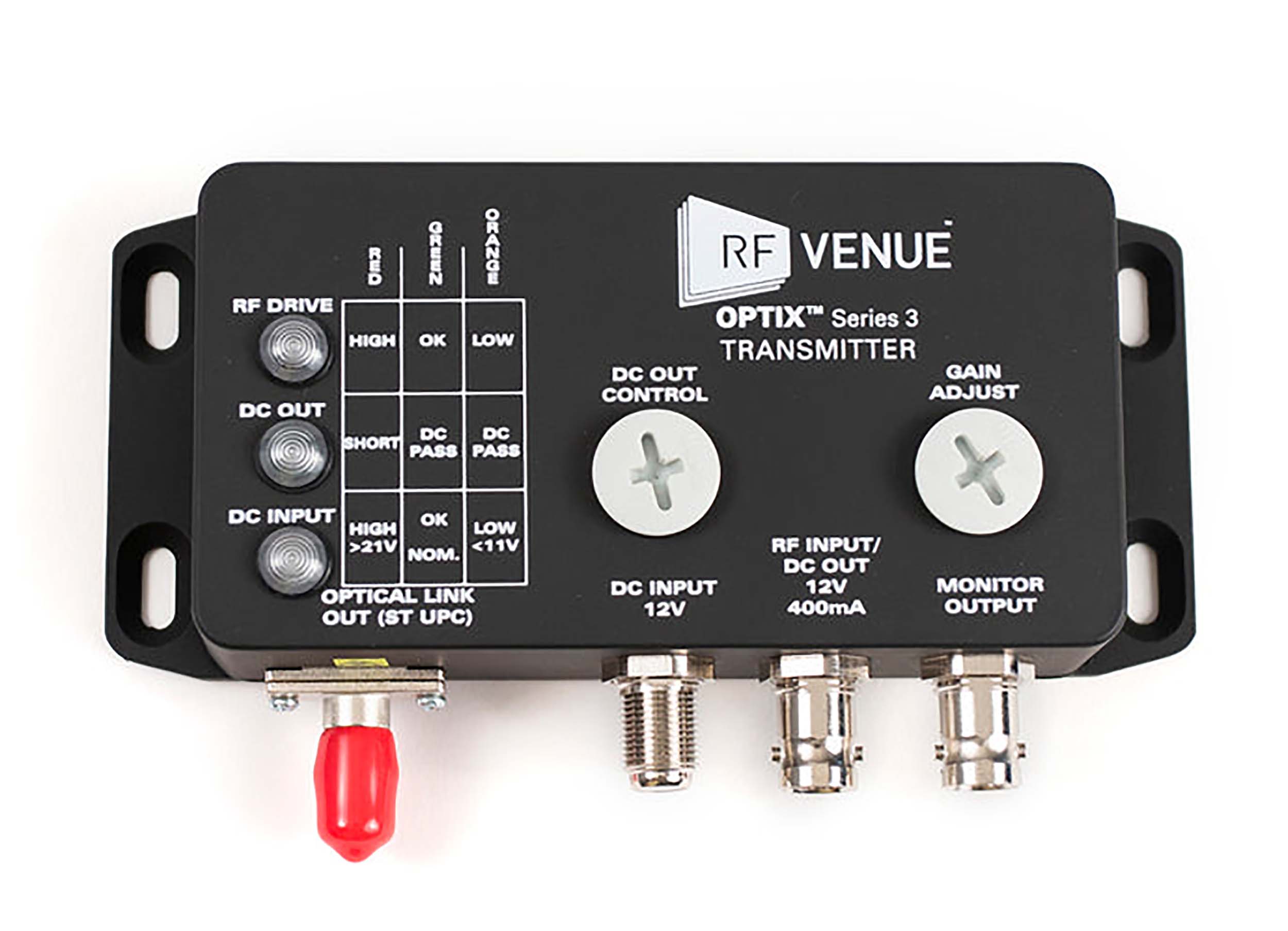

User-configurable controls make it easy to adjust signal levels, provide DC power to active antennas or inline amplifiers, and directly monitor outputs for optimal system performance. Both the transmitter and receiver modules feature three multicolor LED indicators for quick RF and DC status monitoring, simplifying setup and ongoing operation while ensuring dependable performance in demanding environments
What's Included:
RF Venue OPTIX Series 3 RF-over-Fiber Antenna Distribution System (2 Pack)

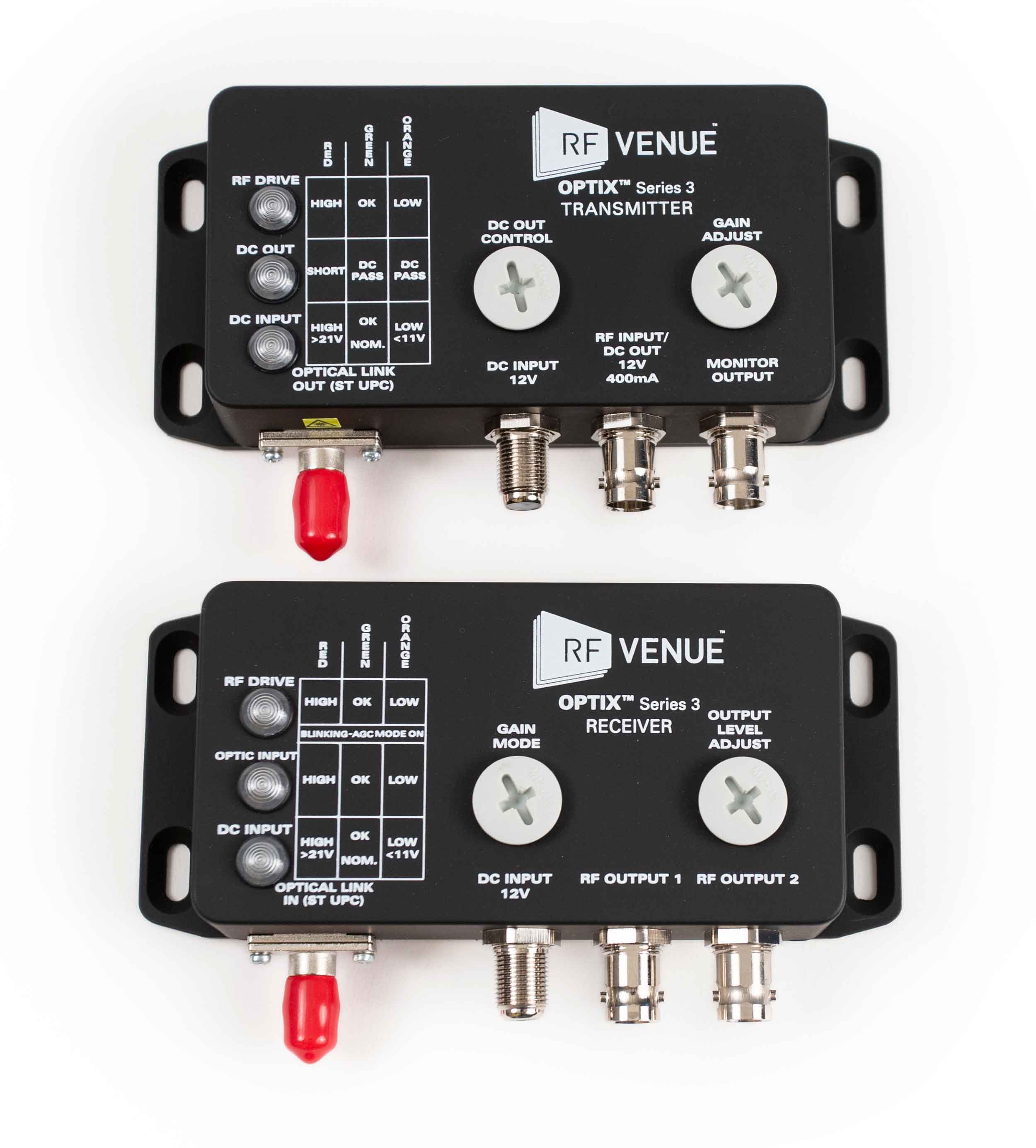

2 x Transmitter Modules
2 x Receiver Modules
Product Specifications:
Series: OPTIX Series 3
Configuration: Two-Channel Kit
Included Modules: 2 Transmitters, 2 Receivers
RF Frequency Range: 175–960 MHz
Supported Bands: VHF, UHF, 900 MHz
Dynamic Range: 60 dB
RF Impedance: 50 Ohms
Fiber Type: Single-Mode Fiber
Signal Conversion: RF to Optical / Optical to RF
Signal Level Control: User Configurable
DC Power: Supports Active Antennas and Amplifiers
Output Monitoring: Direct Monitoring
Status Indicators: Three Multicolor LEDs (RF/DC) per Module
Fiber-Optic Cable: Sold Separately
Dimensions: 5.4 × 3.0 × 5.2 in
Weight: 904 g (2 lb)
