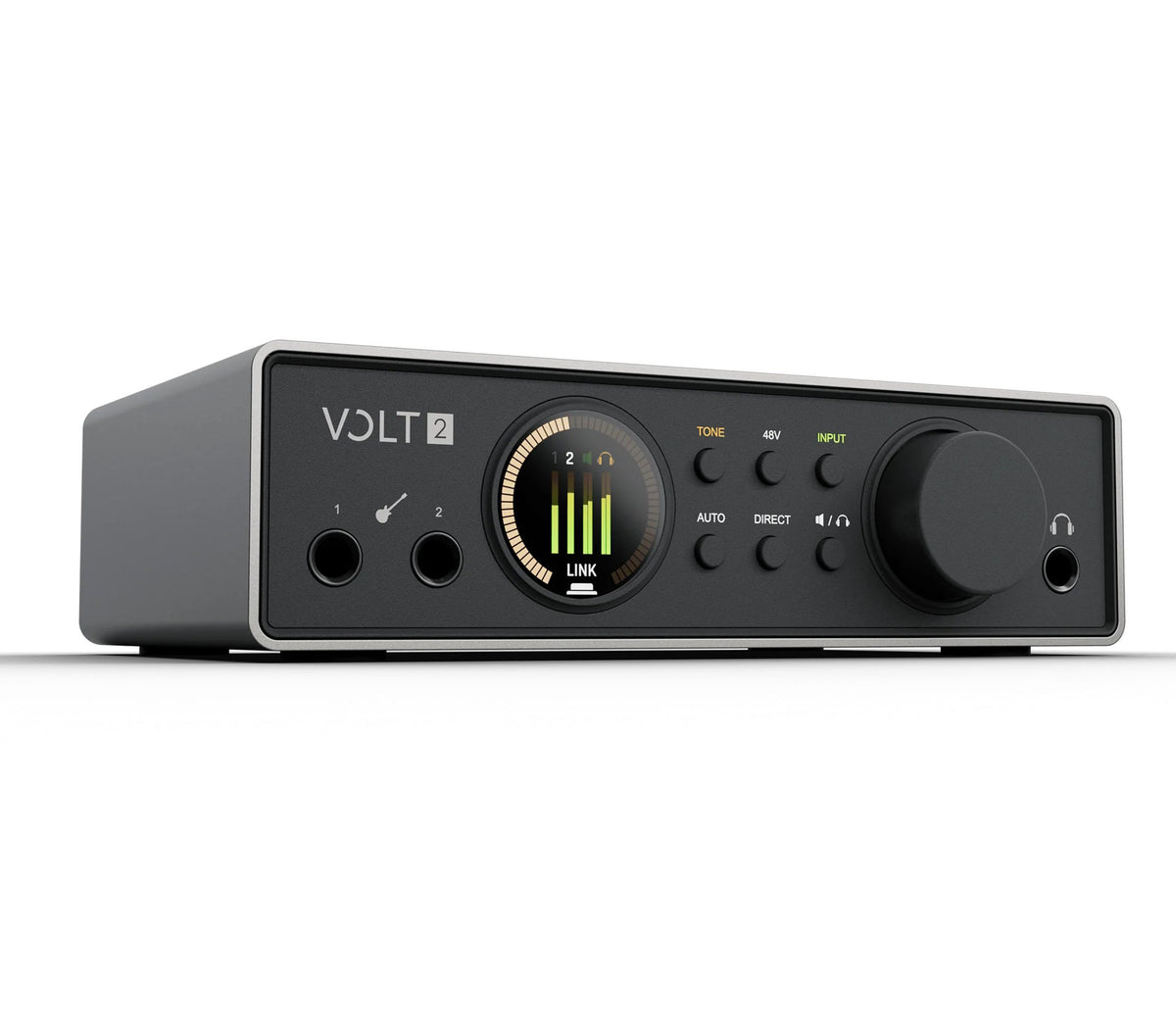

Universal Audio Volt 2 Gen 2 USB Audio Interface 32-Bit Audio with Tone-Shaping Preamps and Auto-Gain

The Universal Audio UA-VOLT-2-G2-U Volt 2 Gen 2 is a compact USB audio interface designed to help musicians, producers, podcasters, and content creators capture professional-quality recordings. Its two microphone preamps provide up to 60 dB of digitally controlled gain with Tone Shaping, helping give vocals and instruments a rich, record-inspired character.

Detailed 32-Bit Audio Performance

With 32-bit A/D-D/A conversion and support for sample rates up to 192 kHz, Volt 2 Gen 2 provides detailed audio capture and playback for demanding recording workflows. Two mic/instrument inputs allow simultaneous recording of vocals and instruments, while balanced monitor outputs and a stereo headphone output provide flexible monitoring options.

Easy Recording, Podcasting & Livestreaming

Volt 2 Gen 2 features Auto-Gain and clip protection to help simplify level setting and protect recordings from unexpected signal peaks. Its Loopback capability allows computer audio to be combined with live sources for real-time podcasts, livestreams, and video calls. USB bus power also makes the interface convenient for mobile recording without requiring an external power supply.

Product Specifications:

Product Type: USB Audio Interface

Interface Type: USB Audio Interface

Simultaneous I/O: 2-In / 4-Out

Microphone Preamps: 2

Microphone Preamp Gain: 60 dB with Tone Shaping

Tone Shaping: Yes

Monitor Outputs: 1 Stereo

Headphone Outputs: 1 Stereo

Headphone Cue Mix: 1 Cue Mix

USB Host Port: 1 USB 2.0

USB External Power Input: 1

USB Connector Type: USB Type-C

External Power Requirement: 5 VDC @ 1 A Minimum

Digital/Optical I/O: None

MIDI I/O: None

A/D-D/A Bit Depth: 32-Bit

Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

Power Type: USB Bus-Powered

USB Bus Power: Yes

Power Consumption: 3.4 W Typical / 4.9 W Maximum @ 5 VDC

Power Switch: None

Auto-Gain: Yes

Clip Protection: Yes

Loopback: Yes

Smart Display: Yes

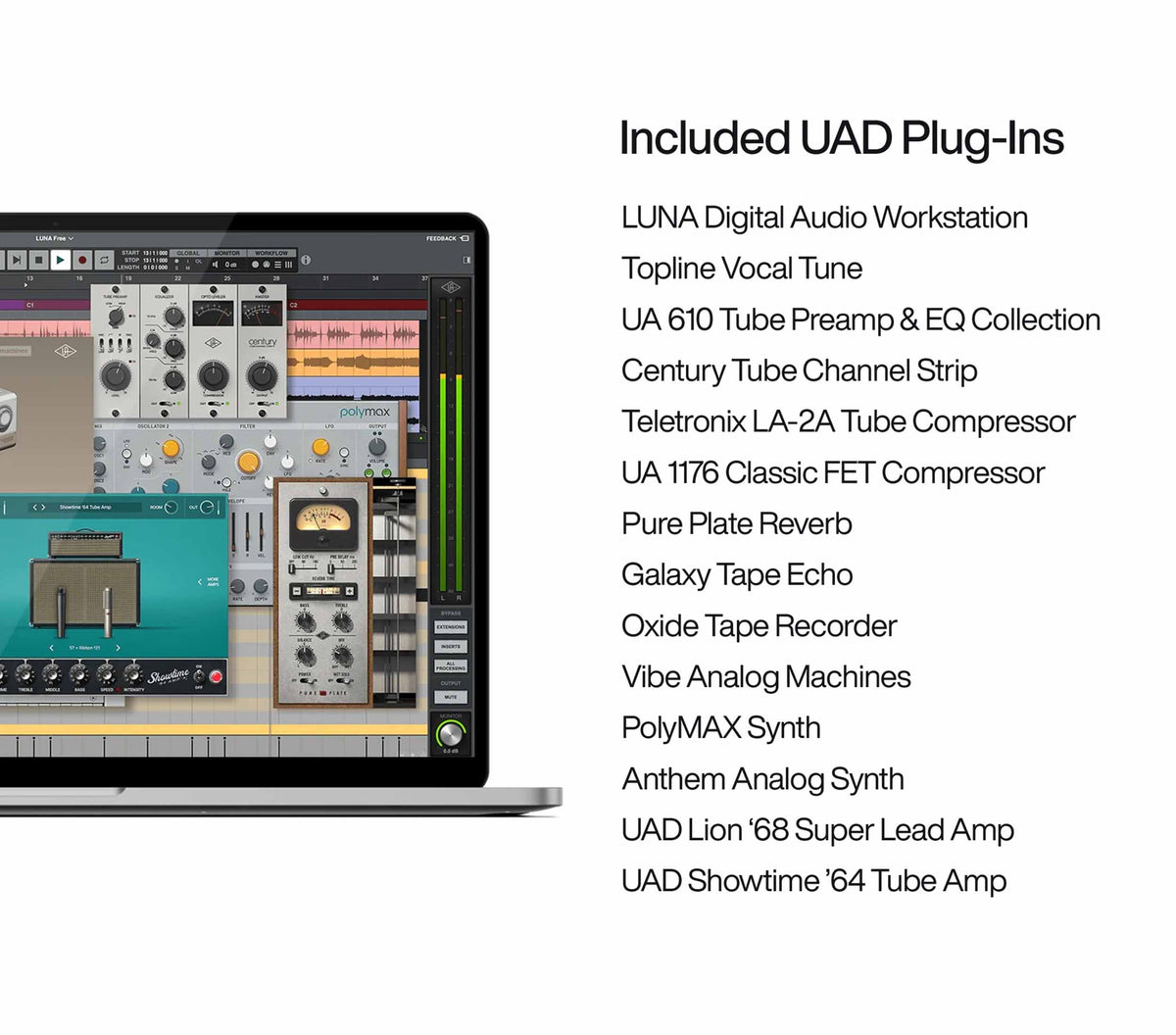

Included Software: UAD Plug-Ins and Instruments, LUNA DAW

UAD Software Bundle: Over 15 Plug-Ins and Instruments

Frequency Response: 20 Hz–20 kHz ±0.02 dB

Dynamic Range: 116 dB A-Weighted

THD + Noise: -108 dB (0.0004%) @ 1 kHz, -1 dBFS

Maximum Input Level: 13 dBu

Input Impedance: 1 Megohm

Available Gain: 60 dB Digitally Controlled

Connector Type: 1/4" TS Unbalanced

Frequency Response: 20 Hz–20 kHz ±0.08 dB

Dynamic Range: 119 dB A-Weighted

THD + Noise: -110 dB (0.0003%) @ 1 kHz, -1 dBFS

Maximum Input Level: 14 dBu

Input Impedance: 2 Kilohms

Available Gain: 60 dB Digitally Controlled

Phantom Power: +48 V Switchable Per Channel

Connector Type: XLR Combo Jack, Pin 2 Positive

Frequency Response: 20 Hz–20 kHz ±0.05 dB

Dynamic Range: 119 dB A-Weighted

THD + Noise: -108 dB (0.0004%) @ 1 kHz, -1 dBFS

Maximum Input Level: 22 dBu

Input Impedance: 10 Kilohms

Available Gain: 60 dB Digitally Controlled

Connector Type: 1/4" Combo Jack, TRS Balanced or TS Unbalanced

Frequency Response: 20 Hz–20 kHz ±0.05 dB

Dynamic Range: 126 dB A-Weighted

THD + Noise: -112 dB (0.0003%) @ 1 kHz, -1 dBFS

Maximum Output Level: 20.2 dBu

Output Impedance: 200 Ohms

Connector Type: 1/4" TRS Balanced, DC Coupled

Frequency Response: 20 Hz–20 kHz ±0.08 dB

Dynamic Range: 116 dB A-Weighted

THD + Noise: -103 dB (0.0007%) @ 1 kHz, -1 dBFS into 300 Ohms

Maximum Output Power: 45 mW into 32 Ohms

Maximum Output Power: 24 mW into 300 Ohms

Connector Type: 1/4" TRS Stereo Unbalanced, DC Coupled

Application: Music Recording, Podcasting, Livestreaming & Content Creation

Mobile Recording: USB Bus-Powered

External Power Supply: Not Required for USB Bus-Powered Operation

Shipping Weight: 2.1 lbs

Shipping Dimensions: 3.1" H × 7.3" W × 9.1" L
