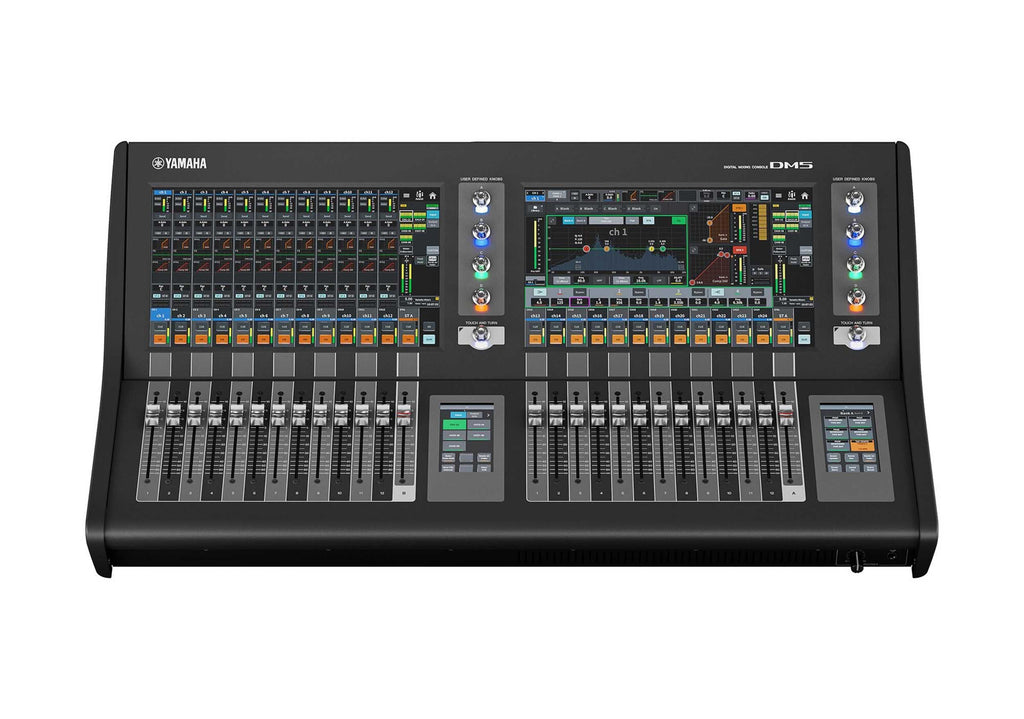

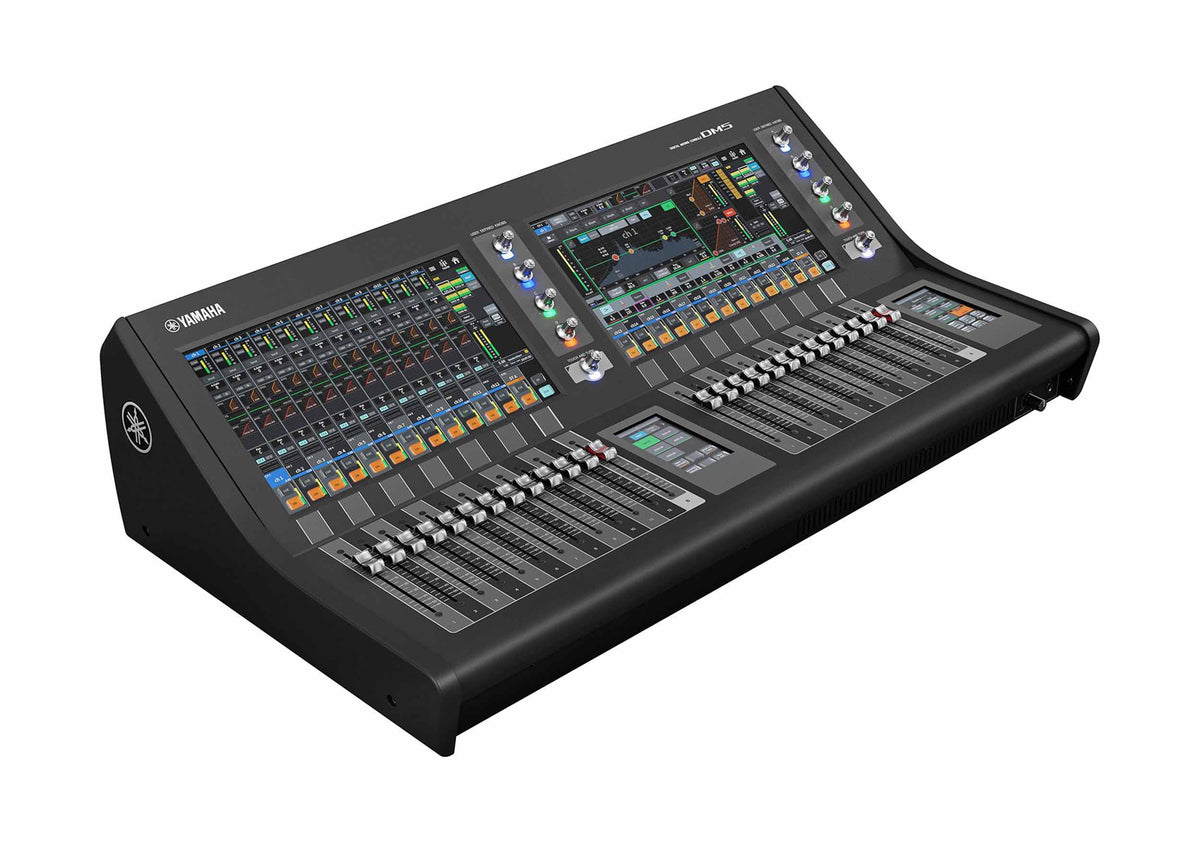

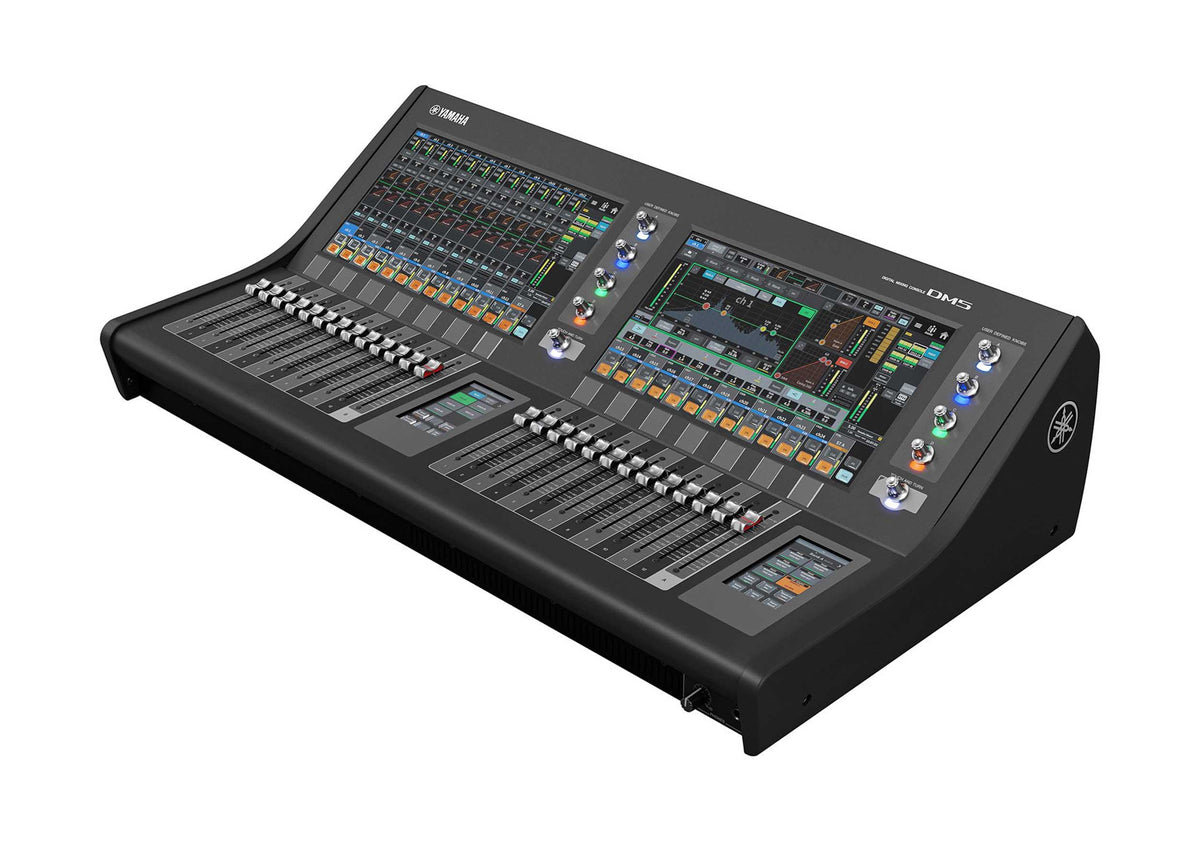

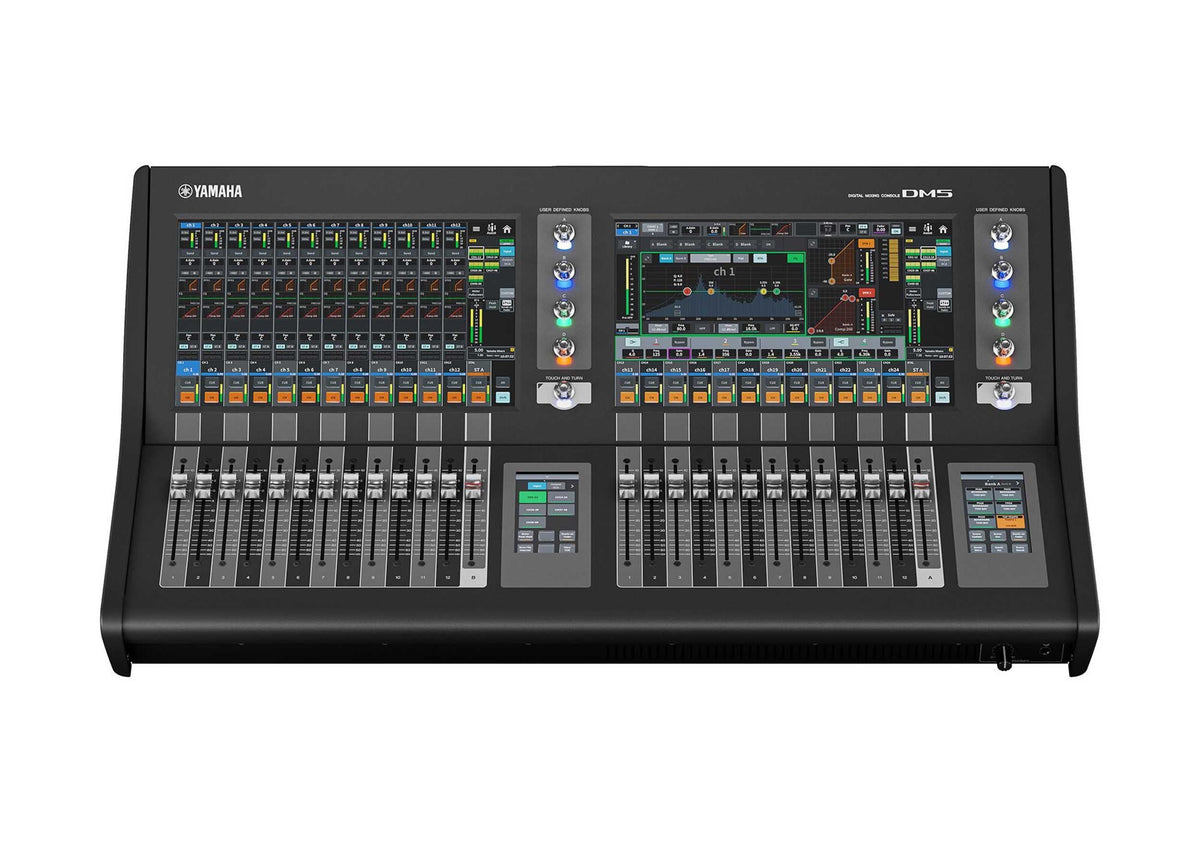

The Yamaha DM5 is a professional digital mixing console designed for live sound, broadcast, corporate events, theater productions, and other demanding audio applications. Built on the powerful DM7 series engine, it combines Yamaha's renowned sound quality with a streamlined dual-bay layout, advanced signal processing, and flexible connectivity. With 60 mono input mixing channels and 96kHz audio operation, the DM5 provides the capacity and precision needed for complex productions.

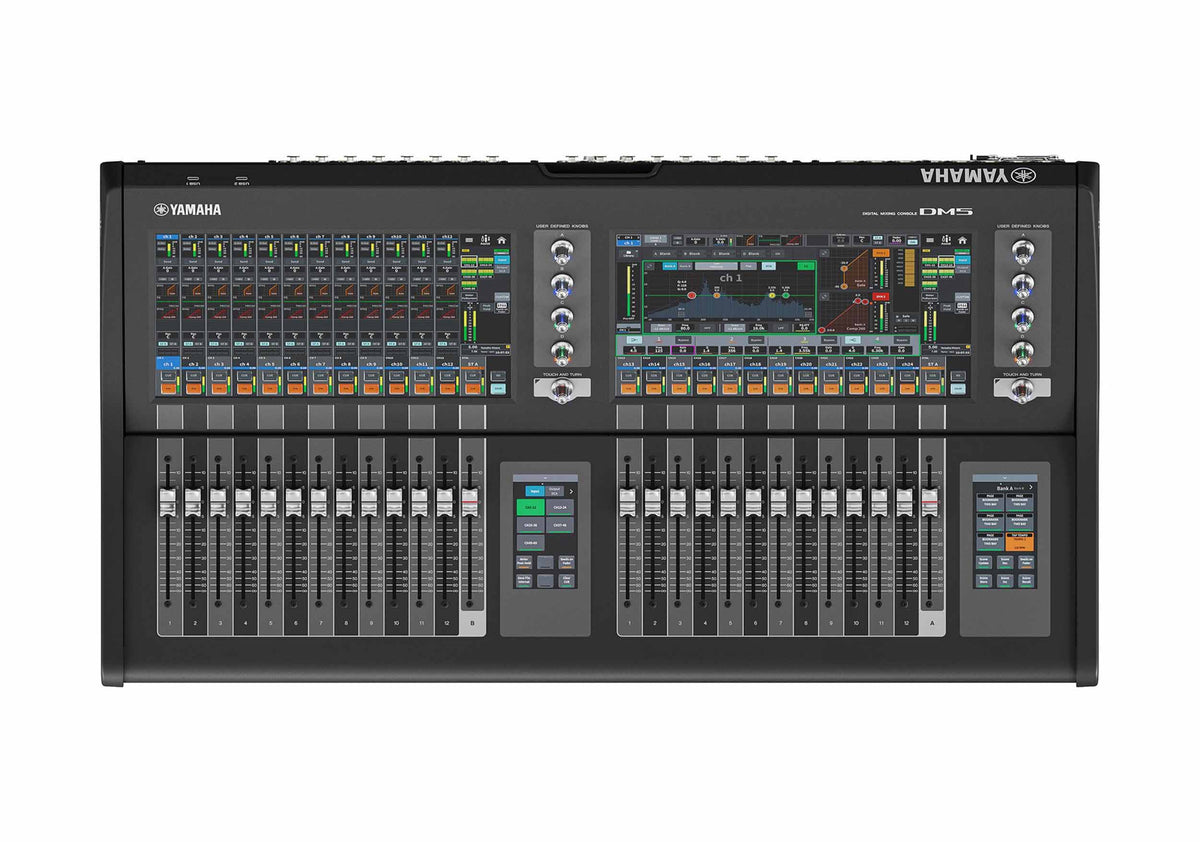

The console features 26 motorized faders arranged in two 12-channel bays, each with a master fader, alongside two 13.3-inch multi-touchscreens and two 4.3-inch utility displays. Its interface draws inspiration from Yamaha's flagship RIVAGE PM series, combining touchscreen navigation with physical controls for efficient access to channel parameters, dynamics, metering, and signal routing. Adjustable display angles help operators maintain visibility in different working environments.

Designed to adapt to different production workflows, the DM5 includes 24 Mix buses, 12 Matrix buses, two Stereo buses, 12 DCA groups, and 16 FX racks. Its 64 × 64 Dante interface supports networked audio integration, while the 18 × 18 USB-C audio interface enables computer-based recording and playback. With a dedicated PY expansion slot, flexible patching, DAW control, and split-mode operation, the DM5 is equipped for demanding front-of-house, monitor, and broadcast mixing applications.

Key Features

• 60 Mono Input Channels: Handles complex live and installed audio systems.
• 96kHz Audio: High-resolution digital audio processing.
• Dual-Bay Layout: Two control bays with 26 motorized faders.
• Multi-Touch Displays: Two 13.3-inch screens and two 4.3-inch utility displays.
• Dante Networking: 64 inputs and 64 outputs over Dante.
• USB-C Audio: 18-input/18-output computer audio interface.
• Flexible Bus Architecture: 24 Mix, 12 Matrix, and two Stereo buses.
• Built-In Effects: 16 FX racks for integrated signal processing.
• PY Expansion Slot: Supports compatible Yamaha PY-series expansion options.
• Split Mode: Supports workflows such as FOH and monitor or FOH and broadcast mixing.

Ideal For

• Live concerts and touring productions.
• Front-of-house and monitor mixing.
• Broadcast and streaming audio.
• Corporate presentations and conferences.
• Theater and performing arts venues.
• Houses of worship and professional installations.
• Recording and playback workflows using a computer.

What's in the Box

• 1 × Yamaha DM5 Digital Mixing Console.
• 1 × AC power cable.
• 1 × Dust cover.
• Cable hooks.
• Owner's manual.

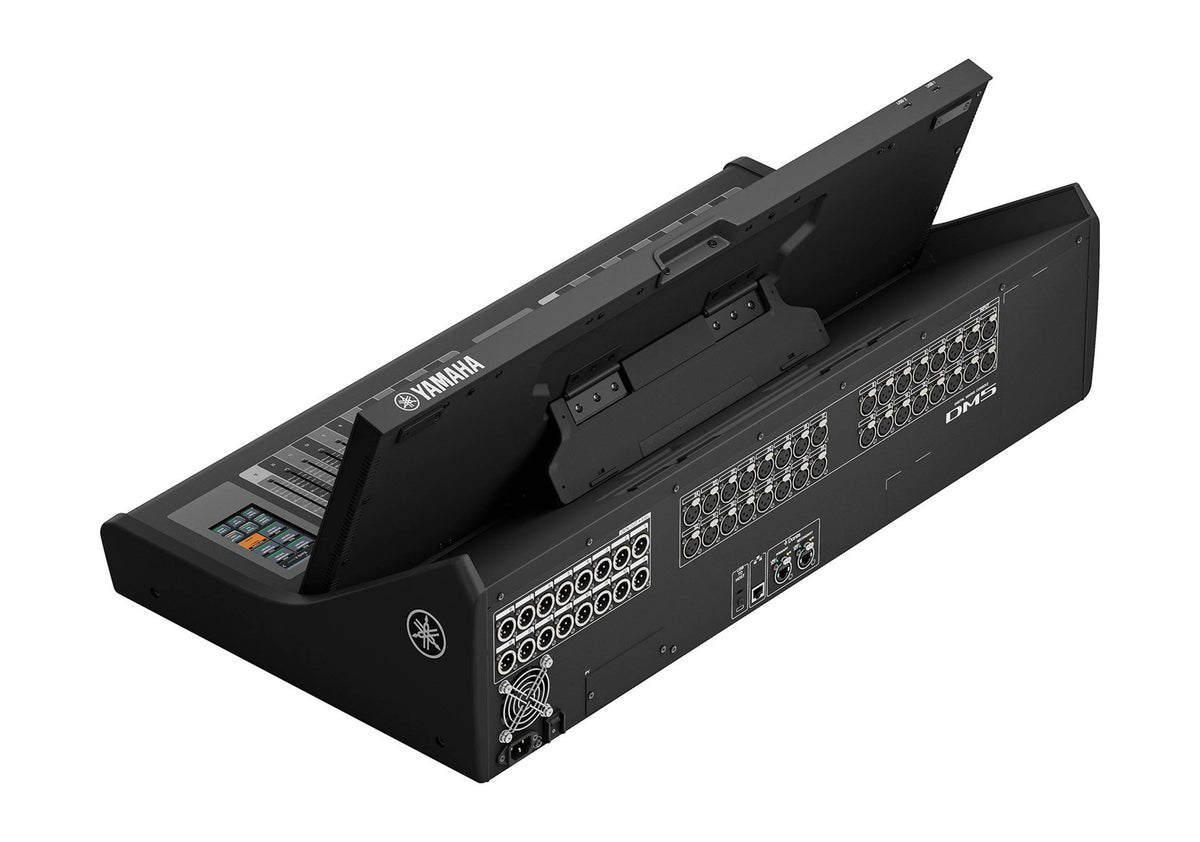

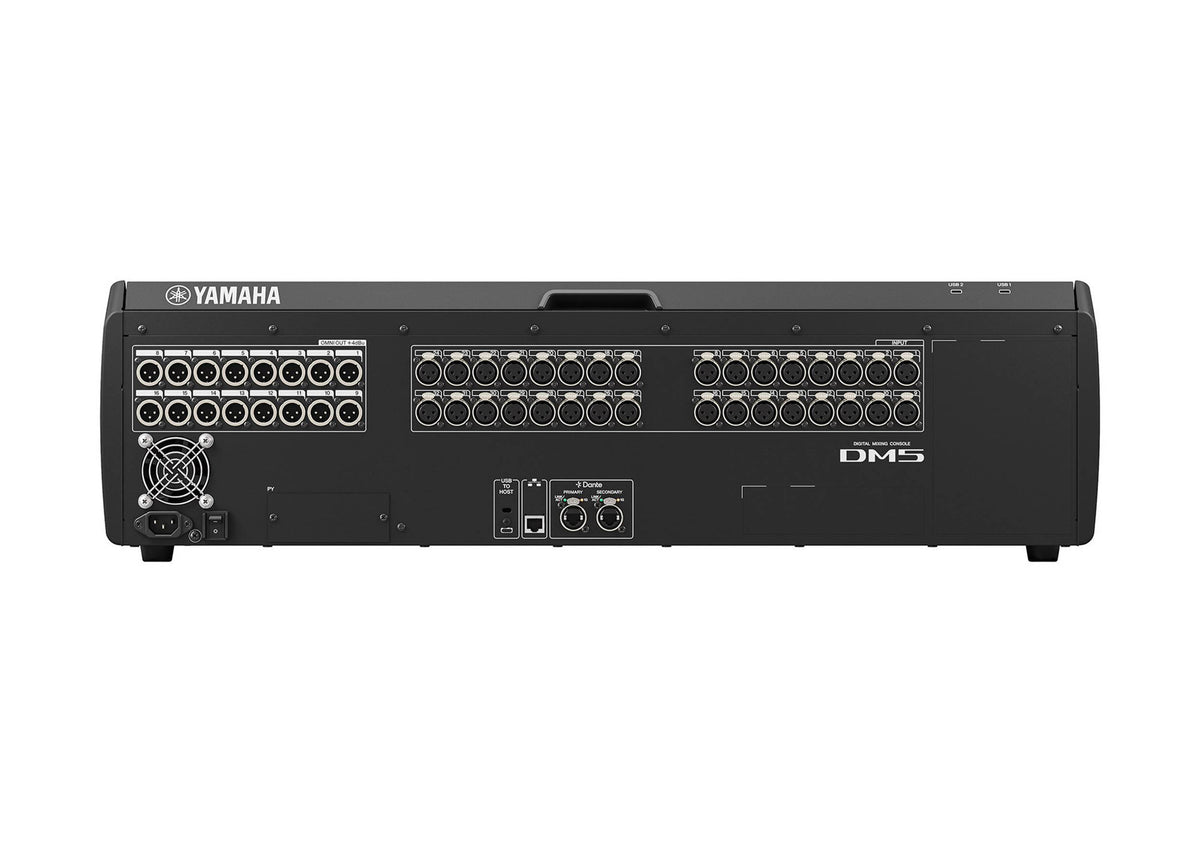

Inputs & Outputs

• Analog Inputs 32 analog inputs with XLR microphone inputs.
• Analog Outputs 16 XLR outputs.
• Dante Audio 64 inputs × 64 outputs for networked digital audio.
• USB-C Audio Interface 18 inputs × 18 outputs for computer audio.
• Ethernet 1 network connection for compatible network functions.
• PY Expansion Slot 1 slot for compatible Yamaha PY-series expansion cards.
• Headphone Output 1 × 1/4-inch headphone connection.
• USB Ports 3 × USB-C connections listed in the supplied specifications.
• Power Connection Standard IEC AC power cable.

Frequently Asked Questions

How many input channels does the Yamaha DM5 support?

The DM5 provides 60 mono input mixing channels.

Does the DM5 support Dante?

Yes. It includes a 64 × 64 Dante interface for digital audio networking.

Can the DM5 connect to a computer?

Yes. Its 18 × 18 USB-C audio interface supports computer audio, and the console also provides Ethernet connectivity and DAW control.

How many physical faders does it have?

The console has 26 motorized faders arranged as 12 channel faders plus one master fader in each of its two bays.

What display configuration does it use?

It has two 13.3-inch multi-touchscreens and two 4.3-inch utility displays.

Can the console be used for both front-of-house and monitor mixing?

Its split-mode workflow is designed to help a single engineer manage applications such as front-of-house and monitor mixing, or front-of-house and broadcast mixing.

Does the DM5 include onboard effects?

Yes. It includes 16 FX racks for integrated effects processing.

Full Technical Specifications

General Specifications

Product Name	Yamaha DM5 Digital Mixing Console
Product Type	Digital mixing console
Mixing Channels	60 mono input channels
Digital Engine	Yamaha DM7 series
Sample Rate	96kHz
Control Layout	Dual-bay console
Motorized Faders	26
Fader Configuration	12 + 1 master per bay
FX Racks	16
Expansion Slots	1 × PY slot
DAW Control	Supported
Transport Controls	Supported

Mixing Capacity & Channel Processing

Input Channels	60 Mono
Mix Buses	24
Matrices/ MUTE Groups	12
Stereo Buses	2
Mono Buses	1 (Stereo B can be changed)
Cue Buses	1
Input A/B	Yes
Gain Compensation	Yes
Digital Gain	-96 dB to +24 dB
Attenuator	-96 dB to +24 dB
High-Pass Filter	20 Hz–2,000 Hz; Selectable -6/-12/-18/-24 dB/oct
Input Delay	0–1,000 ms
Pan Modes	Center Nominal / LR Nominal
DCA Groups	12, Including Output DCA

I/O Connectors & Digital Connectivity

Analog Inputs	32
Analog Outputs	16
Dante	Primary / Secondary
Dante I/O Channels	64 In / 64 Out
Discoverable Dante Devices	127
Mountable Dante Devices	24
Devices with HA Remote Control	24
Dante Patch from Console	Yes
Expansion Slot	1 PY Slot
USB to Device	2 USB Type-C Ports
USB to Host	1 USB Type-C, USB 2.0
USB Audio I/O Channels	18 In / 18 Out
USB MIDI	Yes

Bus & Mixing Architecture

Input Parametric EQ	4-Band Full PEQ, 4 Algorithms, RTA Overlay
Output Parametric EQ	8-Band Full PEQ
Graphic EQ	Virtual Rack (EQ Rack)
Dynamics Processing	Legacy Comp, Comp260, Gate, De-Esser, Expander, Ducking, FET Limiter, Diode Bridge Comp
Insert Processing	4 Slots on 1 Insert Point
Effect Rack Resources	16
Effect Types	43
EQ Rack Resources	24
Premium Rack Resources	0; Up to 32 with PY-DSP
Dan Dugan Automixer	12 Channels, Expandable to 64 with License
Output Channel Delay	0–1,000 ms

EQ, Dynamics & Effects

Main Displays	2 × 13.3-inch multi-touchscreens
Utility Displays	2 × 4.3-inch multi-touch displays
Fader Type	Motorized
Display Adjustment	Adjustable tilt with four viewing angles
Physical Controls	Faders, buttons, and touchscreen controls

User Interface, Memory & Software

Displays	2 × 13.3" Multi-Touch, 2 × 4.3" Multi-Touch
Faders	26 (12 + 1 + 12 + 1)
Channel Name / Color Displays	On-Screen
Custom Fader Banks	Yes
User-Defined Keys	12 Glass Keys; 12 Screen Keys
User-Defined Knobs	4 Encoders Next to the Screen
Scene Memory	500 Scenes
Recall Safe / Focus Recall	Yes
Fade Time / Selective Load & Save	Yes
Global Paste	Yes
DAW Remote / OSC Server	Yes
Software Editor	DM Editor (Windows / Mac)
Additional Software	DM StageMix, MonitorMix, Console File Converter, ProVisionaire Control PLUS/Kiosk
Other Functions	Virtual Soundcheck, RTA, Delay Compensation, Wireless Mic Monitoring, Nuendo Live Control Integration

Physical Specifications & Accessories

Product Dimensions (W × H × D)	32.5 × 9.3 × 17.4 inches
Product Weight	47.4 lbs
Rack Mountable	No
Headphone Output	1
AC Connector	1 V-Lock Type
Included Accessories	AC Power Cord, Dust Cover, Cable Hook, Nuendo Live and VST Rack Elements Download Information
