Description

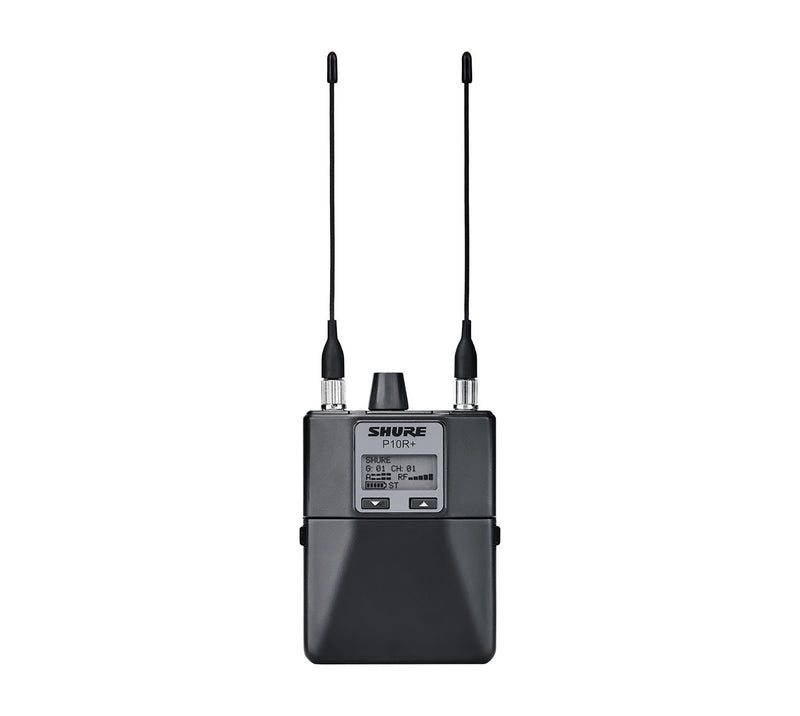

The Shure’s P10R+ is a low-profile, diversity bodypack receiver for use with the PSM 1000 Personal Monitor System. The P10R+ twin-antenna diversity Bodypack Receiver brings personal monitoring to its highest level yet, putting category-leading audio quality, robust RF performance, and touring-grade features right at your fingertips. Its advanced digital signal processing technology delivers unparalleled audio quality with more headroom, better stereo separation, and higher fidelity. With premium features like full bandwidth RF scan, Precision Front-End RF Filtering, and Automatic RF Gain Control, P10R+ meets the needs of professional audio applications of all sizes, including IEM and IFB applications.
Touring-Grade Design and Performance
Twin-antenna diversity bodypack receivers with advanced digital signal processing technology dramatically improve signal reception and increase range
Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
Mix Mode technology combines two separate audio channels for simultaneous listening in both ears, or transmit two independent IFB program feeds
Compatibility with PSM 900 receivers (in the same frequency range) facilitates streamlined inventory management for rental and touring needs
Robust RF Performance and Networked Control
Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
Networked frequency coordination simplifies setup for high channel counts.
Full bandwidth scan from the P10R+ bodypack receivers find clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly
Exceptional Audio Quality
Advanced digital signal processing technology in the P10R+ receivers deliver more headroom, improved stereo separation, and higher audio fidelity
Patented Audio Reference Companding offers natural and transparent sound
Advanced Rechargeability Options
The SB900 lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
The SBC200 dual-docking charger works with SB900A, PSM 900 (P9RA and P9RA+ only), PSM 1000 (P10R and P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply
The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, the battery information for each transmitter can be viewed remotely.
Product Specifications:
RF Filter Range: Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain: Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range)
RF Sensitivity: 2.2 μV (20 dB SINAD)
Squelch Threshold: 22 dB SINAD (±3 dB), Default Setting
Adjacent Channel Rejection: >70 dB
Intermodulation Attenuation: >70 dB
Blocking: >80 dB
Image Rejection: >90 dB
Audio Output Power: 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms)
Minimum Load Impedance: 4 Ohms
Output Impedance: <1 Ohm
4-Band Parametric Equalizer:
Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
Selectable Q: 0.7, 1.4, 2.9, 5.0, 11.5
High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz
Volume Limiter: Selectable: 0 to -48 dB in 3 dB Steps
Volume Lock:
Selectable: 0 to -70 dB
Limits Volume Adjustment Knob
Selected Value Analogous to Volume Knob Increment
Battery Life: 4-6 Hours (Continuous Use) with AA Batteries
Product Dimensions: 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
Product Weight: 5.6 oz / 158.0 g without Batteries
Shipping Weight: 0.92 lb
Shipping Dimensions (LxWxH): 10.9 x 5.5 x 3.3"
