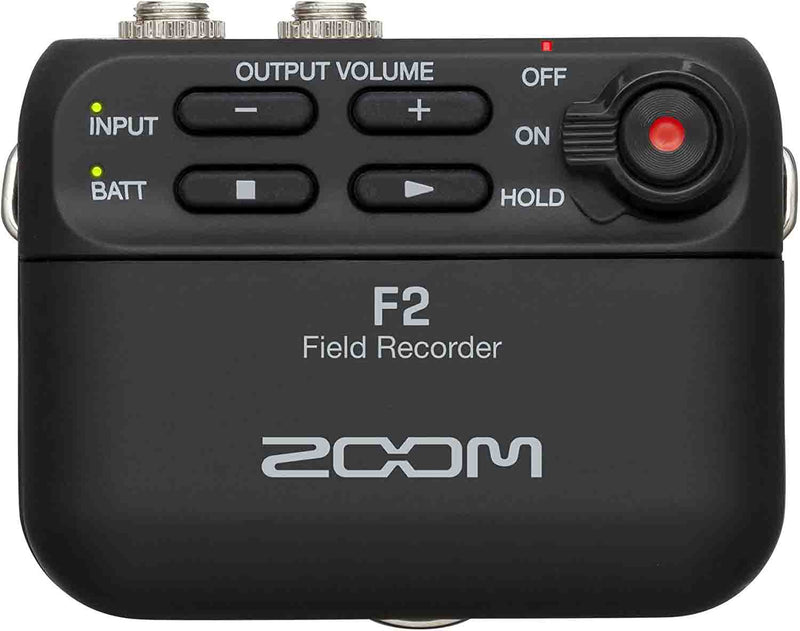

Zoom F2 Digital Multitrack Recorder

The Zoom F2 Lavalier Body-Pack Compact Recorder, 32-Bit Float Recording, No Clipping, Audio for Video, Records to SD, and Battery Powered with Included Lavalier Microphone.

Built for Big Things

For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

Please Hold

Once you start your recording, use the F2’s HOLD switch to ensure you don’t accidentally stop recording.

Lock ‘N LAV

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

The F2 Editor

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer

Lavalier Included

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

Product Specification:

Input:

CONNECTOR:     3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)

Input Gain: None (dual AD conversion system)

Input Impedance: 2 kΩ or more

Maximum Input Level: −5.5 dBu

Output:

Connector: 3.5 mm stereo mini (with screw lock)

Maximum Output Level: 20 mW + 20 mW (into 32Ω load)

Recording Media:

CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS (CLASS 4 OR HIGHER, 512 GB MAXIMUM)

Recording Format:

WAV: 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported

USB:

USB TYPE-C

MASS STORAGE OPERATION, USB 2.0 High Speed

PC APP OPERATION, USB 2.0 High Speed

Power:

2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A

Miscellaneous:

Bluetooth: Bluetooth Ver4.2 (F2-BT only)

Continuous Recording Time When Using Lavalier Mic (48khz/32-Bit Float): Alkaline batteries about 14 hours, NiMH batteries (750 mAh): about 10 hours Lithium batteries about 18 hours

The above values are approximate.

LMF-2

Lavalier Mic:

Connector: 3.5 mm stereo mini (with screw lock)

Directionality: Omnidirectional

Sensitivity: –32 dB/Pa at 1 kHz

Maximum Sound Pressure Input: 115 dB SPL

Cable Length: 160 cm

External Dimensions: 57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D)

Weight (Main Unit Only): 32 g
