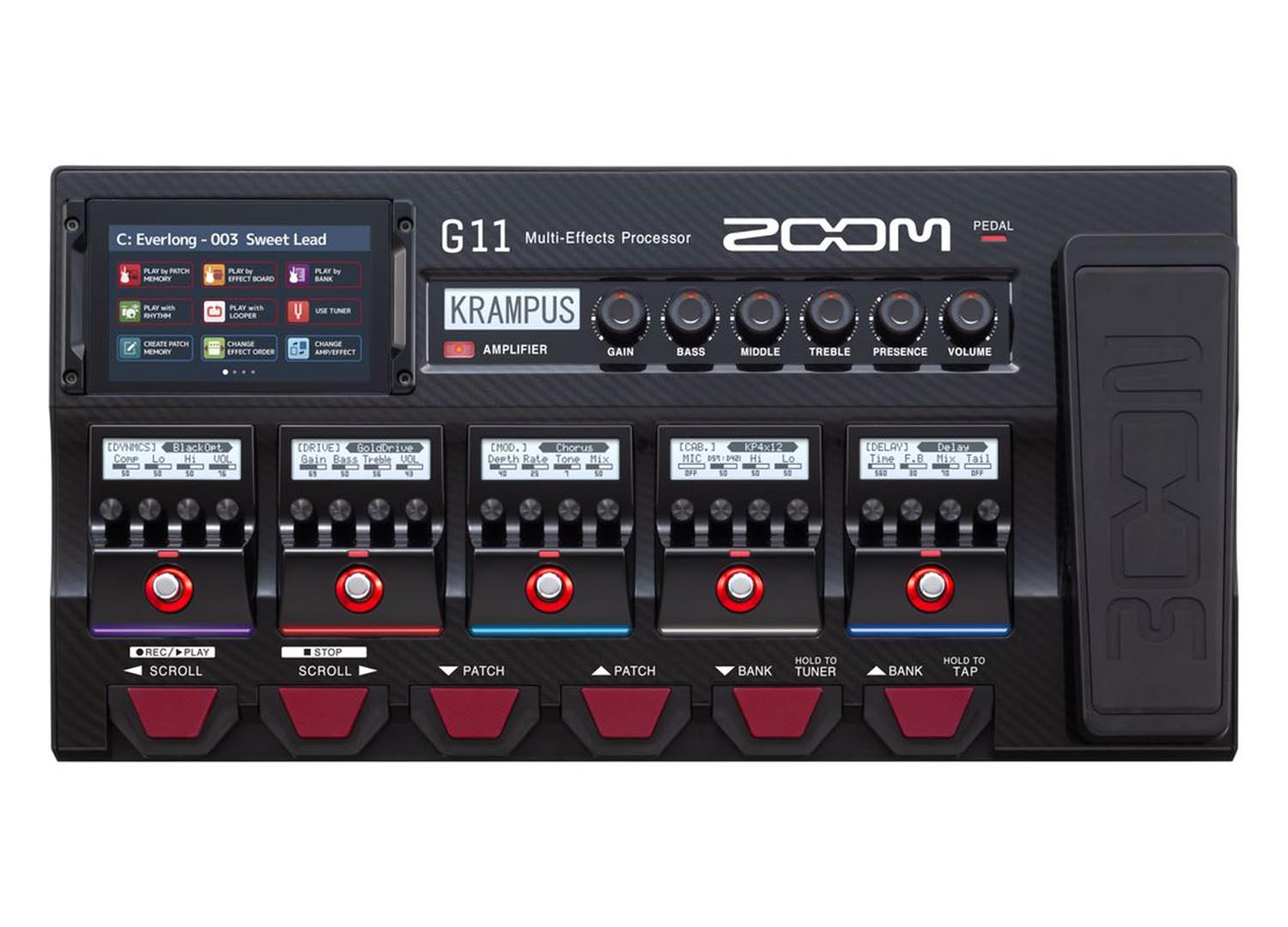

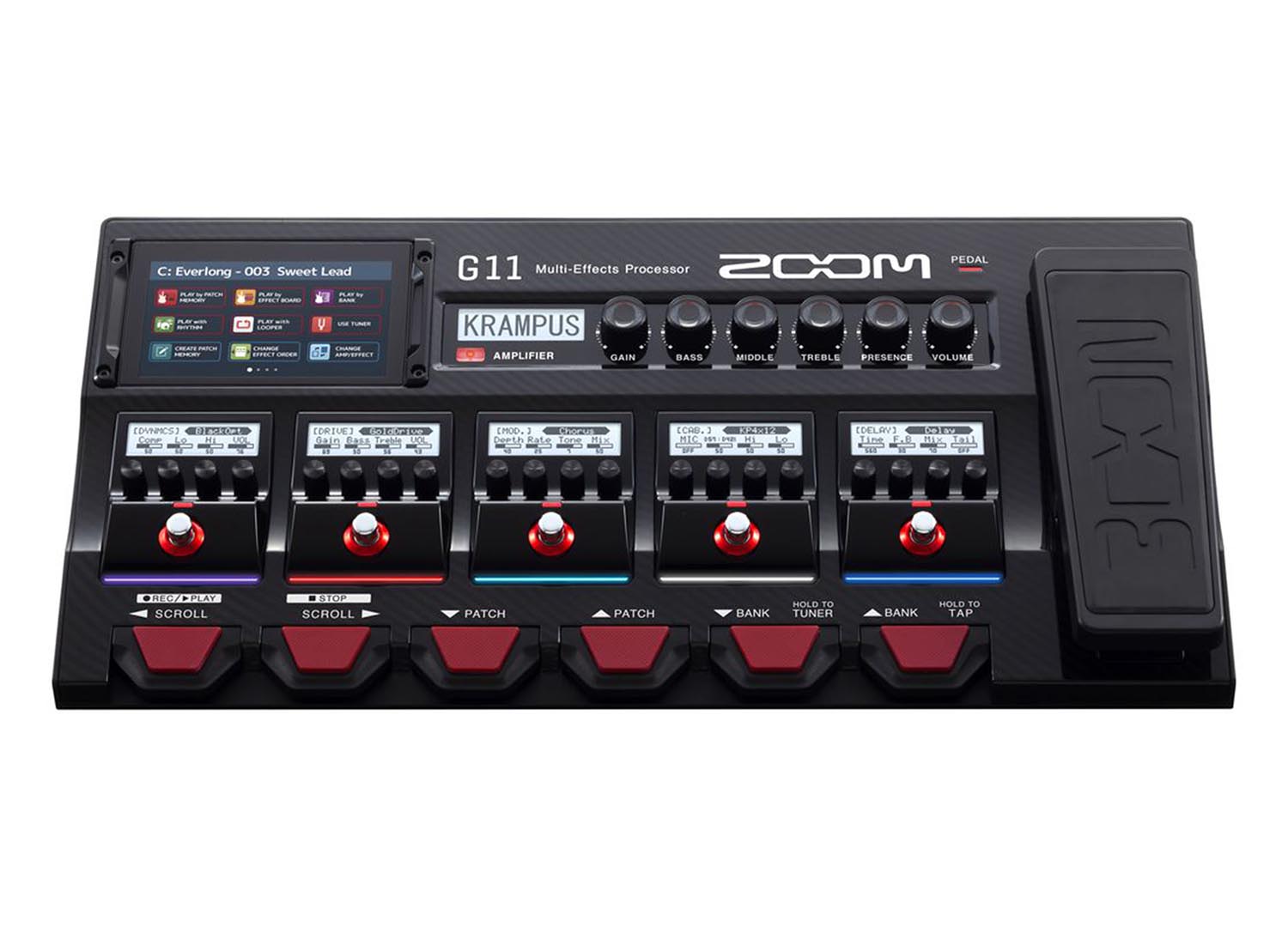

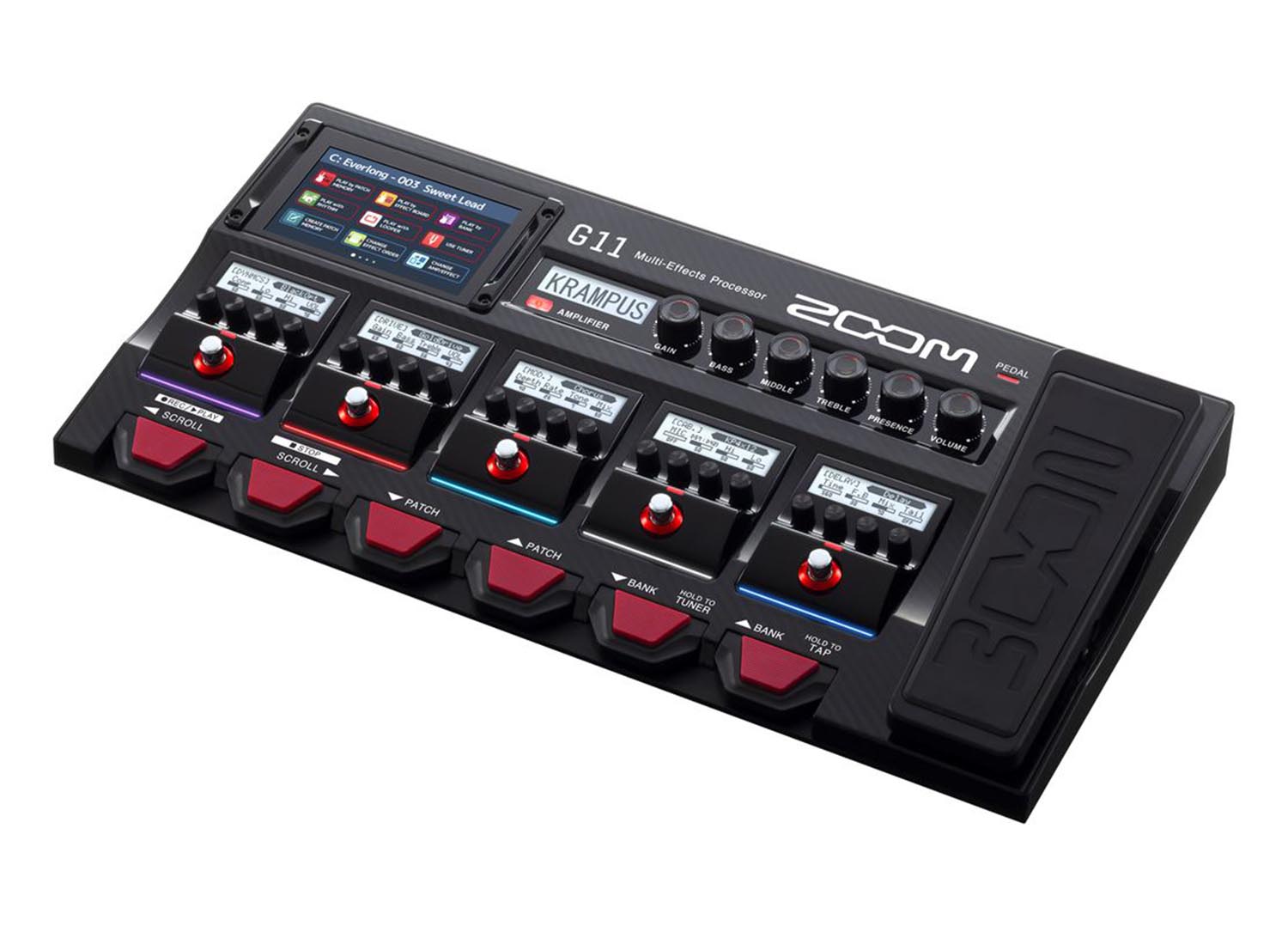

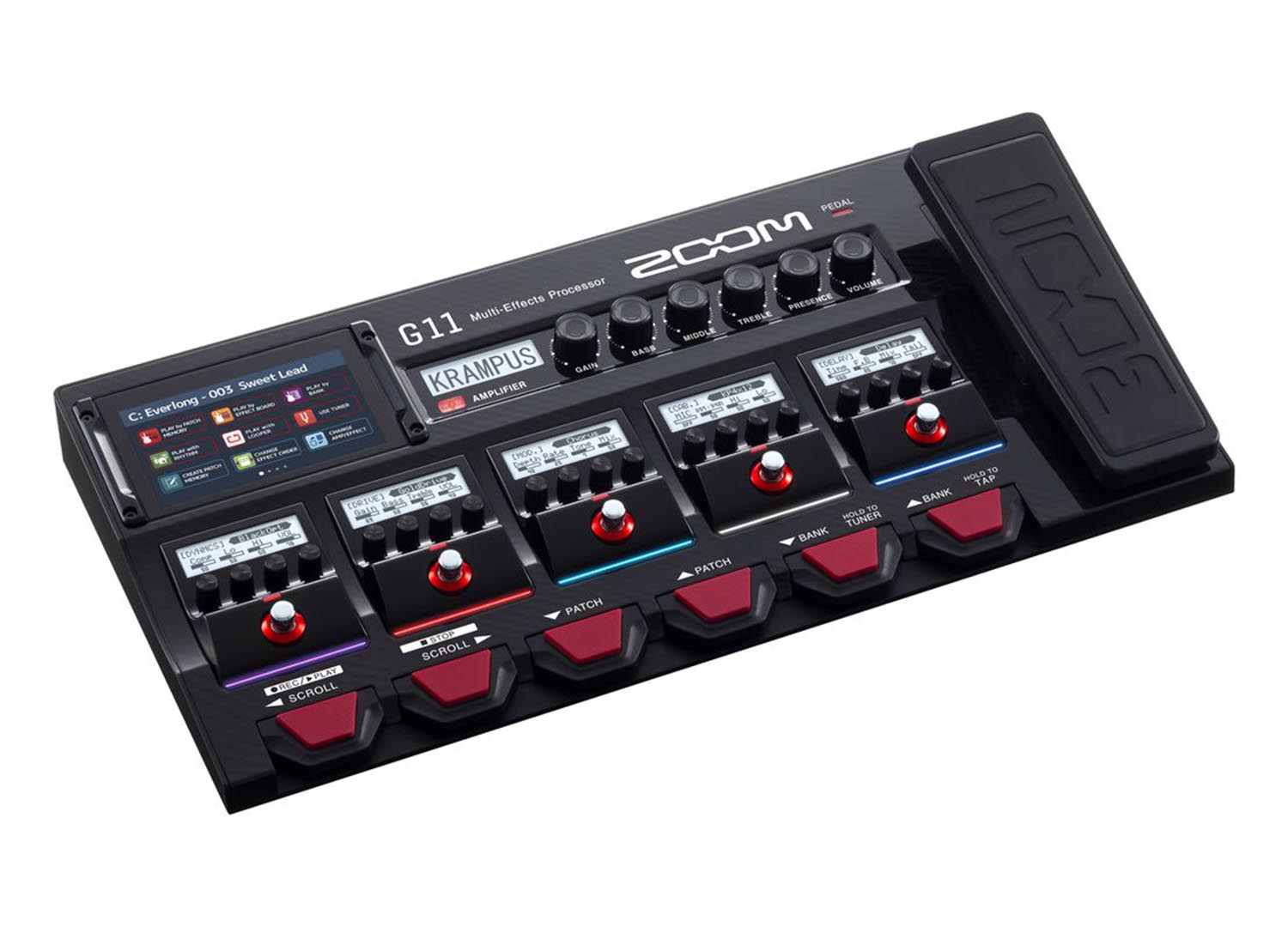

Zoom G11 Multi-Effects Processor for Guitarists with Touchscreen Interface

Zoom G11 is the Multi-Effects Processor for Guitarists with Touchscreen Interface. The engineers took the tonal qualities of the greatest amps in history, combined them, and crafted all-new amp models designed to give you new palettes of tone, to take your creativity to a whole new level.

Effects You Love and More

In addition to the classic effects you love, the G11 offers brand new Distortion and Modulation effects, unlocking endless new tone possibilities.

More Cabinet Sounds Than Ever

G11 provides 22 cabinet emulations of all modeling amps plus 70 pre-loaded full impulse response (IR) data, that were captured with different microphones in various positions, providing you a wide spectrum of cabinet sounds to choose from. Additionally, you can import up to 130 of your own IR’s.

Touch and Go

Your sounds may be complex but building them shouldn’t be. With easy-to-use, application-driven technology, the G11’s 5-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

It Feels Like Home

While the G11 is our most advanced pedal ever, it’s super familiar. From the stompbox control to the amp panel, you’ll feel like you’ve been here before.

Play by Effect

Great for studio work, Play by Effect provides a complete visual representation of your custom pedal chain.

Play by Bank

Organize your patches in song lists with Play by Bank for quick access to every sound for every song.

Loop and Groove

With a 5-minute looper add layers to solo performances. Choose your groove from 68 built-in rhythm patterns in various genres and time signatures.

Return to Sender

Add external mono and stereo effects, build parallel audio chains, and synchronize/trigger other devices via MIDI.

Audio Interface

The G11 is a full-on audio interface for Mac and PC. Record directly to your favorite DAW via USB. Cubase LE is bundled in the box.

Guitar Lab

Wirelessly connect the G11 directly to the Handy Guitar Lab app via Bluetooth. With the optional BTA-1 adaptor, you can browse and upload/download an endless assortment of amps, effects, and artists patches as provided on Guitar Lab software.

Some More Features

Touchscreen Interface: Application driven.

Amplifier Panel: Tweak amp settings with durable, backlit LED control knobs.

Effects Section: Turn on/off effects and control effects parameters.

Footswitches: Scroll and select patch memories & banks and control looper and tuner.

Expression Pedal: Adjust volume and other effect parameters.

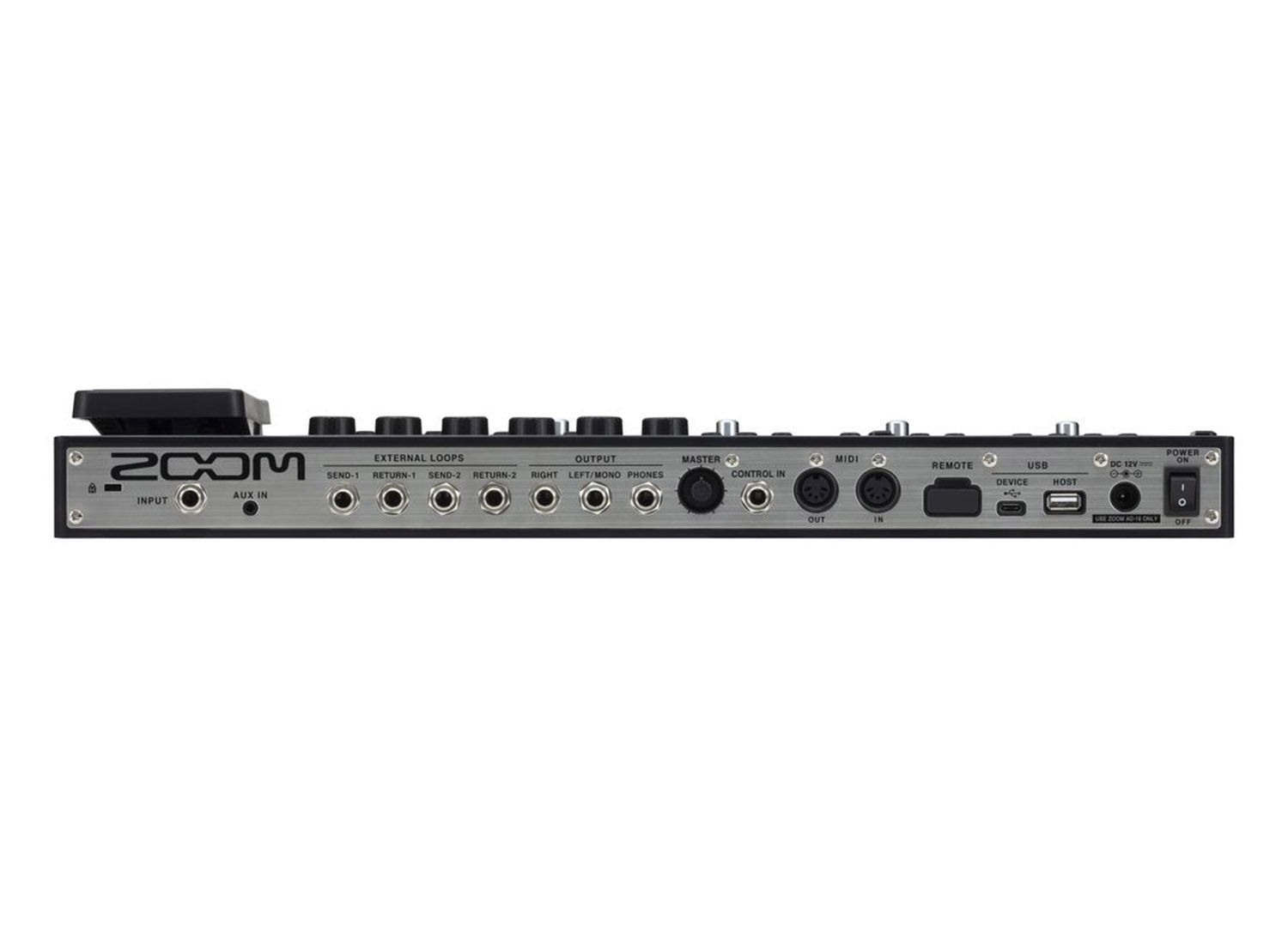

Inputs: ¼ inch guitar input plus ⅛ inch aux input

Effects Loops Ins/Outs: 2 mono or 1 stereo effects send and return for external effects pedals.

Outputs: Stereo ¼ inch outputs plus ¼ inch headphone output.

External Expression Pedal Input: ¼ inch input for FP-02M expression pedal.

MIDI: MIDI in/out for connection to external MIDI pedals.

Bluetooth Adapter Slot: Insert Bluetooth adapter to connect iOS device to utilize Handy Guitar Lab.

USB-C PORT: Connect to computer for Guitar Lab software and record directly to your DAW.

USB Port: Connect a flashdrive to import IR data or update the firmware.

Product Specifications:

Maximum Number of Simultaneous Effects: Amplifier + 9 effects

User Patches: 240

Sampling Frequency: 44.1 kHz

A/D Conversion: 24-bit 128× oversampling

D/A Conversion: 24-bit 128× oversampling

Signal Processing: 32-bit

Frequency Characteristics: 20 Hz – 20 kHz (+1 dB/−2 dB) (10kΩ load)

Displays: 5" TFT color LCD (800×480) Dot-matrix LCDs (128×32) (6)

INPUTS

INPUT: Standard mono phone jack Rated input level: -20 dBuInput impedance (line): 500 kΩ

RETURN: Standard mono phone jacks (2) Rated input level: -20 dBuInput impedance (line): 1 MΩ

AUX IN: Stereo mini jack Rated input level: -10 dBuInput impedance (line): 10 kΩ

OUTPUTS

LEFT/RIGHT: Standard mono phone jack Maximum output level:INST/LINE +11.4 dBu/+19 dBu (when output impedance 10 kΩ or higher)

PHONES: Standard stereo phone jack Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)Headphones 24 mW + 24 mW (at 32Ω load)

SEND: Standard mono phone jacks (2) Maximum output level:Line +11.4 dBu (when output impedance 10 kΩ or higher)

INPUT S/N : 123 dB

NOISE FLOOR (RESIDUAL NOISE): Left/Right : INST/LINE −99.5 dBu/−92.5 dBuSEND: -99.0 dBu

MIDI IN/OUT: 5-pin DIN jacks

CONTROL INPUT: FP02M input

USB DEVICE: Connector: USB2.0 Type-C / Supported cable: Type-C cable GuitarLab: USB1.1 Full Speed Audio Interface: USB2.0 High Speed, 44.1 kHz/32-bit 4in 4out• Use cables for data transfer. USB bus power not supported.

USB HOST: Connector: USB2.0 Type-A / Standard: USB 2.0 High Speed • Use a USB thumb drive.

REMOTE: ZOOM BTA-1 or other dedicated wireless adapter

EXTERNAL DIMENSIONS: 253 mm (D) × 495 mm (W) × 64 mm (H)

WEIGHT: 2.8 kg
