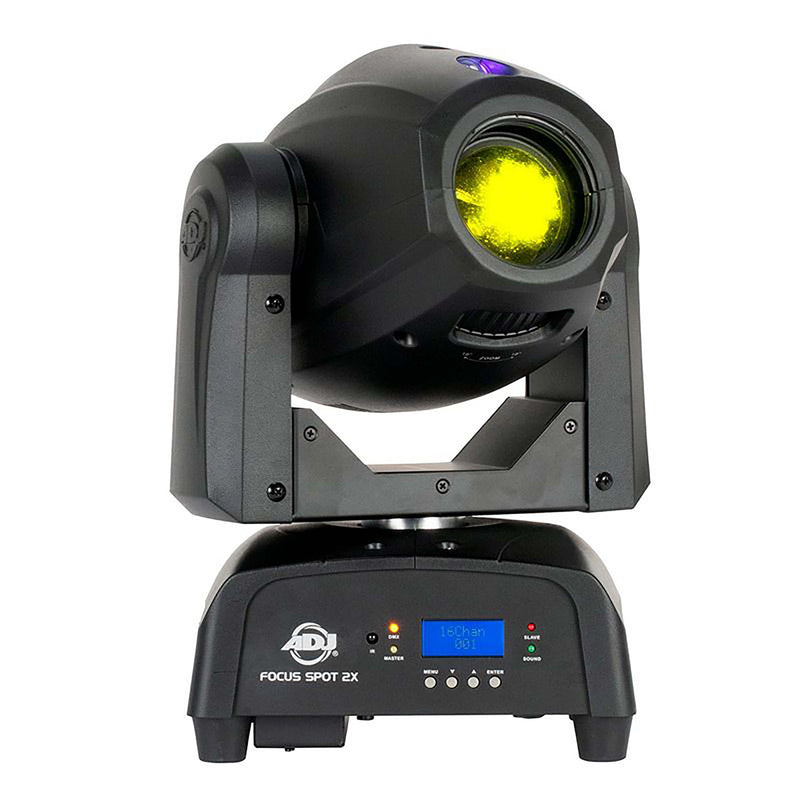

ADJ Focus Spot 2X, LED Moving Head with 3W UV LED - 100 Watt

The ADJ Focus Spot 2X, LED Moving Head with 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that’s on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.

The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.

Product Specifications:

Light Source:

1 x 100W Cold White LED (7600˚K, 50,000 hr.)

1 x 3W UV LED

GOBO Wheel:

6 Rotating, replaceable Gobos + Spot

Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm

Gobo Indexing

EZ Gobo replacement with hinged head cover

Gobo Shake effect

Prism Wheel:

6-facet circular prism

6-facet linear prism

Control:

3 Operational Modes: Sound Active, Show Mode, & DMX Controlled

Primary/Secondary

4 Built-in lighting shows

16 & 18 DMX channel modes

Electronic Dimming: 0% - 100%

5 Dimmer Curves

4-Button DMX LED menu

Stepper motors with micro stepping

With Wired Digital Communication Network

Connections:

3-pin DMX In/Out

Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X’s @ 120V and 16 Focus Spot 2X’s @ 230V)

Pan/Tilt:

Fast and precise Pan/Tilt Movements

16-Bit Fine Pan/Tilt control

Pan: 540-degree

Tilt: 270-degree

Pan/Tilt Invert Mode

4, Built-In, Pan/Tilt Target Modes

Electrical:

Multi-voltage Operation: 100-240V, 50Hz/60Hz

Power Consumption: 180W

Dimensions / Weight:

Dimensions (LxWxH): 9.3” x 6.8” x 15.2”/ 237 x 175 x 385mm

Weight: 14.5 lbs. / 6.5 kgs.

What’s Included:

Includes Omega bracket for truss mounting

Includes power cable

Approvals: CE | cETLus Approved (Control #4010765)
