DPA Microphones 4080-DC-D-B00 Miniature Cardioid Microphone

The DPA Microphones 4080-DC-D-B00 Miniature Cardioid Microphone is designed for use with wireless systems for live events, journalism, and broadcast applications. The electret-condenser capsule delivers crisp, clear, and intelligible speech, while the rugged yet unobtrusive design is well suited to the demands of professional live stage work and presentations.

While small and visually unobtrusive, the 4080 uses DPA's CORE technology to deliver increased dynamic range and low self-noise for outstanding speech reproduction. Engineered for chest placement, the mic is pre-EQ'd with a 4 dB presence boost in the 4 to 6 kHz range to ensure clarity.

The cardioid polar pattern focuses audio capture on the talent, picking up less audio from the sides and helping to reduce unwanted background sounds. This pattern works best for forward-facing talent speaking in the direction of the mic, including broadcast personalities and presenters; it also helps to reduce feedback issues when monitors and PA systems are employed for sound reinforcement. With an SPL rating of 134 dB, the 4080 is more than capable of handling most standard speakers and presenters. The microphone is powered by 5 to 10V plug-in power from a wireless transmitter. While our miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid Lavalier captures the human voice with an unusually high degree of definition. This lavalier mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

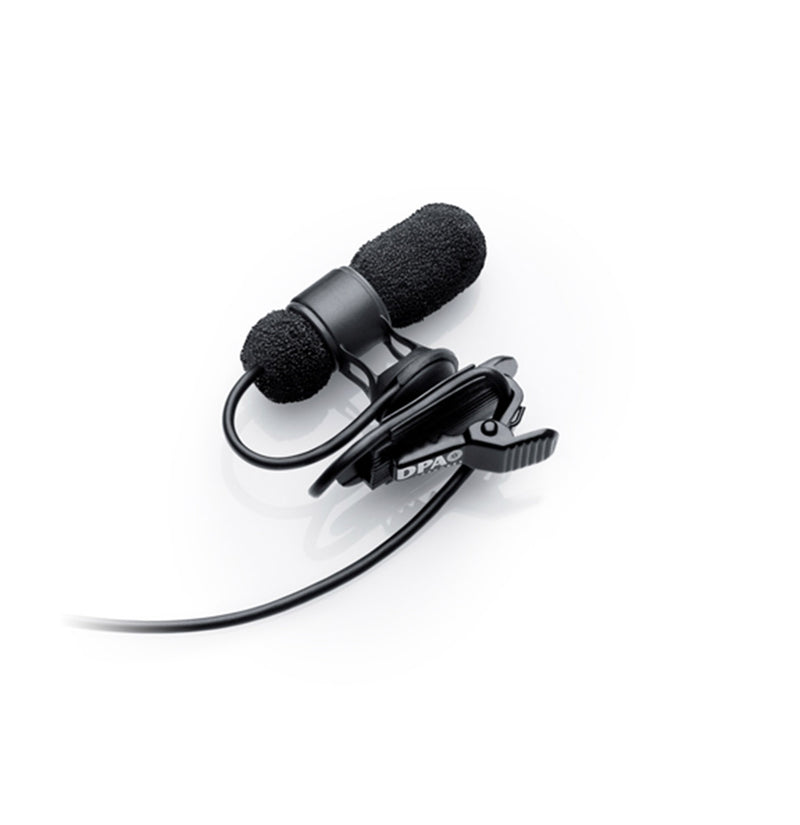

It is acoustically pre-equalized, offering a 4 dB presence boost, which matches the mic’s chest placement perfectly. This makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate that it is lightweight and offers excellent speech reproduction.This mic is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is also included. Because of the flexible and practical mounting solution, the mic can easily be turned in all directions so it fits both left- and right-buttoned shirts.

Named for its “heart shaped” polar pattern, a cardioid (or directional) microphone has the most sensitivity at the front and is least sensitive from the sides and at the back. They come in many variations – with wider or narrower angles of sensitivity (supercardioid, hypercardioid, wide cardioid etc.). Although cardioids also pick up sound coming in from the sides, this off-axis sound will normally be more or less colored and damped. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

A cardioid microphone is, by definition, damped -6 dB at the 90°side entry of the microphone but for many, the word cardioid generally covers mics with a directional pattern versus omnis, which pick up sound from all directions.Due to their nature, directional mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with cardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. Therefore, when judging mic specs you should always look for a statement stating the distance at which the flat frequency response has been measured. In addition, cardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.

All of DPA’s microphones can be configured to run easily and effortlessly with a wireless system. We use a unique MicroDot termination on our microphones together with a changeable adapter to ensure secure configuration. All of the adapters we use are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a new microphone. When you make the switch, you won't hear any loss or change in sound quality.

Using an adapter for wireless, our microphones with MicroDot termination are compatible with the professional wireless systems listed below. Many of these brands have several model numbers. To ensure compatibility you should find your particular model number, which in most cases can be found on the transmitter. Other configurations are possible; however, DPA Microphones cannot guarantee full compatibility in these cases.

Product Specification:

Form Factor: Lavalier

Sound Field: Mono

Operating Principle: Pressure Gradient

Capsule 1 x Electret: Condenser

Polar Pattern: Cardioid

High-Pass Filter: 100 Hz

Windscreen: Foam (Included)

Impedance: 40 Ohms

Sensitivity: 20 mV/Pa

Dynamic Range: 100 dB A-Weighted

Equivalent Noise Level: 23 dB A-Weighted

THD: < 1%

Output Connectors: 1 x Microdot 1-Pin Male (Lockable)

Headphone Connector: None

Cable Length: 3.9' / 118.9 cm

Cable Diameter: 0.06" / 1.52 mm

Operating Voltage: 5 to 10 V

Operating Current Consumption: 1.5 mA (Plug-In Power)

Color: Black

Mounting: Alligator Clip (via Integrated Hardware)

Operating Temperature: -40 to 113°F / -40 to 45°C

Operating Humidity: 90%

Dimensions: ø: 0.2 x L: 1.2" / ø: 5.7 x L: 30 mm

Weight: 0.5 oz / 15 g (Cable, with Mount)

Package Weight: 0.105 lb

Box Dimensions (LxWxH): 4.45 x 2.8 x 1.1"
