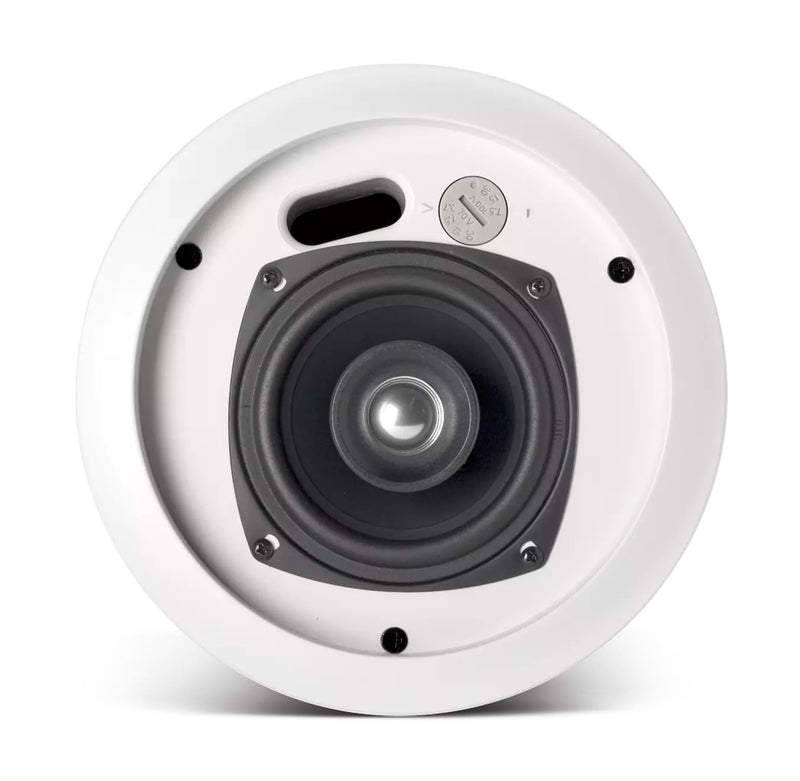

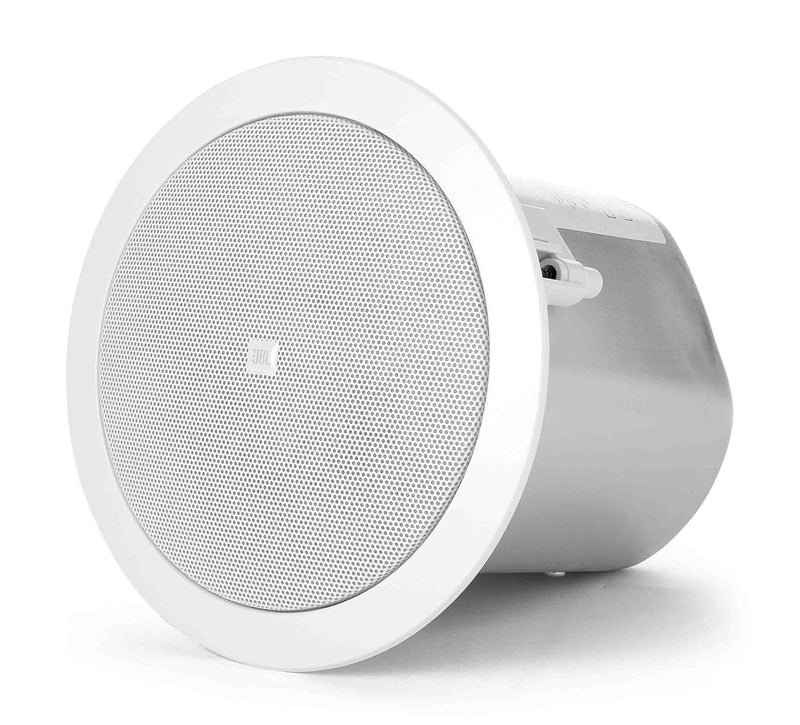

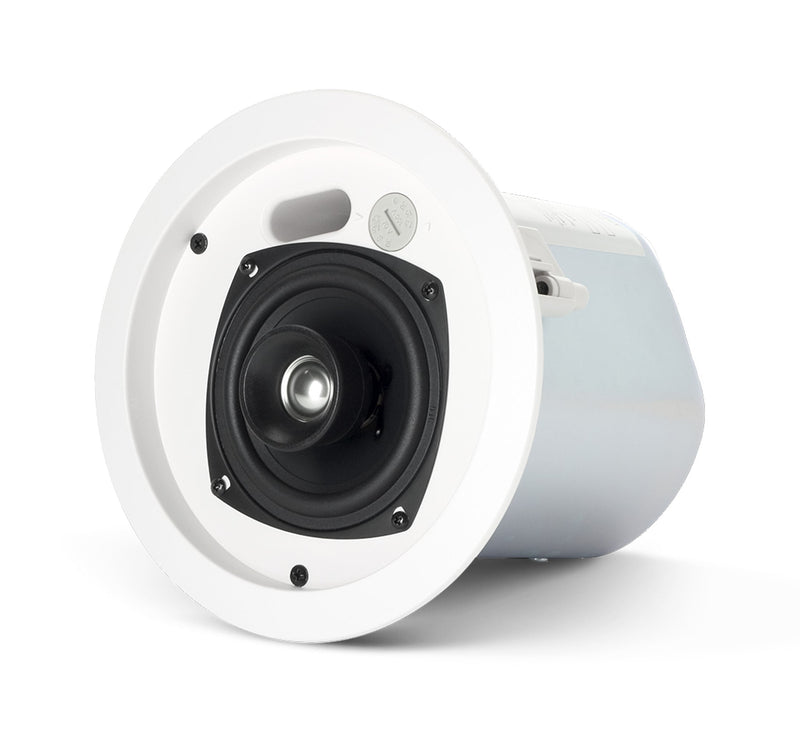

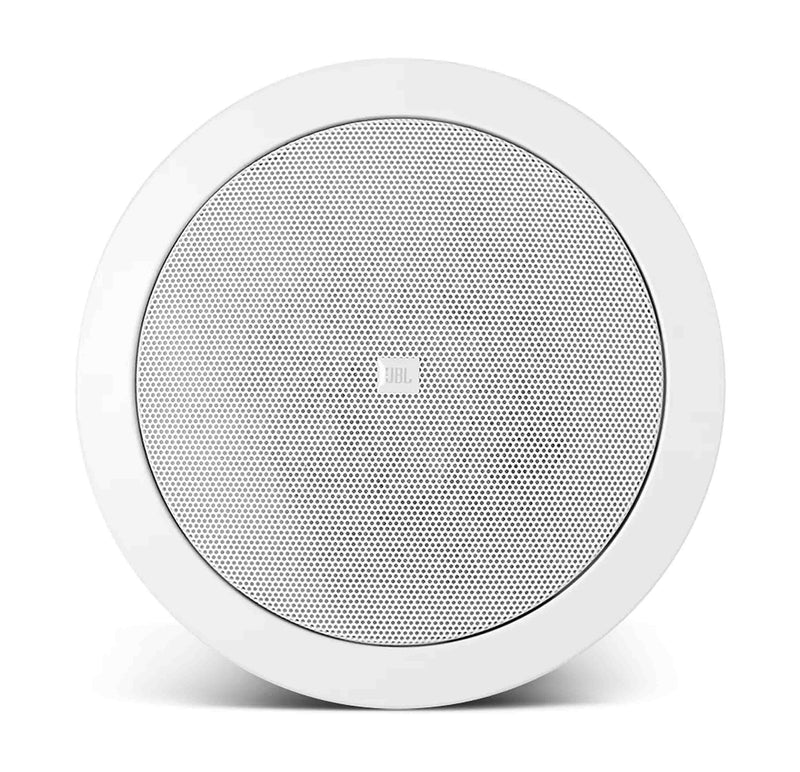

JBL CONTROL 24CT, 4-Inch Coaxial Ceiling Speaker with Transformer

The Control 24C is a compact ceiling speaker providing premium performance in background, foreground and music-plus-paging sound systems. The Control 24C is perfectly suited for a wide variety of applications from professional offices and airports to restaurants and specialty retail stores. High power handling, wide frequency response and low distortion make the Control 24C ideal for sound systems requiring a higher fidelity sound from ceiling loudspeakers. The premium performance capability ensures excellent sound character, providing pleasant, enveloping sound throughout the listening area. The Control 24C’s 16-ohm impedance allows use of multiple speakers in parallel without having to use a more expensive constant voltage distributed system. The optional Control 24CT version includes a multitap transformer for 70V/100V systems. JBL’s exclusive Sonic Guard overload protection is a non-invasive loudspeaker protection system that is inaudible to the listener, ensuring reliability while providing full fidelity sound. The computer-optimized ported enclosure delivers warm, smooth bass response. Low frequency output can be further augmented with the addition of one of the Control Contractor subwoofer models. The 100 mm (4 in) woofer features a polypropylene-coated cone and pure butyl rubber surround for long life, even in high humidity environments. An aluminum voice coil former provides extra cooling for greater long-term power handling. The coaxially mounted 19 mm (¾ in) titanium coated tweeter provides crisp, clear highs. Diffraction-loading of the tweeter provides wide, even coverage of the listening area. The extremely broad 130° coverage pattern allows for fewer speakers to be used, making for a simpler and less expensive installation.

What's in The Box?

1 x Control 24CT

1 x C-shaped support backing plate

2 x Tile support rails (fits both 2 ft and 600 mm tiles)

1 x Cutout template, cardboard

1 x Paint shield

1 x Removable locking wire connector

Product Specifications:

Frequency Range (-10 dB): 80 Hz - 20 kHz

Power Capacity: 80 Watts Continuous Program Power; 40 Watts Continuous Pink Noise

Nominal Sensitivity: 86 dB SPL @ 1 m (3.3 ft)

Nominal Coverage Angle: 130° conical coverage

Directivity Factor (Q): 2.4 averaged 500 Hz to 4 kHz

Directivity Index (DI): 3.8 averaged 500 Hz to 4 kHz

Rated Maximum SPL: 102 dB @ 1 m (3.3 ft)

Transformer Taps: 070V = 30W, 15W, 7.5W & 3.7W taps; 100V = 30W, 15W, & 7.5W taps

Low Frequency Transducer: 100 mm (4.0 in) Polypropylene-coated, 1" coil on aluminum former

High Frequency Transducer: 19 mm (0.75 in) Titanium coated polyester

Net Weight: 3.5 kg (8 lb)

Backcan: Formed steel

Baffle/Rim:

Medium Impact Polystyrene

Fire Rated UL94V-0

Shipping Weight: 9 lbs

Shipping Dimensions (LxWxH): 7.9 x 7.7 x 7.2"
