Description

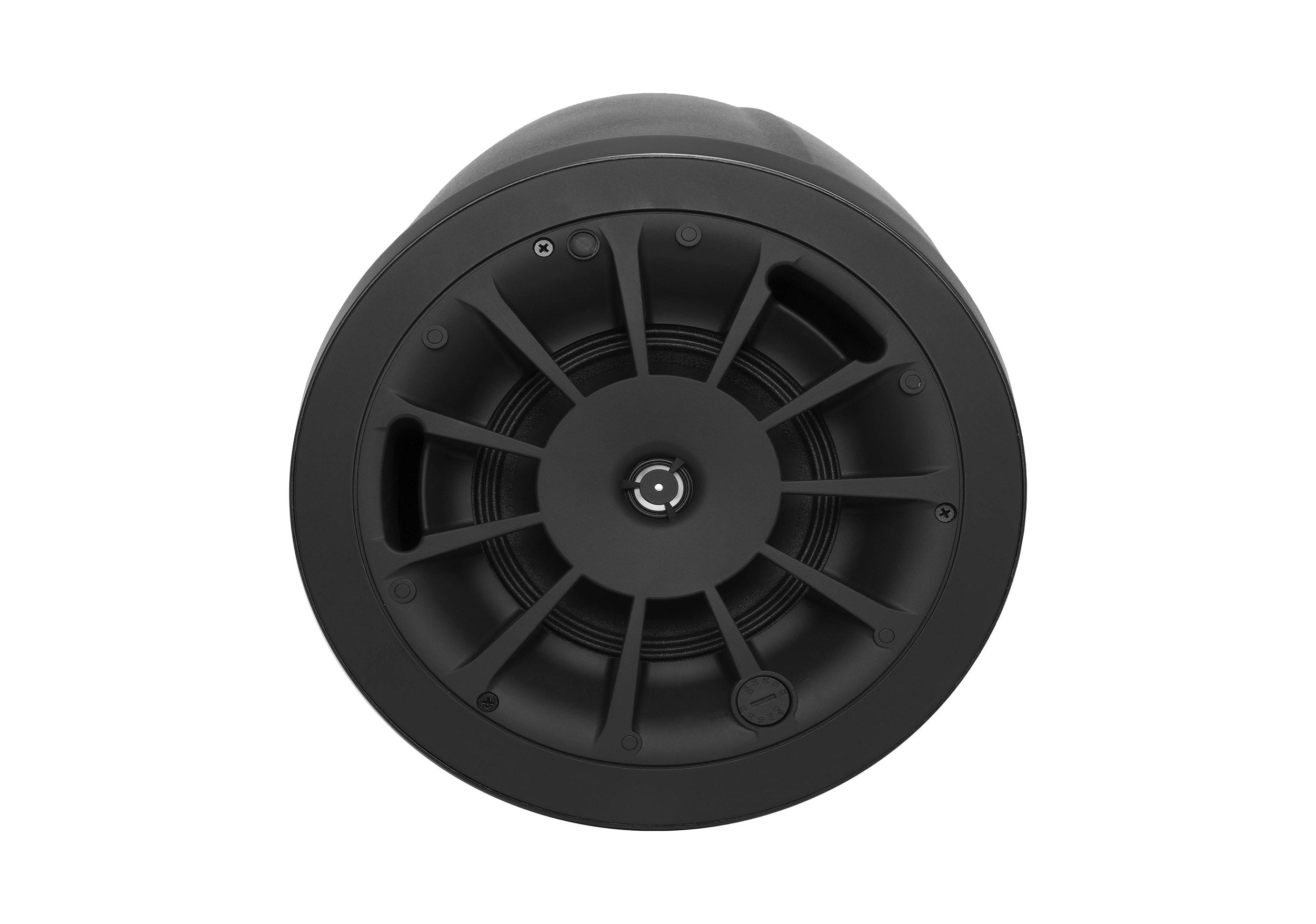

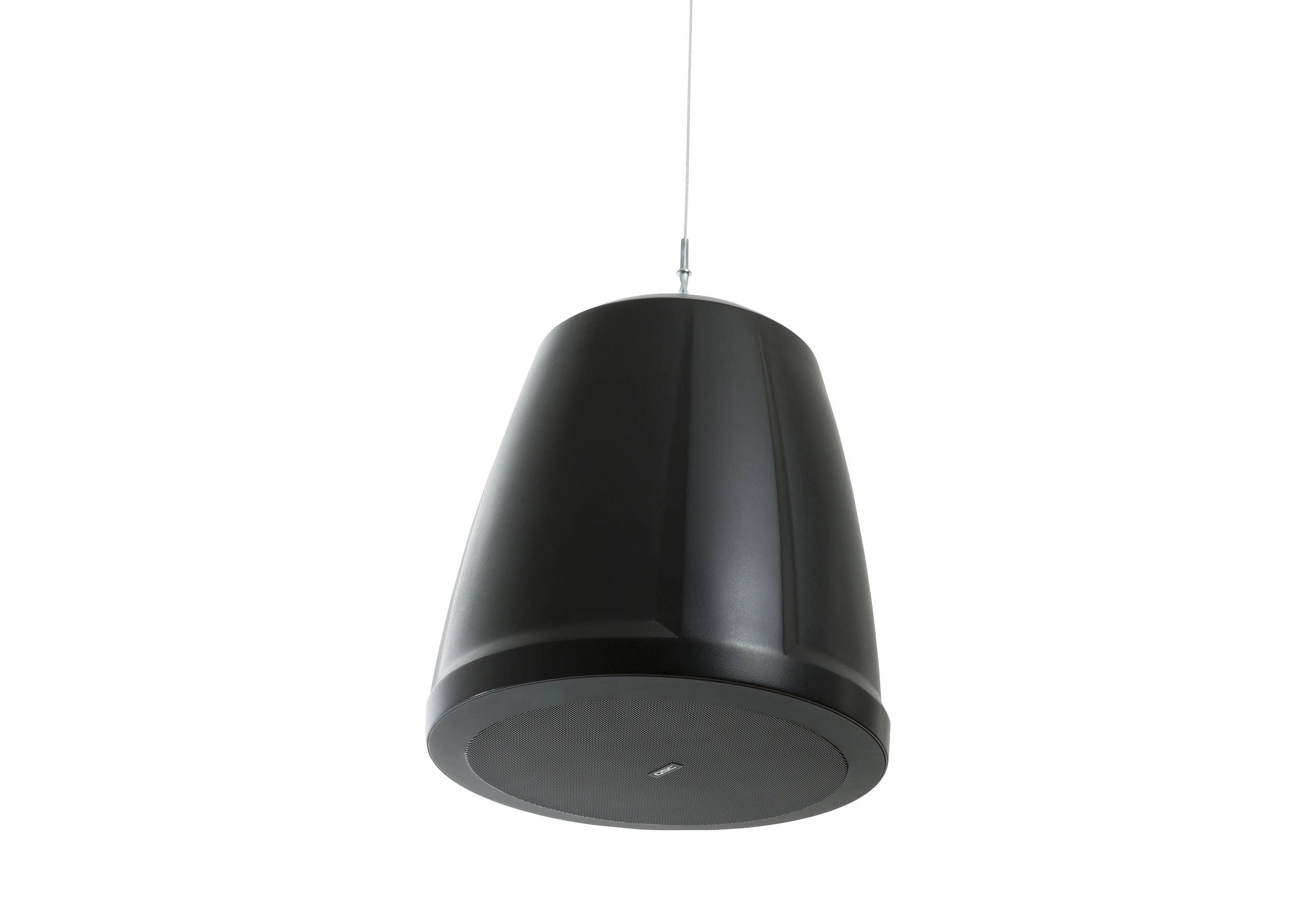

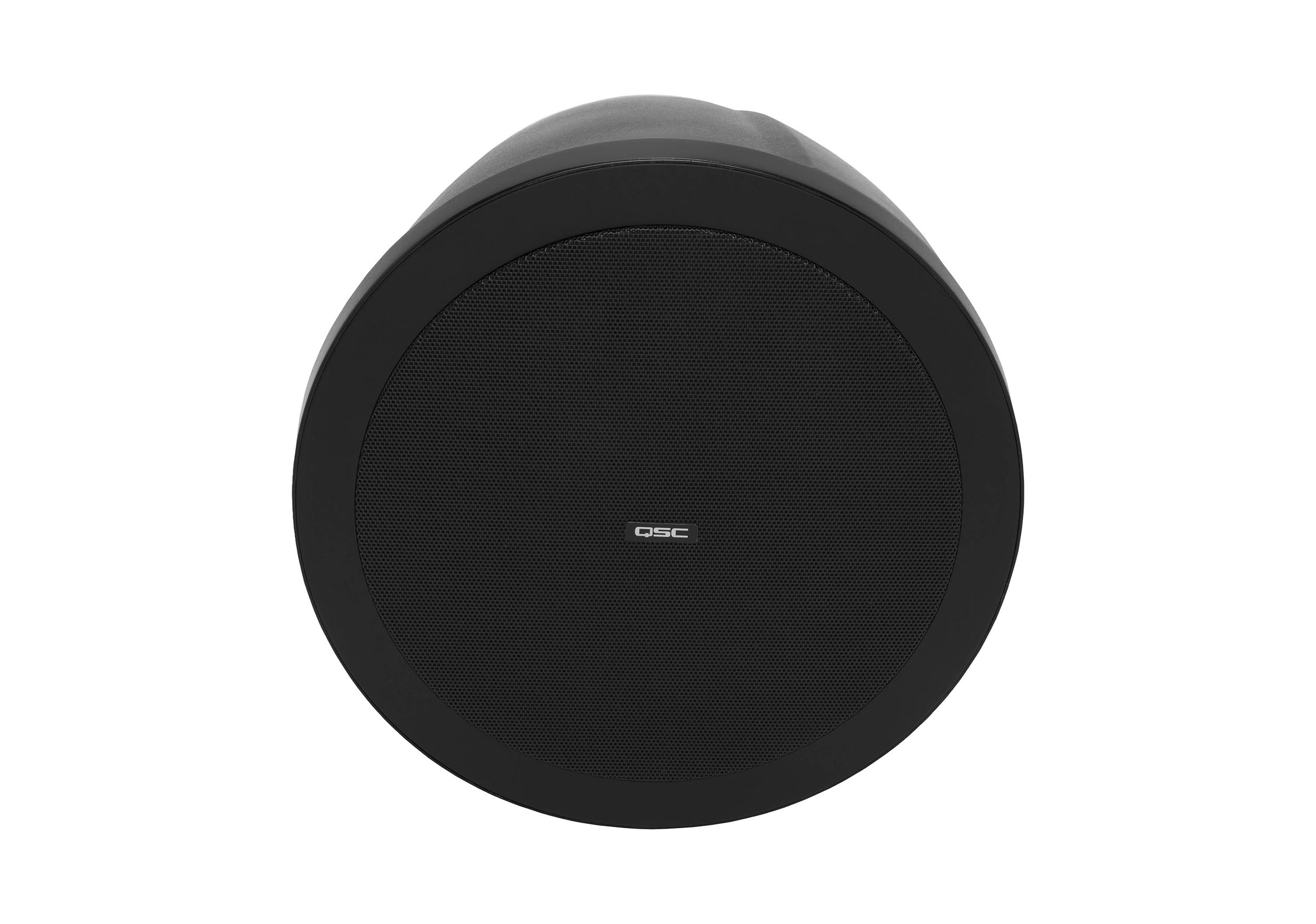

The QSC AD-P6T-BK Acoustic Design Series 6.5" 2-Way 60W Pendant-Mount Loudspeaker - Black is a transformer-equipped 6.5" pendant-mount loudspeaker voiced to deliver tonal consistency throughout the AcousticDesign range of speakers, making them suitable for 70/100V or 16-ohm operation in a variety of foreground and background music applications.
Outfitted with a 6.5" weather-treated woofer and a 0.75" aluminum dome tweeter on a DMT waveguide, the AD-P6T offers broad 135° conical coverage and improved off-axis power while providing a frequency range of 56 Hz to 20 kHz (-10 dB). The speaker is capable of handling 60W RMS and producing a peak maximum SPL of 112 dB.
The AD-P6T utilizes a 4-pole Euroblock connector under a sealable input cover for easy wiring and protection from moisture. It features a UV-treated ABS enclosure and a magnetic steel grille with a blemish-free removable logo. Quick-link cable assemblies and slip-lock fasteners are supplied for efficient installation.
Product Specifications:
Active/Passive: Passive
Number of Included Speakers: 1
Speaker Configuration: 2-Way
Power Handling:
For 2 Hours / At Low-Z: 60 W RMS
Recommended Amplifier Power: 120 W
Constant Voltage / Transformer Taps:
70 V: 60 / 30 / 15 / 7.5 W or 16 Ohms Bypass
100 V: 60 / 30 / 15 W or 16 Ohms Bypass
Impedance: 16 Ohms (Nominal, Transformer Bypassed)
Transformer Wattage: 60 W
Enclosure Type: Sealed
Shielded: No
HF Driver: 1x 0.75" / 1.91 cm Waveguide-Coupled Aluminum Dome Tweeter
LF Driver: 1x 6.5" / 16.51 cm Paper Woofer
LF Voice Coil: 1" / 2.54 cm
Frequency Range: 56 Hz to 20 kHz -10 dB
Maximum SPL:
106 dB (Continuous)
112 dB (Peak)
Sensitivity: 88 dB
Coverage Angle: 135° (Conical)
Directivity:
6.5 (Directivity/Q Factor)
8 dB (Directivity Index)
Maximum Input Voltage: 31 V RMS
Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Locking, Removable)
Maximum Wire Gauge: 18 AWG
Certifications: UL
Environmental Resistance: Dust/Water-Resistant (IP34)
Operating Conditions: -4 to 122°F / -20 to 50°C
Color: Black
Mounting: 1x Suspension (Rear)
Construction Material: ABS, Metal Grille
Dimensions: 12.7 x 11.3" / 32.26 x 28.7 cm
Weight: 9 lb / 4.1 kg
Shipping Weight: 12.25 lbs.
Shipping Dimensions (LxWxH): 16.3 x 13.8 x 13.7 Inches
