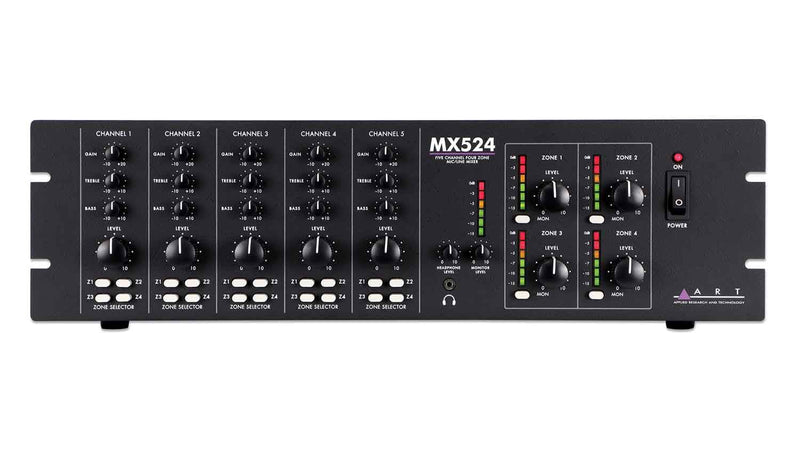

ART MX524 Five Channel Four Zone Mic/Line Mixer

The ART MX524 Five Channel Four Zone Mic/Line Mixer is a versatile rack mount mixer that combines Five independent input channels and routes them to four zone outputs. Channels one thru four accept a balanced Line or Mic signal thru the Combo jack connector. CH5 accepts a line level signal through RCA jacks. The unit has an independent selectable +48 Volt phantom power function for channels one thru four. Channels one thru four can also accept unbalanced line-level signals. Each channel has a level control and can be routed to any zone output. Separate level, bass and treble controls adjust the sound of each input channel.

The ART MX524 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and triple high 19-inch rack mount format allows for easy installation and reliable long-term operation.

Product Specifications:

Frequency Response: 20 Hz – 22kHz ± 2 dB

Max. Input Gain:

60dB CH MIC. Input Main out (XLR, balanced)

50dB CH MIC. Input & REC. out (unbalanced)

60dB CH MIC. Input Mic. out (unbalanced)

60dB CH MIC. Input Mono out (unbalanced)

THD&N:

<0.03% @1kHz

Impedance:

Microphone input: 1.4kΩ

All other inputs 10kΩ or greater

Zone outputs 120Ω

Monitor Speaker output 8Ω

Monitor Line output 120Ω

Phantom Power:

48VDC

EQ:

Low: ± 10 dB – 100 Hz

High: ± 10 dB – 10 kHz

Zone Outputs:

+26dB (Balanced)

Monitor Line Output:

+15dB (Unbalanced)

Monitor Speaker Output:

1 W rms / 8 Ω

Headphone Output:

0.5 W rms / 47 Ω

Connectors:

Inputs: Combo XLR/¼ Jacks, RCA

Outputs: Euroblock, Screw terminals

Power Requirements USA:

110~120VAC 50/60Hz or 24VDC

Export units configured for country of destination

Dimensions (HWD):

5.1-inch x 19-inch x 7.5-inch

130mm x 483mm x 191mm

Weight:

6.63 lbs. (3.0 kg)
