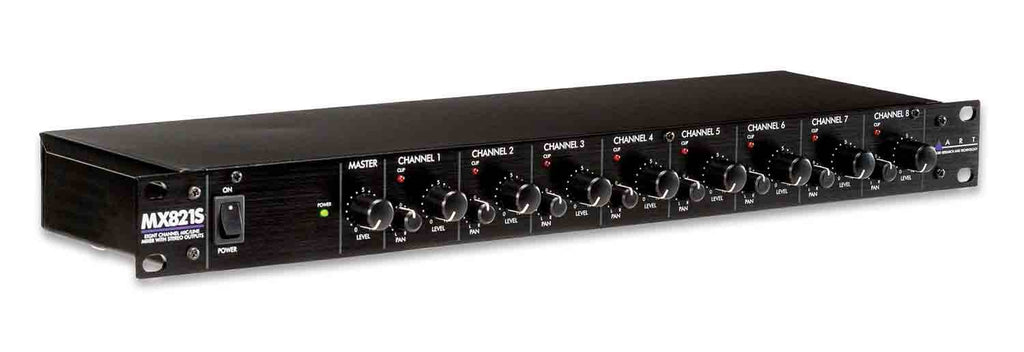

Art MX821S 8-Channel Mic/Line Mixer with Stereo Outputs

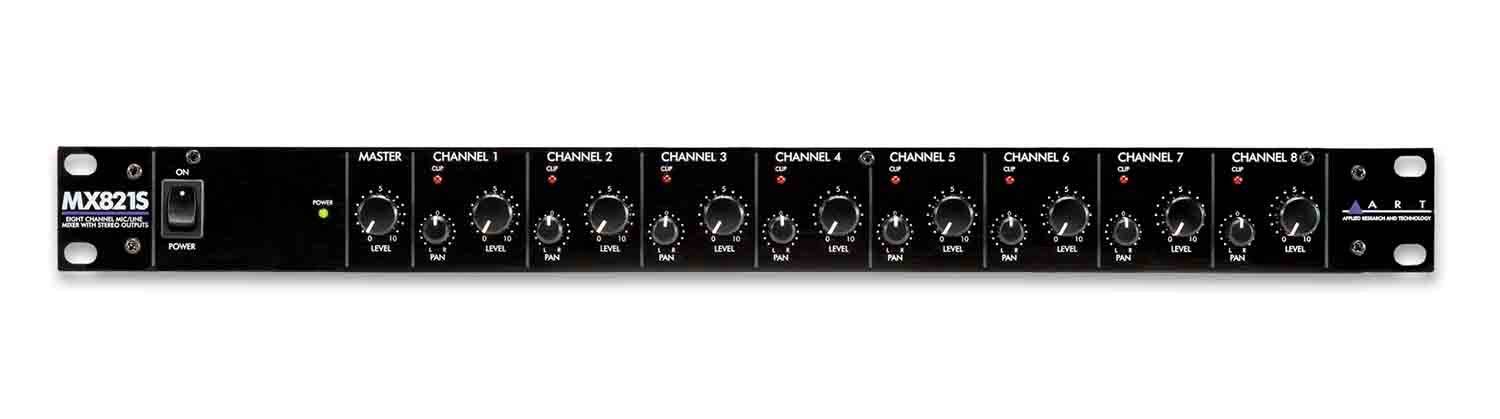

The ART MX821S is a versatile rack mount mixer combining eight independent input channels into a stereo line-level output. Each input channel accepts a balanced XLR microphone input or unbalanced 1/4-inch TS line-level signal and provides independent level and pan controls.

+48 Volt phantom power may be independently selected on each microphone input. A master level control adjusts the signal output to the low-impedance balanced 1/4-inch TRS jacks.

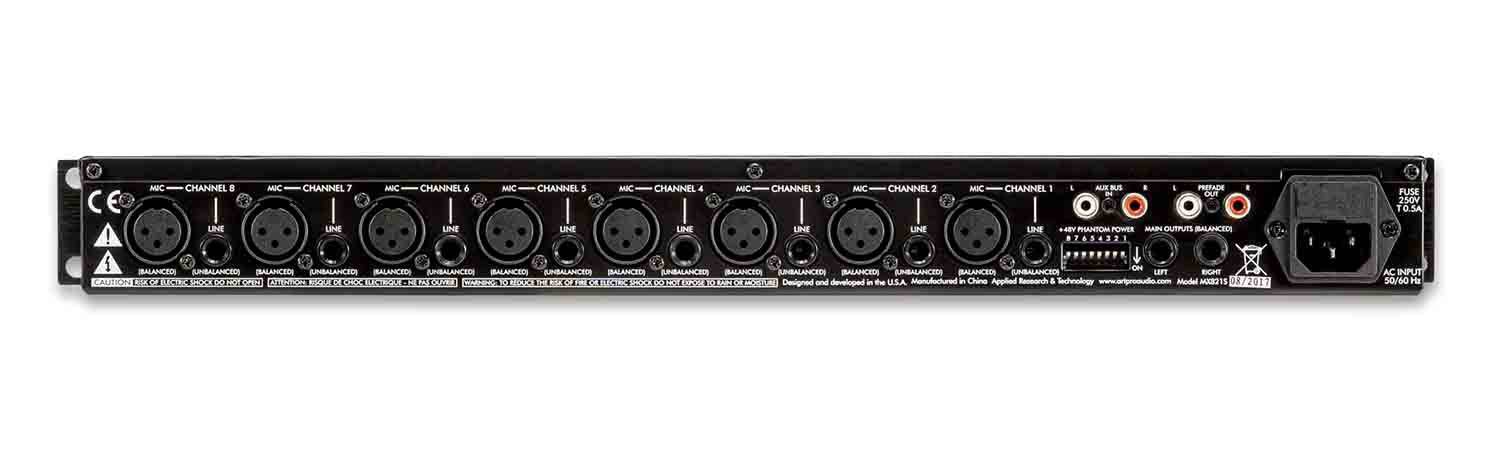

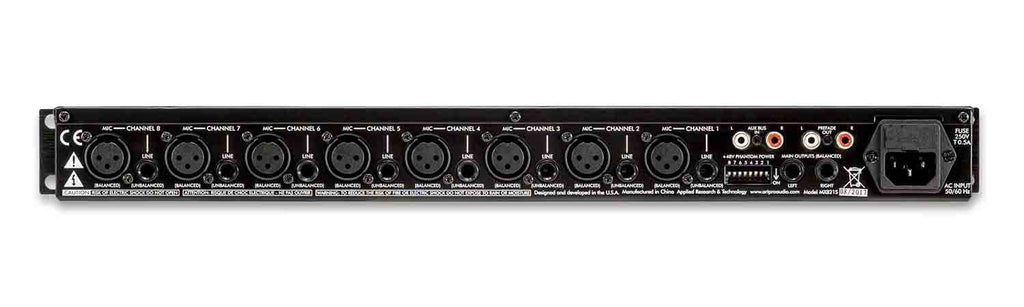

Prefade output (not affected by the master level control) and Aux Bus input RCA jacks allow patching of multiple units when more channels are needed

The ART MX821S may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.

Product Specification:

Input Connections: XLR female balanced (Mic, channels 1-8)

1/4-inch TS unbalanced (Line, channels 1-8)

RCA unbalanced (Aux Bus In, Left and Right)

Output Connections: 1/4-inch TRS balanced (Main Outputs, Left and Right)

RCA unbalanced (Prefade Out, Left and Right)

Input Impedance: 2k Ω (Mic), 20k Ω (Line), 51k Ω (Aux Bus In)

Output Impedance: 200 Ω (Main Outputs, balanced),

100 Ω (Prefade Out)

Frequency Response: 20 Hz – 20 kHz (+0, -1 dB) (CH 1-8 in, M

Total Harmonic Distortion: <0.01% @ 1 kHz, typical

Phase Response: All connections are phase coherent

Signal to Noise Ratio: >99dB typical (Ref 0dBu)

CMRR: >43 dB typical

Maximum Input Level: -4 dBu (Mic), +22 dBu (Line)

Maximum Output Level: +24 dBu (balanced), +18 dBu (unbalanced)

Maximum Gain: 54 dB (Mic), 29 dB (Line)

Phantom Power: Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg

Power Requirements: USA: 95-125 VAC, 50-60 Hz, <15W

Dimensions: 1.75″ x 19″ x 6″ (4.5cm x 48.3cm x 15.2cm)

Weight: 6.3 lbs (2.9 kg)
