Description

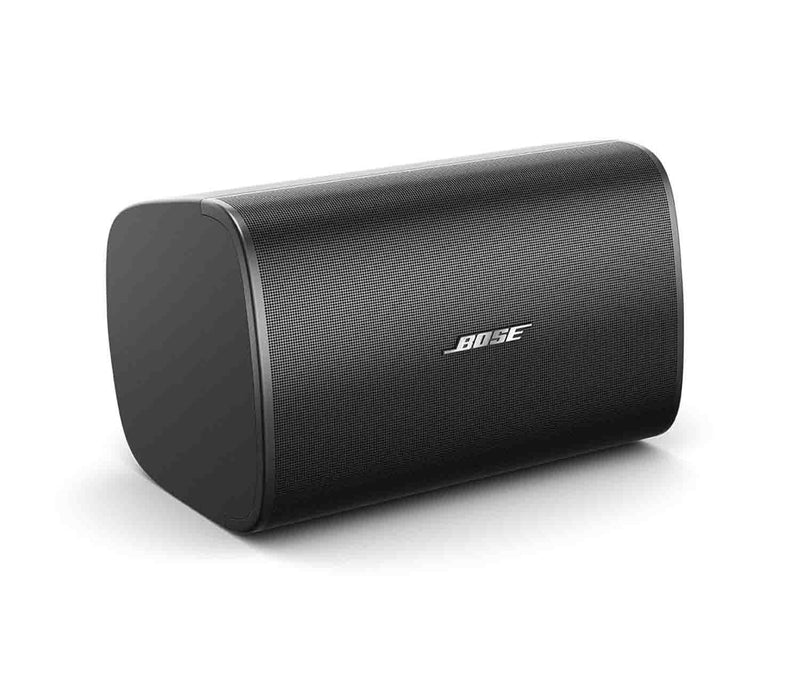

The Bose DESIGNMAX DM8S is a DesignMax Surface-Mounted Loudspeaker. With coaxial two-way drivers, the 150-watt DesignMax DM8S loudspeaker delivers powerful SPL suitable for foreground music along with premium aesthetics that complement any commercial sound installation. The DM8s feature a two-way, 8-inch woofer and a center-firing coaxial 1-inch compression driver, delivering a 52 Hz - 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Install Easily with Industry-Standard Accessories
All models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier.
Applications
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
Product Specifications:
Frequency Response (+/-3 dB): 60 - 20,000 Hz
Nominal Coverage (H x V): 130° conical
Power Handling, Peak: 600 W
Maximum SPL @ 1m: 115 dB
Frequency Range (-10 dB): 52 - 20,000 Hz
Power Handling, long-term continuous: 150 W
Sensitivity (SPL/1W @ 1 m): 93 dB
Nominal Impedance: 8 Ω (transformer bypass)
