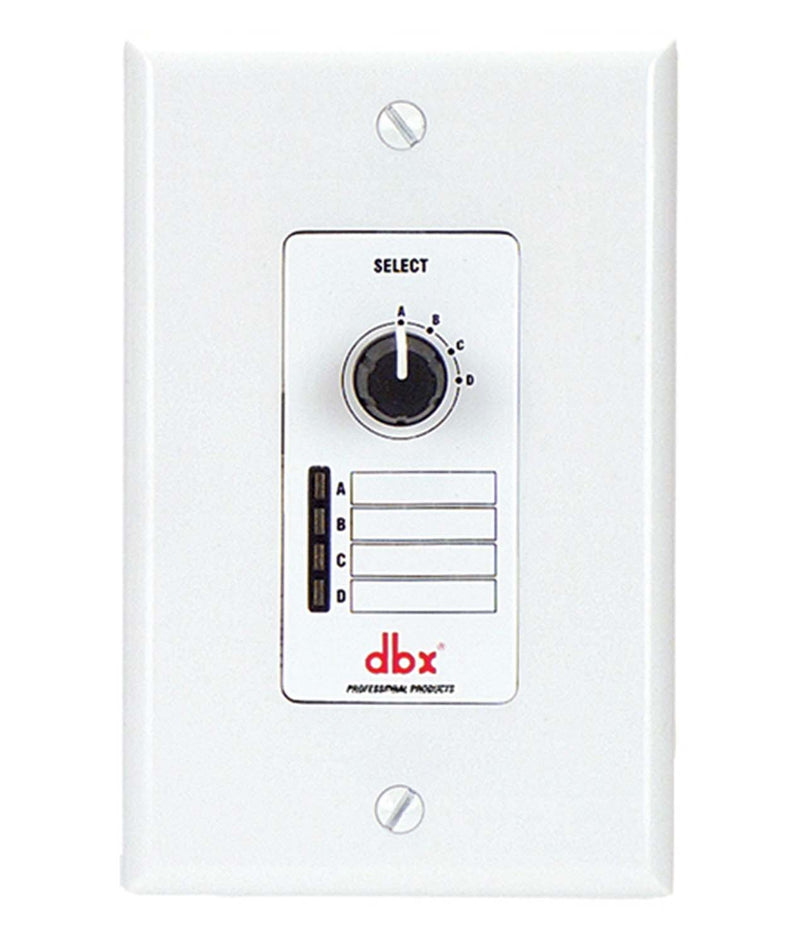

The DBX ZC-3 Wall-Mounted Zone Controller is a wall-mount selector for DriveRack and ZonePro systems. It has a four-position rotary knob for program selection of DriveRack 260 and 220i systems or source selection, page assignment, or scene selection for ZonePro devices. It also has four DIP switches for identification. The ZC-3 has two RJ-45 jacks for connection to a system via CAT5 cables.
The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-3 can function as a program selector for the DriveRack 260 and 220i in addition it can be used for as a source selector, page steering control, or a scene selector for the ZonePRO products.
Product Specification:
Connectors: (2) RJ-45
Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone
Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
Package Weight: 0.44 lb
Box Dimensions (LxWxH): 6.85 x 5.6 x 3.6
