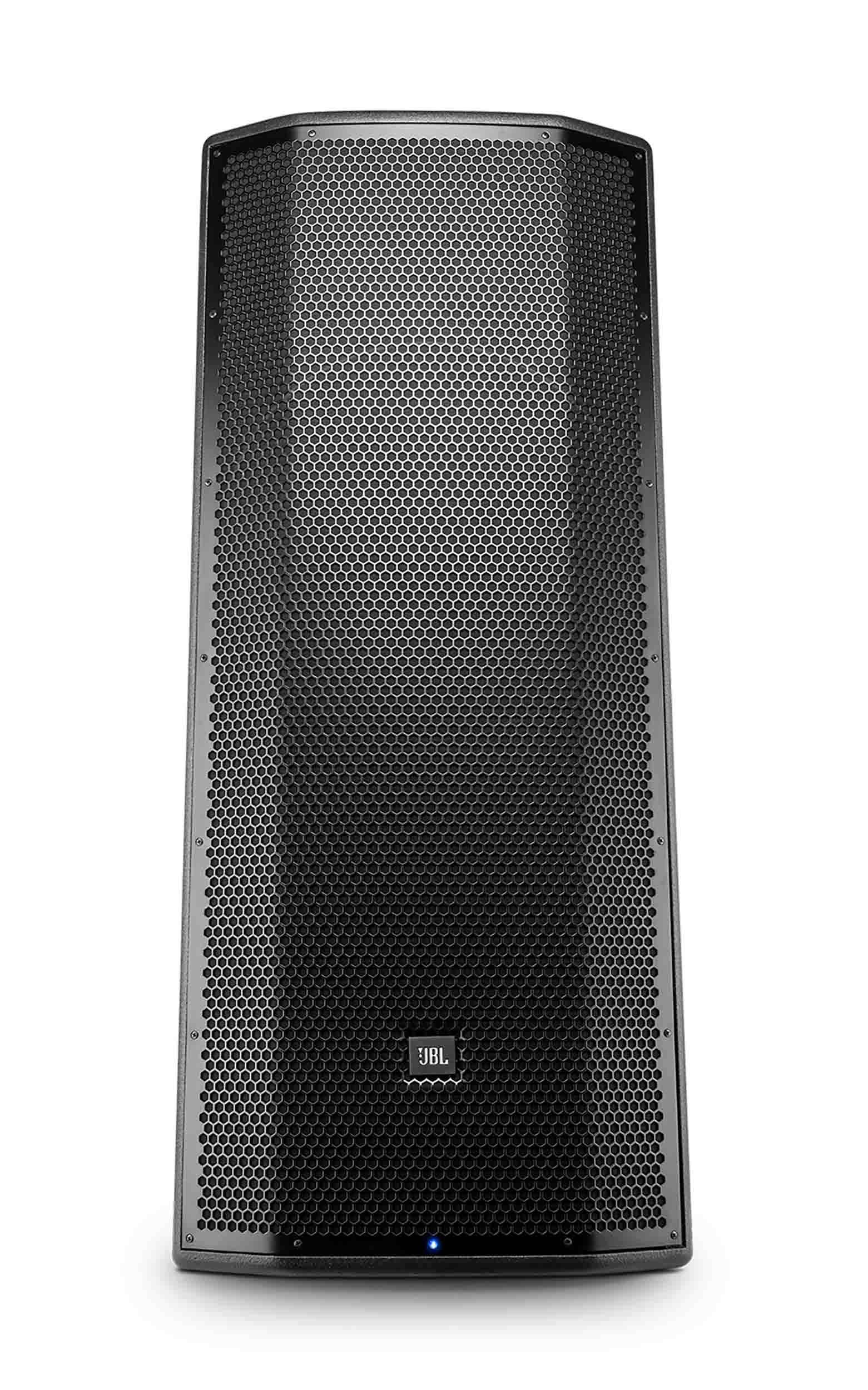

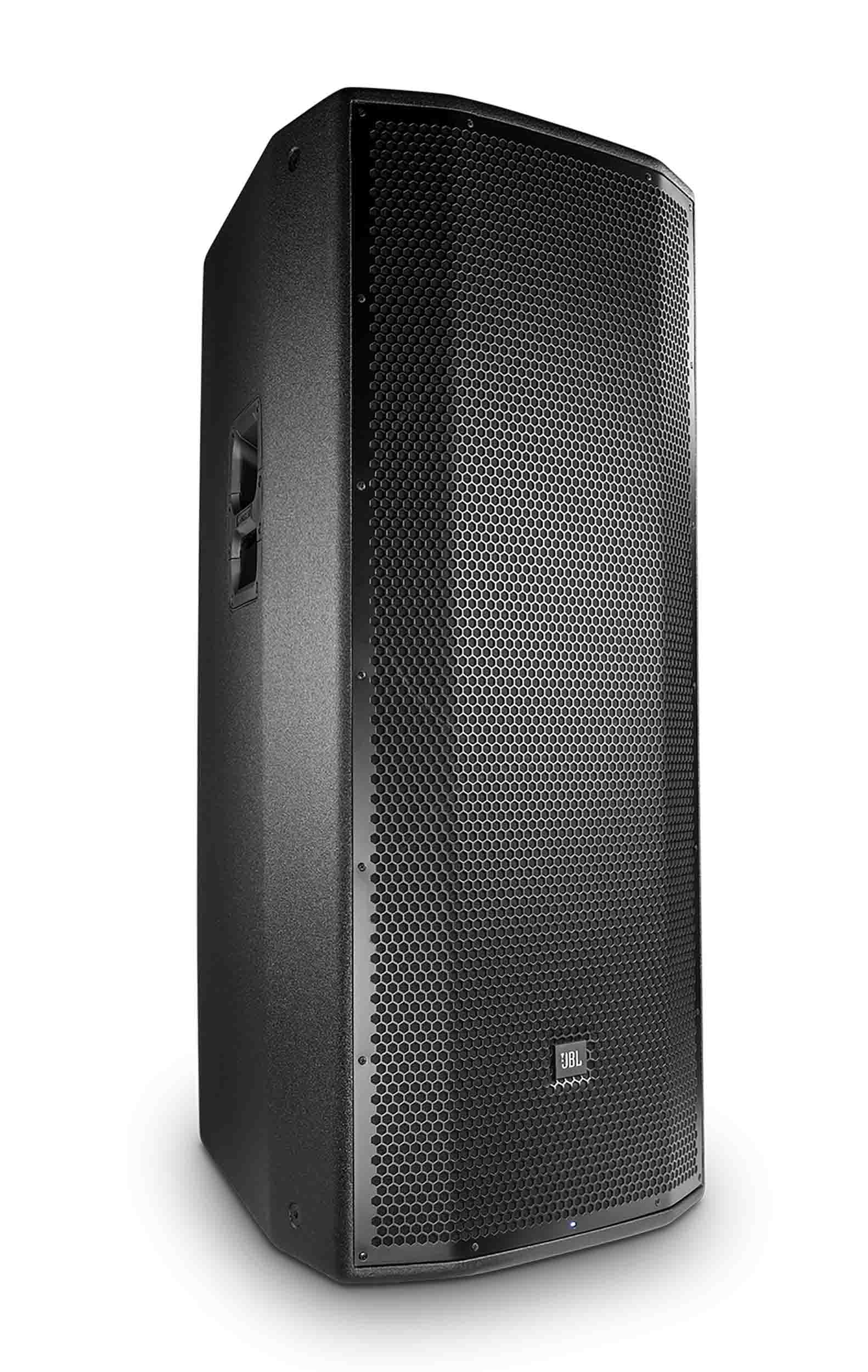

JBL PRX825W, Dual 15 Inch 2-Way Full Range Main System with Wi-Fi

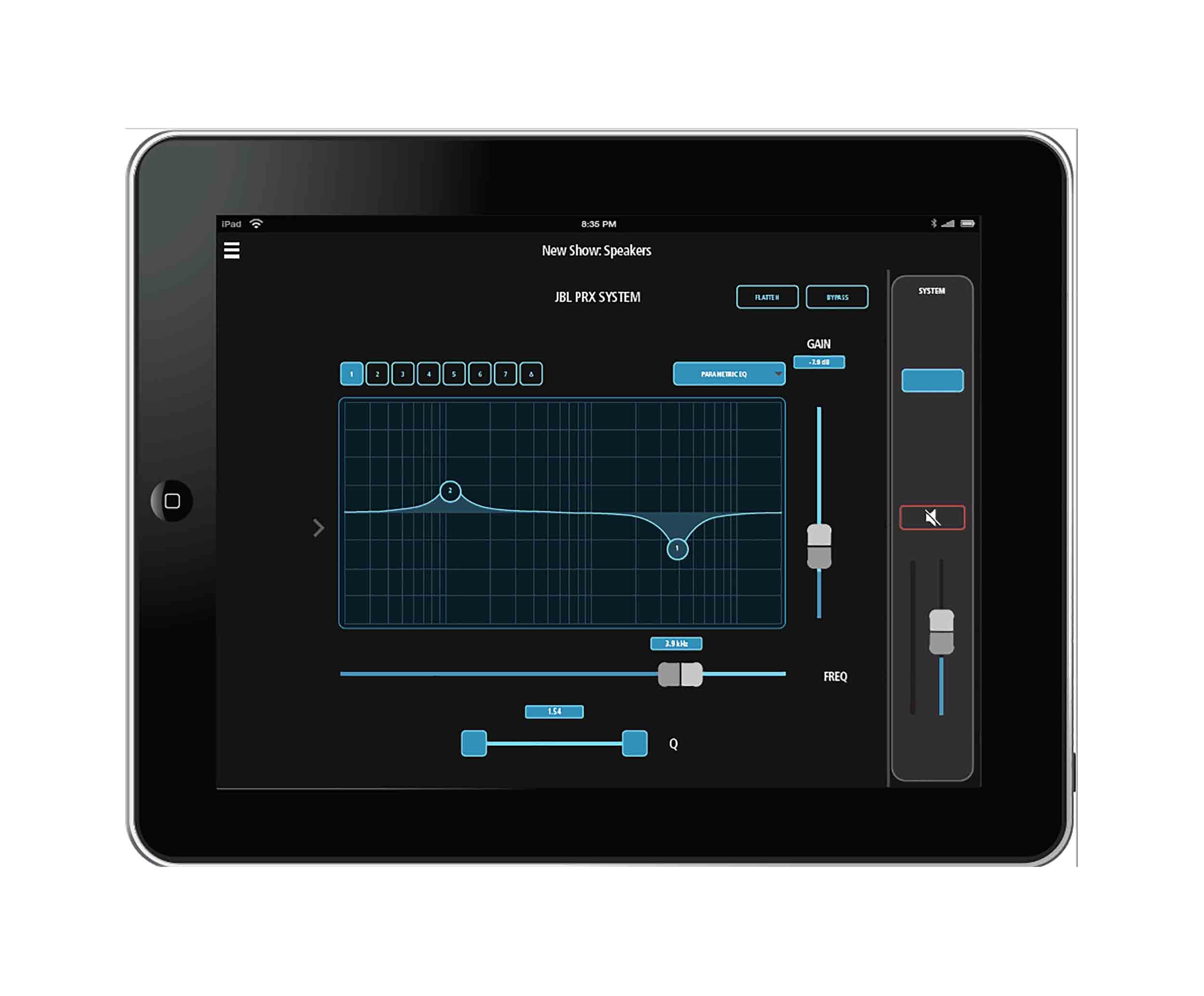

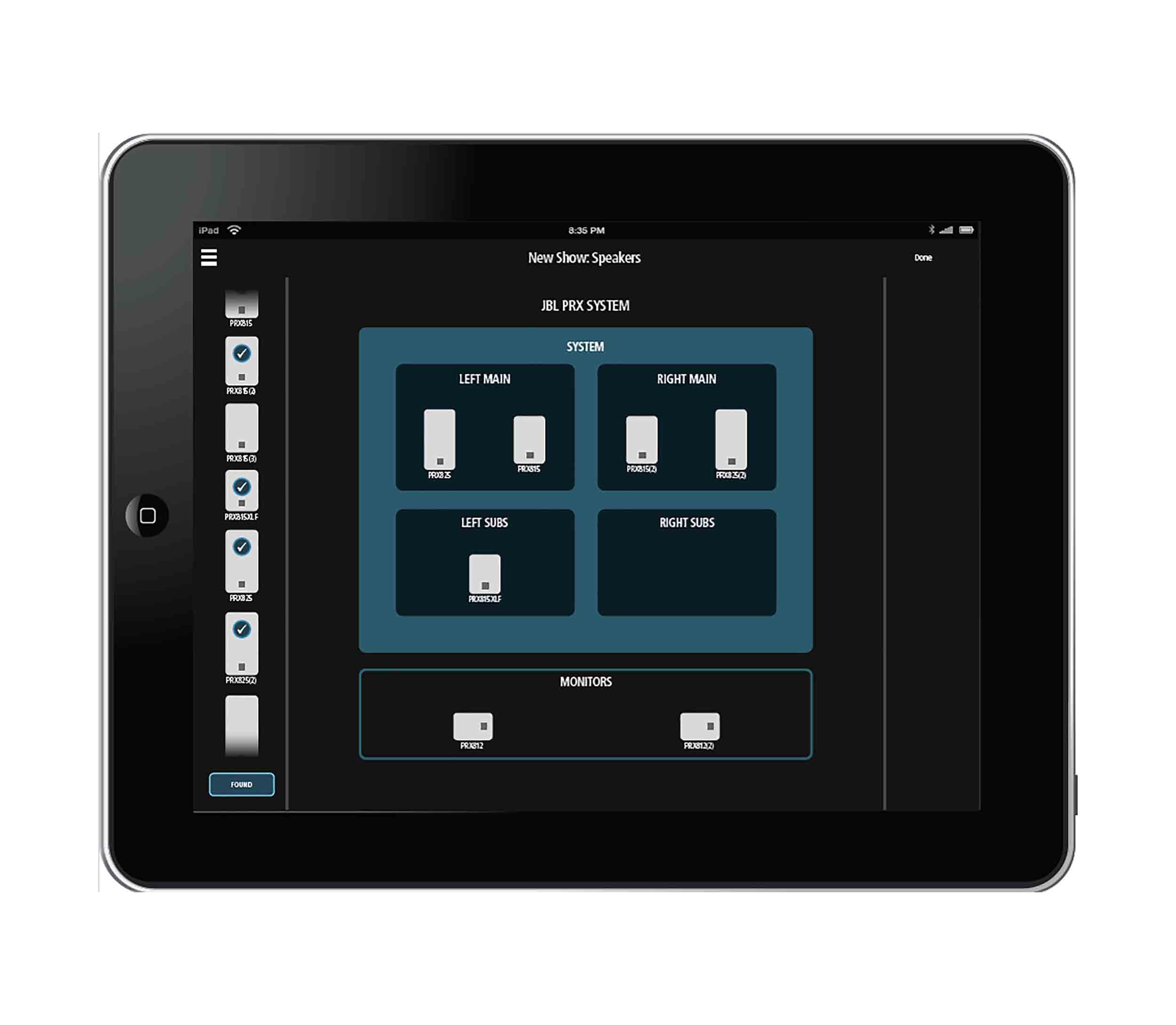

The JBL PRX825 is a full-range speaker designed for main system applications. Featuring a dual 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX825 delivers incredible volume in a lightweight and compact form factor. Because of the second 15” woofer, the PRX825 is an ideal solution when space for set-up or transport is limited, but low frequency performance is vital to the success of a gig. The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

Product Specification:

System Type: Self Powered Dual 15”, two-way, bass-reflex

Maximum SPL Output: 138 dB peak

Frequency Range (-10dB): Normal: 42 Hz – 18.5 kHz Boost: 40 Hz – 18.5 kHz

Frequency Response (±3 dB): Normal: 49 Hz – 17 kHz Boost: 46 Hz – 17 kHz

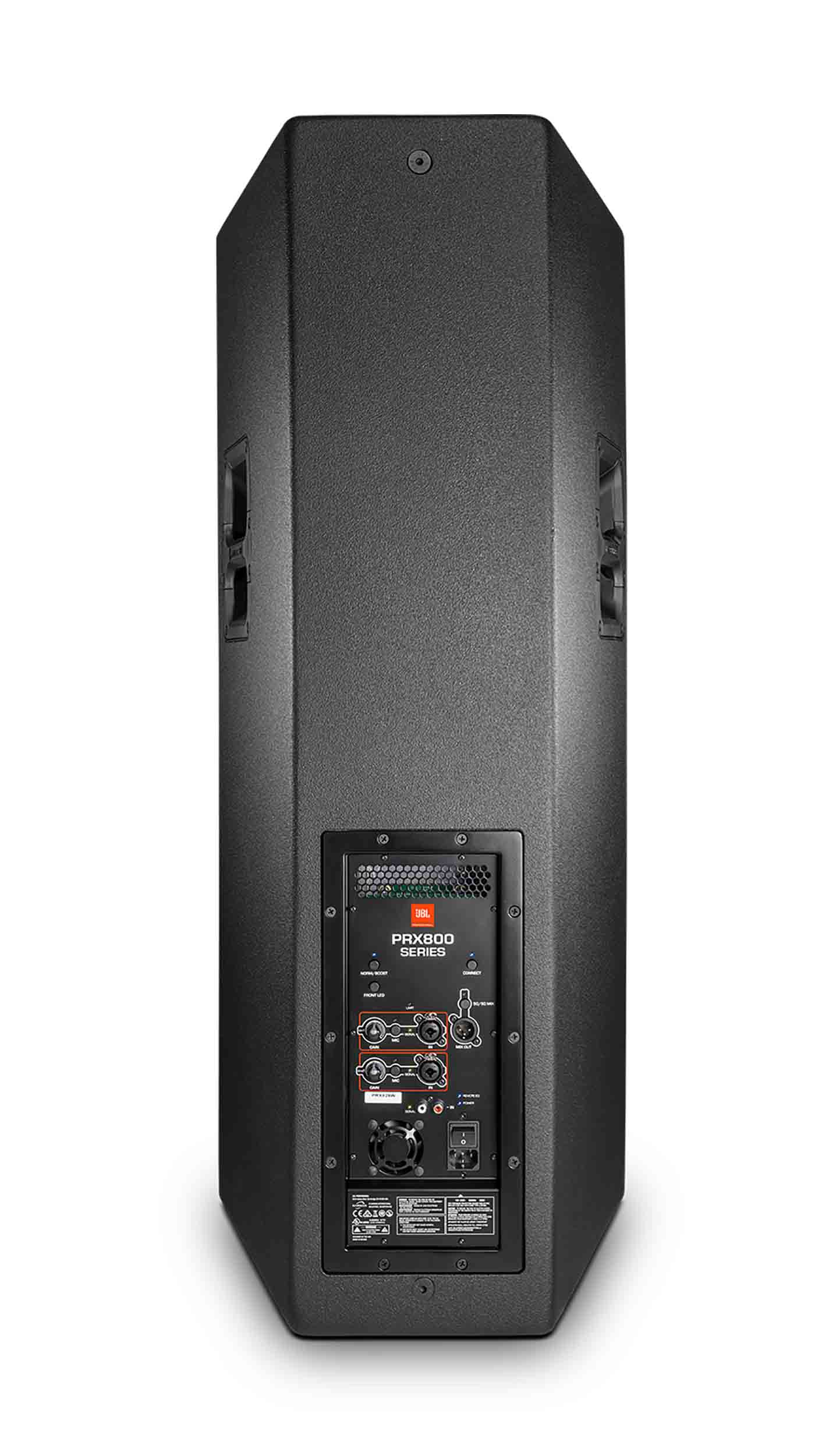

Inputs: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)

Dynamic Control (Input): dbx Type IV limiter circuit

Crossover Frequency: 2.4 kHz

Design: Highly efficient Class-D amplifier

Power Rating: 1500W (750W x 2)

AC power input: 100V - 240V ~ 50/60 Hz

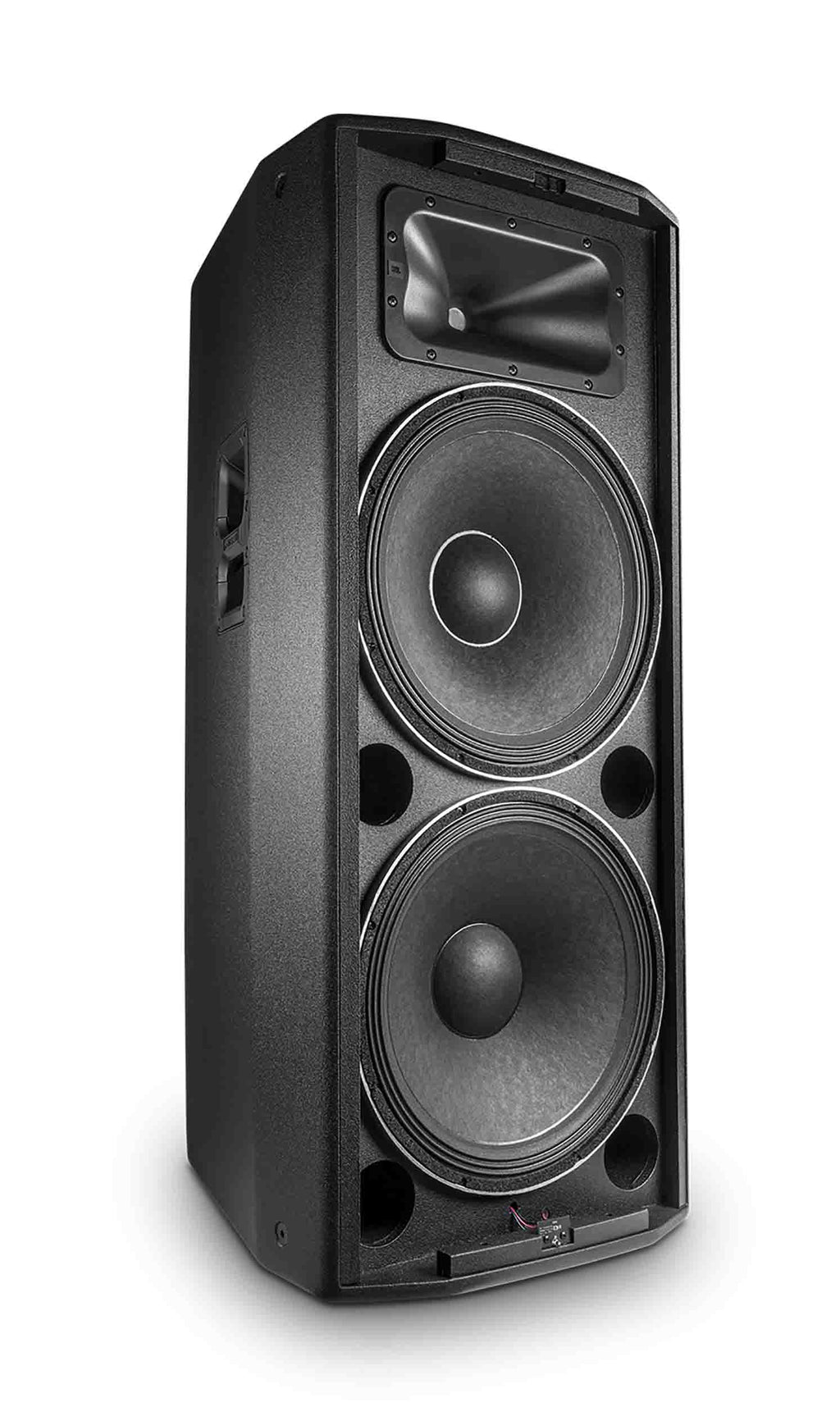

LF Driver: 2 x JBL 275 (15 in) woofer

HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Coverage Pattern: 90° x 50° nominal

Directivity Index (DI): 10.4 dB

Directivity Factor (Q): 11

Enclosure: Trapezoidal, 18 mm, Duraflex coated plywood

Suspension / Mounting: 8 x M10 Suspension Points, 1 x M10 pull back point

Transport: 2x integrated handles with injection molded backing cup

Finish: Obsidian DuraFlex finish

Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

Dimensions (H x W x D): 1061mm x 446mm x 539mm (41.8in x 17.5in x 21.2in)

Net Weight:35.83 kg (79.0 lb)

Gross Weight:43.0 kg (95.0 lb)

Mic Inputs: 2

Phantom Power: No

Effects: 25 parametric EQ's and speaker delay

Outputs: 1 x XLR (mix out)
