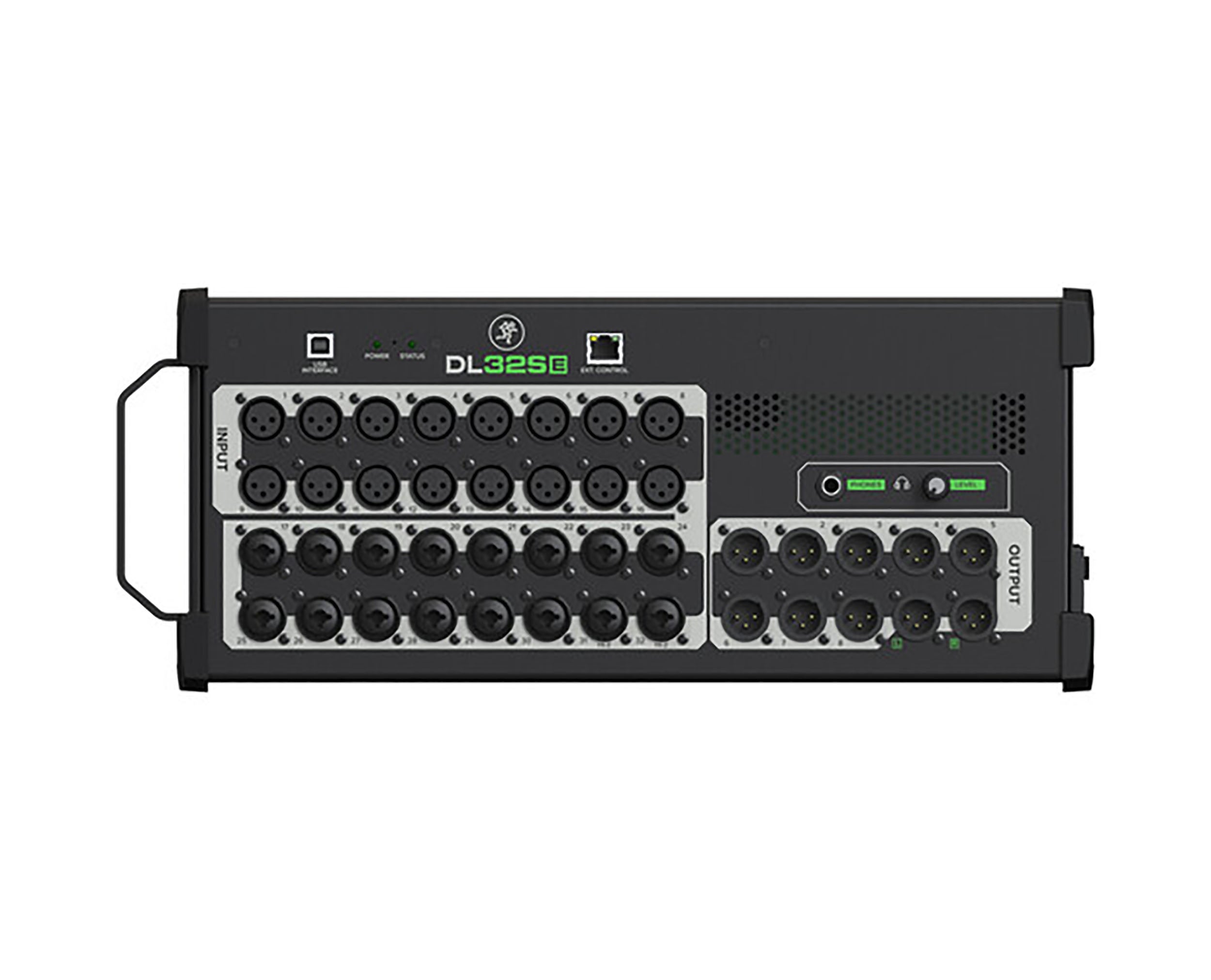

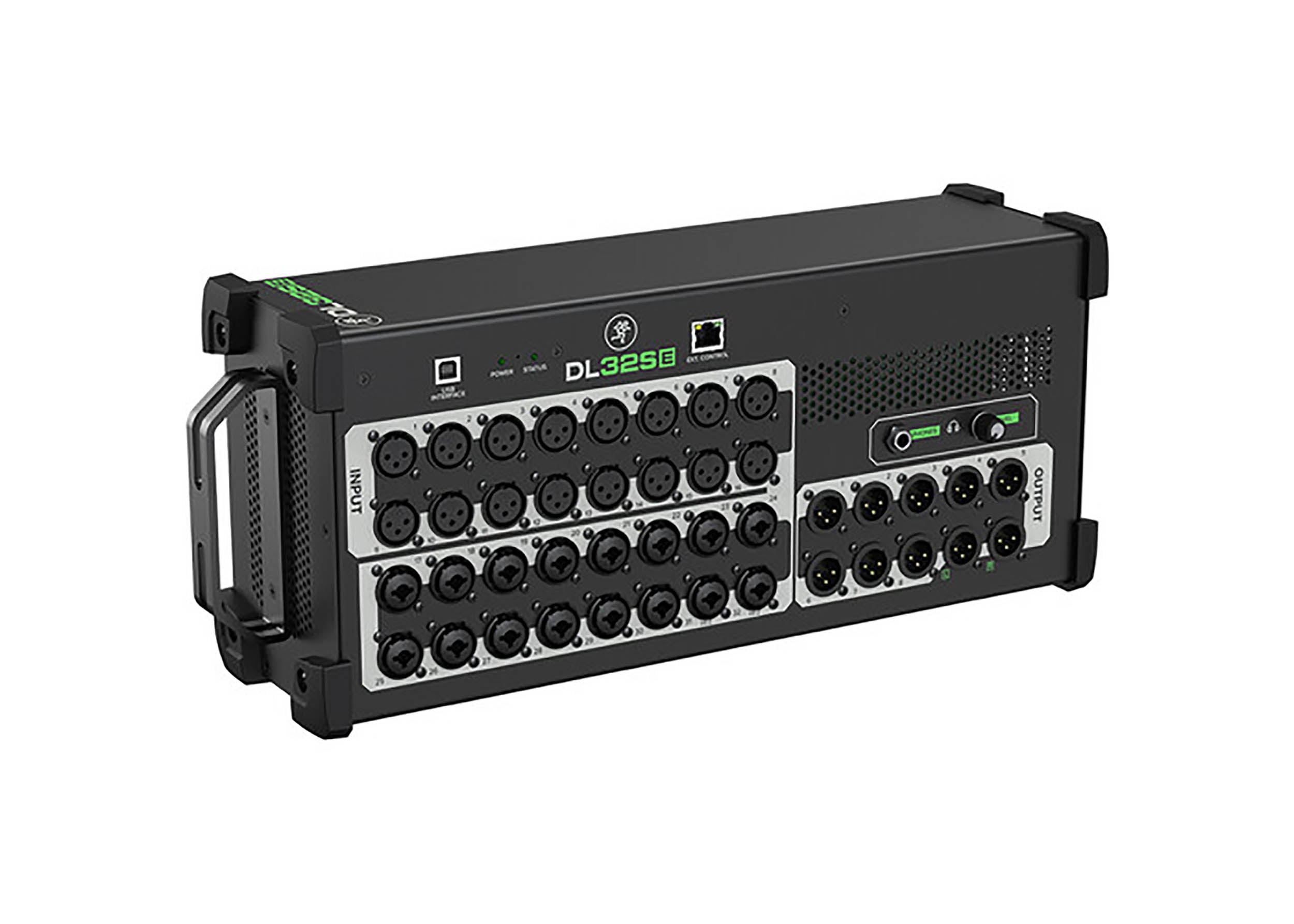

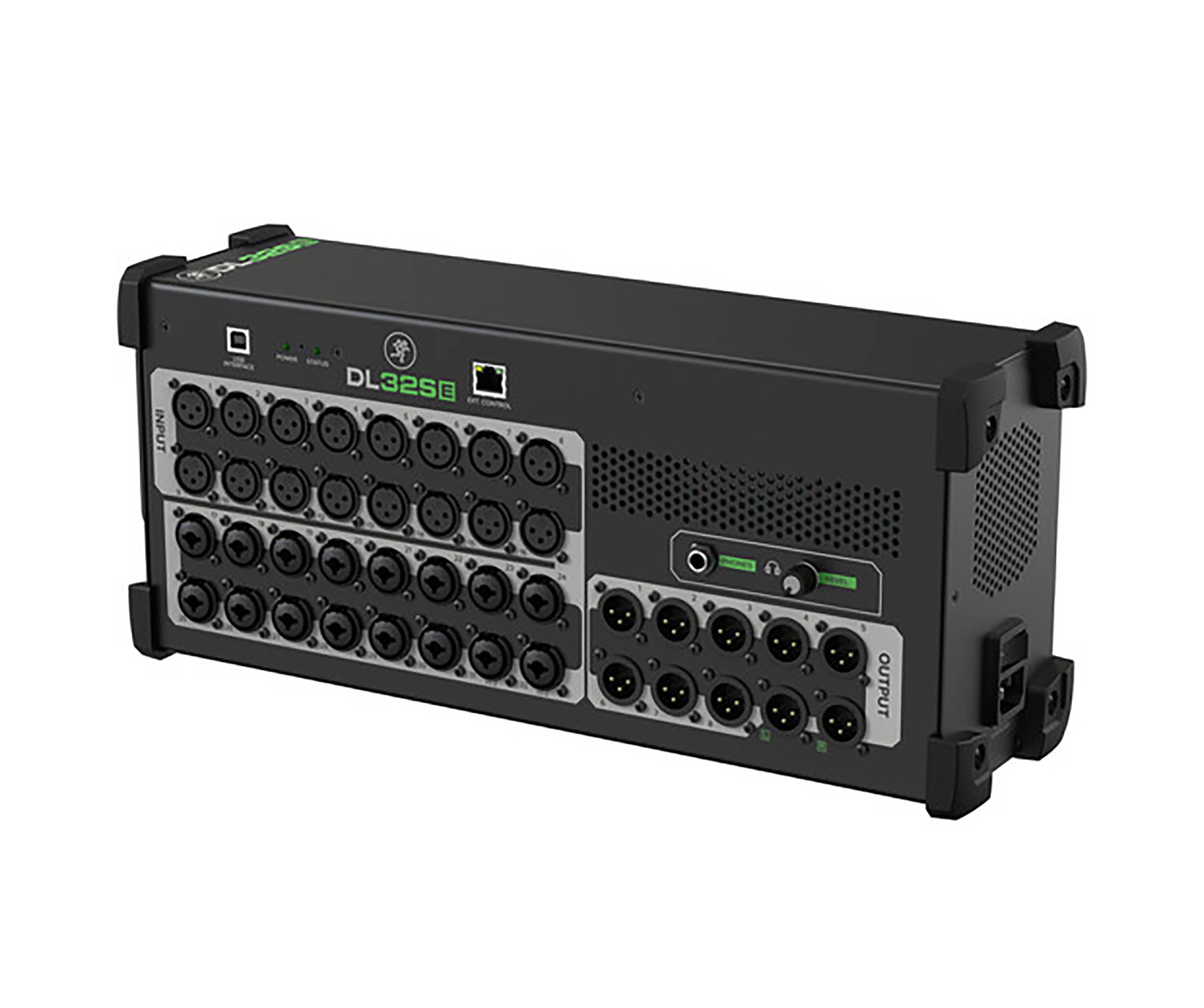

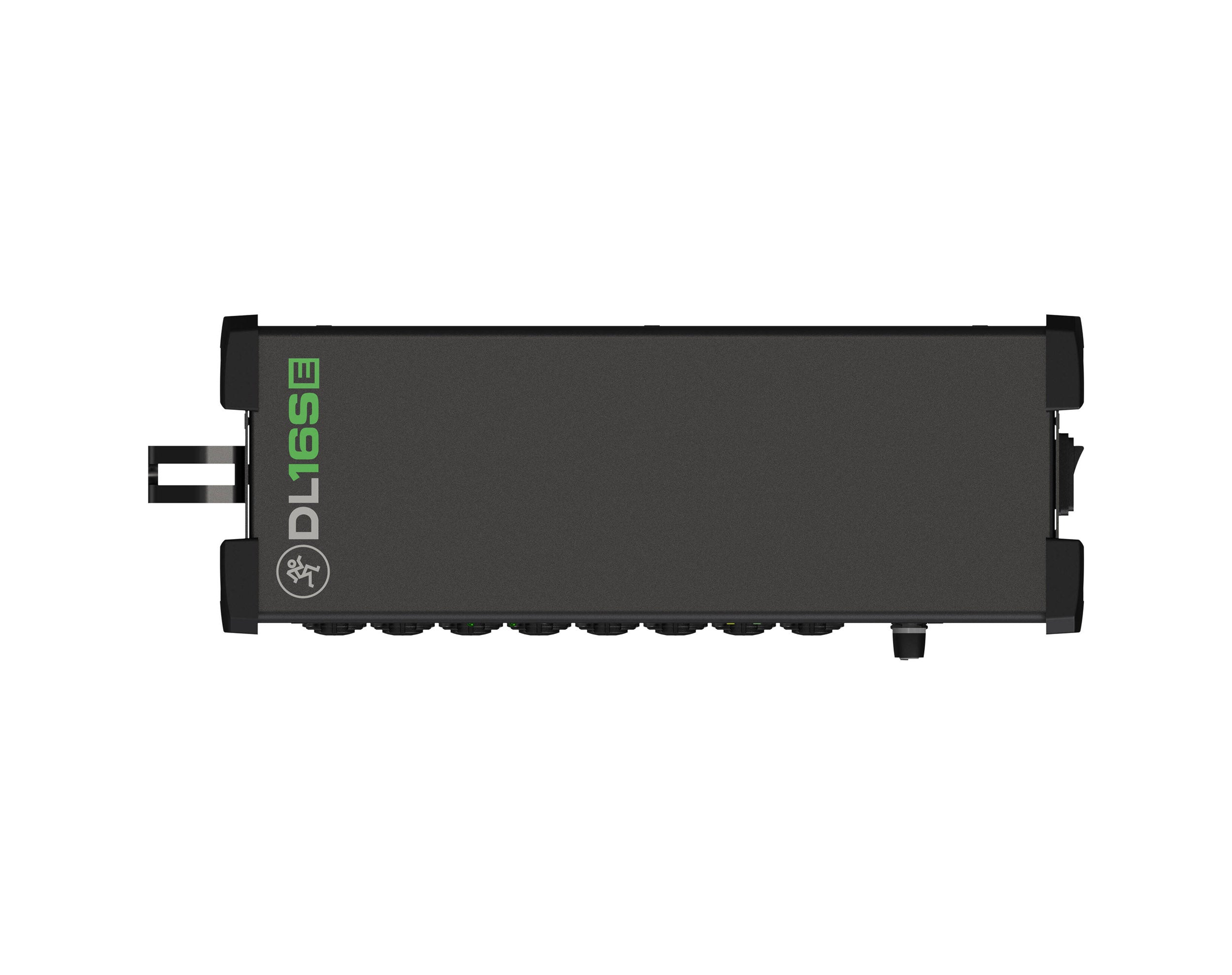

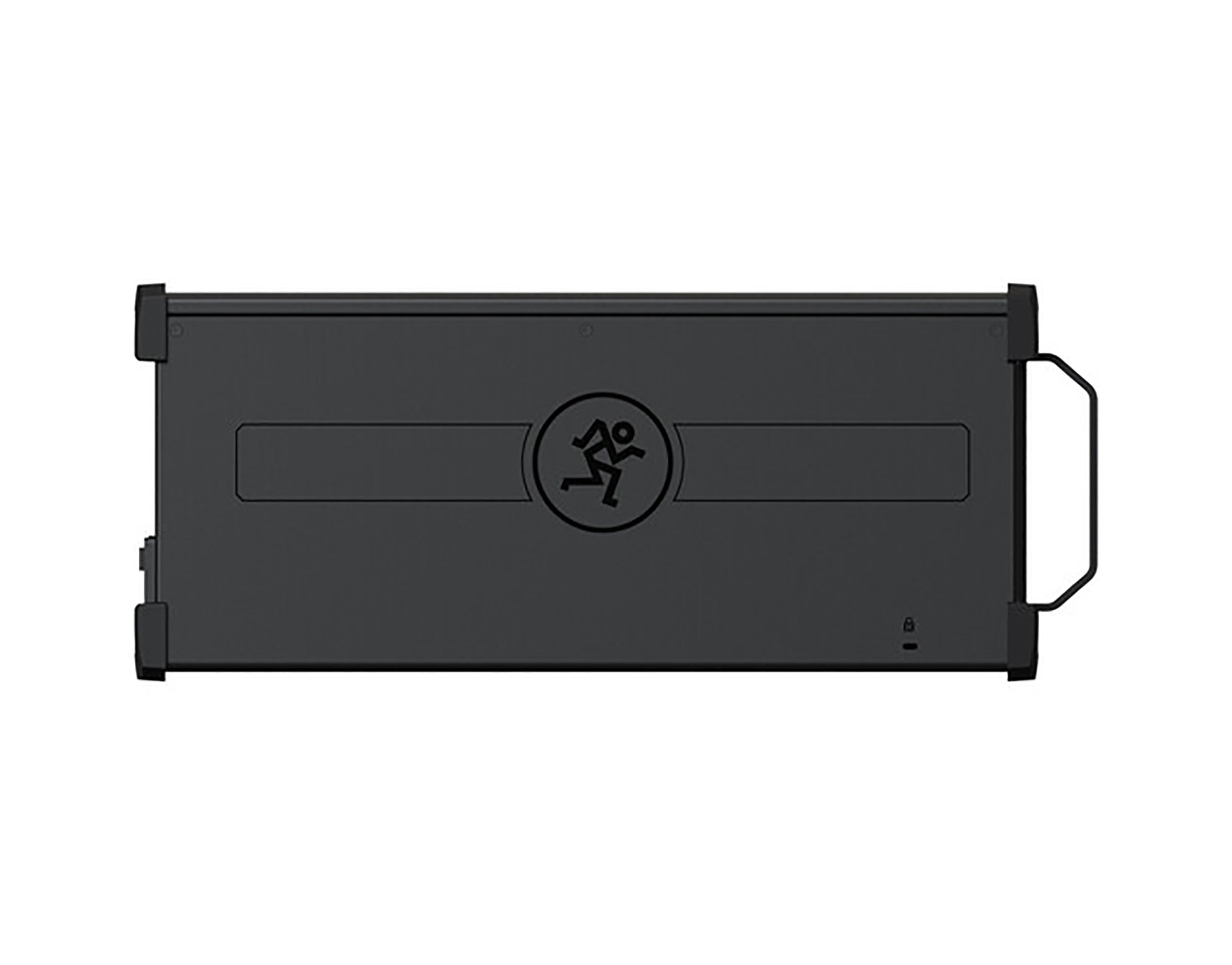

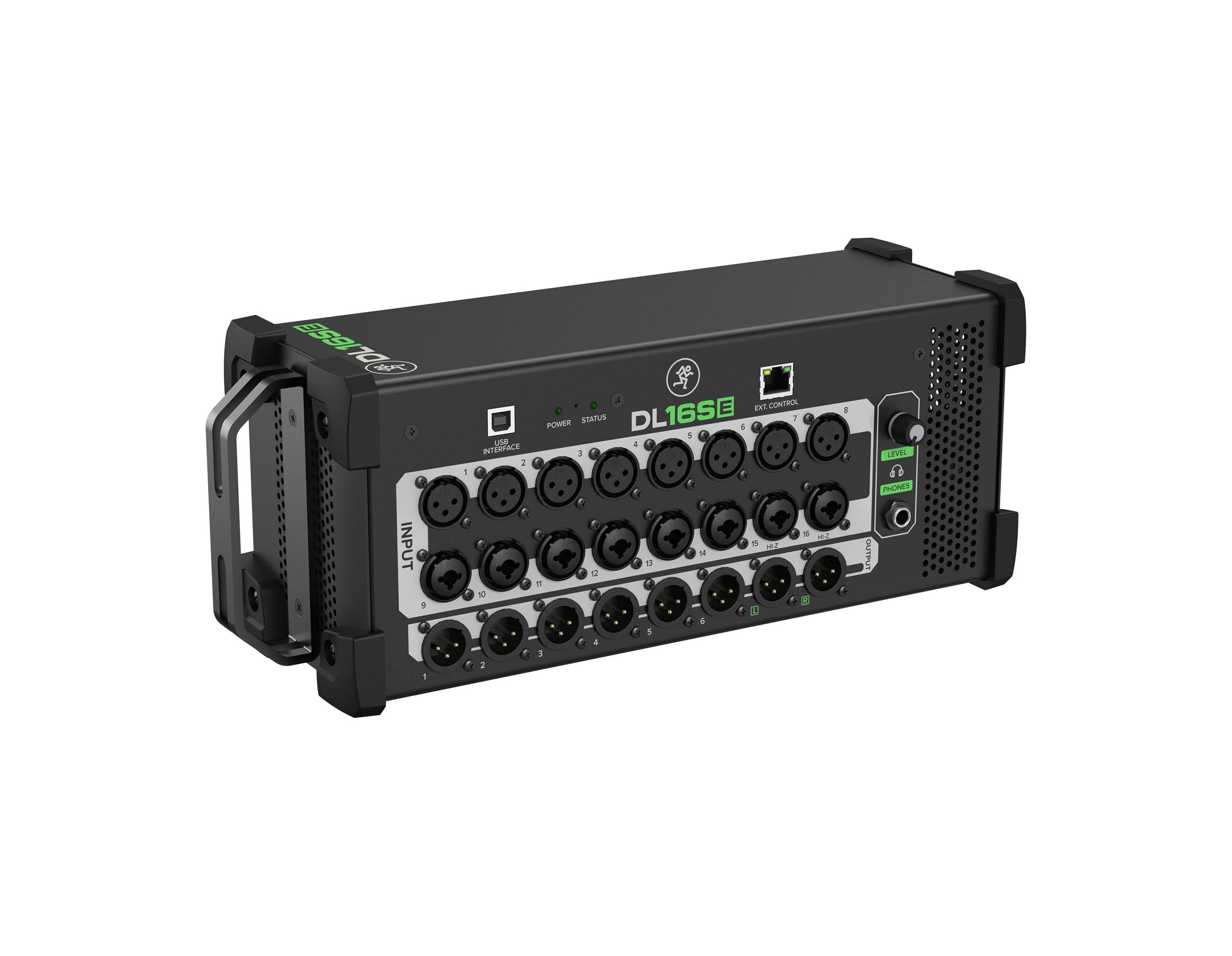

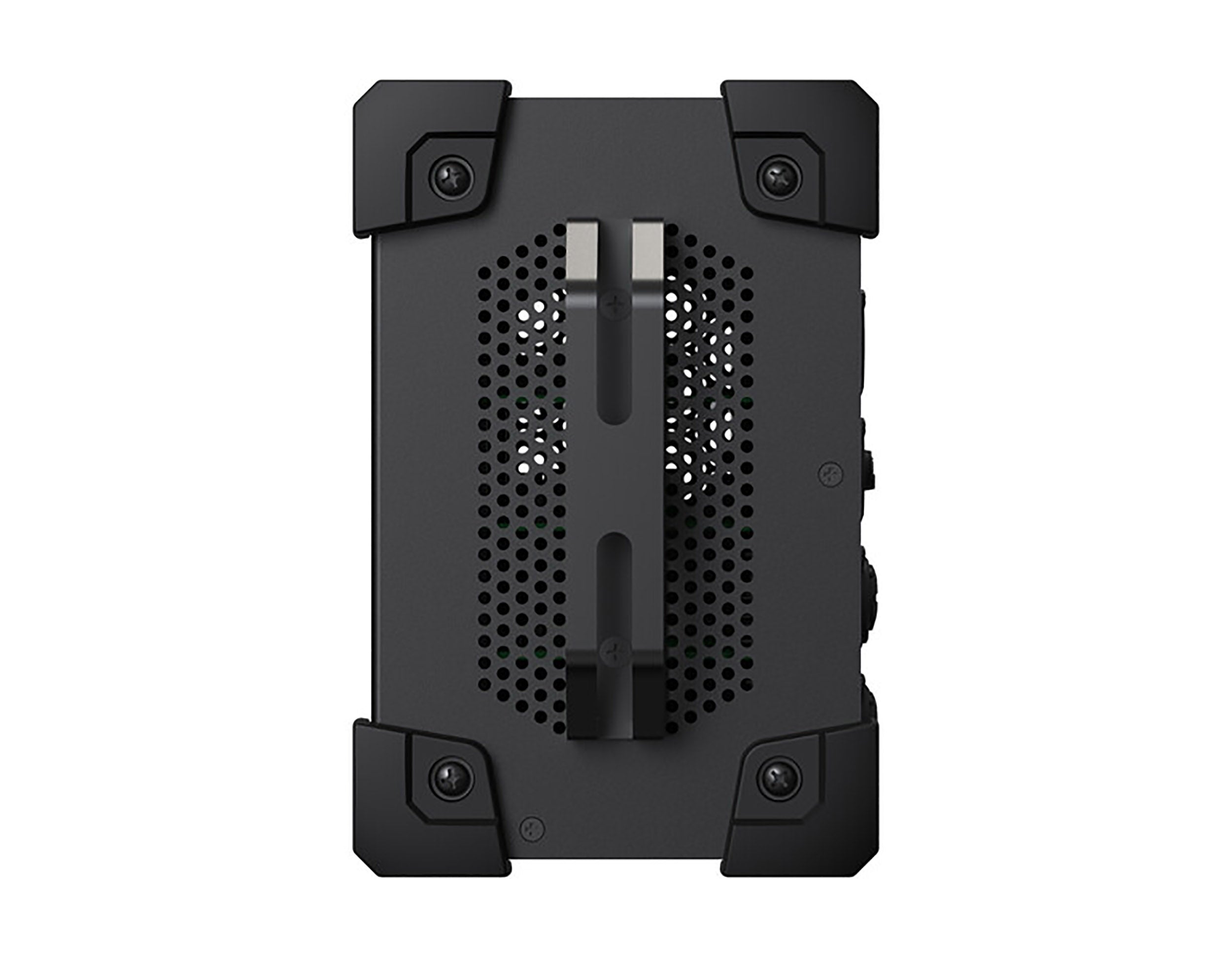

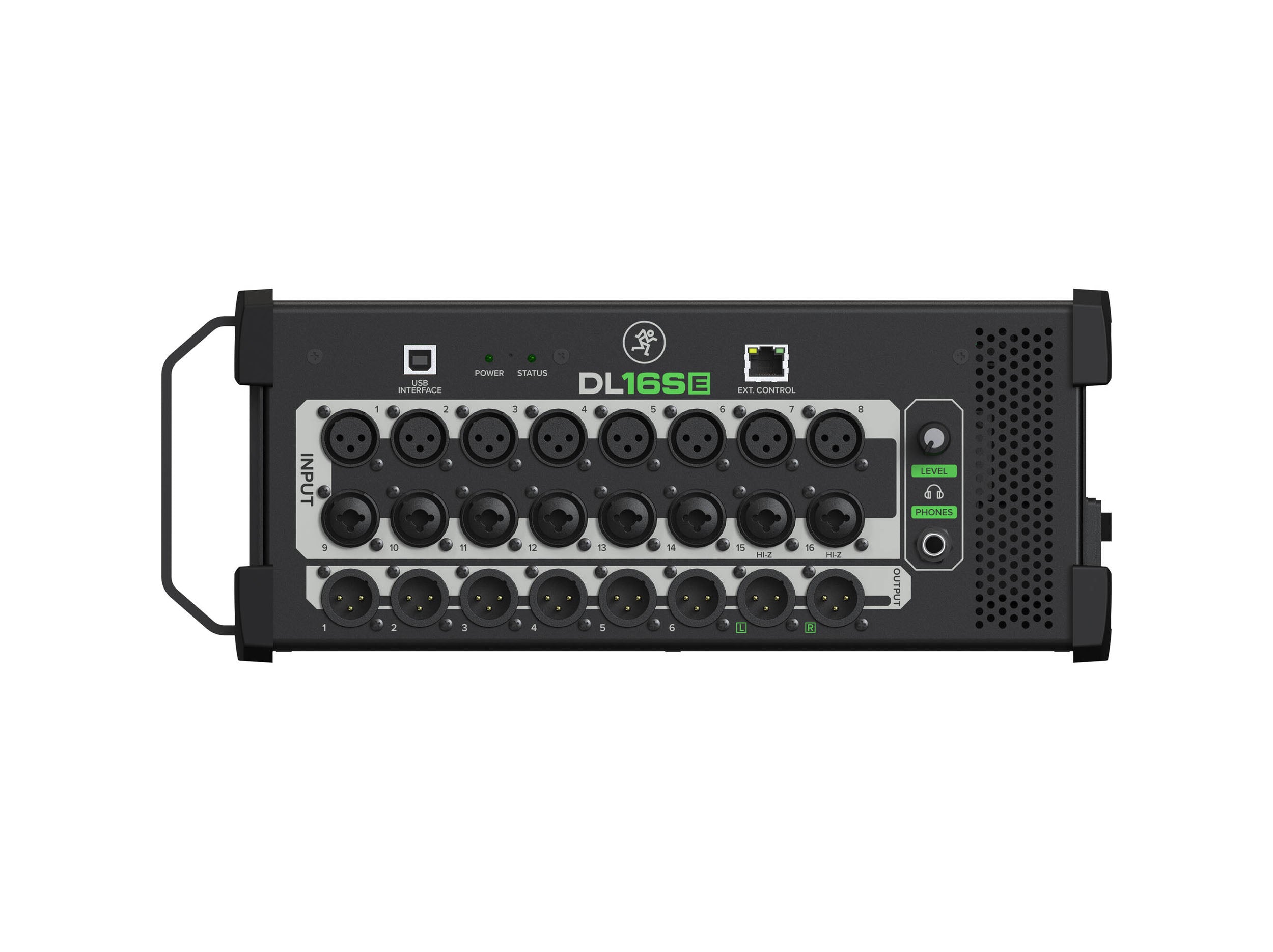

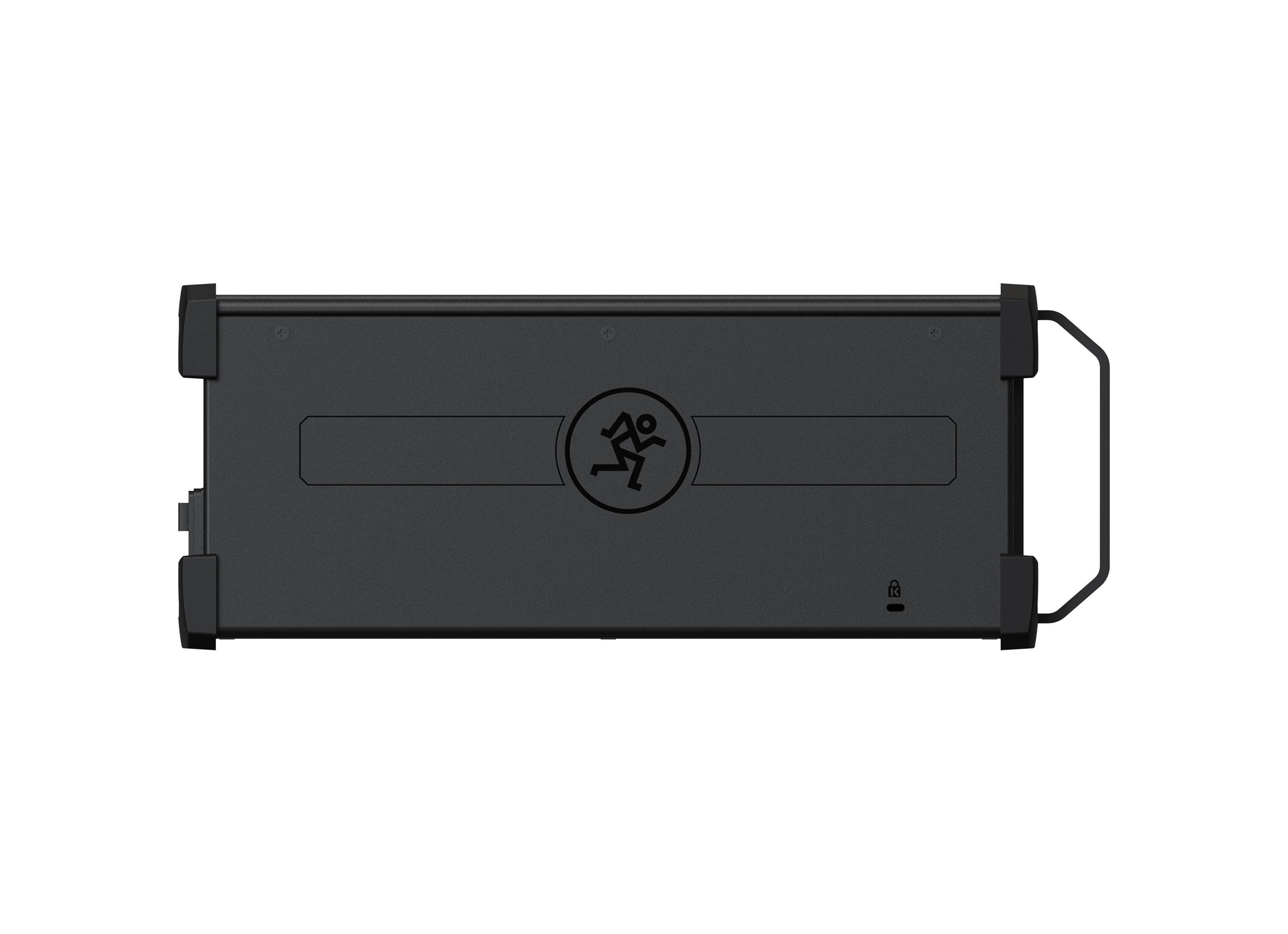

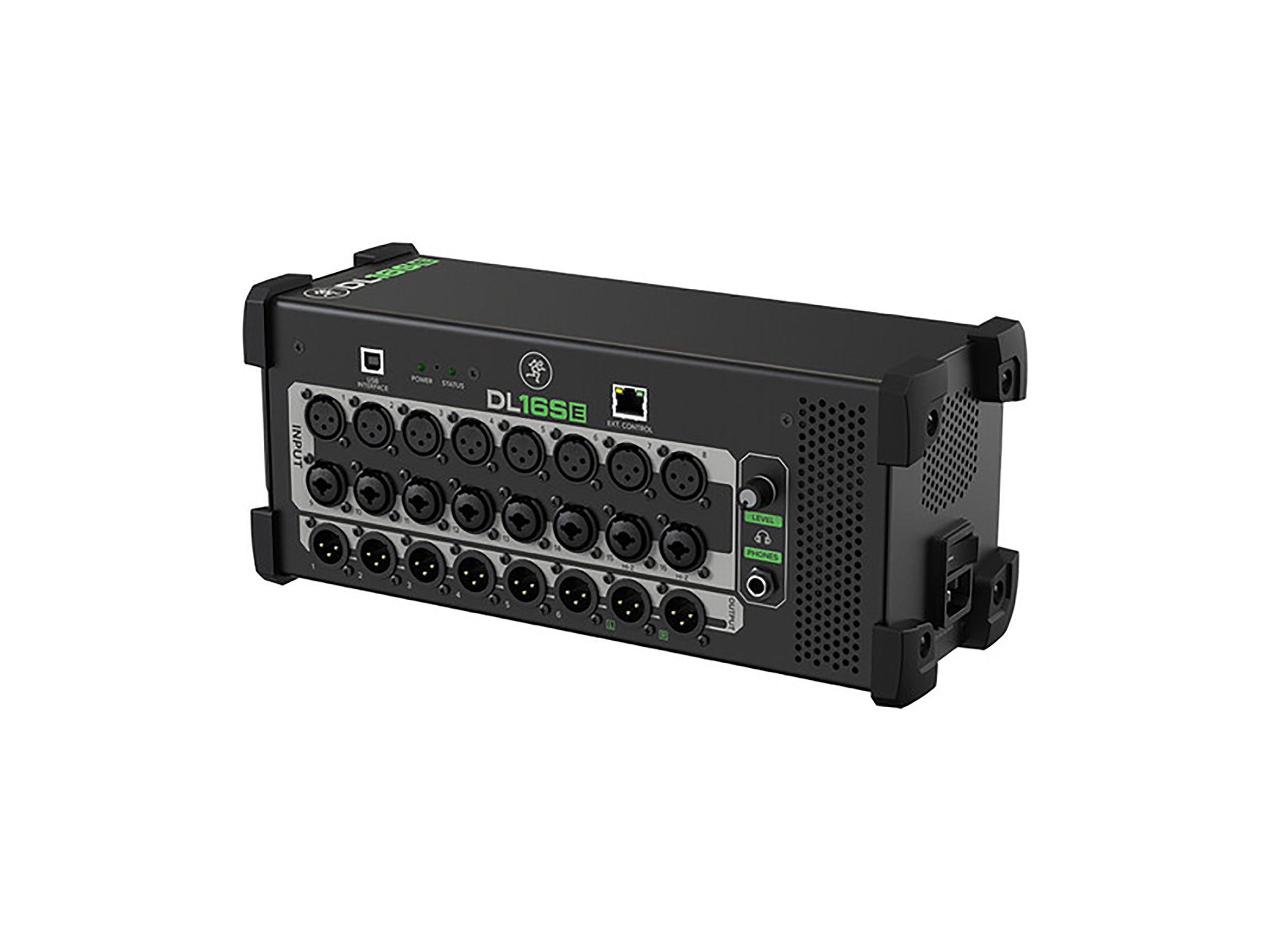

Mackie DLSE Digital Rack Mixer

The Mackie DL Series Digital Rack Mixers are professional-grade solutions designed to deliver exceptional mixing power with the legendary Onyx+ mic preamps and robust DSP in a compact, rack-mountable format. Ideal for live sound, recording, and production, these mixers offer unparalleled control via the Master Fader SE app, multitrack USB recording, and wireless operation. Built to withstand the rigors of professional use, the DL Series combines cutting-edge features, flexibility, and reliability for any application.

MASTER FADER SE

Master Fader SE is the primary user interface for Mackie DL Series Digital Rack Mixers. It provides a powerful mixing experience on your tablet, Mac, or PC, replacing traditional hardware controls with a sleek software solution.

• Intuitive and easy-to-master interface.
• Supports up to 20 devices simultaneously for control from anywhere.
• Advanced features like view groups, subgroups, VCAs, and mute groups.
• Export presets, shows, and system backups via Dropbox or email.
• Offline show creation for pre-event setup.

MULTITRACK RECORDING & PLAYBACK

• Record the show for later mixdown
• Perform a virtual sound check
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Flexible, low-cost studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER SE CONTROL APP

• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
• Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
• Export presets, shows and complete system backups via Dropbox, email and more
• Set up the show before you arrive at the venue with offline show creation
• Available on iOS, Android, macOS and Windows

Product Specifications:

Mixer:

Groups:

6x VCA Group

6x Mute Group

Faders & Level Adjustment: No

Signal Processing:

Dynamic Processing:

Input Channels: Compressor, Gate

Buses, Master: Compressor, Limiter

EQ:

Input Channels: 4-Band Parametric

Output Buses:

4-Band Parametric

31-Band Graphic

Graphic EQ: 31-Band

Filters:

Input Channels: High-Pass

Outputs:

High-Pass

Low-Pass

Solo/Mute: No

Built-In Effects:

Stereo Reverb

Stereo Delay

Stereo Chorus

Stereo Flanger

Automatic Mic Mixing: No

Phantom Power: +48 V, Selectable On/Off (Selectable on Individual Inputs)

Digital I/O: 1x RJ45 (Wi-Fi Router, 100 Mb/s)

MIDI I/O: No

USB I/O: 1x USB-B 2.0 (Host Connection)

External Display I/O: No

Recording:

Media Support: HDD

File Format Support: WAV

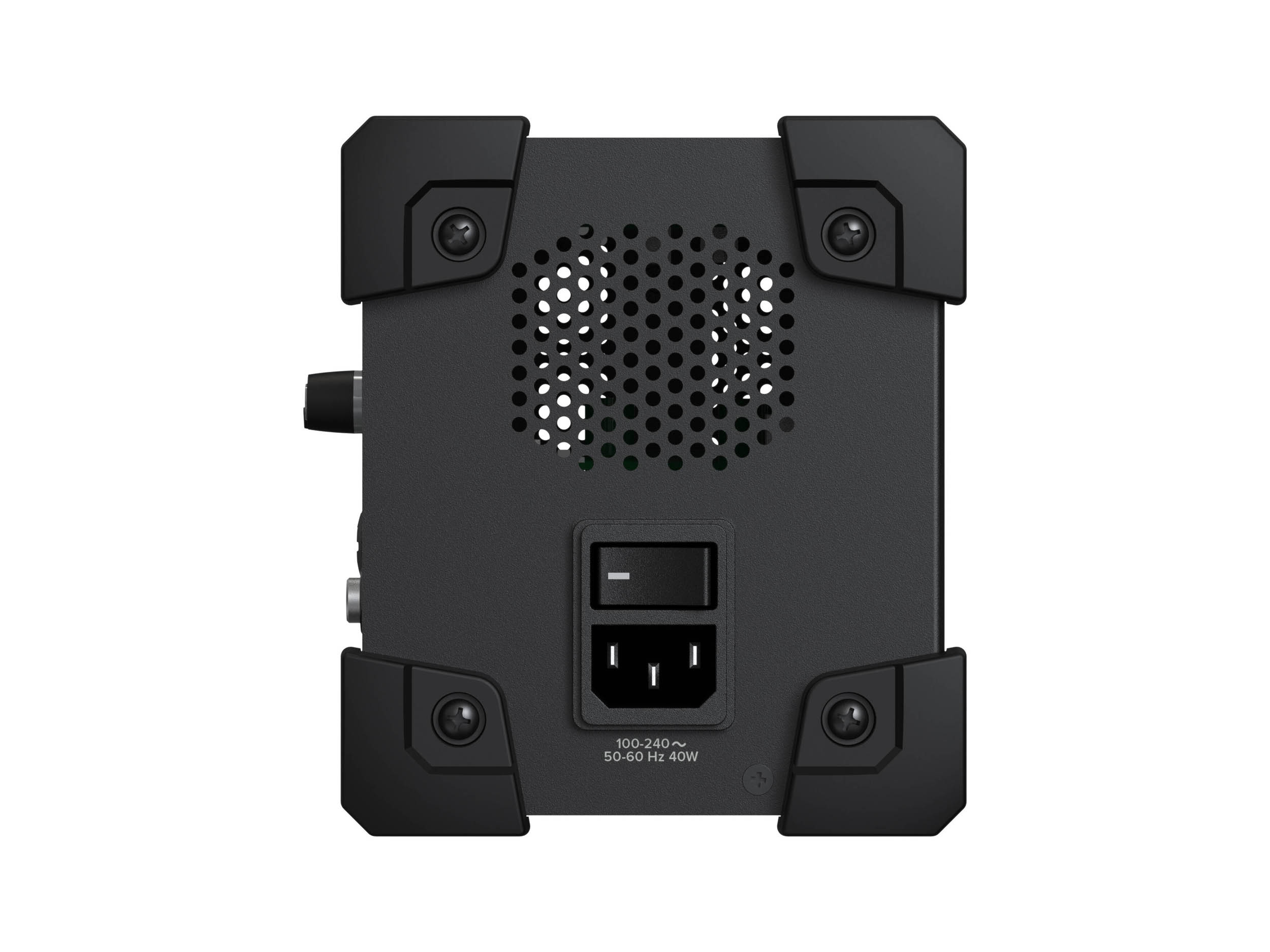

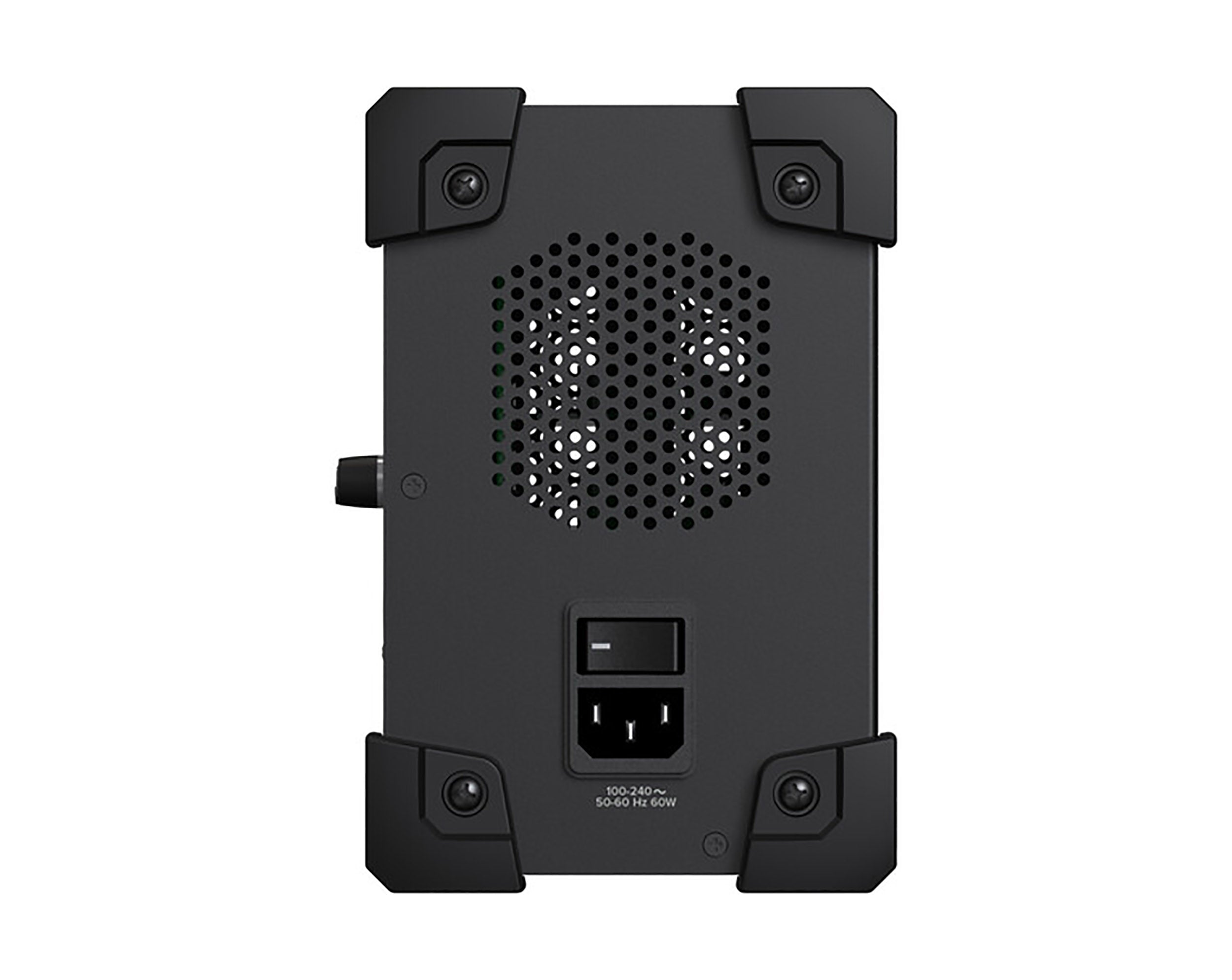

Input Power: 100 to 240 VAC, 50 / 60 Hz

Rack Mountable: Yes
