Description

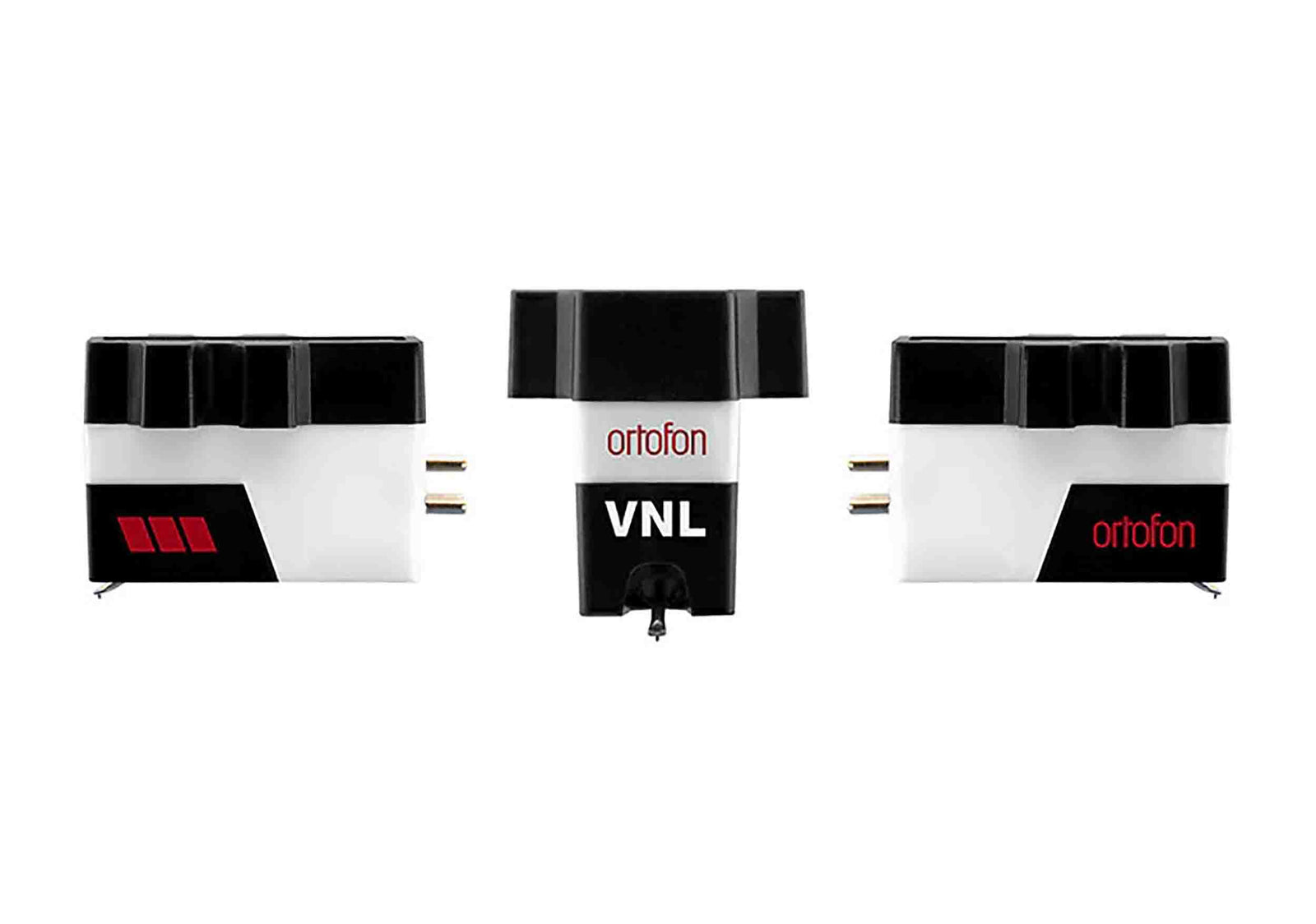

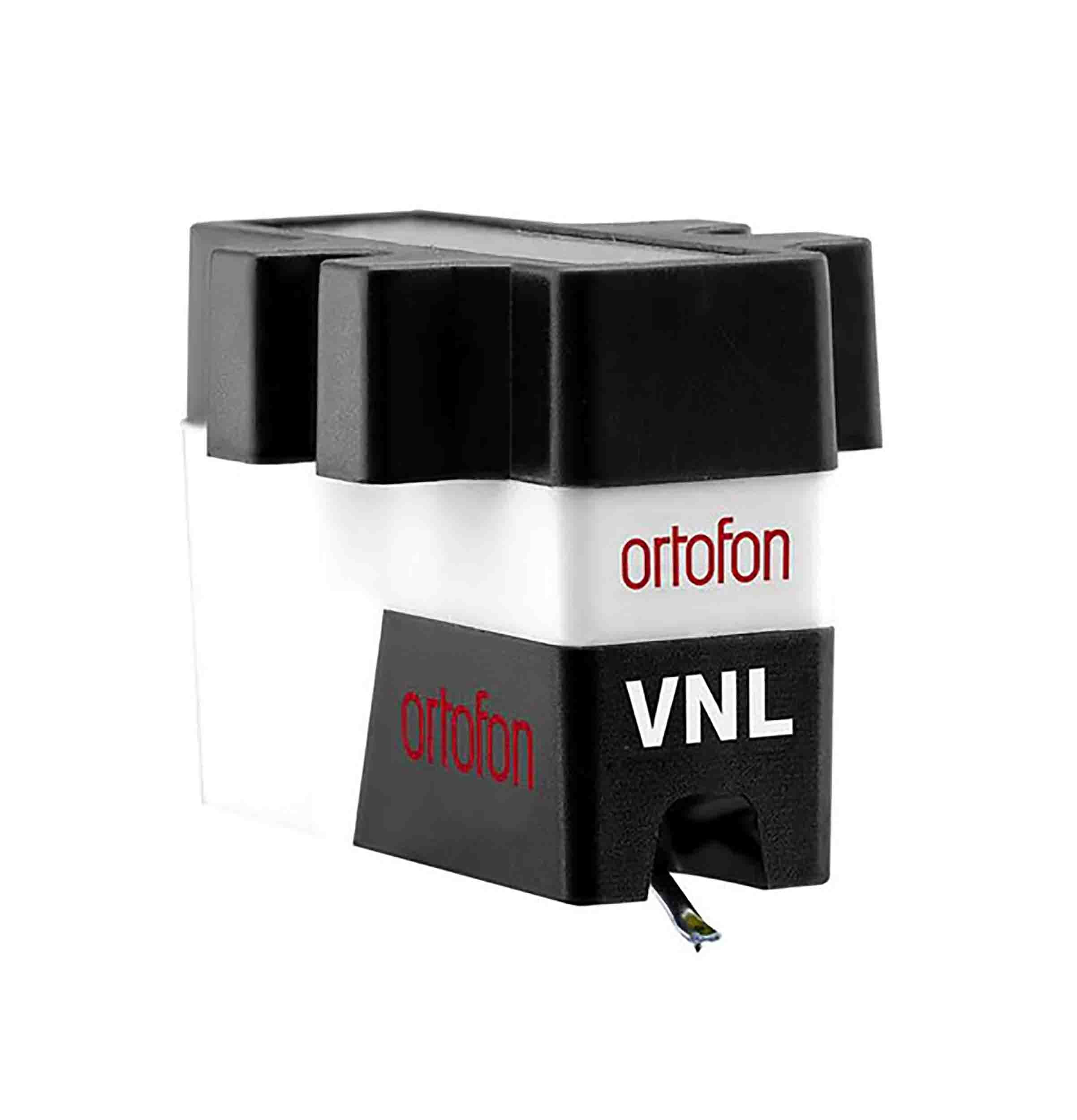

The Ortofon VNL Triple Play is a Moving Magnet DJ Cartridge with 3 Stylus. Skilled DJs demand specialized tools that can help them push their creativity to the edge consistently testing the boundaries in the realm of performance. Understanding this and reflecting our extensive experience in industrial design and technological know-how, we present the new Ortofon VNL cartridge a model tailored uniquely to the unrelenting demands of modern turntablists and portablists.
Technological Improvements Have Been Applied for The Benefits of All Users
Ultrasonic welding of the components ensures high rigidity and freedom from resonances. Robotic assembly of stylus assembly offers high precision and uniformity of industrial production.
3 Different Feels to Fine-Tune Your Performance

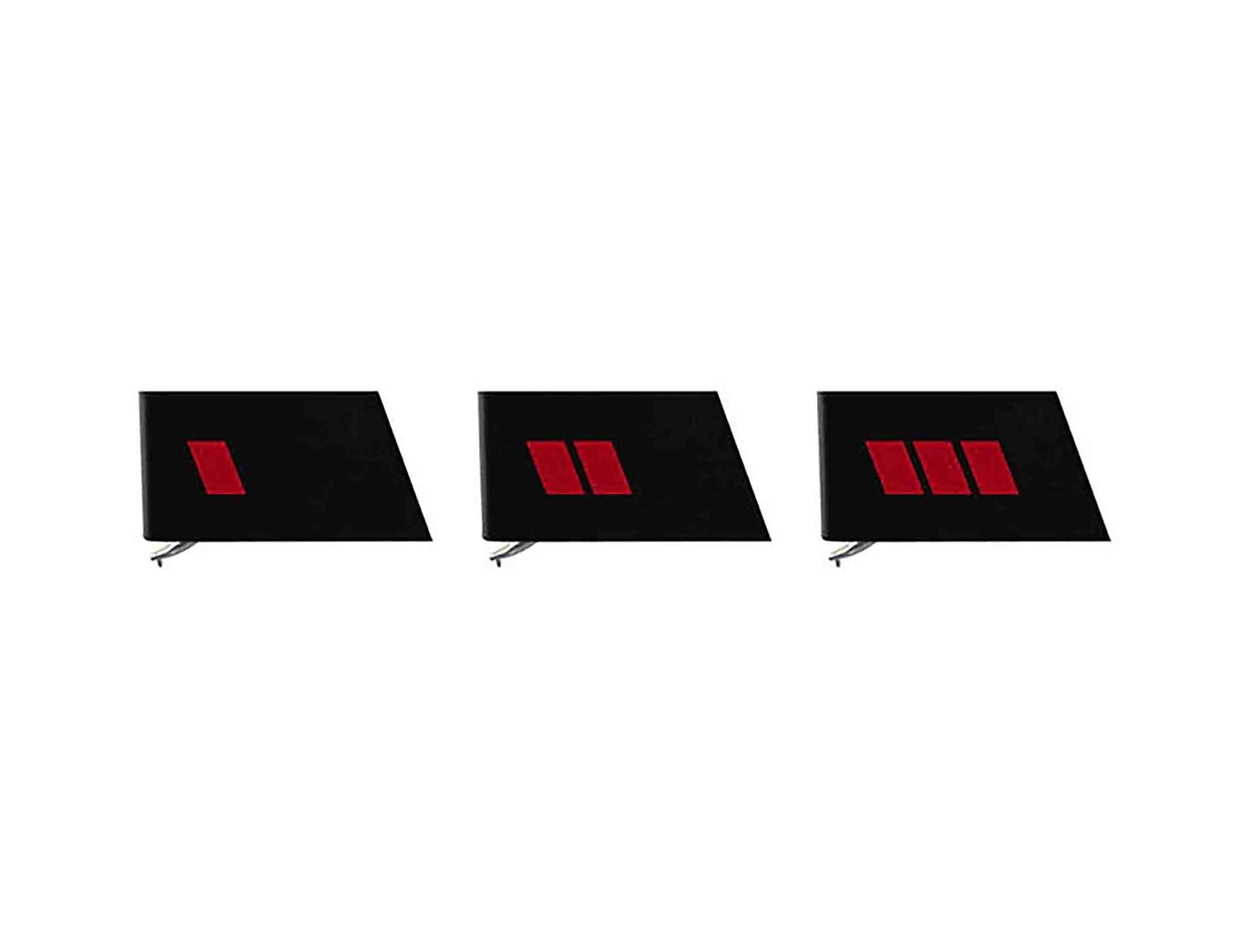

To match the multiple applications of modern DJs the VNL Introduction Package includes 3 different styli with suspension types of varying feel and rigidity,
- VNL I compliance, dynamic lateral 16 μm/m N - Flexible
- VNL II compliance, dynamic lateral 15 μm/m N - Rigid
- VNL III compliance, dynamic lateral 14 μm/m N – Firm
Product Specifications:
Stylus Type Spherical Tracking Force: 4.0 g
Output Voltage: 6 mV
Frequency Range: 20-20.000 Hz
Output voltage: at 1000Hz, 5cm/sec. - 6 mV
Channel separation: at 1kHz - 20 dB
Frequency response: 20 Hz - 20 kHz -2/+4 dB
Tracking ability at 315 Hz at recommended tracking force:
VNL I: 100 um
VNL II: 90 um
VNL III: 90 um
Compliance, dynamic lateral:
VNL I: 16 um/m N
VNL II: 15 um/m N
VNL III: 14 um/m N
Tracking force range: 3 - 5 g
Tracking force recommended: 4 g
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 6,5 g
Replacement stylus units: VNL I, VNL II, VNL III
Antiskating: for best backcueing performance use "0"
