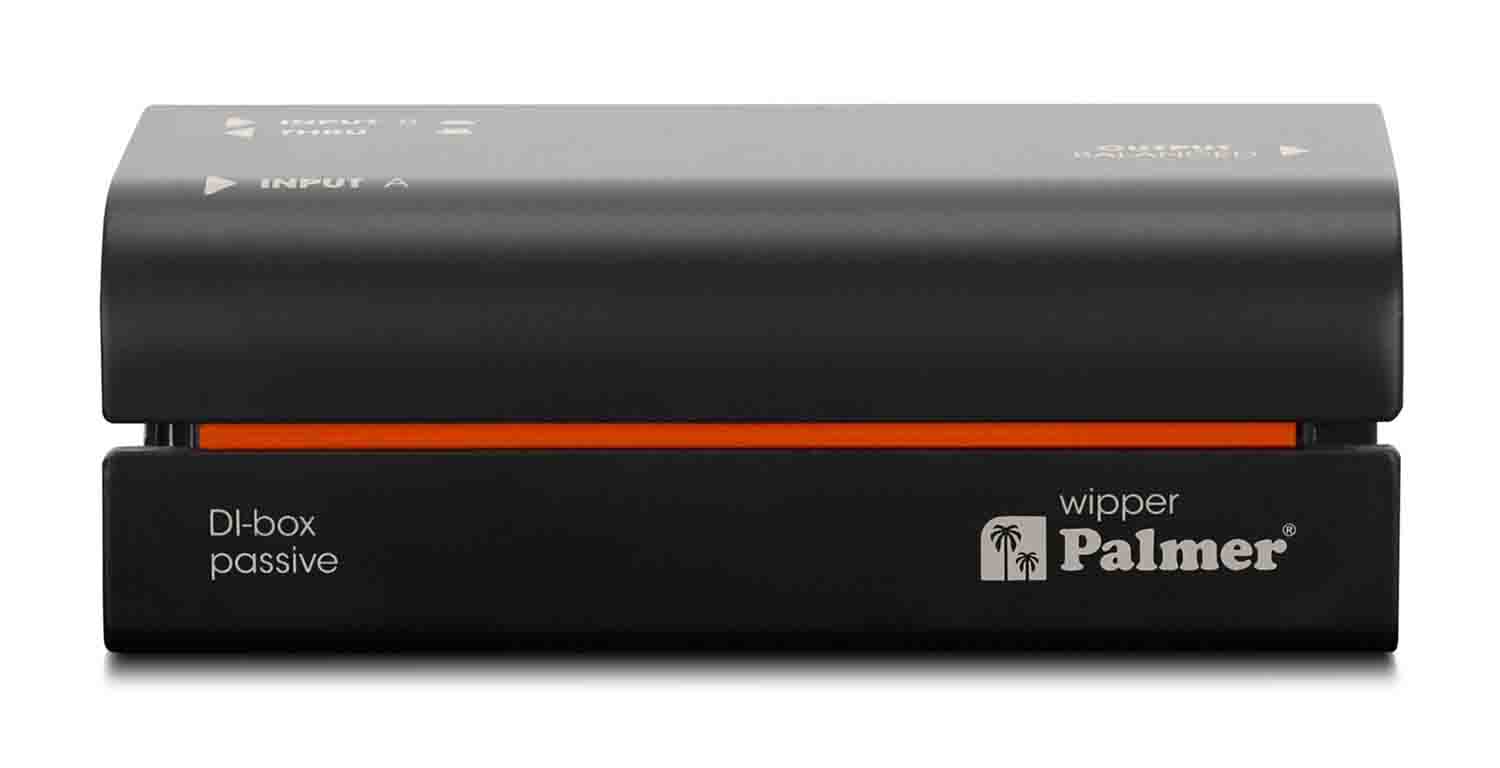

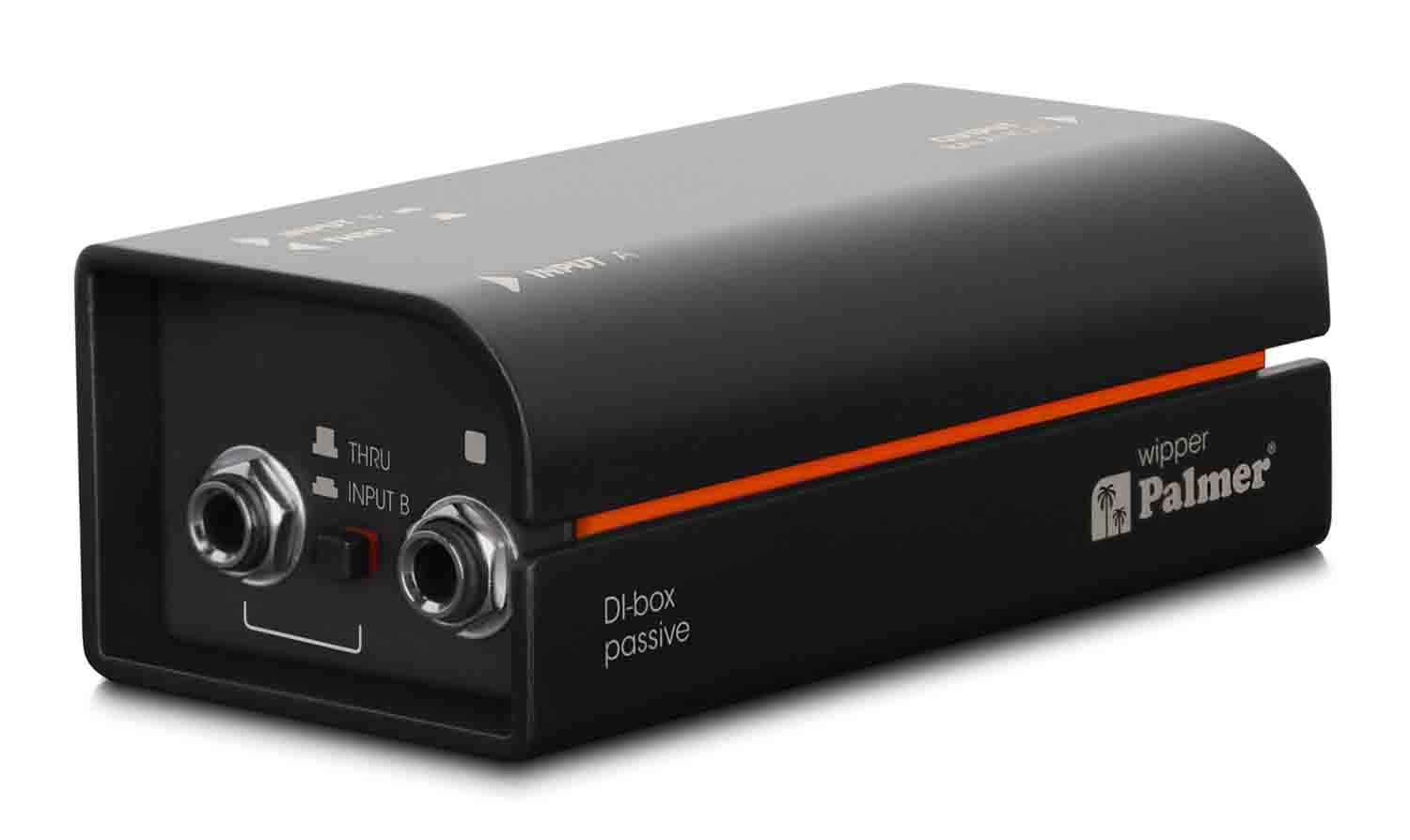

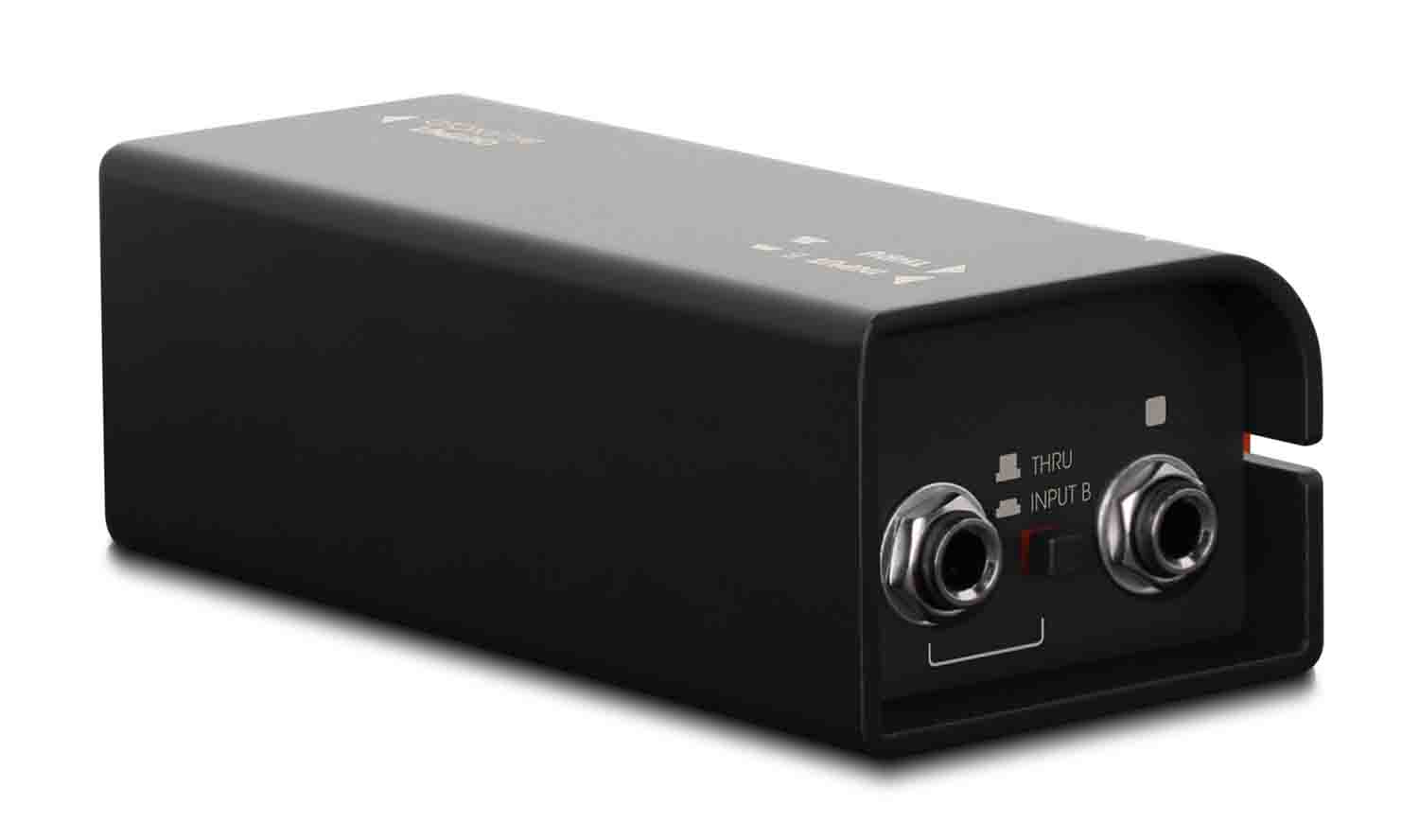

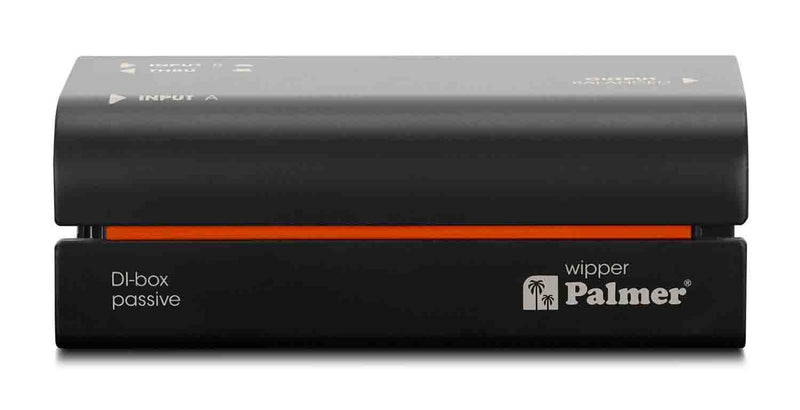

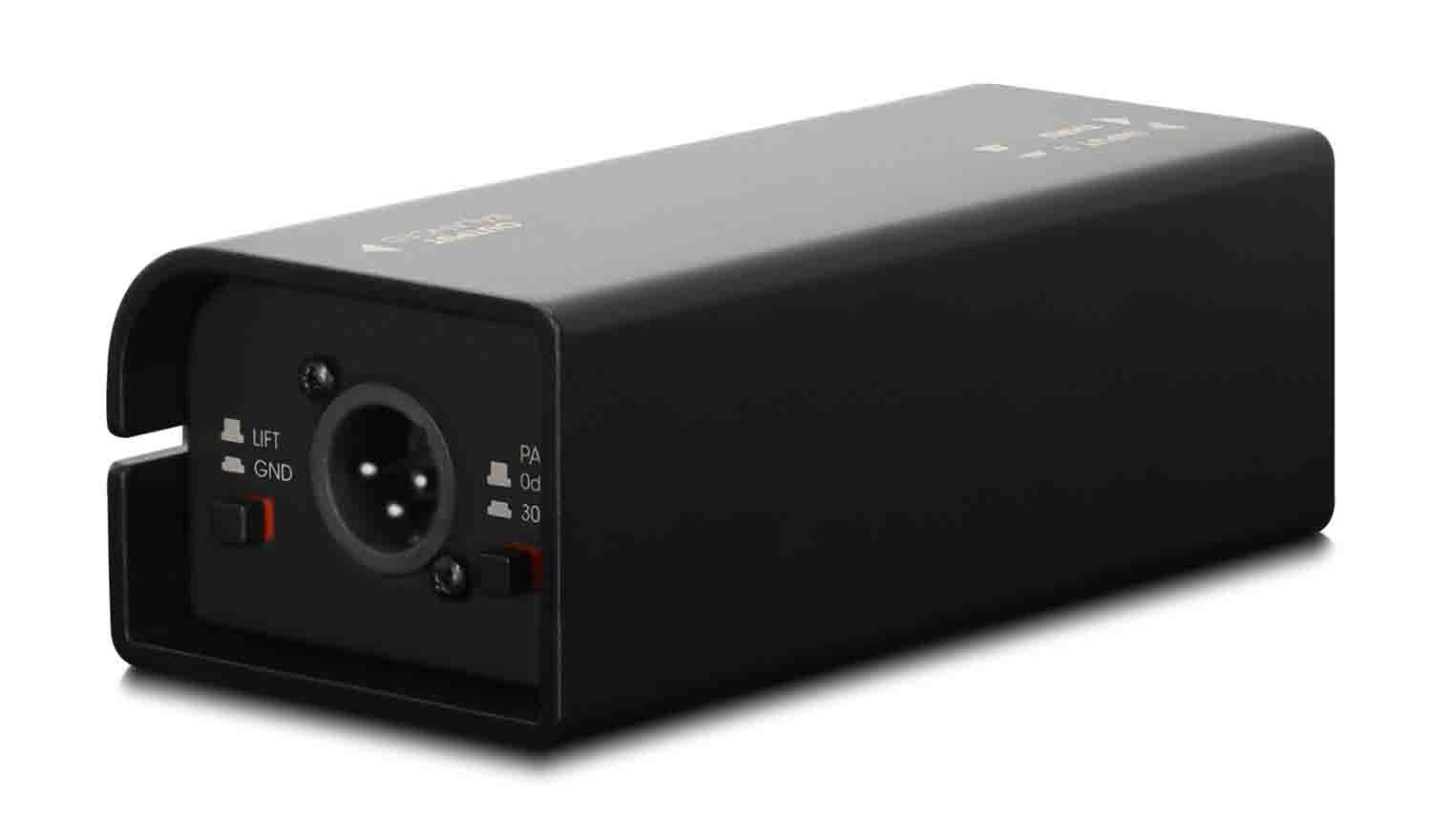

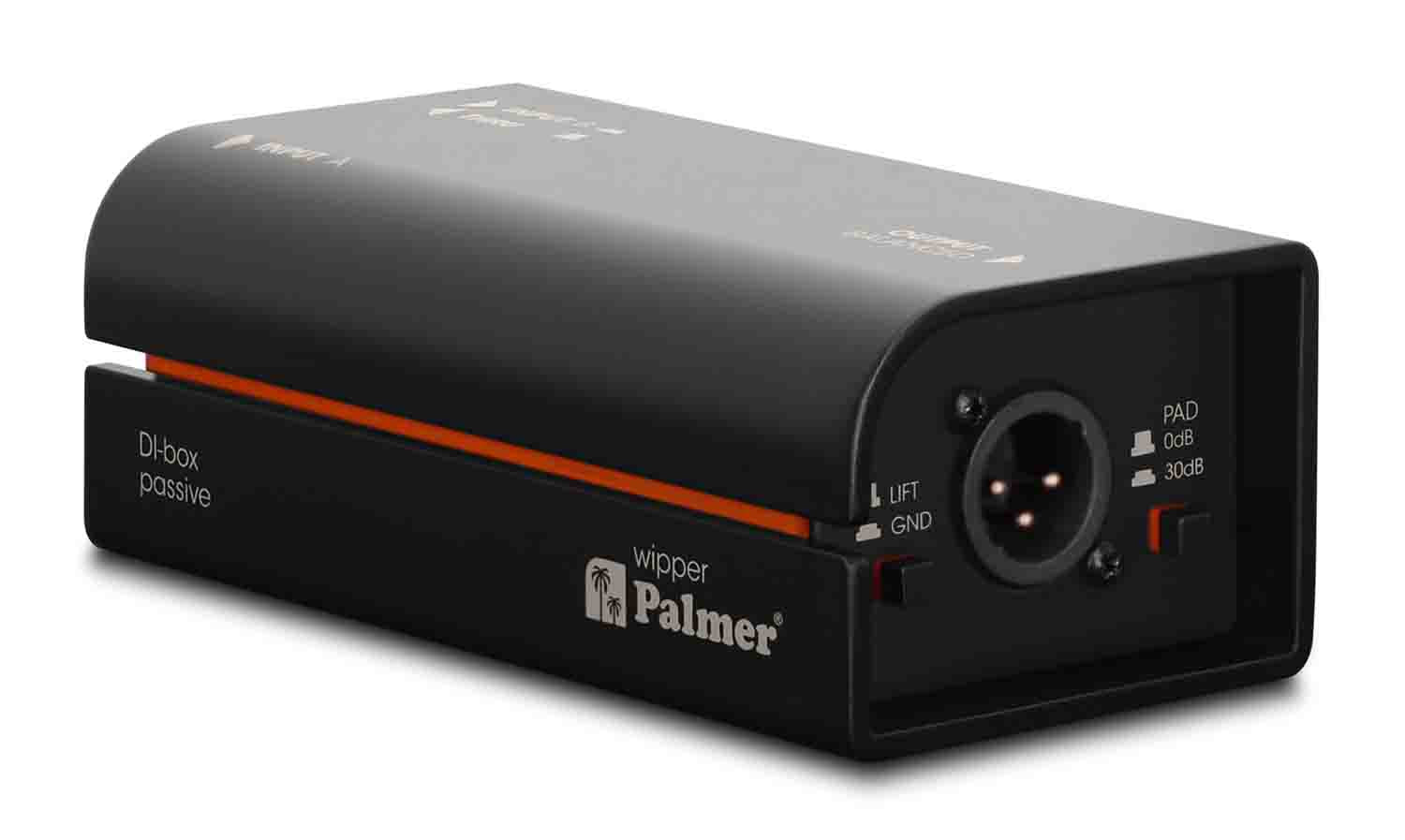

Palmer wiper Single Channel Passive DI Box

The Palmer wiper Single Channel Passive DI Box is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesizers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

Product Specifications:

Product type: DI box

Type: passive

Channels: 1

Transformer isolated: yes

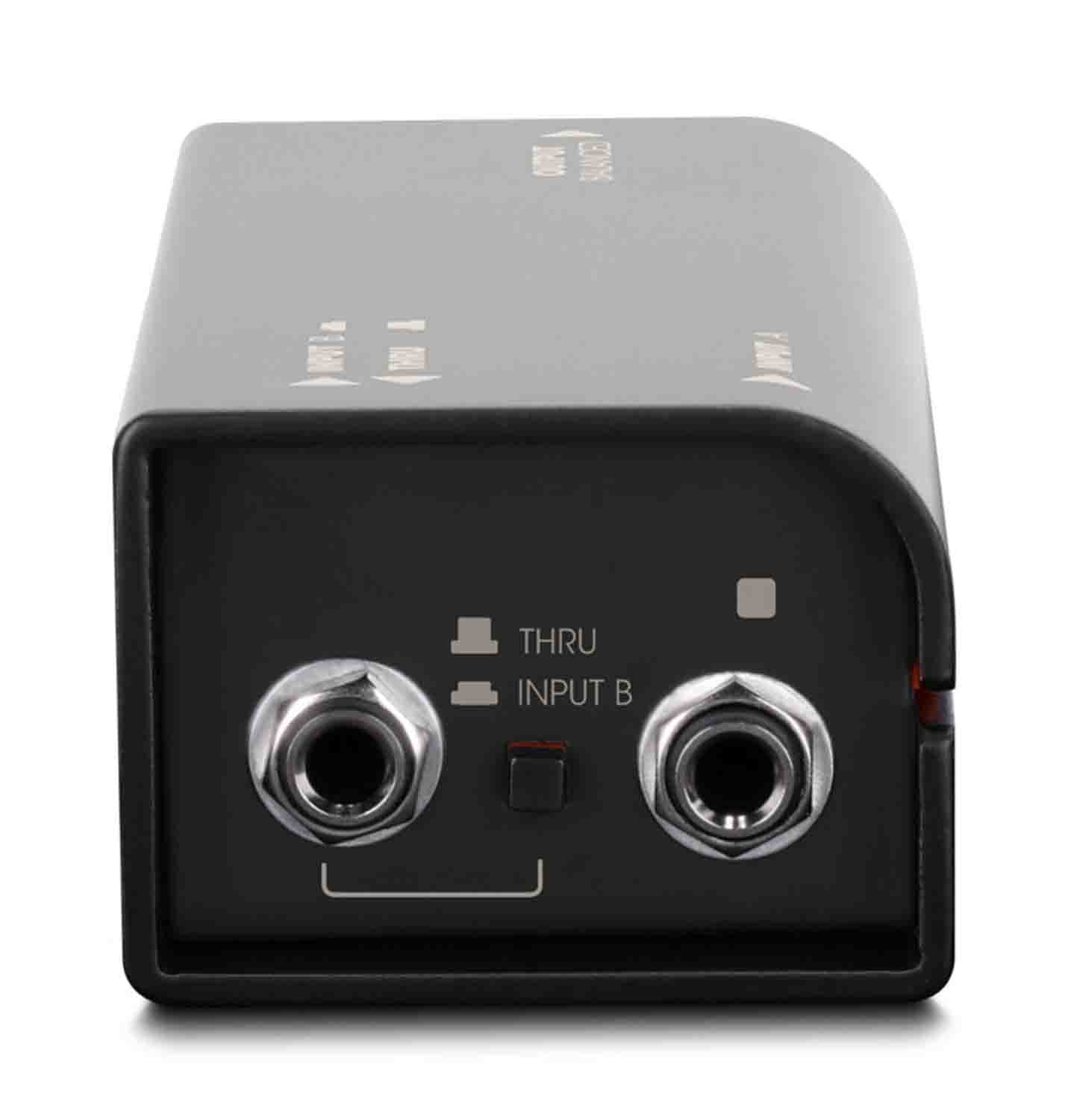

Inputs: 2

Input type: unbalanced

Input connectors: 6.3 mm jack

Outputs: 1

Output type: balanced

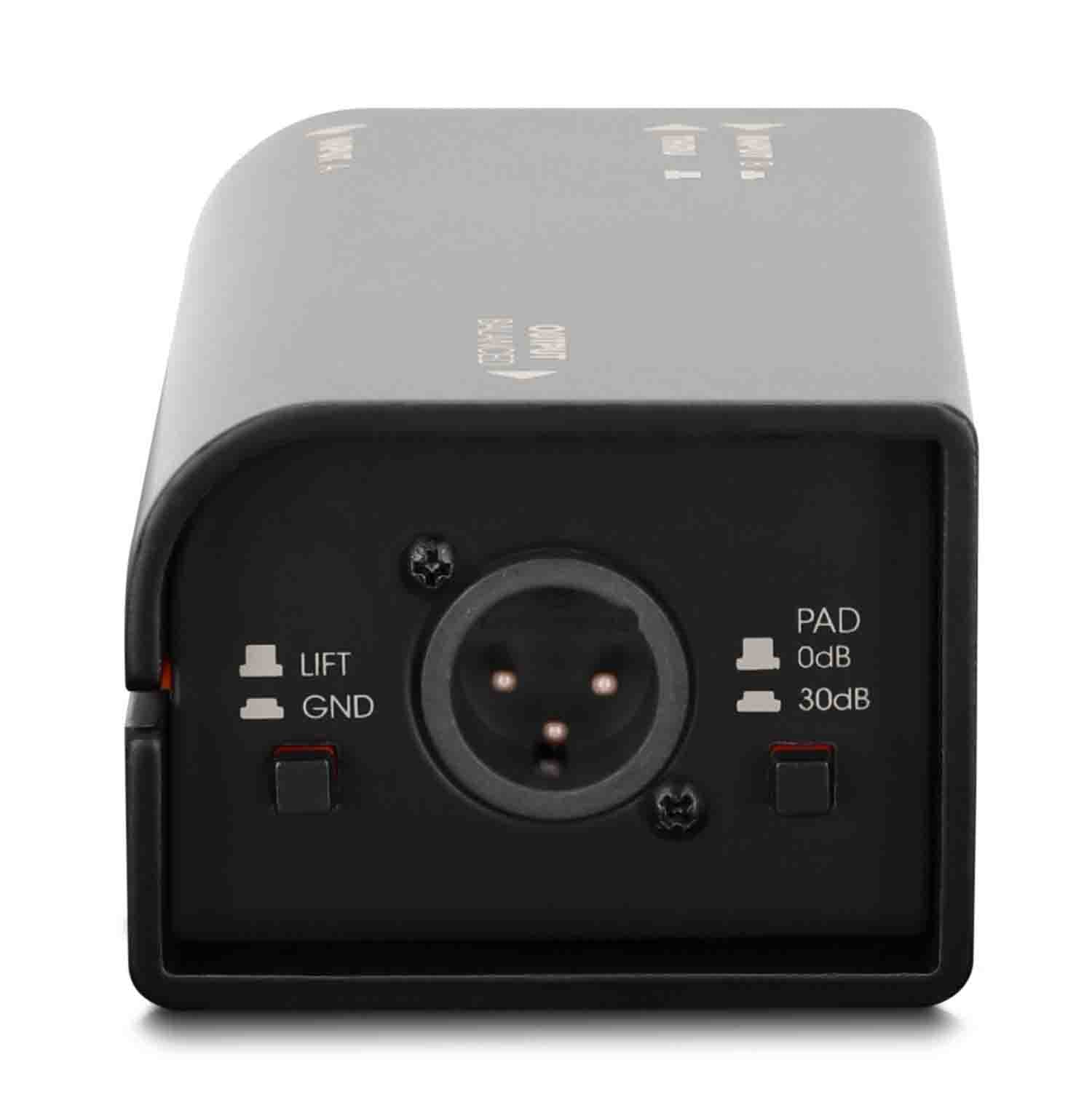

Output connectors: XLR

THRU outputs per channel: 1

Input attenuation (Pad): 0 / 30 dB

Ground lift switch: Yes

Additional Features: mono merge

Housing: Aluminum continuous casting

Ambient temperature (in operation): - 20 - 70 °C

Relative Humidity: < 80% (non-condensing)

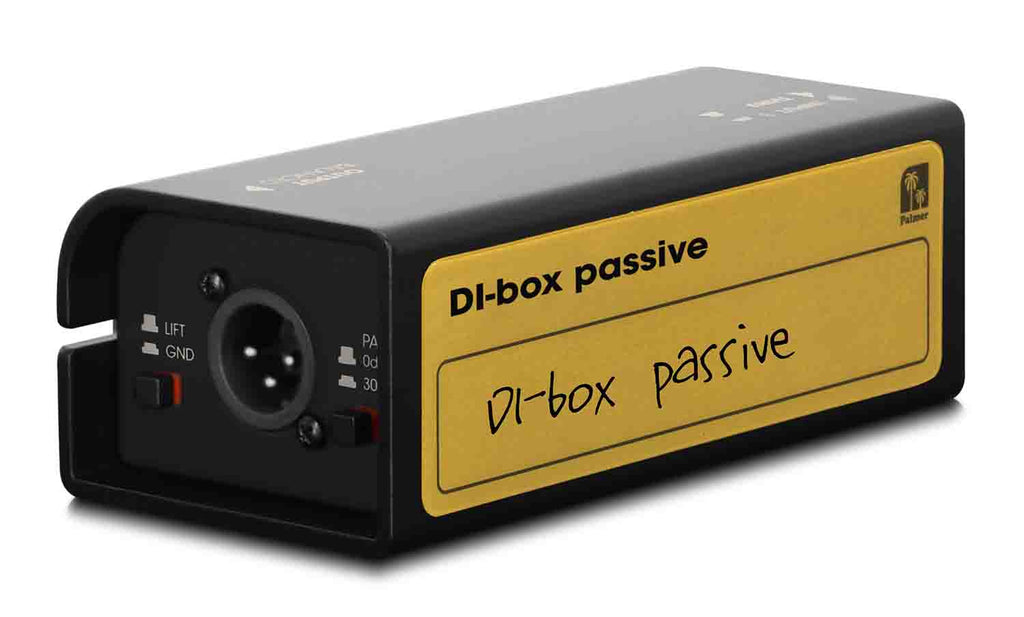

Accessories (included): Inscription label (tour label), rubber feet

Package Weight: 1.41 lb

Box Dimensions (LxWxH): 2.51 x 6.45 x 3"
