Description

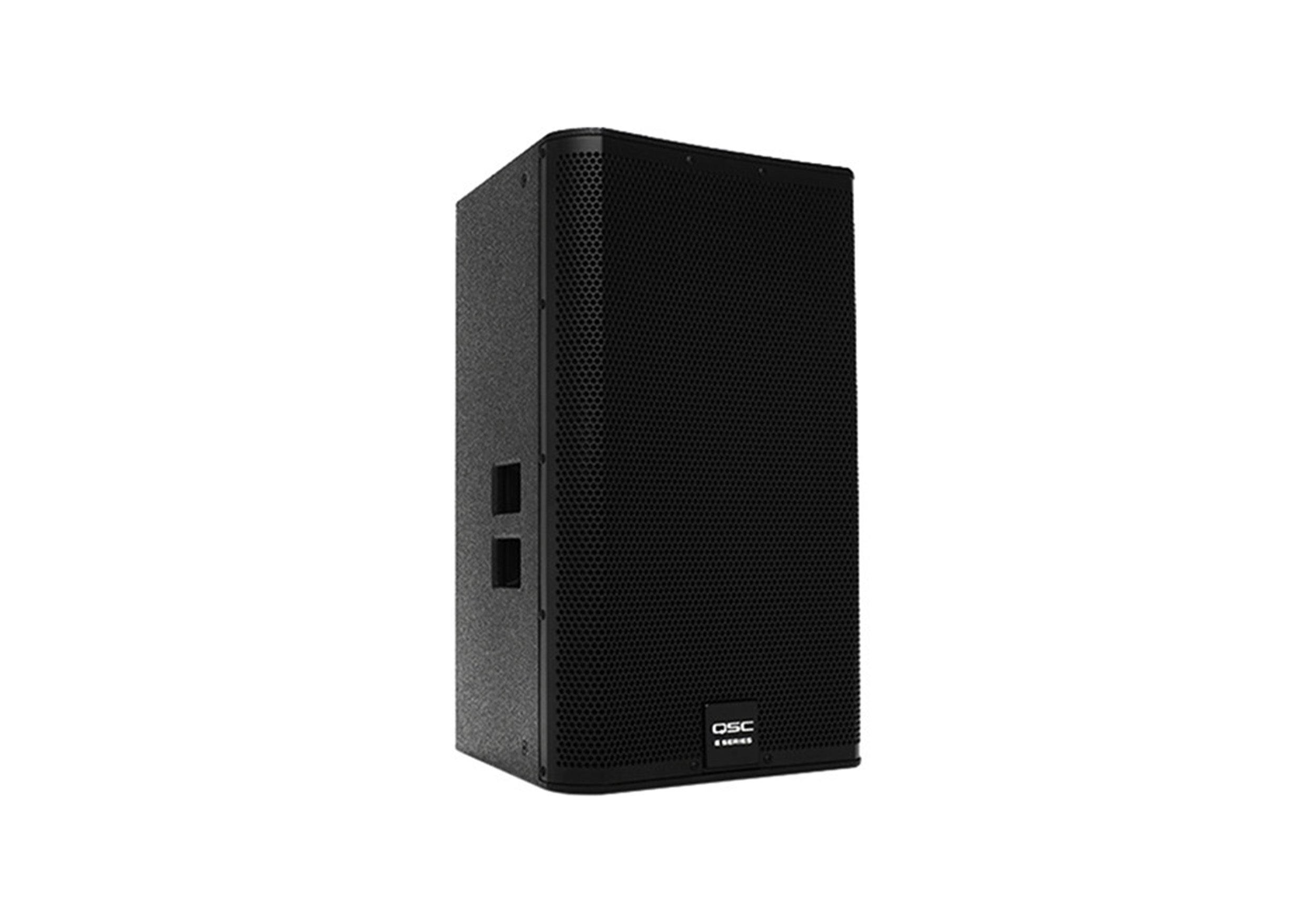

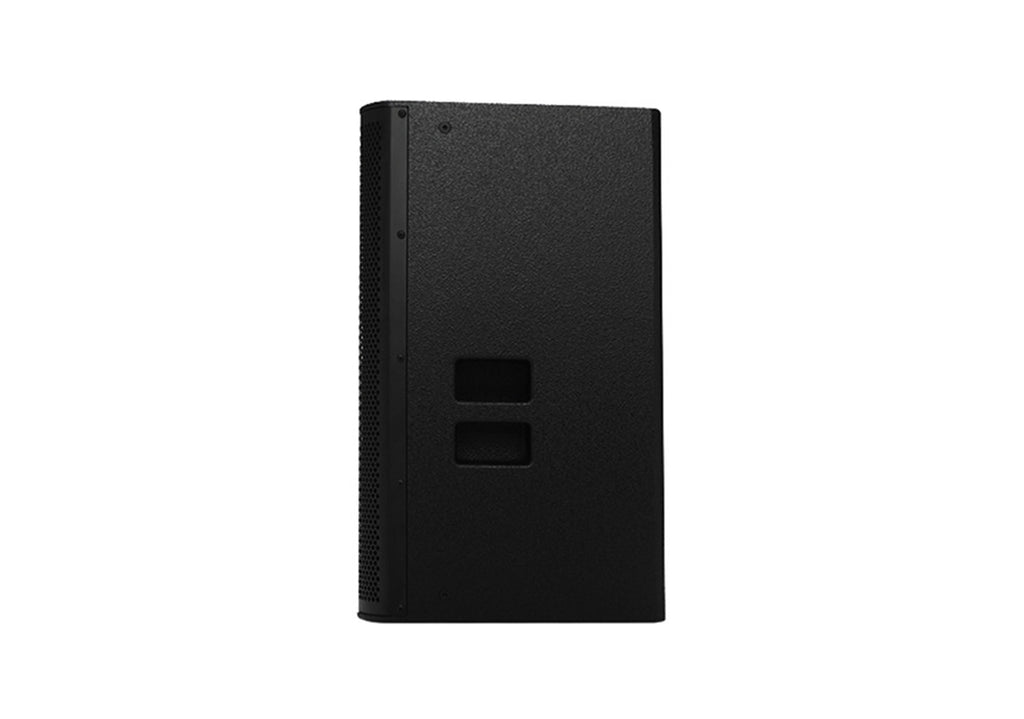

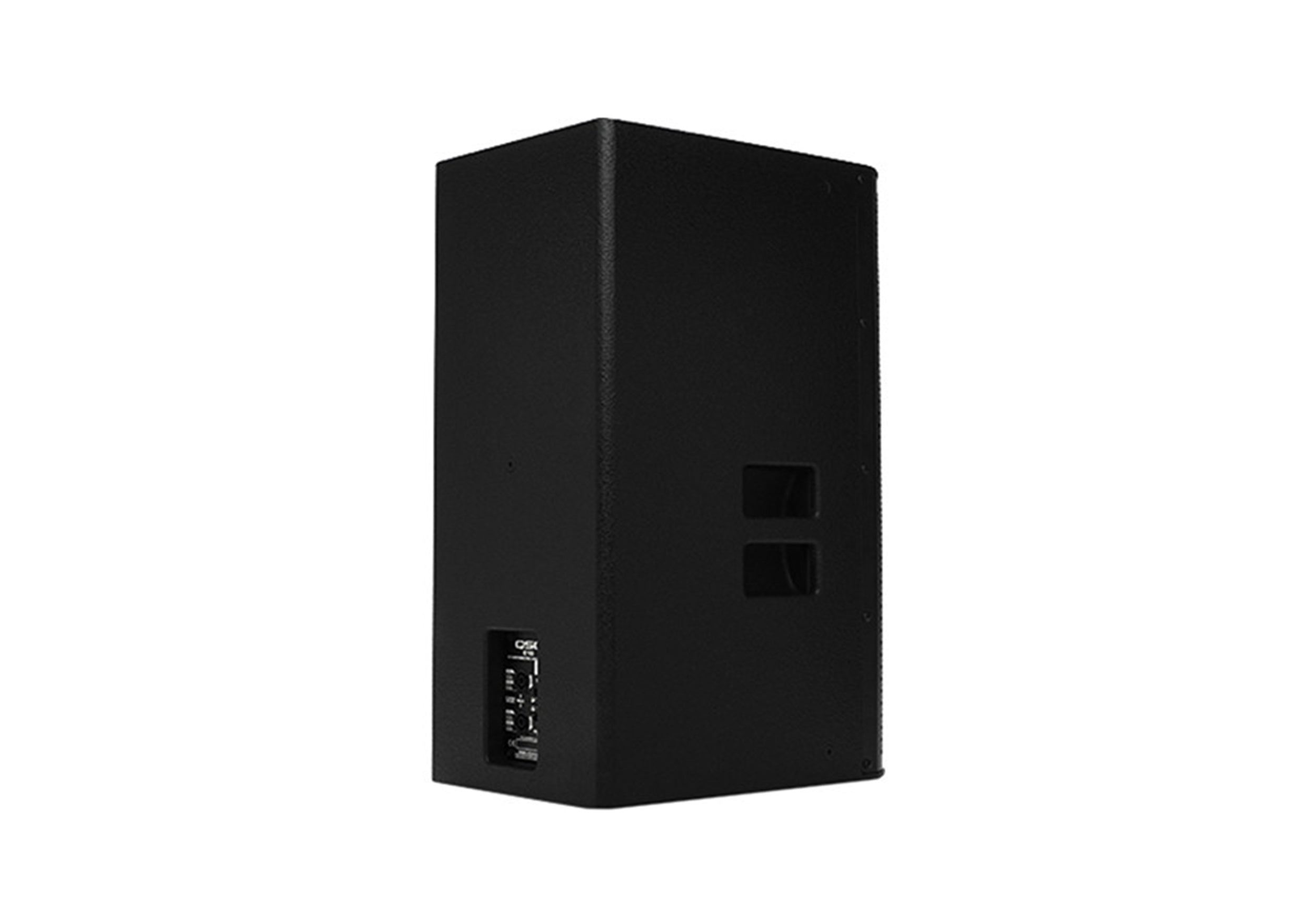

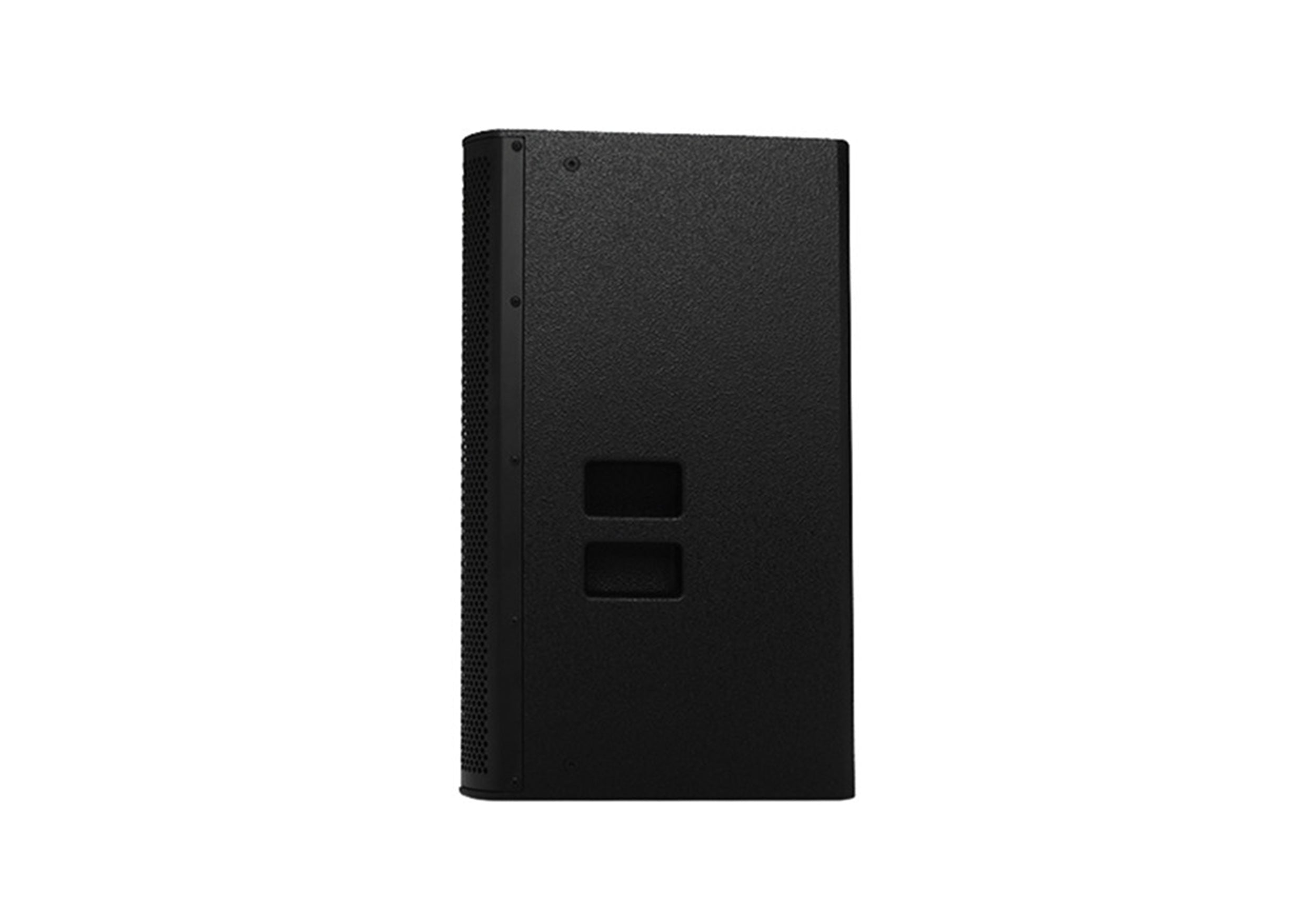

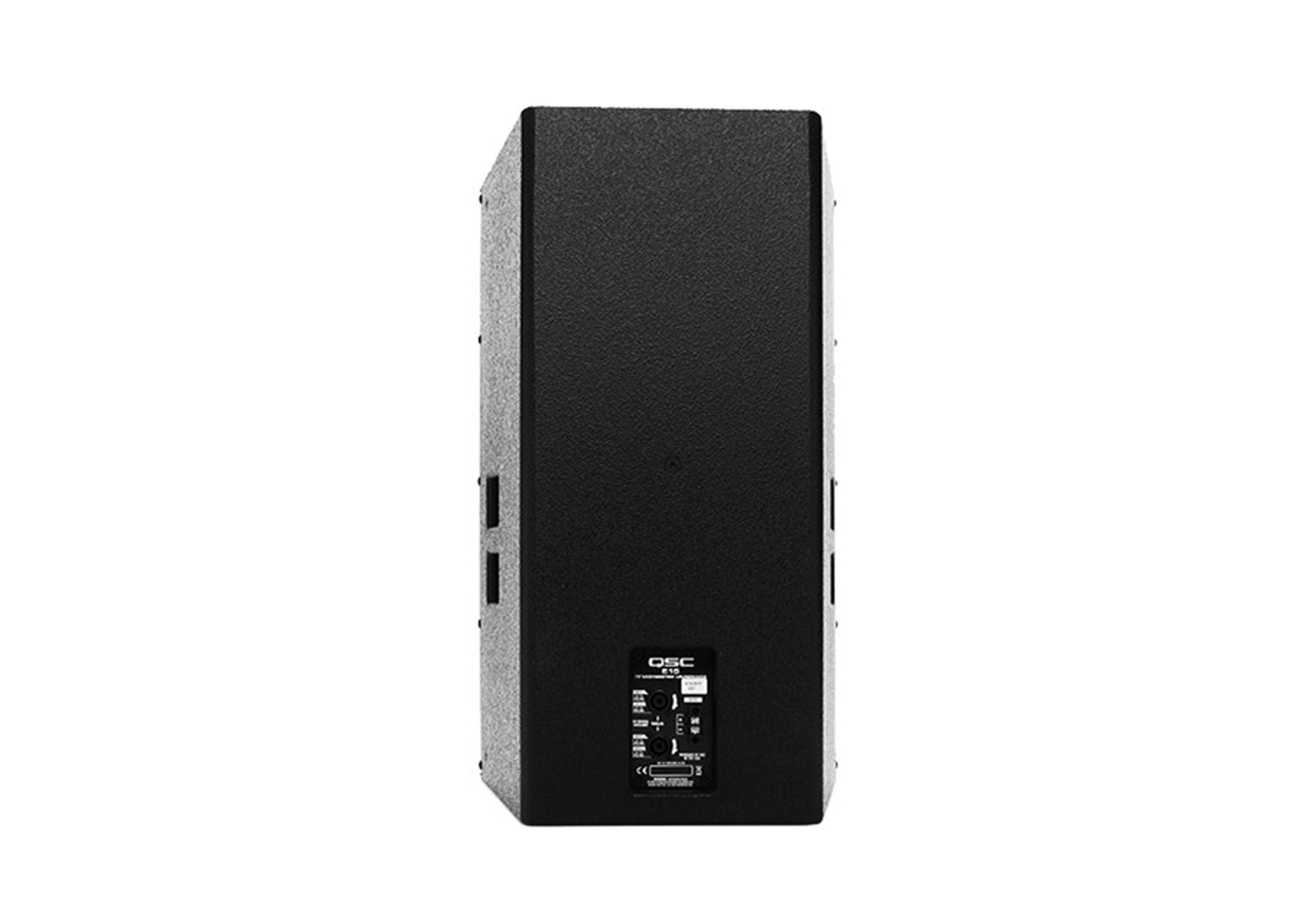

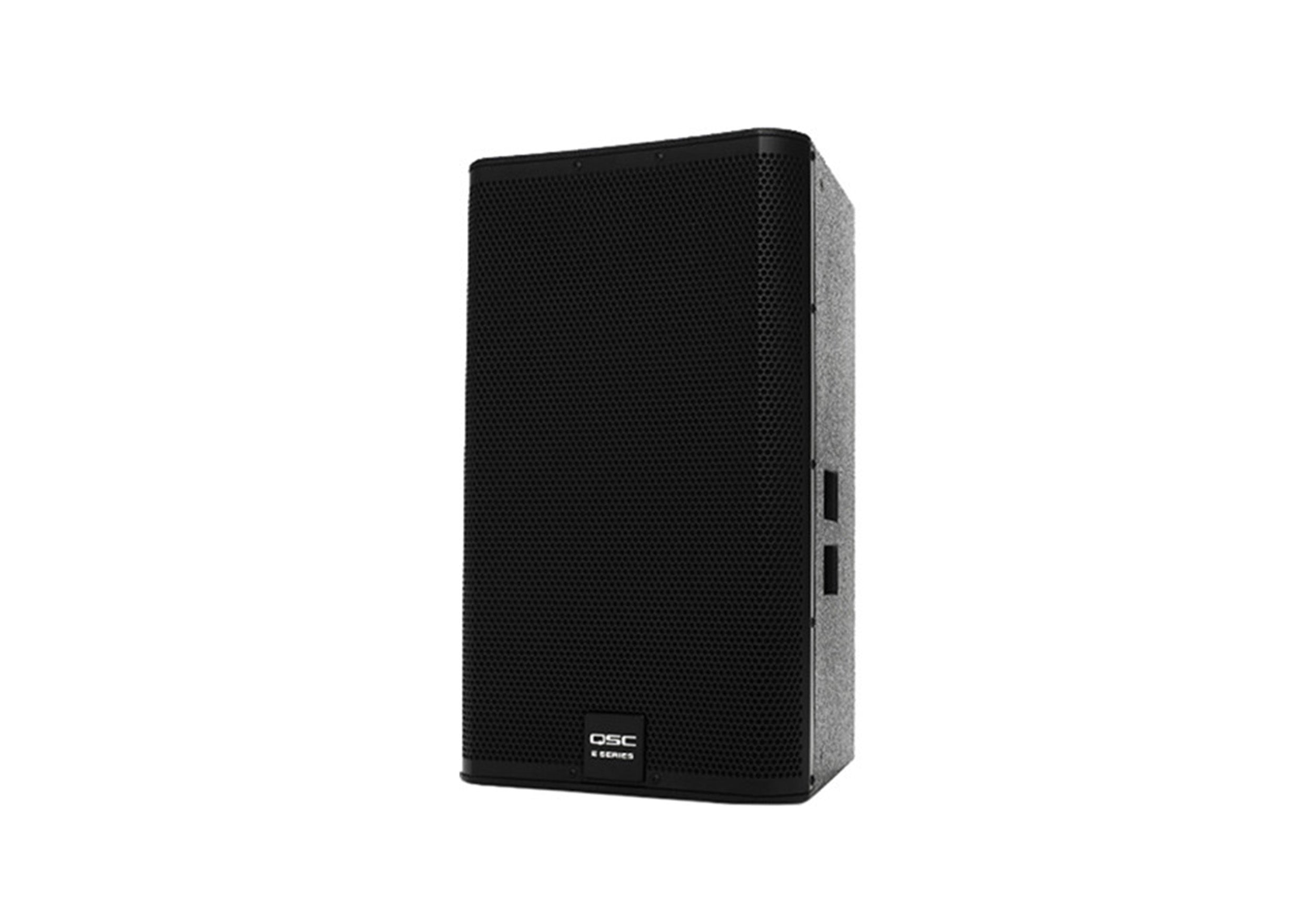

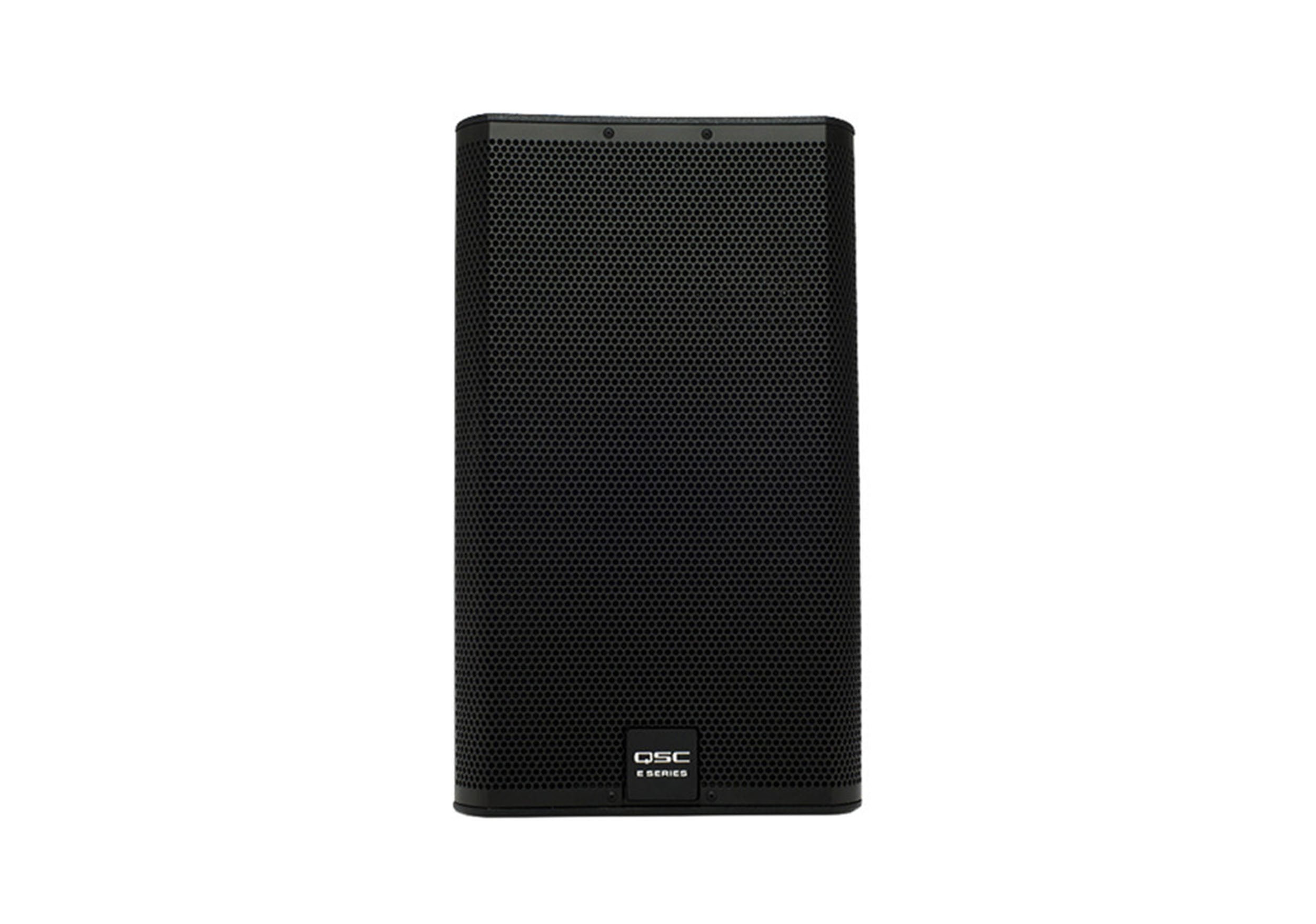

The E115 is a trapezoidal, two-way loudspeaker using a 15-inch, 500W, die cast aluminum frame woofer with a 3.5-inch voice coil. It is intended for use when high-power and authoritative low-end are needed from a full-range loudspeaker. A 2.8 inches compression driver attached to the 75 degrees DMT waveguide assures that even distant listeners will be well covered.
E Series loudspeakers will perform very well with any quality, professional power amplifier – but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today’s powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC Tpuch Mix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Product Specifications:
Configuration: 1 × 15-inch, 2-way, non-powered
Frequency Response (-6 dB): 68Hz – 20kHz
Frequency Range (-10 dB): 50Hz - 20kHz
Power capacity² continuous/peak: 300 W / 1200 W
Sensitivity: 95 dB, 1 W @ 1 m
Coverage Angle: 85° conical DMT
Output1 (Peak SPL @ 1m): 126 dB
LF: 254 mm (10 in) driver with 64 mm (2.5 in) voice coil.
HF: 25 mm (1 in) exit, 45 mm (1.75 in) voice coil, compression driver
Nominal Impedance: 8Ω
Cross-over: Full-range only, 1.8 kHz
Input Connections: 2 × NL4, 1 × barrier strip
Enclosure: Multi-angle plywood, black texture paint finish. One top-mounted handle. Perforated, powder-coated steel grille with foam lining.
Product Weight: 31 kg / 68 lbs.
Product Dimensions (W×H×D): 420 × 716 × 445 mm/16.5 × 28.2 × 17.5 in
Shipping Weight: 35.4 kg / 78 lbs.
Shipping Dimensions (W×H×D): 530 × 510 × 813 mm/21 × 20 × 32 in
