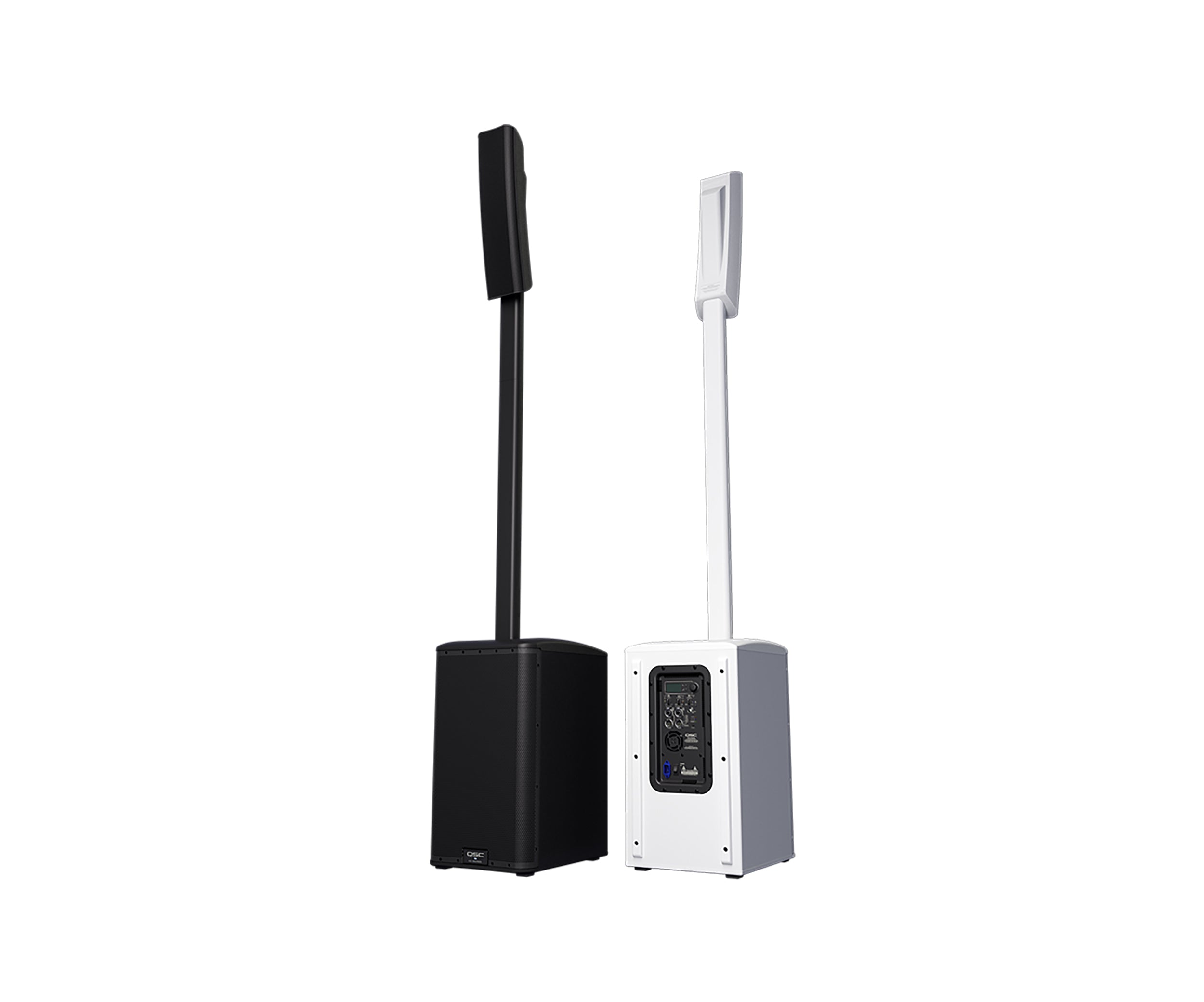

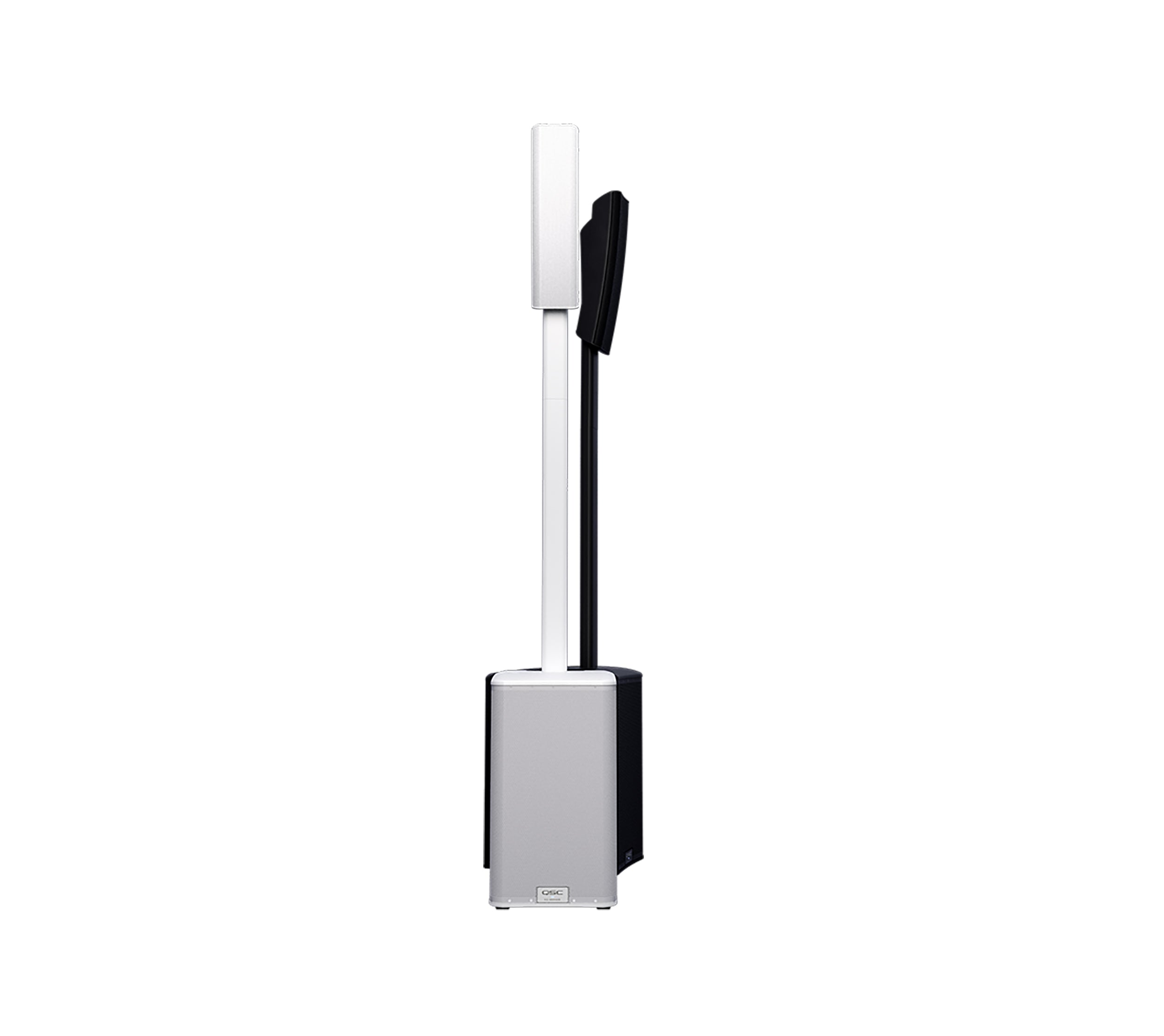

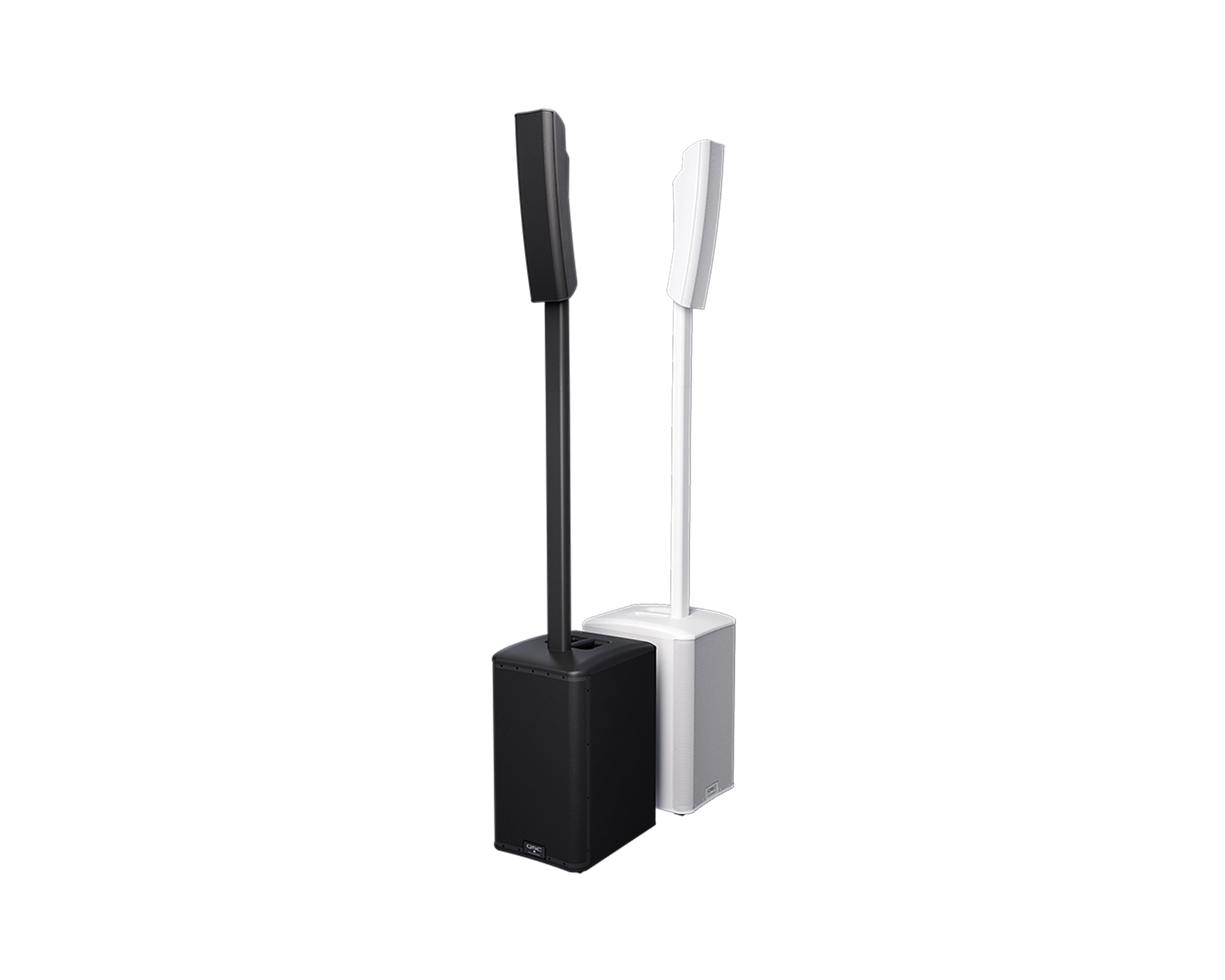

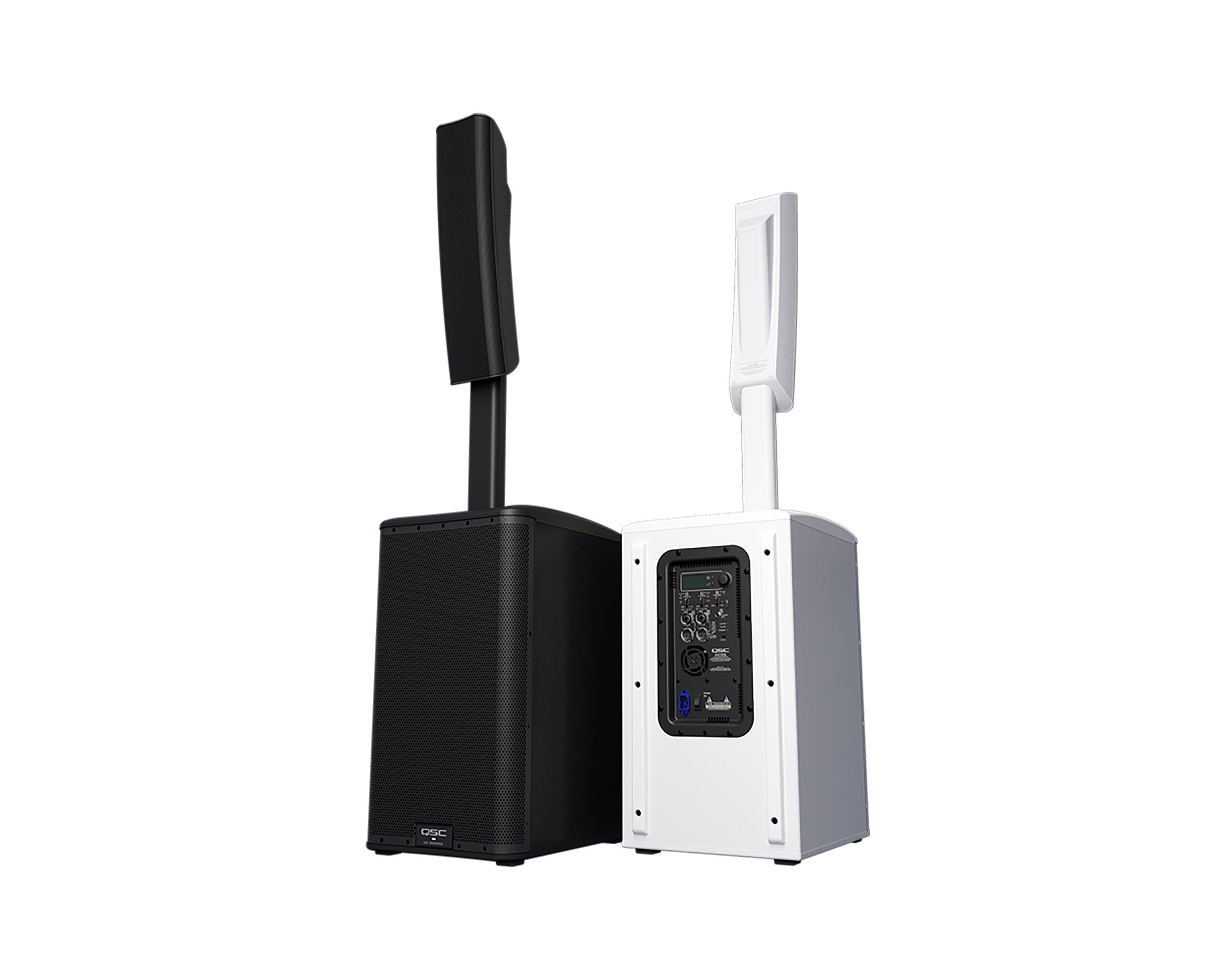

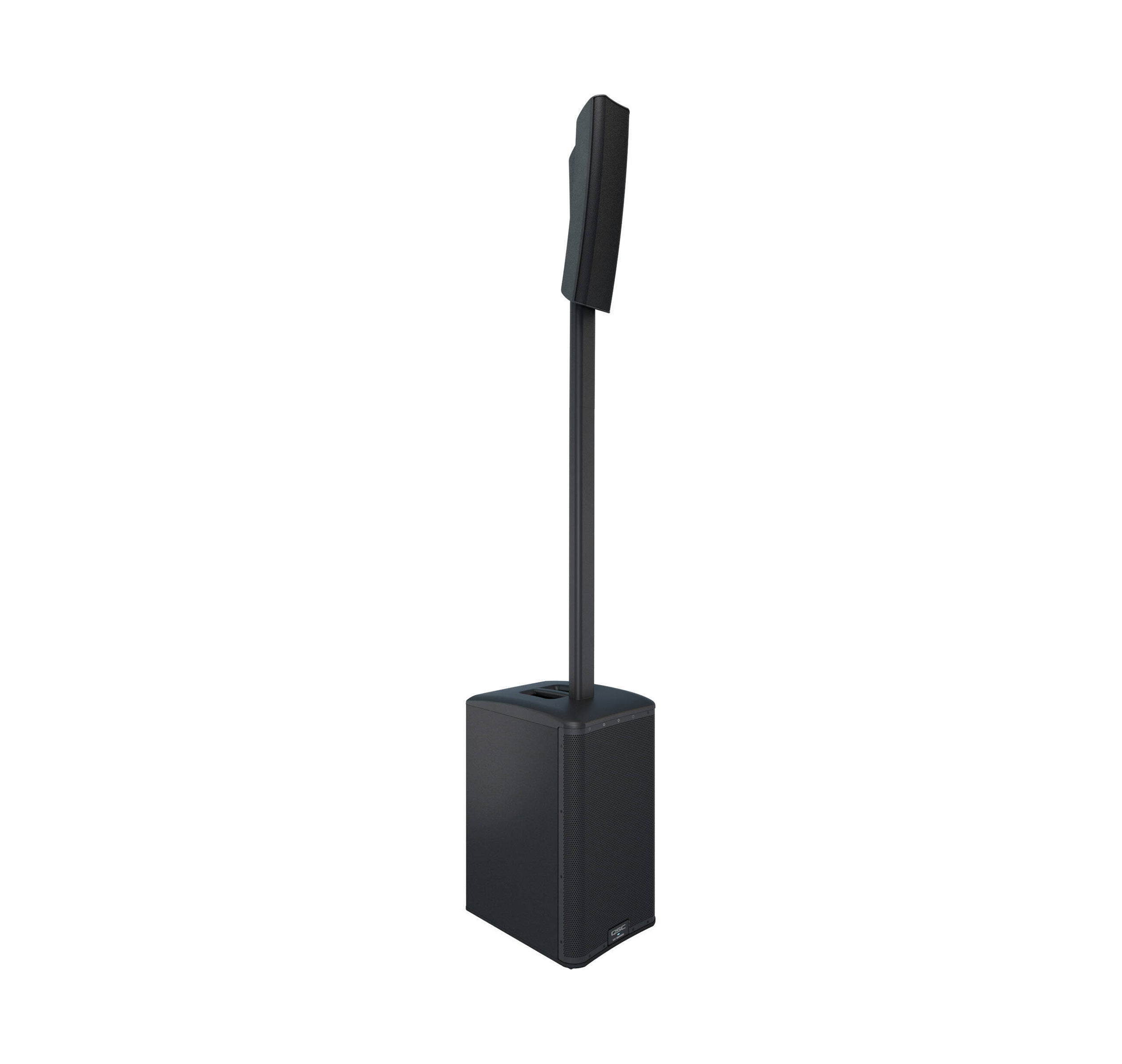

QSC KC12 Active 3-Way Column Professional Speaker with Bluetooth - 3000 Watt

The QSC KC12 is a 3-way, 3000-watt loudspeaker system encompassing the visual aesthetic of a column loudspeaker, while surpassing the acoustic performance of conventional designs. Simple and rapid to deploy, the elegant KC12 is ideal for solo entertainers, musicians and bands, mobile entertainers and DJs, AV productions and static installations.

The highly portable KC12 system consists of a ported subwoofer, housing a 12-inch driver extending down to 40 Hz. The groundbreaking design of the mid/high enclosure features a 1-inch compression driver combined with the innovative QSC LEAF (Length-Equalized Acoustic Flare) waveguide, as well as two high-excursion 4-inch midrange drivers. Thanks to this 3-way design, the system provides an outstanding full-range horizontal coverage of 145 degree, and 35 degrees of audience-directed vertical coverage, with clean and natural sound at all output levels.

The QSC 3-way loudspeaker system delivers exceptional sound with a 12-inch subwoofer, dual 4-inch midrange drivers, and a 1-inch HF compression driver utilizing the proprietary QSC LEAF™ waveguide for uniform 145° H x 35° V coverage and excellent throw. It provides a powerful 132 dB peak SPL with 3000 W of energy-efficient Class D amplification featuring Power Factor Correction for low AC consumption. Equipped with two combo XLR inputs, assignable factory presets, and Bluetooth Audio with True Wireless Stereo (TWS), it supports versatile audio setups for events. A multi-function digital display offers control over EQ, presets, delay, reverb, and more.

Configured with or without its column pole, the system is ideally suited for direct deployment on a floor, stage or riser. Available in black and white, the KC12 is backed by an industry-best global 6-Year Extended Warranty, with product registration.

Product Specifications:

Configuration: Active 3-Way Column Loudspeaker System

LF Transducer: 305 mm (12-inch), cone

MF Transducer: 2 x 102 mm (4-inch), cone

HF Transducer: 25.4 mm (1-inch), compression driver

Frequency Response (-6 dB): 45 Hz - 18.5 kHz

Frequency Range (-10 dB): 40 Hz - 20 kHz

Nominal Coverage Angle: 145° H x 35° V

Maximum Rated SPL1 (peak): 132 dB @ 1 m

Amplification (peak): Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)

Cooling: Low noise, variable speed fan

Controls:

1 x Rotary encoder and

2 x Push buttons

3 x Rotary level potentiometers

1 x AC power switch

Indicators:

Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)

2 × Power LEDs (blue), Subwoofer front and rear

1 x Standby LED (yellow)

1 x Limiter LED (red)

3 × Input Signal/Clip LEDs (Signal: green / Clipping: red)

Input A: Mic/Line with assignable Hi-Z selected LED

Input B: Mic/Line with assignable +48 V selected LED

Input C: Bluetooth selected LED

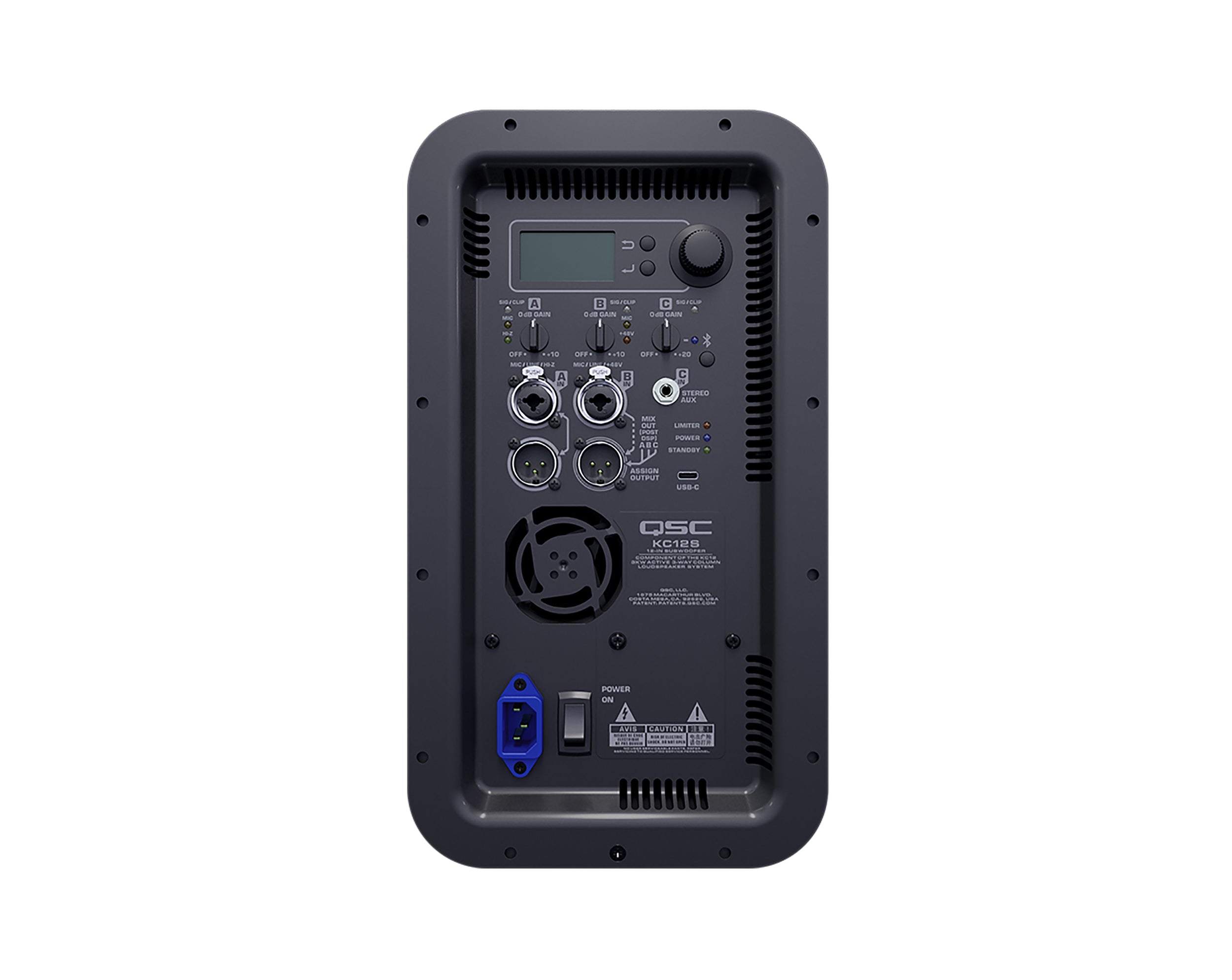

Connectors:

2 × locking XLR/F ¼ inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V)

2 × XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)

1 × 3.5 mm TRS (Stereo Input)

1 x USB-C (Output: 5V/3A)

1 × locking IEC power connector

AC Power Input : Universal power supply, 100-240 VAC, 50/60 Hz

AC Power Consumption2: 1100-240 VAC ~ 3.7-1.8 A

System Components:

KC12T 145° Dual 4-inch Column System Loudspeaker

KC-SP32 32-inch Column System Pole

KC12S 3kW Active12-inch Column System Subwoofer

Enclosure Materials: Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum

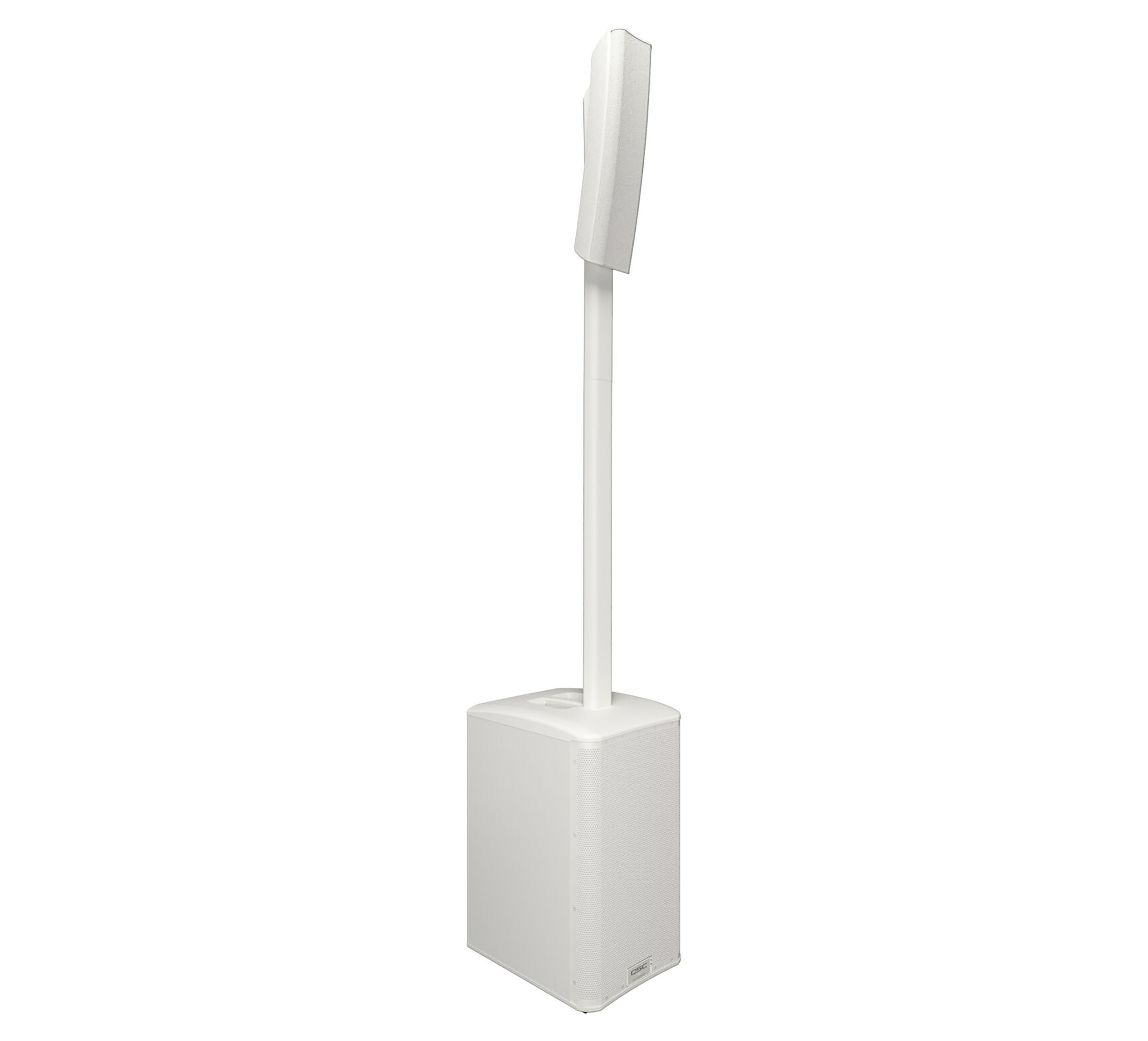

Color: Black (RAL 9011), White (RAL 9010)

Grille: Powder-coated steel with internal cloth lining (KC12T: 21 Gauge / KC12S: 18 Gauge)

System Height:

Tall Deployment: 2270 mm / 89.4 in (with KC-SP32)

Short Deployment: 1463 mm / 57.6 in (without KC-SP32)

Dimensions (H x W x D):

KC12T: 890 × 141 × 158 mm / 35 × 5.6 × 6.2 in

KC-SP32: 881 × 74 × 46 mm / 34.7 × 3 × 1.8 in

KC12S: 655 × 357 × 455 mm / 25.8 × 14 × 18 in

Net Weight:

Tall Deployment: 27.3 kg / 60.3 lb (with KC-SP32)

KC12T: 4.0 kg / 8.9 lb

KC-SP32: 1.3 kg / 2.9 lb

KC12S: 22.0 kg / 48.5 lb

Supplied Accessory:

KC12 TOTE: Tote for transportation/storage of KC12T and KC-SP32

Accessory: KC12 CVR: Cover for KC12S

Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
