QSC Rmx850a Power Amplifier

The QSC Rmx850a Power Amplifier is a 2RU rack mountable amplifier designed for live sound reinforcement applications. The amplifier features two Class AB output channels that can operate in either stereo or mono bridge mode. The unit operates on a standard 15 amp plug and utilizes high-current toroidal transformers for less noise and better performance when pushing a 2-ohm load. To reduce distortion, the amplifier utilizes independent user-defeat able clip limiters and includes LED indicator lights to show the presence of the signal and when the signal is clipping.

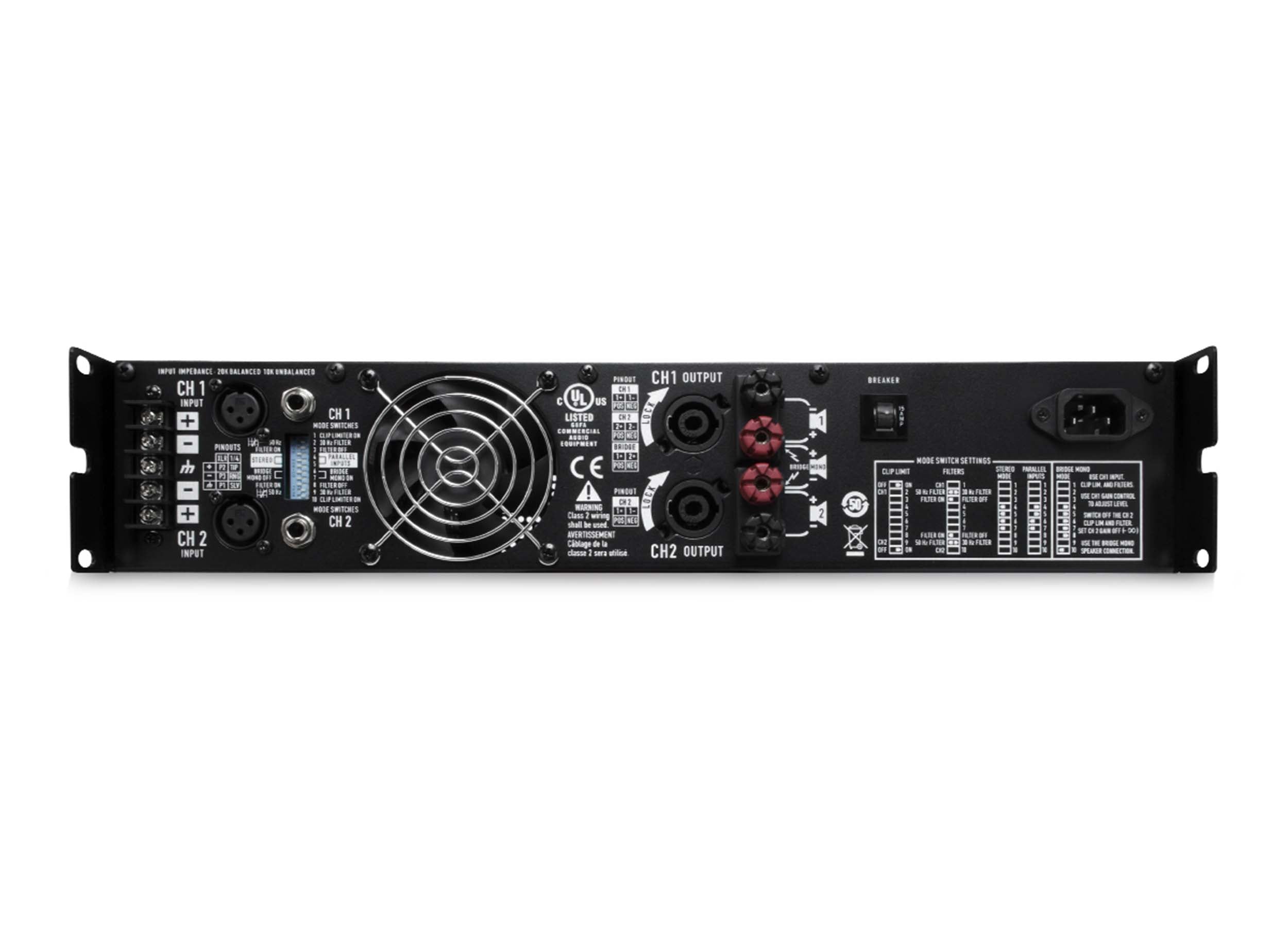

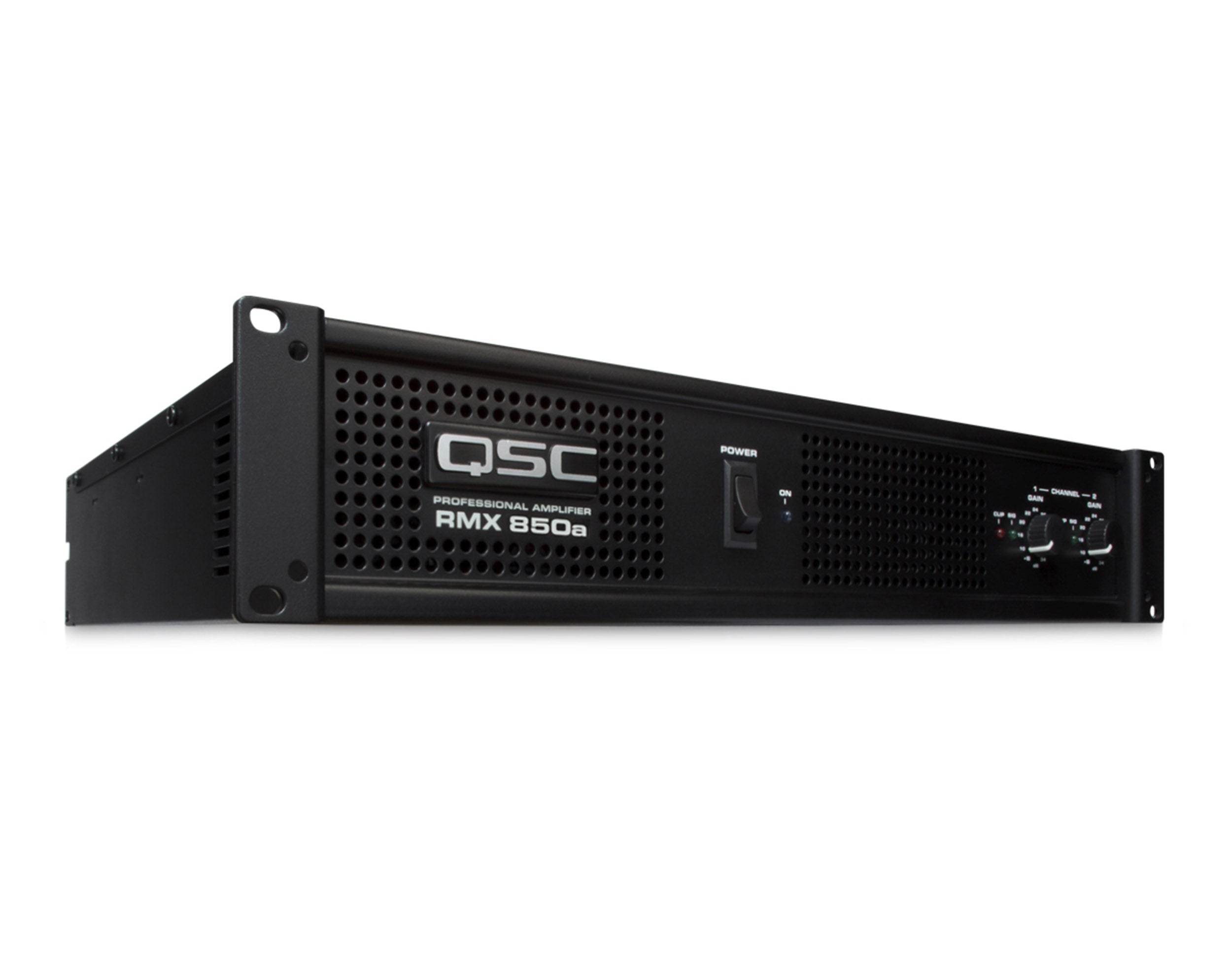

The chassis of the amplifier is designed with front to rear cooling vents and includes selectable low-frequency filters at 30 Hz and 50 Hz to protect speakers from bottoming out and improve headroom when driving mid and high frequencies. The front panel of the unit features two gain control knobs for easy access and each channel is protected by a dedicated DC and thermal overload protection circuit. For inputs, the back of the unit accepts both balanced 1/4" and XLR inputs. For outputs, the unit features both Neutrik Speak on and touch-proof binding post connections.

Product Specifications:

Number of Channels: 2

Power Class: Class AB

Watts/Side @ 8 ohms: 185W

Watts/Side @ 4 ohms: 280W

Watts/Side @ 2 ohms: 430W

Watts Bridged: 830W @ 4 ohms

Inputs: 2 x XLR (balanced), 2 x 1/4" (balanced)

Outputs: 2 x Binding Post, 2 x speakON

Cooling System: Continuously variable speed fan, back-to-front air flow

Filters: Yes

Frequency Response: 20Hz-20kHz

THD: <0.03% tdD /(20Hz-20kHz, 10 dB below full power)

Overload Protection: Full short circuit, open circuit, thermal, ultrasonic, RF protection

Rack Spaces: 2U

Height: 3.5"

Depth: 15.9"

Width: 19"

Weight: 35 lbs
