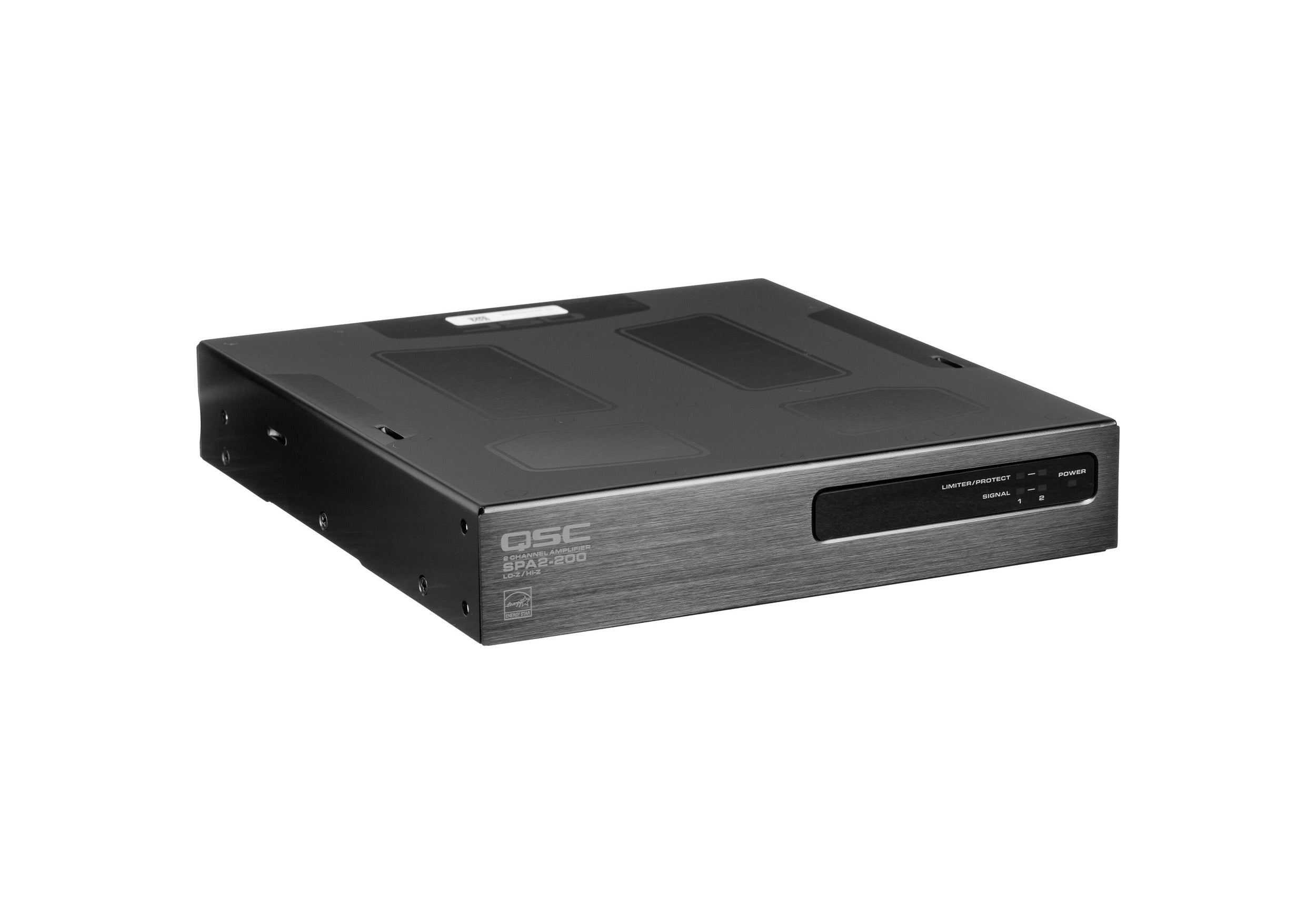

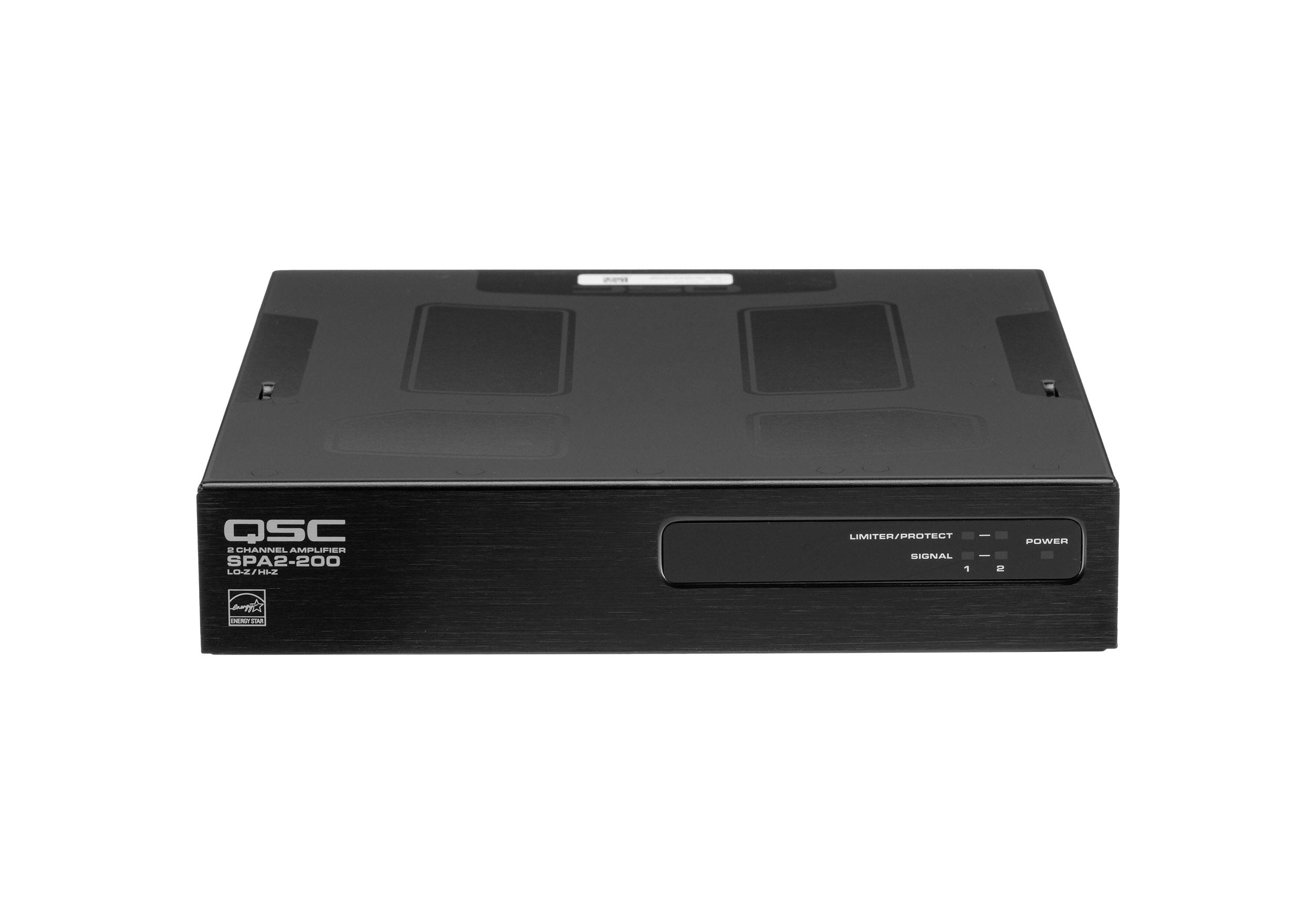

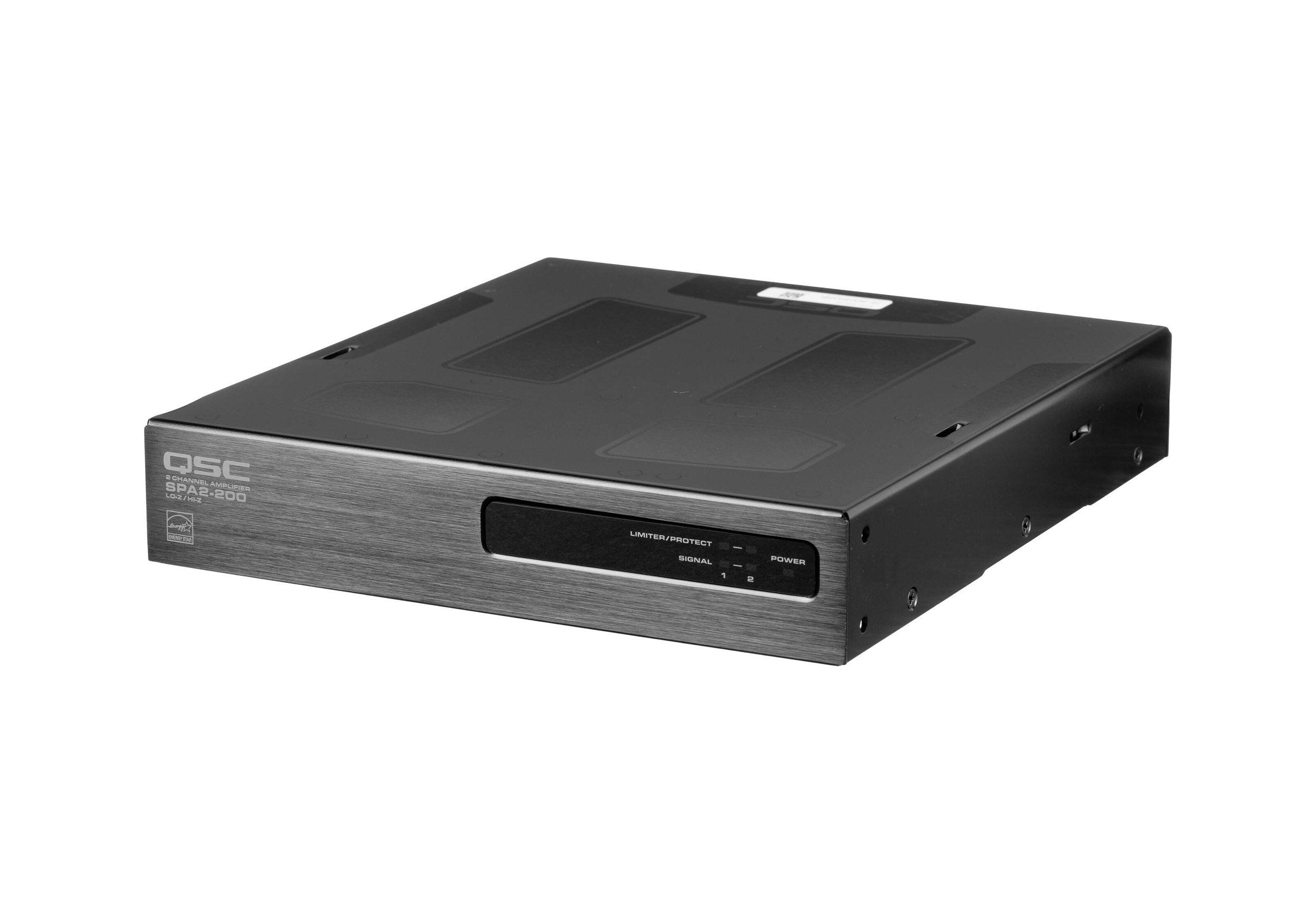

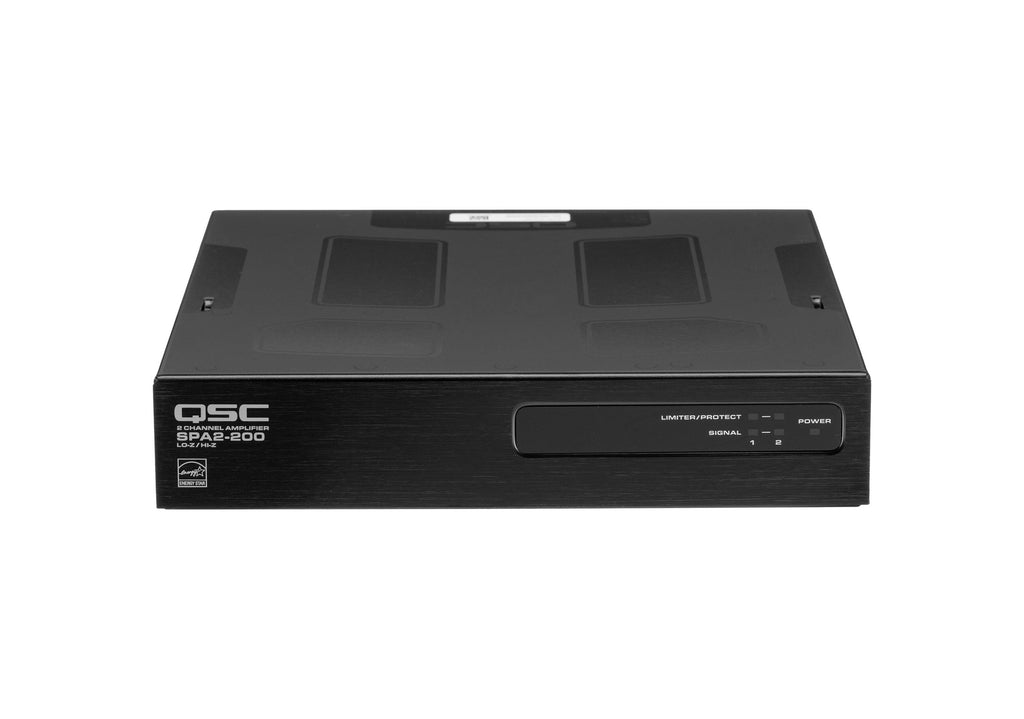

QSC SPA2-200, 2-Channel Power Amplifier - 200W

The QSC SPA2-200, 2-Channel Power Amplifier - 200W is an advanced Class-D amplifier with Energy Star rated efficiency well suited for smaller installations including meeting rooms or BGM zones. The convection cooled amplifier is designed to conserve energy. An auto-ramp circuit ensures quiet and fast power up from standby when a signal is present and seamless power-down following 25 minutes of inactivity, dramatically reducing power consumption.

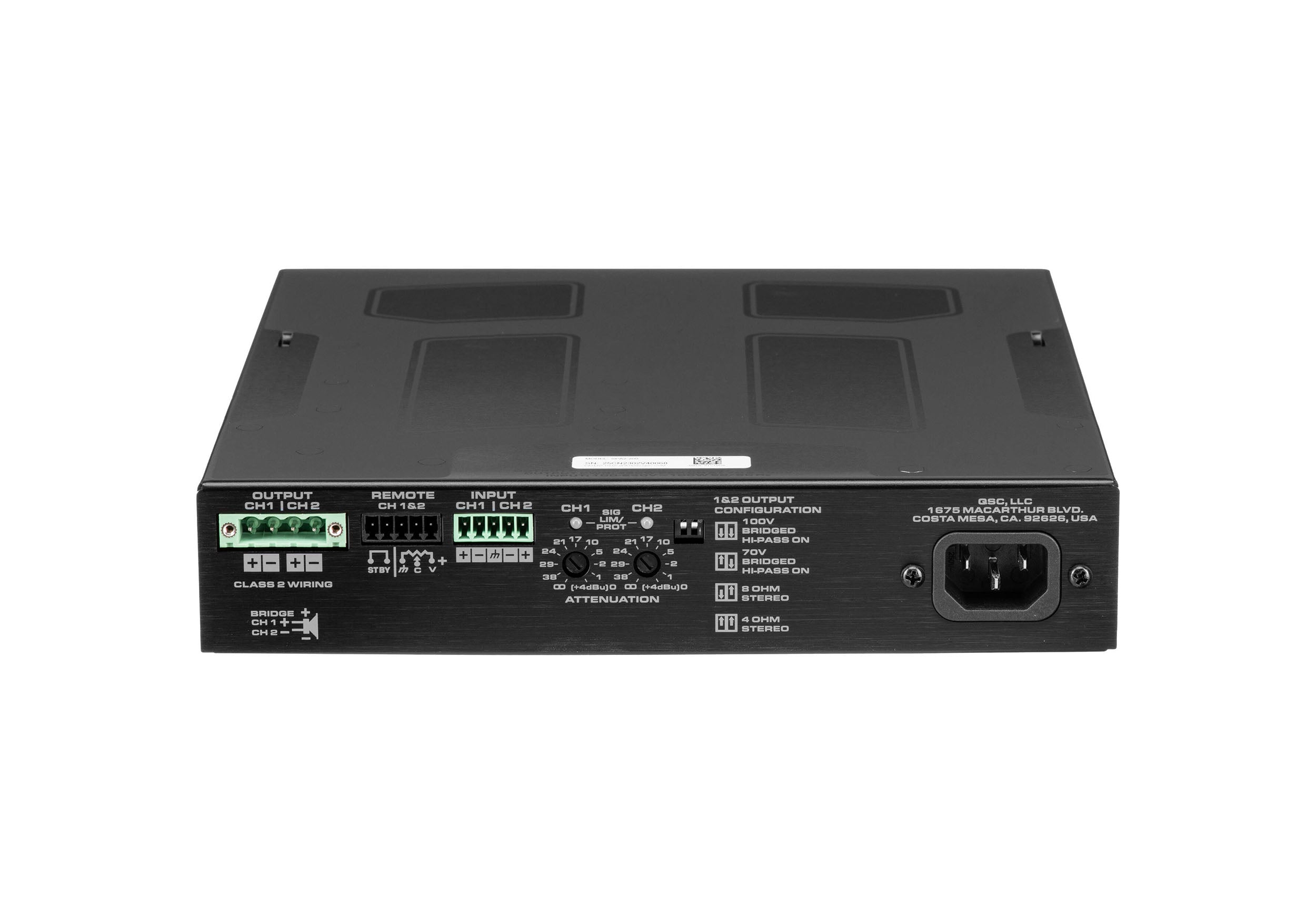

The rear panel utilizes Euro block connectors for inputs and outputs as well as remote inputs. Each channel of the SPA2 provides 200W of power, while the bridge mode provides 400W into 4 or 8 ohms and 350W into 70/100V.

Product Specifications:

Number of Channels: 2

Amplifier Power Rating:

200 W per Channel

400 W Bridged

Amplifier Class: Class-D

Load Impedance / Voltage:

4 / 8 Ohms

70 / 100 V

Performance:

Frequency Response: 20 Hz to 20 kHz ±0.1 dB (4 Ohms, 8 Ohms)

Input Sensitivity: 1.23 V / +4 dBu

Input Impedance: >10 Kilohms (Balanced/Unbalanced)

Max Gain: 30 dB (at 8 Ohms)

SNR: > 100 dB

EQ: No

Filters:

1x High-Pass: 80 Hz

Connectivity:

Analog Audio I/O:

1x Block 5-Pin Line Input

1x Block 5-Pin Remote Input

1x Block 4-Pin Speaker Output

Power:

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

AC Power Connector: 1x IEC 15 A / NEMA 5-15

Product Dimensions: 9.5 x 1.8 x 8.7" / 241.3 x 45.7 x 221.0 mm

Product Weight: 4 lbs. / 1.8 kg

Shipping Weight: 6.5 lbs.

Shipping Dimensions (L x W x H): 15.5 x 11.5 x 3.4 Inches
